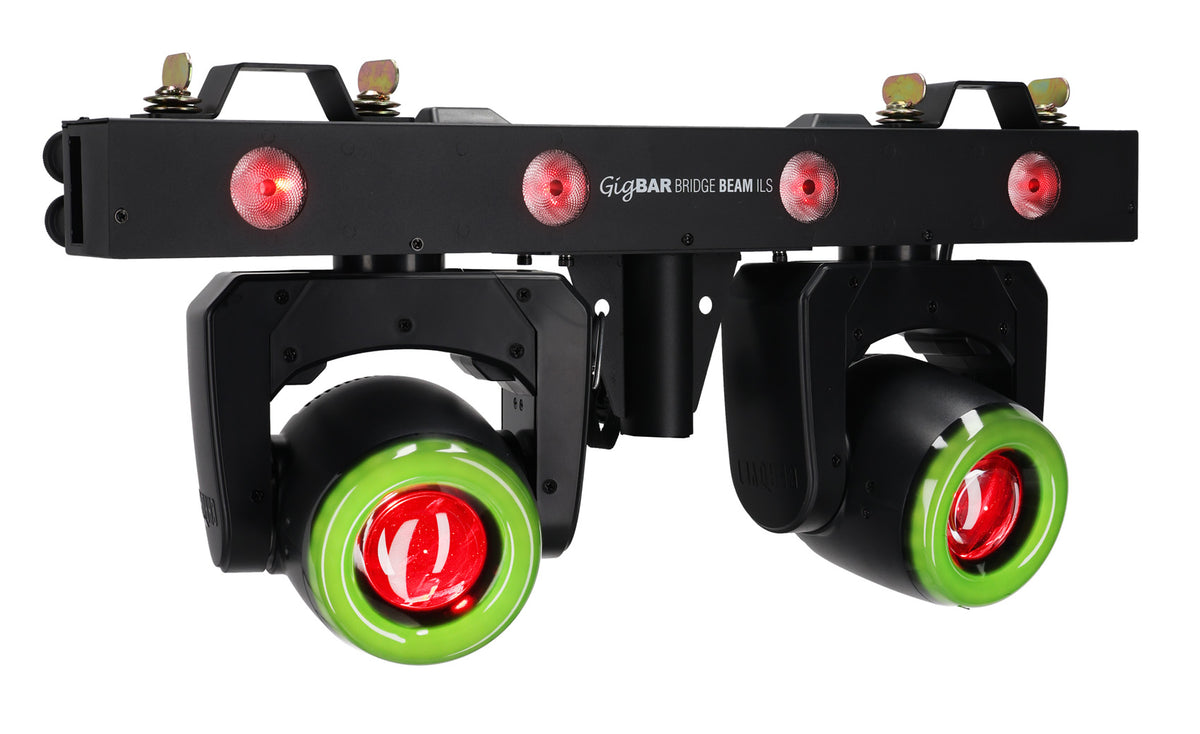

Chauvet GIGBAR BRIDGE BEAM ILS Light Bar w/ Moving Heads/RGBW Rings+Wash Lights
Chauvet

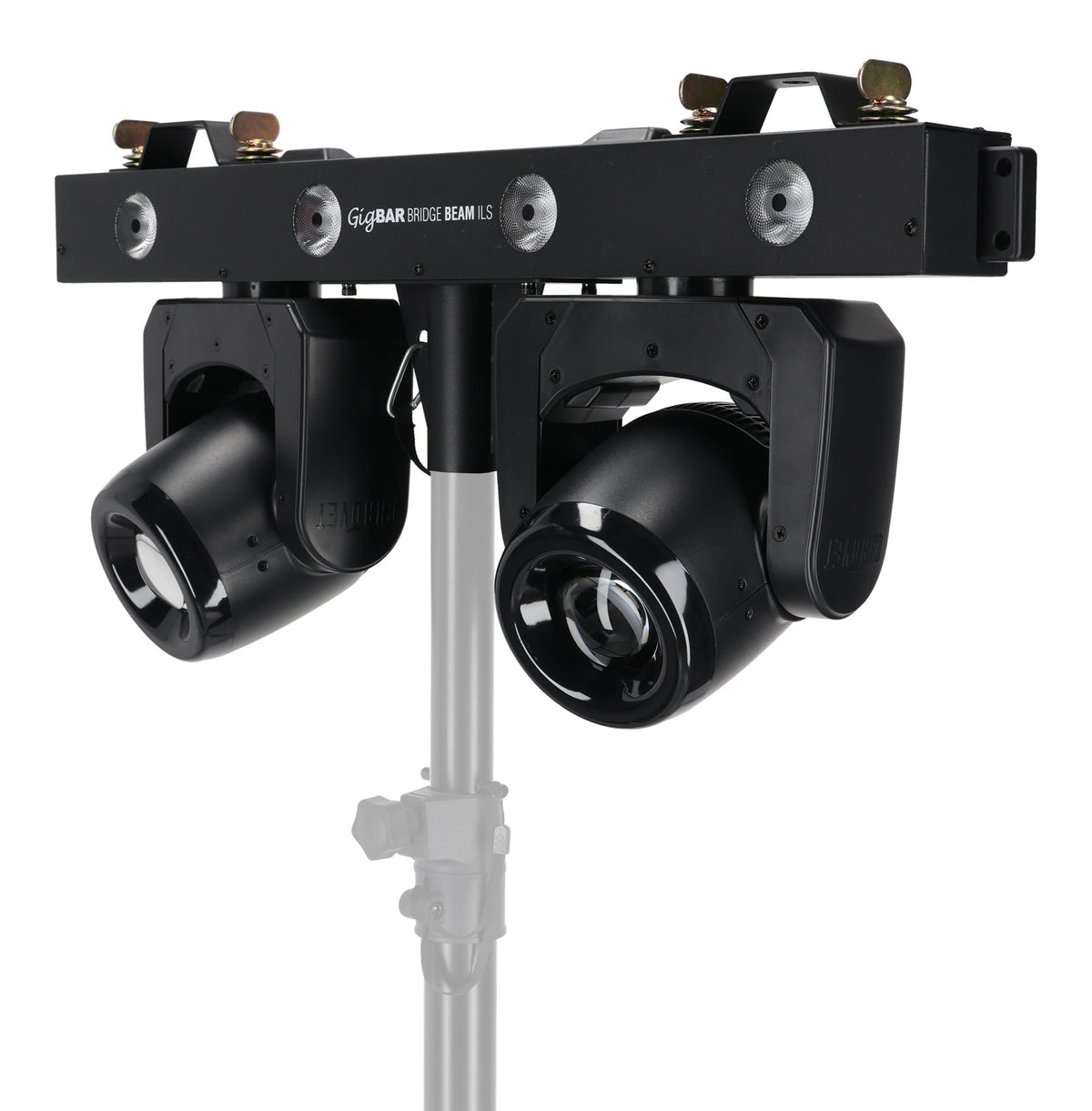

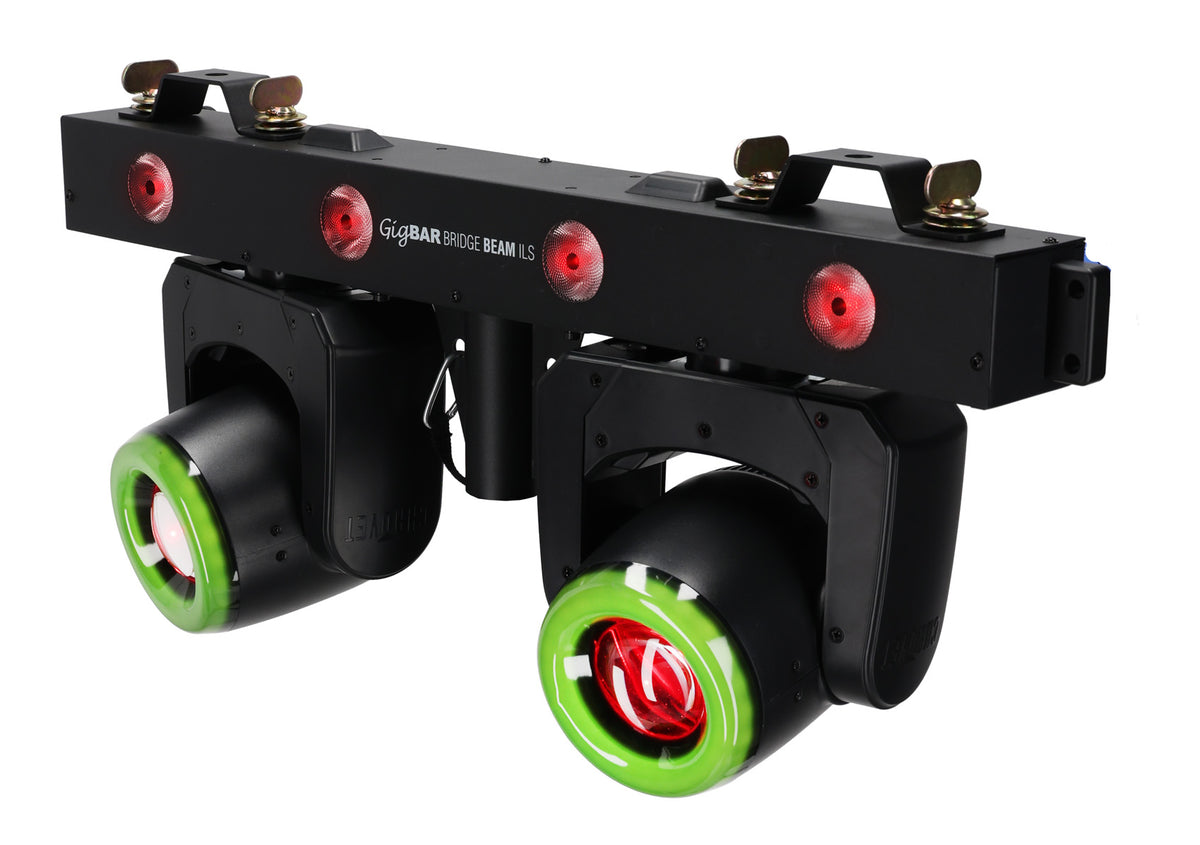

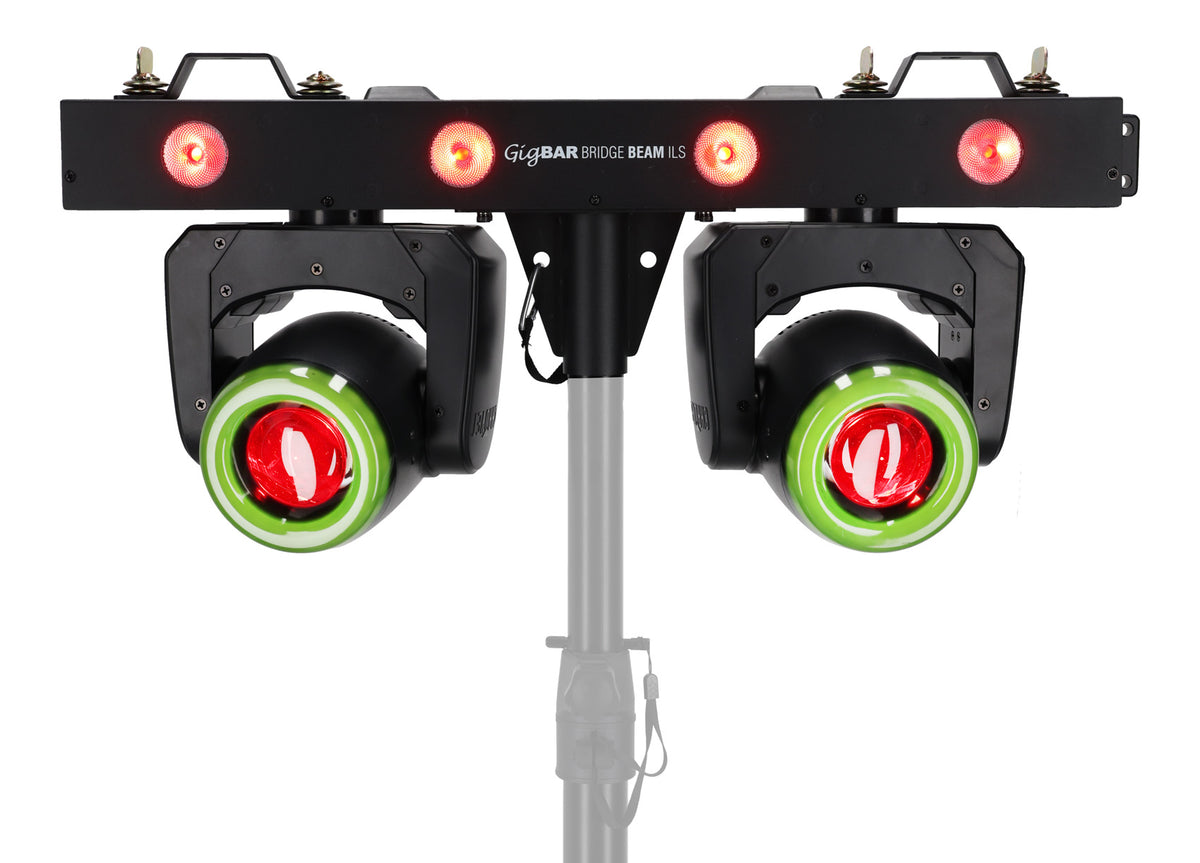

Chauvet GIGBAR BRIDGE BEAM ILS Light Bar w/ Moving Heads/RGBW Rings+Wash Lights
Chauvet GIGBAR BRIDGE BEAM ILS Light Bar w/ Moving Heads/RGBW Rings+Wash Lights
3-In-1 Light Bar, 2 Moving Heads, RGBAW+UV Washes, LED Rings, RF Remote, Brackets, Carry Case
Free Shipping
Features
- Two RGBW moving heads with 540° pan and 270° tilt
- Four RGBAW+UV wash sections cover warm color through blacklight
- 48 RGBW LEDs form dynamic rings for eye-candy effects
- Totem Mode keeps the moving heads aimed at the dance floor
- Includes RF remote, two hanging brackets, and a carry case
Couldn't load pickup availability

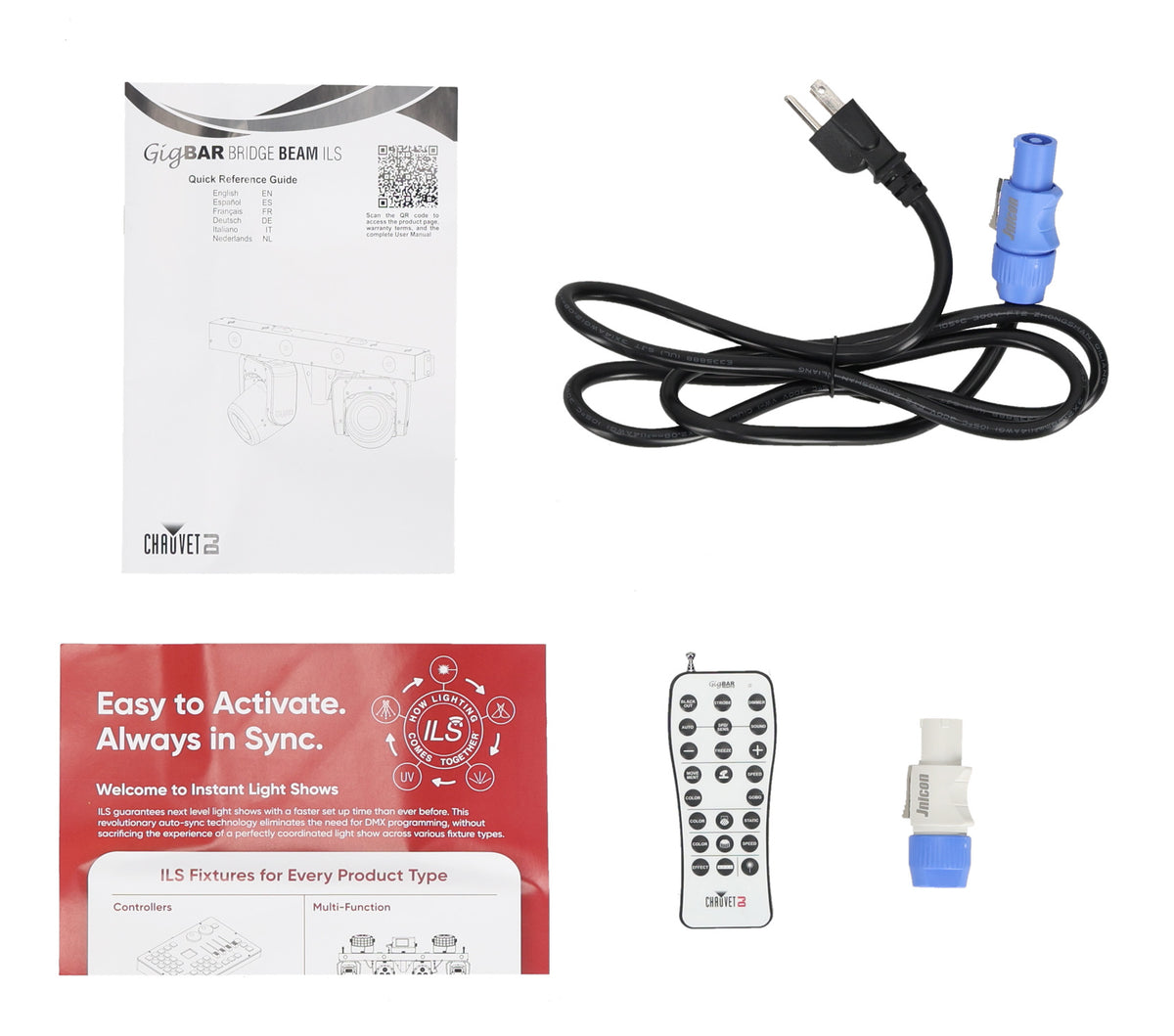

What's Included in the box
- GigBAR Bridge Beam ILS
- Power cable

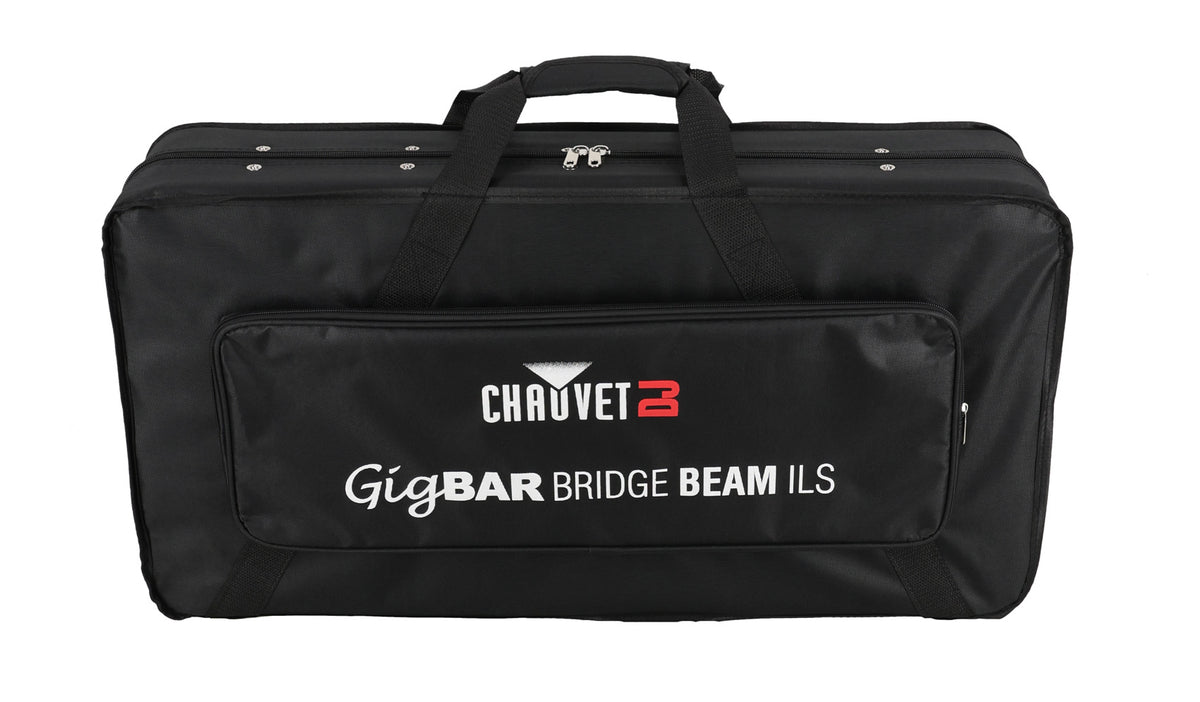

- Carrying case
- 2 hanging brackets
- RF remote
SKU: SKU: GIGBARBRIDGEBEAMILS
View full details







Product Description
Features
-
Moving Heads Without The Rigging
Two RGBW heads come pre-mounted and pre-wired on the bar, delivering 5° beams at 24,670 lux @ 2 m from a single stand or truss point.
-
Beams Stay On The Floor
Totem Mode holds the moving heads aimed at the dance floor when the bar stands vertically, so beams hit people instead of the ceiling.
-
Full Color Range
RGBAW+UV wash sections add amber and UV to standard mixing, covering warm reception tones and true blacklight from the same fixture.
-
Trigger Shows From Anywhere
The included RF remote fires built-in shows with no line of sight needed, so you can run the rig from the bar, the booth, or the back of the room.
-
One Trip In, One Trip Out

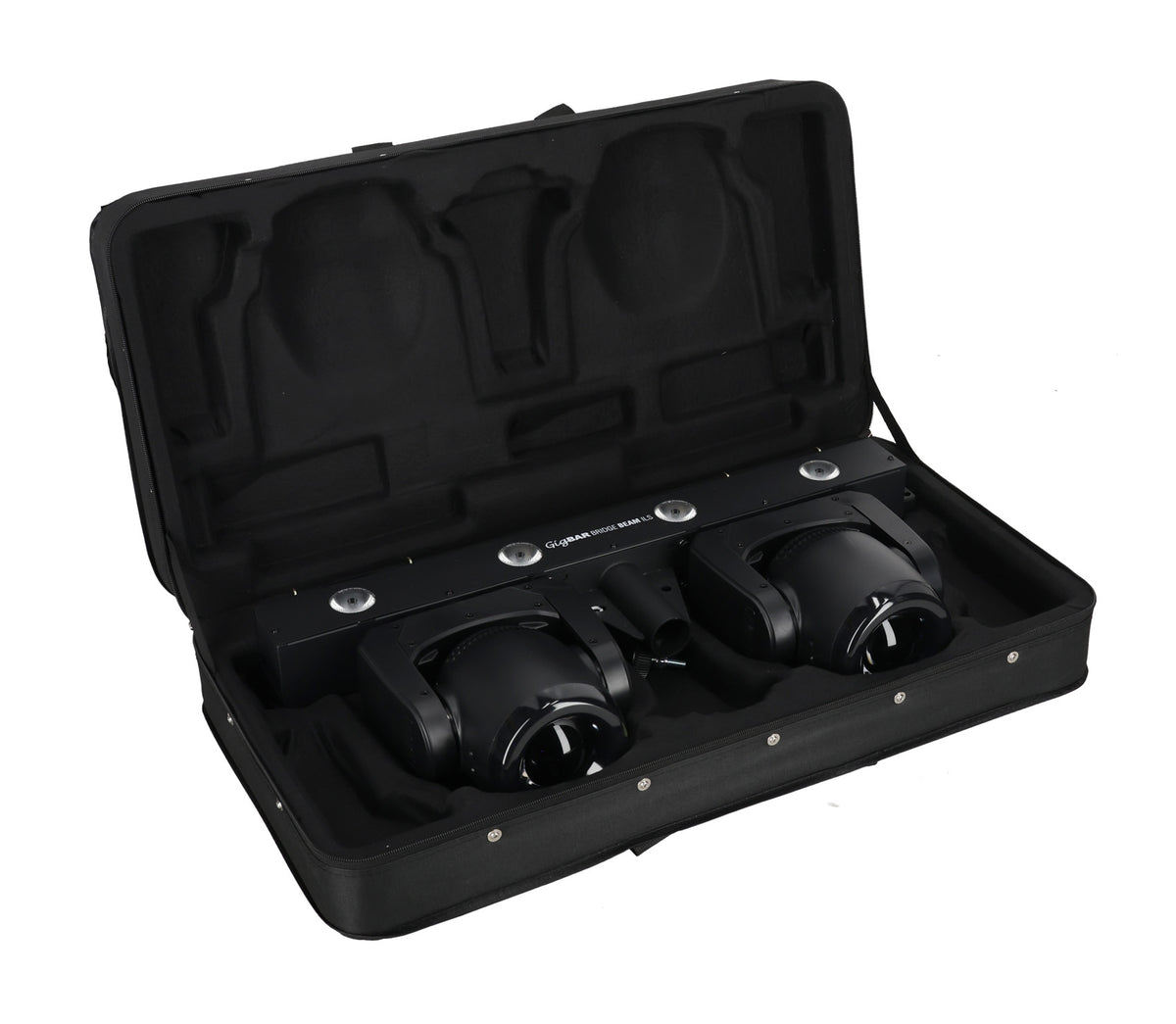

A 16.4 lb bar with a built-in locking system, removable brackets, and a carry case gets an entire lighting rig set up by one person.
Technical Specifications
- Product Type 3-in-1 Moving Head Light Bar
- DMX Channels 3, 24, or 60
- DMX Connectors 3-pin XLR
- Pan and Tilt 540° / 270°
- Pan and Tilt Ranges 180, 360, 540° pan / 90, 180, 270° tilt
- Light Source (moving heads) 2 LEDs (RGBW) 80 W total, 2.8 A, 50,000 hours life expectancy
- Light Source (wash) 4 LEDs (RGBAW+UV) 40 W total, 2.6 A, 50,000 hours life expectancy
- Light Source (LED ring) 48 LEDs (RGBW) 10 W total, 50,000 hours life expectancy
- Strobe Rate 0 to 20 Hz
- PWM Frequency 1200 Hz
- Beam Angle (moving head) 5°
- Beam Angle (wash) 20°
- Field Angle (wash) 37°
- Illuminance (moving head) 24,670 lux @ 2 m per head
- Illuminance (wash) 525 lux @ 2 m per section
- Operating Frequency 2.4 GHz
- Max Unobstructed Distance (D-Fi) 600 ft (183 m)
- Fits Tripod Sizes 1.5 in (37.4 mm)
- Power Linking 9 units @ 120 V; 18 units @ 230 V
- Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current 147 W, 1.2 A @ 120 V, 60 Hz
- Power and Current 144 W, 0.6 A @ 230 V, 50 Hz
- Optional Controllers RFC, RFC-XL
- Approvals CE, RoHS, FCC
- Weight 16.4 lb
- Dimensions 25 x 2.6 x 11.4 in
