Control 412C/T Pair + RCS80-1 Amplifier
Control 412C/T Pair + RCS80-1 Amplifier
70V Ceiling Speaker System, (2) 3" Ceiling Speakers, 60W Bluetooth Amplifier, Restaurants, Bars, Schools
Free Shipping
Features
- Pair of 3" full-range ceiling speakers with 160° conical coverage
- 60W RMS 70V/100V amplifier powers both speakers with room to add more
- Bluetooth, USB/SD, FM tuner, and 2 RCA AUX inputs for all-day music
- Dual mic inputs with separate volume for announcements and karaoke
- 70V taps at 15W, 7.5W, 3.8W, and 1.9W set the level at each speaker
Couldn't load pickup availability

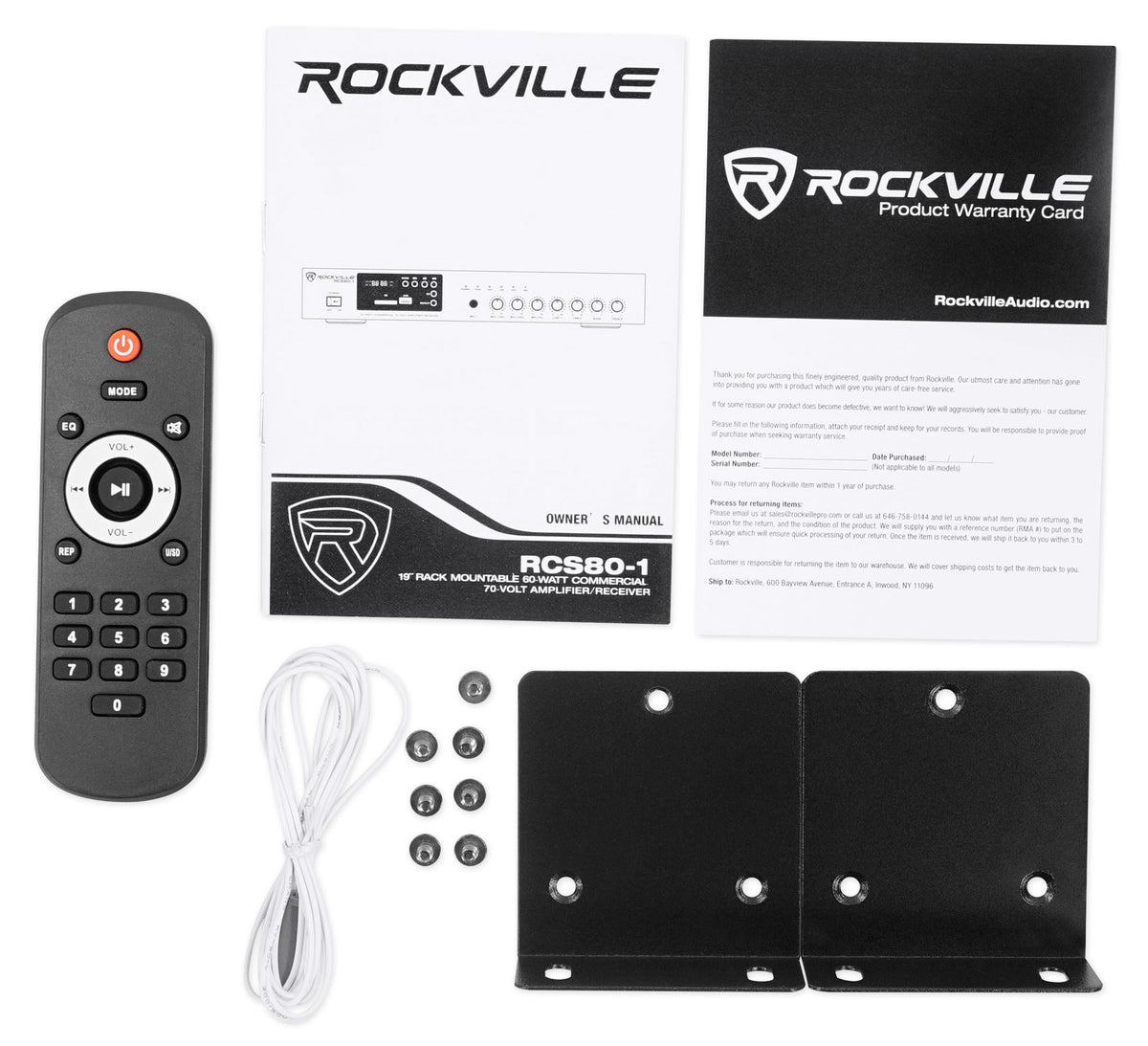

What's Included in the box
- (2) Control 412C/T Ceiling Speakers
- (2) Full-Face Magnetic Grilles (White, Paintable)

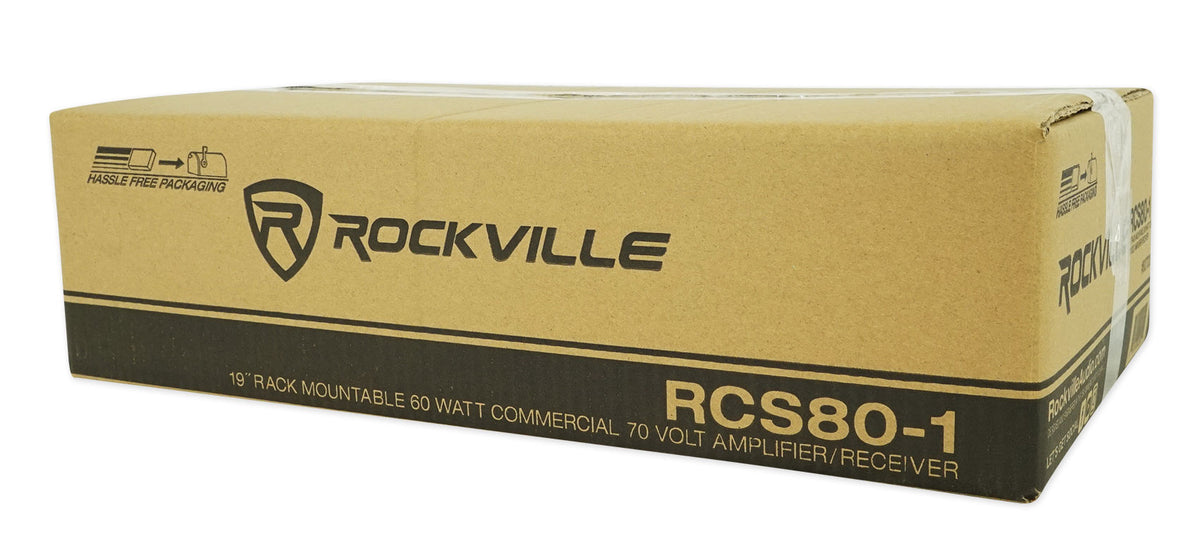

- (1) RCS80-1 Amplifier

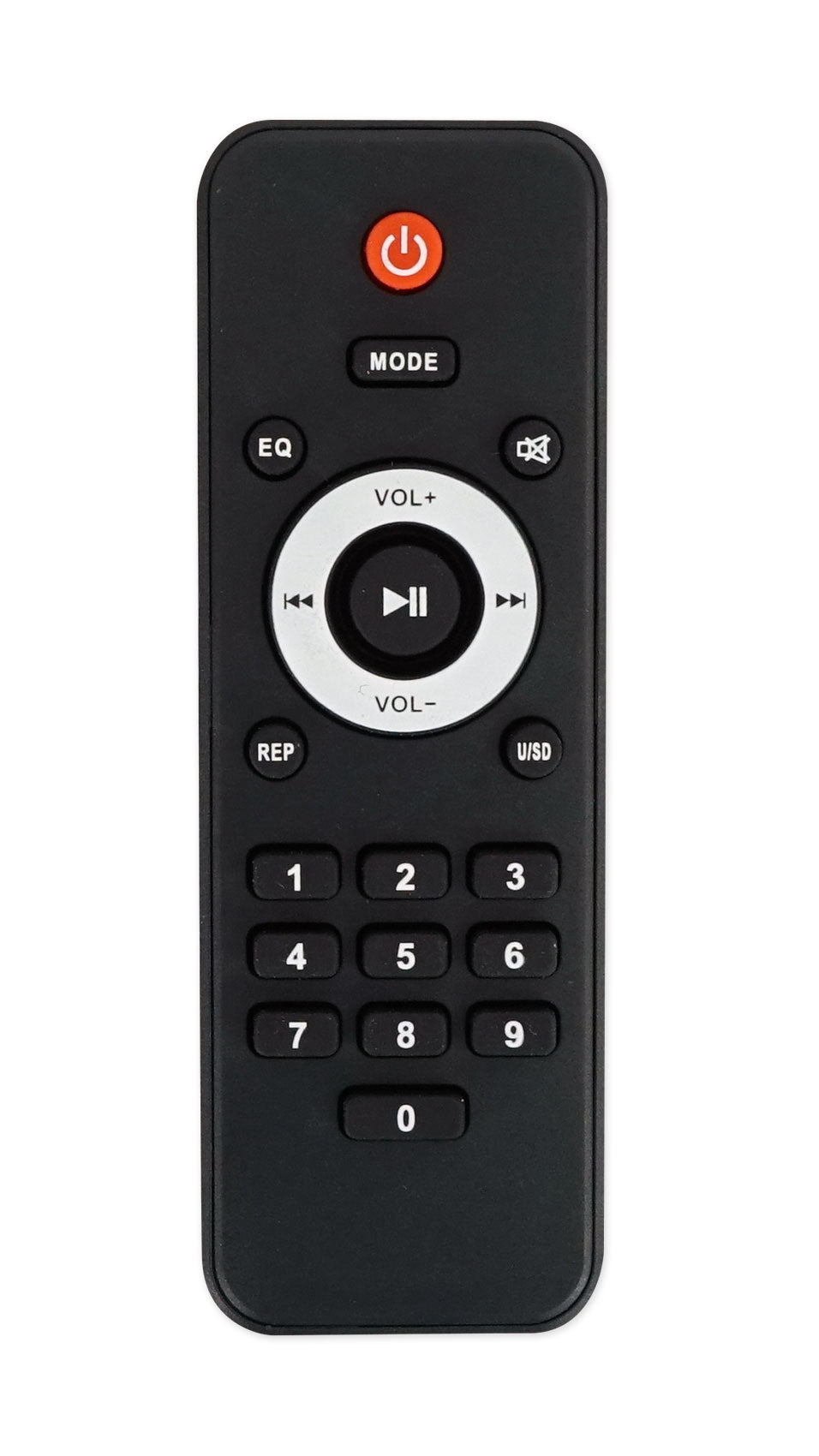

- (1) Remote Control
- (1) Set of Rack Mount Ears
- (1) Power Cable
- (1) FM Radio Antenna
SKU: SKU: Control 412C/T+RCS80-1
View full details


















Product Description

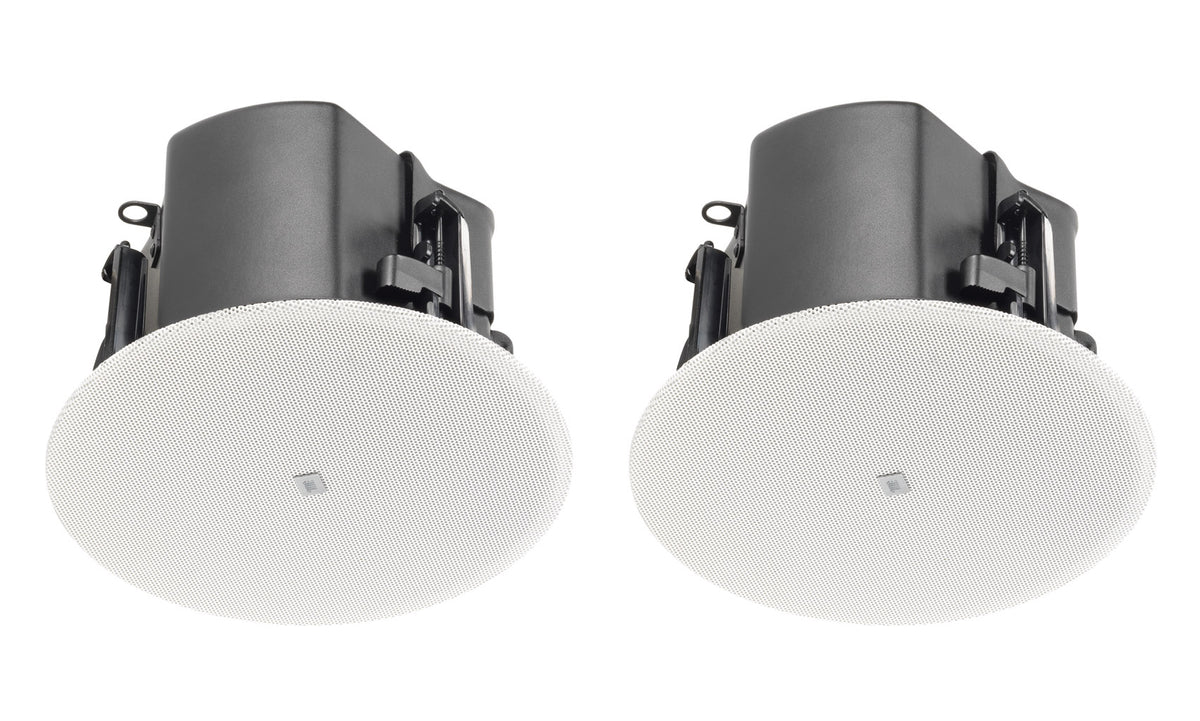

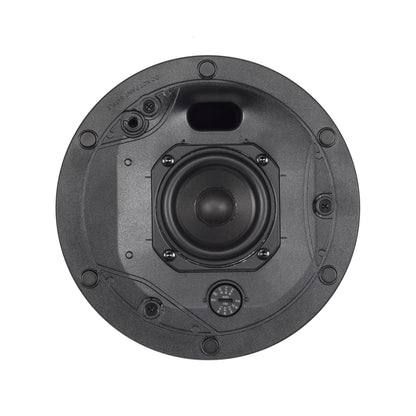

The Control 412C/T speakers spread that sound across the room with a 160° conical coverage pattern from a 76 mm full-range driver rated at 30W (120W peak). Each one has a built-in multi-tap transformer with 70V taps at 15W, 7.5W, 3.8W, and 1.9W, so you can run more volume over the bar and less in a hallway from the same amp. The RCS80-1 delivers 60W RMS on 70V lines, which covers both speakers at their highest tap and leaves room to add more speakers to the same line later. 70V wiring also lets you run long speaker lines without signal loss or impedance math.

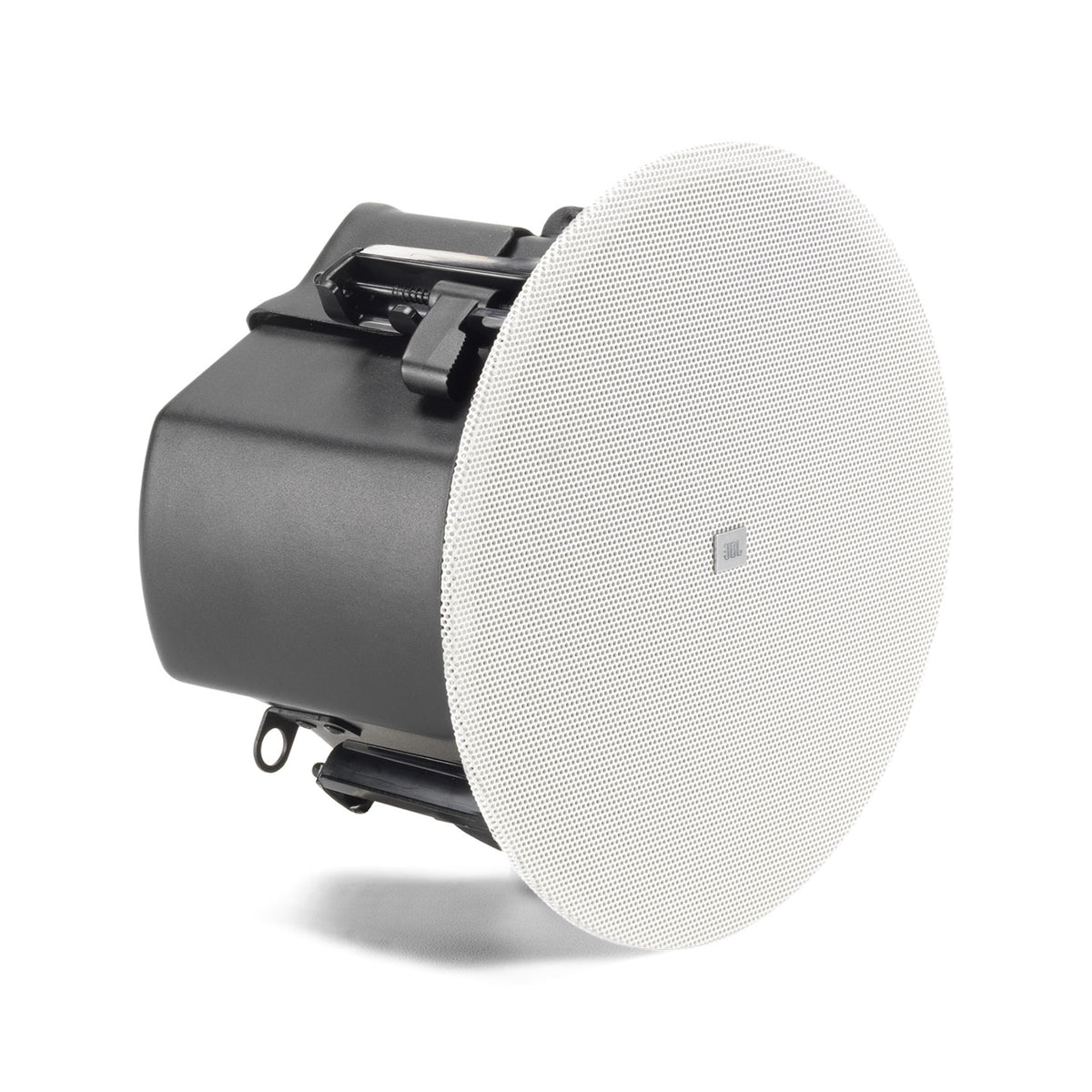

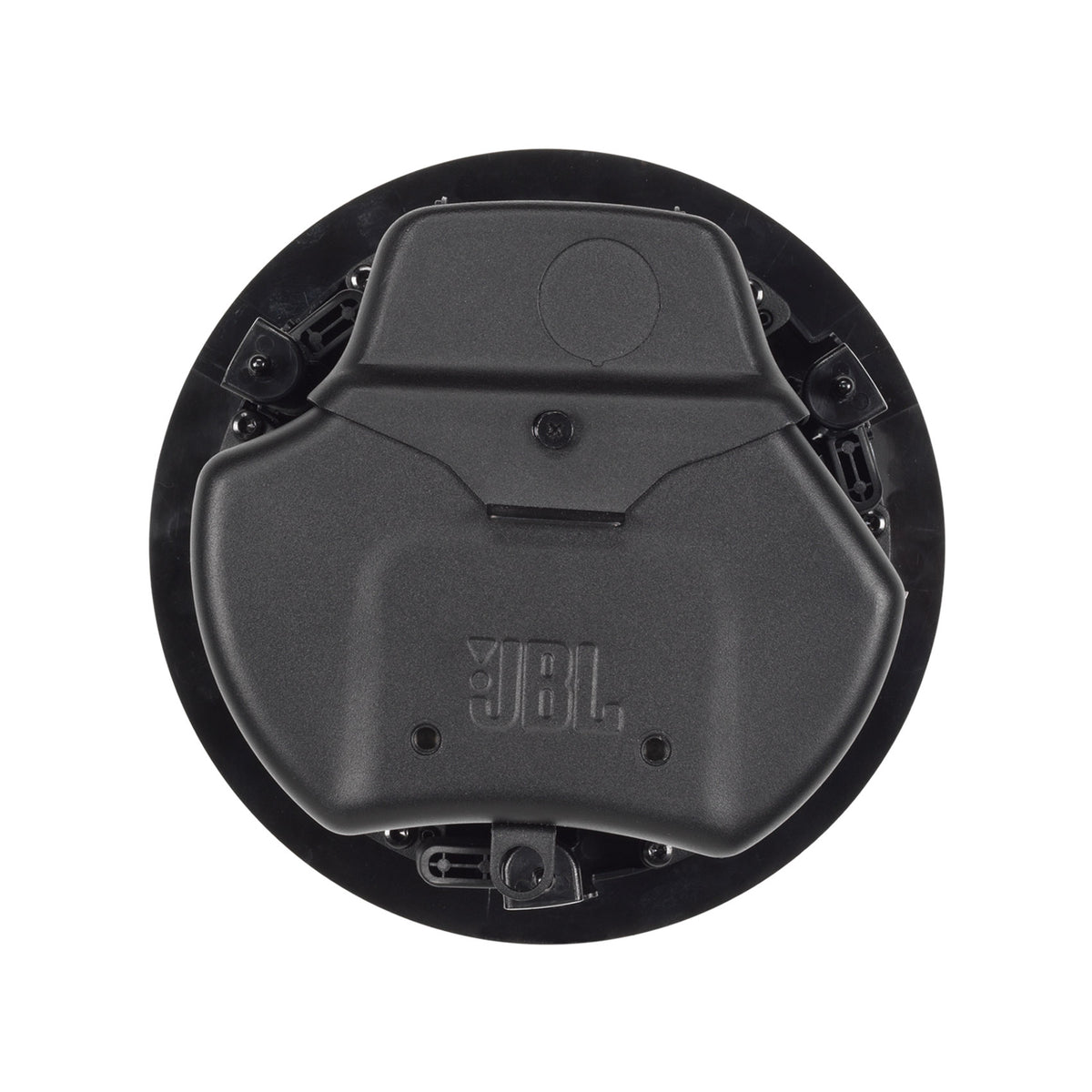

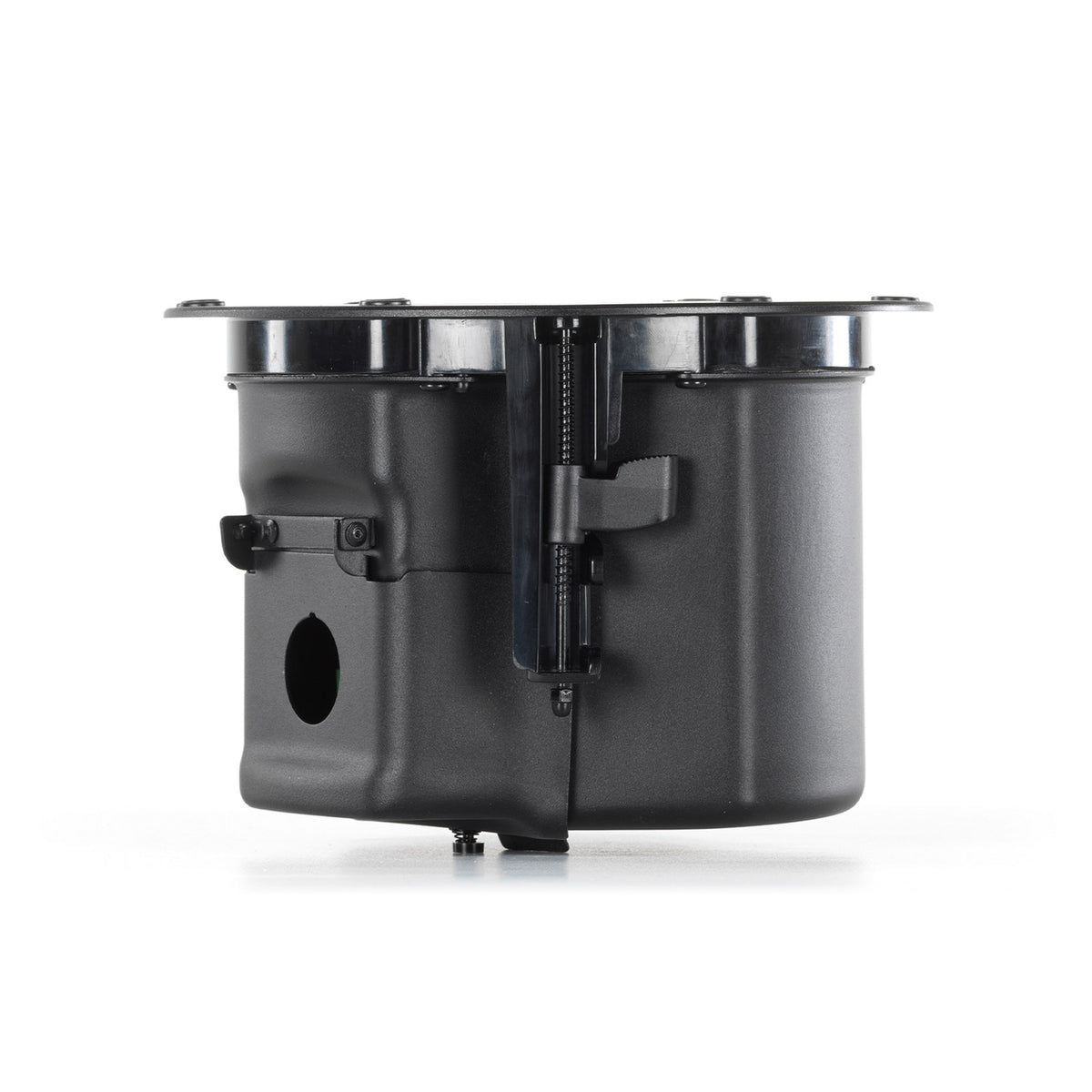

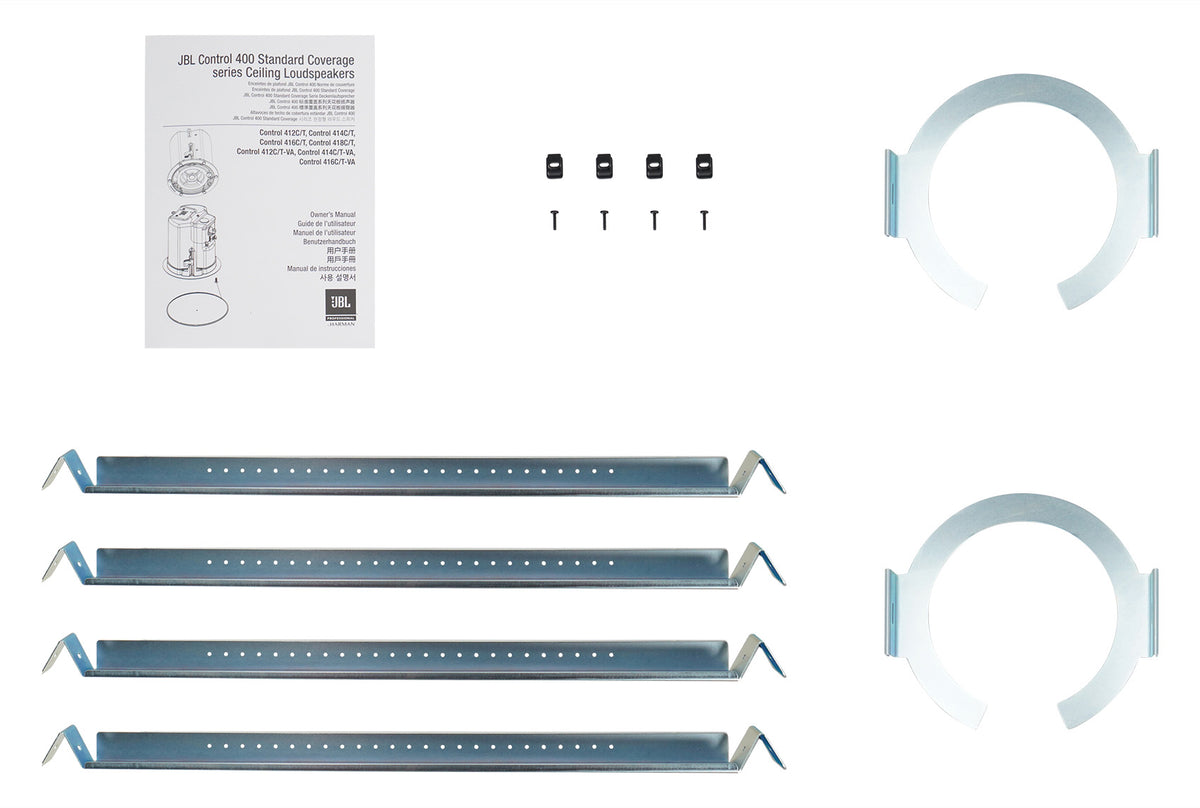

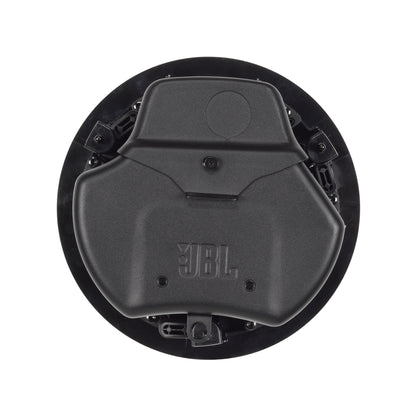

Installation is built for repeat work: top or side cable entry, captive dogears that grip a wide range of ceiling thicknesses, and an integrated back can that fits most plenum spaces, with UL 2043 listing for air handling spaces. The full-face magnetic grilles come in white and can be painted to match the ceiling, and the amplifier mounts in a rack with the included ears.
Features

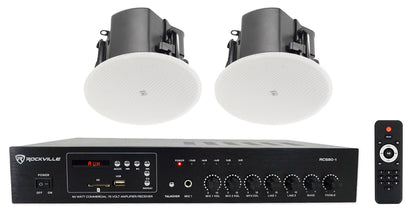

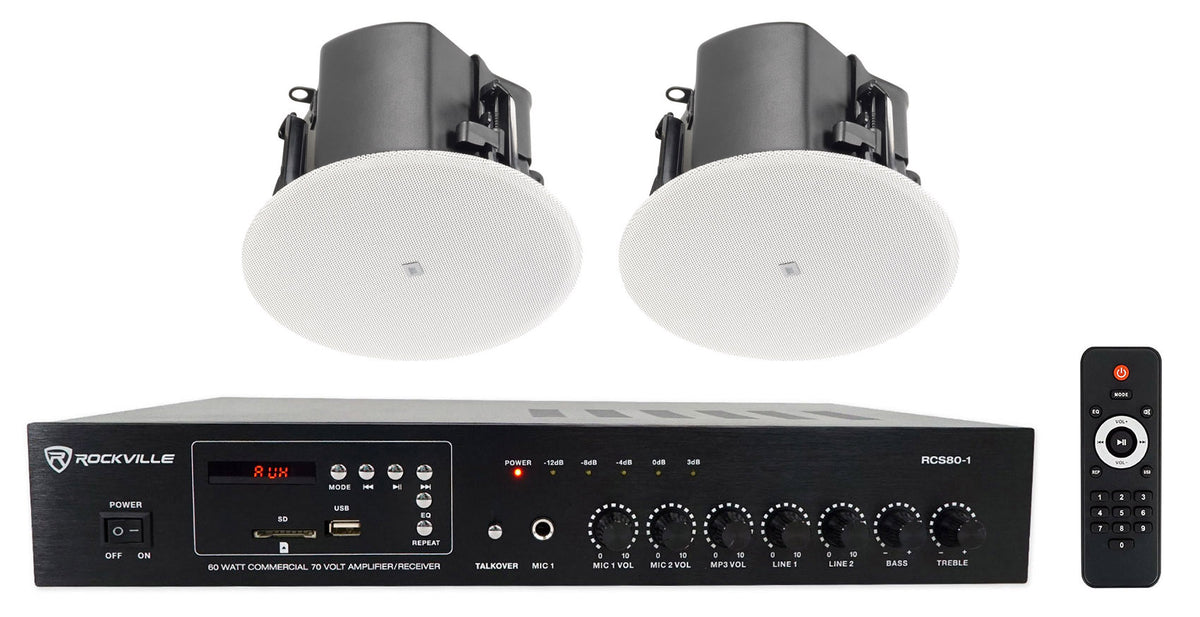

Complete System in One Box
A pair of 3 in ceiling speakers and a 60W 70V amplifier come together, so you can set up background music and paging without sourcing parts separately.
Music From Any Source
Stream from a phone over Bluetooth, play USB or SD files up to 32GB, tune the FM radio, or connect two RCA AUX sources for all-day music.
Built for Announcements

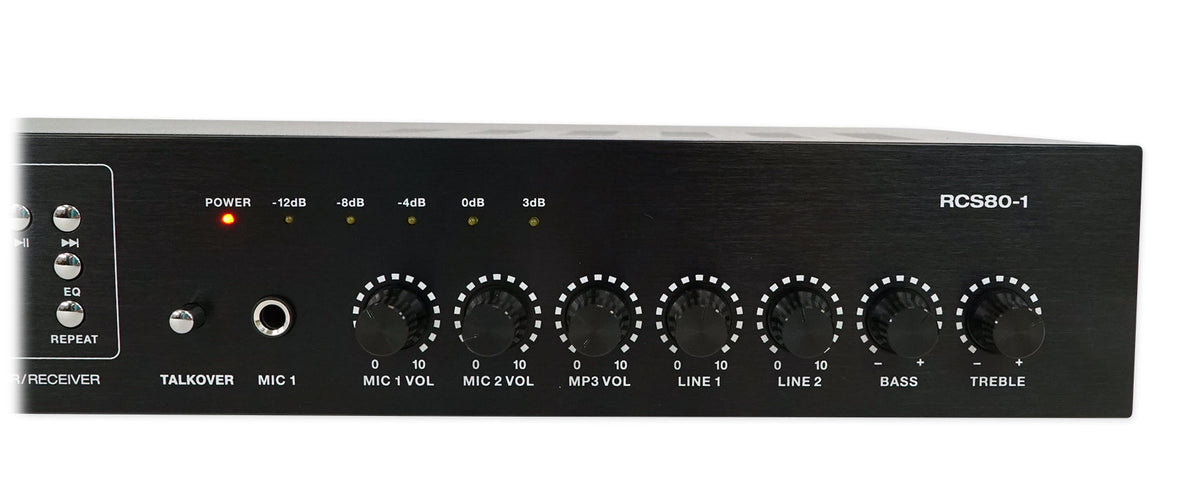

Two mic inputs with their own volume knob handle paging, speeches, and karaoke, while bass and treble controls let you shape the sound for the room.
Set the Level at Each Speaker
70V transformer taps at 15W, 7.5W, 3.8W, and 1.9W let you run more volume over the bar and less in hallways, all from one amplifier.
Faster, Cleaner Installs

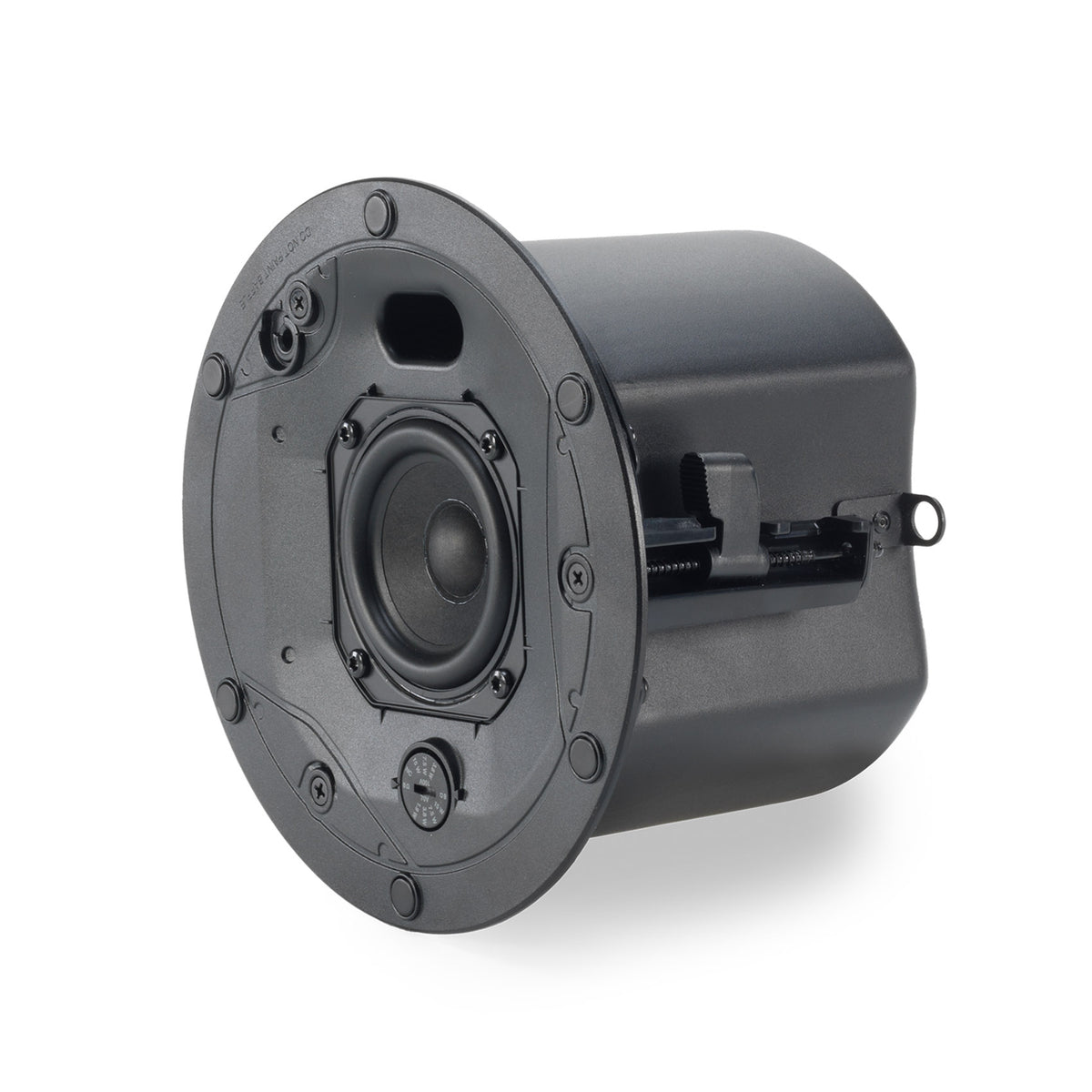

Top or side cable entry, captive dogears for a range of ceiling thicknesses, and paintable magnetic grilles make the speakers quick to mount and easy to blend in.
Technical Specifications
- Product Type 70V Ceiling Speaker and Amplifier System
- Speakers Included (2) Control 412C/T

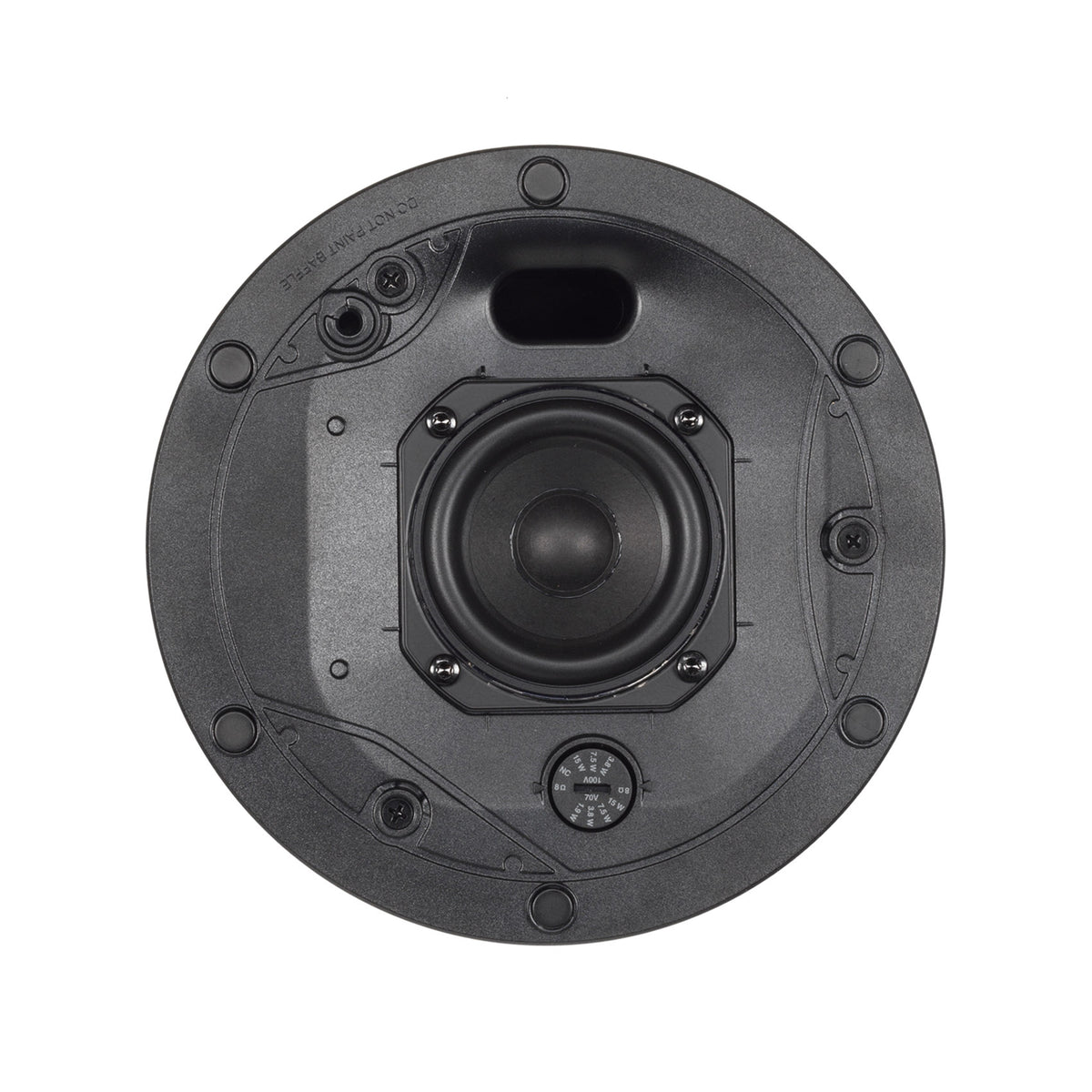

- Speaker Driver 76 mm (3 in) full-range, paper cone with SBR surround
- Speaker Frequency Range (-10 dB) 68 Hz - 17 kHz
- Speaker Power Capacity 30 W (120 W peak), 2 hrs; 20 W (80 W peak), 100 hrs
- Speaker Sensitivity (1 m/1 W) 84 dB
- Speaker Maximum SPL (1 m) 99 dB continuous (105 dB peak)
- Coverage Angle 160° conical
- Speaker Impedance 8 ohms

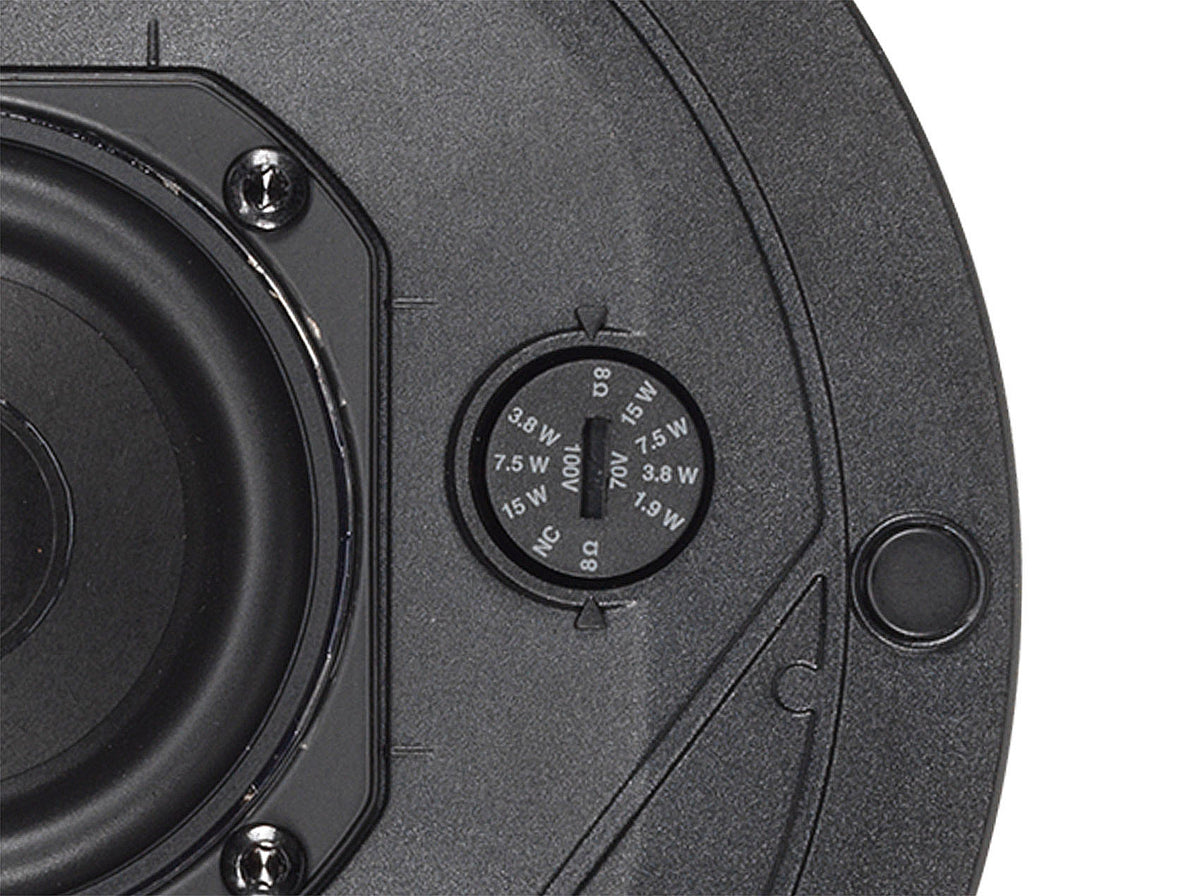

- Transformer Taps (70V) 15 W, 7.5 W, 3.8 W, 1.9 W
- Transformer Taps (100V) 15 W, 7.5 W, 3.8 W
- Ceiling Cutout 168 mm (6.6 in)
- Mounting Depth 134 mm (5.4 in) from bottom of ceiling tile to top of back can
- Speaker IP Rating IP33 per EN/IEC 60529
- Safety Agency Rating UL 2043, NFPA 90A & NFPA 70; CSA C22.2 No. 205; UL 1480A
- Grille Color White (RAL9003), paintable

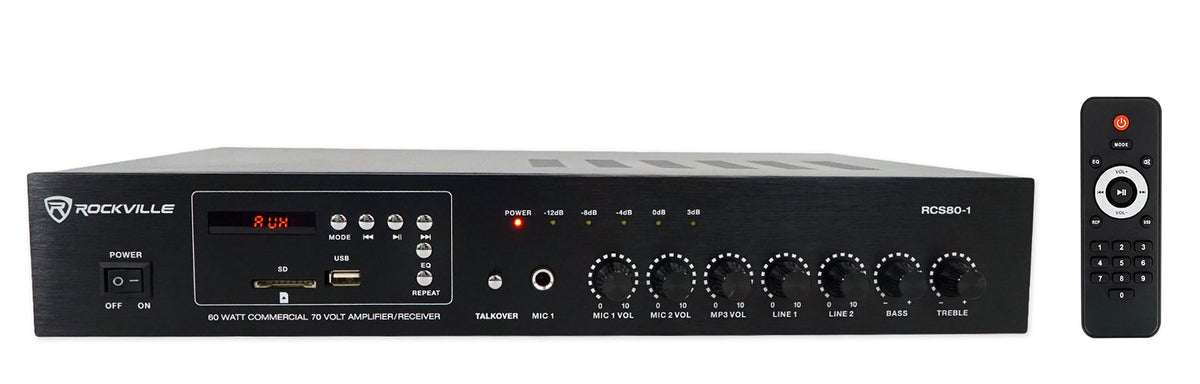

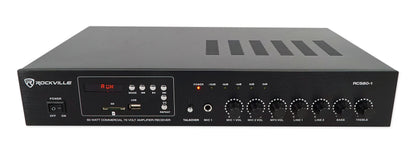

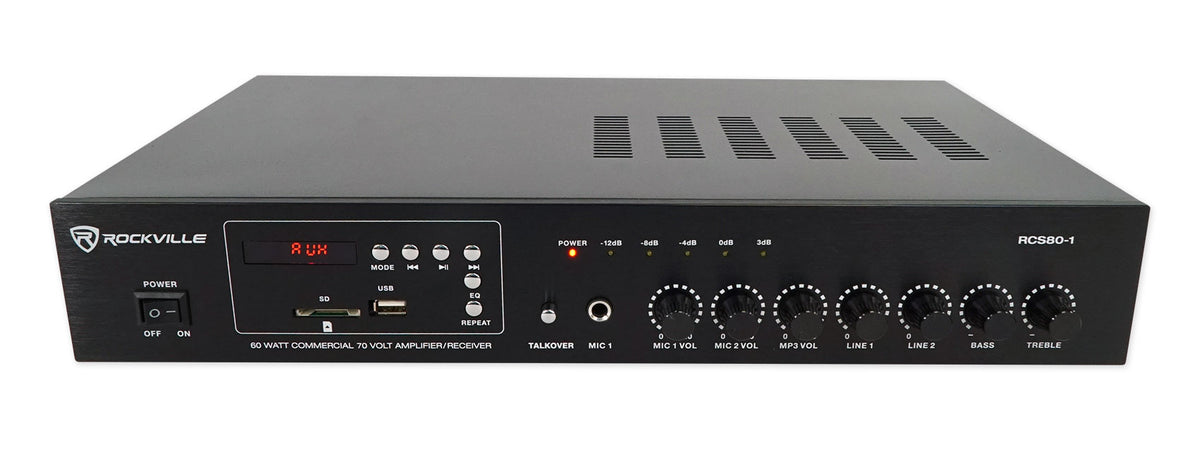

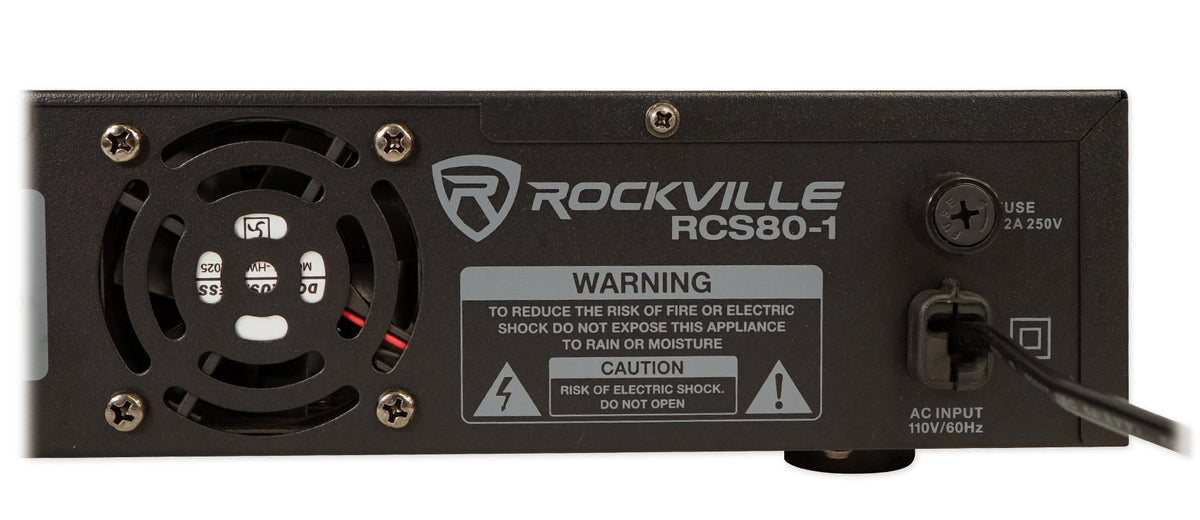

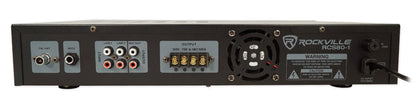

- Amplifier RCS80-1
- Amplifier Power Output 70V/100V: 60 W RMS; 4 ohm: 80 W; 8 ohm: 70 W; 16 ohm: 11 W
- Amplifier Inputs Bluetooth, FM tuner, USB/SD (up to 32GB), 2 RCA AUX, 2 mic

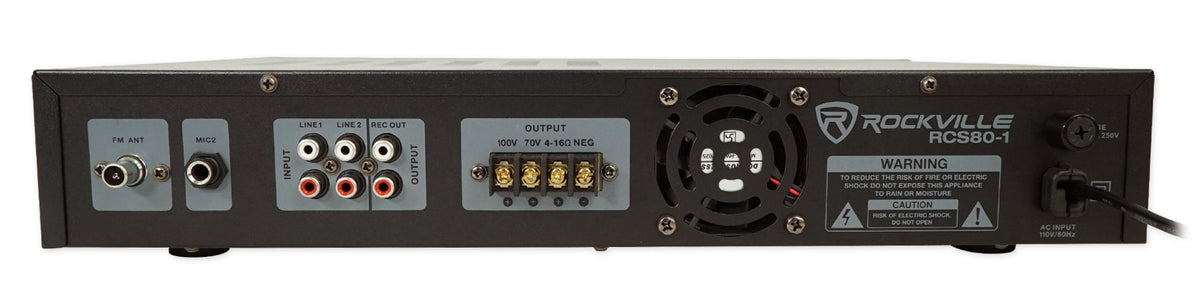

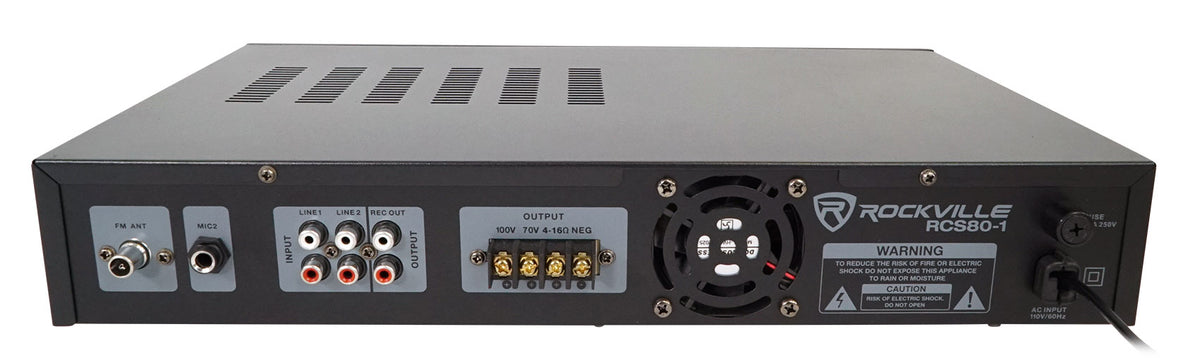

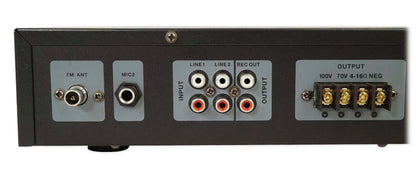

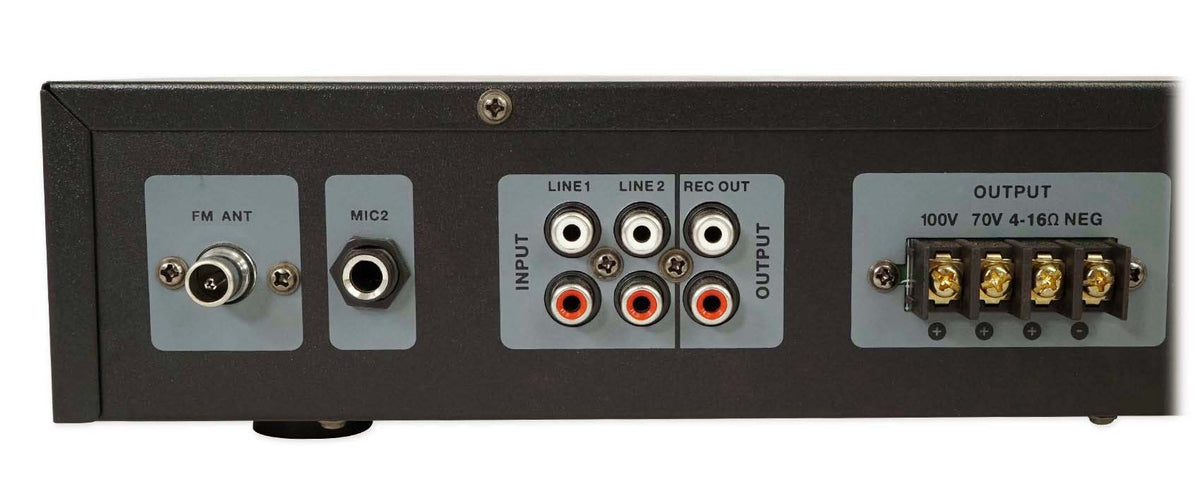

- Amplifier Outputs 100V, 70V, and 8 ohm speaker terminals; RCA REC out
- Amplifier Frequency Response 10 Hz - 22.8 kHz
- Amplifier THD Less than 0.5%
- Amplifier Signal-to-Noise Ratio Greater than 79 dB
- Weight Speakers: 3.86 lb (1.75 kg) each; Amplifier: 10.91 lb
- Dimensions Speakers: 5.7 x 8.1 in (143 x 203 mm) (H x Dia.); Amplifier: 16.9 x 10.4 x 3.1 in
