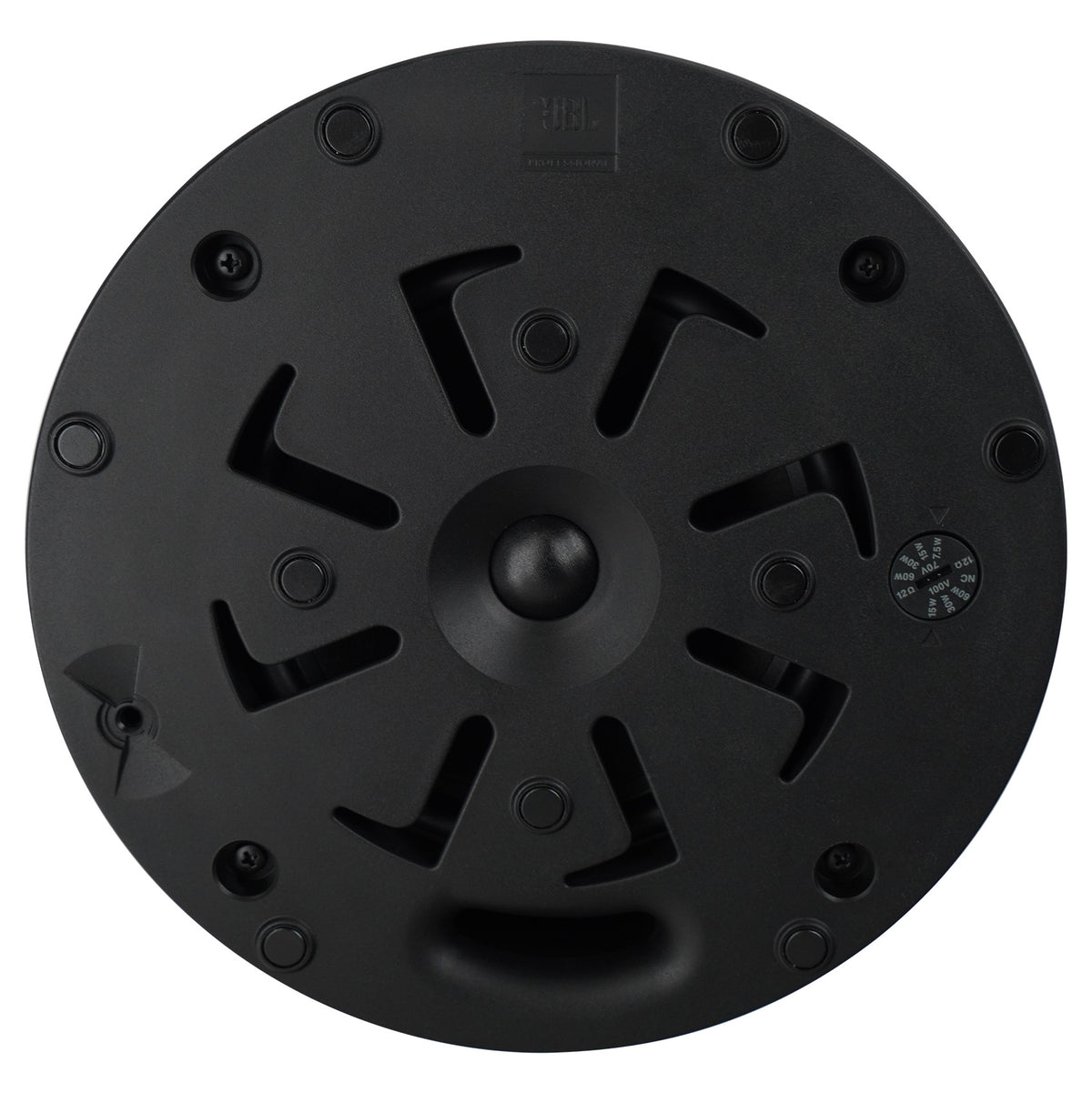

Control 426C/T
Control 426C/T
6.5" Two-Way Coaxial Ceiling Speaker, 110W, 110° Coverage, 70V/100V Transformer, 12 Ohm Input, Paintable Magnetic Grille
Free Shipping
Features
- 6.5" paper cone woofer and 1" soft-dome tweeter cover 72 Hz to 19 kHz
- CRBI technology spreads sound evenly across a wide 110° conical pattern
- Built-in 70V/100V multi-tap transformer plus 12 ohm direct input
- 110W continuous (440W peak) power handling with 109 dB maximum SPL
- Paintable full-face magnetic grille with safety tether matches any ceiling
Couldn't load pickup availability

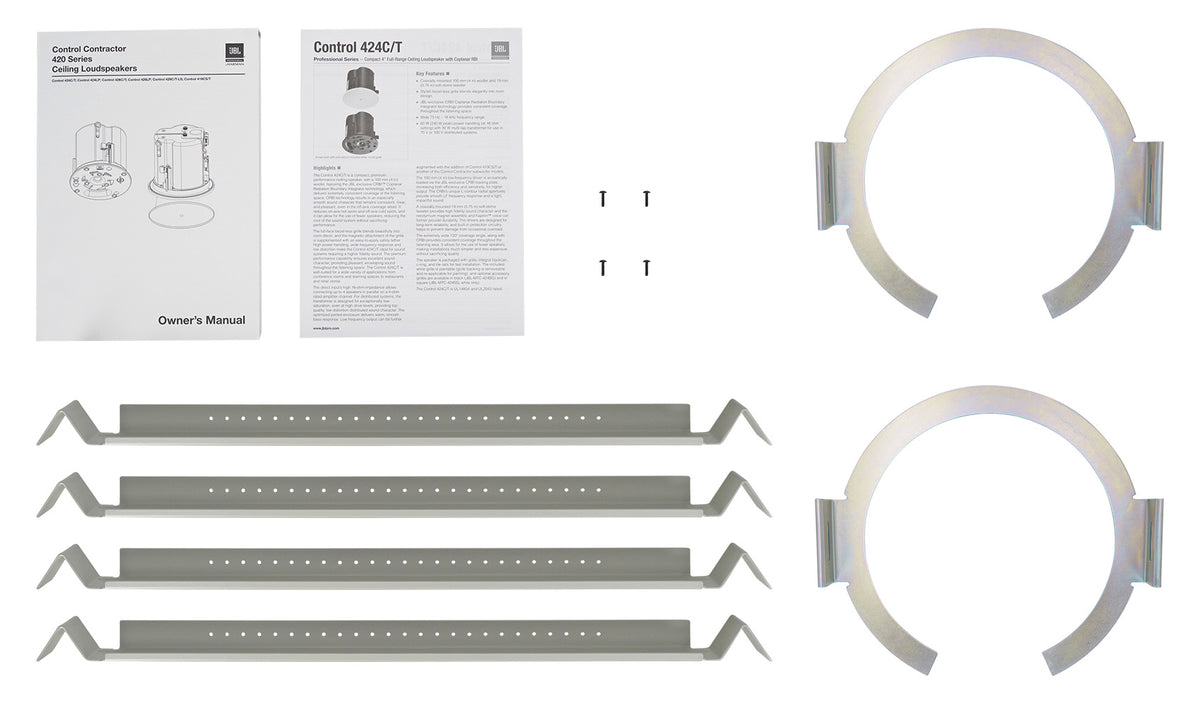

What's Included in the box
- (1) Control 426C/T Ceiling Speaker
- (1) Full-Face Magnetic Grille (White, Paintable)
SKU: SKU: Control 426C/T*
View full details








Product Description

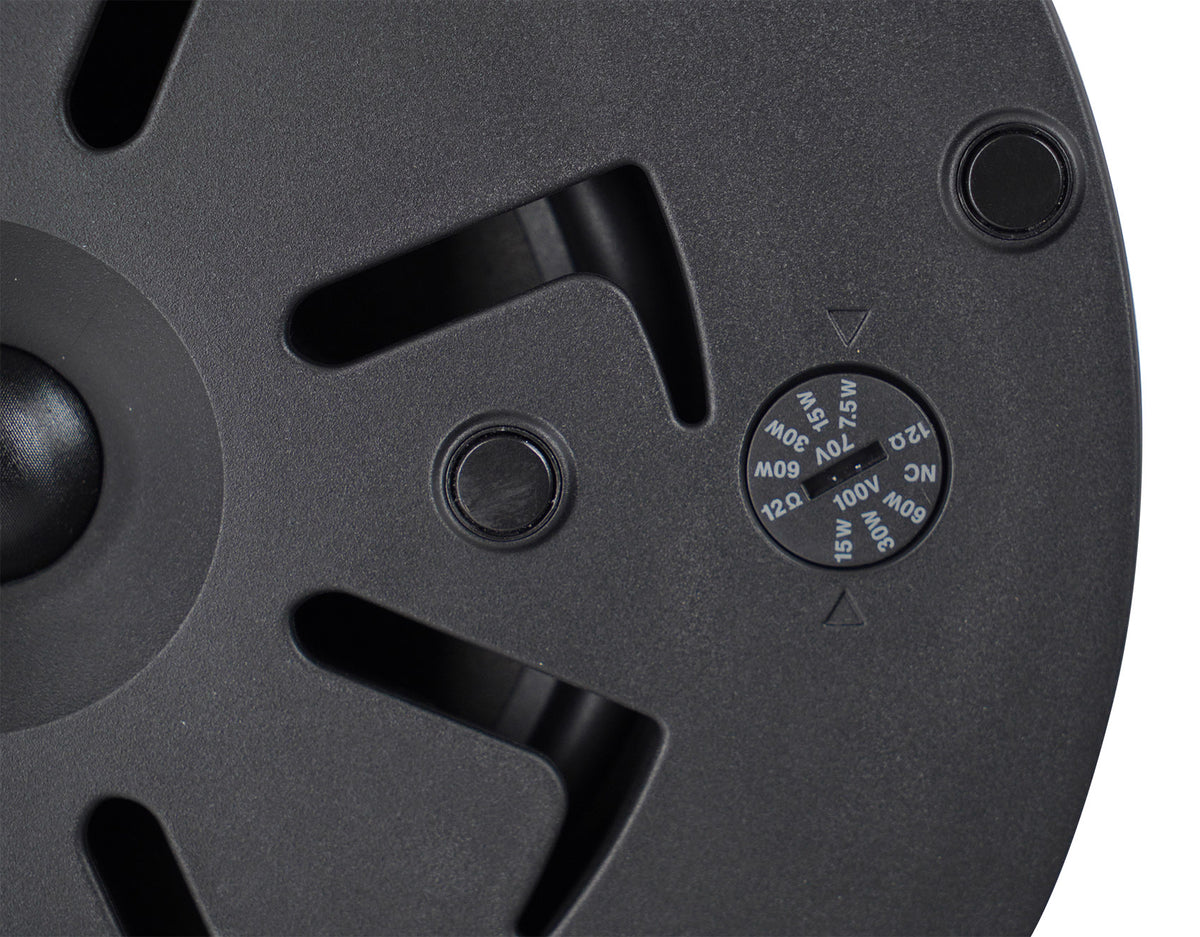

It also fits the system you already run. The built-in multi-tap transformer connects to 70V lines at 60W, 30W, 15W, or 7.5W and 100V lines at 60W, 30W, or 15W, while the 12 ohm direct input works with low-impedance amplifiers for smaller zones. The integrated back can is suitable for plenum air handling spaces per UL 2043 and carries an IP33 rating. Installers get a terminal cover with top and side cable entry that secures with captive hand screws, no tools needed, plus captive dogears that grip a wide range of ceiling thicknesses. The full-face magnetic grille ships in white, takes paint to match the ceiling, and attaches with a safety tether that mounts into the baffle.
Features
Wide, Even Coverage
CRBI technology delivers consistent 110° conical coverage, cutting hot spots under the speaker and dead zones between them, so fewer speakers can cover the same room.
Fuller Sound for Larger Rooms
A 6.5 in treated paper cone woofer and coaxial 1 in soft-dome tweeter reach down to 72 Hz, giving background music real weight while keeping announcements clear.
Fits Your Existing System
The multi-tap transformer runs on 70V or 100V distributed lines, and the 12 ohm direct input connects to low-impedance amplifiers when a zone only needs a few speakers.
Tool-Free Wiring Access

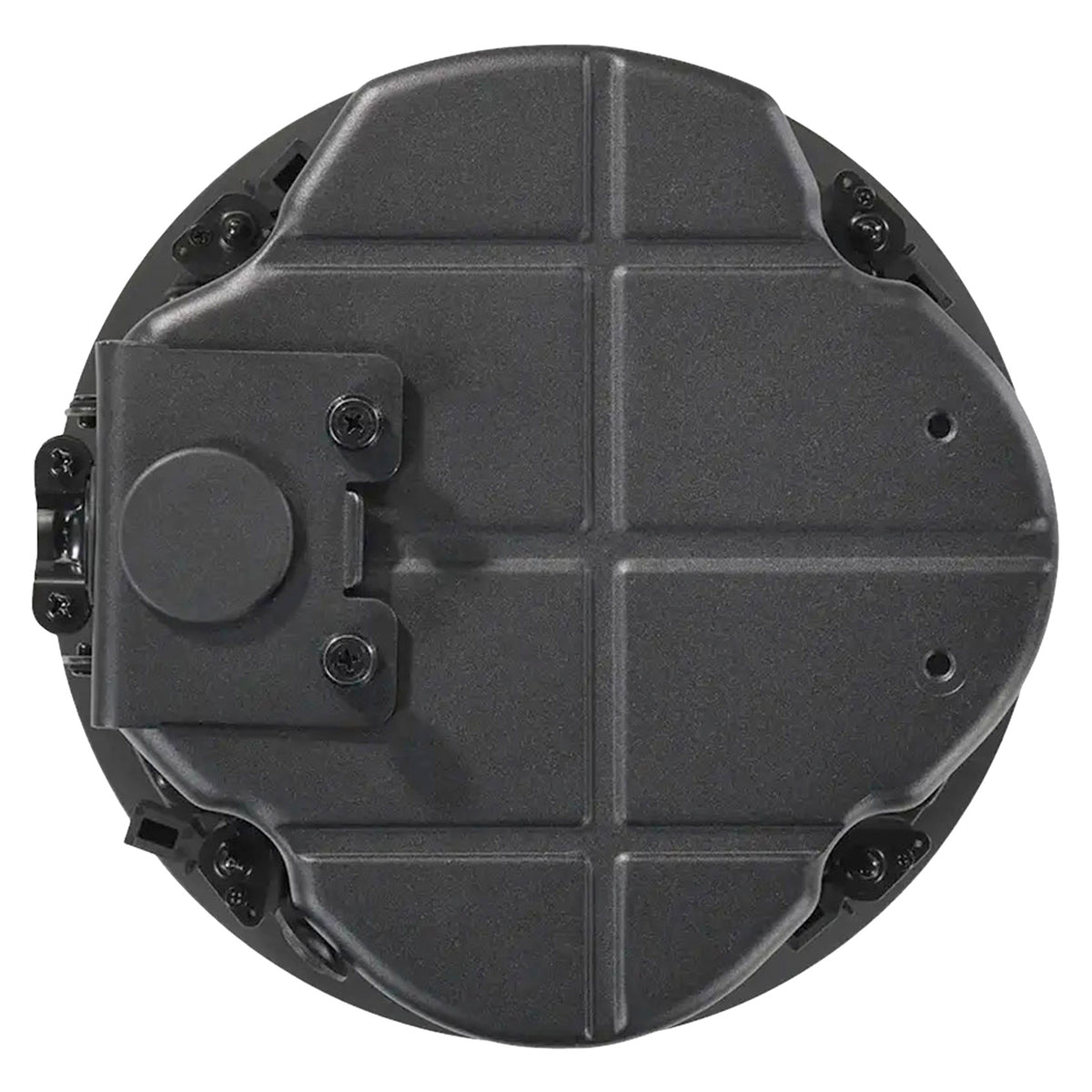

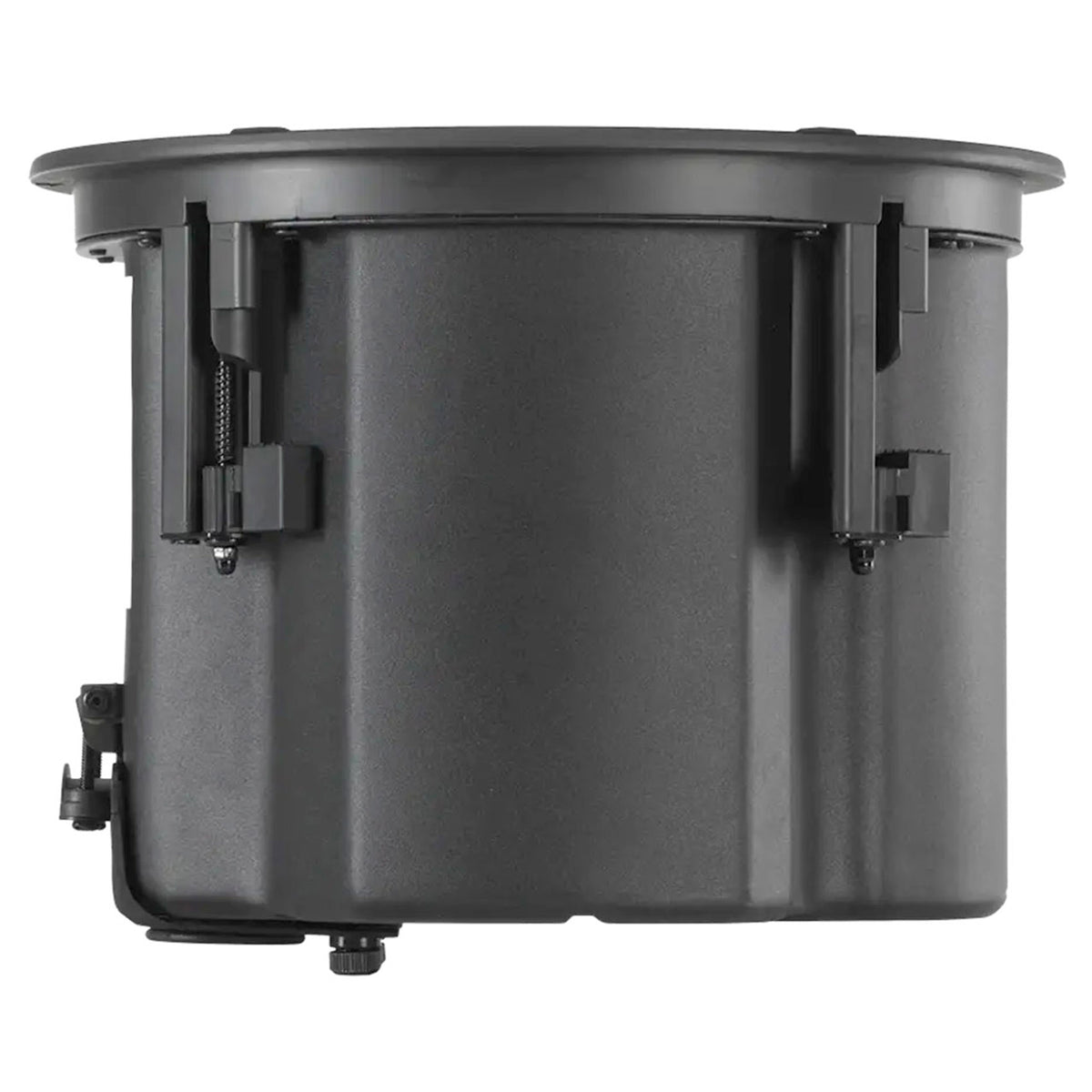

Terminal covers offer top and side cable entry and lock down with captive hand screws, while captive dogears grip a wide range of ceiling thicknesses for a secure fit.

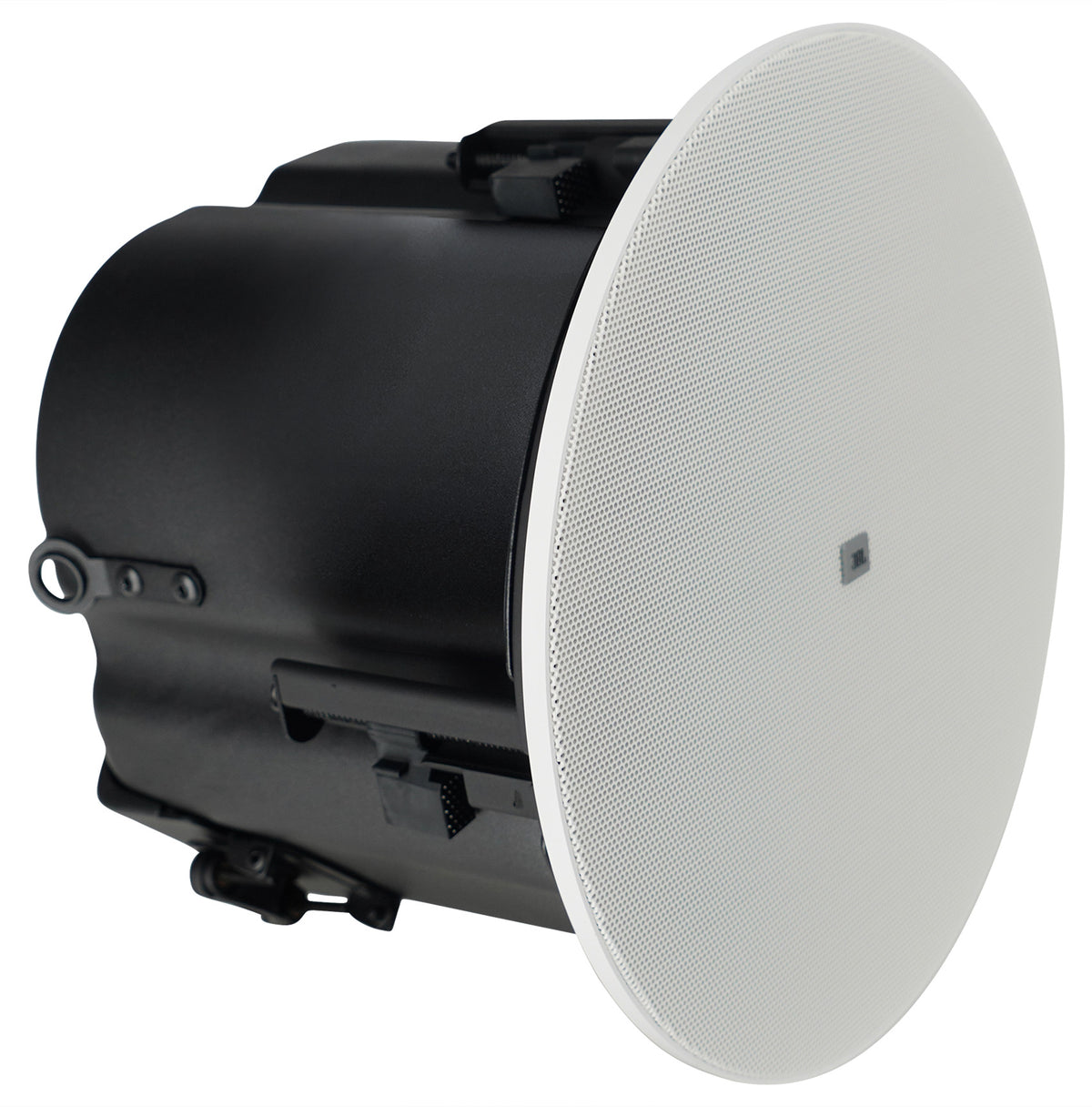

Disappears Into the Ceiling
The full-face magnetic grille can be painted to match any decor, and the integrated back can is suitable for plenum air handling spaces per UL 2043.
Technical Specifications
- Product Type 6.5" Two-Way Coaxial Ceiling Speaker
- Series Control 400
- Woofer 165 mm (6.5 in) treated paper cone
- Tweeter 25 mm (1 in) textile soft dome, neodymium magnet
- Frequency Range (-10 dB) 72 Hz - 19 kHz
- Power Capacity 110W (440W peak), 2 hrs; 75W (300W peak), 100 hrs
- Sensitivity (1 m/1 W) 89 dB
- Maximum SPL (1 m) 109 dB continuous (115 dB peak)
- Coverage Angle 110° conical (CRBI)
- Nominal Impedance 12 ohms
- Transformer Taps (70V) 60W, 30W, 15W, 7.5W
- Transformer Taps (100V) 60W, 30W, 15W
- Ceiling Cutout 223 mm (8.8 in)
- Mounting Depth 181 mm (7.1 in) from bottom of ceiling tile to top of back can
- Safety Agency Rating UL 2043, NFPA 90A & NFPA 70; CSA C22.2 No. 205; UL 1480A
- IP Rating IP33 per EN/IEC 60529
- Operating Temperature 0° C to 45° C
- Color White (RAL9003) grille, paintable
- Weight 9.3 lb (4.2 kg)
- Dimensions 7.4 x 9.9 in (190 x 253 mm) (H x Dia.)
