Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]
CROWN
Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]
Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]
2-Channel Commercial Amplifier, 500W at 4 Ohms, 70V/140V Output, Onboard DSP
Free Shipping
Features
- Rated 500W per channel at 4 ohms across 2, 4, and 8-ohm loads
- 70V and 140V distributed line outputs for zoned installations
- Onboard DSP with crossovers, EQ filters, delay, and output limiting
- Up to 20 user-defined DSP presets for repeatable setups

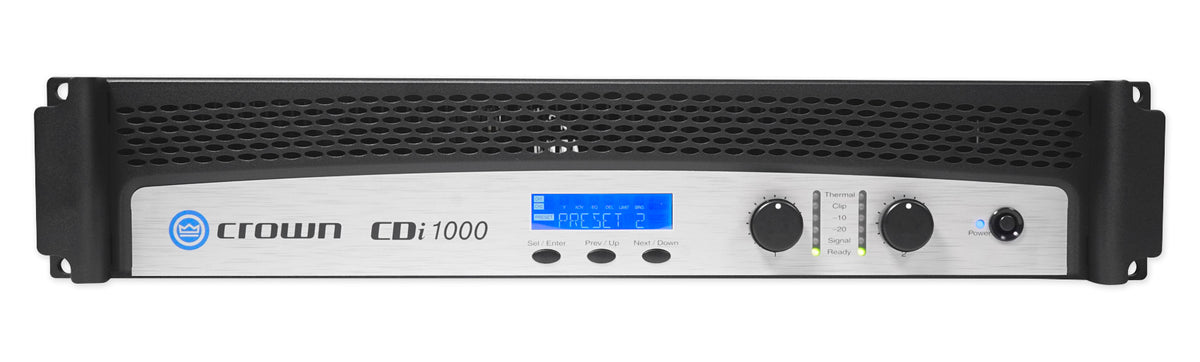

- Front-panel LCD screen for quick, on-site configuration
Couldn't load pickup availability

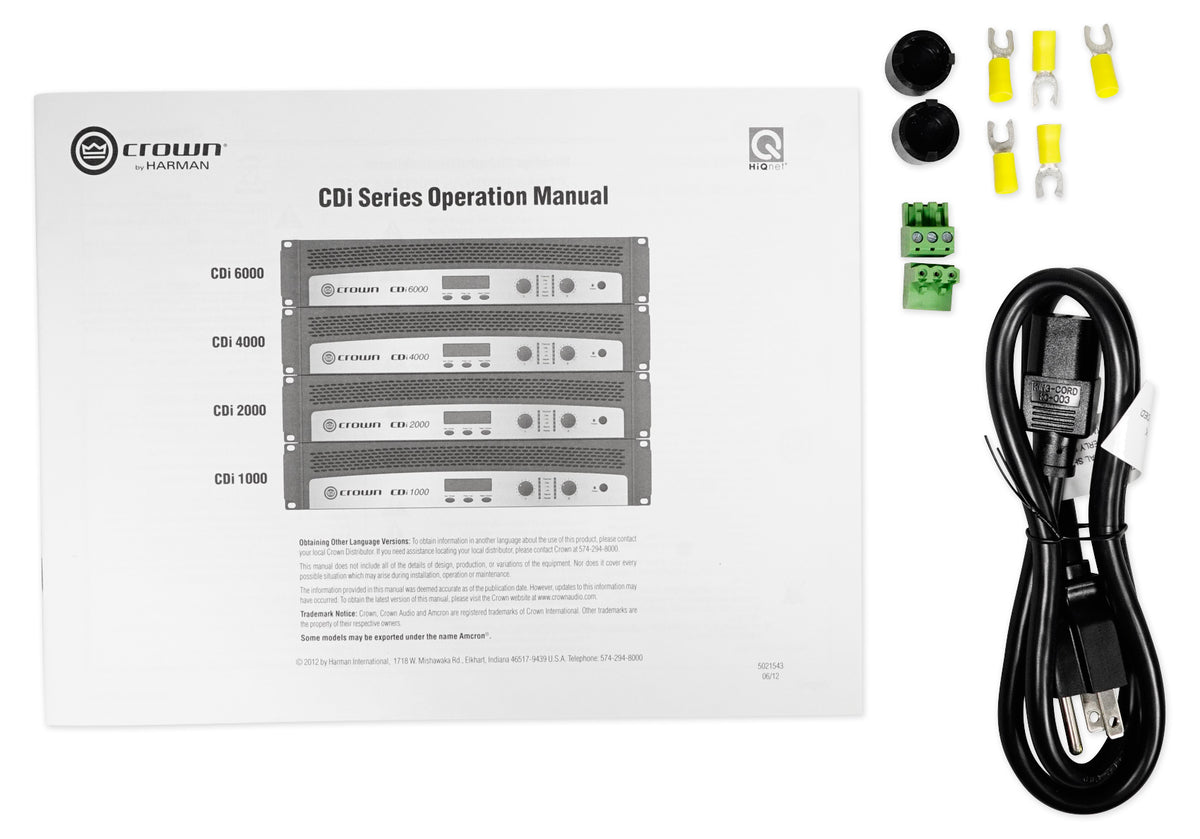

What's Included in the box
- Crown CDi1000 2-Channel Power Amplifier
- IEC power cable
SKU: SKU: CDi1000*
View full details![Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]](http://audiosavings.com/cdn/shop/files/2804581.jpg?v=1754320914&width=1445)
![Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]](http://audiosavings.com/cdn/shop/files/2804580.jpg?v=1754320914&width=1445)
![Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]](http://audiosavings.com/cdn/shop/files/2804579.jpg?v=1754320914&width=1445)
![Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]](http://audiosavings.com/cdn/shop/files/2804578.jpg?v=1754320914&width=1445)
![Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]](http://audiosavings.com/cdn/shop/files/2804577.jpg?v=1754320914&width=1445)
![Crown CDi1000 2-Channel 500W Commercial Power Amplifier [Open Box]](http://audiosavings.com/cdn/shop/files/2804576.jpg?v=1754320914&width=1445)
Product Description
A switch-mode universal power supply keeps the chassis light for rack installs across different regions, and the front-panel LCD screen puts channel levels, load settings, and DSP status in view during setup and troubleshooting. Onboard digital signal processing handles crossovers, EQ filters, delay, and output limiting directly in the amp, and up to 20 user-defined DSP presets let an installer save tuned configurations for repeat jobs or multi-zone venues.
At 3.5" x 19" x 12.25" and 22 lb, it fits a standard equipment rack alongside other commercial audio gear, and the 15A IEC power connector keeps it compatible with common rack power distribution.
Features
Built for Mixed-Impedance Installs
Switches between 2, 4, and 8-ohm loads and 70V/140V distributed lines so one amplifier covers zones with different speaker types.
Onboard Signal Processing
Built-in crossovers, EQ filters, delay, and output limiting tune sound at the amp without adding external processors.
Fast Field Configuration
A front-panel LCD screen shows channel status and settings so installers can adjust the system without a laptop.
Save Time on Repeat Jobs
Up to 20 user-defined DSP presets store tuned configurations for quick recall across multiple rooms or venues.
Rack-Ready Design
A compact 3.5 x 19 x 12.25 inch chassis at 22 lb mounts into a standard rack alongside other commercial audio equipment.
Technical Specifications
- Product Type 2-Channel Commercial Power Amplifier
- Rated Power Output 500W per channel at 4 ohms
- Load Impedance 2, 4, 8 ohms; 70V/140V
- Signal to Noise Ratio 100 dB (A-weighted)
- THD Less than 0.5%
- Damping Factor > 500 (20 Hz to 400 Hz)
- Frequency Response +0 dB, -1 dB (20 Hz - 20 kHz at 1W)
- Input Impedance 20k ohms balanced, 10k ohms unbalanced
- Power Connector 15A IEC
- Weight 22 lb
- Dimensions 3.5" x 19" x 12.25"
