CSA1300Z Amp + (30) DCS6T Drop Ceiling Speakers

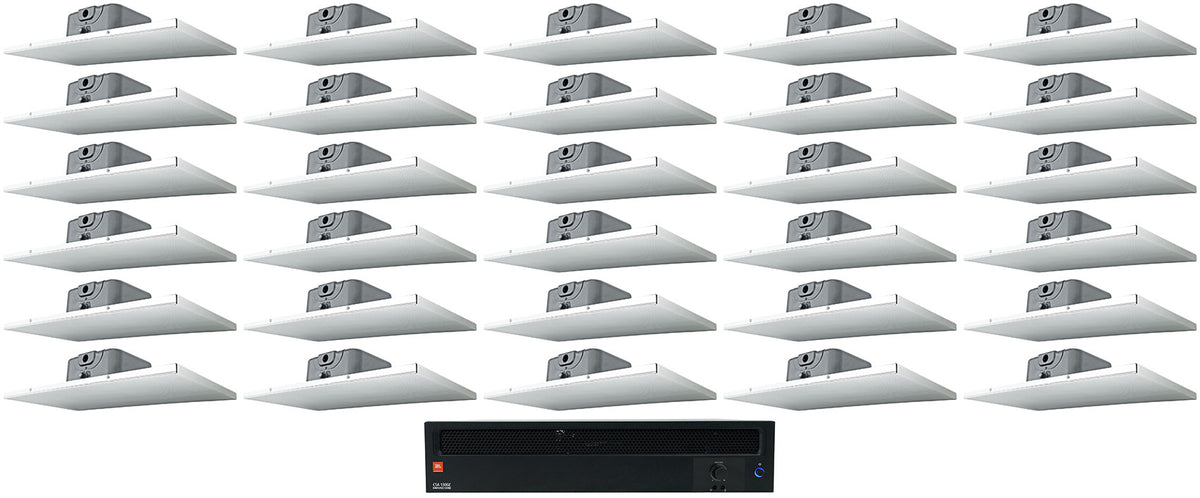

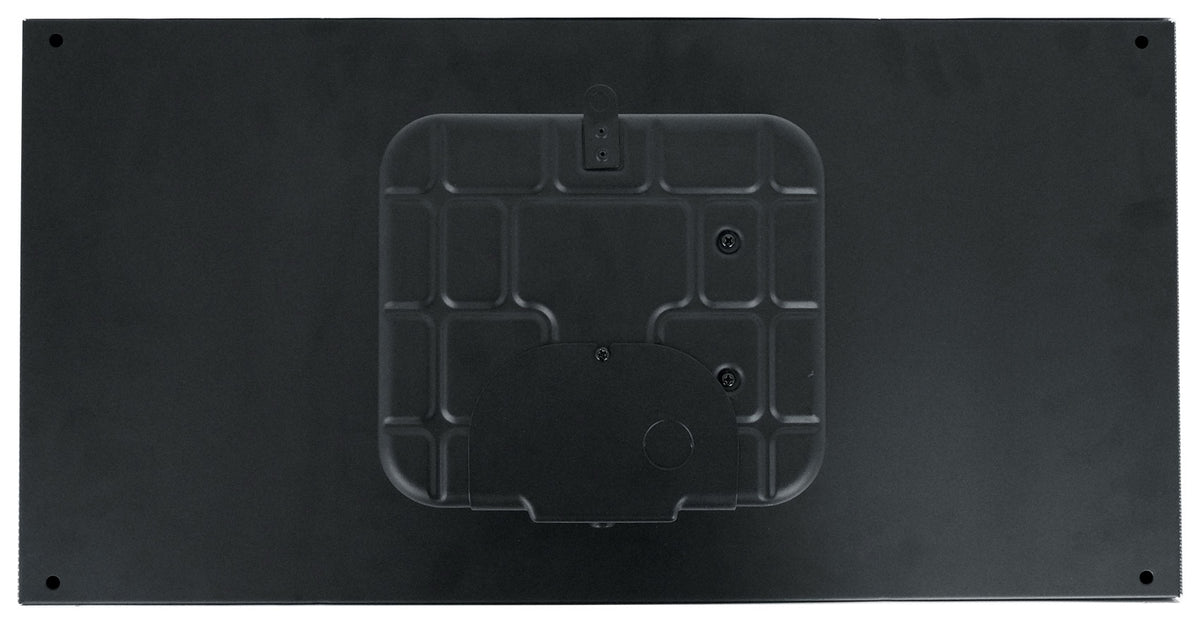

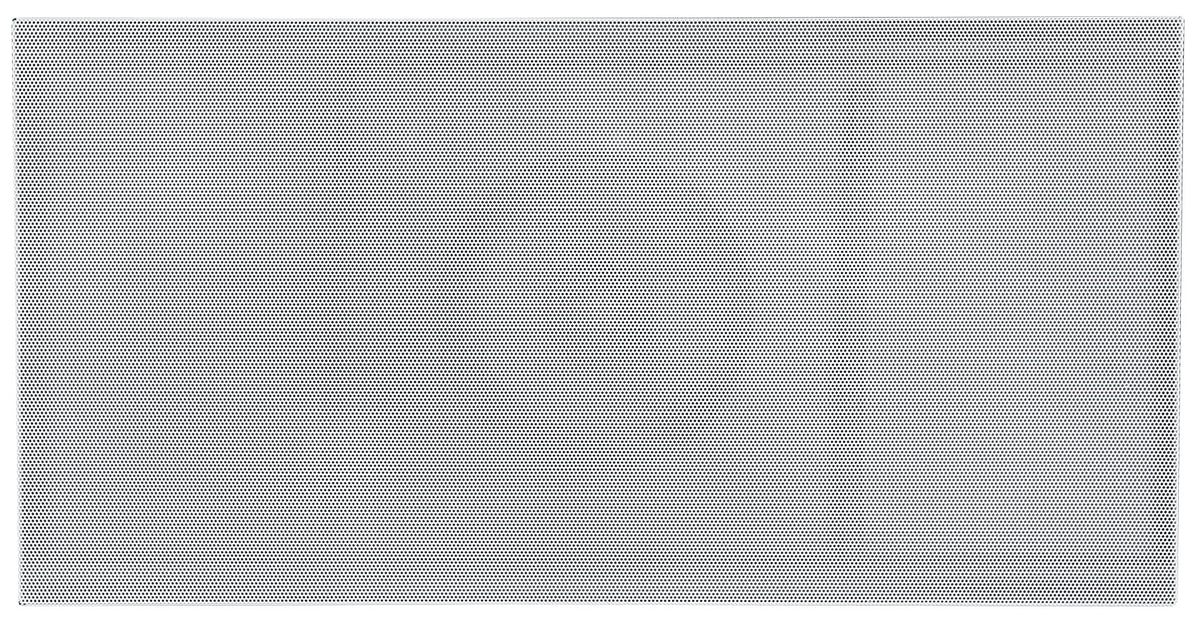

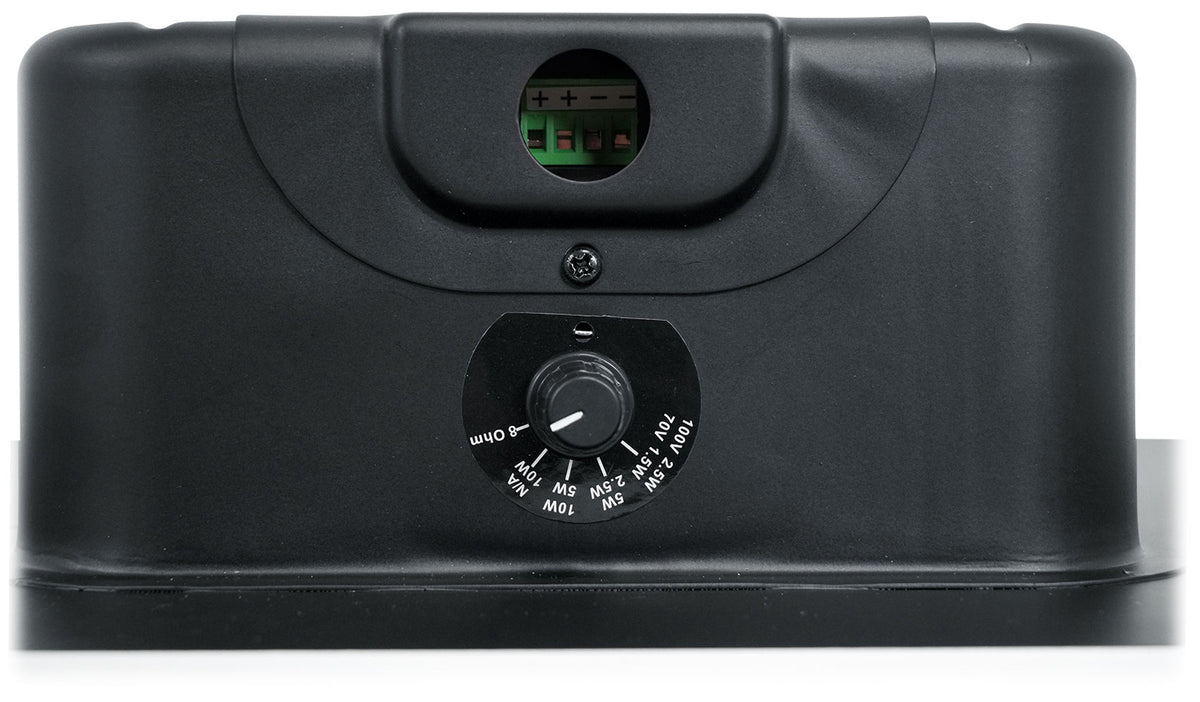

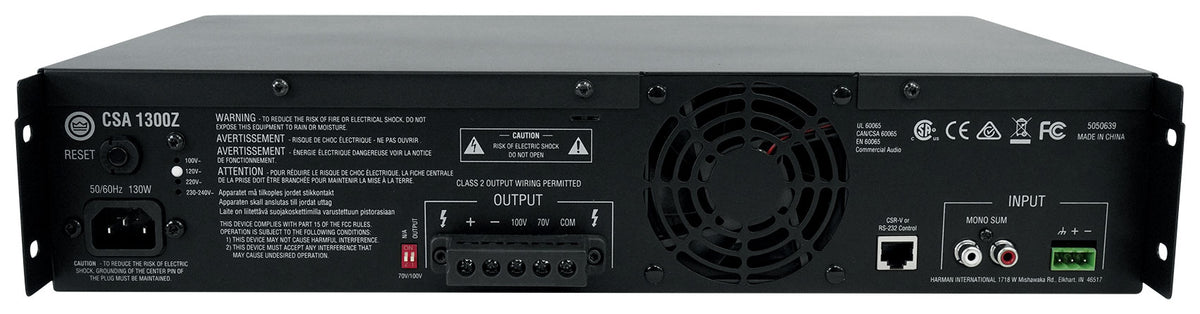

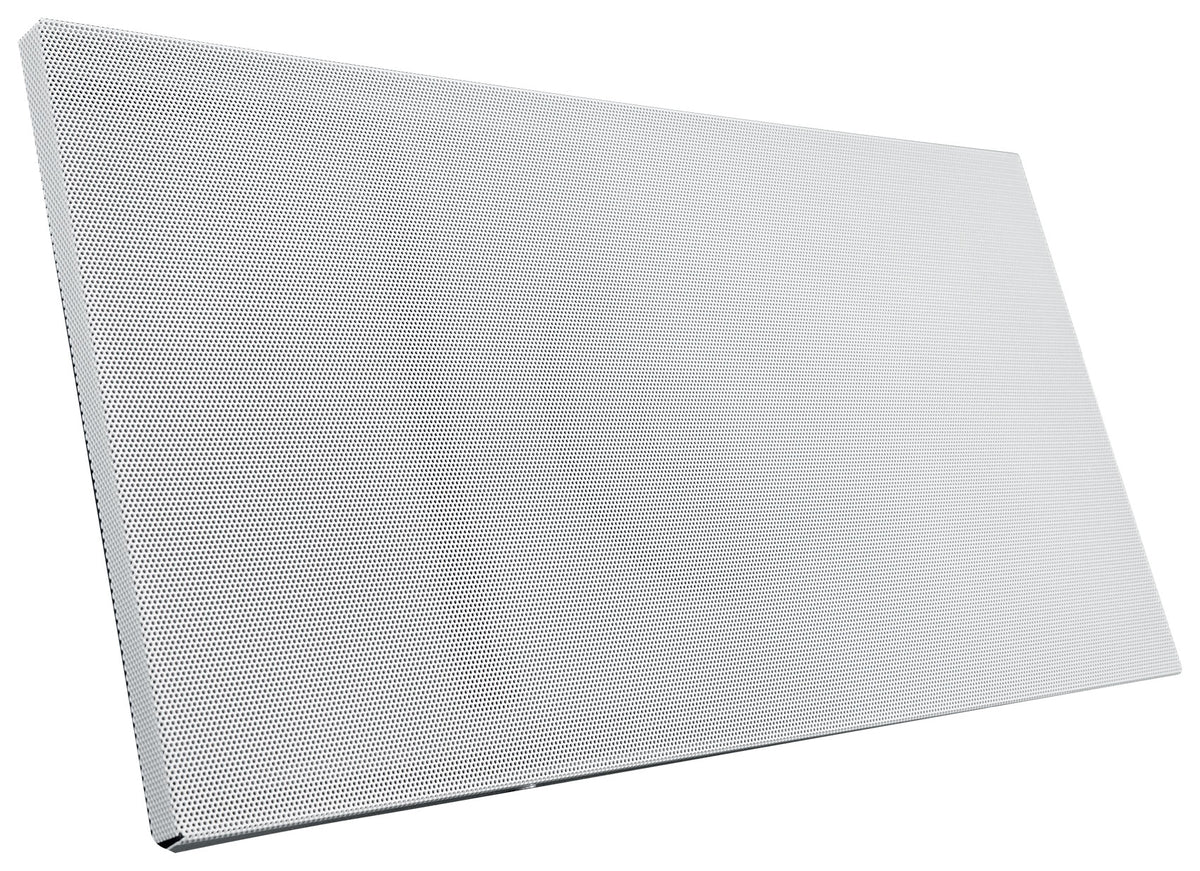

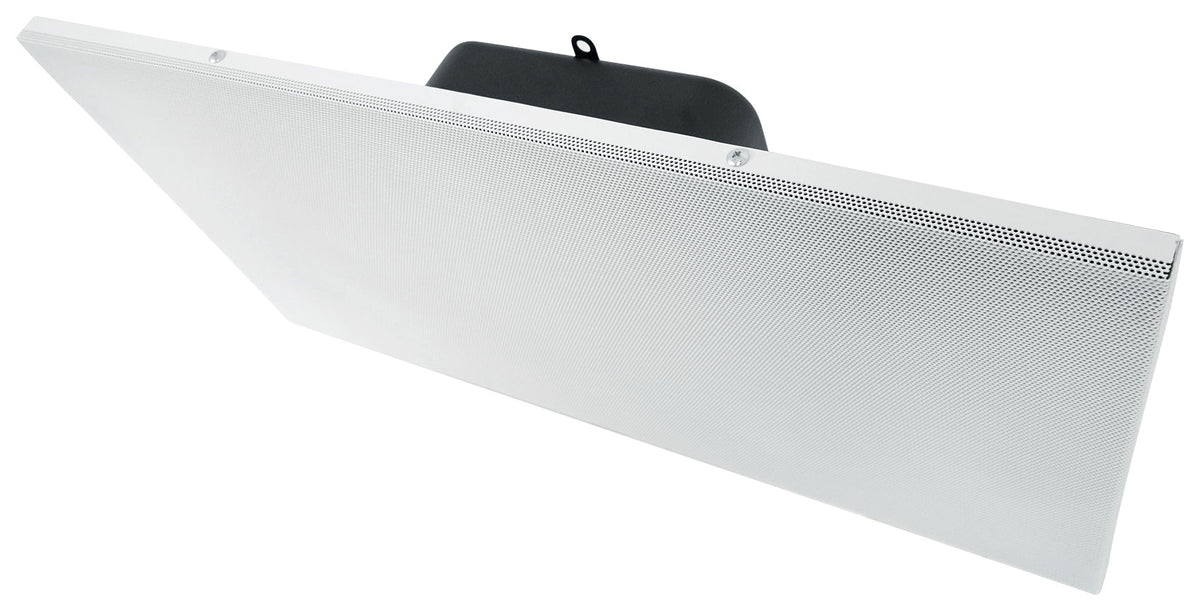

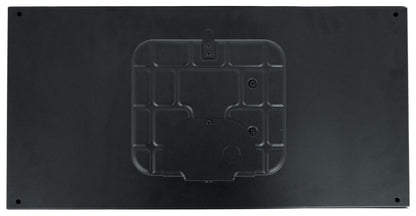

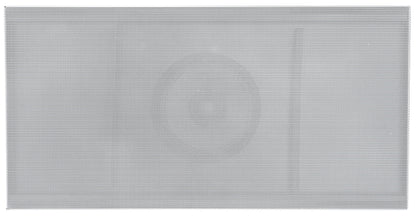

This JBL and Rockville package puts a full 70V sound system into a drop ceiling office, store, or restaurant in one order. The JBL CSA1300Z delivers 300W on a single channel at 70V or 100V, and the 30 Rockville DCS6T speakers come pre-mounted in standard 2' x 1' ceiling tiles, so installation means lifting out an existing tile, setting a speaker in its place, and running wire back to the amp. Tap every speaker at 10W and the total load lands right at the amplifier's 300W rating, or set hallways, restrooms, and back offices at 5W, 2.5W, or 1.5W to keep quieter areas comfortable while dining rooms and sales floors stay full.

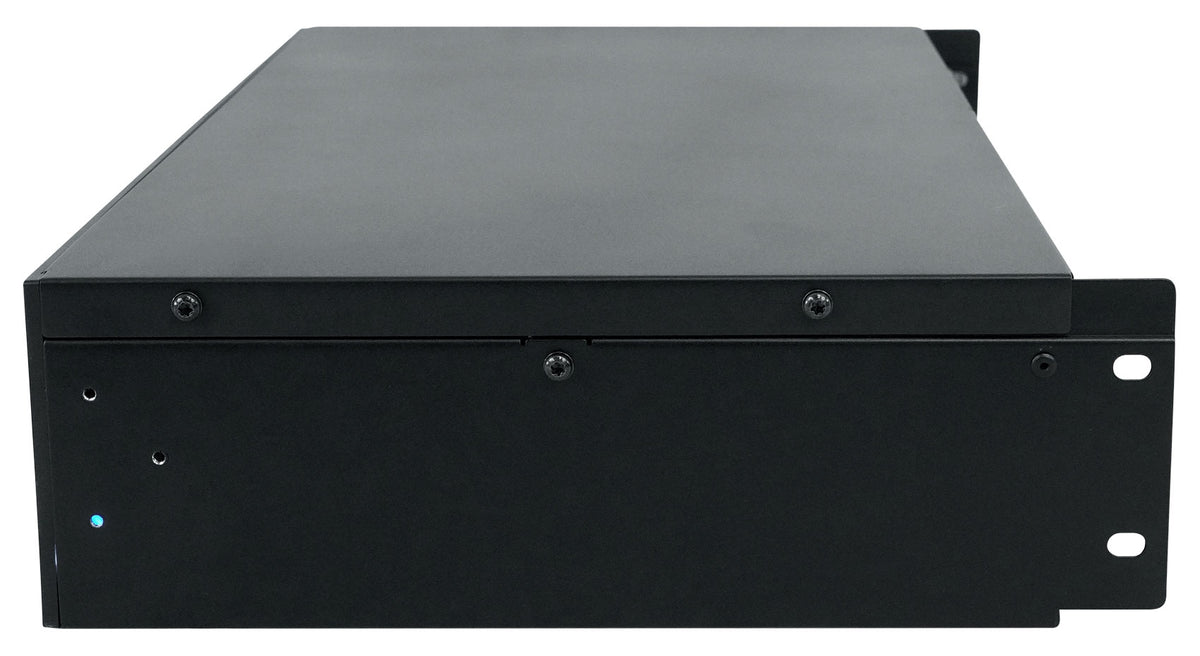

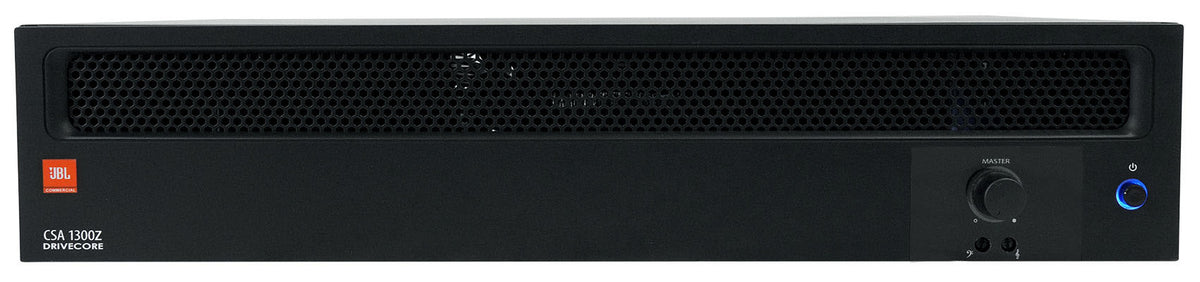

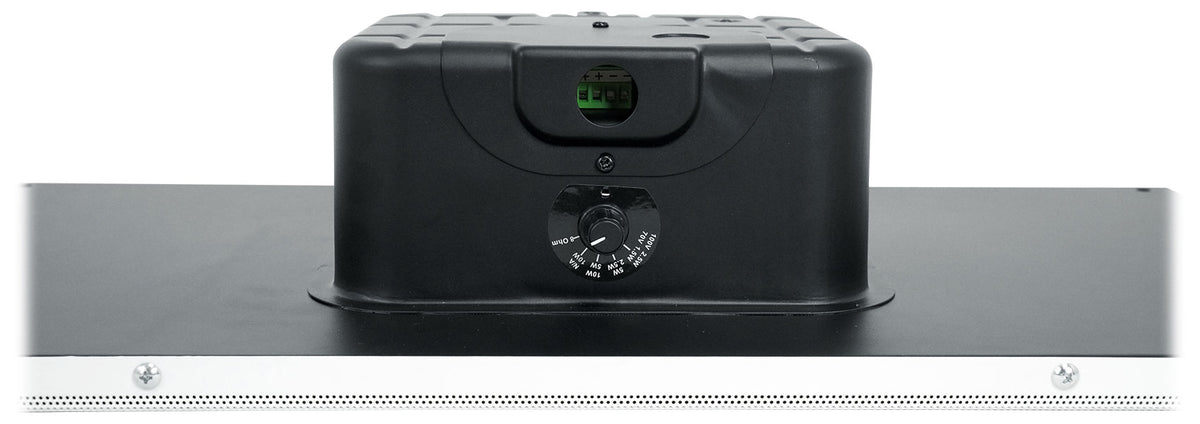

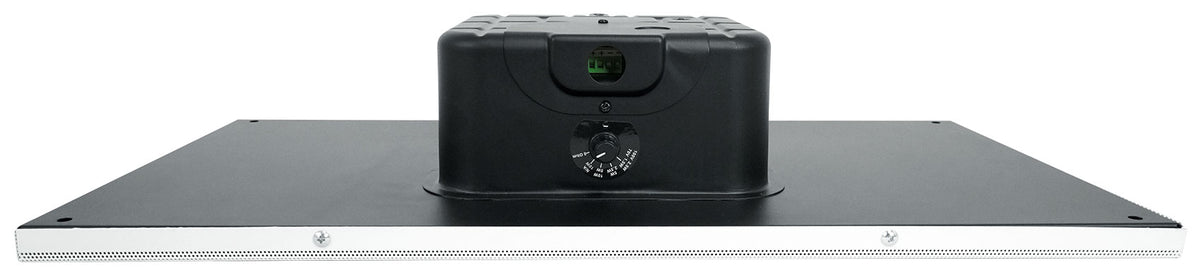

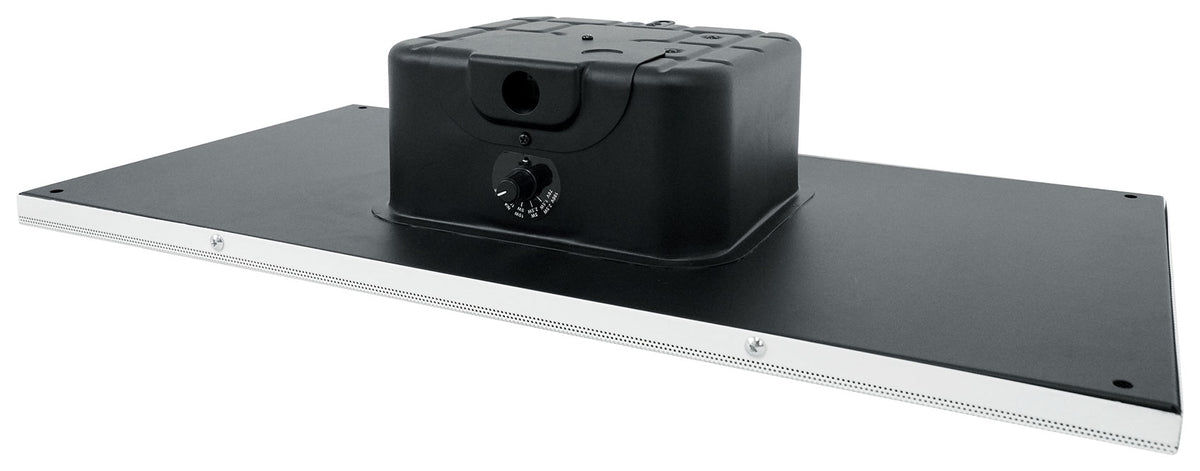

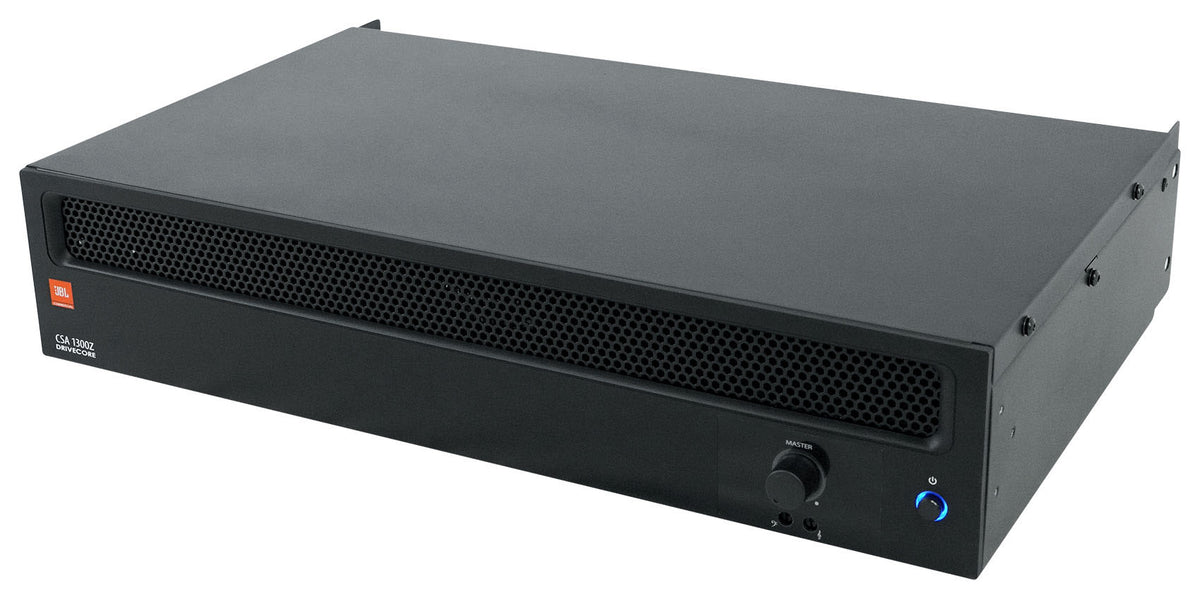

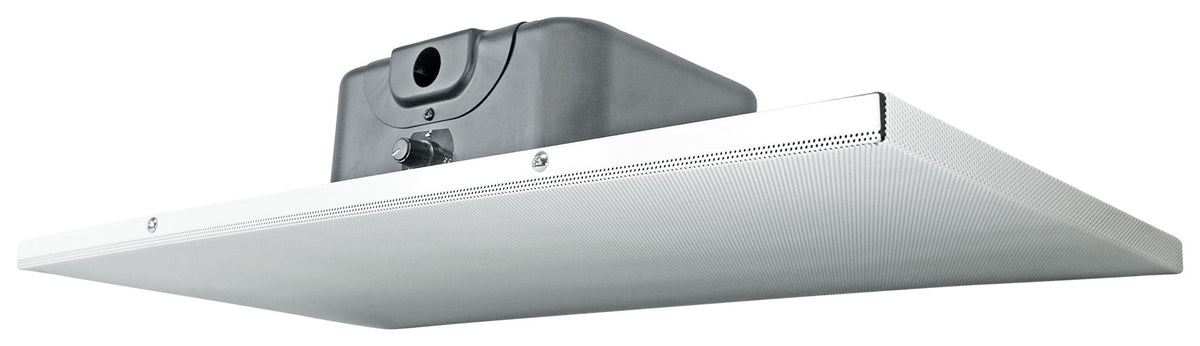

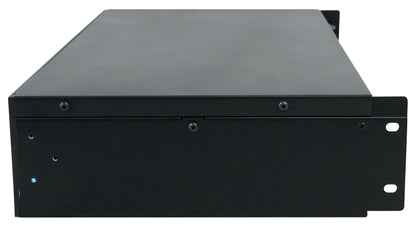

Each DCS6T uses a 6.5" paper cone speaker with a 105° dispersion pattern, tuned for clear announcements and speeches while still handling background music and chimes. Spring-loaded terminals speed up wiring across a large ceiling, and the low 3.7" mounting depth leaves room above the grid. The CSA1300Z runs on Crown DriveCore technology in a 2 RU rack chassis, with RJ45 connectors for JBL CSR-V wall volume controls over CAT5 cable, illuminated knob rings for quick adjustments, and an energy-efficient design built for systems that play all day. Because 70V lines run long distances without signal loss and don't require impedance matching, adding speakers or extending runs later stays simple.
