CSA280Z Amp + (2) WET-6525B Black Wall Speakers
JBL
CSA280Z Amp + (2) WET-6525B Black Wall Speakers
CSA280Z Amp + (2) WET-6525B Black Wall Speakers

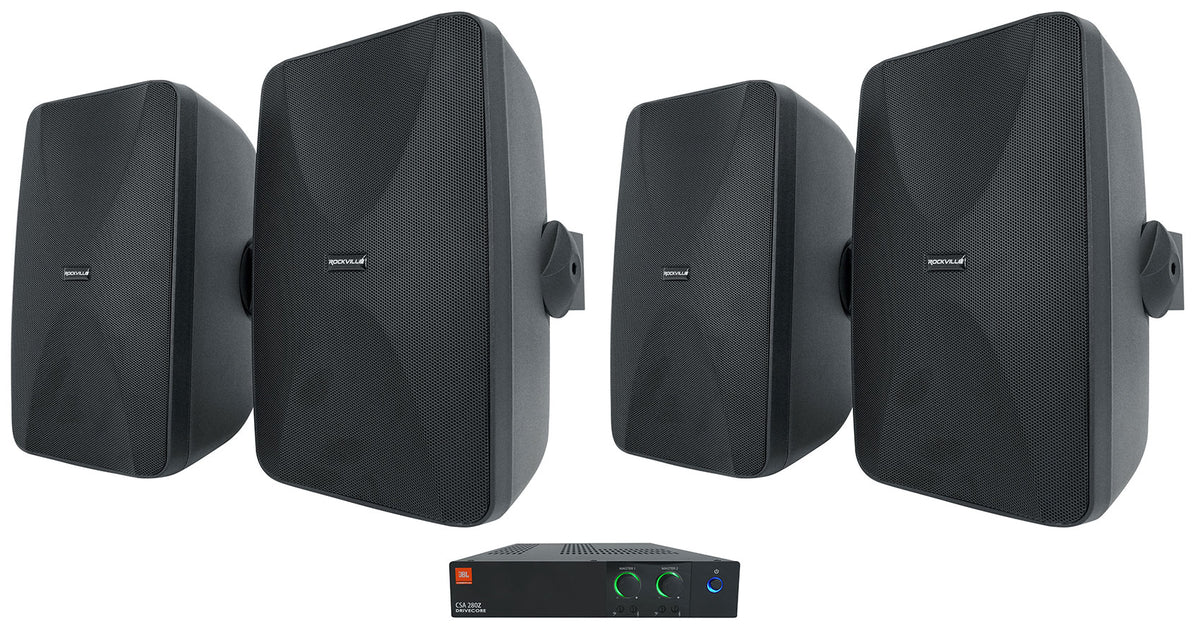

70V System, 2 x 80W Amp, (2) Black 6.5" IPX55 Wall Speakers for Restaurants, Bars, Patios
Free Shipping
Features

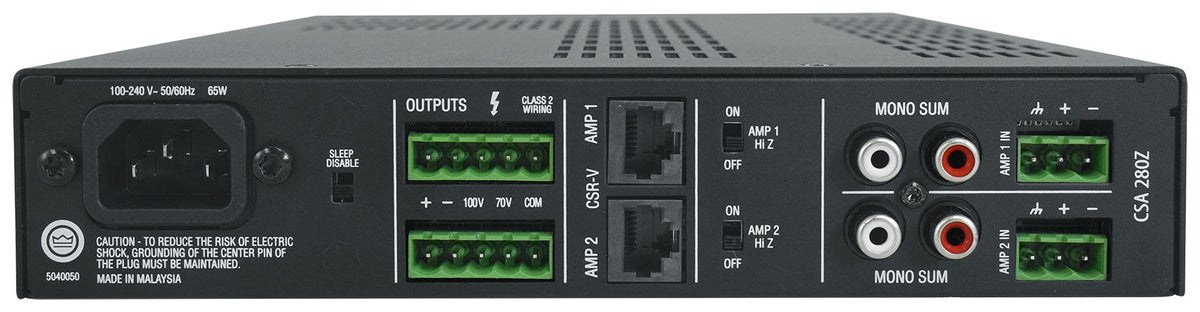

- CSA280Z amplifier delivers 80W per channel on 2 channels with built-in 70V and 100V

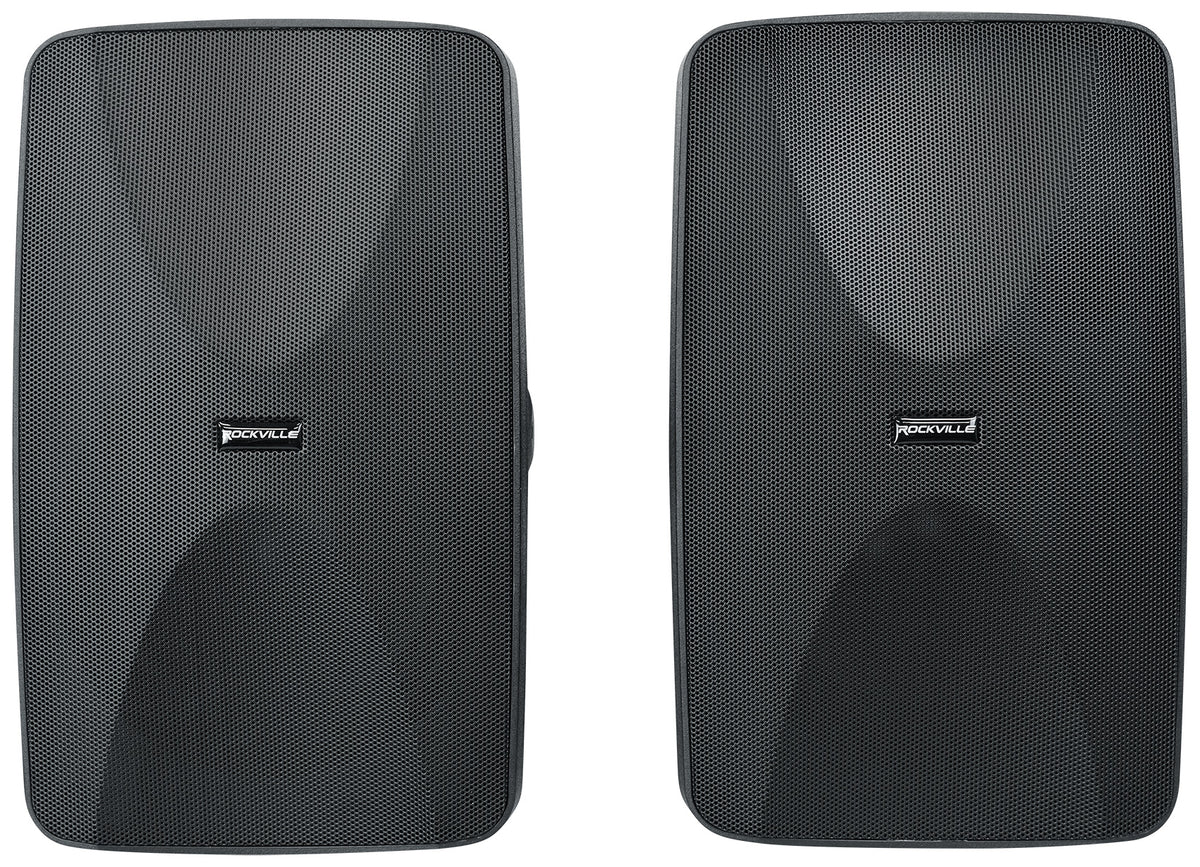

- Two black WET-6525B speakers pair a 6.5" woofer with a 20mm PEI dome tweeter
- IPX55 rated cabinets, aluminum grilles, and coated brackets resist water and rust
- 70V tap switch selects 30W, 15W, 7.5W, or 3.75W per speaker, plus 8 ohm operation
- Fanless 1U amplifier runs quietly and fits a standard rack with the included kit
Couldn't load pickup availability
What's Included in the box

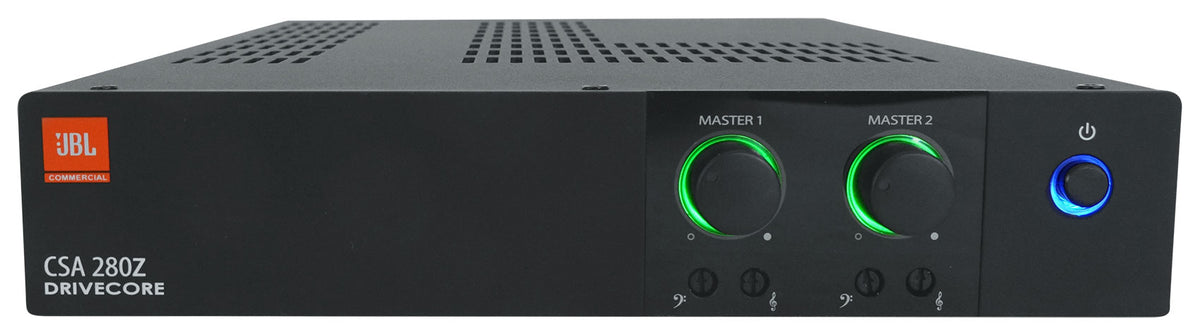

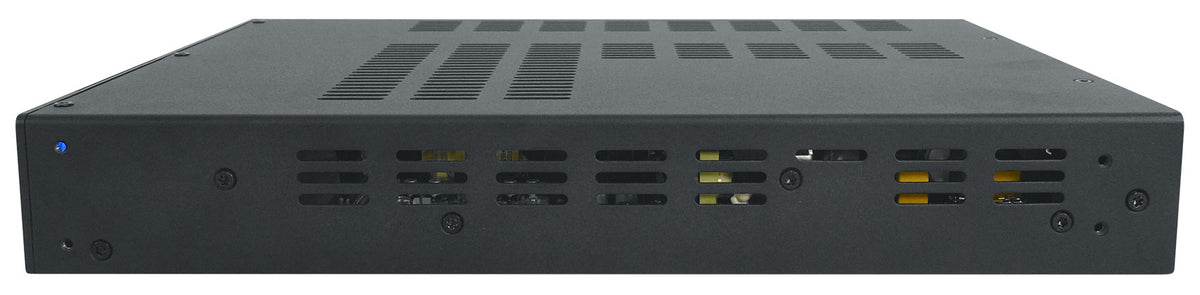

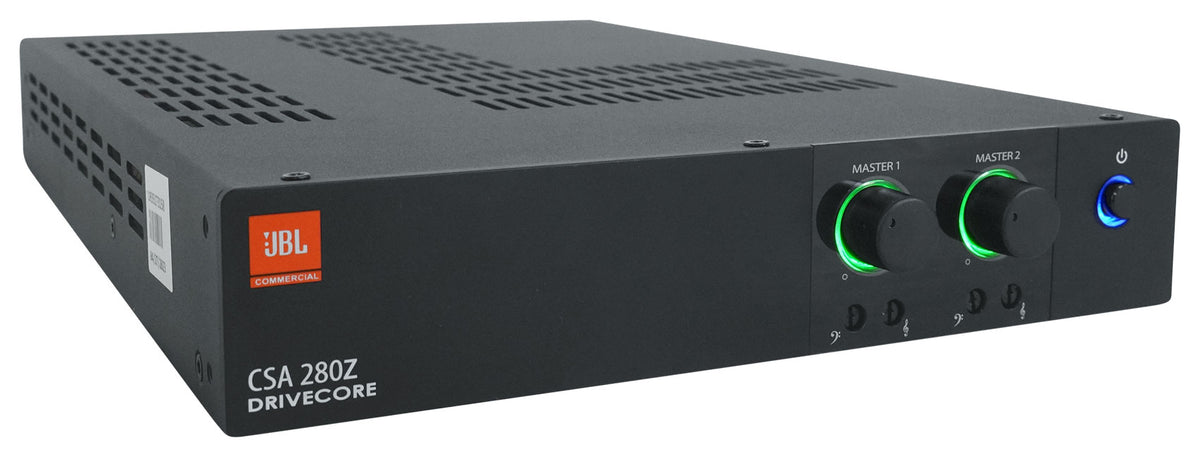

- (1) JBL CSA280Z 2 x 80W 70V Commercial Amplifier

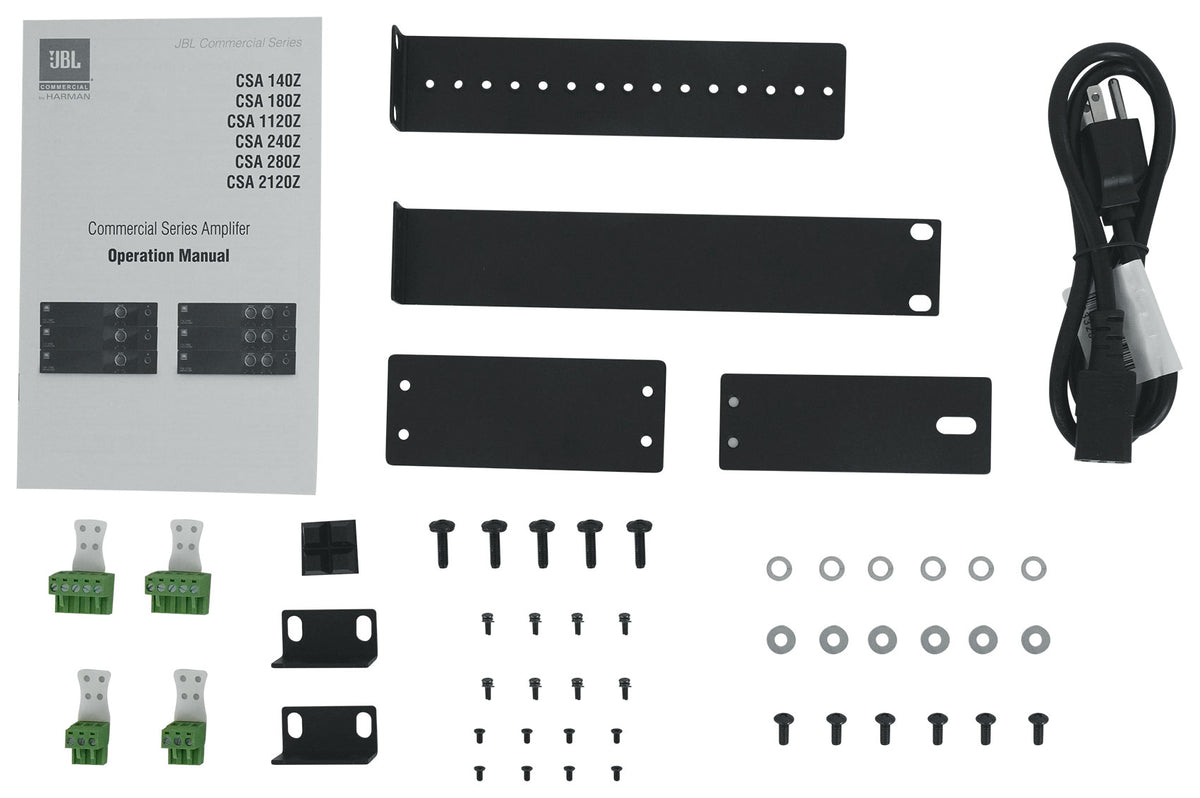

- (1) Rack Mounting Kit

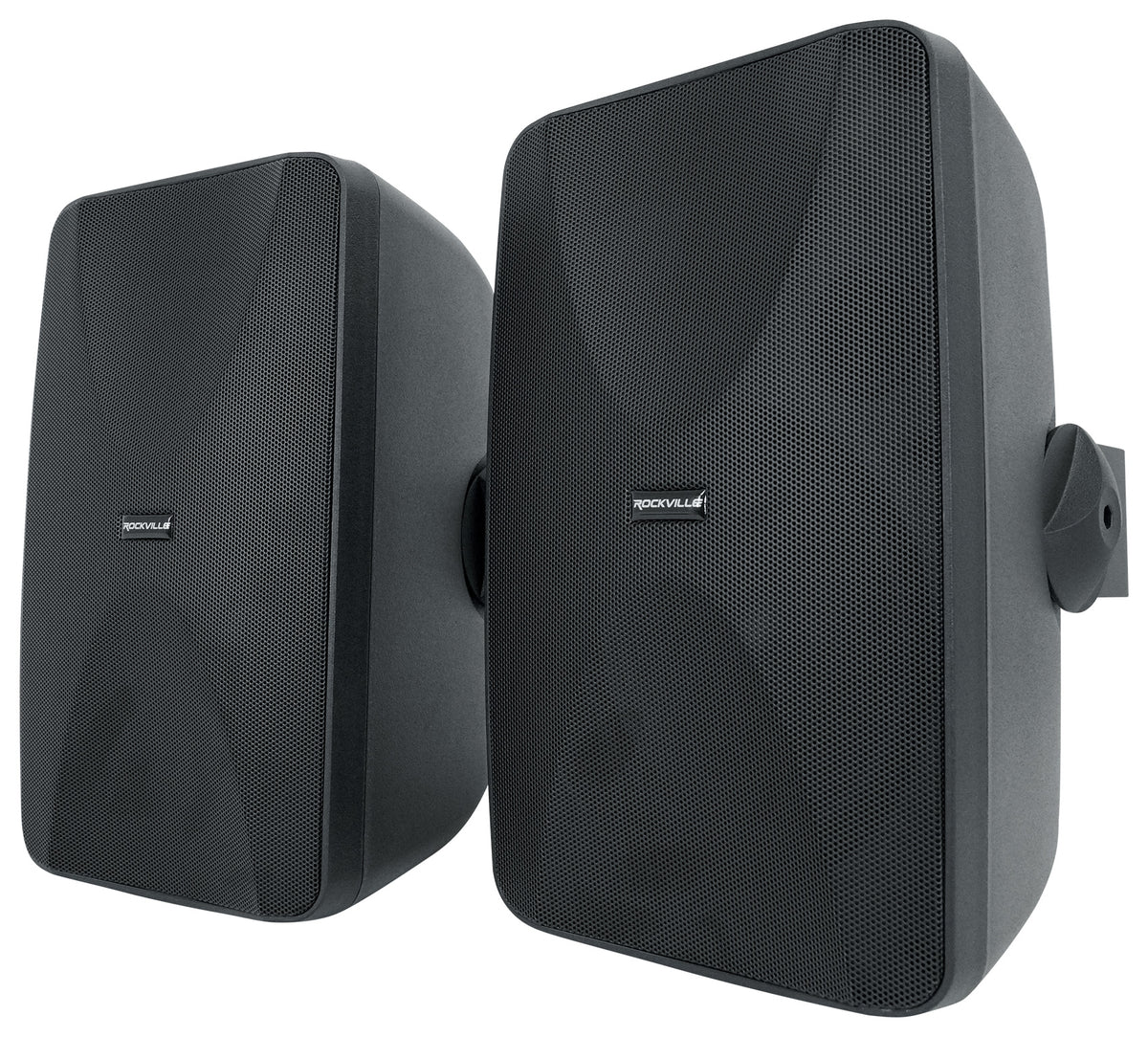

- (2) Rockville WET-6525B 6.5" 70V Black Wall Speakers

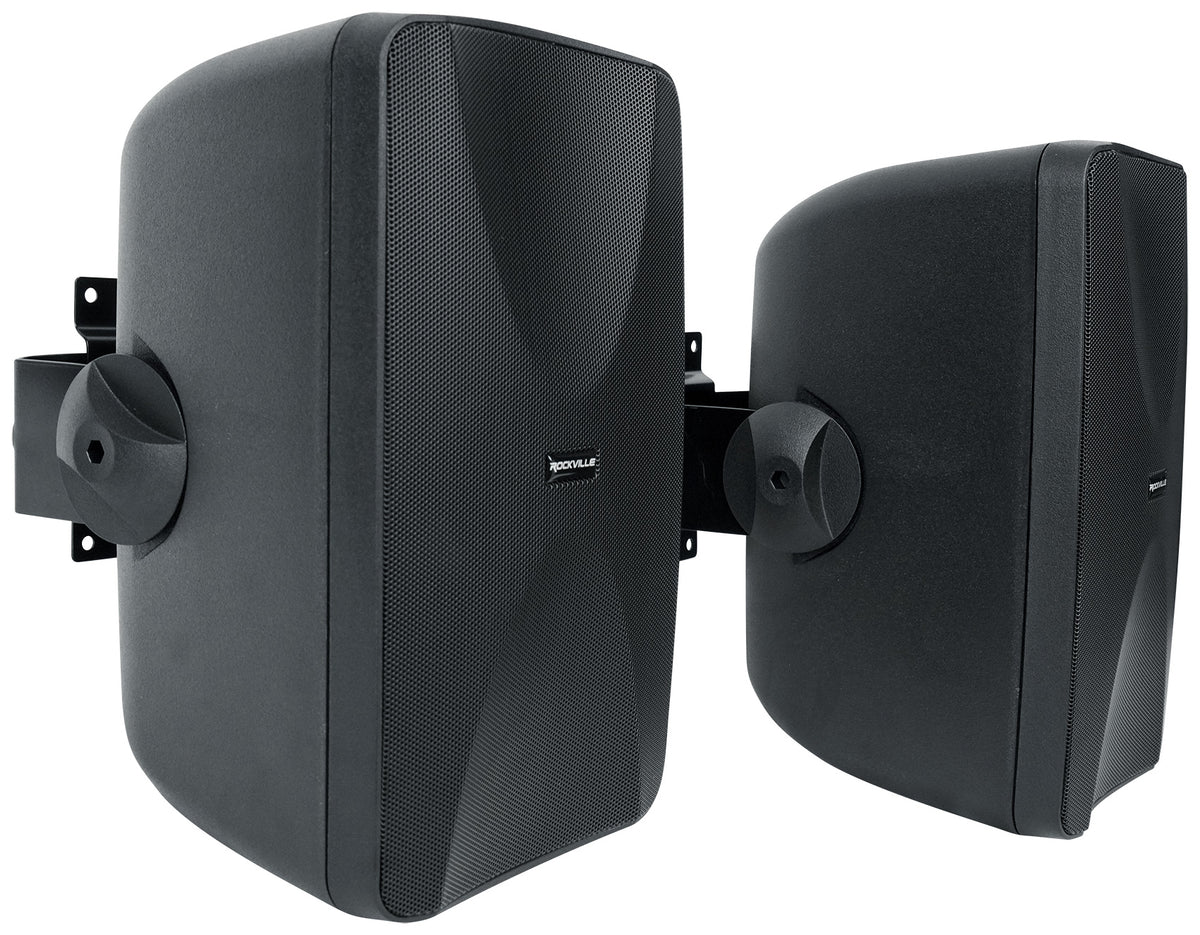

- (2) 4-Way Swivel Mounting Brackets
SKU: SKU: CSA280Z+(2) WET-6525B
View full details











Product Description
Each WET-6525B carries an IPX55 rating, with a waterproof plastic cabinet, rustproof aluminum grille, and powder coated steel brackets that pass a 96 hour salt water spray test, so the same pair works in a dining room or out on an open deck. A 6.5" polypropylene woofer in a vented enclosure and a 20mm PEI dome tweeter produce full, balanced sound from 55Hz to 20kHz for background music of any style. The built-in tap switch sets each speaker to 30W, 15W, 7.5W, or 3.75W so you can run the bar louder than the dining area, with 8 ohm operation available for standard amplifiers. Four-way swivel brackets angle each speaker up, down, left, or right to aim sound at the seating, and optional JBL CSR-V wall controllers connect over CAT5 so staff can adjust volume without touching the rack.
Features
Complete 70V System in One Box
The matched amplifier and speakers arrive together, so you skip the guesswork of pairing power to load and get a commercial sound system running in a single install.
Built for Indoors and Out
IPX55 rated cabinets, rustproof aluminum grilles, and salt spray tested steel brackets stand up to rain, sun, and dust, so patios get the same sound as the dining room.
Full, Balanced Sound
A 6.5" polypropylene woofer in a vented enclosure and a 20mm PEI dome tweeter cover 55Hz to 20kHz, giving background music clear highs and deeper bass.
Power Matched to Every Zone
Set each speaker's tap switch to 30W, 15W, 7.5W, or 3.75W to fit a quiet dining area or a busy bar, with 8 ohm operation for standard amplifiers.
Quiet, Compact Amplifier
The fanless 1U CSA280Z runs without fan noise, mounts in a standard rack with the included kit, and accepts 100 to 240V power wherever you install it.
Technical Specifications
- Product Type 70V Commercial Amplifier and Wall Speaker Package
- Amplifier Model JBL CSA280Z
- Amplifier Output Channels 2
- Amplifier Power Output 80W per channel
- Amplifier Outputs 70V, 100V
- Input Sensitivity 1.4Vrms for 8 ohms
- Input Impedance 20K ohms/50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100-240V, 50/60 Hz
- Amplifier Design Fanless 1U rackmount
- Wall Controller Support JBL CSR-V via CAT5 (RJ45)
- Certification Energy Star
- Speaker Model Rockville WET-6525B (x2)
- Woofer 6.5" polypropylene cone
- Tweeter 20mm PEI dome
- Enclosure Vented, waterproof plastic
- 70V Taps 30W, 15W, 7.5W, 3.75W
- 8 Ohm Power Handling 40W RMS
- Nominal Impedance 8 ohms
- Frequency Response 55Hz-20kHz
- Sensitivity 85dB +/-2dB
- Weatherproof Rating IPX55

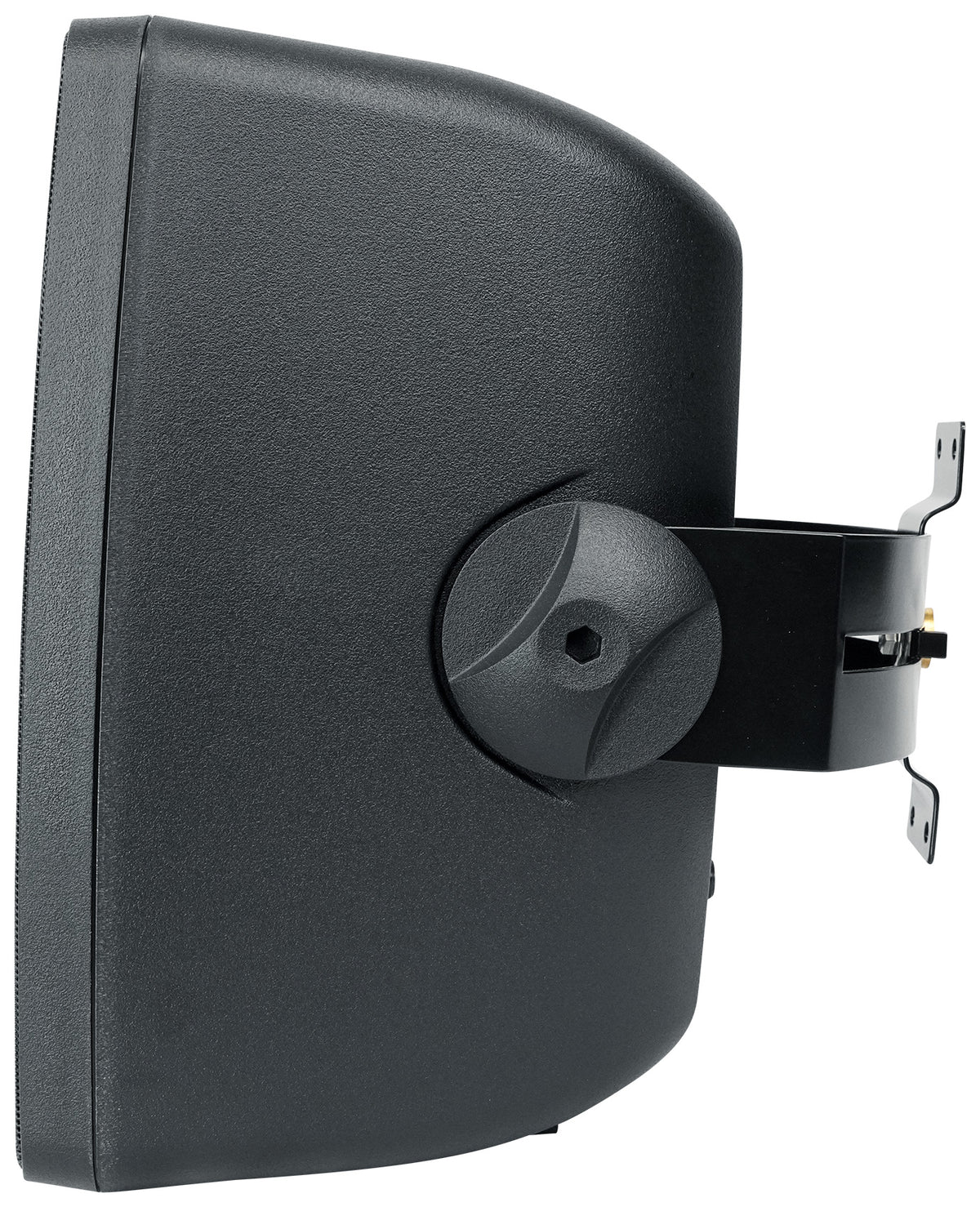

- Mounting 4-way swivel powder coated steel brackets
- Color Black
- Speaker Weight 6.94 lb (3.15 kg) each
- Dimensions Amplifier: 1.75" x 8.5" x 12"; Speaker: 12.21" x 7.4" x 7.3"
