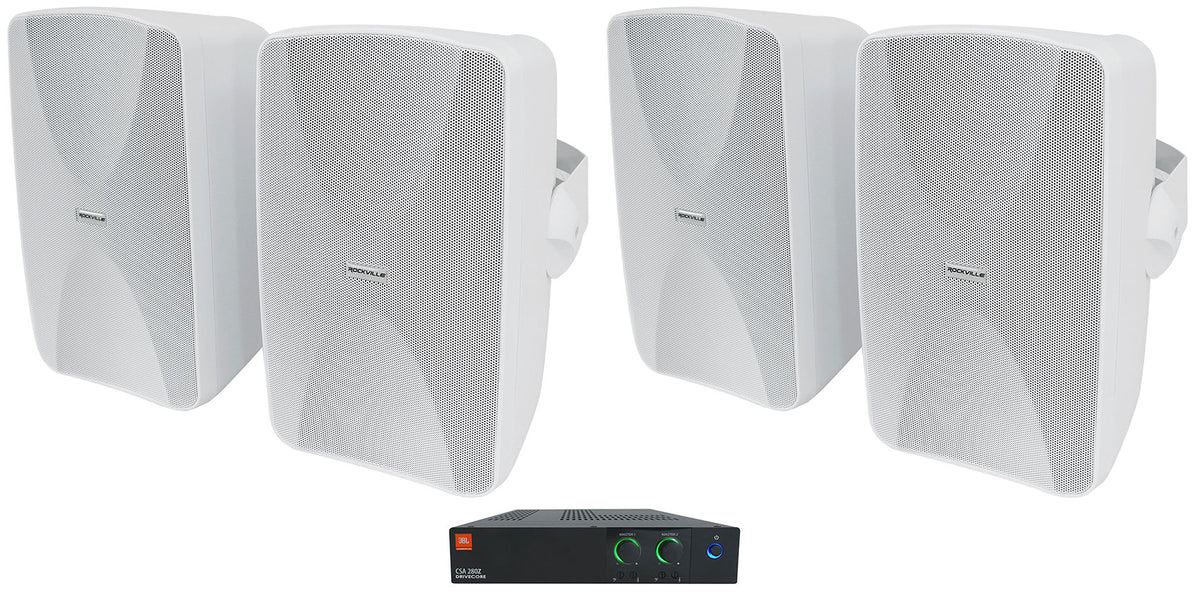

CSA280Z Amp + (2) WET-6525W White Wall Speakers
JBL
CSA280Z Amp + (2) WET-6525W White Wall Speakers
CSA280Z Amp + (2) WET-6525W White Wall Speakers
70V System, 2 x 80W Amp, (2) White 6.5" IPX55 Wall Speakers for Restaurants, Bars, Patios
Free Shipping
Features
- CSA280Z amplifier delivers 80W per channel on 2 channels with built-in 70V and 100V
- Two white WET-6525W speakers pair a 6.5" woofer with a 20mm PEI dome tweeter
- IPX55 cabinets, aluminum grilles, and salt spray tested brackets resist water and rust
- 70V tap switch selects 30W, 15W, 7.5W, or 3.75W per speaker, plus 8 ohm operation
- Fanless 1U amplifier runs quietly and fits a standard rack with the included kit
Couldn't load pickup availability

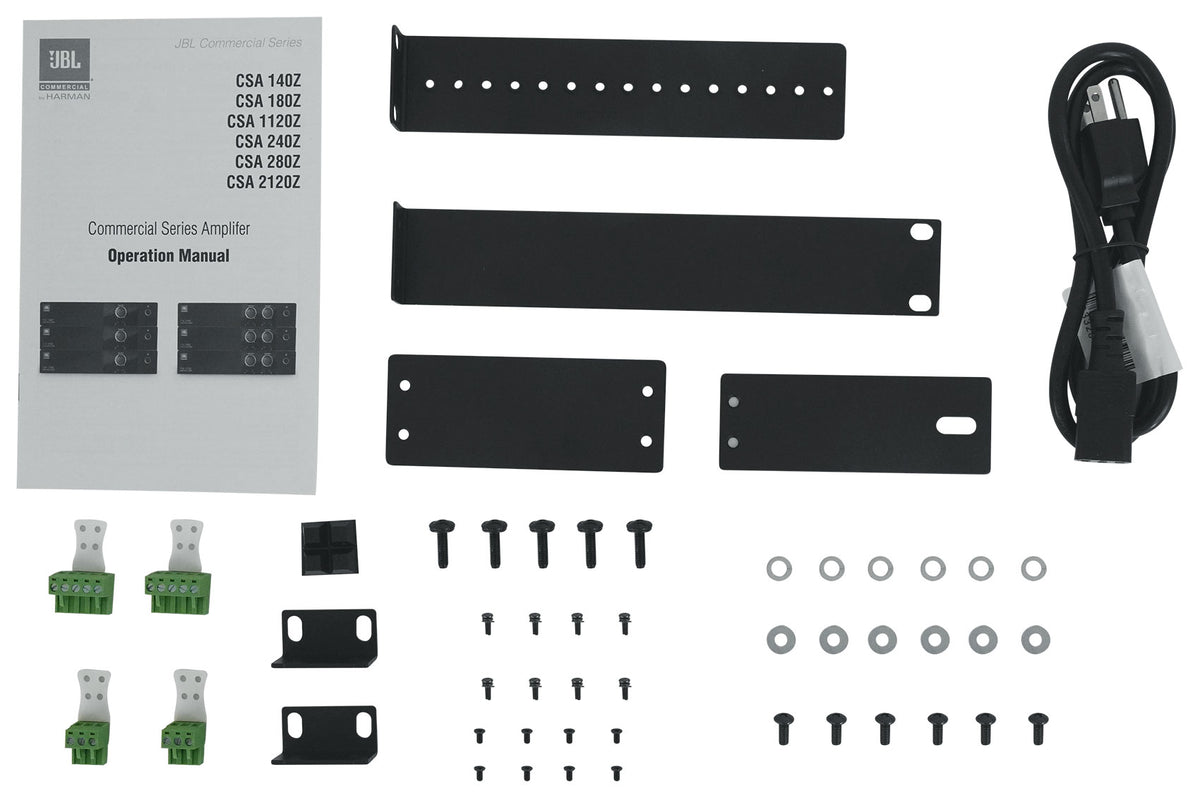

What's Included in the box
- (1) JBL CSA280Z 2 x 80W 70V Commercial Amplifier
- (1) Rack Mounting Kit
- (2) Rockville WET-6525W 6.5" 70V White Wall Speakers
- (2) 4-Way Swivel Mounting Brackets
SKU: SKU: CSA280Z+(2) WET-6525W
View full details











Product Description

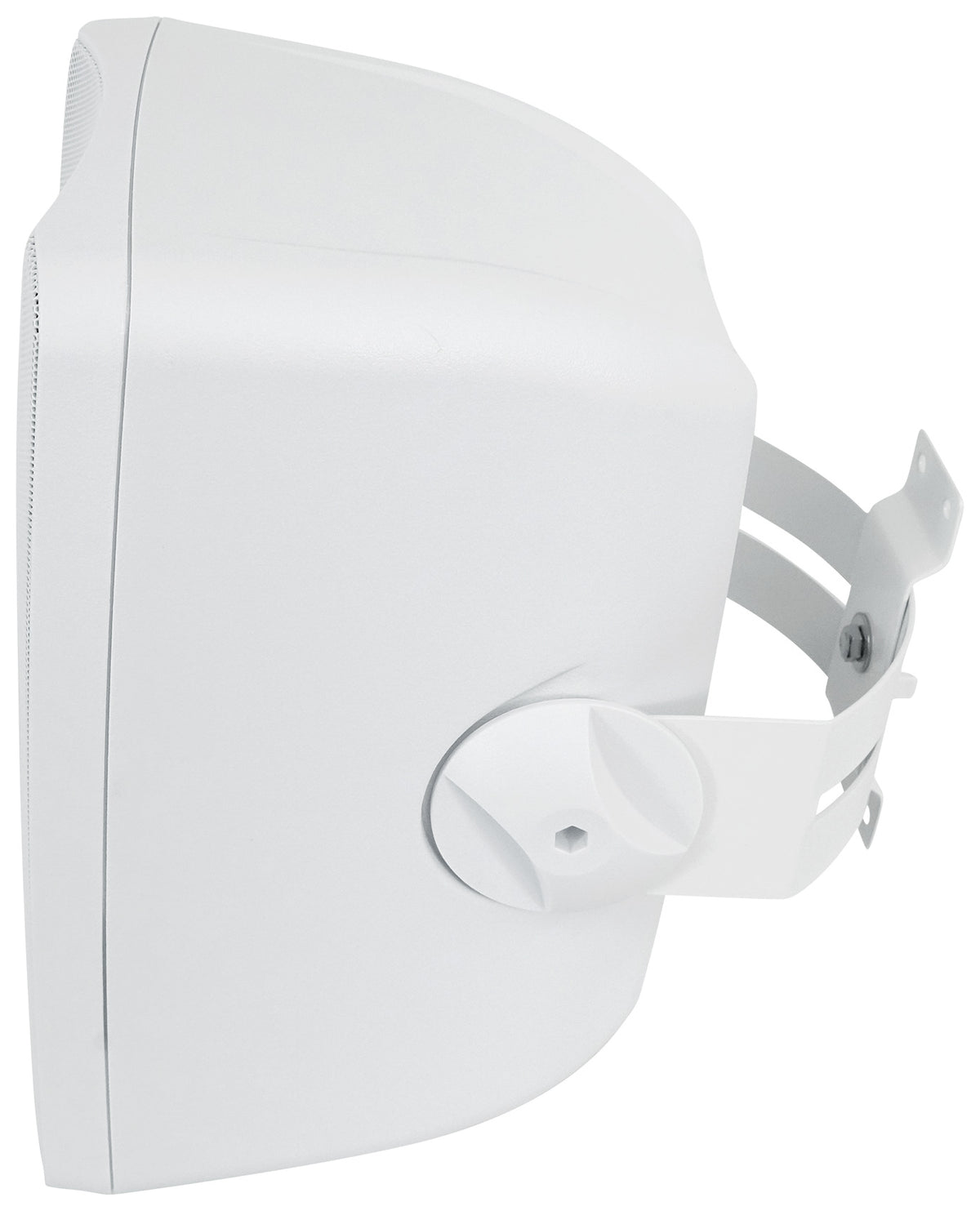

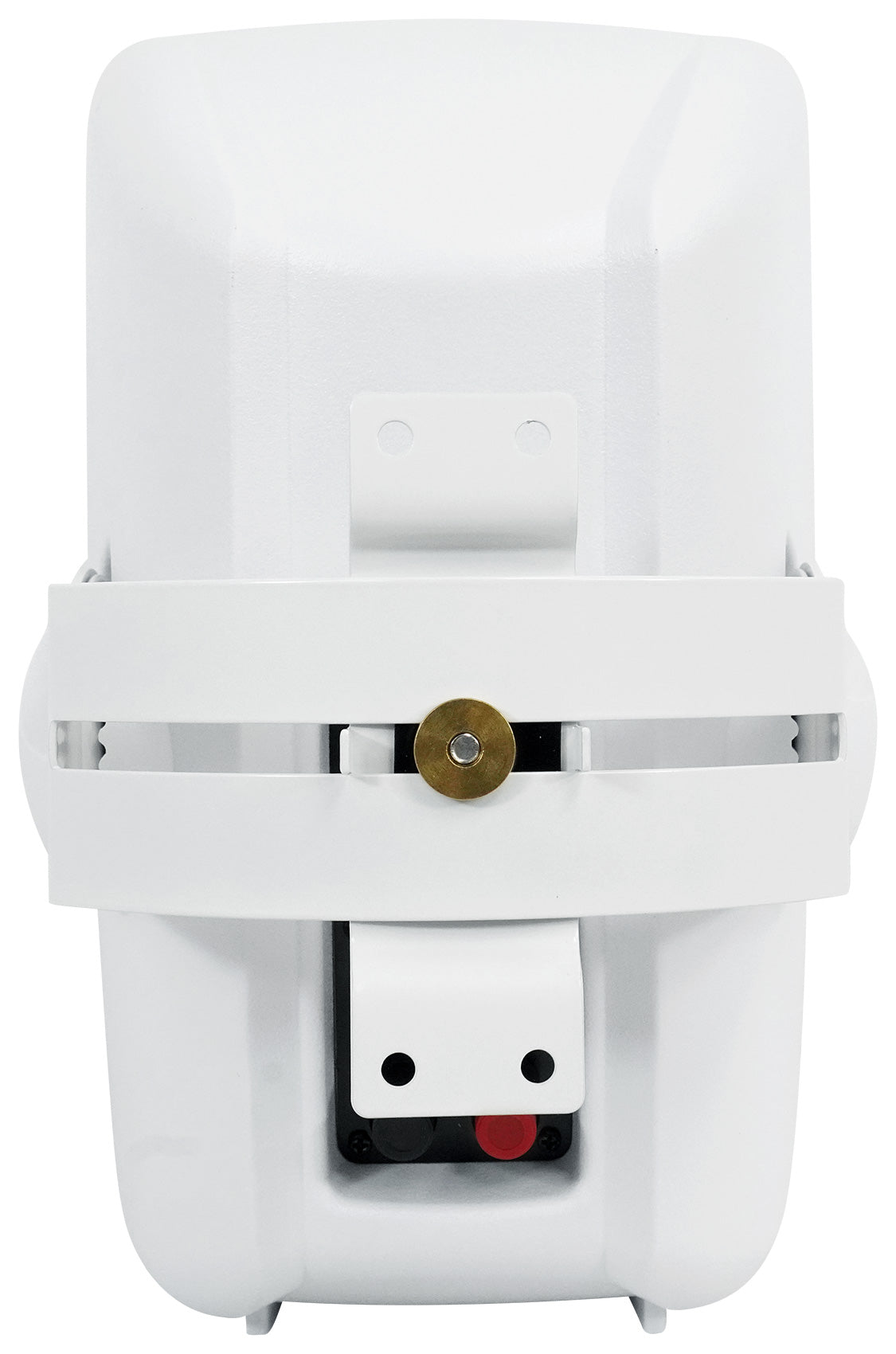

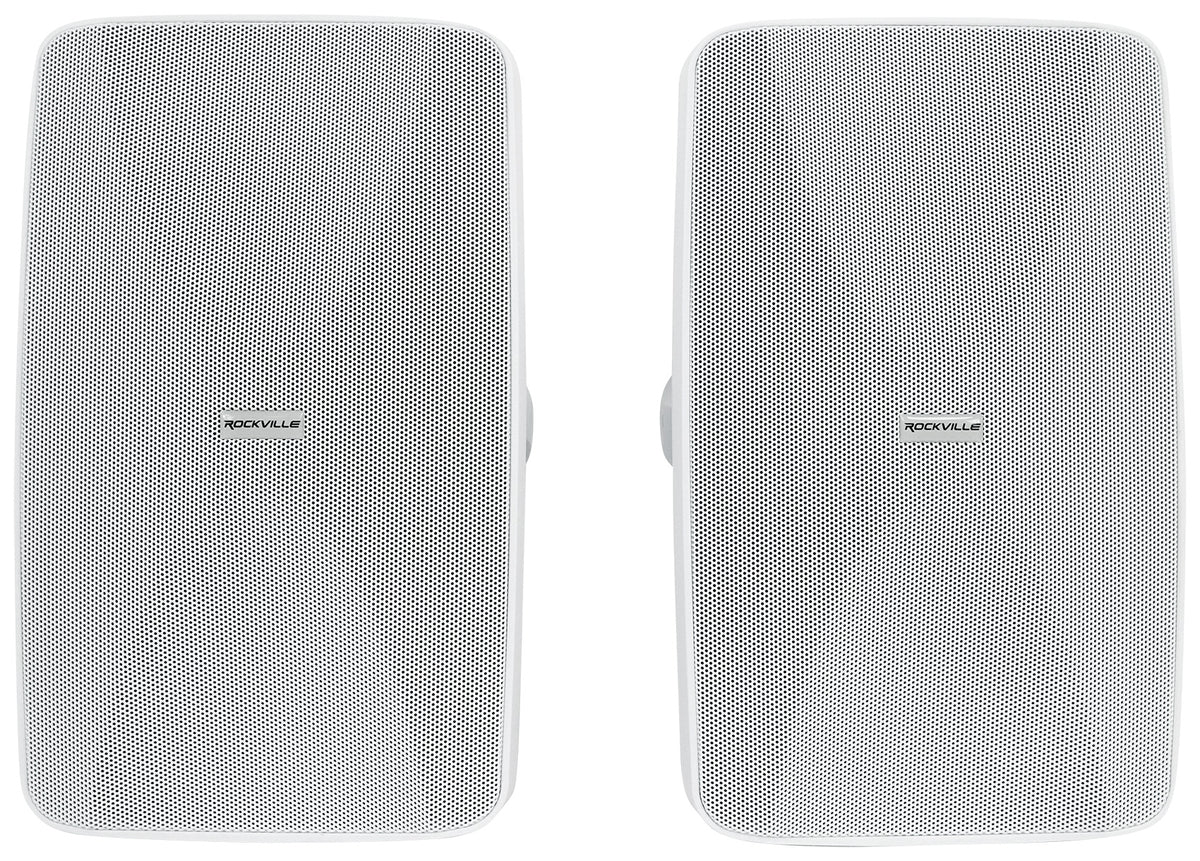

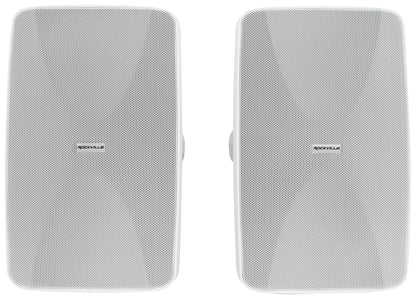

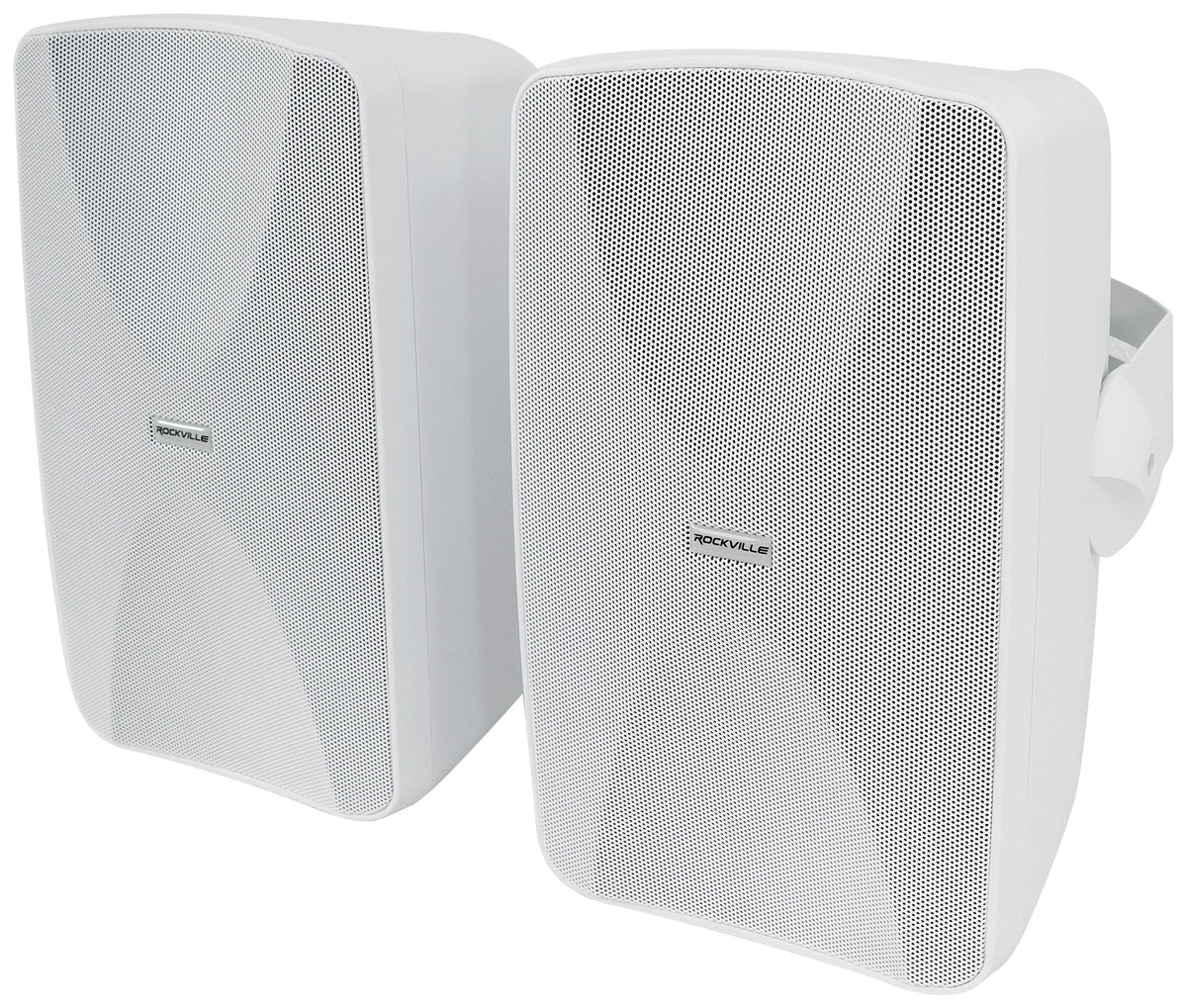

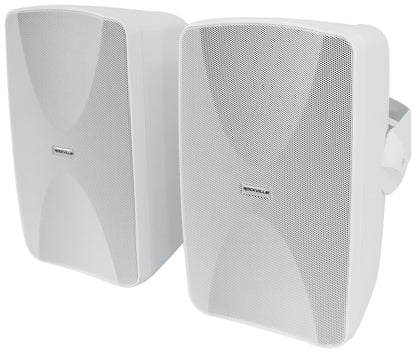

The WET-6525W speakers are IPX55 rated for indoor and outdoor installs. Each one uses a waterproof plastic cabinet, a rustproof aluminum grille, waterproof spring loaded terminals, and powder coated steel brackets that pass a 96 hour salt water spray test, so rain, sun, and dust on an open patio are not a problem. Inside, a 6.5" polypropylene woofer in a vented enclosure works with a 20mm PEI dome tweeter for balanced sound from 55Hz to 20kHz, giving background music clear highs and fuller bass. A tap switch on each speaker selects 30W, 15W, 7.5W, or 3.75W, so the bar can run louder than the dining room on the same line, and 8 ohm operation is there for standard amplifiers. Four-way swivel brackets aim each speaker up, down, left, or right toward the seating, and optional JBL CSR-V wall controllers connect over CAT5 so staff can change volume without going to the rack.
Included in the Bundle
-
CSA280Z

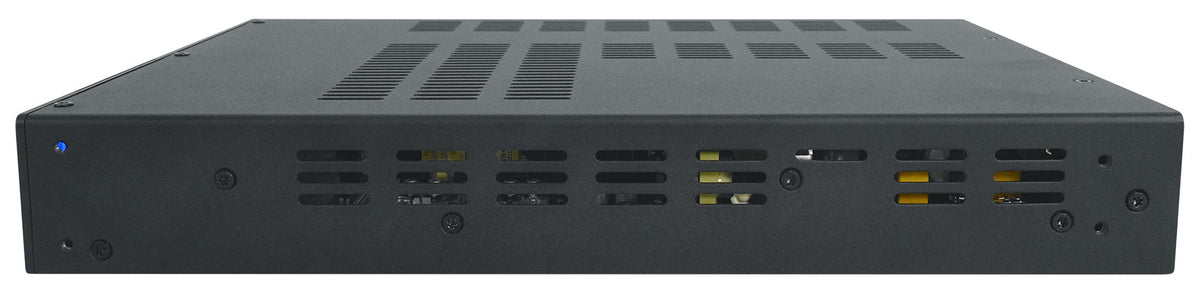

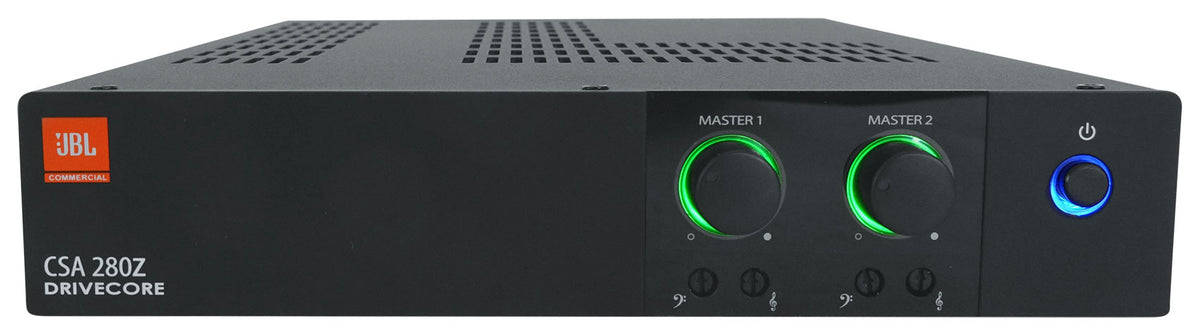

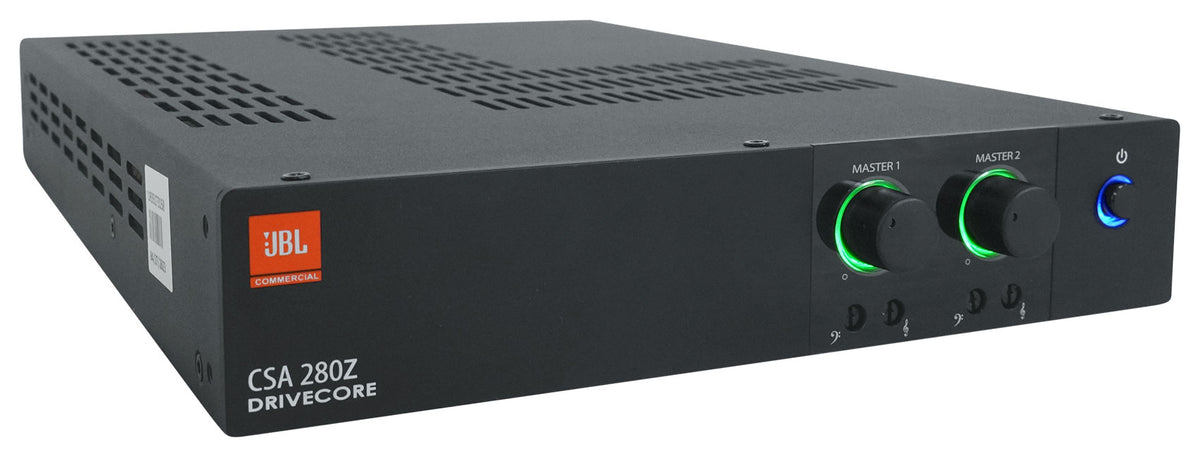

The JBL CSA 280Z is a two-channel commercial amplifier rated at 80 W per channel, with 70V and 100V operation built into both outputs. Two independent channels let you run two zones from a single 1U chassis, such as a dining room and a bar, or a sales floor and…
Learn More: CSA280Z -
WET-6525W
The Rockville WET-6525W delivers powerful audio performance designed for both indoor and outdoor commercial installations. Built with IPX55 waterproof rating, these speakers withstand heavy rain, moisture, and dust while maintaining exceptional sound quality.
Learn More: WET-6525W
Features
Complete 70V System in One Order
The amplifier and speakers are matched from the start, so there is no guesswork pairing power to load and the whole commercial system goes in with a single install.
Ready for Patios and Dining Rooms
IPX55 rated cabinets, rustproof aluminum grilles, and salt spray tested steel brackets hold up to rain, sun, and dust, so outdoor seating sounds as good as indoors.
Clear, Balanced Background Music
A 6.5" polypropylene woofer in a vented enclosure and a 20mm PEI dome tweeter cover 55Hz to 20kHz for crisp vocals and fuller low end at any volume.
Set the Right Level for Each Zone
Each speaker's tap switch picks 30W, 15W, 7.5W, or 3.75W, letting a busy bar play louder than a quiet dining area, with 8 ohm operation also available.
Silent, Space-Saving Amplifier

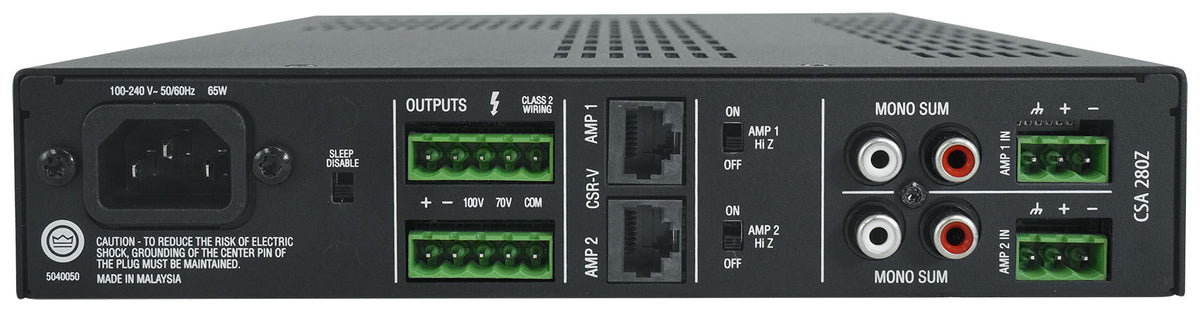

The fanless 1U CSA280Z produces no fan noise, mounts in a standard rack with the included kit, and accepts 100 to 240V power for installs almost anywhere.
Technical Specifications
- Product Type 70V Commercial Amplifier and Wall Speaker Package
- Amplifier Model JBL CSA280Z
- Amplifier Output Channels 2
- Amplifier Power Output 80W per channel
- Amplifier Outputs 70V, 100V
- Input Sensitivity 1.4Vrms for 8 ohms
- Input Impedance 20K ohms/50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100-240V, 50/60 Hz
- Amplifier Design Fanless 1U rackmount
- Wall Controller Support JBL CSR-V via CAT5 (RJ45)
- Certification Energy Star
- Speaker Model Rockville WET-6525W (x2)
- Woofer 6.5" polypropylene cone
- Tweeter 20mm PEI dome
- Enclosure Vented, waterproof plastic
- 70V Taps 30W, 15W, 7.5W, 3.75W
- 8 Ohm Power Handling 40W RMS
- Nominal Impedance 8 ohms
- Frequency Response 55Hz-20kHz
- Sensitivity 85dB +/-2dB
- Weatherproof Rating IPX55
- Mounting 4-way swivel powder coated steel brackets
- Color White
- Speaker Weight 6.94 lb (3.15 kg) each
- Dimensions Amplifier: 1.75" x 8.5" x 12"; Speaker: 12.21" x 7.4" x 7.3"
