CSA280Z Amp + (4) CC525T White Ceiling Speakers
JBL
CSA280Z Amp + (4) CC525T White Ceiling Speakers
CSA280Z Amp + (4) CC525T White Ceiling Speakers
70V Restaurant Sound System, 2 x 80W Amplifier, (4) 5.25" 2-Way Ceiling Speakers for Bars, Cafes
Free Shipping
Features
- Complete 70V system for restaurants, bars, and cafes in a single bundle
- JBL CSA280Z amplifier delivers 80W per channel across 2 channels
- Four 5.25" 2-way ceiling speakers with swivel 1/2" Mylar dome tweeters
- Tap switch sets each speaker from 2.5W to 20W to balance volume by area
- Fanless 1U amp runs silently and includes a rack mounting kit
Couldn't load pickup availability
What's Included in the box
- (1) JBL CSA280Z 2 x 80W Commercial 70V Amplifier
- (4) Rockville CC525T White 5.25" 70V In-Ceiling Speakers

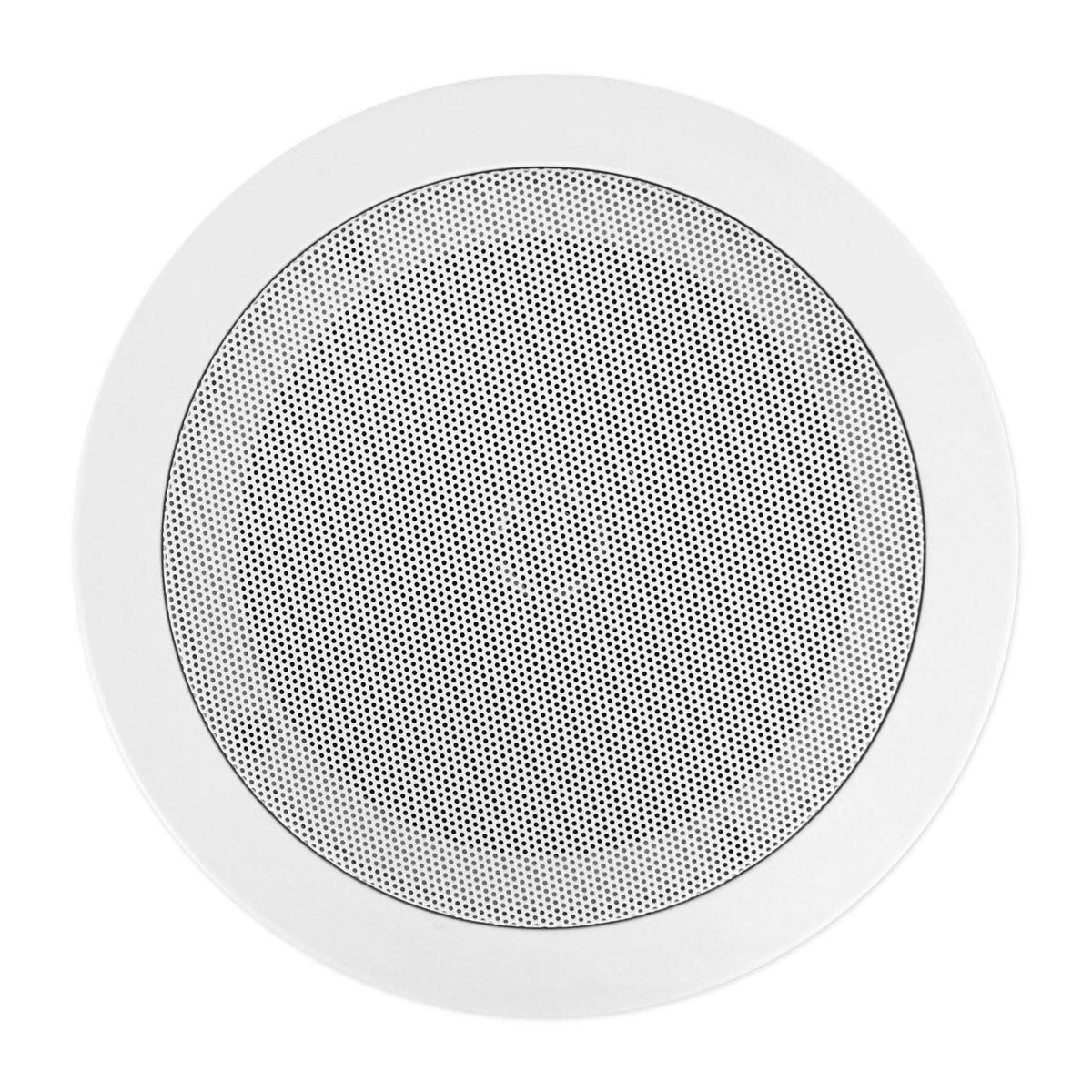

- (4) Paintable Flush-Mount Grills

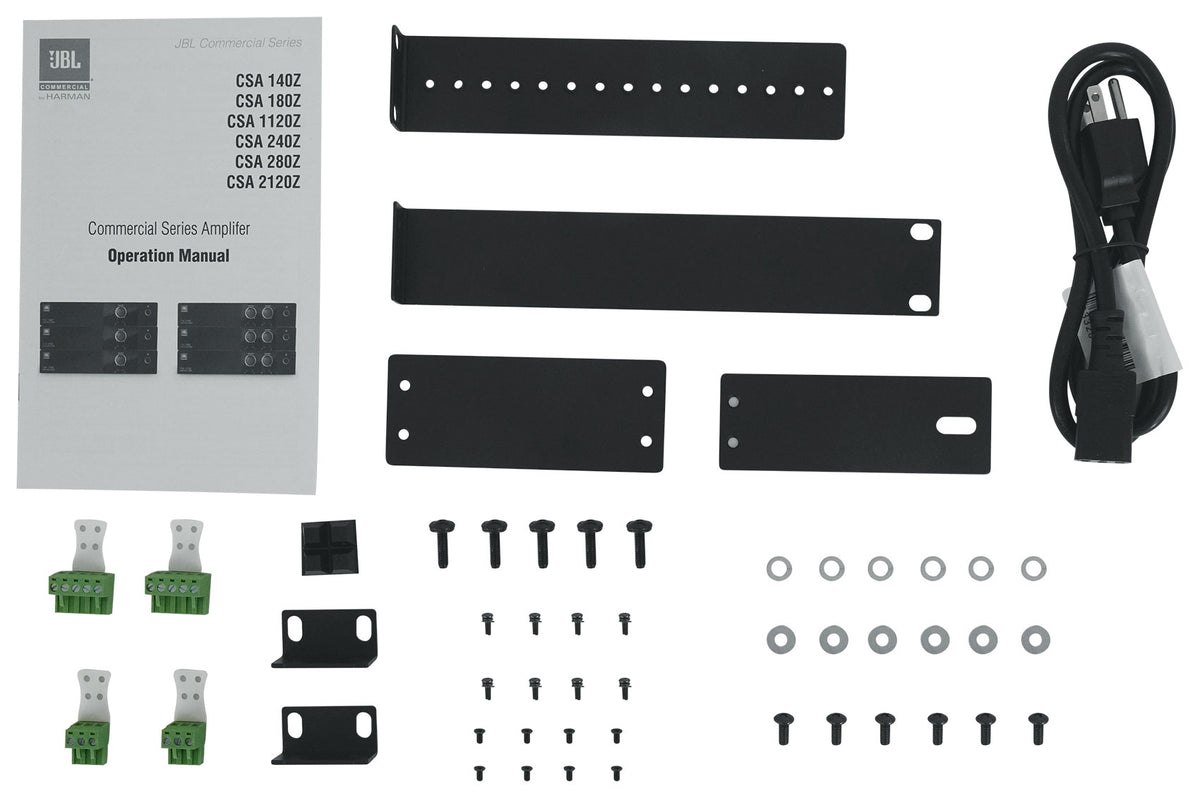

- (1) Rack Mounting Kit
SKU: SKU: CSA280Z+(4) CC525T White
View full details











Product Description

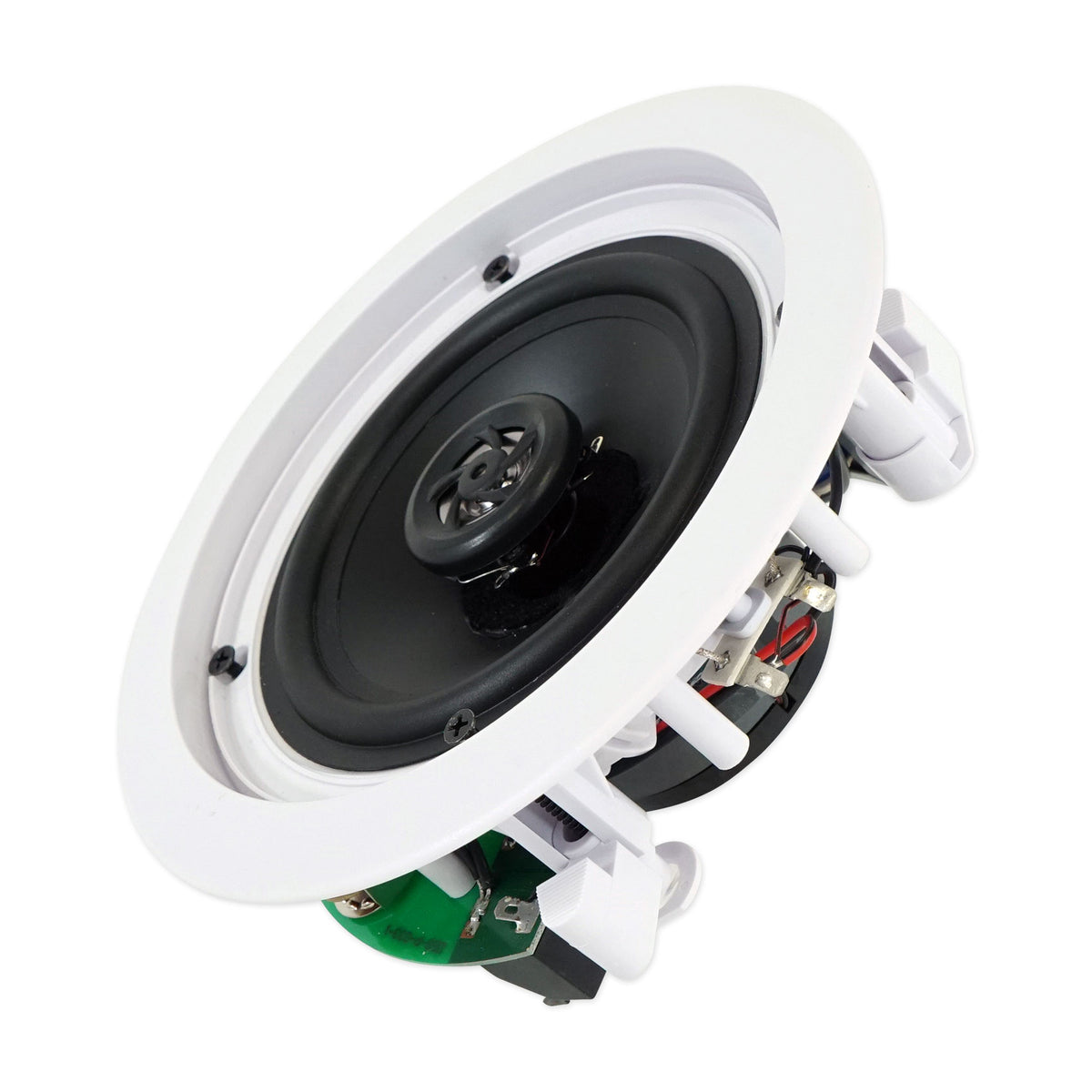

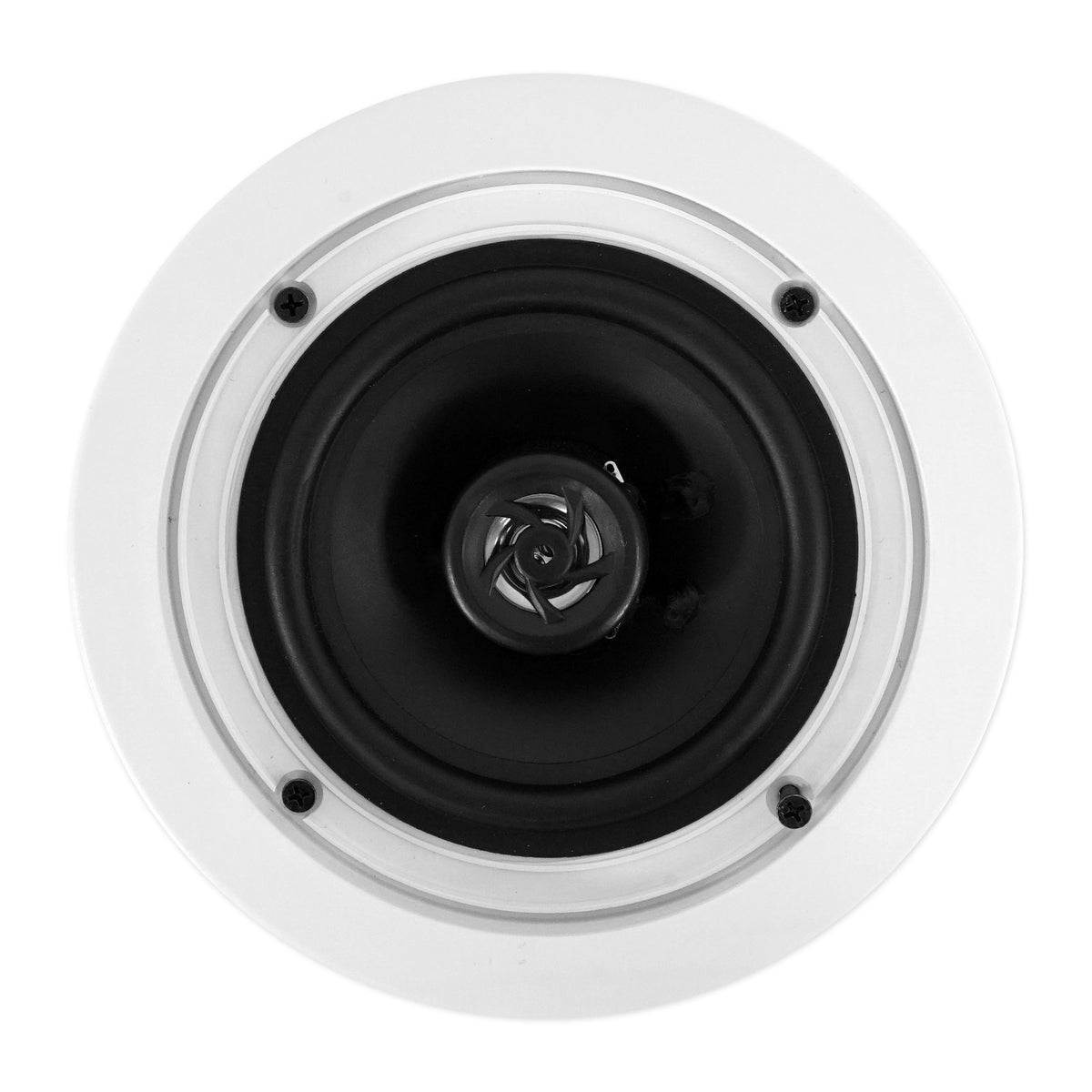

Each CC525T is a true 2-way speaker, pairing a 5.25" polypropylene woofer for full mids and bass with a swivel 1/2" Mylar dome tweeter you can aim toward seating. A tap switch on every speaker sets it anywhere from 2.5W to 20W, so the bar area can play louder while quieter corners stay low. At the 10W tap, all four speakers use half of one amp channel, leaving headroom plus a second channel for another zone later. Music stays clear at low dinner volume and holds together when the room fills up and you turn it up. The flush-mount grills are paintable to match your ceiling, and RJ45 connectors on the amp support JBL CSR-V wall volume controls (sold separately) so staff can adjust levels right from the floor.
Included in the Bundle
-

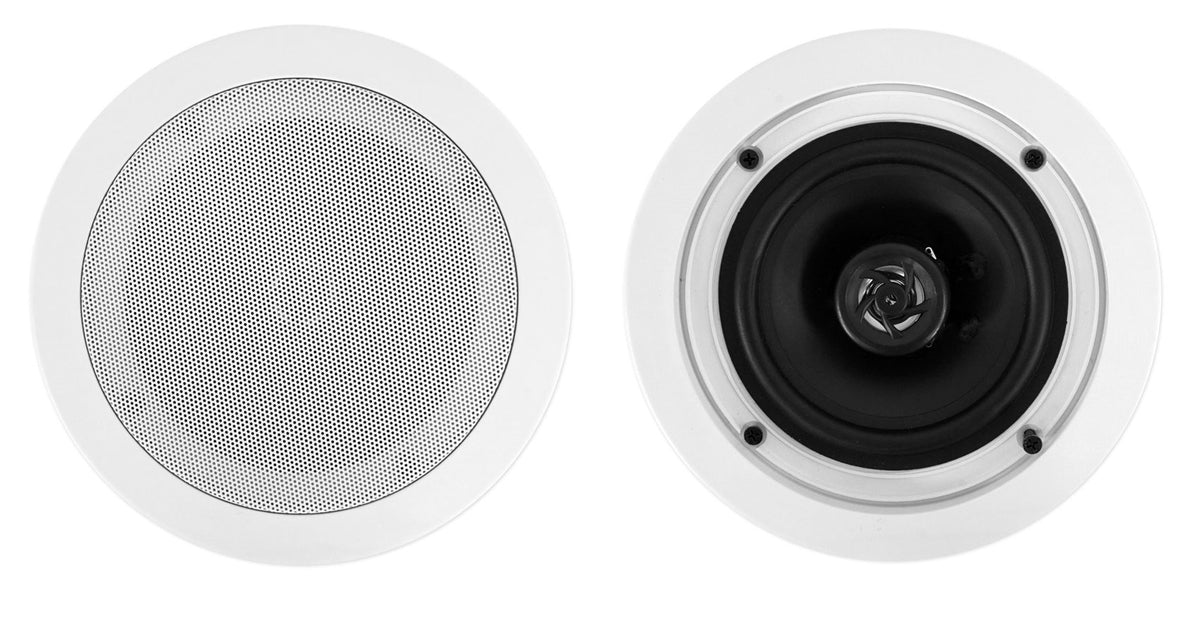

CC525T White
The CC525T delivers exceptional audio performance for commercial environments demanding both crystal-clear music reproduction and reliable PA functionality. These precision-tuned speakers excel across restaurants, bars, cafes, and retail spaces, with selectable 70V power options from 2.5W to 20W.
Learn More: CC525T White -
CSA280Z

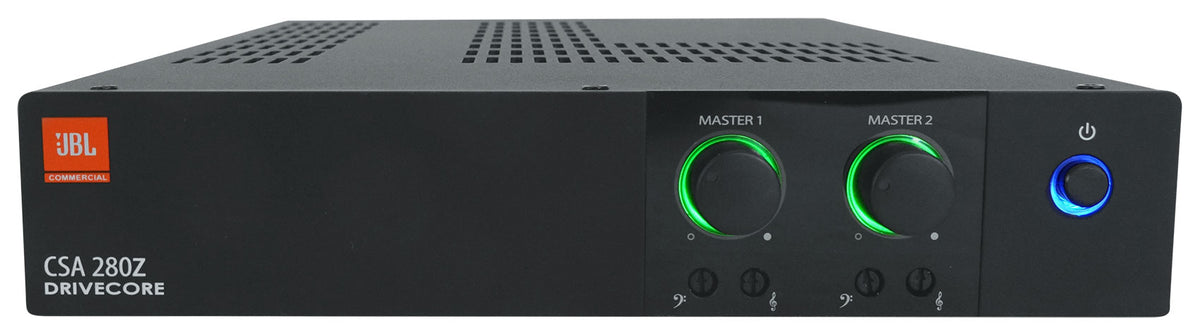

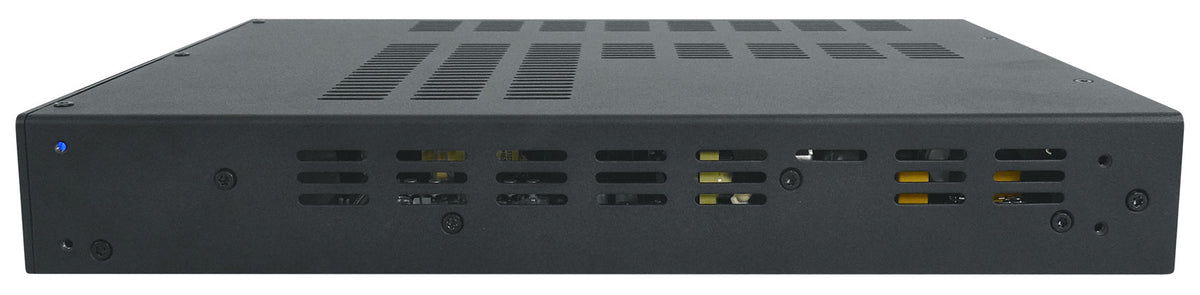

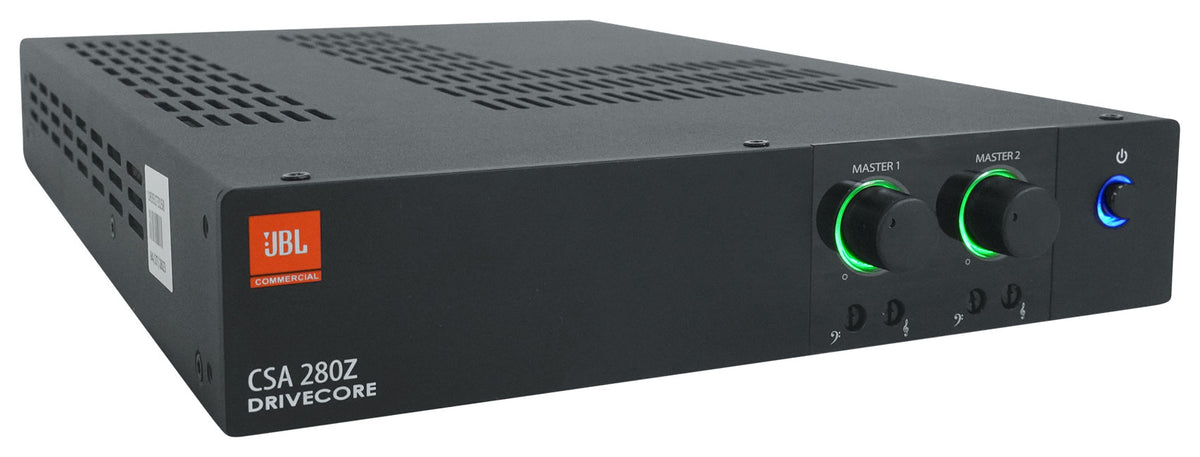

The JBL CSA 280Z is a two-channel commercial amplifier rated at 80 W per channel, with 70V and 100V operation built into both outputs. Two independent channels let you run two zones from a single 1U chassis, such as a dining room and a bar, or a sales floor and…
Learn More: CSA280Z
Features
Restaurant-Ready Sound in One Order
A matched 80W per channel 70V amplifier and four 2-way ceiling speakers give dining rooms, bars, and cafes complete background music and paging without sourcing parts separately.
Set the Right Volume for Every Area
Each speaker's tap switch selects 2.5W to 20W, so the bar can play louder while restrooms, hallways, and quiet booths stay comfortably low.
Clear Music at Any Volume
A 5.25" polypropylene woofer and aimable 1/2" Mylar dome tweeter reproduce 80Hz to 20kHz, keeping music full at dinner volume and clean when the room gets loud.
Silent Amp That Fits Anywhere
The fanless 1U CSA280Z runs quietly in a back office or rack, accepts 100 to 240 VAC, and is Energy Star certified to keep running costs down.
Clean Ceiling Install
A 6.5" cutout, 2.6" mounting depth, paintable flush grills, and spring-loaded push terminals make installation fast and leave a finish that matches your decor.
Technical Specifications
- Product Type 70V Commercial Amplifier and Ceiling Speaker Bundle
- Amplifier Model JBL CSA280Z
- Amplifier Power Output 80W per channel
- Output Channels 2
- Output Voltage 70V / 100V
- Input Sensitivity 1.4Vrms for 8 ohms
- Input Impedance 20K ohms / 50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100 to 240V, 50/60 Hz
- Amplifier Cooling Fanless

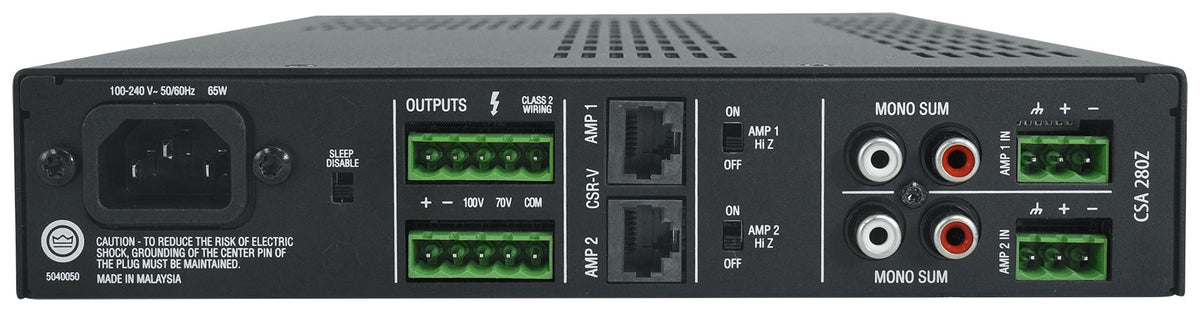

- Remote Control Support JBL CSR-V via CAT5 (RJ45)
- Certification Energy Star
- Speaker Model Rockville CC525T
- Speaker Quantity 4
- Speaker Type 2-Way In-Ceiling
- Woofer 5.25" Polypropylene Cone, Rubber Surround
- Tweeter 1/2" Mylar Dome, Swivel
- Voice Coil 1" Aluminum
- Magnet 8 oz Ferrite
- 70V Tap Settings 20W, 15W, 10W, 5W, 2.5W
- 8 Ohm Power Handling 40W
- Frequency Response 80Hz to 20kHz
- Sensitivity 88dB @ 1W / 1m
- Impedance 8 ohms
- Speaker Mounting Depth 2.6"
- Speaker Cut-Out Diameter 6.5"
- Speaker Color White (paintable)
- Amplifier Dimensions 1.75" x 8.5" x 12" (44.45 x 215.9 x 304.8 mm)
