CSA280Z Amp + (4) CC65T Black Ceiling Speakers
JBL
CSA280Z Amp + (4) CC65T Black Ceiling Speakers
CSA280Z Amp + (4) CC65T Black Ceiling Speakers
70V Commercial Sound System, 2 x 80W Amplifier, (4) 6.5" 2-Way Ceiling Speakers, Restaurants, Bars
Free Shipping
Features
- Complete 70V system pairs a 2 x 80W amp with four 6.5" ceiling speakers
- 2-way speakers with swivel 1/2" Mylar dome tweeters for clear highs
- Tap each speaker from 2.5W to 20W to set the volume by area

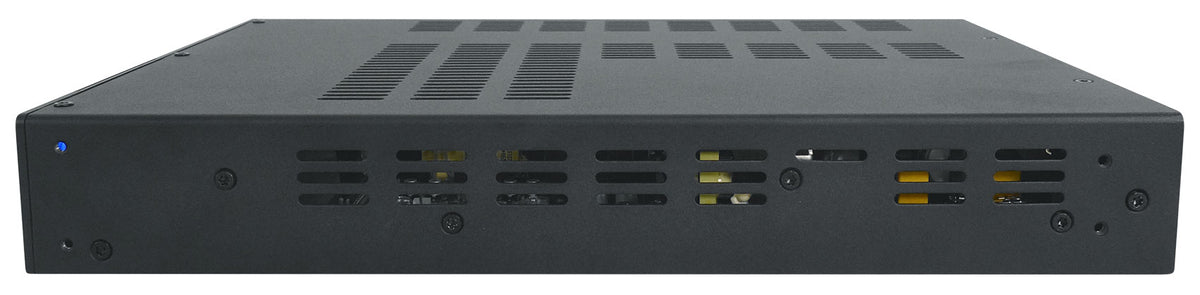

- Fanless 1U amplifier runs silently and includes a rack mounting kit
- Paintable black flush-mount grills and a 7.6" cutout for a clean ceiling finish
Couldn't load pickup availability
What's Included in the box

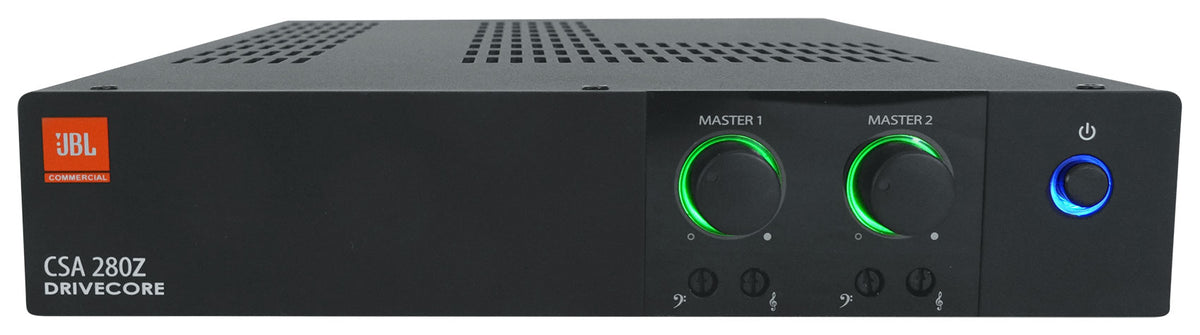

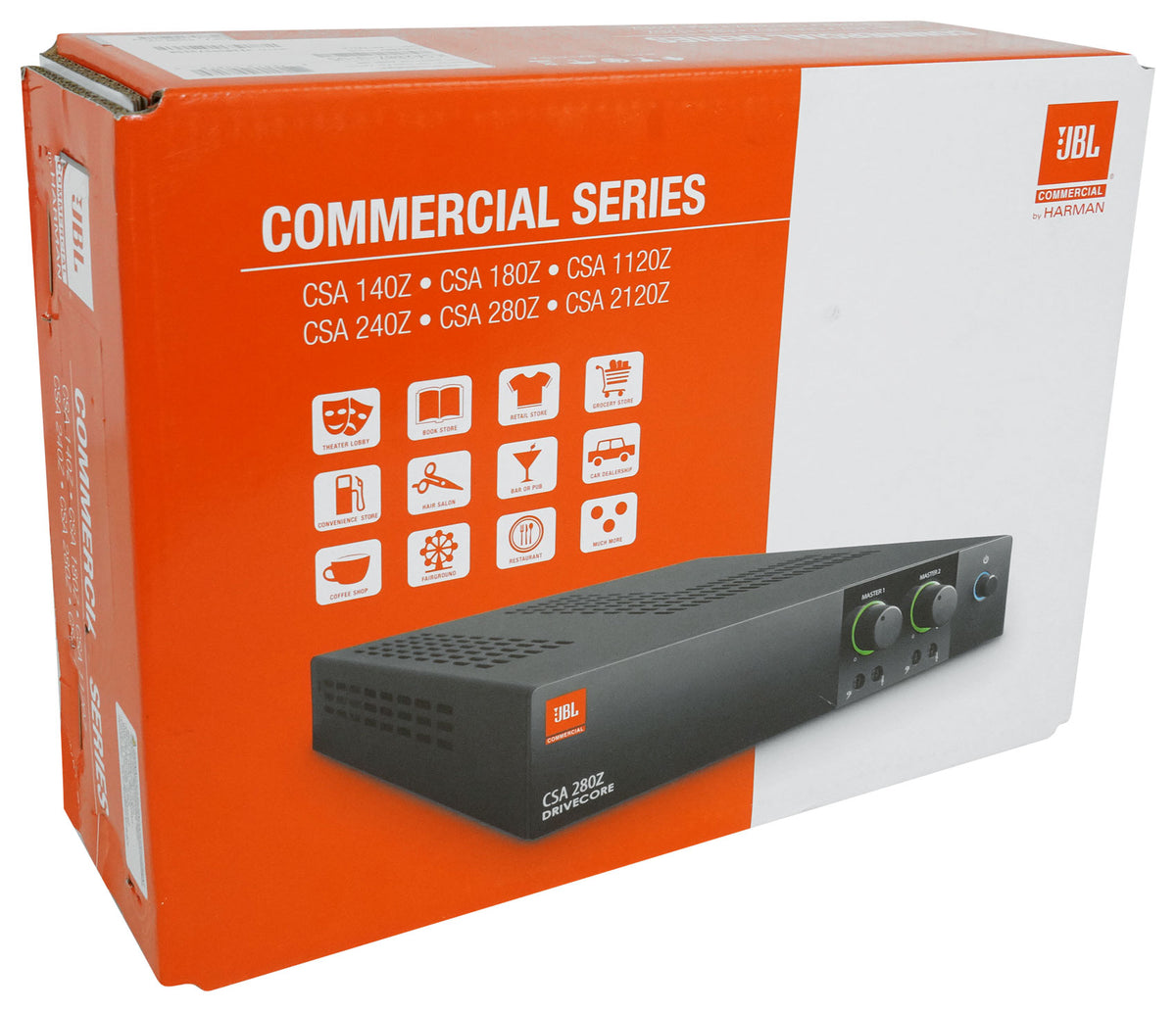

- (1) JBL CSA280Z 2 x 80W Commercial 70V Amplifier

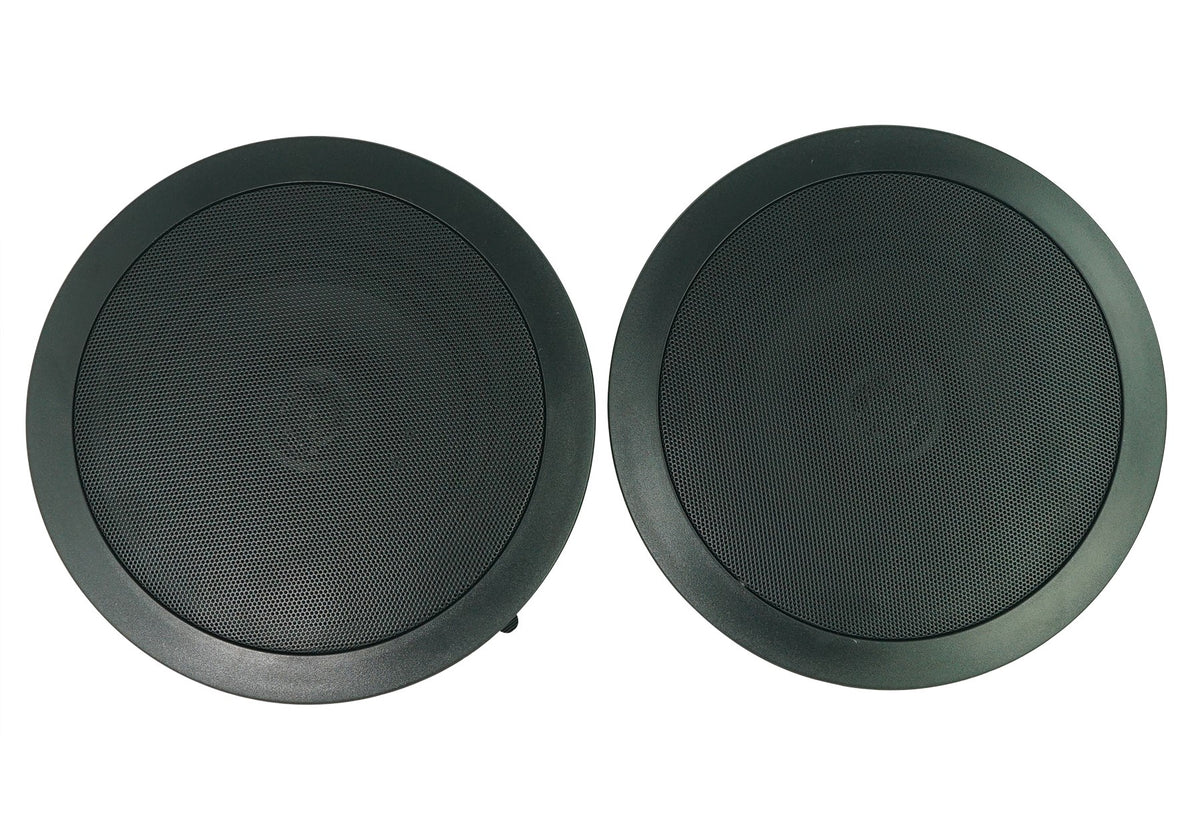

- (4) Rockville CC65T Black 6.5" 70V In-Ceiling Speakers
- (4) Paintable Flush-Mount Grills

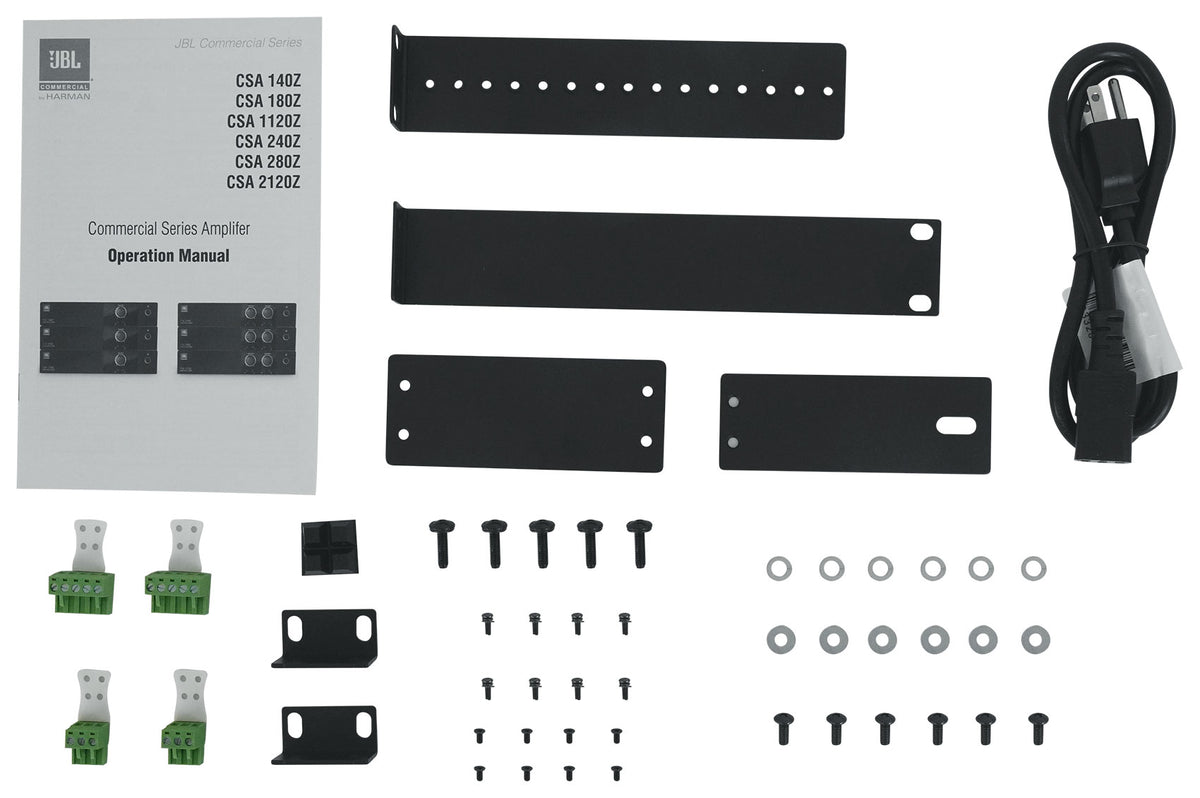

- (1) Rack Mounting Kit
SKU: SKU: CSA280Z+(4) CC65T Black
View full details











Product Description

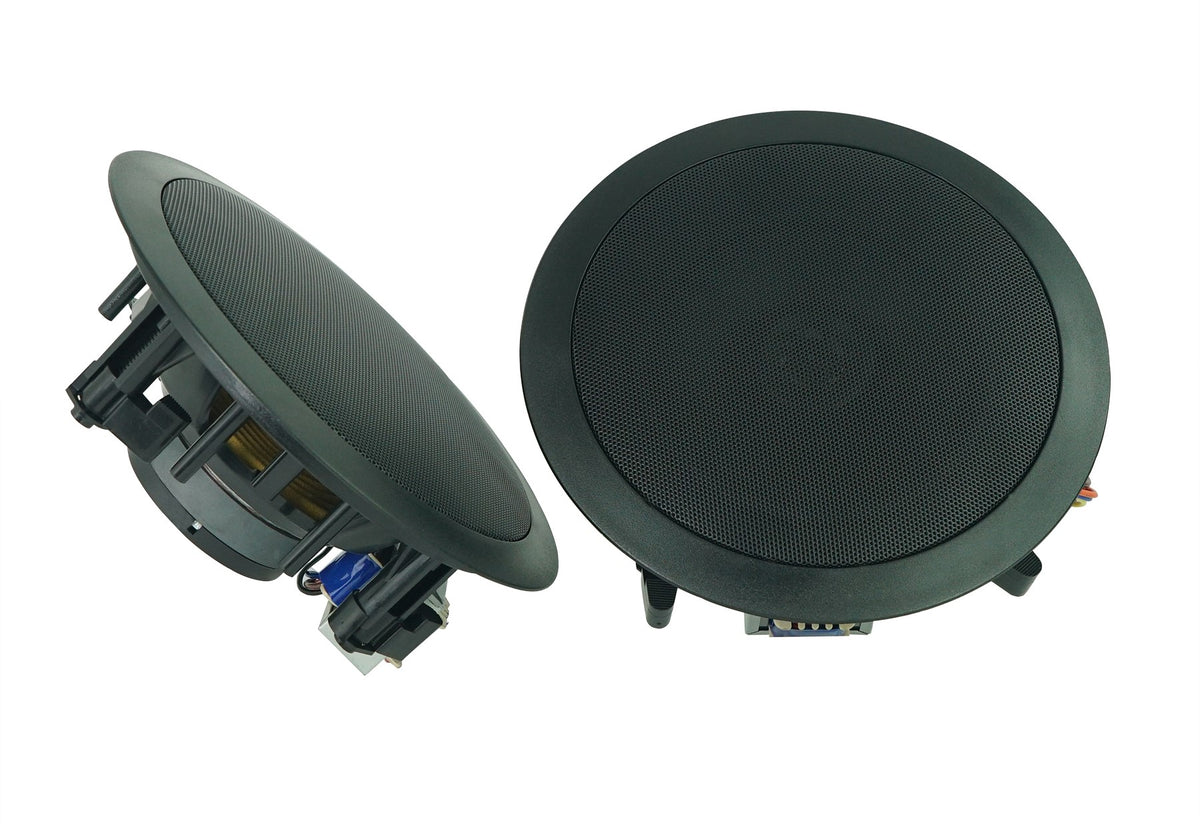

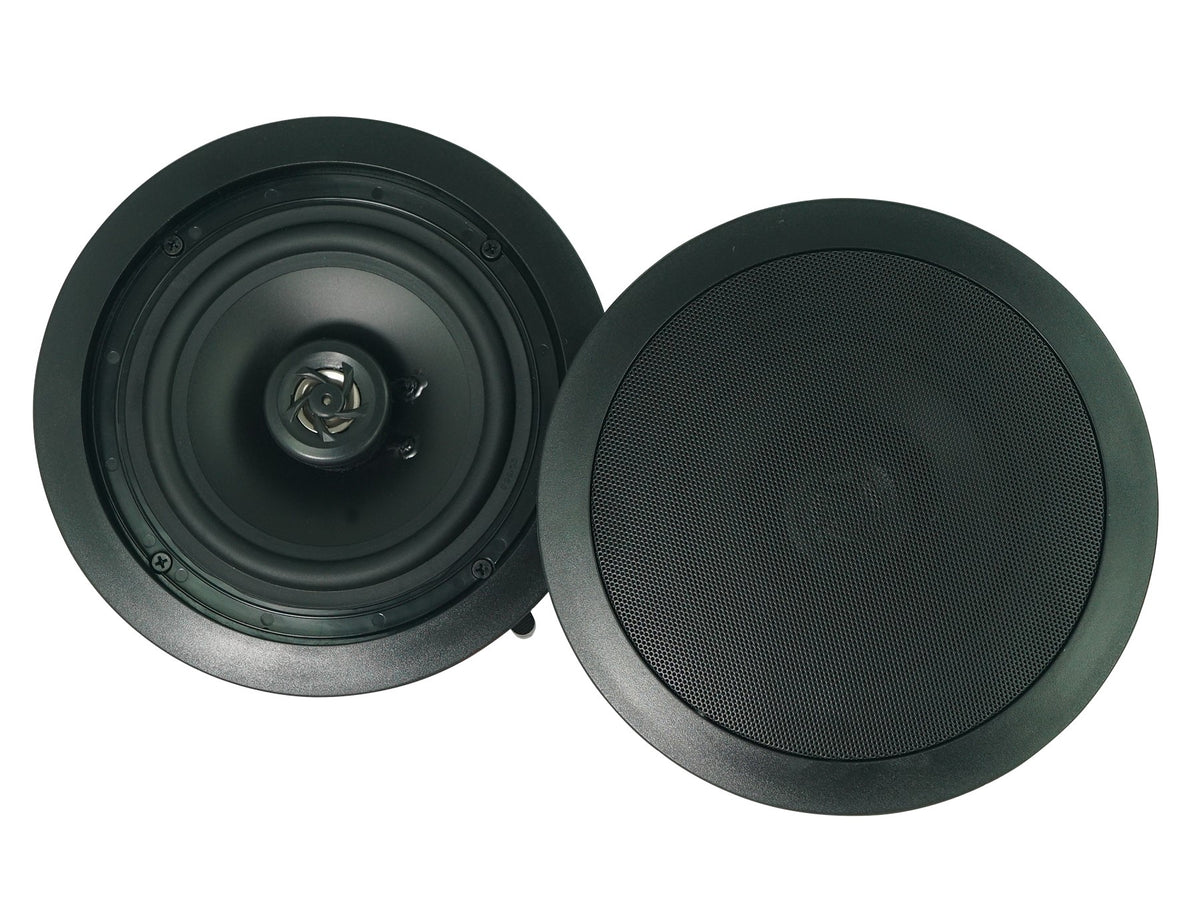

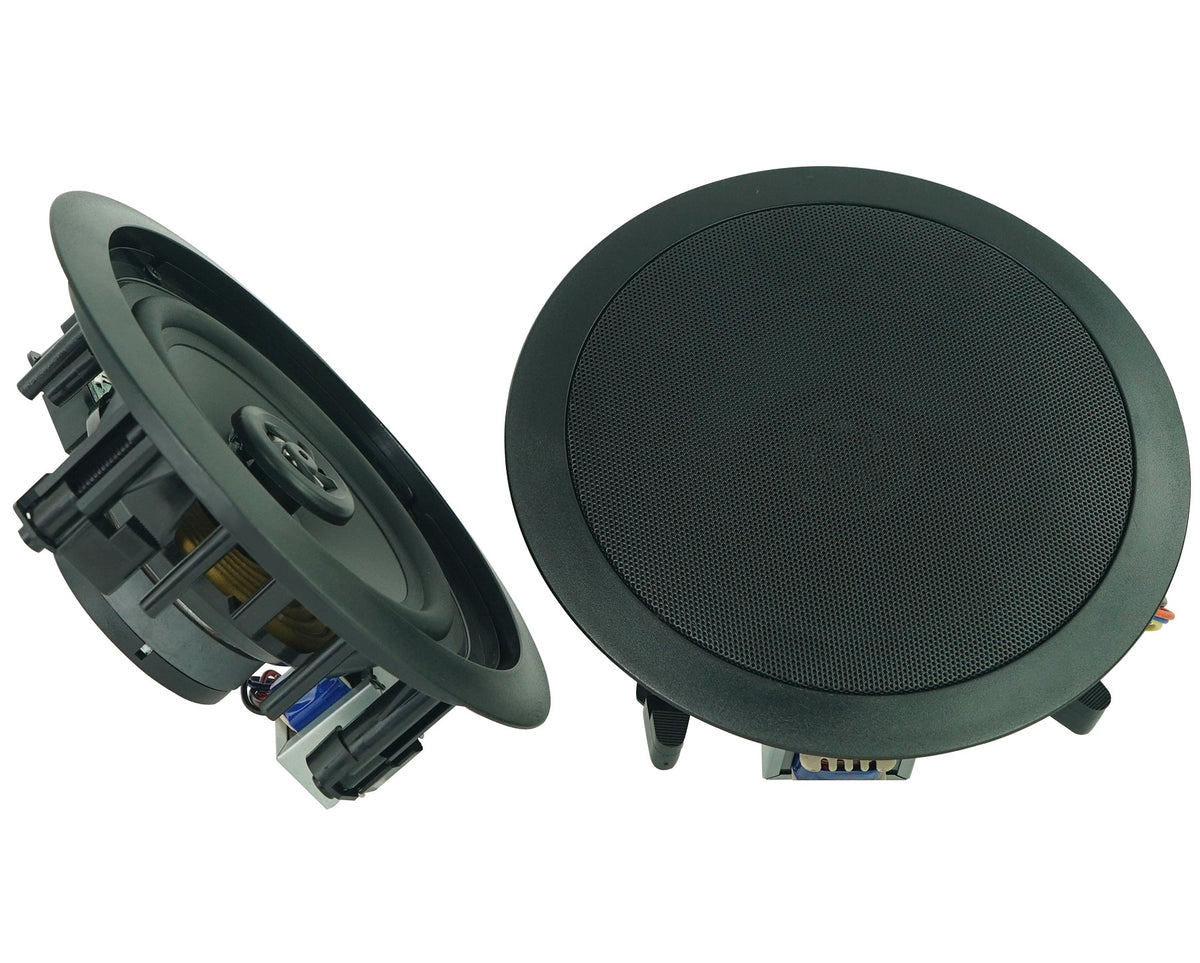

Each CC65T is a true 2-way design, with a 6.5" polypropylene woofer and a swivel 1/2" Mylar dome tweeter you can aim toward the seating area. A 10 oz ferrite magnet and rubber surround take the low end down to 60Hz, so music sounds full instead of thin, while announcements stay clear. A tap switch on every speaker selects 20W, 15W, 10W, 5W, or 2.5W, letting the bar run louder while booths and restrooms stay quiet. Even at the full 20W tap, wiring two speakers per channel uses only half of each channel's power. Installation is straightforward: a 7.6" cutout, 2.91" mounting depth, spring-loaded push terminals, and paintable black grills that sit flush in dark or exposed ceilings. RJ45 connectors on the amp also accept JBL CSR-V wall volume controls (sold separately), so staff can adjust levels right from the floor.
Features
One Order, Complete System
A matched 80W per channel 70V amplifier and four 2-way ceiling speakers give dining rooms and bars background music and paging without sourcing parts separately.
Fuller Sound for Music
A 6.5" polypropylene woofer, rubber surround, and 10 oz ferrite magnet reach down to 60Hz, so playlists carry real weight instead of sounding thin overhead.
Right Volume in Every Zone
Each speaker's tap switch selects 20W, 15W, 10W, 5W, or 2.5W, letting the bar play louder while restrooms, hallways, and quiet booths stay low.
Quiet, Efficient Amplifier

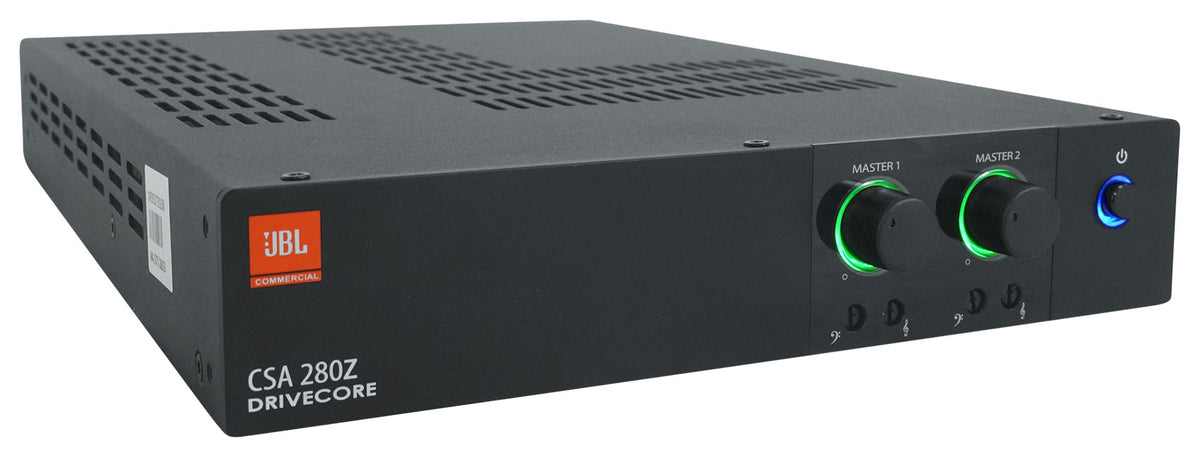

The fanless 1U CSA280Z runs silently in a rack or back office, accepts 100 to 240 VAC, and carries Energy Star certification to keep power costs down.
Clean, Simple Install
A 7.6" cutout, 2.91" mounting depth, spring-loaded push terminals, and paintable black flush grills make installation quick and leave a finished look on the ceiling.
Technical Specifications
- Product Type 70V Commercial Amplifier and Ceiling Speaker Bundle
- Amplifier Model JBL CSA280Z
- Amplifier Power Output 80W per channel
- Output Channels 2
- Output Voltage 70V / 100V
- Input Sensitivity 1.4Vrms for 8 ohms
- Input Impedance 20K ohms / 50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100 to 240V, 50/60 Hz
- Amplifier Cooling Fanless

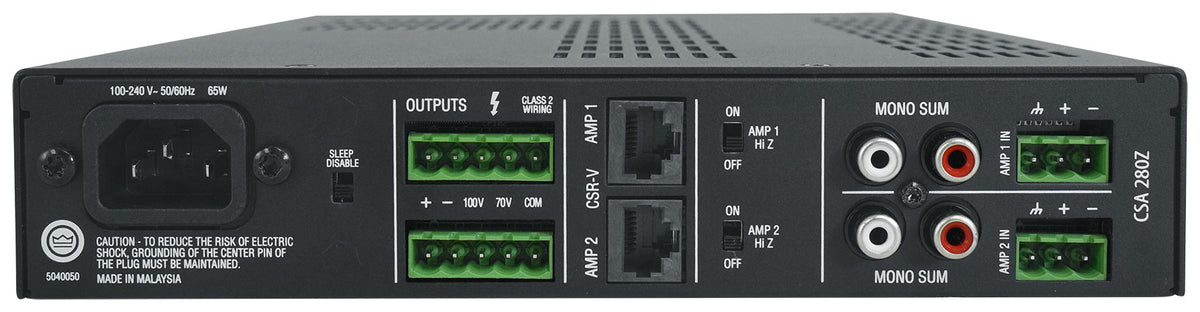

- Remote Control Support JBL CSR-V via CAT5 (RJ45)
- Certification Energy Star
- Speaker Model Rockville CC65T
- Speaker Quantity 4
- Speaker Type 2-Way In-Ceiling
- Woofer 6.5" Polypropylene Cone, Rubber Surround
- Tweeter 1/2" Mylar Dome, Swivel
- Voice Coil 1" Aluminum
- Magnet 10 oz Ferrite
- 70V Tap Settings 20W, 15W, 10W, 5W, 2.5W
- 8 Ohm Power Handling 40W
- Frequency Response 60Hz to 20kHz
- Sensitivity 89dB @ 1W / 1m
- Impedance 8 ohms
- Speaker Mounting Depth 2.91"
- Speaker Cut-Out Diameter 7.6"
- Speaker Color Black (paintable)
- Amplifier Dimensions 1.75" x 8.5" x 12" (44.45 x 215.9 x 304.8 mm)
