CSA280Z Amp + (4) CC65T White Ceiling Speakers
JBL
CSA280Z Amp + (4) CC65T White Ceiling Speakers
CSA280Z Amp + (4) CC65T White Ceiling Speakers
70V Commercial Sound System, 2 x 80W Amplifier, (4) 6.5" 2-Way Ceiling Speakers, Restaurants, Bars
Free Shipping
Features

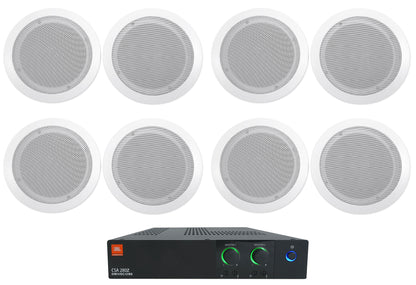

- Complete 70V system pairs a 2 x 80W amplifier with four 6.5" ceiling speakers
- 2-way speakers with swivel 1/2" Mylar dome tweeters for clear, detailed highs
- Tap each speaker at 2.5W, 5W, 10W, 15W, or 20W to set the volume by area
- Fanless 1U amplifier runs silently and includes a rack mounting kit

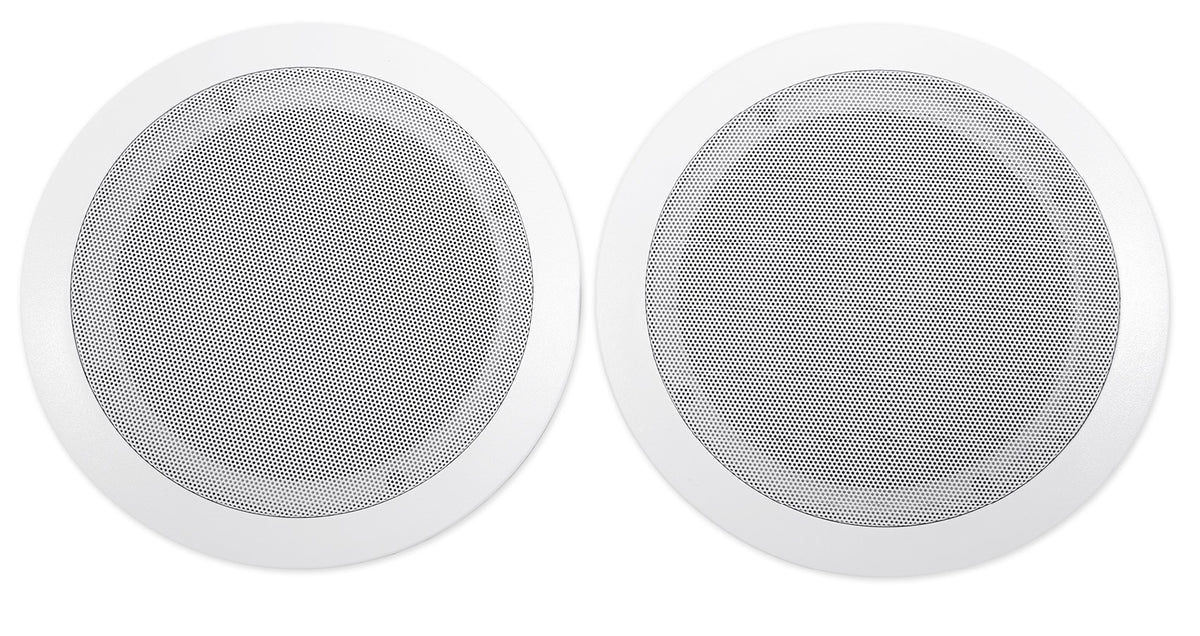

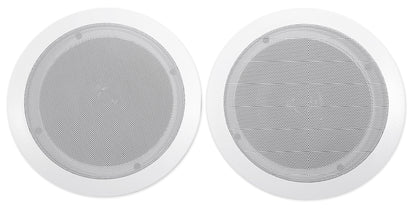

- Paintable white flush-mount grills fit a 7.6" cutout for a clean ceiling finish
Couldn't load pickup availability
What's Included in the box

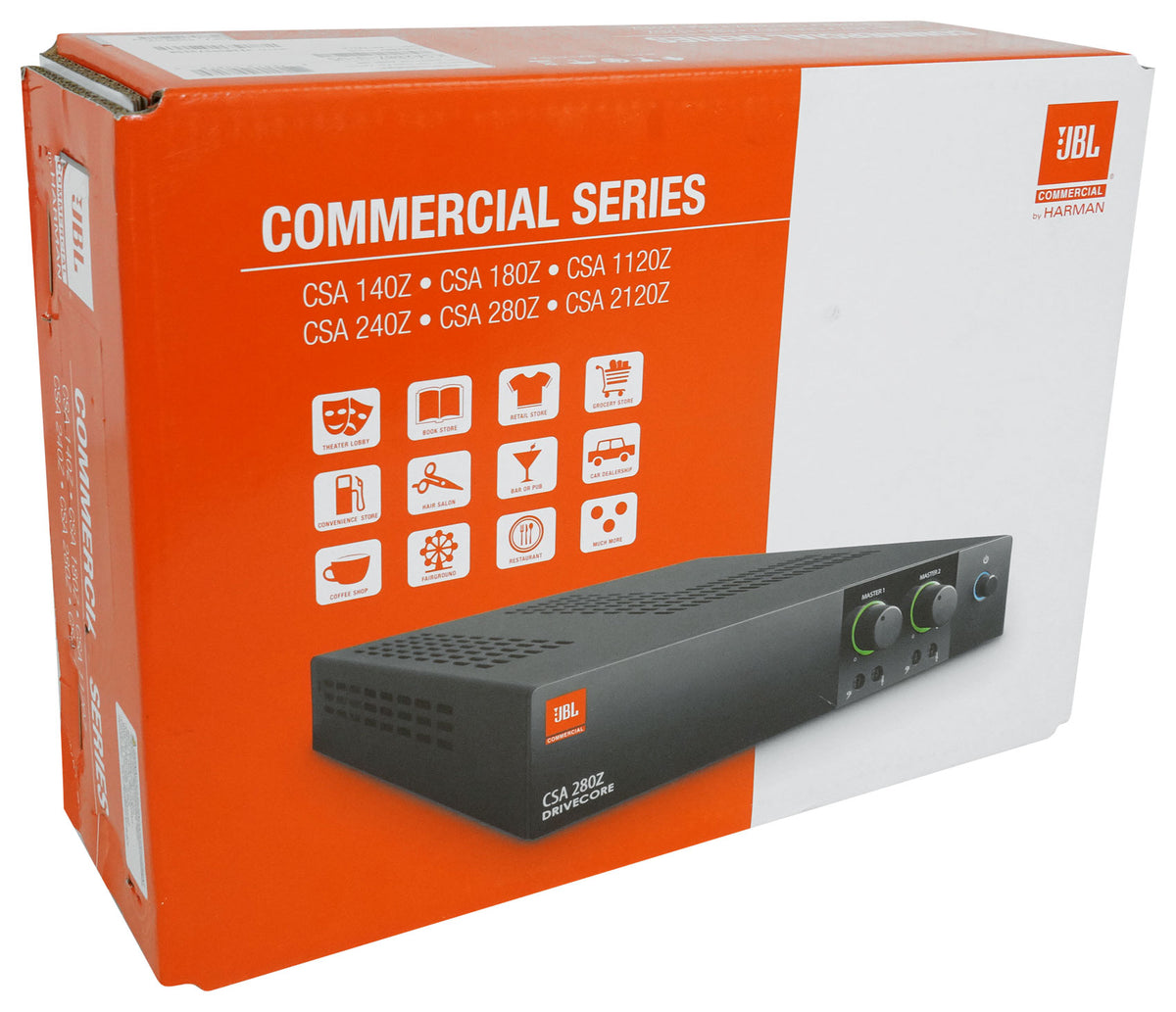

- (1) JBL CSA280Z 2 x 80W Commercial 70V Amplifier
- (4) Rockville CC65T White 6.5" 70V In-Ceiling Speakers
- (4) Paintable Flush-Mount Grills

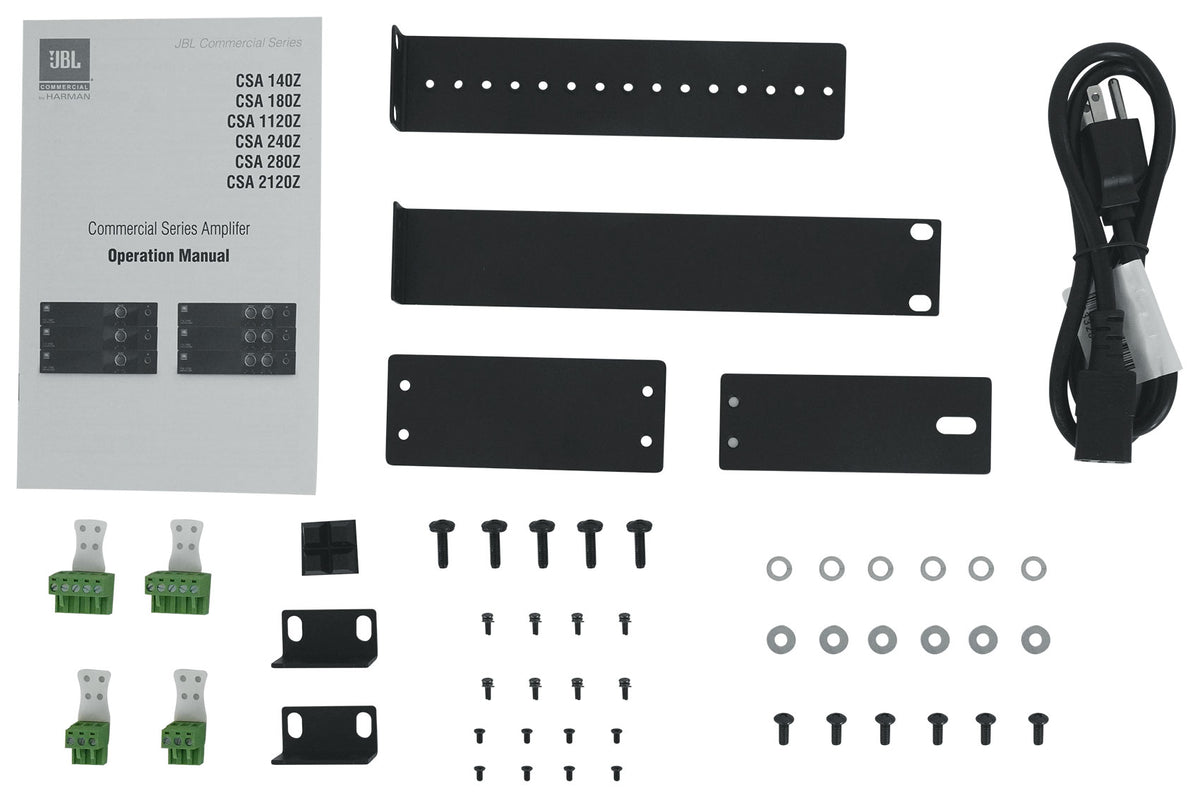

- (1) Rack Mounting Kit
SKU: SKU: CSA280Z+(4) CC65T White
View full details











Product Description

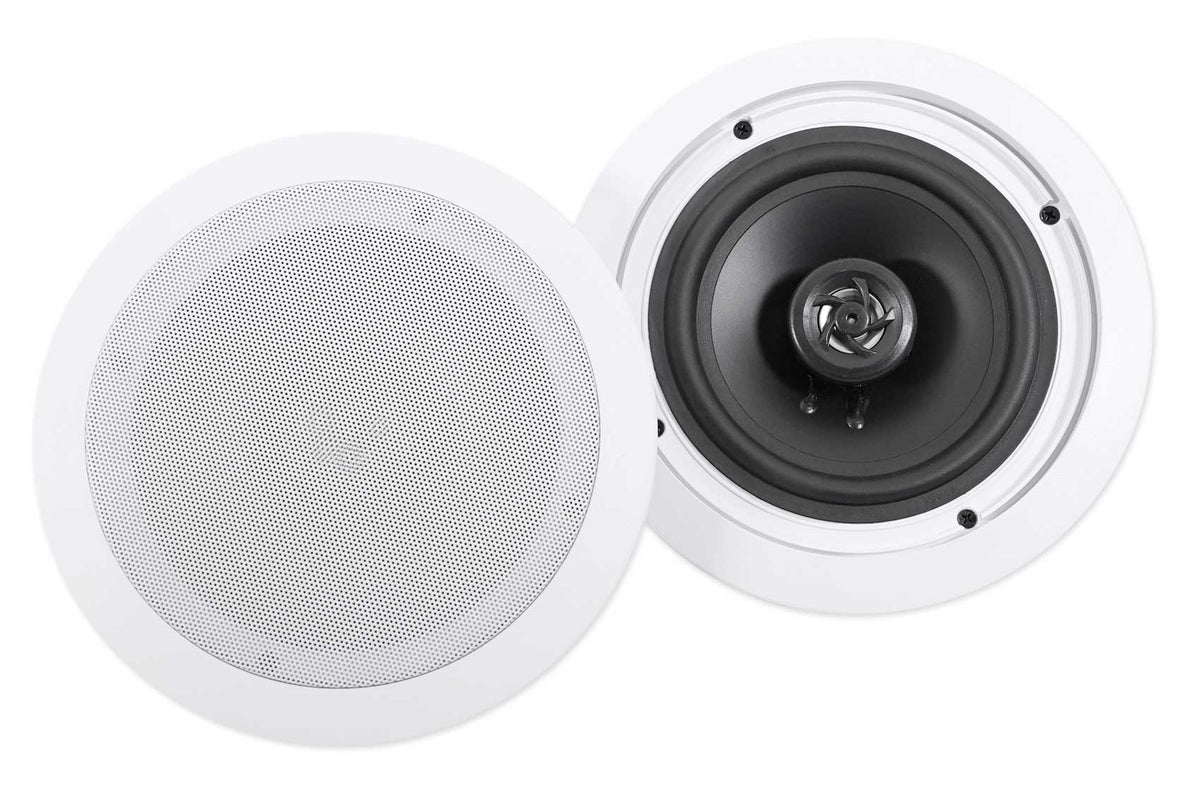

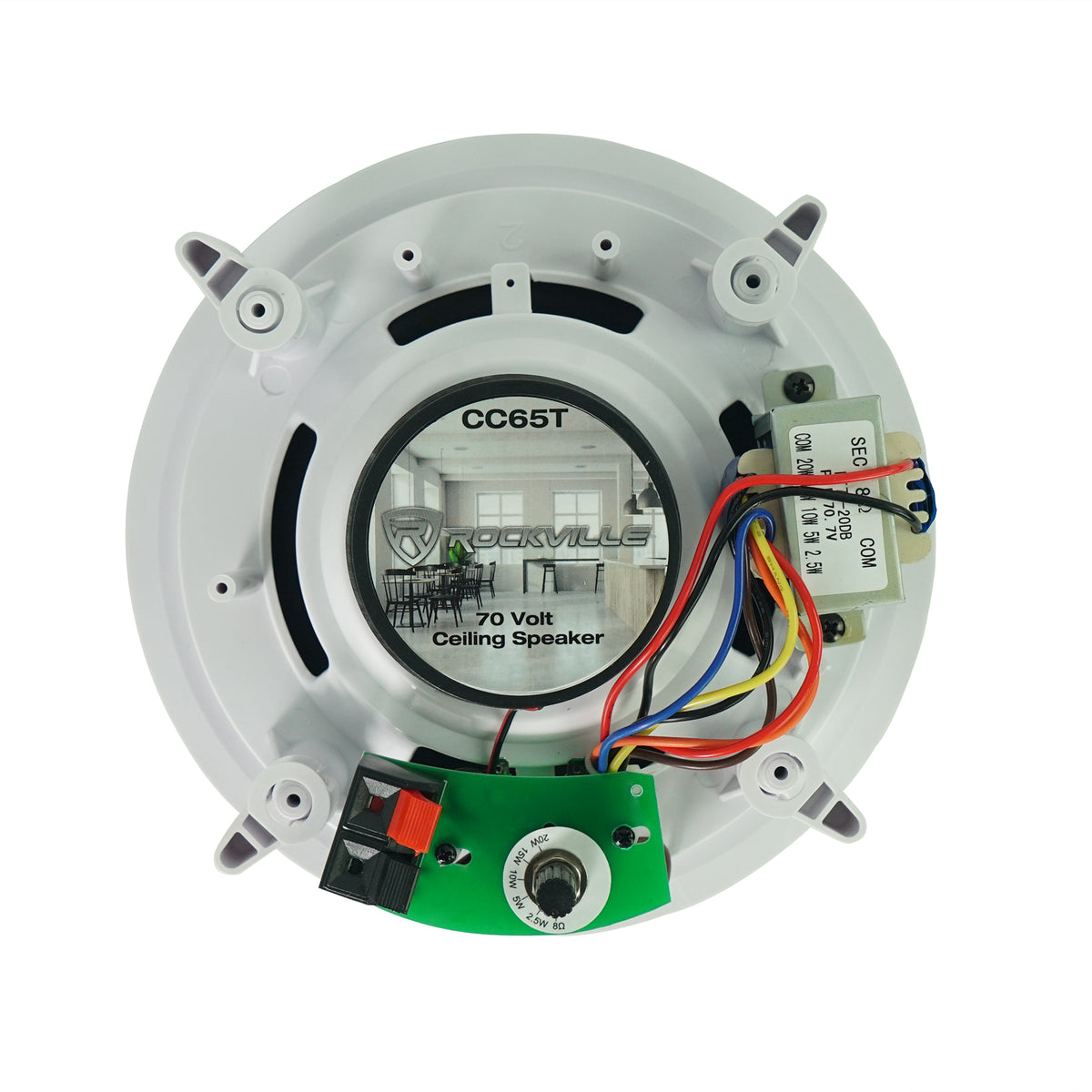

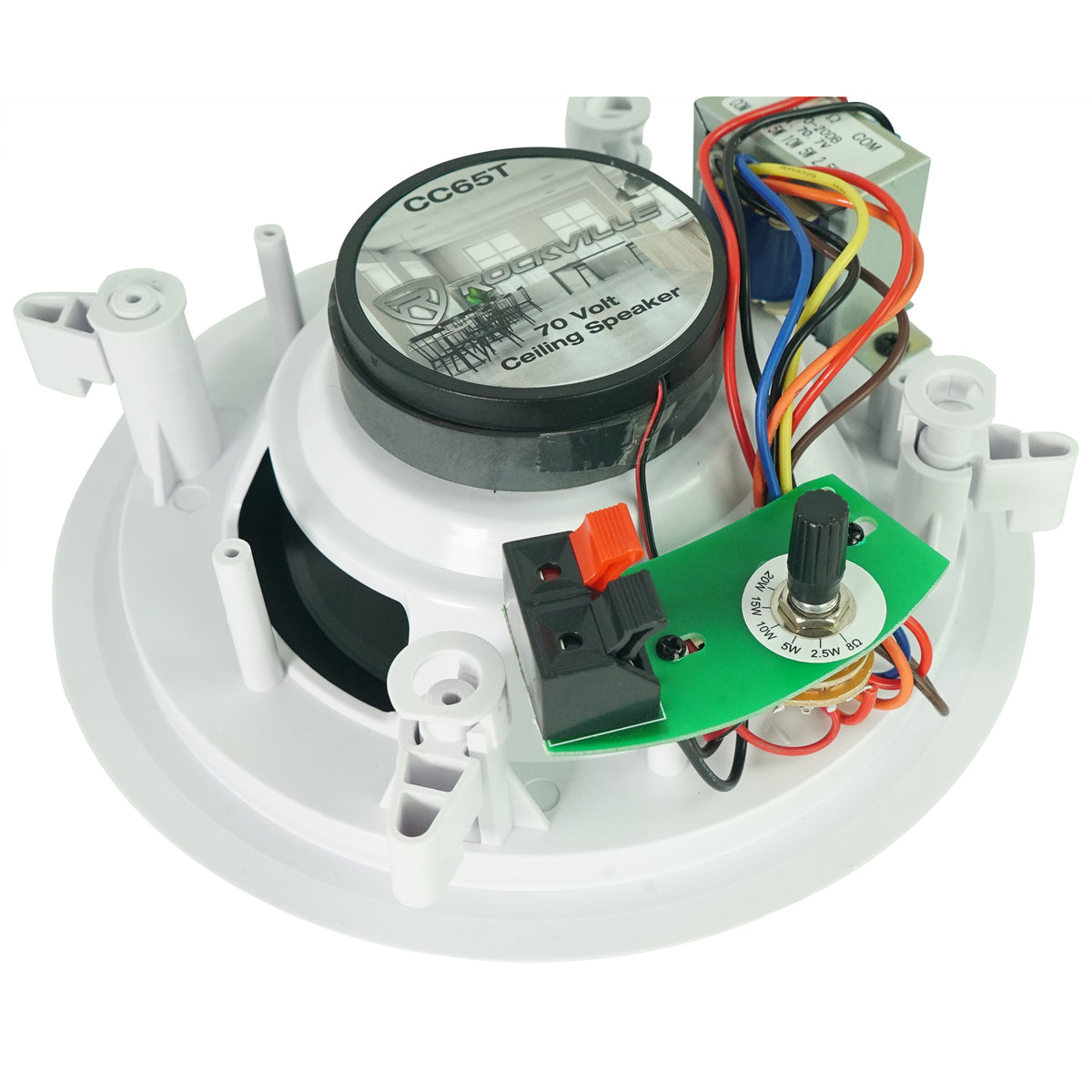

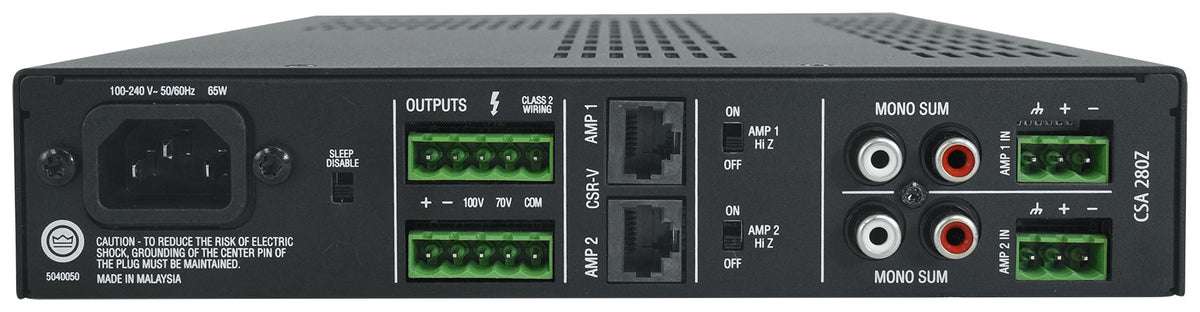

Each CC65T is a 2-way speaker with a 6.5" polypropylene woofer and a swivel 1/2" Mylar dome tweeter you can aim toward the seating area. A 10 oz ferrite magnet and rubber surround carry the low end down to 60Hz, giving playlists real body while announcements stay clear. A tap switch on every speaker selects 20W, 15W, 10W, 5W, or 2.5W, so the bar can run louder while booths and restrooms stay low; even with all four speakers tapped at 20W, the load is only half of the amplifier's total output. White paintable grills mount flush in a 7.6" cutout with just 2.91" of depth, and spring-loaded push terminals hold wiring firmly in place. RJ45 connectors on the amp also accept JBL CSR-V wall volume controls (sold separately), letting staff adjust levels right from the floor.
Features
Everything for the Dining Room
A matched 80W per channel 70V amplifier and four 2-way ceiling speakers cover background music and paging for restaurants and bars without sourcing parts separately.
Music With Real Body
A 6.5" polypropylene woofer, rubber surround, and 10 oz ferrite magnet reach down to 60Hz, so playlists sound full overhead instead of thin and tinny.
Set Each Zone's Volume
A tap switch on every speaker selects 20W, 15W, 10W, 5W, or 2.5W, letting the bar play louder while restrooms, hallways, and quiet booths stay low.

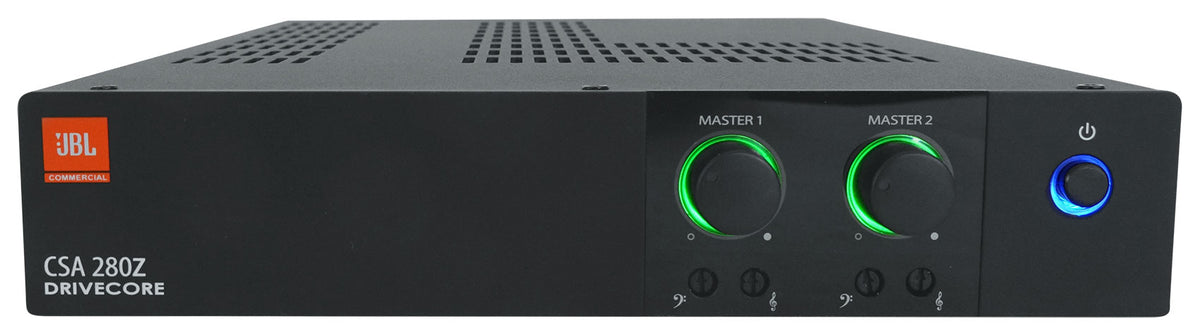

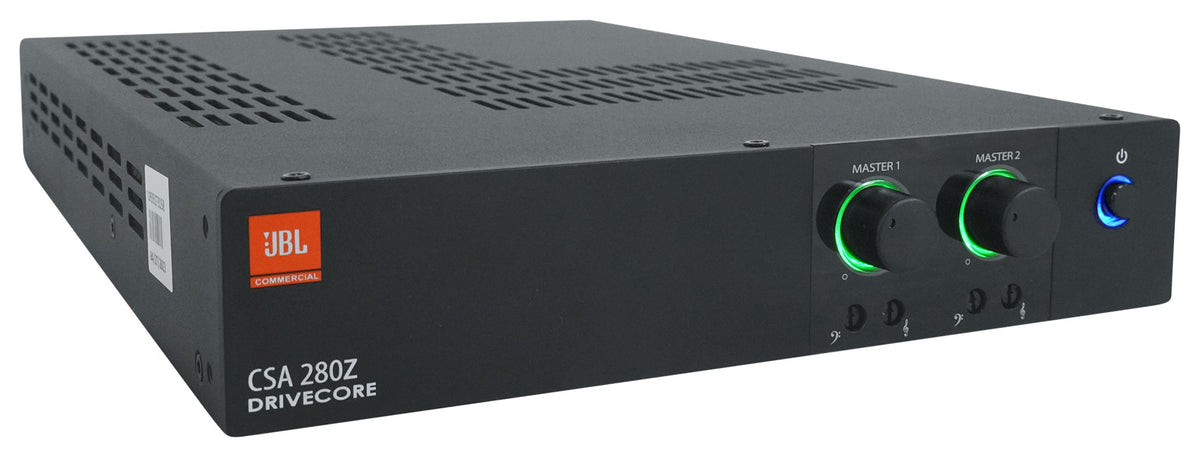

Quiet, Efficient Amplifier

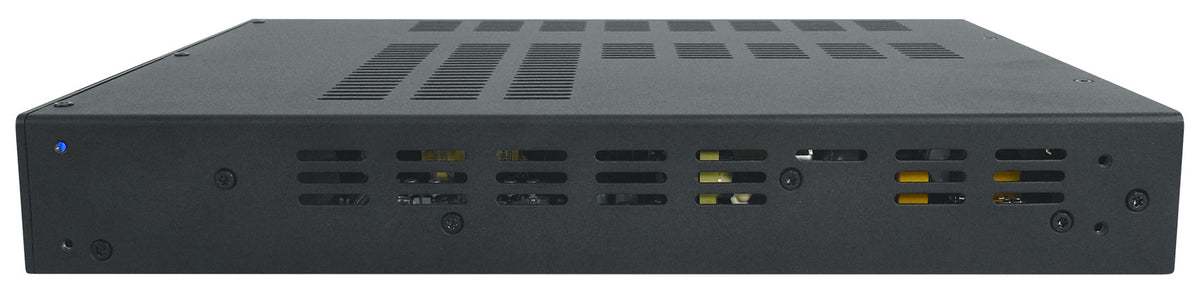

The fanless 1U CSA280Z runs silently in a rack or back office, accepts 100 to 240 VAC, and carries Energy Star certification to keep power costs down.
Clean White Ceiling Finish
Paintable white grills sit flush in a 7.6" cutout with 2.91" mounting depth, while spring-loaded push terminals keep each speaker's wiring firmly in place.
Technical Specifications
- Product Type 70V Commercial Amplifier and Ceiling Speaker Bundle
- Amplifier Model JBL CSA280Z
- Amplifier Power Output 80W per channel
- Output Channels 2
- Output Voltage 70V / 100V
- Input Sensitivity 1.4Vrms for 8 ohms
- Input Impedance 20K ohms / 50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100 to 240V, 50/60 Hz
- Amplifier Cooling Fanless
- Remote Control Support JBL CSR-V via CAT5 (RJ45)
- Certification Energy Star
- Speaker Model Rockville CC65T
- Speaker Quantity 4
- Speaker Type 2-Way In-Ceiling
- Woofer 6.5" Polypropylene Cone, Rubber Surround
- Tweeter 1/2" Mylar Dome, Swivel
- Voice Coil 1" Aluminum
- Magnet 10 oz Ferrite
- 70V Tap Settings 20W, 15W, 10W, 5W, 2.5W
- 8 Ohm Power Handling 40W
- Frequency Response 60Hz to 20kHz
- Sensitivity 89dB @ 1W / 1m
- Impedance 8 ohms
- Speaker Mounting Depth 2.91"
- Speaker Cut-Out Diameter 7.6"
- Speaker Color White (paintable)
- Amplifier Dimensions 1.75" x 8.5" x 12" (44.45 x 215.9 x 304.8 mm)
