CSA280Z Amplifier + (8) PEN-40T Black Pendant Speakers
CSA280Z Amplifier + (8) PEN-40T Black Pendant Speakers
2-Channel 70V Amp, 80W Per Channel, (8) 4" Black Pendant Speakers, Eyelet Brackets
Free Shipping
Features
- 2-channel CSA280Z amplifier puts out 80W per channel on 70V and 100V lines
- Eight PEN-40T pendant speakers with 4" woofers and 13mm PEI dome tweeters
- Selectable 20W, 10W, 5W, and 2.5W taps set volume zone by zone
- Fanless 1U amplifier runs quietly and includes a rack mounting kit
- Eyelet brackets and detachable euroblock terminals speed up hanging installs
Couldn't load pickup availability

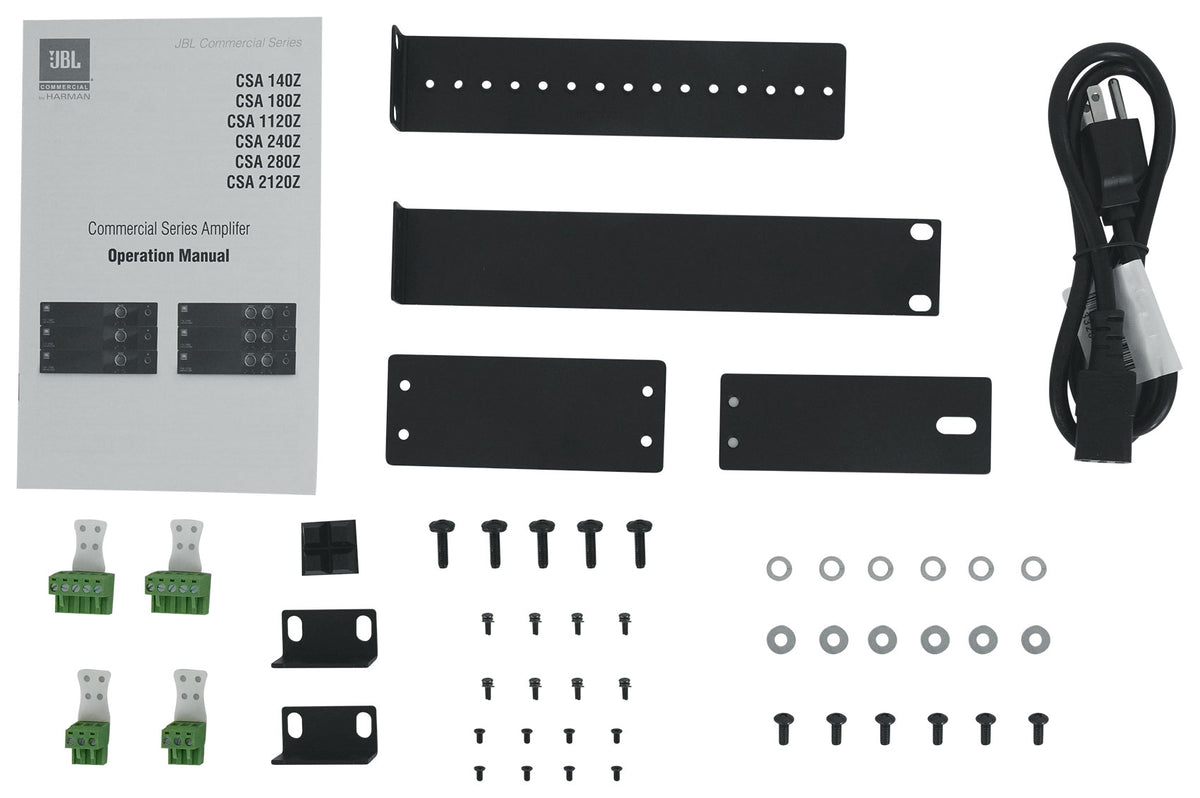

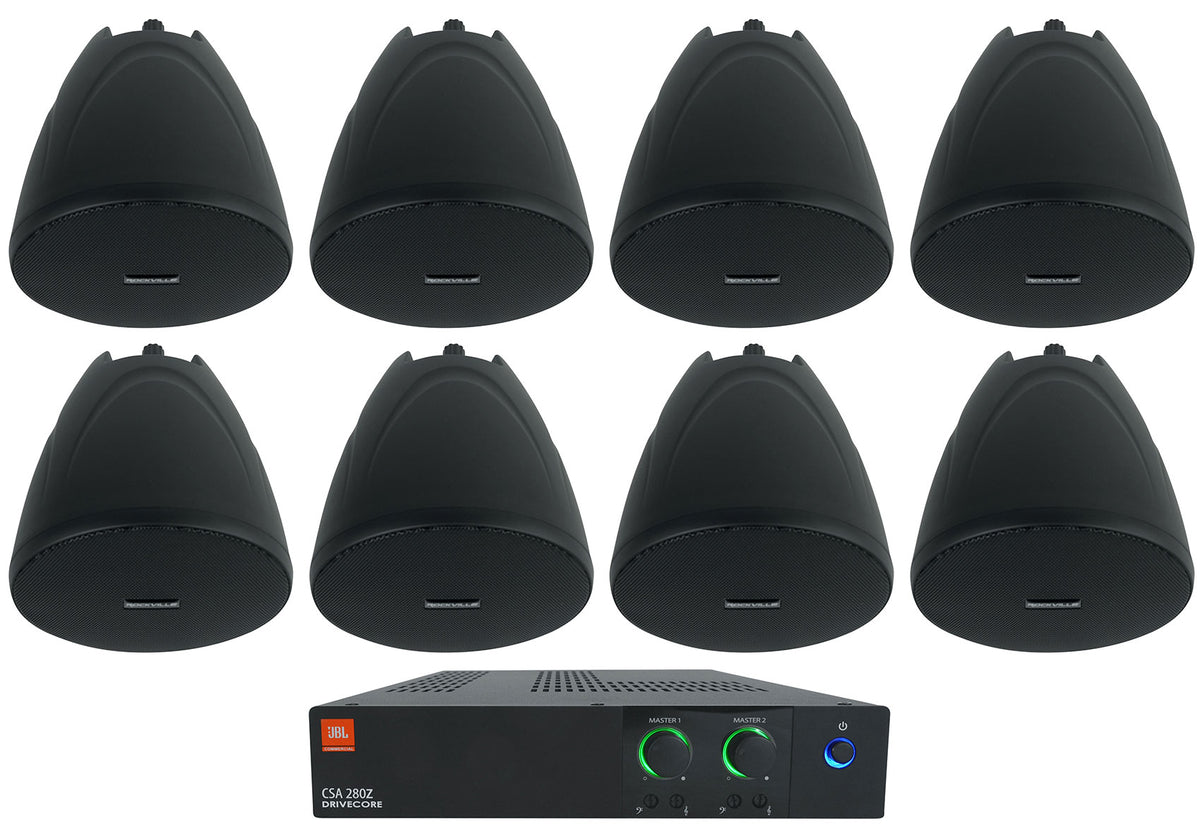

What's Included in the box
- (1) JBL CSA280Z 2-Channel 70V Commercial Amplifier
- (1) Rack Mounting Kit
- (8) Rockville PEN-40T Black 4" 70V Hanging Pendant Speakers
- (8) Eyelet Hanging Brackets
SKU: SKU: CSA280Z+(8) PEN-40T BLACK
View full details











Product Description

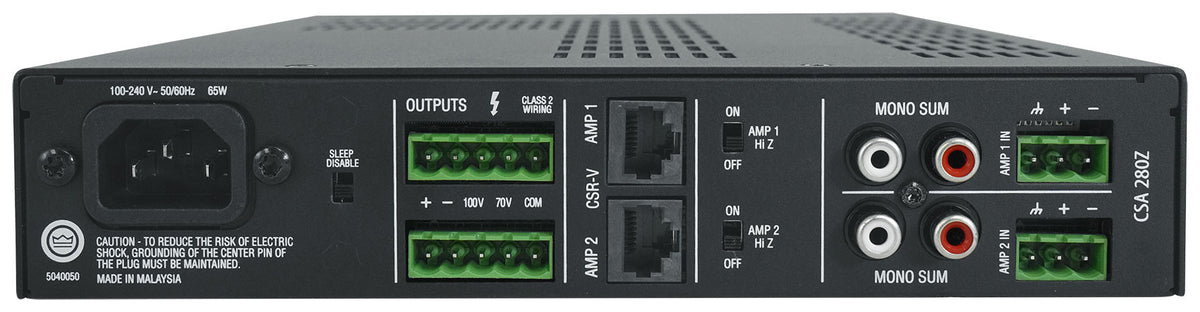

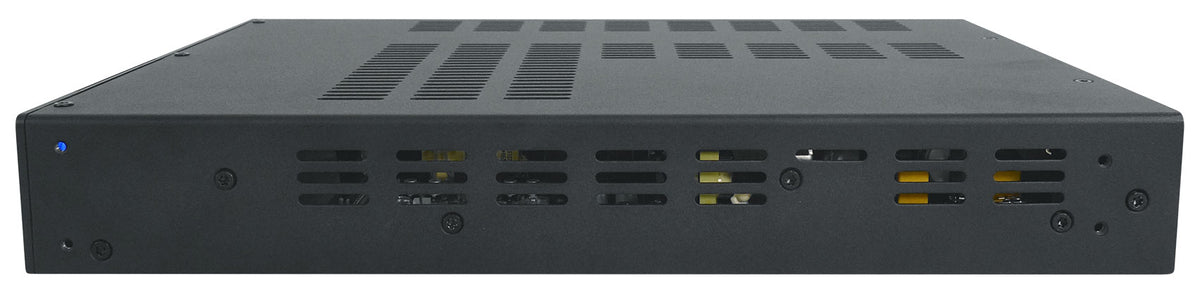

The CSA280Z runs 70V and 100V lines out of the box, stays fanless in a 1U chassis, and comes with a rack mounting kit, so it slides into an equipment rack or sits on a shelf without adding noise to the room. A universal 100 to 240V power supply and Energy Star certification keep it efficient to run all day, and RJ45 connectors accept JBL CSR-V wall controls over CAT5 cable when you want volume adjustment on the wall. Each pendant is a true 2-way speaker with a 4" polypropylene woofer and a 13mm PEI dome tweeter covering 70Hz to 20kHz for clear voice and music from above. Detachable euroblock terminals let you wire the leads off the speaker, then snap the terminal back on, and the included eyelet brackets make hanging each one from an open or high ceiling a quick job. Long 70V wire runs hold their signal, so spreading eight speakers across a large floor plan stays simple.
Features
Matched Power for Eight Speakers
With 80W per channel, the amplifier runs four PEN-40T speakers per channel at the 20W tap, giving you full output across the room without overloading the amp.
Zone-by-Zone Volume Control
Tap each pendant at 20W, 10W, 5W, or 2.5W on 70V lines so the bar area can run louder while dining tables stay comfortable for conversation.

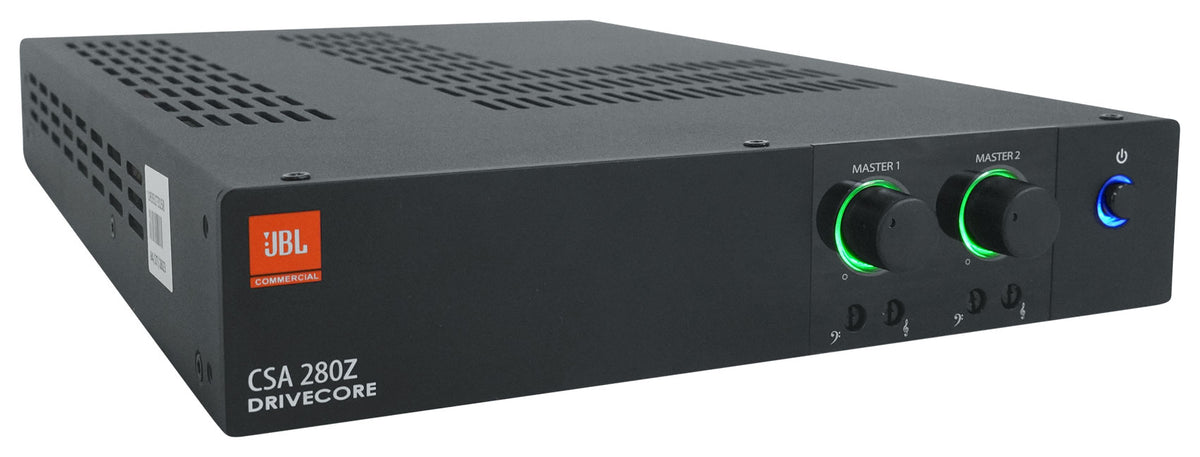

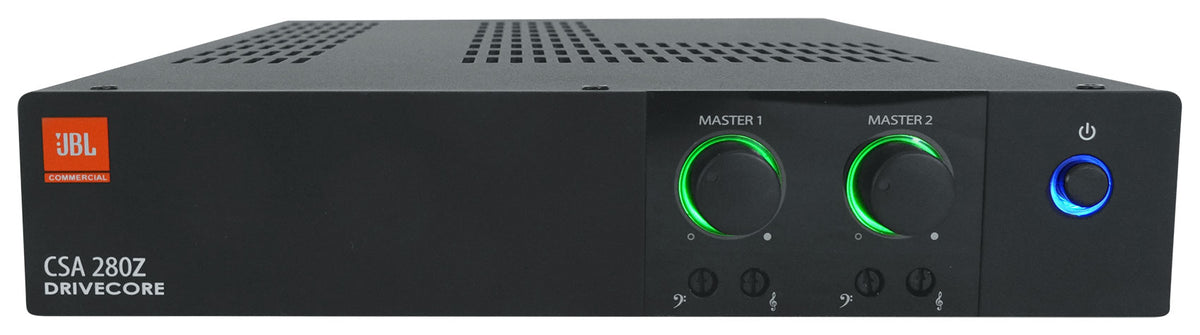

Quiet, Compact Amplifier
The fanless 1U chassis adds no fan noise to the space and mounts in a standard rack with the included hardware or sits neatly on a shelf.

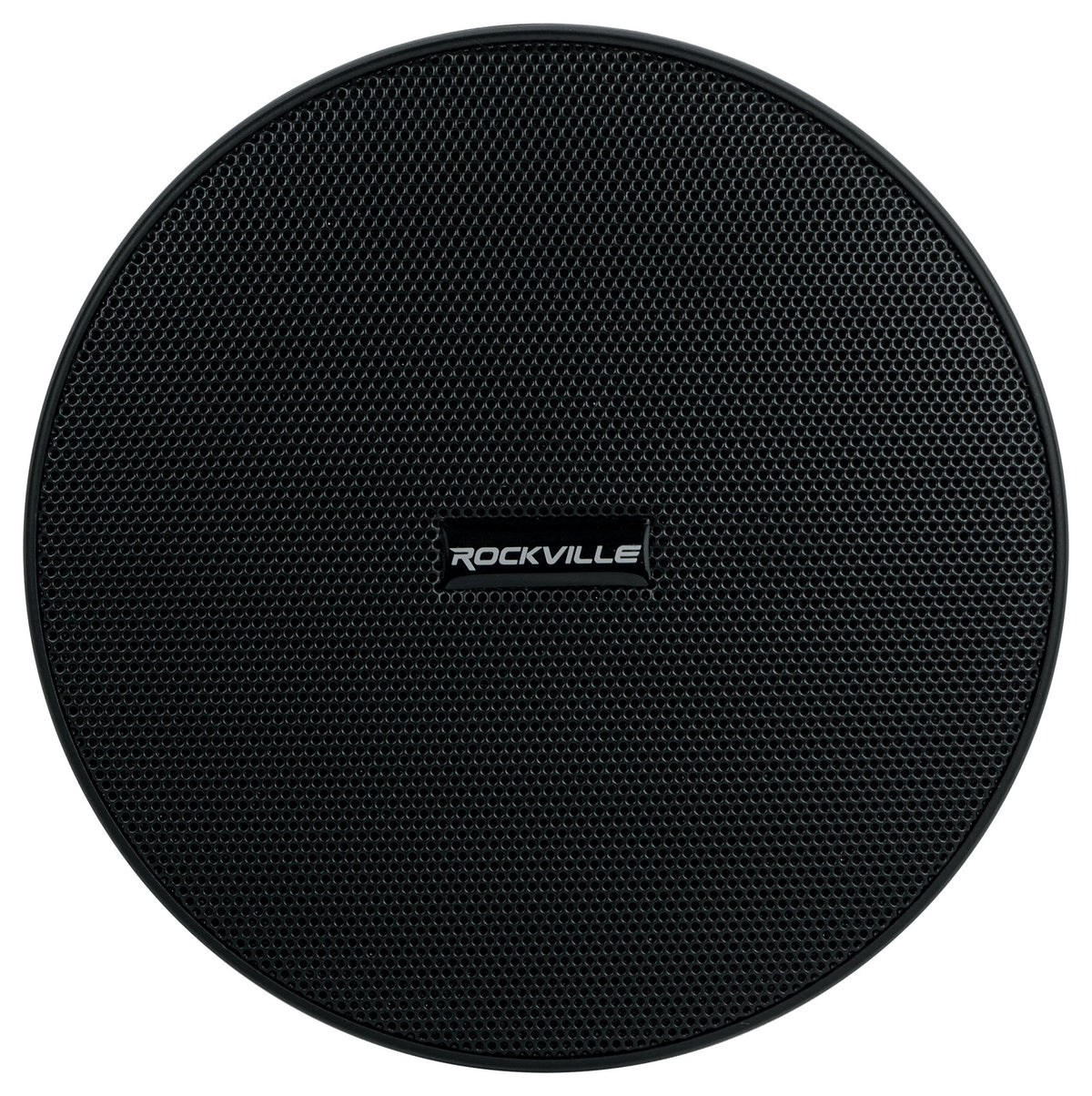

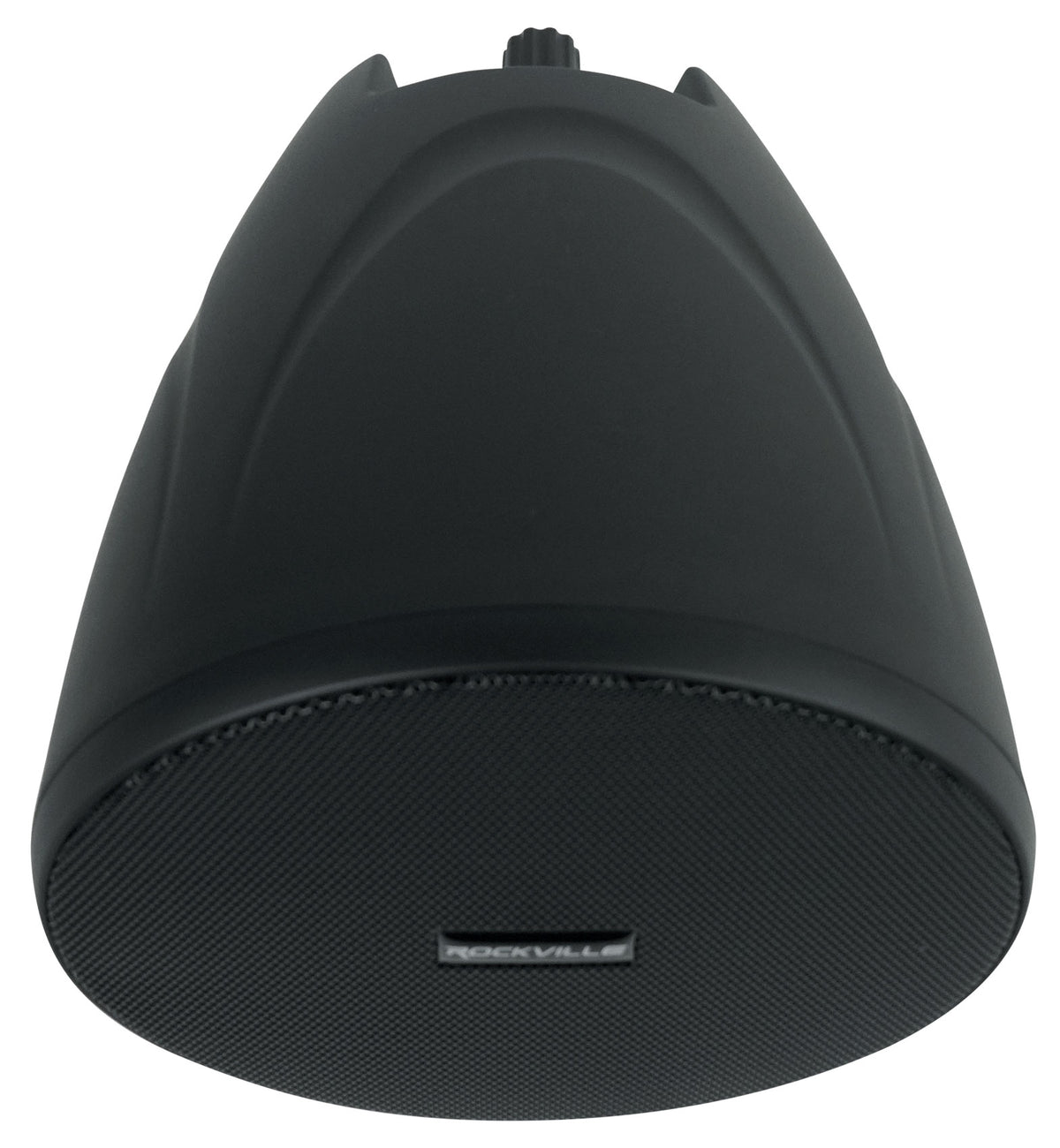

Clear Sound From Above
A 2-way design with a 4" polypropylene woofer, 13mm PEI dome tweeter, and 70Hz to 20kHz response keeps voices and background music clear and natural.
Simple Hanging Installation

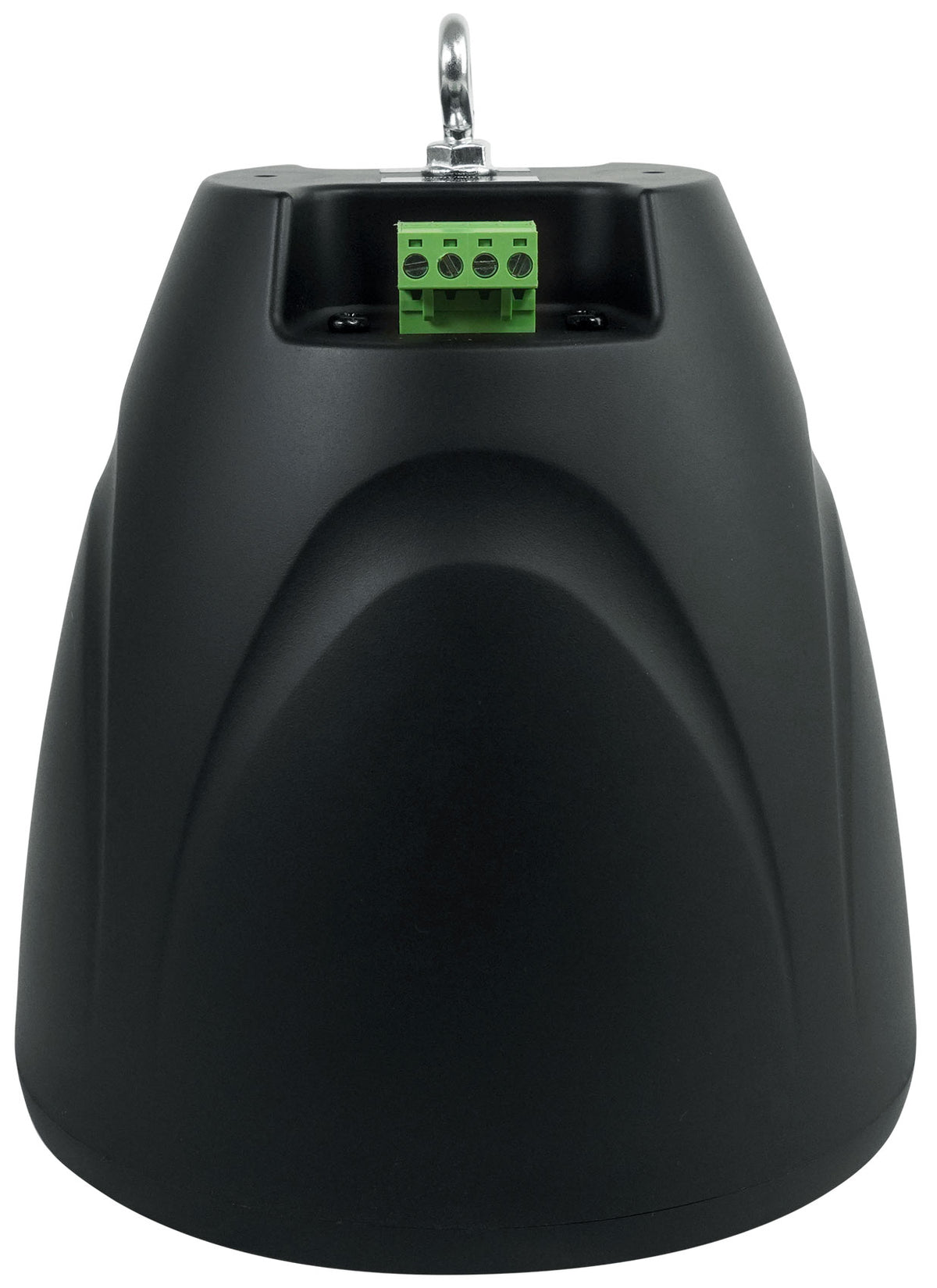

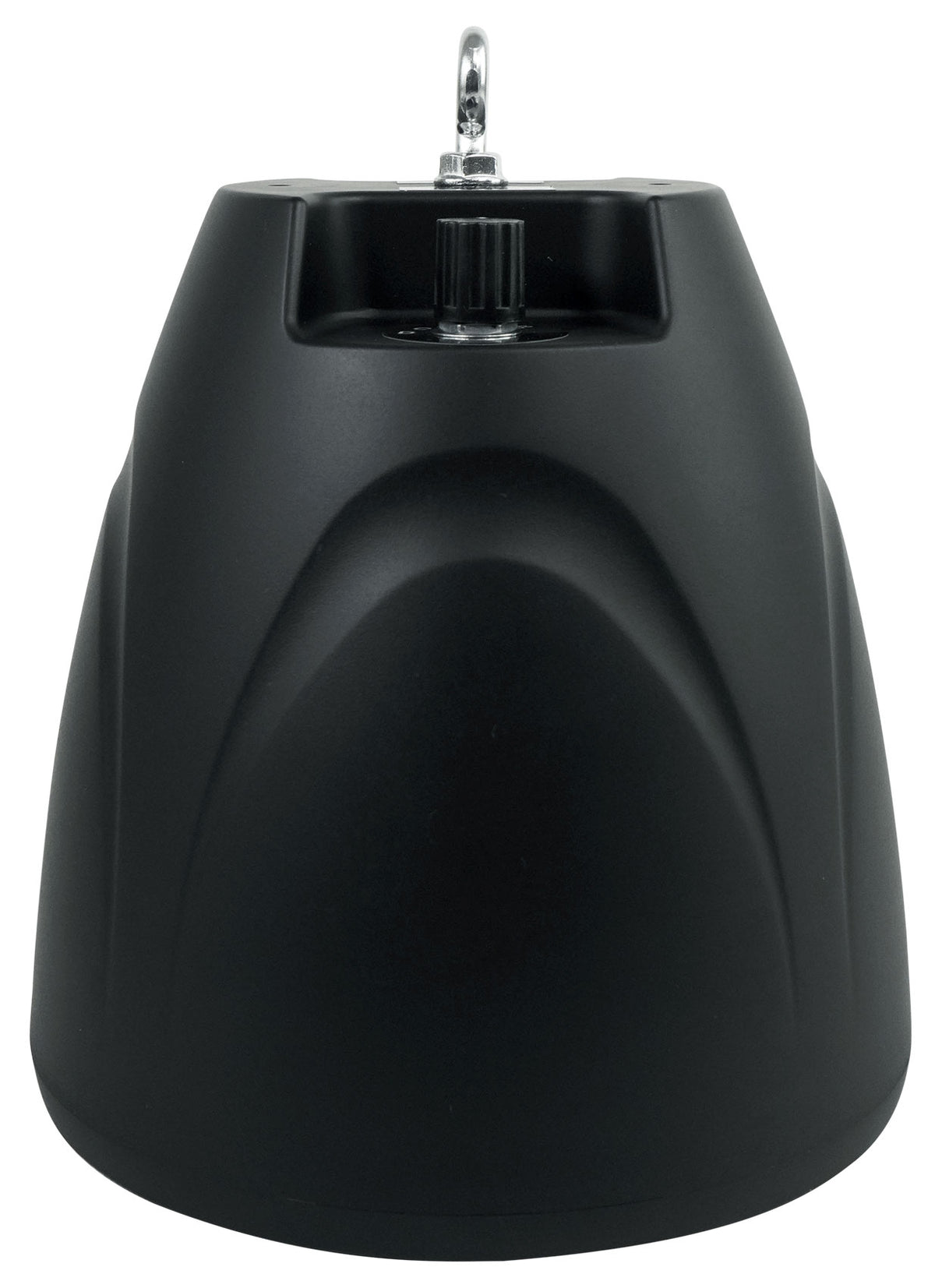

Included eyelet brackets and detachable euroblock terminals let you prewire each speaker on the ground, then hang it from open or high ceilings with less ladder time.
Technical Specifications
- Product Type 70V Commercial Amplifier and Pendant Speaker Package
- Amplifier Output Channels 2
- Amplifier Power Output 80W per channel
- Amplifier Line Voltage 70V / 100V
- Amplifier Input Sensitivity 1.4Vrms for 8 ohms
- Amplifier Input Impedance 20K ohms / 50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100 to 240V, 50/60 Hz
- Amplifier Design Fanless 1U
- Wall Control Support JBL CSR-V via CAT5 (RJ45)
- Speaker Quantity 8
- Speaker Type 2-Way Hanging Pendant
- Woofer 4" polypropylene cone, 8 oz magnet, foam surround
- Tweeter 13mm PEI dome
- Frequency Response 70Hz to 20kHz
- Sensitivity 85dB ±2
- 70V Taps 20W, 10W, 5W, 2.5W
- 100V Taps 20W, 10W, 5W
- 8 Ohm Power Handling 30W
- Speaker Terminals Detachable euroblock
- Speaker Cabinet ABS injection molded
- Speaker Color Black
- Speaker Weight 3.5 lb each
- Dimensions Amplifier: 1.75" x 8.5" x 12"; Speaker: 6.06" diameter x 7.17" H
