CSA280Z Amplifier + (8) PEN-40T White Pendant Speakers
JBL

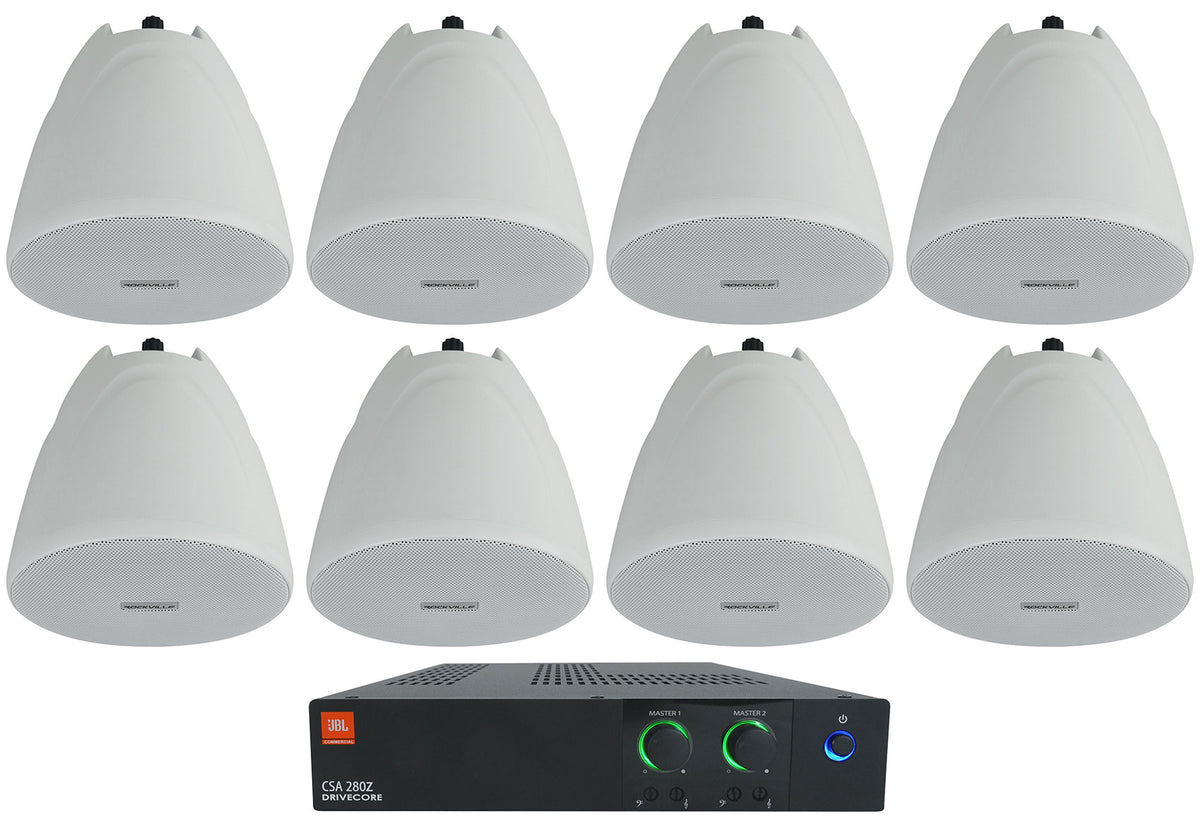

CSA280Z Amplifier + (8) PEN-40T White Pendant Speakers
CSA280Z Amplifier + (8) PEN-40T White Pendant Speakers
2-Channel 70V Amp, 80W Per Channel, (8) 4" White Pendant Speakers, Eyelet Brackets
Free Shipping
Features

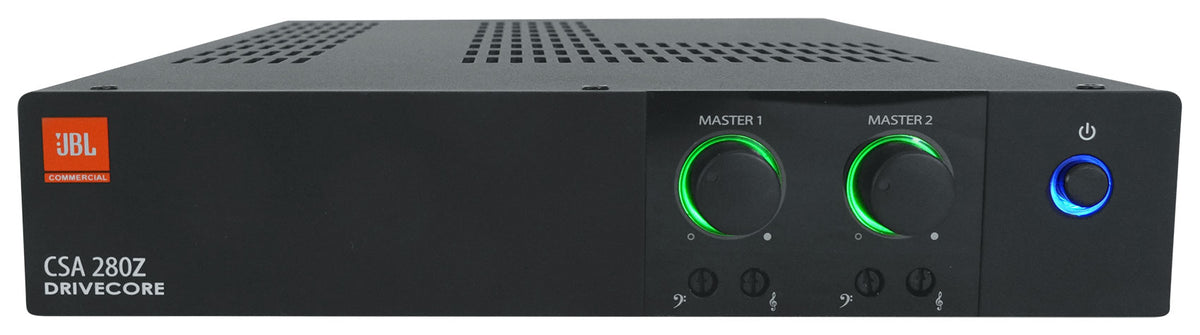

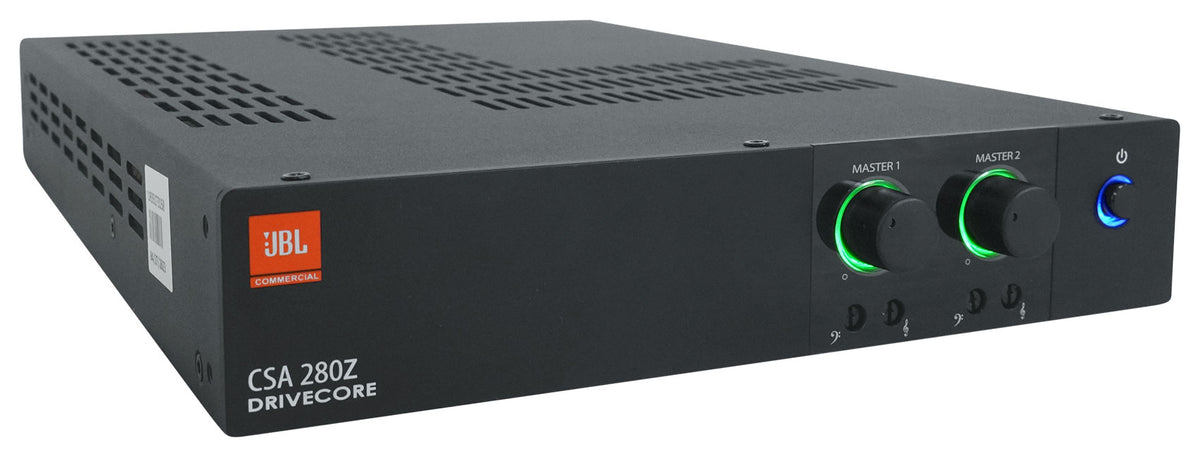

- 2-channel CSA280Z amplifier puts out 80W per channel on 70V and 100V lines

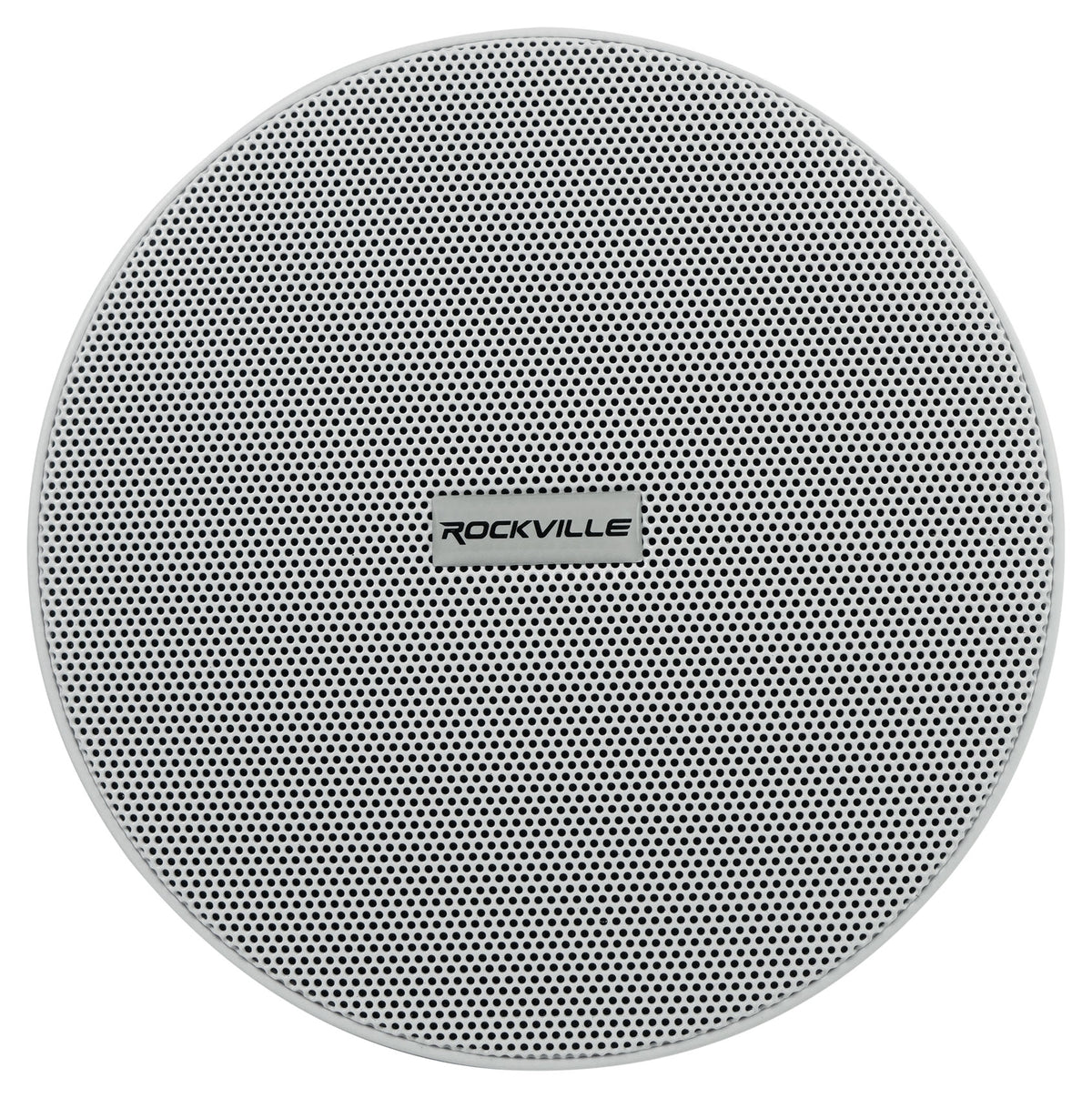

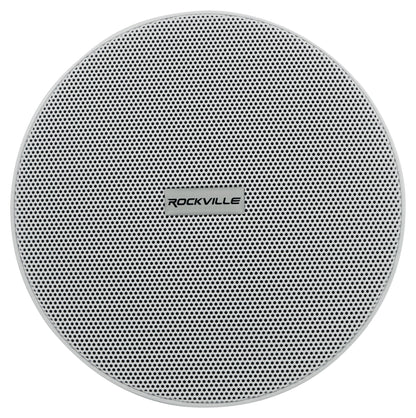

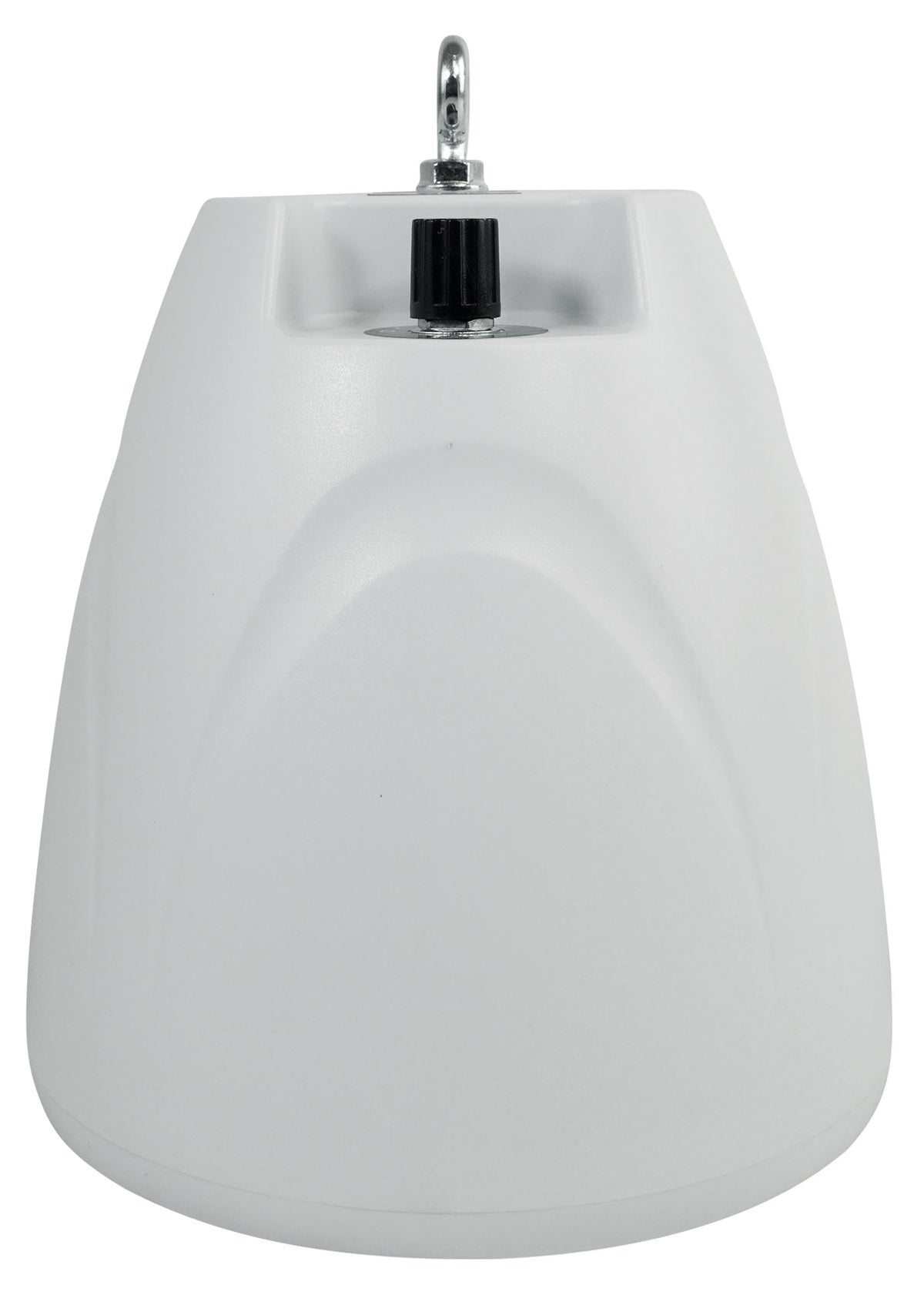

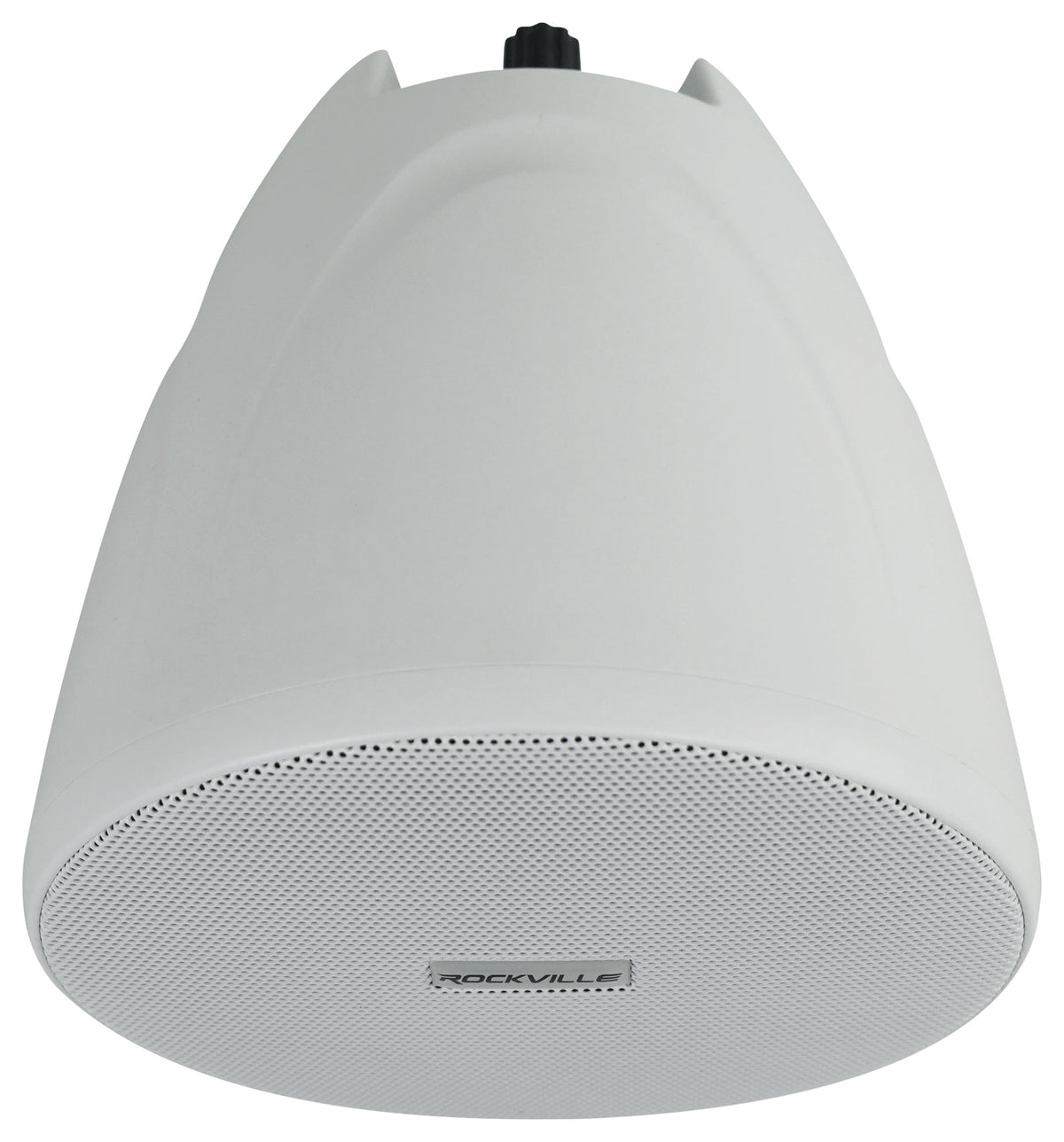

- Eight white PEN-40T pendants with 4" woofers and 13mm PEI dome tweeters
- Selectable 20W, 10W, 5W, and 2.5W taps set volume zone by zone

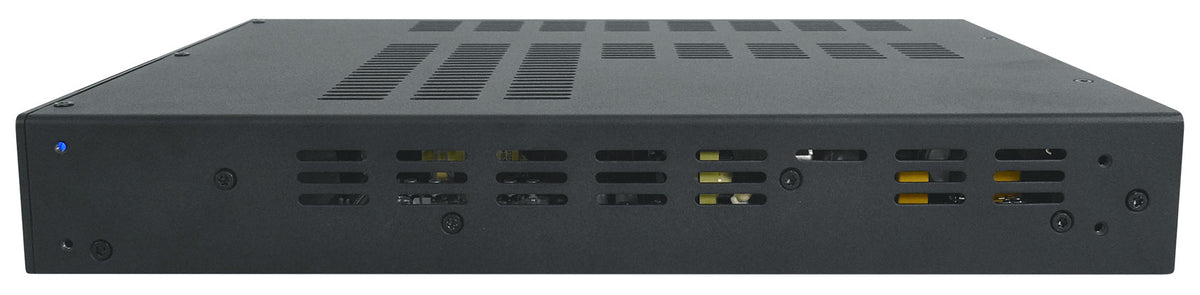

- Fanless 1U amplifier runs quietly and includes a rack mounting kit
- Eyelet brackets and detachable euroblock terminals speed up hanging installs
Couldn't load pickup availability

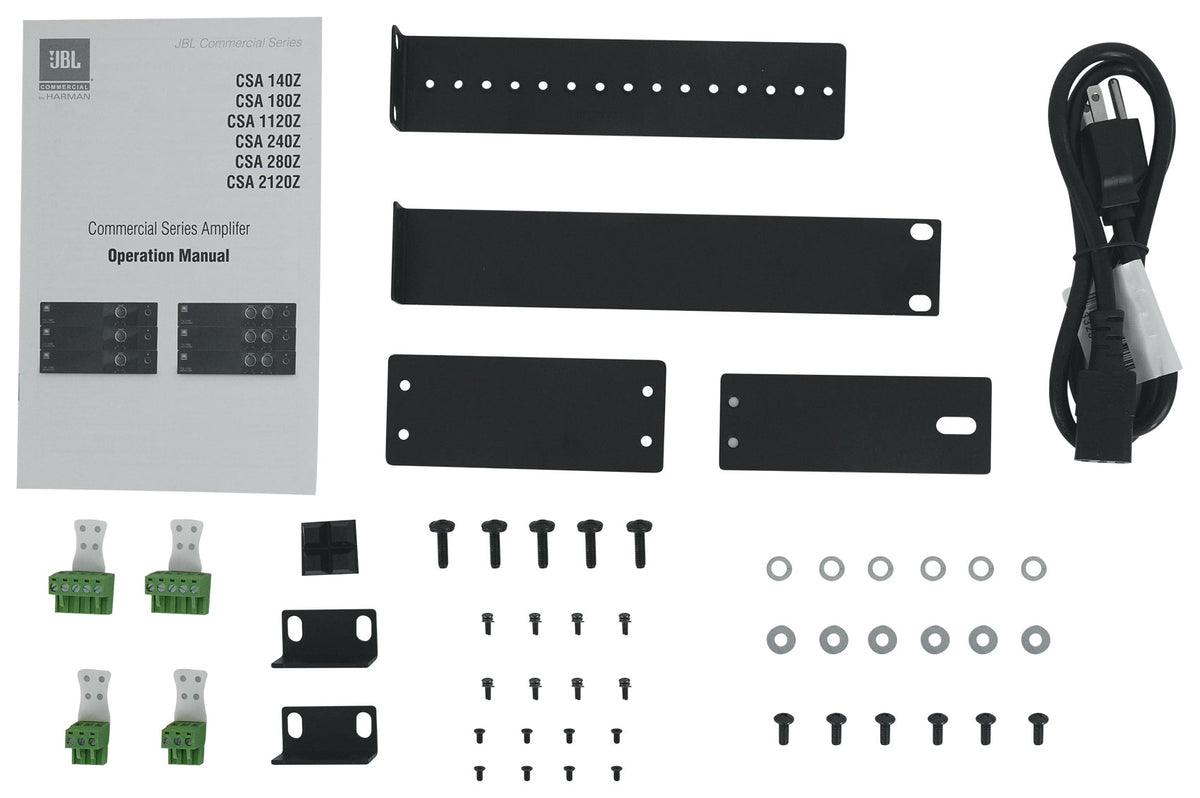

What's Included in the box
- (1) JBL CSA280Z 2-Channel 70V Commercial Amplifier
- (1) Rack Mounting Kit
- (8) Rockville PEN-40T White 4" 70V Hanging Pendant Speakers
- (8) Eyelet Hanging Brackets
SKU: SKU: CSA280Z+(8) PEN-40T WHITE
View full details











Product Description
The CSA280Z handles 70V and 100V lines out of the box, runs fanless in a 1U chassis, and ships with a rack mounting kit, so it can sit in an equipment rack or on a back office shelf without adding noise. Its universal 100 to 240V power supply and Energy Star certification keep all-day operation efficient, and RJ45 connectors accept JBL CSR-V wall controls over CAT5 cable if staff need volume on the wall. Every PEN-40T is a 2-way speaker with a 4" woofer and a 13mm PEI dome tweeter, covering 70Hz to 20kHz for clear announcements and music overhead. Detachable euroblock terminals let you wire each speaker on the ground before hanging it from the included eyelet bracket, and 70V lines hold their signal over long runs, so spreading eight pendants across a large floor plan stays simple.
Features
Matched Power for Eight Speakers
At 80W per channel, the amplifier runs four PEN-40T speakers per channel at the 20W tap, giving you full output across the room without overloading the amp.
A Finish That Blends In
White ABS cabinets disappear against light ceilings and bright interiors, so the sound system fits the look of a cafe, lobby, or boutique.
Zone-by-Zone Volume Control
Tap each pendant at 20W, 10W, 5W, or 2.5W on 70V lines so the bar area can run louder while dining tables stay comfortable for conversation.
Quiet, Compact Amplifier
The fanless 1U chassis adds no fan noise to the space and mounts in a standard rack with the included hardware or sits neatly on a shelf.
Simple Hanging Installation

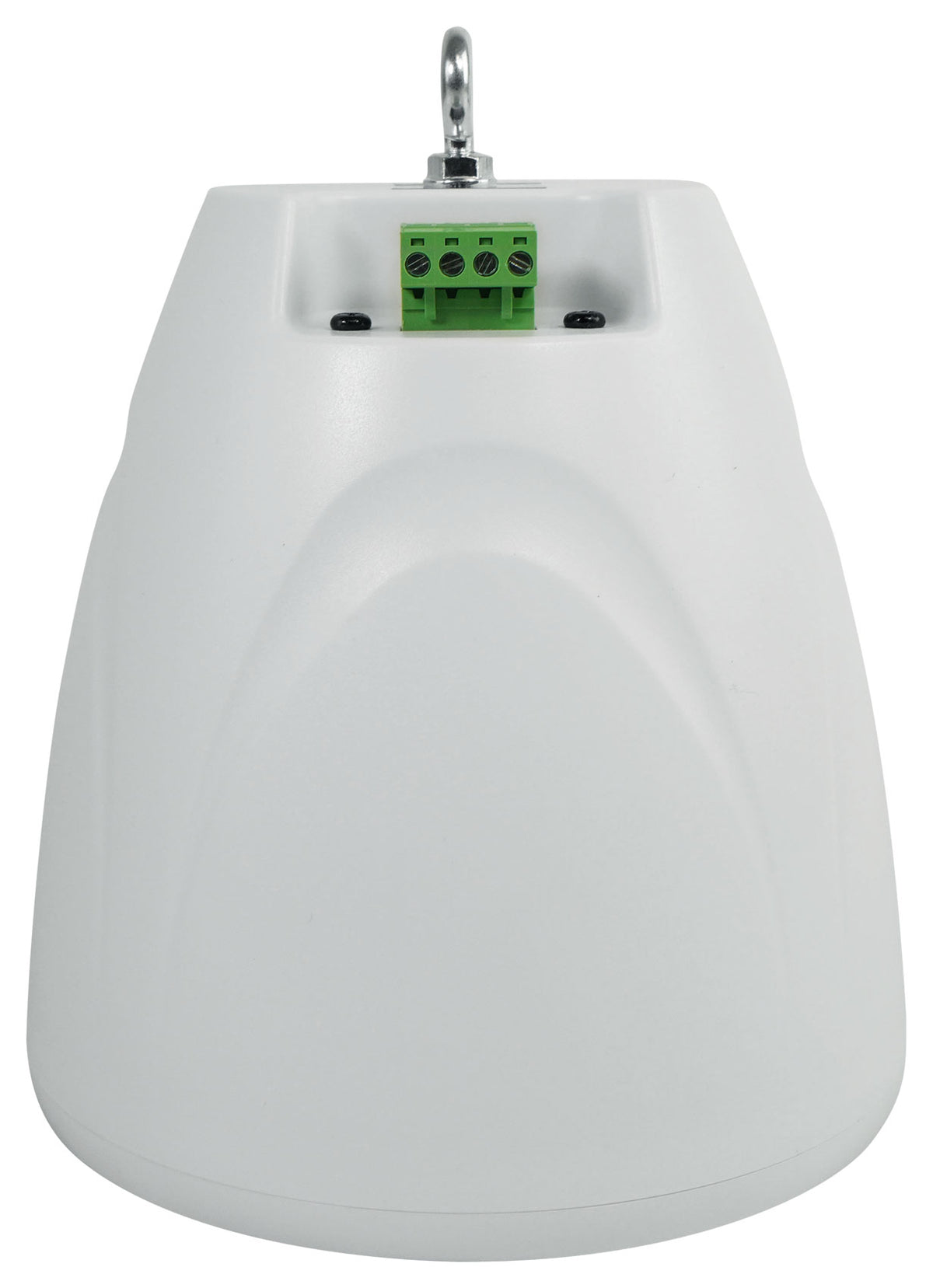

Included eyelet brackets and detachable euroblock terminals let you prewire each speaker on the ground, then hang it from open or high ceilings with less ladder time.
Technical Specifications
- Product Type 70V Commercial Amplifier and Pendant Speaker Package
- Amplifier Output Channels 2
- Amplifier Power Output 80W per channel
- Amplifier Line Voltage 70V / 100V
- Amplifier Input Sensitivity 1.4Vrms for 8 ohms
- Amplifier Input Impedance 20K ohms / 50K ohms
- Phantom Power 27VDC
- AC Line Voltage 100 to 240V, 50/60 Hz
- Amplifier Design Fanless 1U

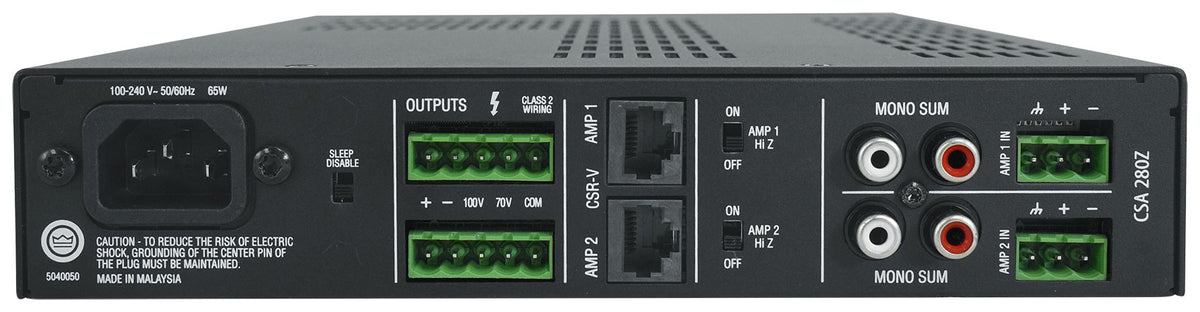

- Wall Control Support JBL CSR-V via CAT5 (RJ45)
- Speaker Quantity 8
- Speaker Type 2-Way Hanging Pendant
- Woofer 4"
- Tweeter 13mm PEI dome
- Frequency Response 70Hz to 20kHz
- Sensitivity 85dB ±2dB
- 70V Taps 20W, 10W, 5W, 2.5W
- 100V Taps 20W, 10W, 5W
- 8 Ohm Power Handling 30W
- Speaker Terminals Detachable euroblock
- Speaker Cabinet ABS injection molded
- Speaker Color White
- Speaker Weight 3.5 lb each
- Dimensions Amplifier: 1.75" x 8.5" x 12"; Speaker: 6.06" diameter x 7.17" H
