CSMA1120 Mixer Amp + (2) WET-6525B Outdoor Wall Speakers
JBL
CSMA1120 Mixer Amp + (2) WET-6525B Outdoor Wall Speakers
CSMA1120 Mixer Amp + (2) WET-6525B Outdoor Wall Speakers
70V Indoor/Outdoor System, 120W 4-Input 1U Mixer Amp, Two 6.5" IPX55 Wall Speakers
Free Shipping
Features
- Complete 70V system with one 120W mixer amp and two 6.5" indoor/outdoor wall speakers
- IPX55 speakers use rustproof aluminum grills and salt spray tested steel brackets

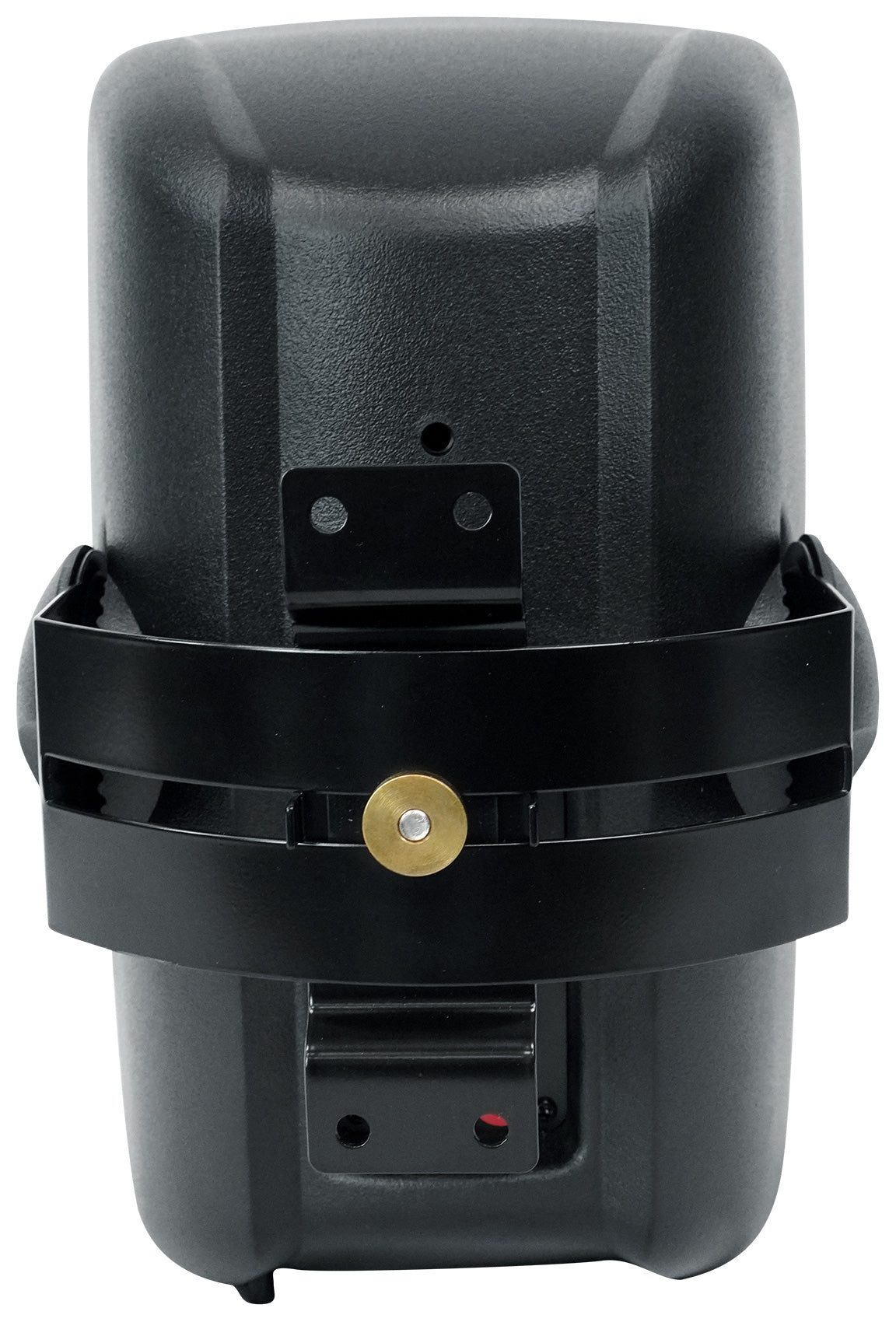

- 4-way swivel brackets angle each speaker up, down, left, or right toward listeners
- 70V taps at 30W, 15W, 7.5W, and 3.75W let you set the level for each speaker

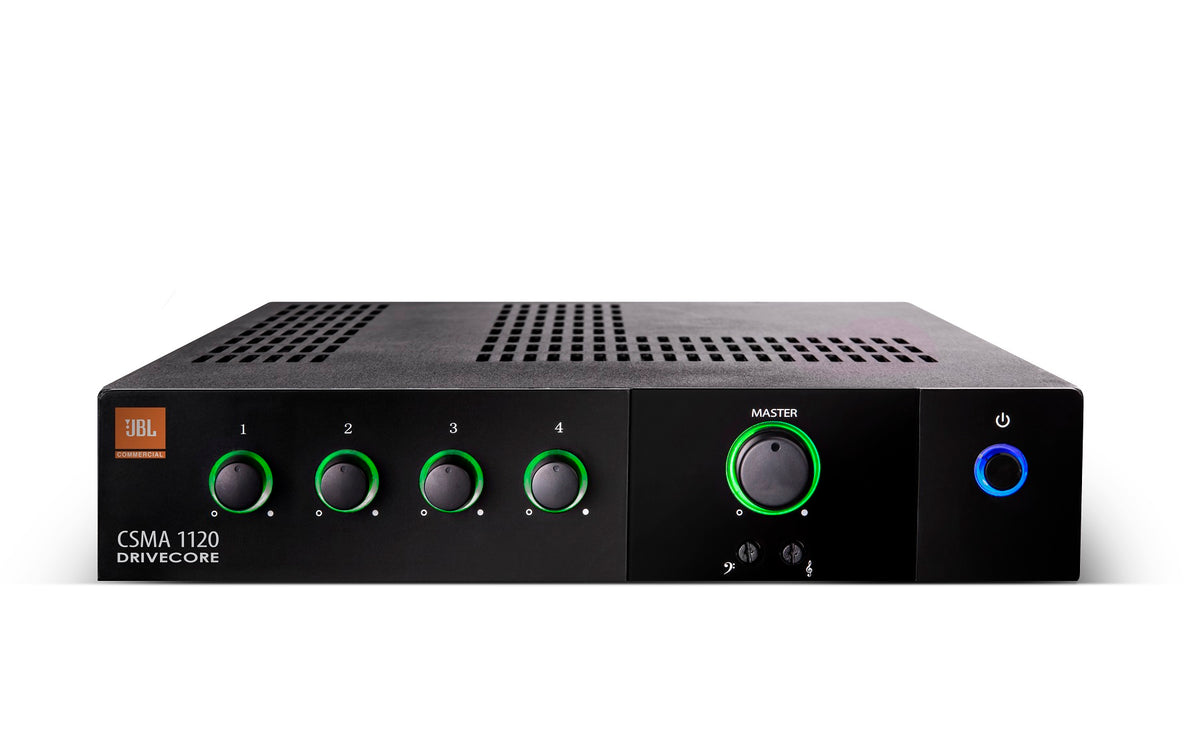

- Fanless 1U mixer amp with four inputs, priority muting, and bass and treble controls
Couldn't load pickup availability

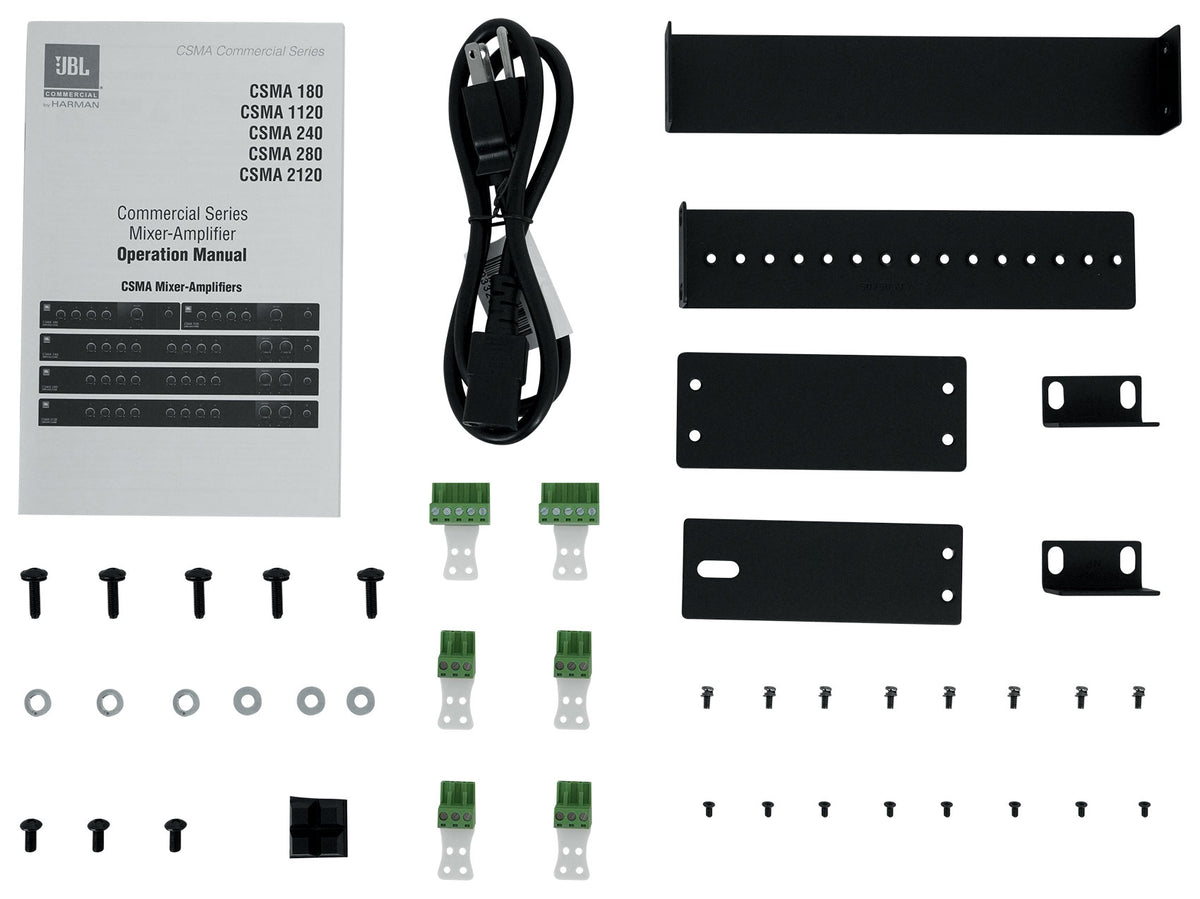

What's Included in the box
- (1) JBL CSMA1120 120W Commercial 70V Mixer Amplifier
- (1) Rack Mounting Kit
- (2) Rockville WET-6525B 6.5" 70V Indoor/Outdoor Wall Speakers with Swivel Brackets (Black)
SKU: SKU: CSMA1120+(2) WET-6525B
View full details














Product Description

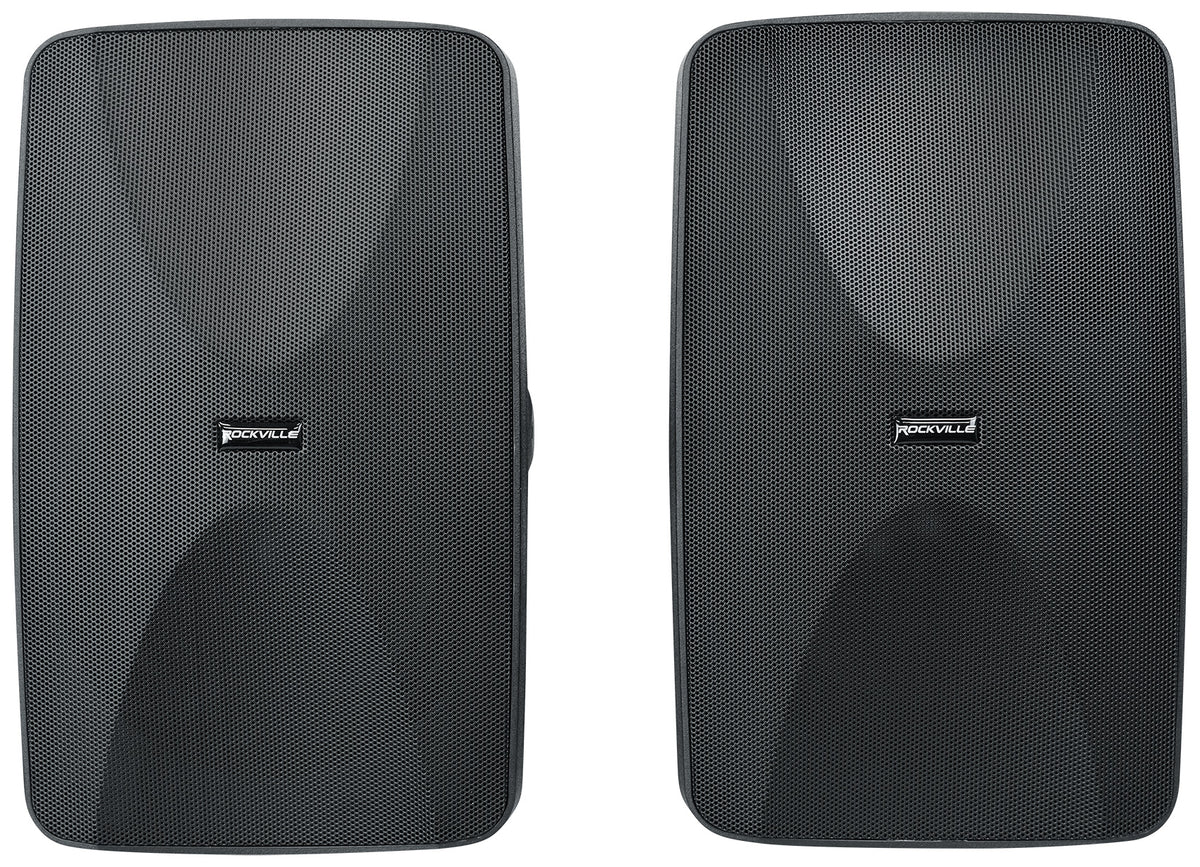

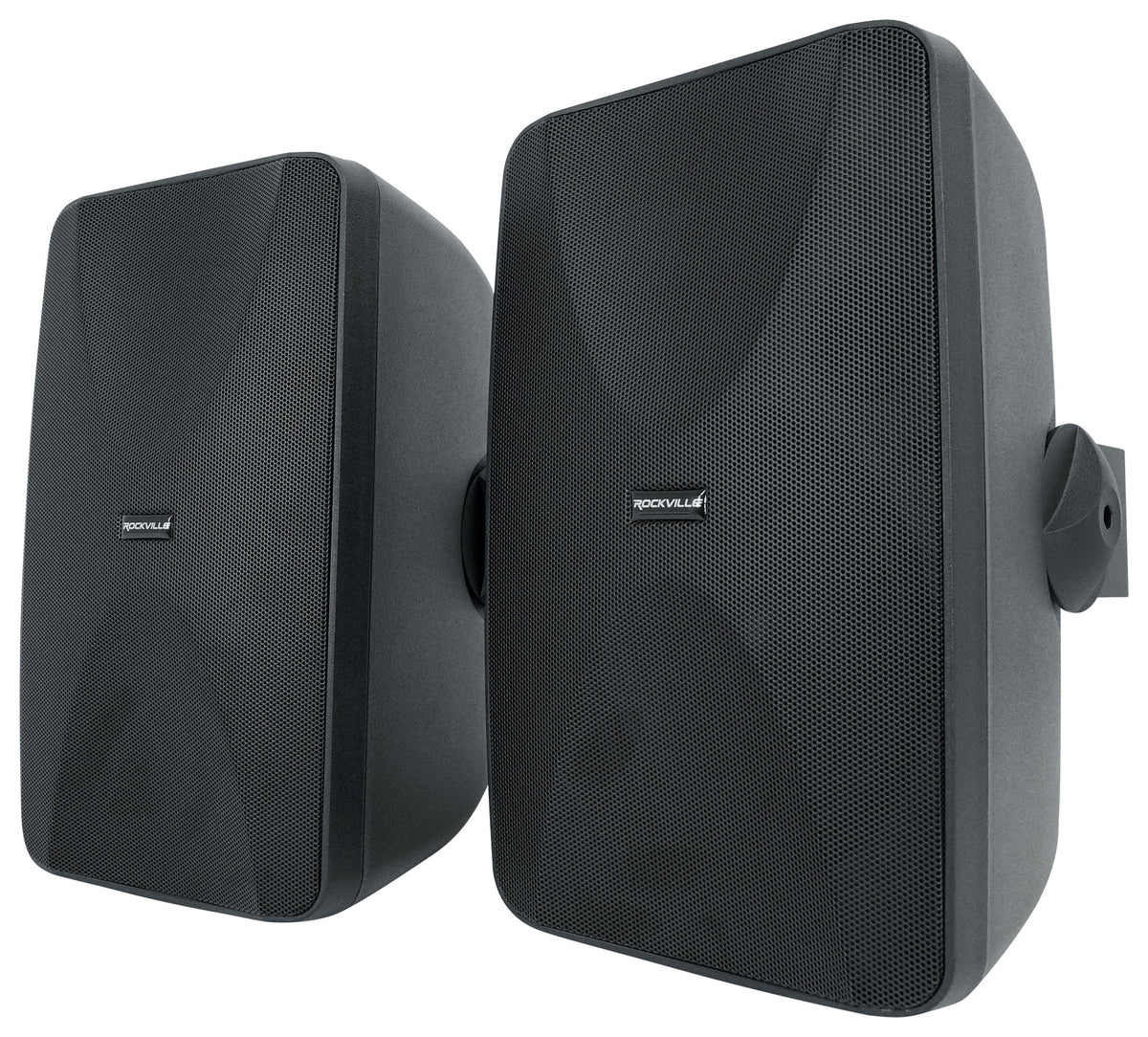

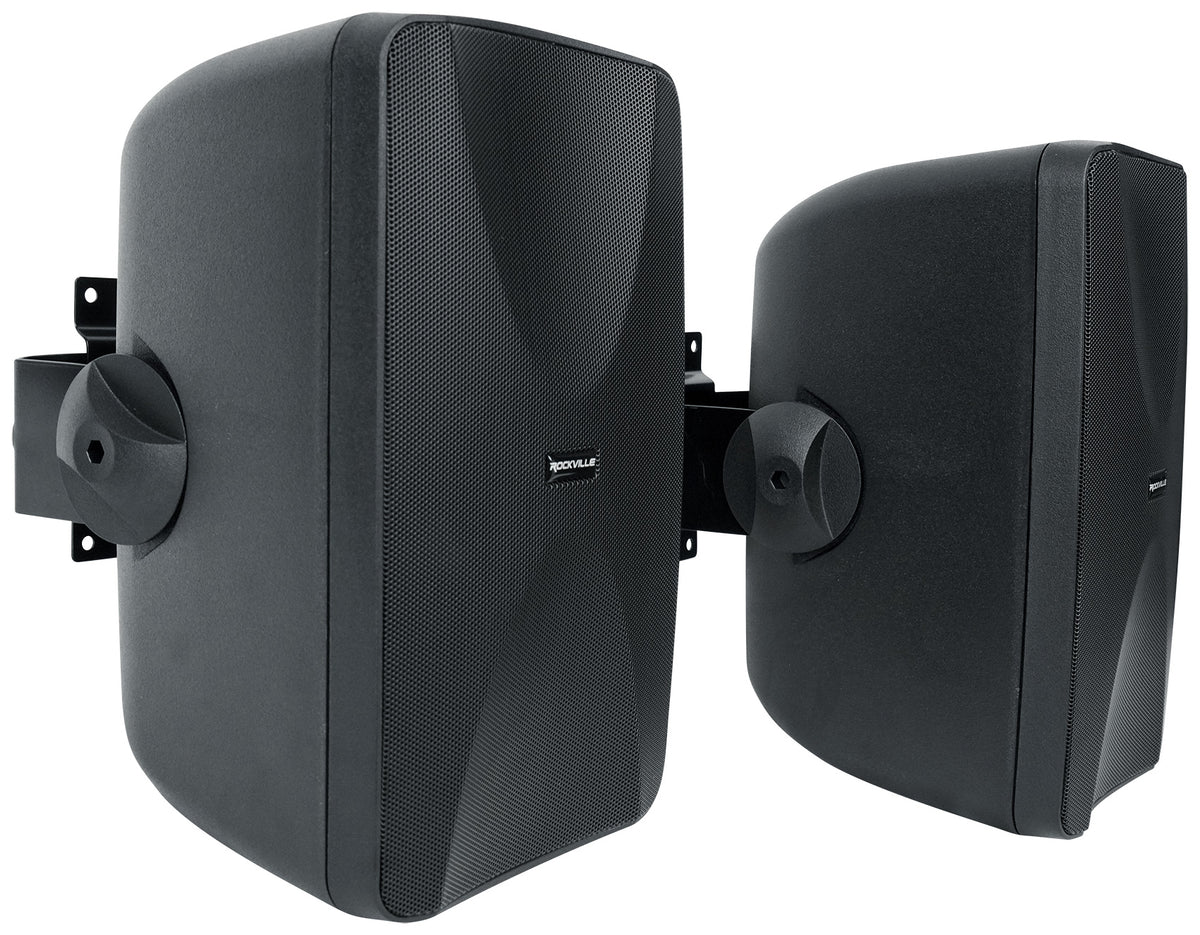

Each WET-6525B carries an IPX55 rating, with a waterproof plastic cabinet, a rustproof aluminum grill, and powder coated steel brackets that pass a 96-hour salt water spray test. Even the spring-loaded speaker terminals are waterproof. The 4-way swivel bracket angles each speaker up, down, left, or right, so you can aim sound at a seating area instead of the far wall. Inside, a 6.5" polypropylene woofer and 20mm PEI dome tweeter sit in a vented enclosure tuned for full bass and natural highs, with a 55Hz to 20kHz frequency response.

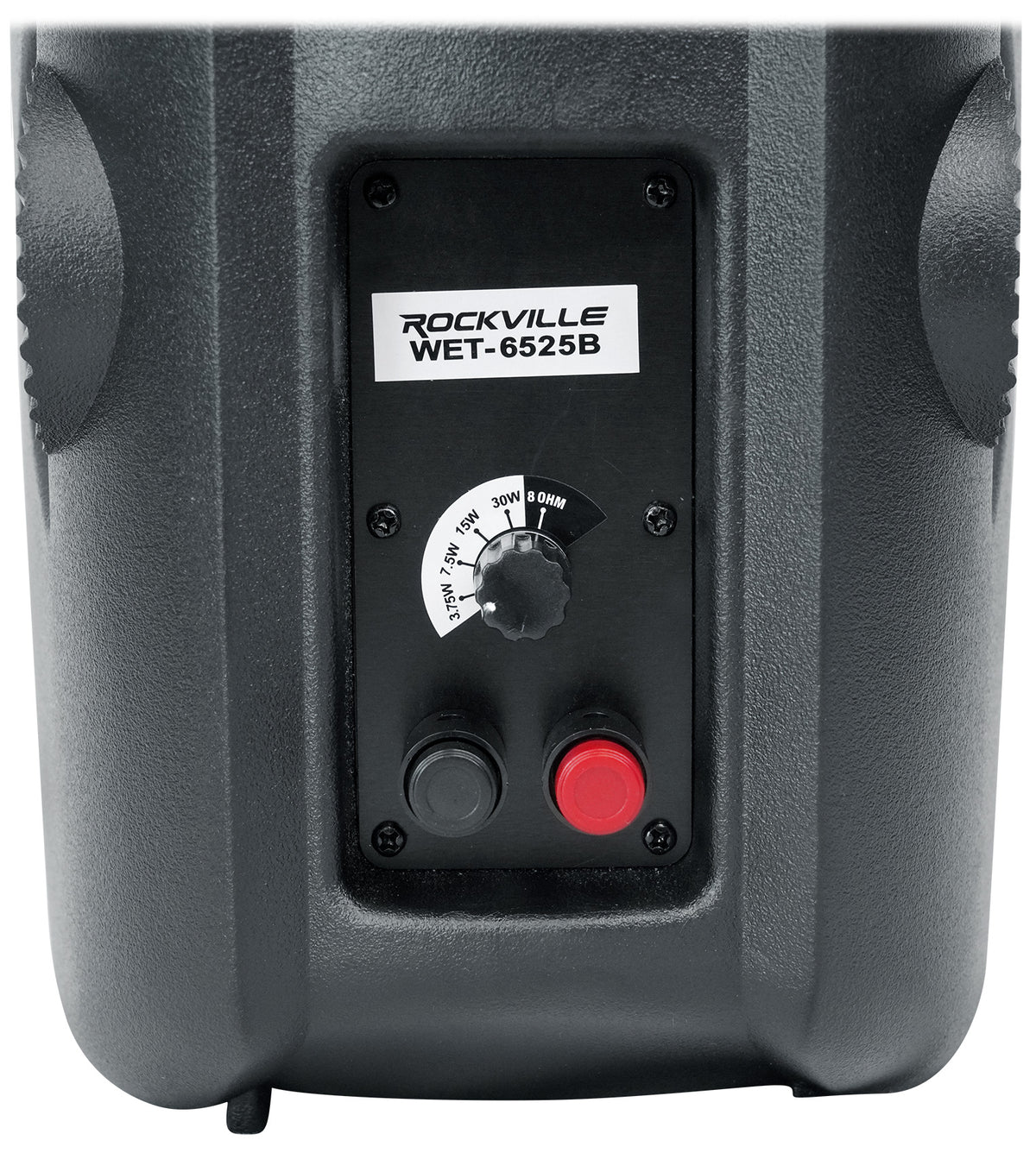

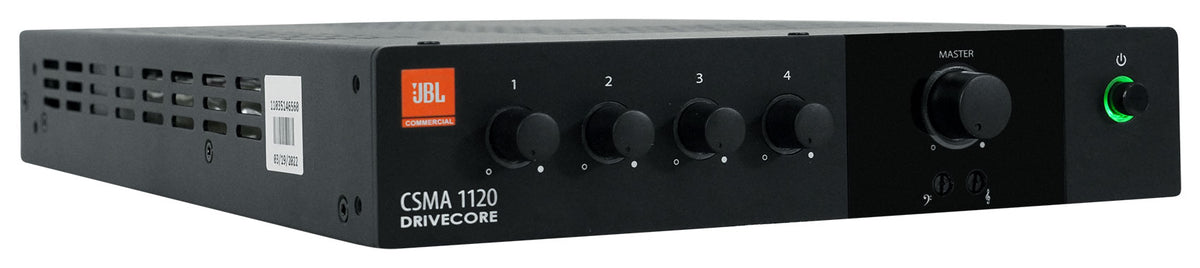

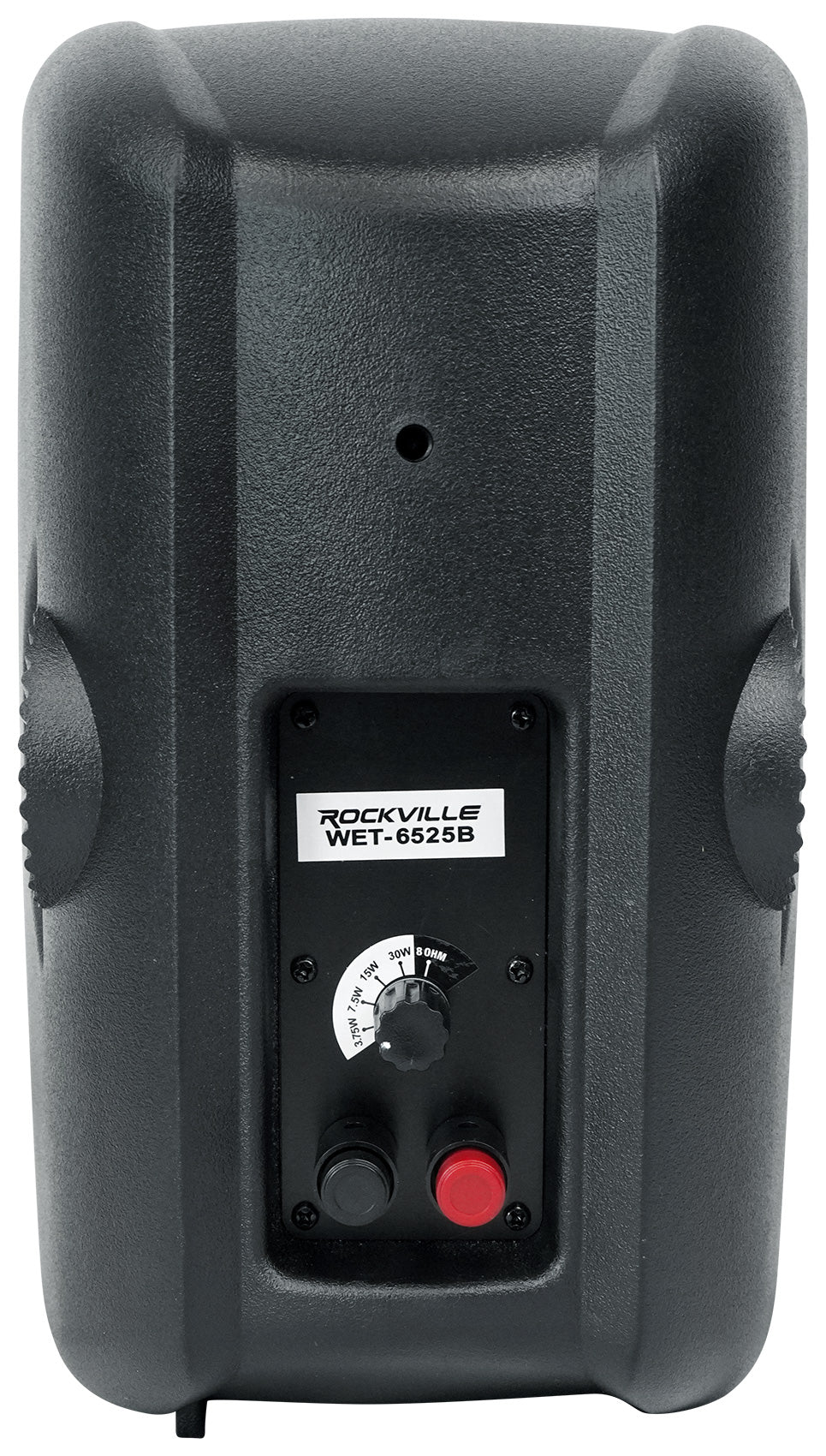

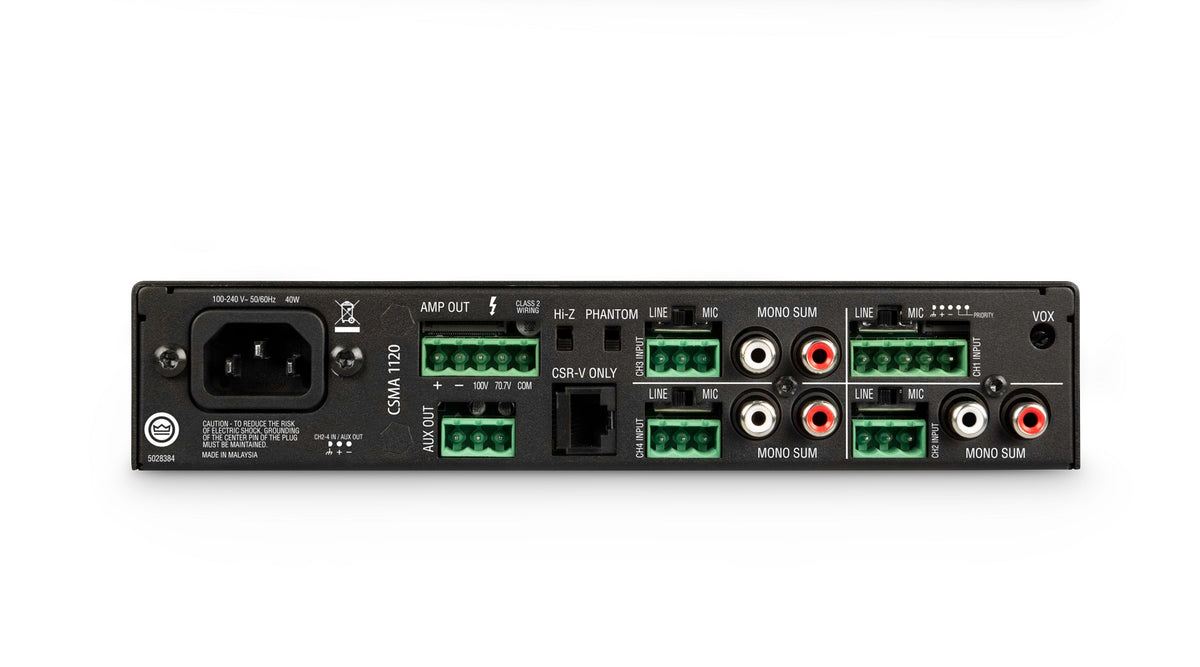

A tap switch on each speaker selects 30W, 15W, 7.5W, or 3.75W on a 70V line. Two speakers at the full 30W tap use only half of the amp's 120W, leaving room to add more 70V speakers later as the space grows. The CSMA1120 fits four inputs into a fanless 1U chassis with a rack mounting kit, priority muting for announcements, bass and treble controls, and RJ45 connectors for JBL CSR-V wall volume controls. Its universal power supply accepts 100 to 240V.
Features
Complete Outdoor Sound in One Order
The CSMA1120 mixer amp and two WET-6525B wall speakers arrive together, giving a patio, terrace, or bar a full music and paging setup without sourcing parts separately.
Built for Rain, Sun, and Salt Air
IPX55 cabinets, rustproof aluminum grills, waterproof terminals, and brackets that pass a 96-hour salt spray test stand up to heavy rain, sun, and dust.
Aim Sound Where People Sit

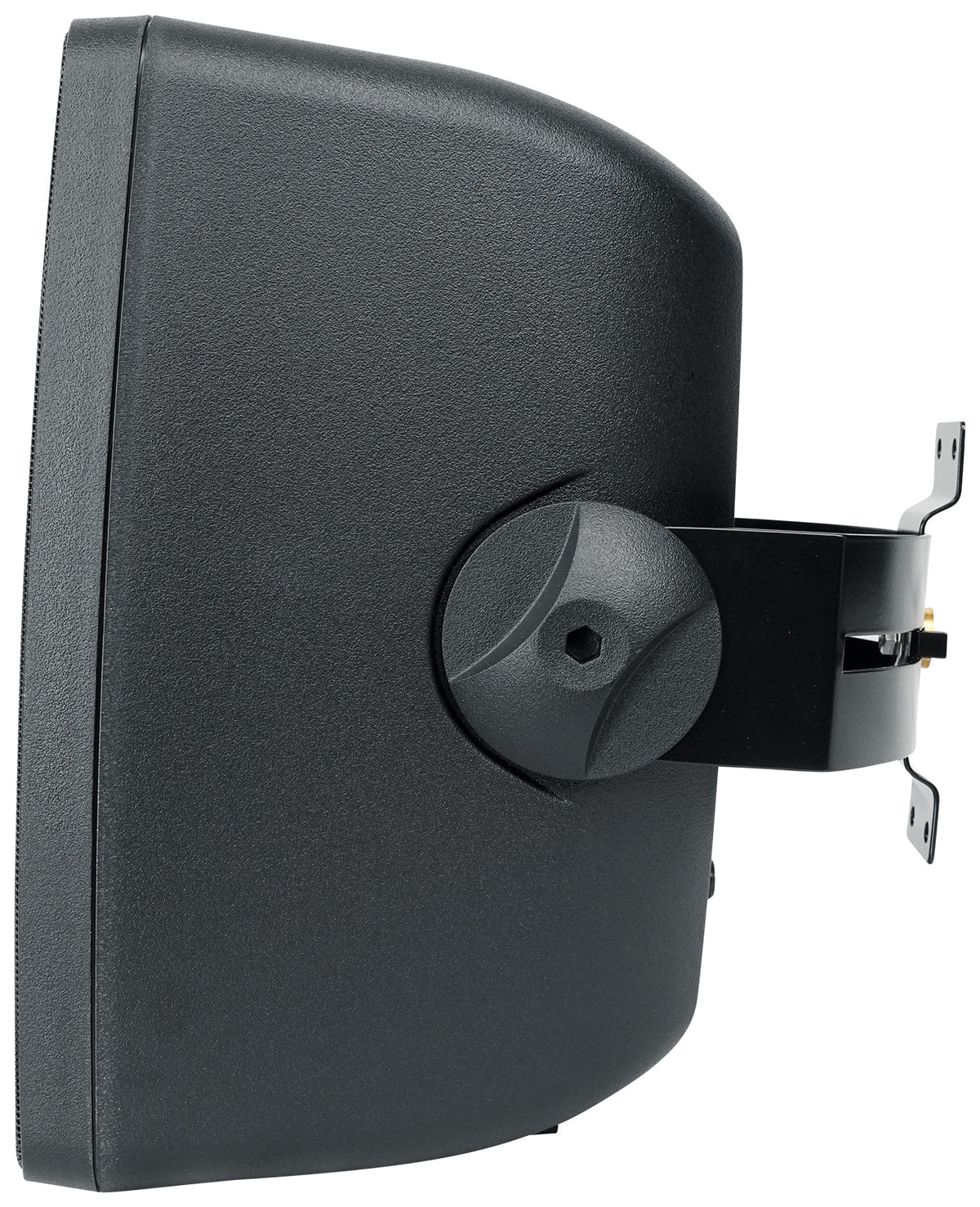

The 4-way swivel bracket tilts each speaker up, down, left, or right, so you can point audio at seating areas and make sound staging in large spaces easier.
Room to Grow the System
Two speakers at the 30W tap use half the amp's 120W rating, leaving headroom to add more 70V ceiling or wall speakers as your space expands.
Quiet, Efficient Rack Unit
The fanless 1U chassis runs silently in tight equipment closets, priority muting lowers music for announcements, and the universal supply accepts 100 to 240V.
Technical Specifications
- Product Type 70V Commercial Mixer Amplifier and Indoor/Outdoor Wall Speaker System
- Amplifier Output 120W @ 4/8 Ohms
- Mixer Inputs 4
- Output Channels 1
- Distributed Audio 70V and 100V, No Separate Transformer Needed
- Load Impedance Stable from 2 to 16 Ohms
- Input Sensitivity 1.4Vrms
- Signal to Noise Ratio Greater than 100 dB (1kHz, A-weighted)
- Input Impedance Balanced 20K Ohms / Unbalanced 10K Ohms
- Max Input +20dBu Typical
- Rack Size 1U
- Cooling Fanless
- AC Line Voltage 100-240V, 50/60 Hz
- Remote Volume Control RJ45, JBL CSR-V Compatible
- Speakers Included (2) WET-6525B
- Speaker Woofer 6.5" Polypropylene Cone
- Speaker Tweeter 20mm PEI Dome
- Enclosure Vented, Waterproof Plastic
- Grill Aluminum
- Weather Rating IPX55
- Mounting 4-Way Swivel Bracket, Powder Coated Steel
- 70V Taps 30W, 15W, 7.5W, 3.75W
- 8 Ohm Power Handling 40W RMS
- Nominal Impedance 8 Ohms
- Speaker Sensitivity 85 dB ±2 dB
- Speaker Frequency Response 55 Hz - 20 kHz
- Color Black
- Amplifier Shipping Weight 10.1 lb (4.6 kg)
- Speaker Weight 6.94 lb (3.15 kg) each
- Amplifier Dimensions 1.7" x 8.6" x 11.9" (43.3 x 218.5 x 303.4 mm)
- Speaker Dimensions 12.21" x 7.4" x 7.3" (310 x 188 x 186 mm)
