JBL

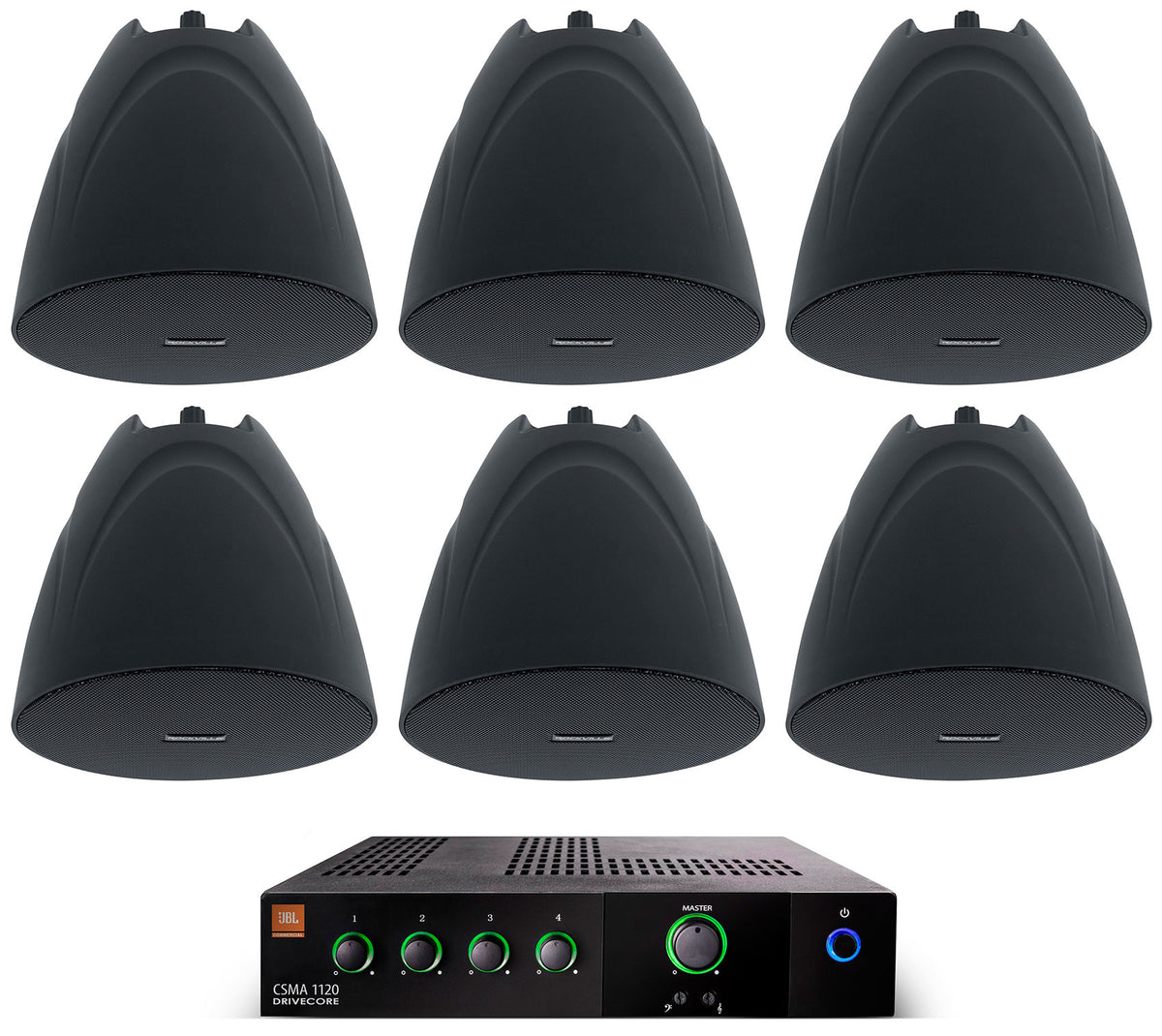

CSMA1120 Mixer Amp + (6) PEN-525T Black Pendant Speakers

CSMA1120 Mixer Amp + (6) PEN-525T Black Pendant Speakers

70V System, 120W 1U Mixer Amp, Six 5.25" Black Pendant Speakers for Restaurants

Free Shipping

Regular price $815.00
Sale price $815.00 Regular price $1,853.73
Save 56%
Shipping calculated at checkout.
Features
    • Complete 70V system with a 120W mixer amp and six 5.25" black hanging pendant speakers
    • Pendants hang over tables and counters in rooms with open or exposed ceilings
    • 2-way design pairs a 5.25" polypropylene woofer with a 13mm PEI dome tweeter
    • 70V taps at 20W, 10W, 5W, and 2.5W let you set the level for each speaker
    • Fanless 1U mixer amp with four inputs, priority muting, and bass and treble controls
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later

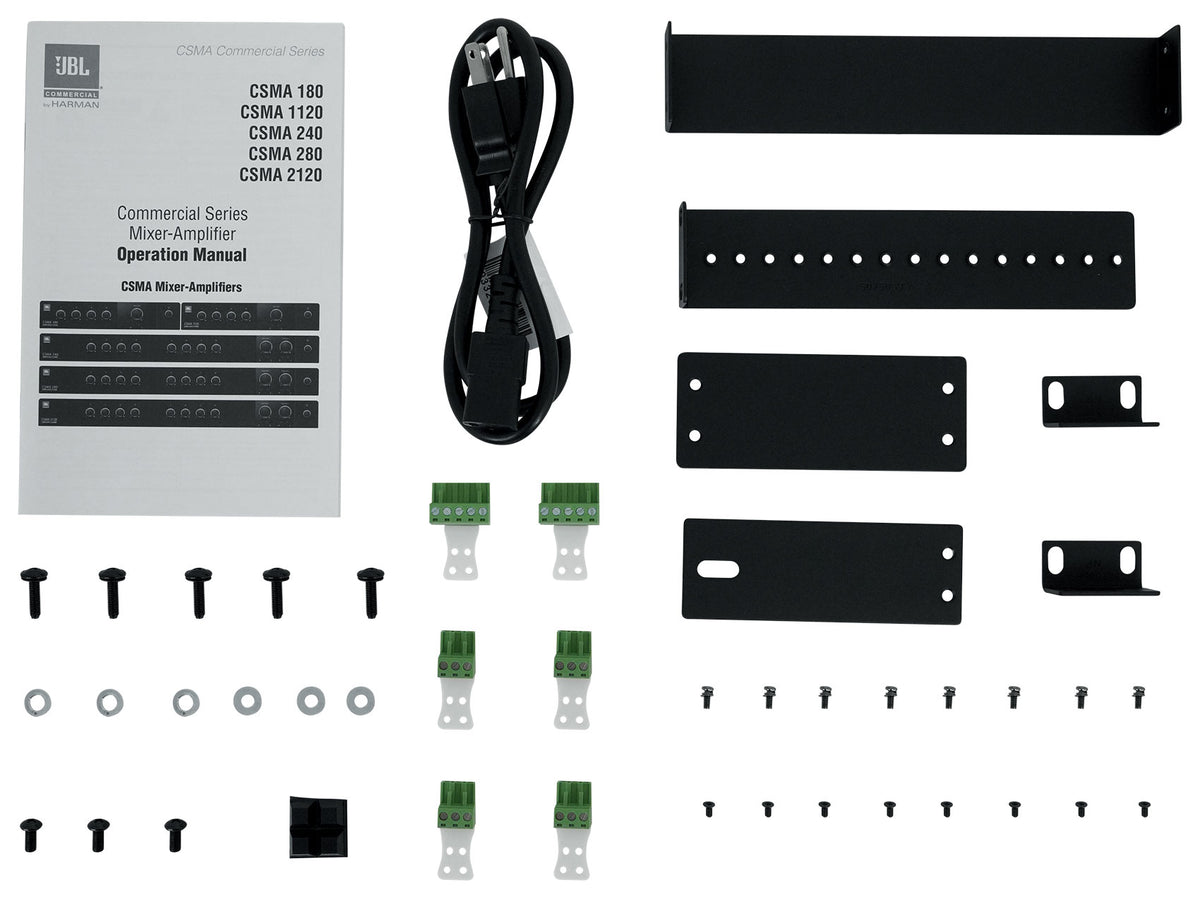

    • (1) JBL CSMA1120 120W Commercial 70V Mixer Amplifier
    • (1) Rack Mounting Kit

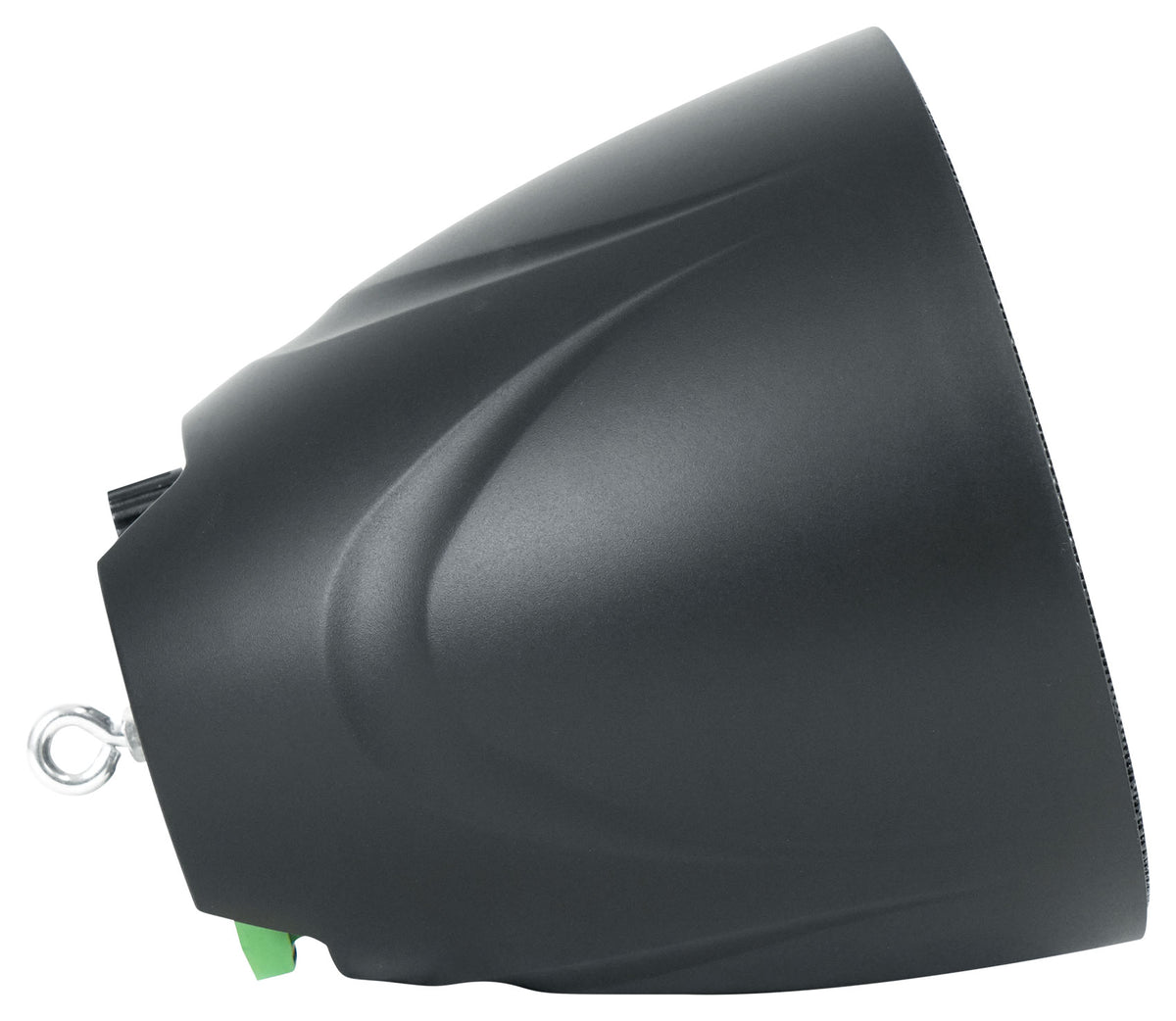

    • (6) Rockville PEN-525T 5.25" 70V Hanging Pendant Speakers (Black)
    • (6) Eyelet Hanging Brackets

SKU: SKU: CSMA1120+(6) PEN-525T BLACK

View full details

Product Description

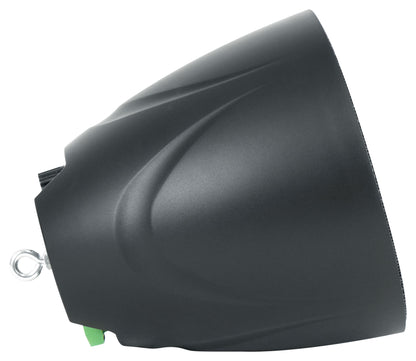

This bundle pairs a JBL CSMA1120 120W mixer amplifier with six Rockville PEN-525T 5.25" pendant speakers in black, giving a restaurant, cafe, hotel lobby, or retail floor a complete 70V system for background music and paging. The pendants hang from the ceiling on the included eyelet brackets, which puts sound right over tables and counters in rooms with open, high, or exposed ceilings where in-ceiling speakers aren't an option. The black ABS cabinets suit industrial and modern interiors, and because the amp and speakers are matched from the start, there's no impedance math before the install.

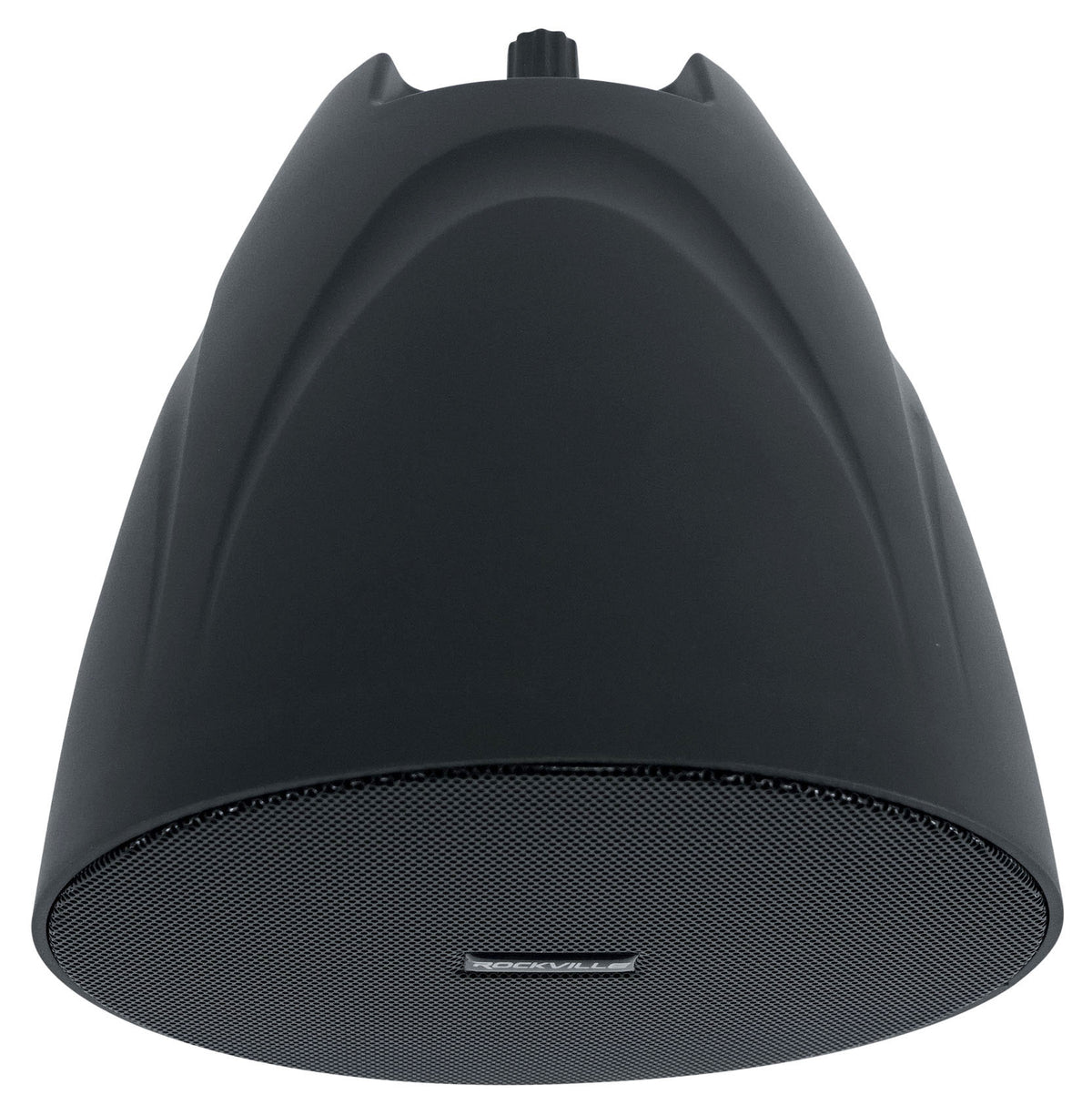

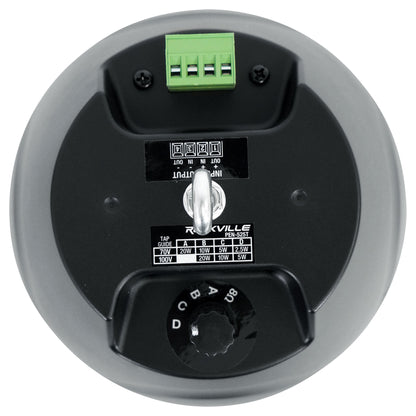

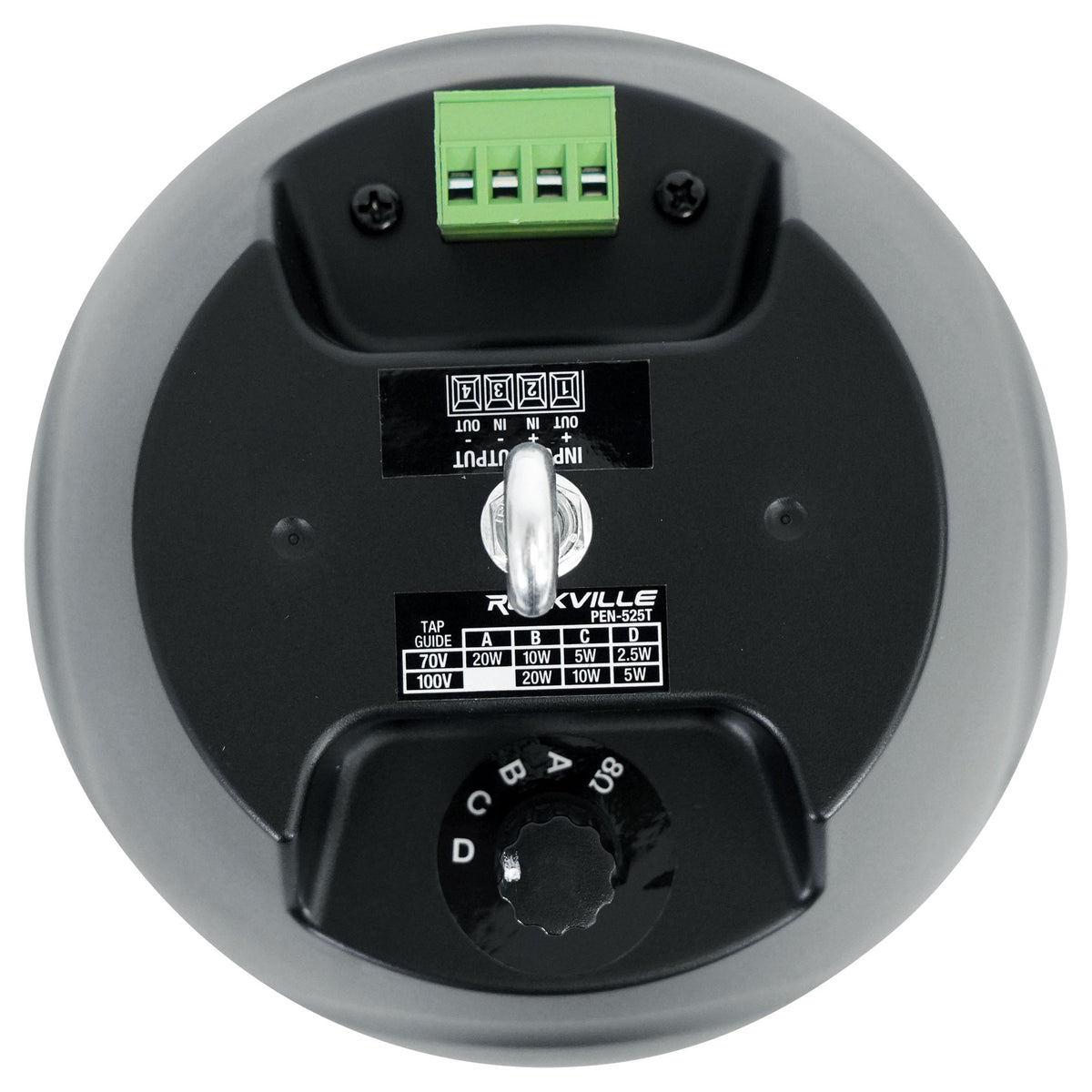

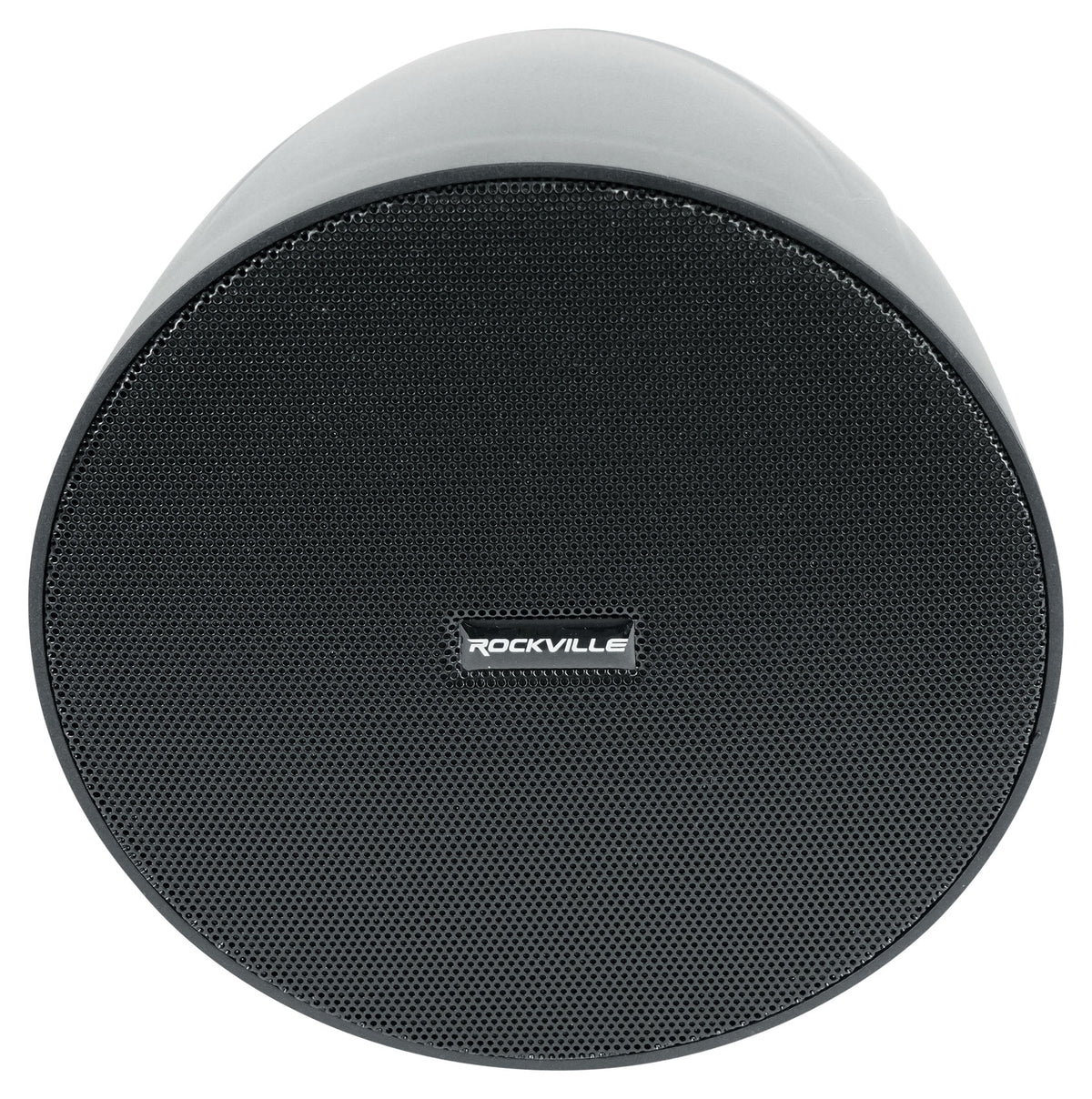

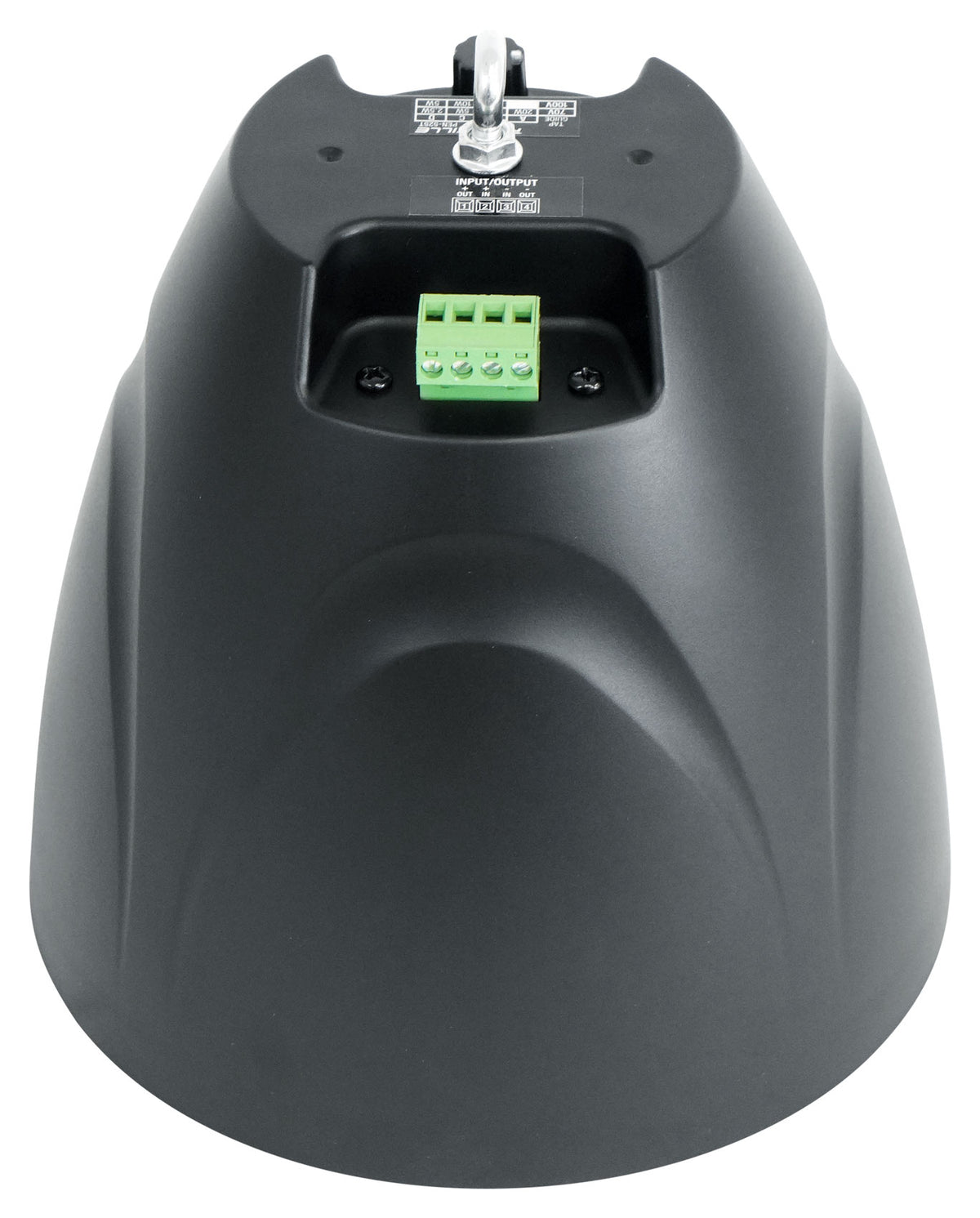

Each PEN-525T is a true 2-way speaker with a 5.25" polypropylene woofer and a 13mm PEI dome tweeter, covering 71Hz to 20kHz for clear announcements and full background music. A built-in 70V/100V transformer offers taps at 20W, 10W, 5W, and 2.5W, so you can run the bar area louder than a quiet dining corner. Tap all six at 10W and the system draws 60W, half the amp's rating, leaving room to add more 70V speakers later. Detachable Euroblock terminals let you wire each speaker on the ground, then plug the connector back in once it's hung.

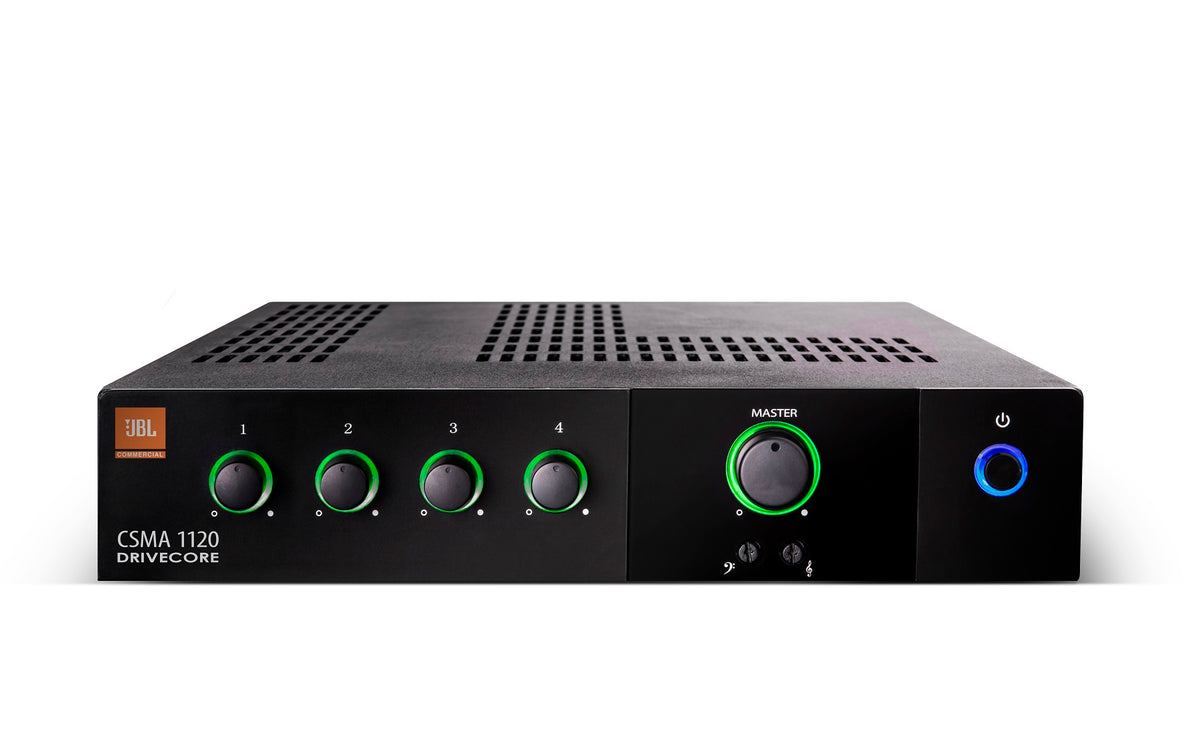

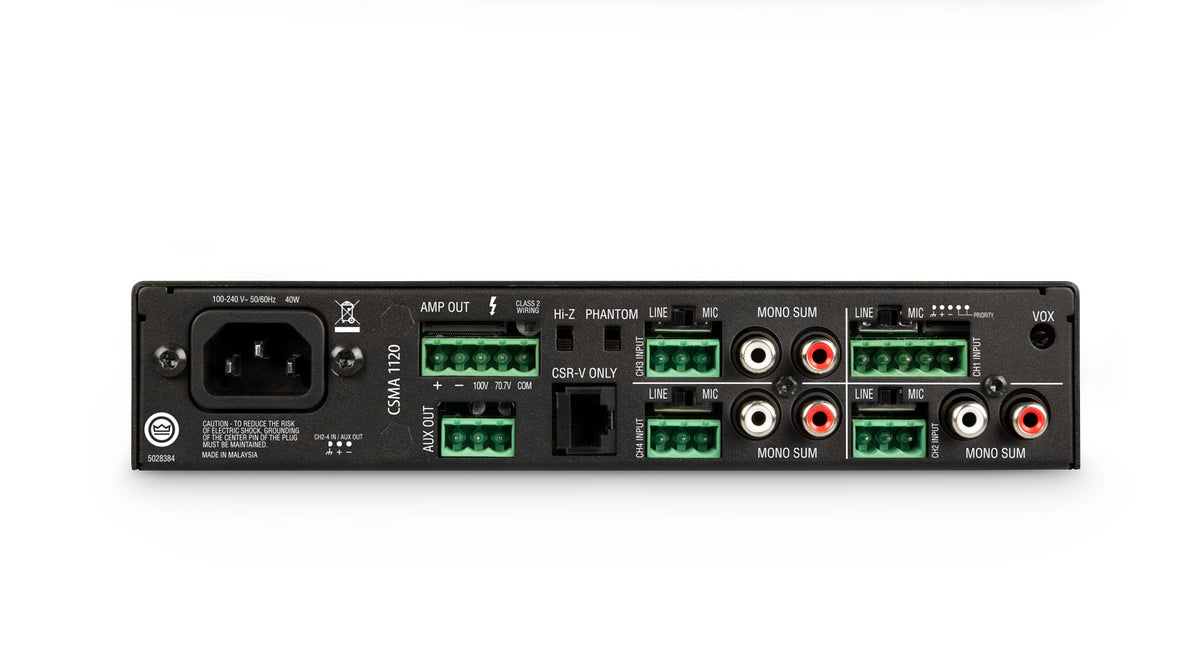

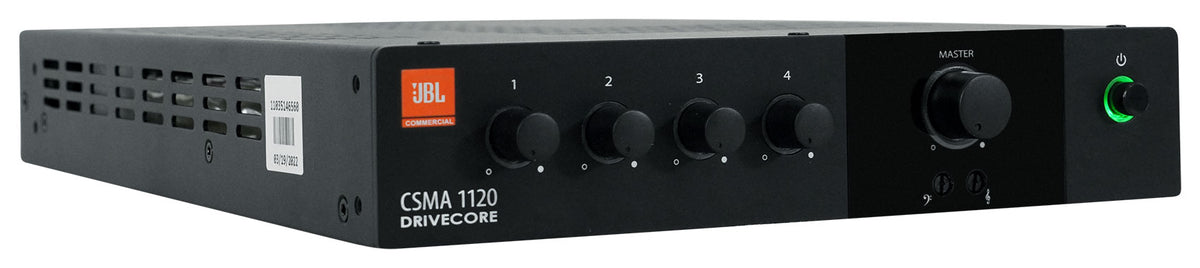

The CSMA1120 fits four inputs into a fanless 1U chassis with a rack mounting kit, priority muting for announcements, bass and treble controls, and RJ45 connectors for JBL CSR-V wall volume controls. It runs 70V and 100V lines without a separate transformer, and its universal power supply accepts 100 to 240V.

Features

    • Complete Pendant Sound in One Order

      The CSMA1120 mixer amp and six PEN-525T pendant speakers arrive together, giving a restaurant, cafe, or lobby a full music and paging setup without sourcing parts separately.

    • Sound Right Over the Tables

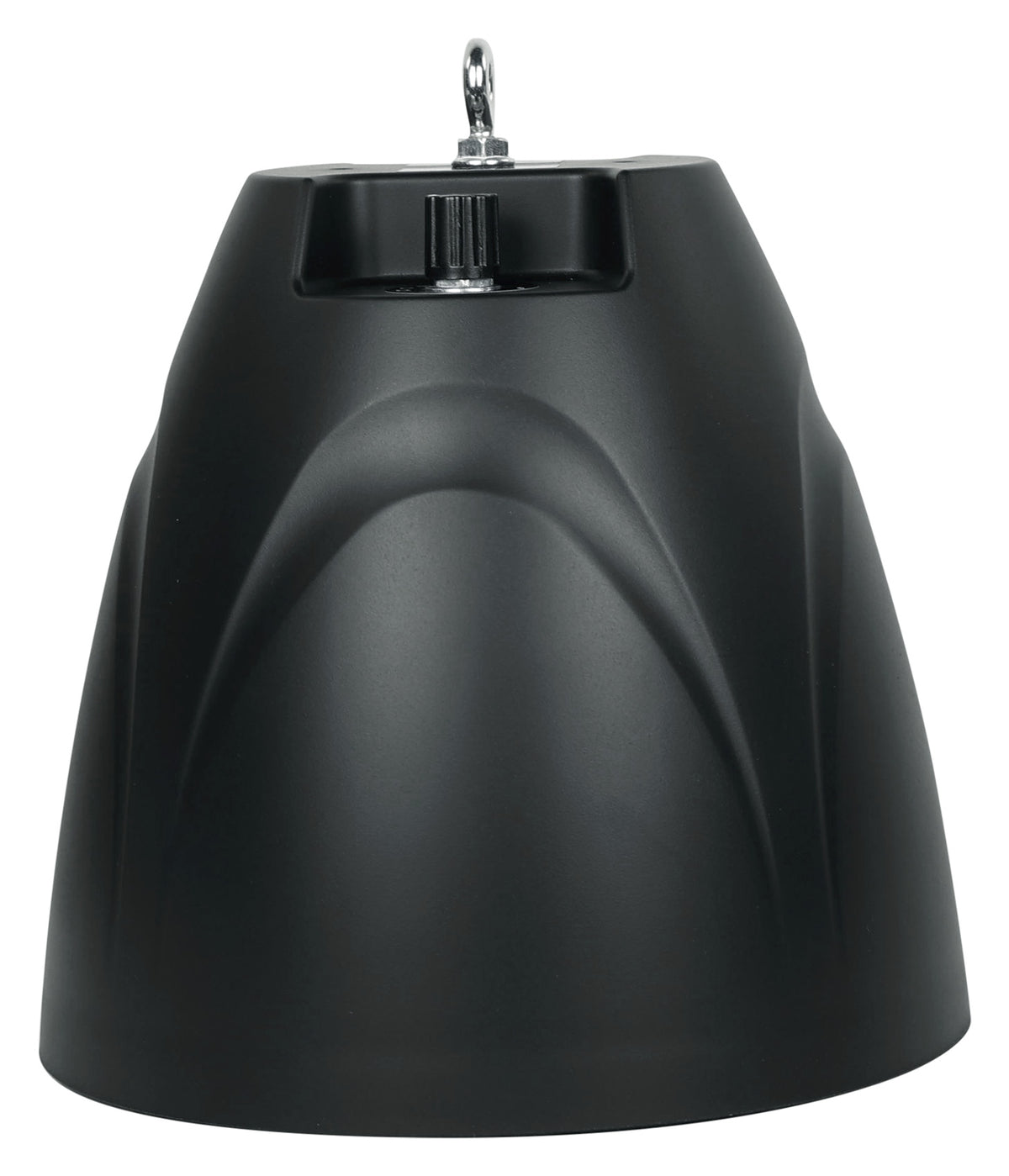

      Included eyelet brackets let each pendant hang from open or exposed ceilings, placing clear audio over seating areas in rooms where in-ceiling speakers will not fit.

    • Clear Vocals and Full Music

      A 5.25" polypropylene woofer and 13mm PEI dome tweeter cover 71Hz to 20kHz, so announcements stay easy to understand and background music sounds full at any level.

    • Set the Volume Zone by Zone

      Built-in 70V taps at 20W, 10W, 5W, and 2.5W let you run the bar louder than a quiet dining corner, all from one amplifier and one speaker line.

    • Room to Grow the System

      Six speakers at the 10W tap use half the amp's 120W rating, and priority muting lowers music for announcements, leaving headroom to add more 70V speakers later.

Technical Specifications

  • Product Type 70V Commercial Mixer Amplifier and Hanging Pendant Speaker System
  • Amplifier Output 120W @ 4/8 Ohms
  • Mixer Inputs 4
  • Output Channels 1
  • Distributed Audio 70V and 100V, No Separate Transformer Needed
  • Load Impedance Stable from 2 to 16 Ohms
  • Input Sensitivity 1.4Vrms
