CSMA1120 Mixer Amp + (6) PEN-65T Black Pendant Speakers
JBL
CSMA1120 Mixer Amp + (6) PEN-65T Black Pendant Speakers
CSMA1120 Mixer Amp + (6) PEN-65T Black Pendant Speakers
70V System, 120W 1U Mixer Amp, Six 6.5" Black Pendant Speakers for Restaurants
Free Shipping
Features
- Complete 70V system with a 120W mixer amp and six 6.5" black hanging pendant speakers
- Pendants hang over tables and bars in rooms with open or exposed ceilings
- 2-way design pairs a 6.5" polypropylene woofer with a 13mm PEI dome tweeter
- 70V taps at 20W, 10W, 5W, and 2.5W let you set the level for each speaker
- Fanless 1U mixer amp with four inputs, priority muting, and bass and treble controls
Couldn't load pickup availability

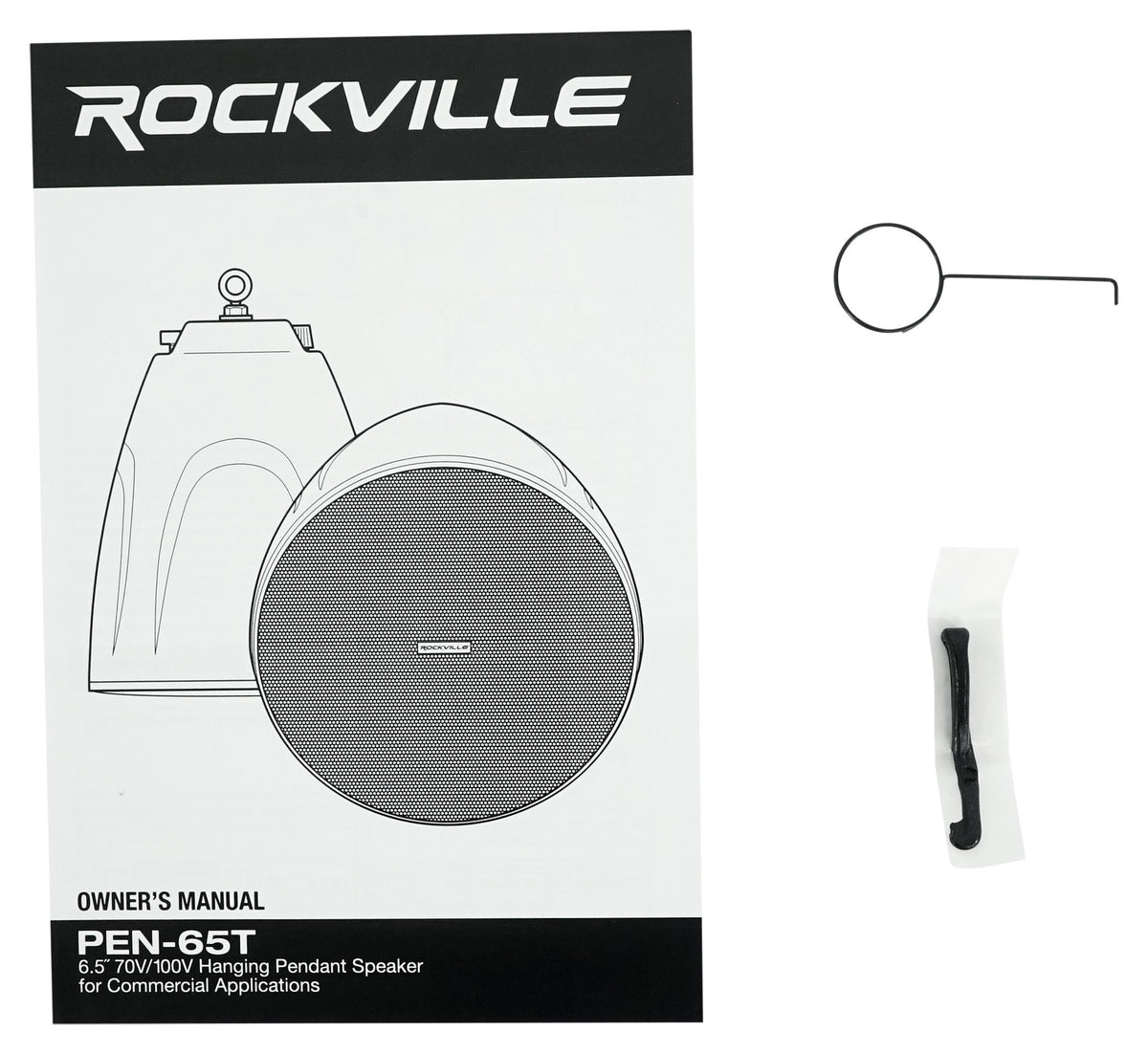

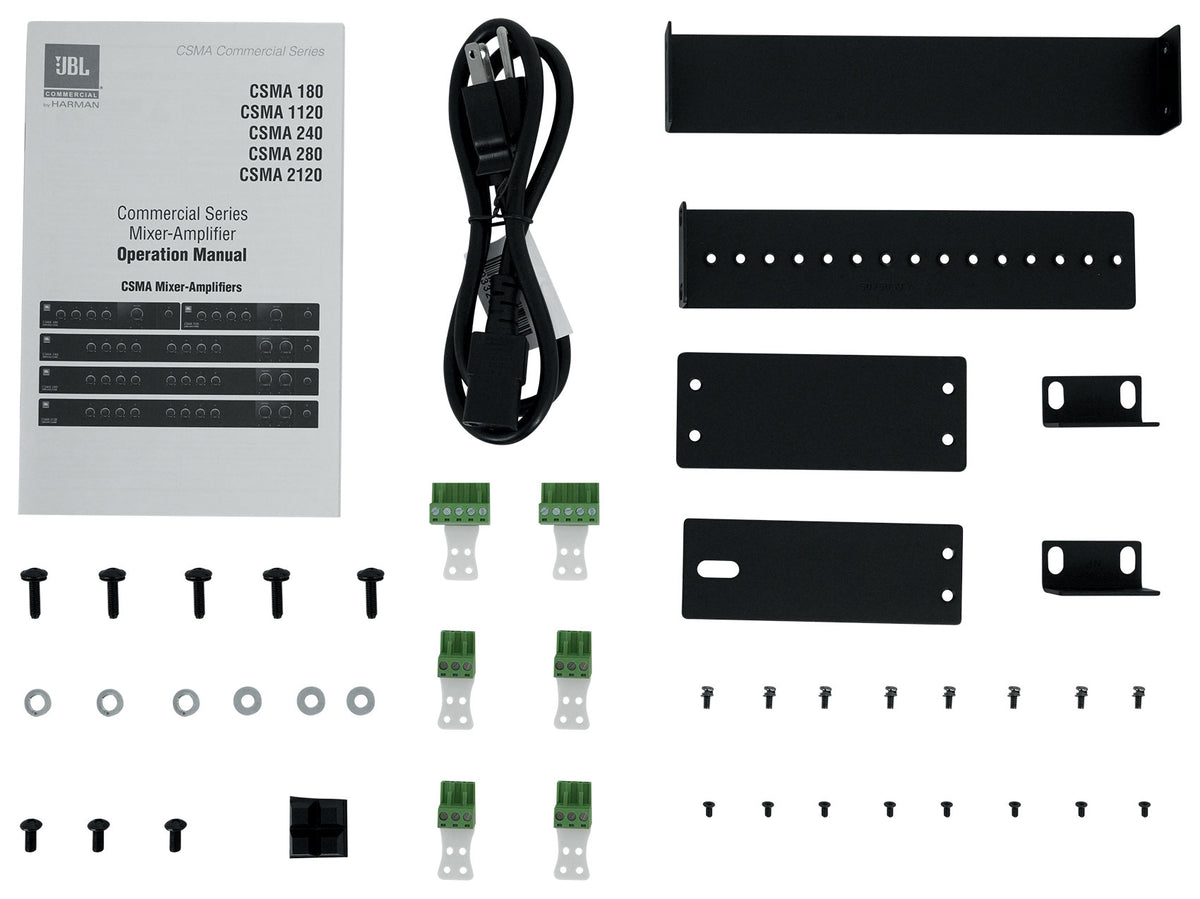

What's Included in the box
- (1) JBL CSMA1120 120W Commercial 70V Mixer Amplifier
- (1) Rack Mounting Kit
- (6) Rockville PEN-65T 6.5" 70V Hanging Pendant Speakers (Black)
- (6) Eyelet Hanging Brackets
SKU: SKU: CSMA1120+(6) PEN-65T BLACK
View full details

















Product Description

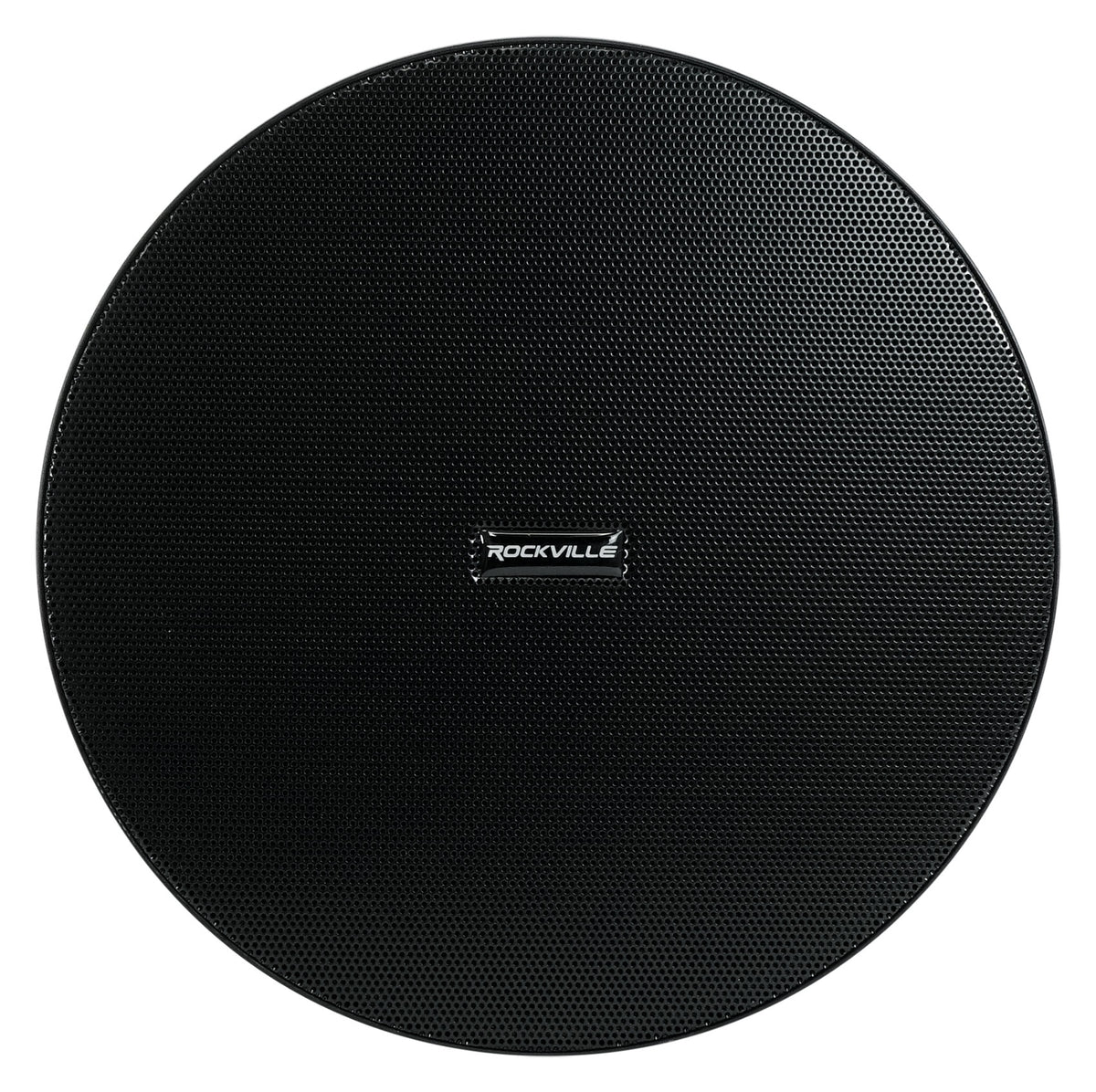

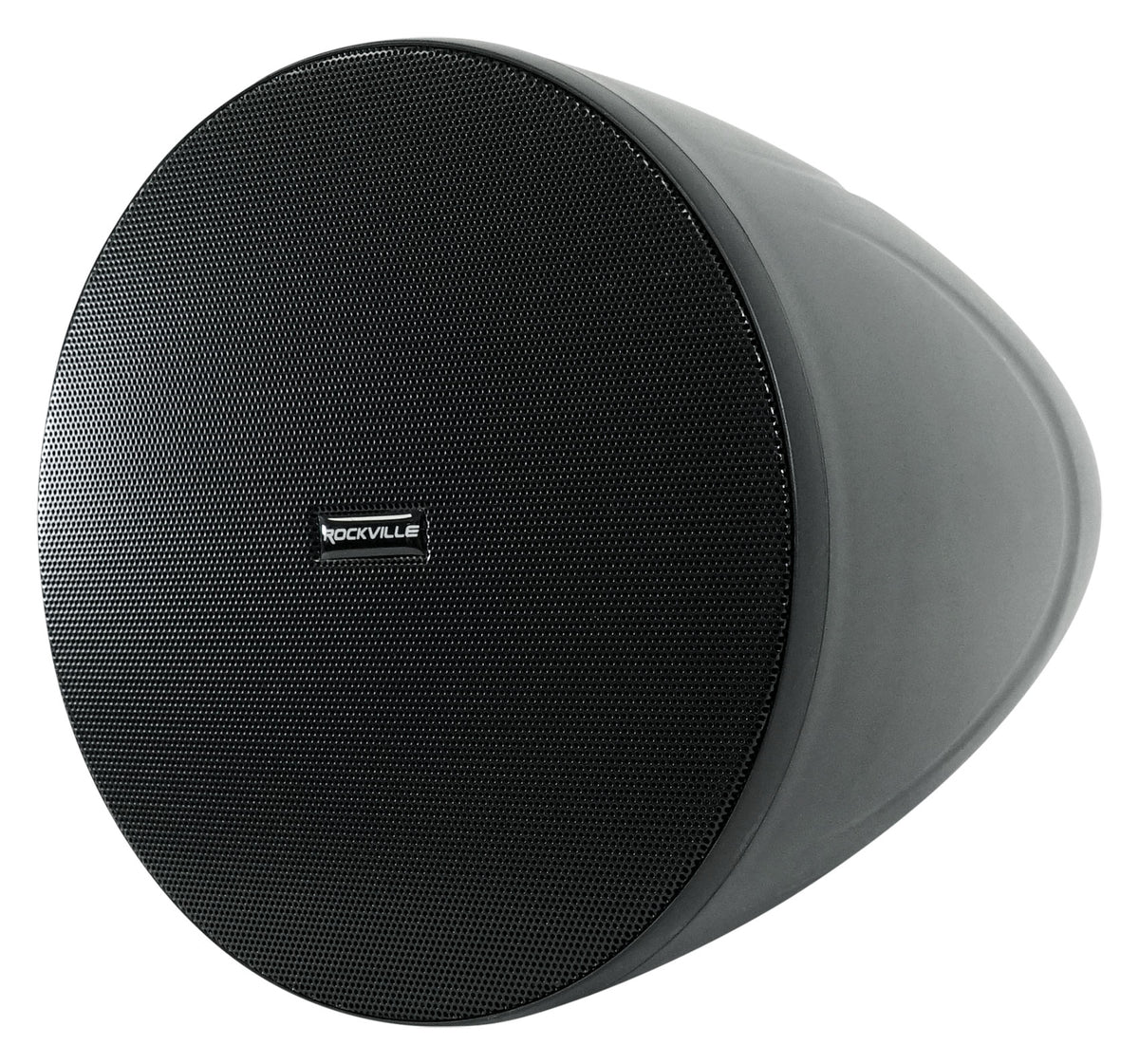

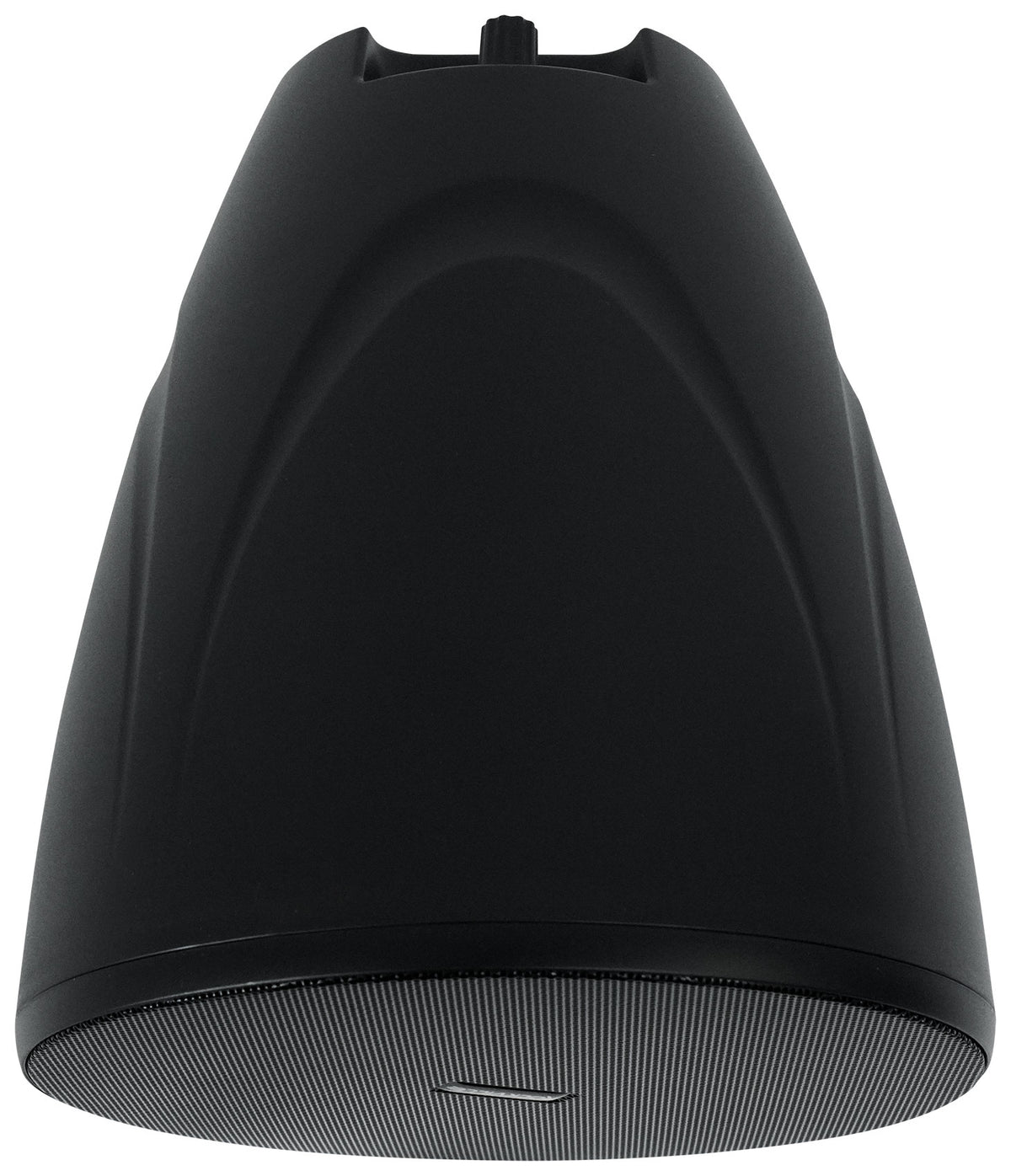

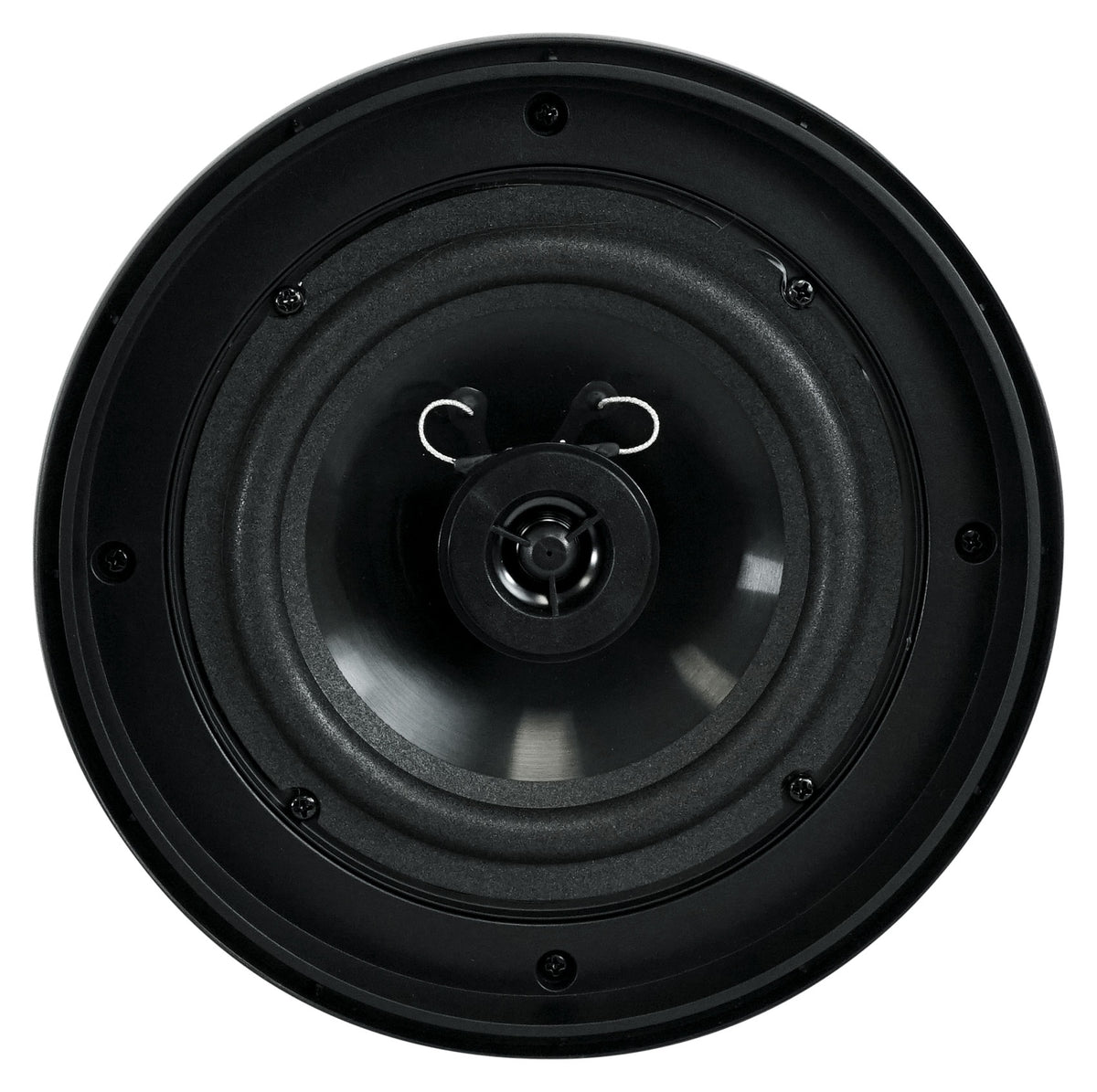

Each PEN-65T is a true 2-way speaker with a 6.5" polypropylene woofer and a 13mm PEI dome tweeter, reaching down to 56Hz for fuller background music in larger dining rooms and open floor plans. Wide 140 by 140 degree dispersion spreads coverage from every pendant. A built-in 70V/100V transformer offers taps from 2.5W to 20W, so the bar can run louder than a quiet dining corner, or you can switch to 8 ohm operation with 45W RMS handling. Tap all six at 10W and the system uses 60W, half the amp's rating, leaving room to add more 70V speakers later. Detachable Euroblock terminals let you wire each speaker on the ground before it goes up.

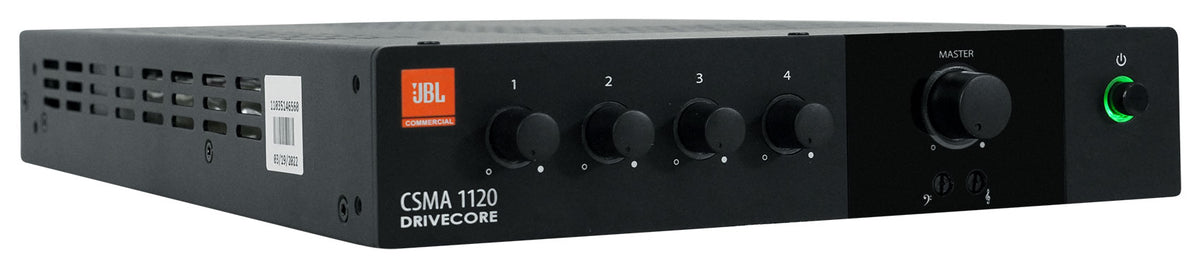

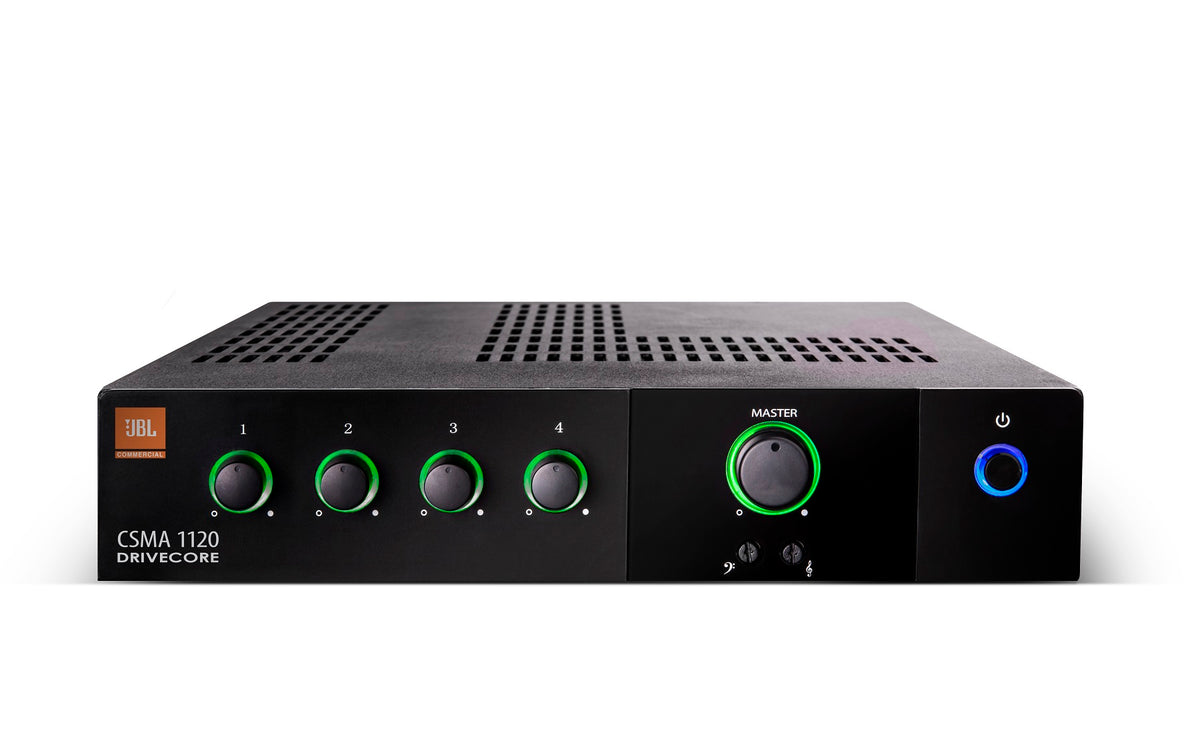

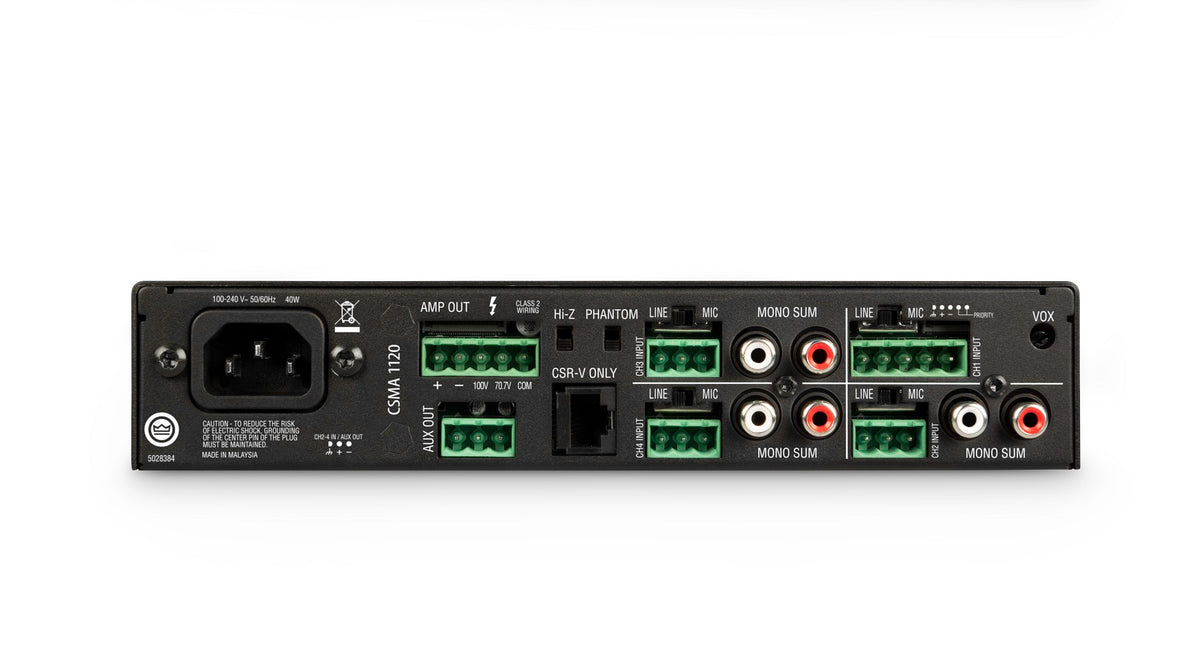

The CSMA1120 fits four inputs into a fanless 1U chassis with a rack mounting kit, priority muting for announcements, bass and treble controls, and RJ45 connectors for JBL CSR-V wall volume controls. It runs 70V and 100V lines without a separate transformer, and its universal power supply accepts 100 to 240V.
Features
Complete Pendant Sound in One Order

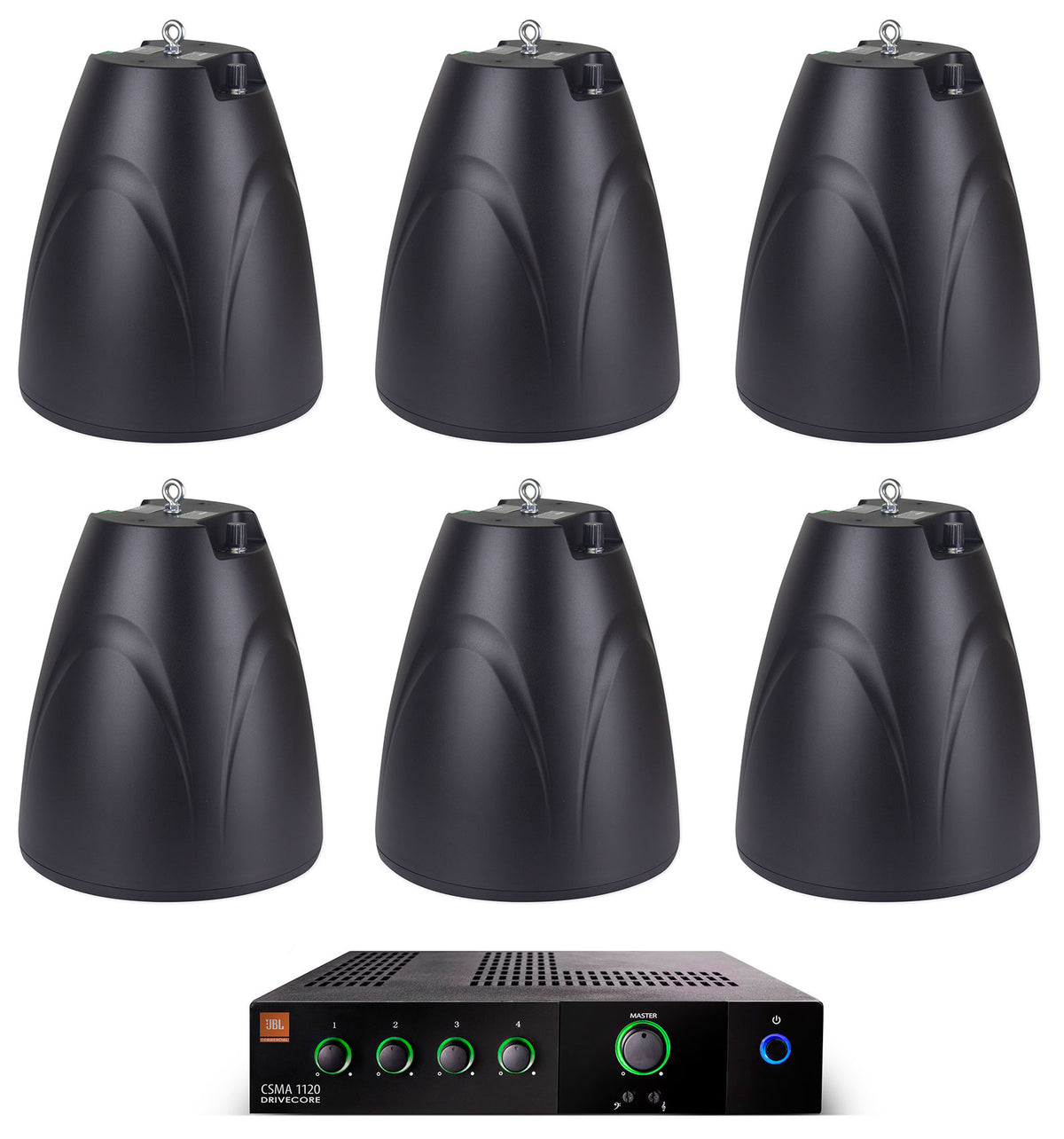

The CSMA1120 mixer amp and six PEN-65T pendant speakers arrive together, giving a restaurant, bar, or lobby a full music and paging setup without sourcing parts separately.
Sound Right Over the Tables

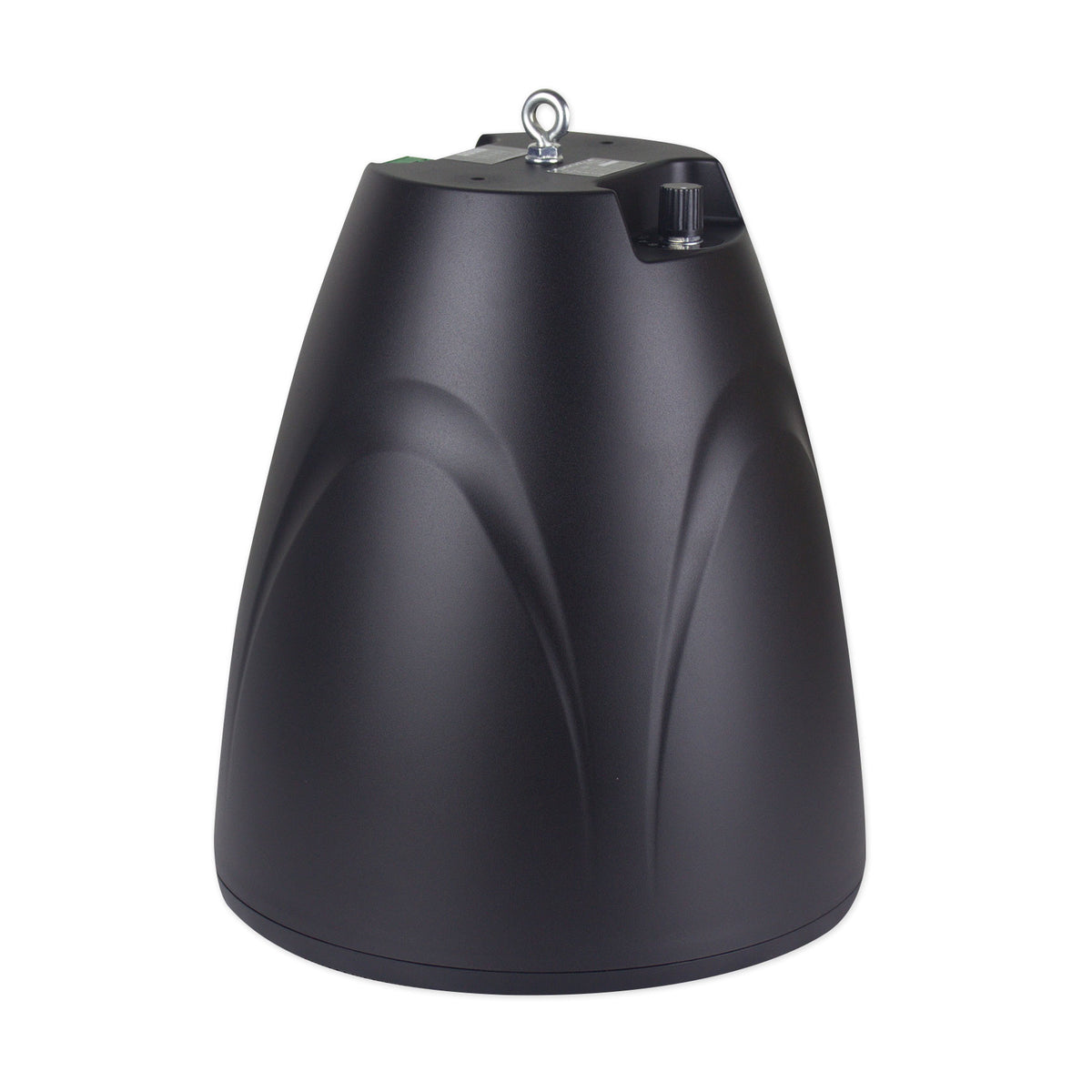

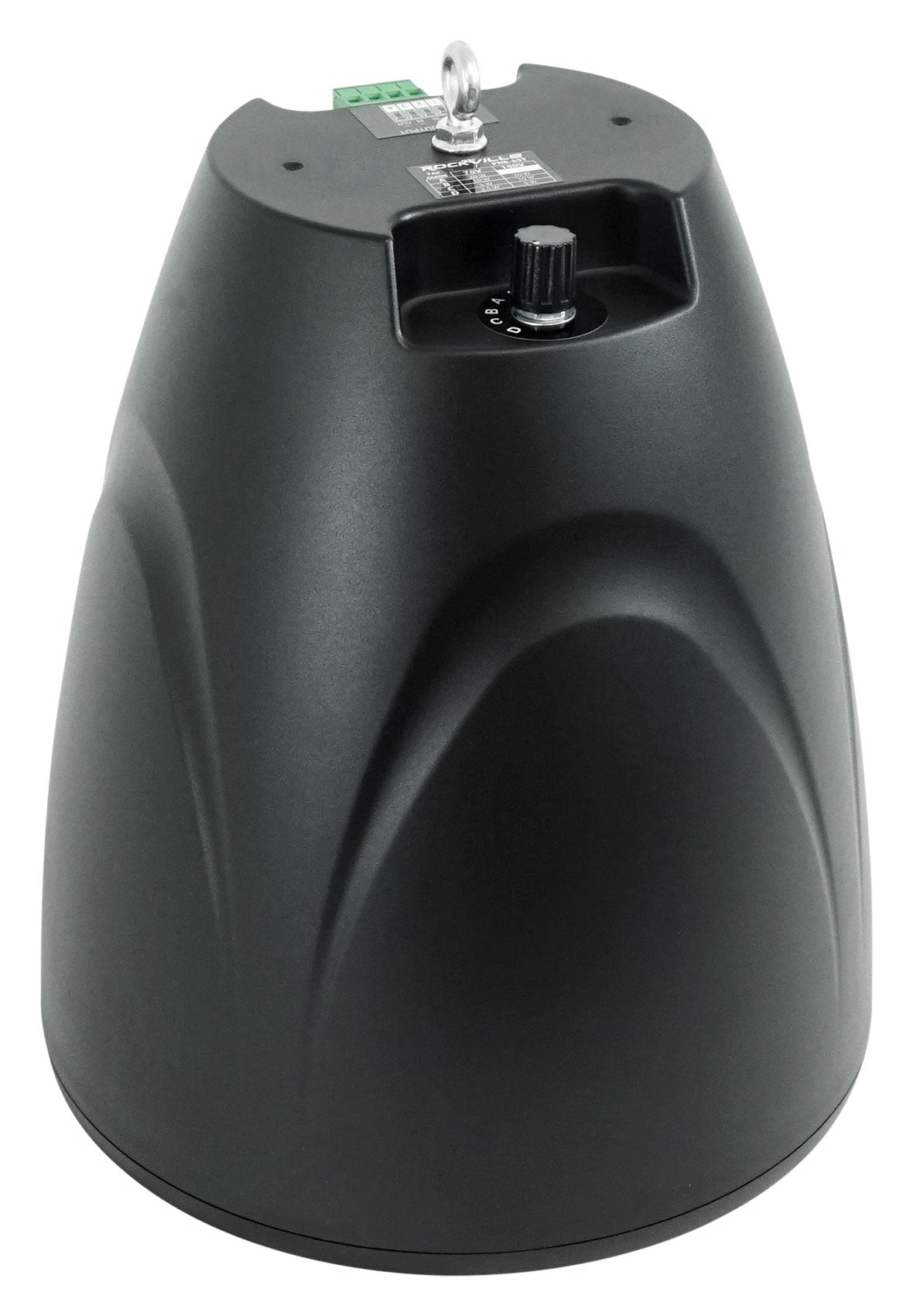

Included eyelet brackets let each pendant hang from open or exposed ceilings, and wide dispersion spreads clear audio across seating areas where in-ceiling speakers will not fit.
Fuller Sound for Bigger Rooms
A 6.5" polypropylene woofer and 13mm PEI dome tweeter cover 56Hz to 20kHz, giving background music more body while announcements stay easy to understand.
Set the Volume Zone by Zone

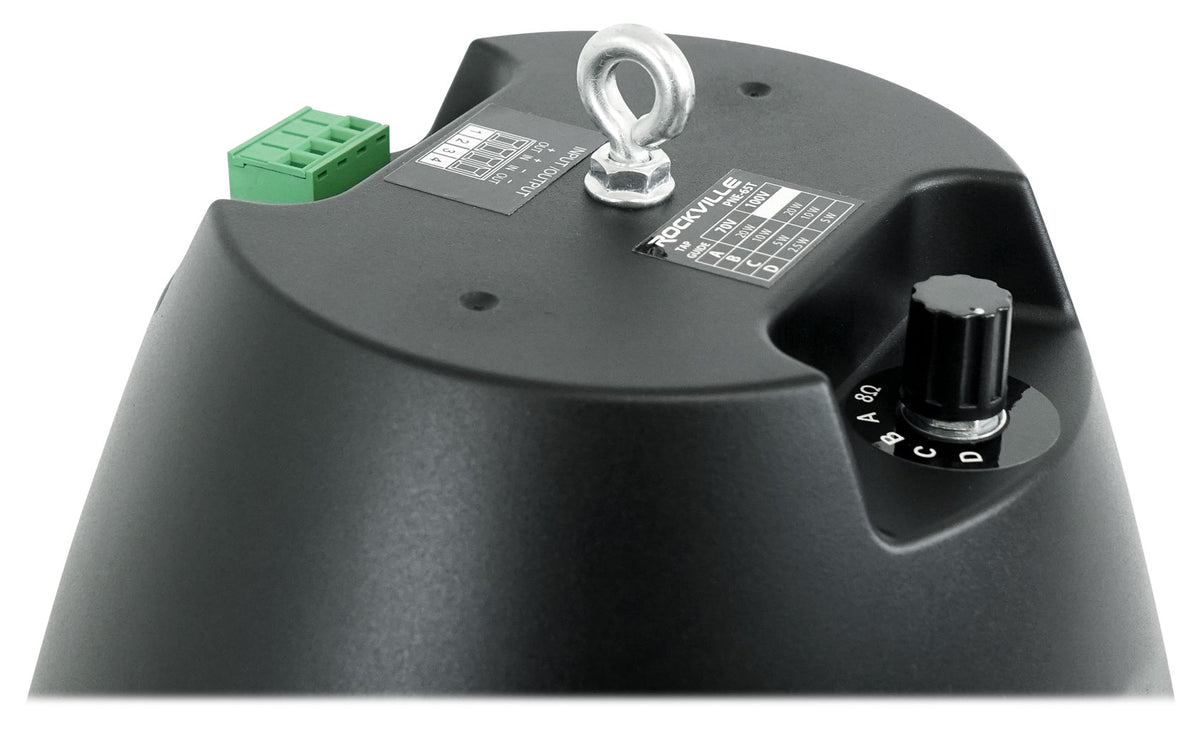

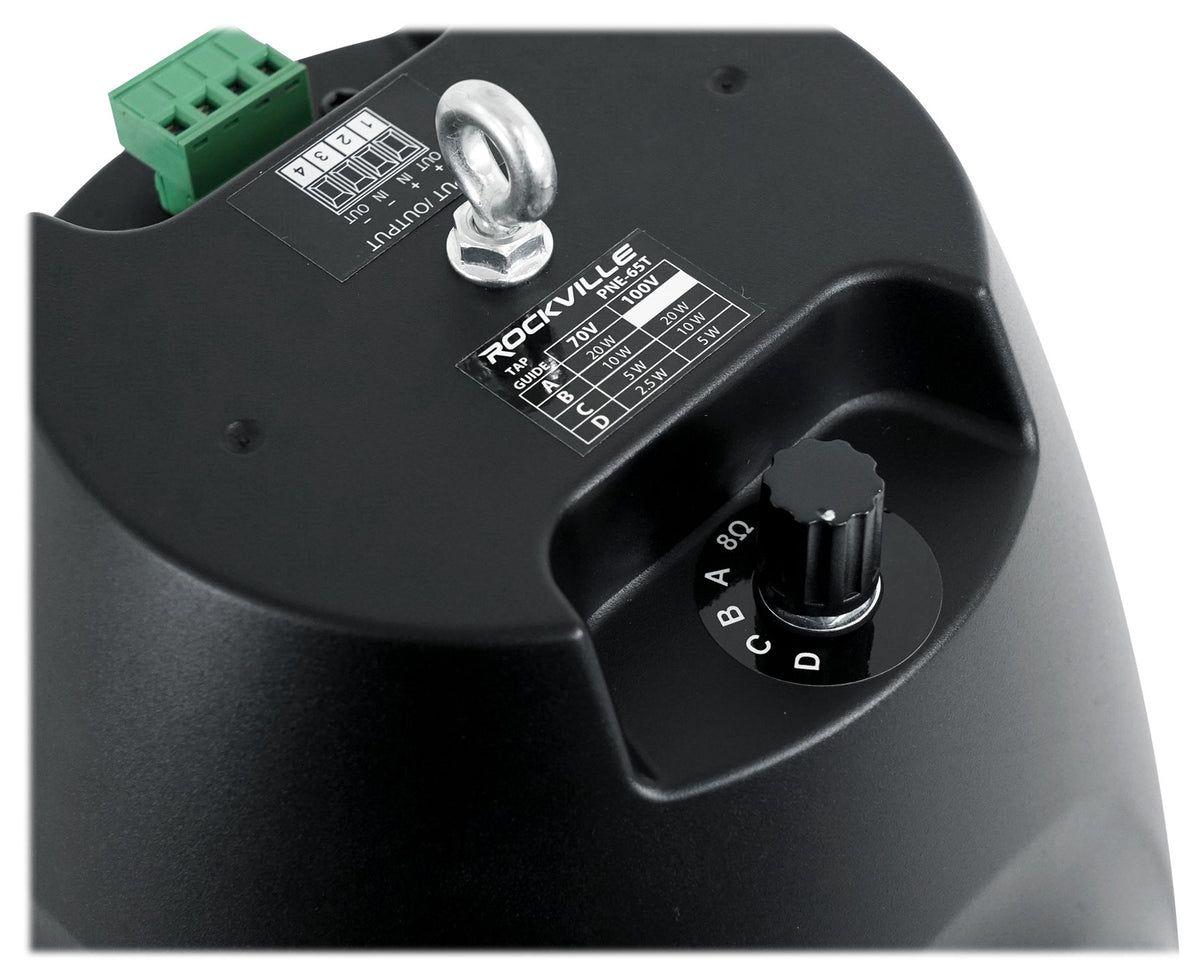

Built-in 70V taps at 20W, 10W, 5W, and 2.5W let you run the bar louder than a quiet dining corner, all from one amplifier and one speaker line.
Room to Grow the System
Six speakers at the 10W tap use half the amp's 120W rating, and priority muting lowers music for announcements, leaving headroom to add more 70V speakers later.
Technical Specifications
- Product Type 70V Commercial Mixer Amplifier and Hanging Pendant Speaker System
- Amplifier Output 120W @ 4/8 Ohms
- Mixer Inputs 4
- Output Channels 1
- Distributed Audio 70V and 100V, No Separate Transformer Needed
- Load Impedance Stable from 2 to 16 Ohms
- Input Sensitivity 1.4Vrms
- Signal to Noise Ratio Greater than 100 dB (1kHz, A-weighted)
- Input Impedance Balanced 20K Ohms / Unbalanced 10K Ohms
- Max Input +20dBu Typical
- Rack Size 1U
- Cooling Fanless
- AC Line Voltage 100-240V, 50/60 Hz
- Remote Volume Control RJ45, JBL CSR-V Compatible
- Speakers Included (6) PEN-65T
- Speaker Type 2-Way Hanging Pendant
- Speaker Woofer 6.5" Polypropylene Cone, Foam Surround
- Speaker Tweeter 13mm PEI Dome
- Voice Coil Diameter 1.5"
- Cabinet ABS Injection Molded
- Mounting Eyelet Hanging Bracket

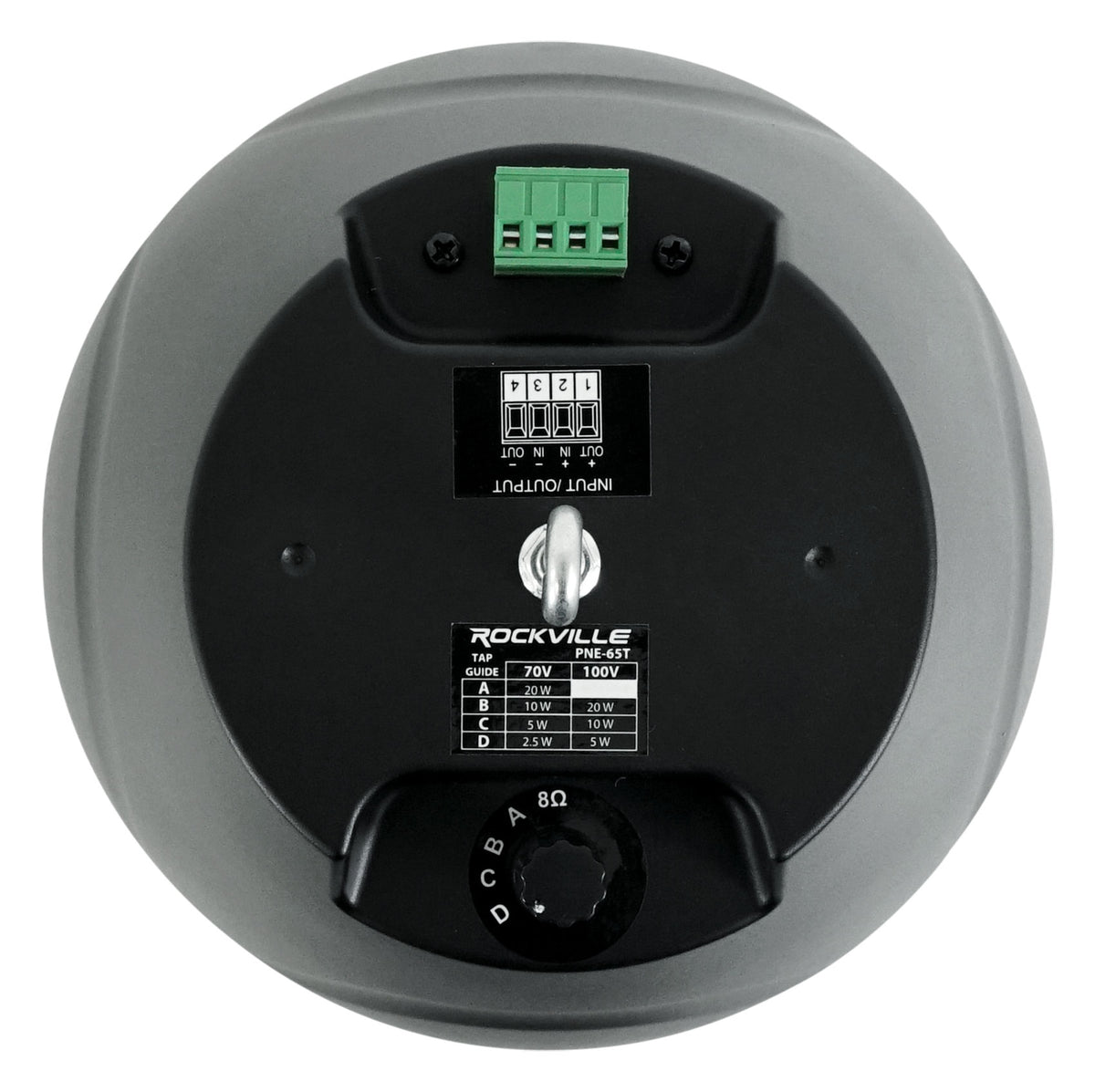

- 70V Taps 20W, 10W, 5W, 2.5W
- 100V Taps 20W, 10W, 5W
- 8 Ohm Power Handling 45W RMS
- Speaker Sensitivity 87 dB
- Speaker Frequency Response 56 Hz - 20 kHz
- Dispersion Angle 140° H x 140° V (@1M)
- Directivity Index 3.6 dB

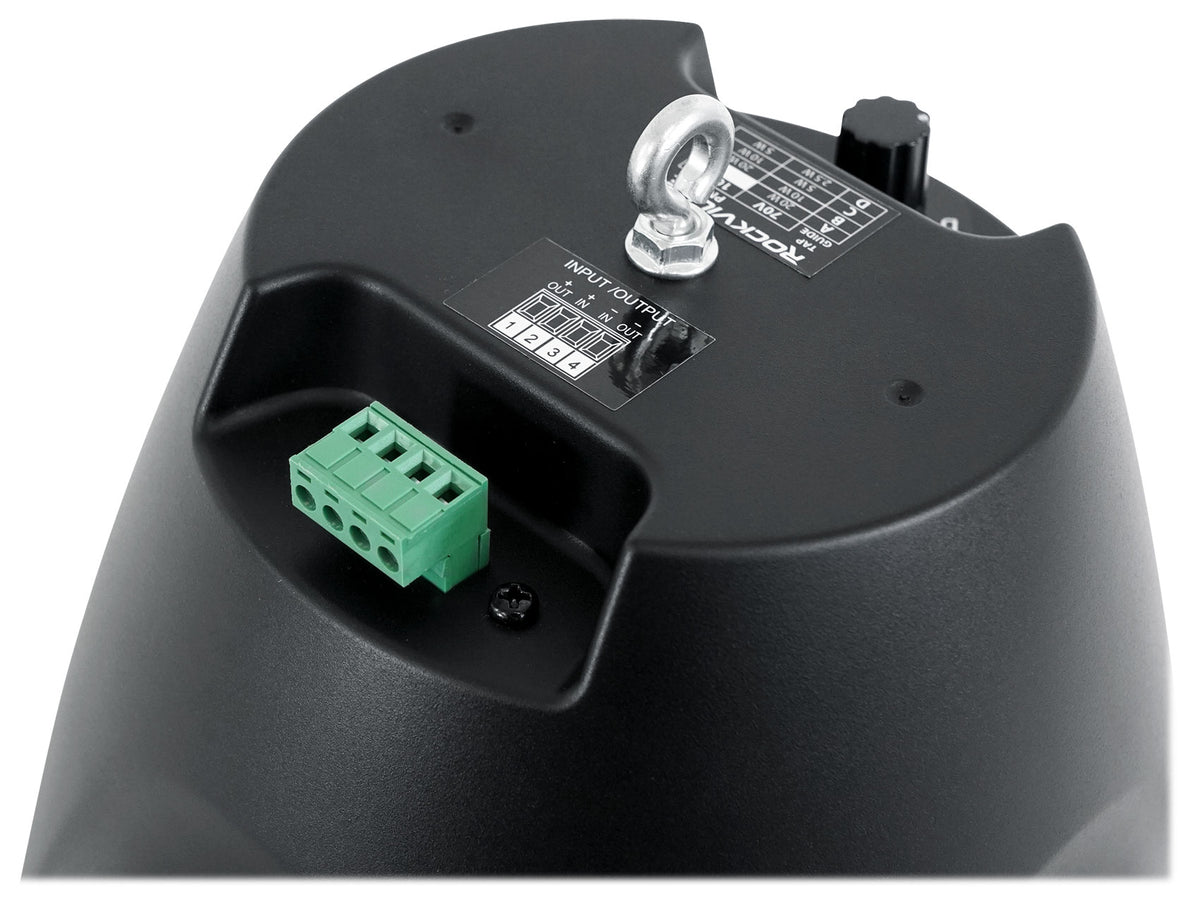

- Speaker Terminals Detachable Euroblock
- Color Black
- Amplifier Shipping Weight 10.1 lb (4.6 kg)
- Speaker Weight 6 lb each
- Amplifier Dimensions 1.7" x 8.6" x 11.9" (43.3 x 218.5 x 303.4 mm)
- Speaker Dimensions 8.7" x 9.4"
