CSMA2120 Mixer Amplifier + 4 White WET ARRAY 5 Column Speakers
CSMA2120 Mixer Amplifier + 4 White WET ARRAY 5 Column Speakers

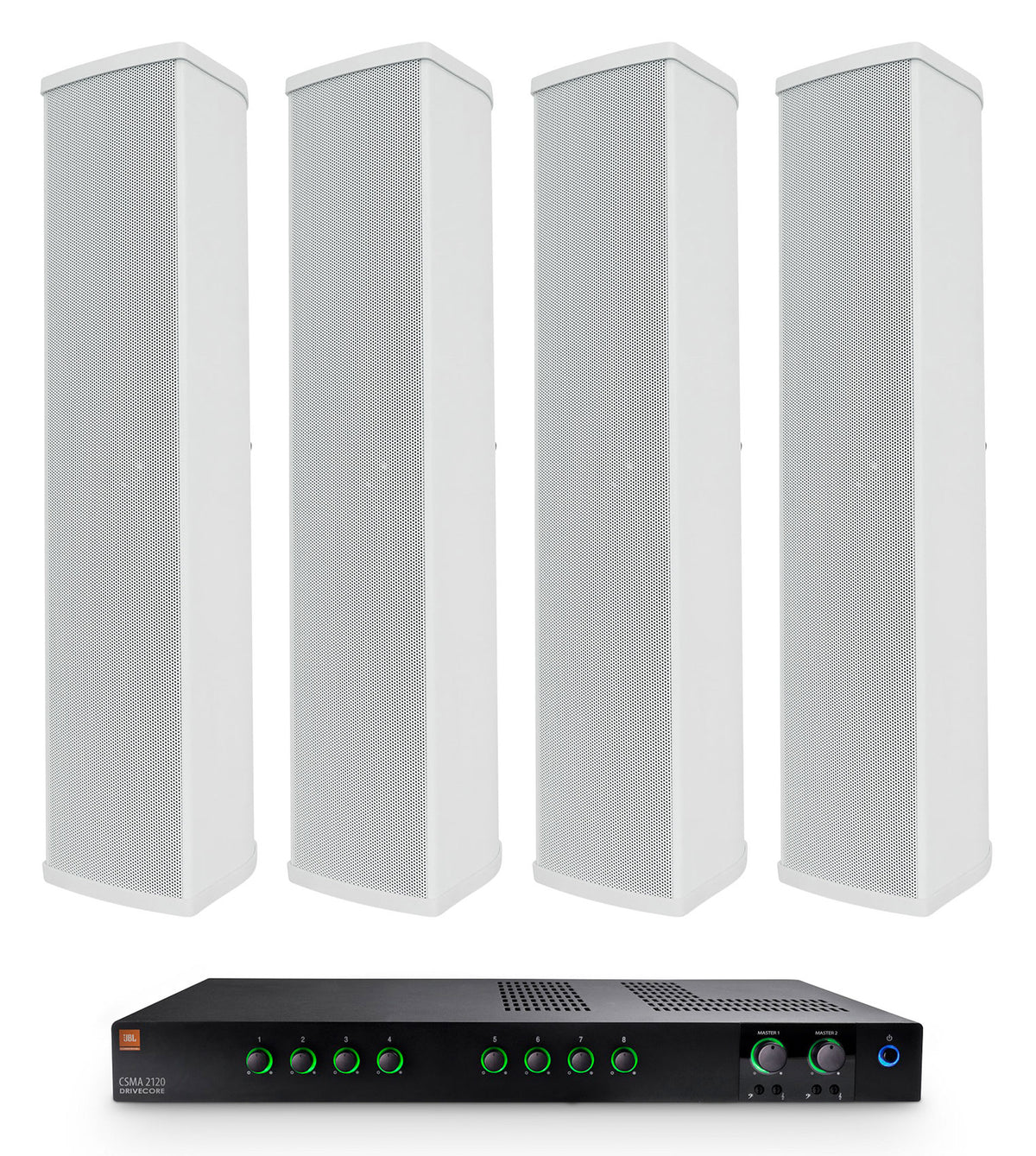

2x120W 70V Commercial Mixer Amplifier, 8 Inputs, (4) White Indoor/Outdoor Column Line Array Speakers, Rack Kit
Features
- 2x120W fanless mixer amplifier fits one 1U rack space and runs silently
- Four white WET ARRAY 5 column speakers rated IP55 for indoor or outdoor installs
- Tap switch sets each speaker at 60W, 30W, 15W, or 7.5W on 70V lines
- 2-way design pairs four 3" midrange drivers with a 20mm tweeter in each column
- Eight inputs with priority muting let paging cut in over background music
Couldn't load pickup availability

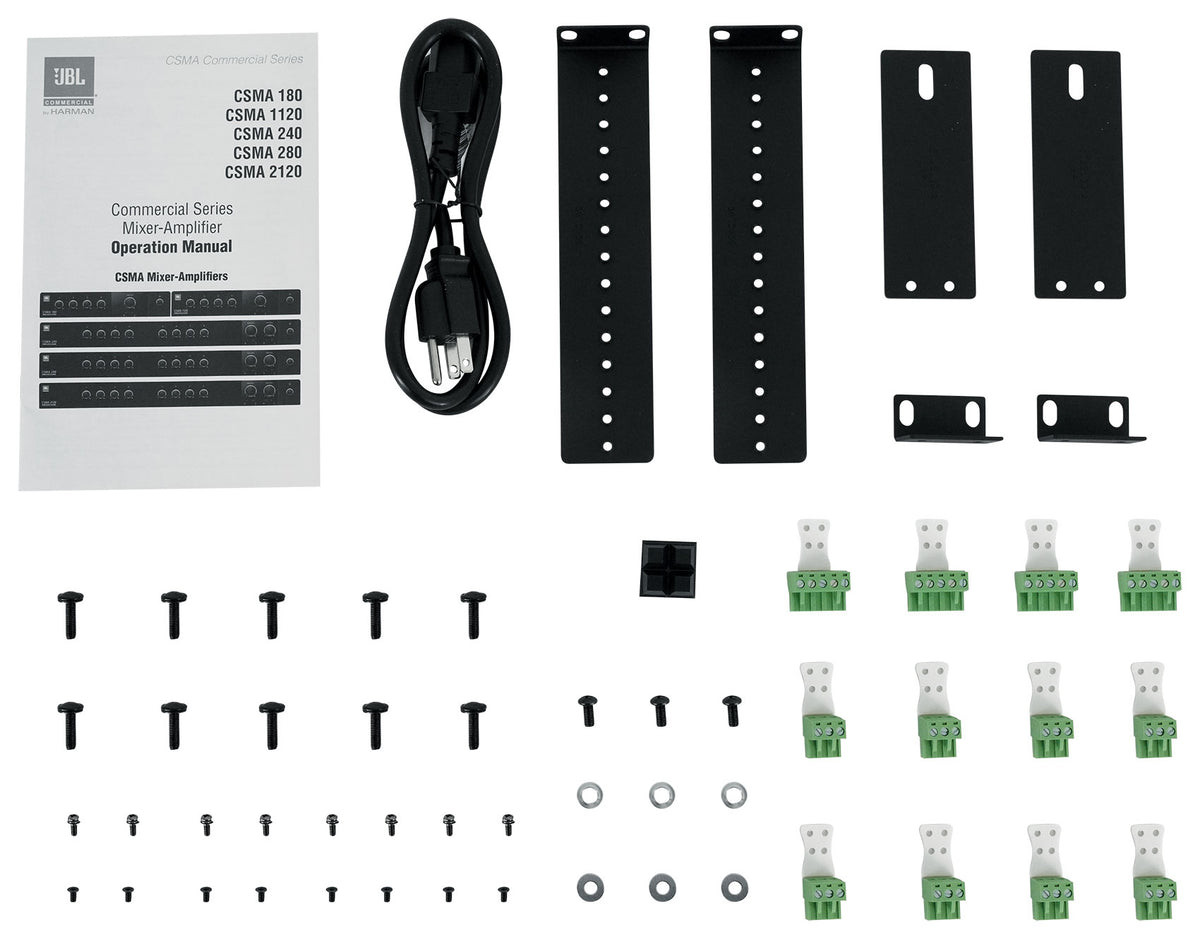

What's Included in the box
- (1) JBL CSMA2120 Commercial Mixer Amplifier

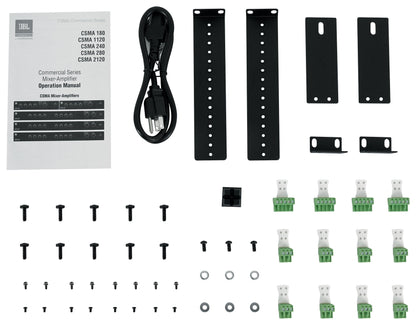

- (1) Rack Mounting Kit
- (4) Rockville WET ARRAY 5 70V Column Line Array Speakers, White

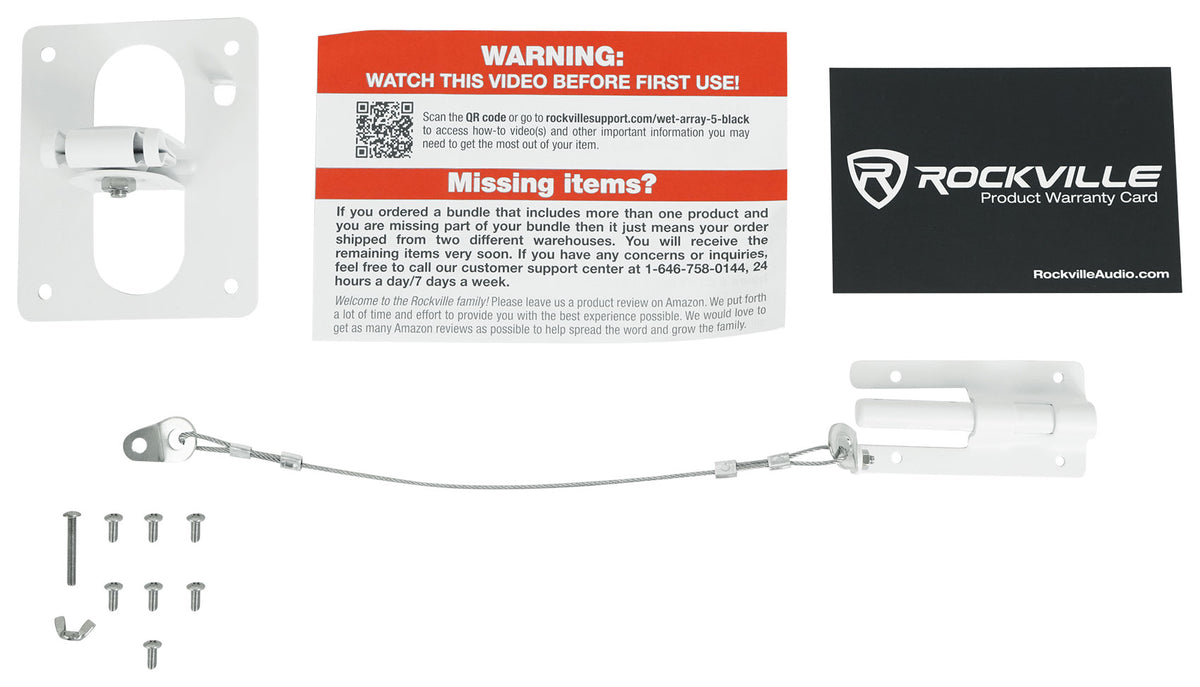

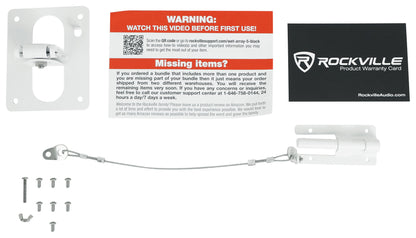

- (4) 4-Way Swivel Wall Mount Kits
SKU: SKU: CSMA2120+(4) WET ARRAY 5 WHITE
View full details











Product Description

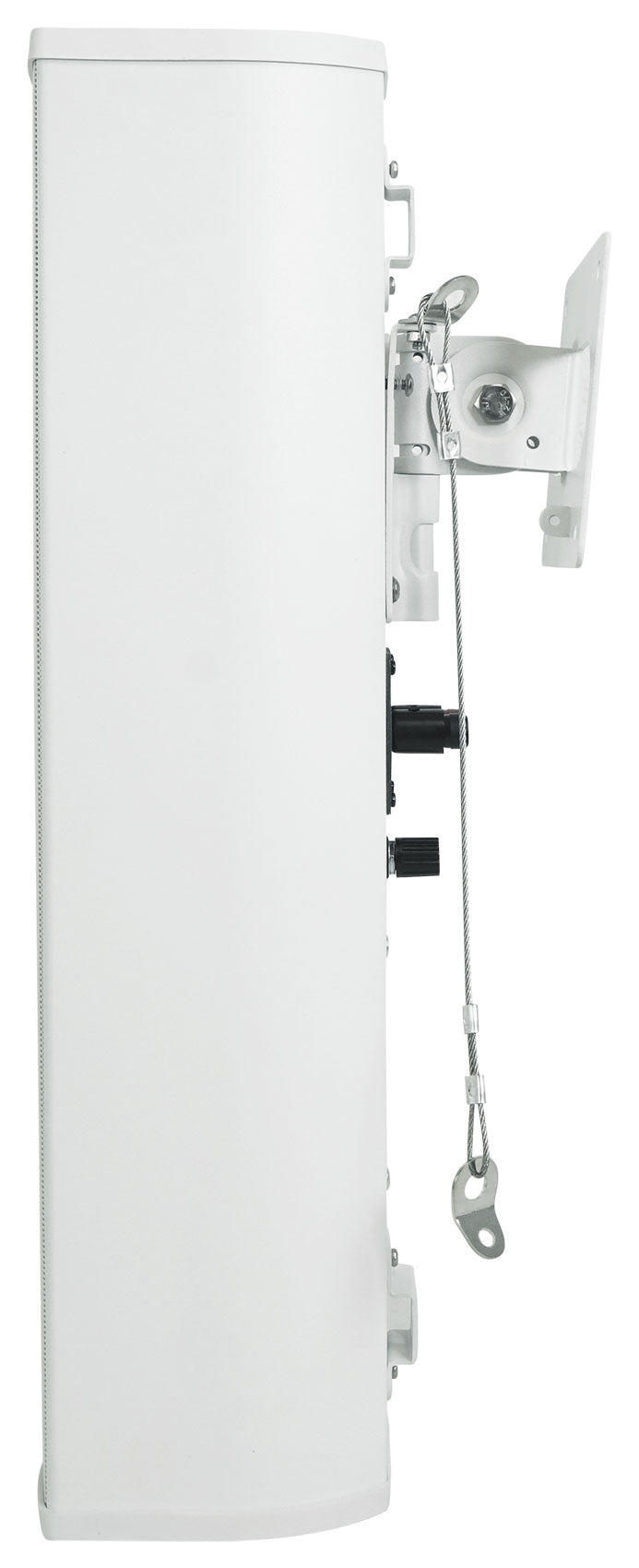

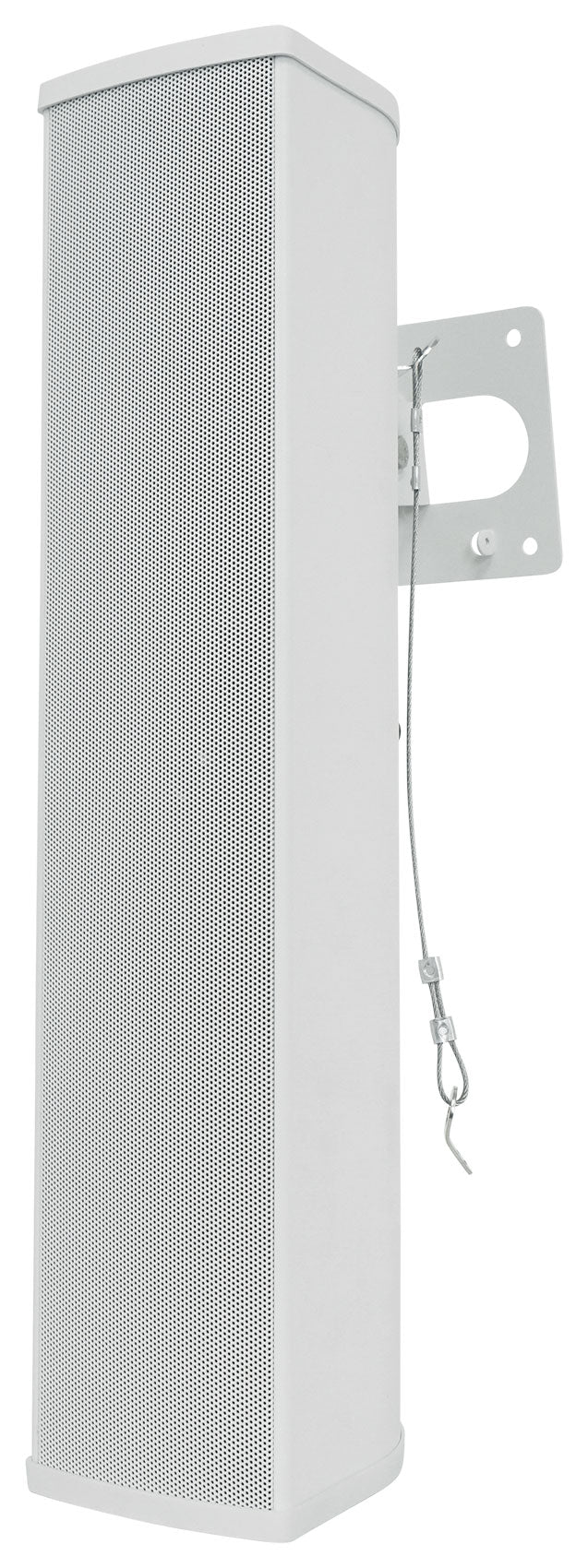

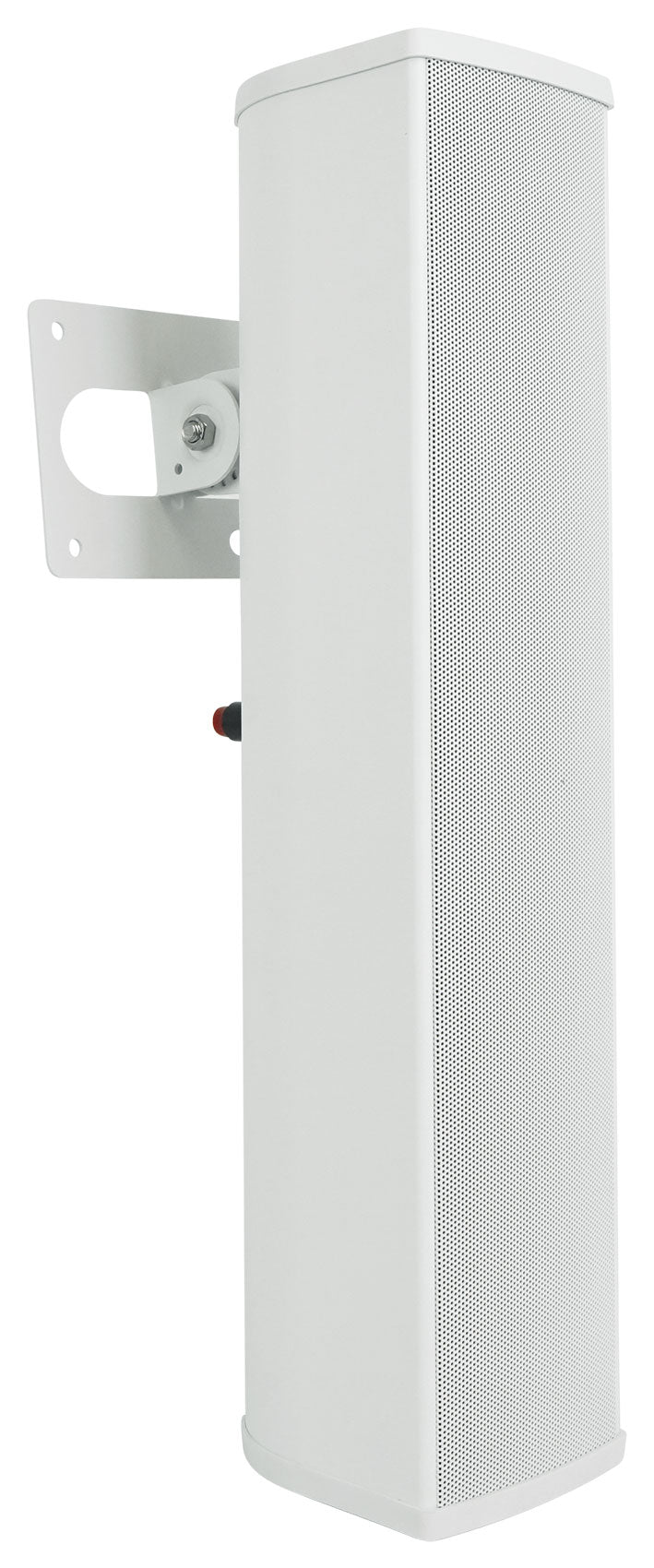

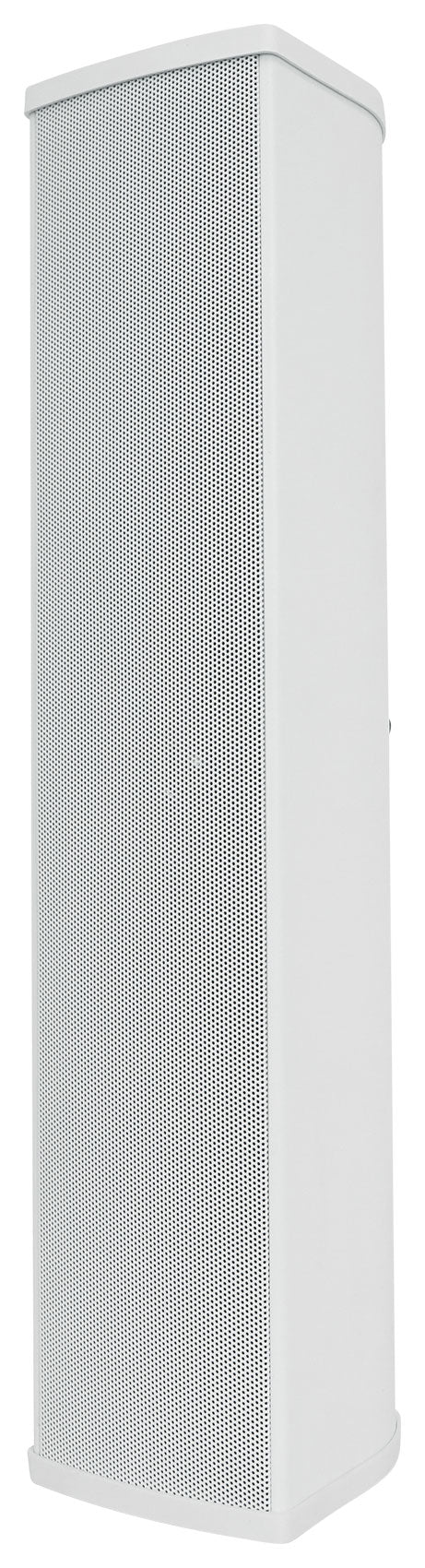

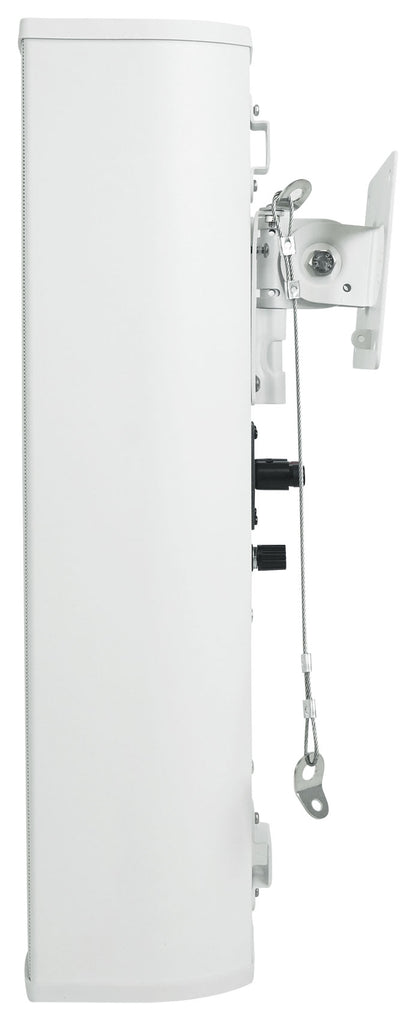

The aluminum enclosures and grilles won't rust, and an IP55 rating with waterproof spring-loaded terminals and mounting hardware means the same speakers work on a covered patio, a pool deck, or an outdoor seating area. A 4-way swivel wall bracket aims each column up, down, left, or right toward the seats. Tap switches set each speaker at 60W, 30W, 15W, or 7.5W, with an 8 ohm setting as well, so the bar side can play louder than a quiet corner.

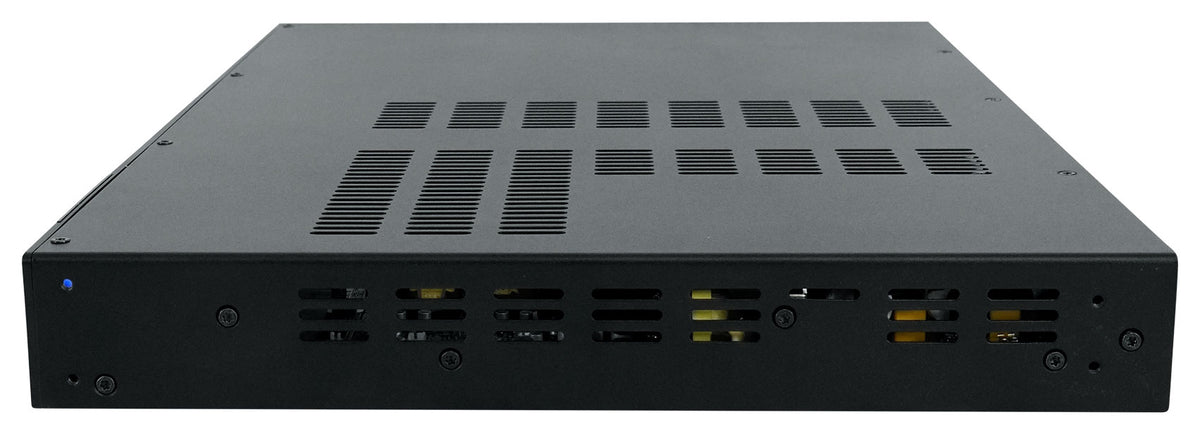

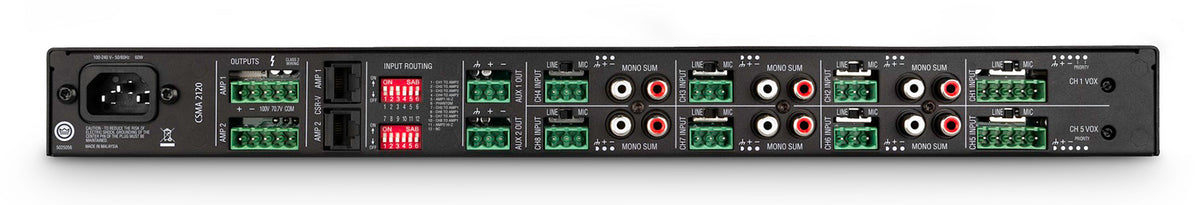

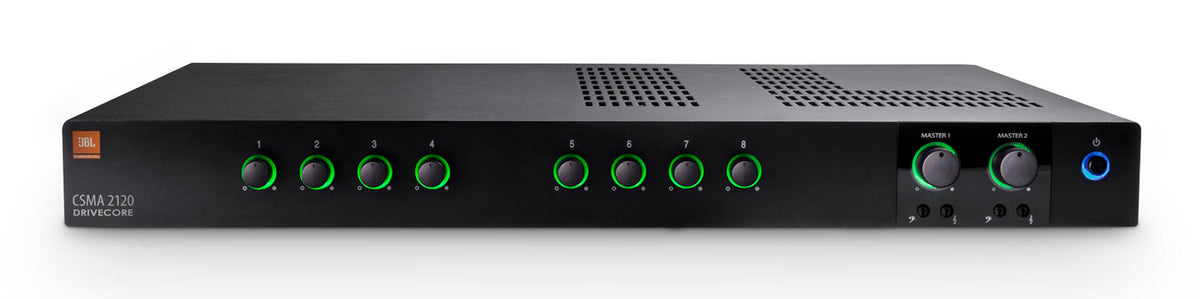

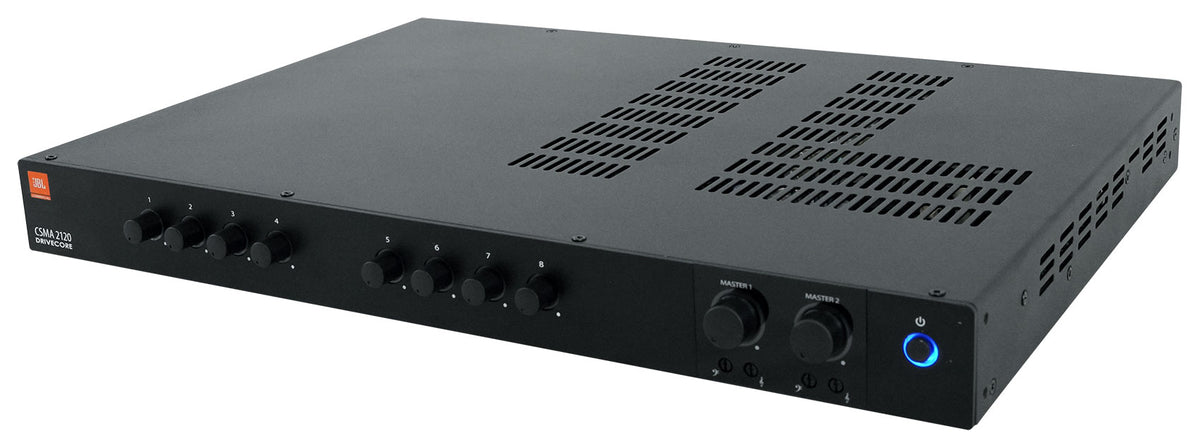

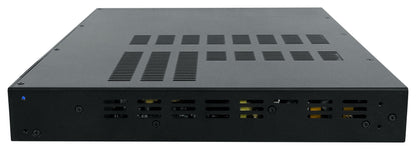

The CSMA2120 delivers 120W on each of its two channels and connects directly to 70V or 100V lines without a separate transformer. Eight inputs accept balanced mic/line sources on Euro-block connectors plus unbalanced RCA, and priority muting drops the music when someone makes an announcement. It runs fanless in a single 1U rack space with the included rack kit, while illuminated volume rings, independent bass and treble per channel, and RJ45 ports for JBL CSR-V in-wall volume controls keep daily adjustments simple for staff.
Features
Complete Venue Sound System
One two-channel amplifier and four matched 70V column speakers cover a bar, dining room, sanctuary, or gym, so you skip pairing speakers with a commercial amplifier yourself.
Clear Voice and Music
Each column pairs four 3" midrange drivers with a 20mm PEI tweeter in a 2-way design, with a long throw that suits announcements and music in larger rooms.
Built for Outdoor Walls
IP55-rated aluminum enclosures, rustproof grilles, and waterproof terminals and hardware hold up to rain and moisture on patios, pool decks, and covered outdoor seating.
Volume Set Zone by Zone
Tap switches at 60W, 30W, 15W, and 7.5W let the bar side play louder than a quiet corner, and two speakers per channel at 30W leave plenty of headroom.
Quiet, Compact Rack Install
The CSMA2120 runs fanless in a 1U chassis with an included rack kit, and priority muting lowers the music automatically whenever staff make an announcement.
Technical Specifications
- Product Type Commercial Mixer Amplifier and 70V Column Line Array Speaker Kit
- Amplifier Output 2 x 120W @ 4/8 ohms
- Amplifier Inputs 8, balanced mic/line Euro-block and unbalanced RCA
- Output Channels 2
- Distributed Audio 70V and 100V, no separate transformer required
- Load Impedance Stable from 2-16 ohms
- Amplifier Input Sensitivity 1.4 Vrms
- Input Impedance Balanced 20k ohms, unbalanced 10k ohms
- Maximum Input +20 dBu typical
- Tone Controls Independent bass and treble per output channel
- Priority Muting Yes
- Output Routing Configurable
- Remote Volume Control RJ45 for JBL CSR-V in-wall controls
- Amplifier Design Fanless, 1U rack-mount, rack mounting kit included
- Power Supply 100-240 VAC, 50/60 Hz
- Certification Energy Star
- Speaker Quantity 4
- Speaker Type 70V column line array, indoor/outdoor
- Speaker Design 2-way
- Drivers (4) 3" midrange, (1) 20mm PEI tweeter per speaker
- Speaker Enclosure Aluminum
- Weather Rating IP55
- Speaker Grille Aluminum, waterproof and rustproof
- Mounting 4-way swivel wall bracket, waterproof and rustproof hardware
- 70V Taps 60W, 30W, 15W, 7.5W
- 8 Ohm Power Handling 85W
- Speaker Sensitivity 85 dB
- Speaker Frequency Response 100Hz-20kHz
- Speaker Terminals Waterproof, spring-loaded
- Speaker Color White
- Weight CSMA2120: 15.5 lb (7.0 kg) shipping; WET ARRAY 5: 11 lb each
- Dimensions CSMA2120: 1.7 x 17.2 x 11.9 in (43.3 x 436.9 x 303.4 mm); WET ARRAY 5: 4.8 x 4.31 x 19.45 in
