CSMA2120 Mixer Amplifier + WiiM Pro Plus Streaming Kit
JBL
CSMA2120 Mixer Amplifier + WiiM Pro Plus Streaming Kit
CSMA2120 Mixer Amplifier + WiiM Pro Plus Streaming Kit
2x120W 70V/100V Commercial Mixer Amplifier, 8 Inputs, Rack Kit, Bonus WiiM Pro Plus Streamer for Restaurants, Retail
Free Shipping
Features
- 120W per channel into 4 or 8 ohms, or direct to 70V and 100V lines without a transformer
- Eight inputs accept balanced mic/line on Euro-block plus unbalanced RCA sources
- Priority muting lets paging and announcements cut in over background music
- Fanless 1U chassis runs silently and includes a rack mounting kit
- Bonus WiiM Pro Plus streams music via AirPlay 2, Chromecast, and Spotify Connect
Couldn't load pickup availability

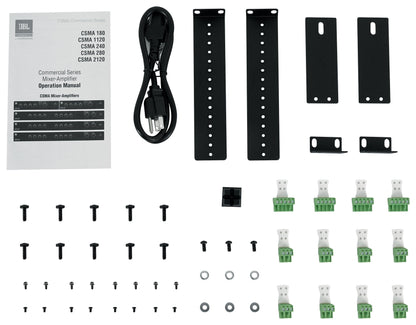

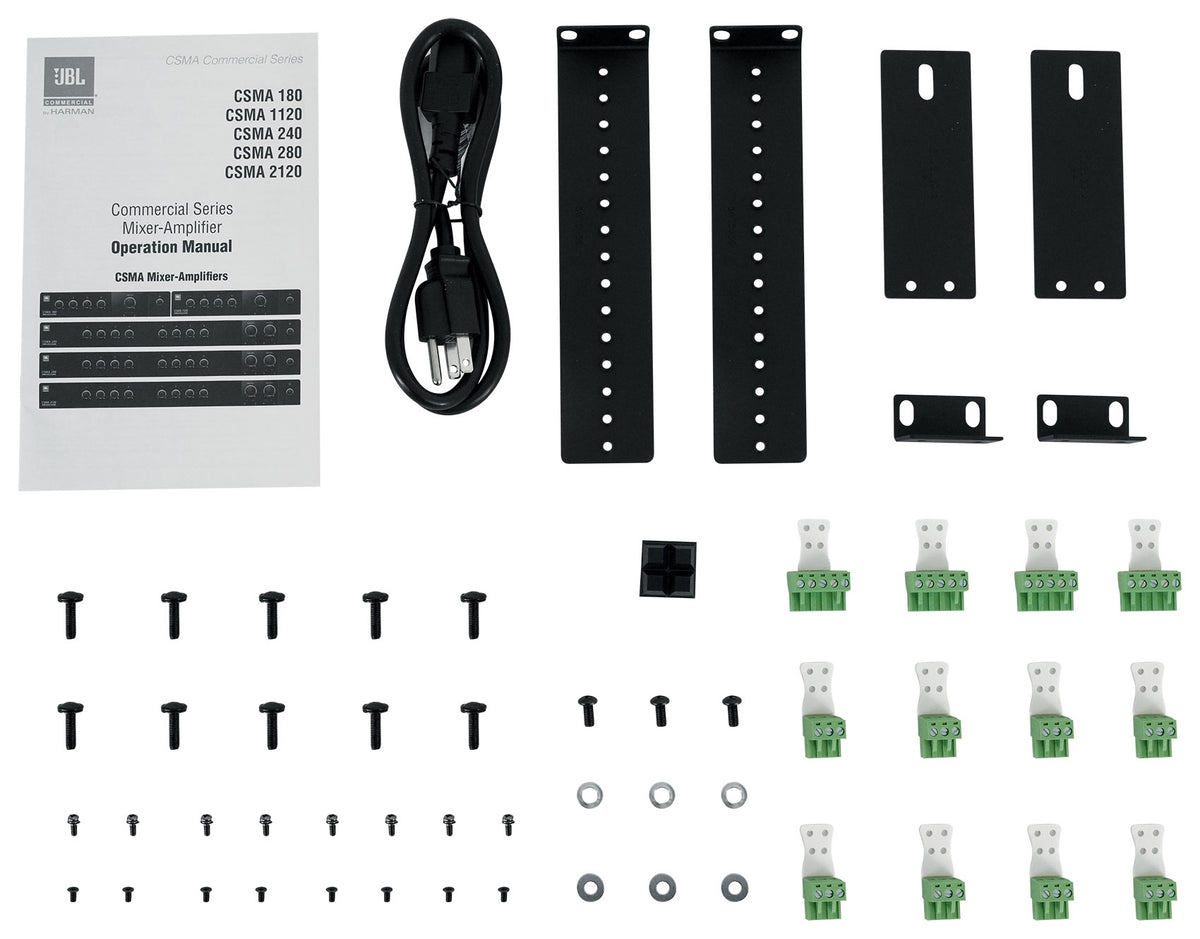

What's Included in the box

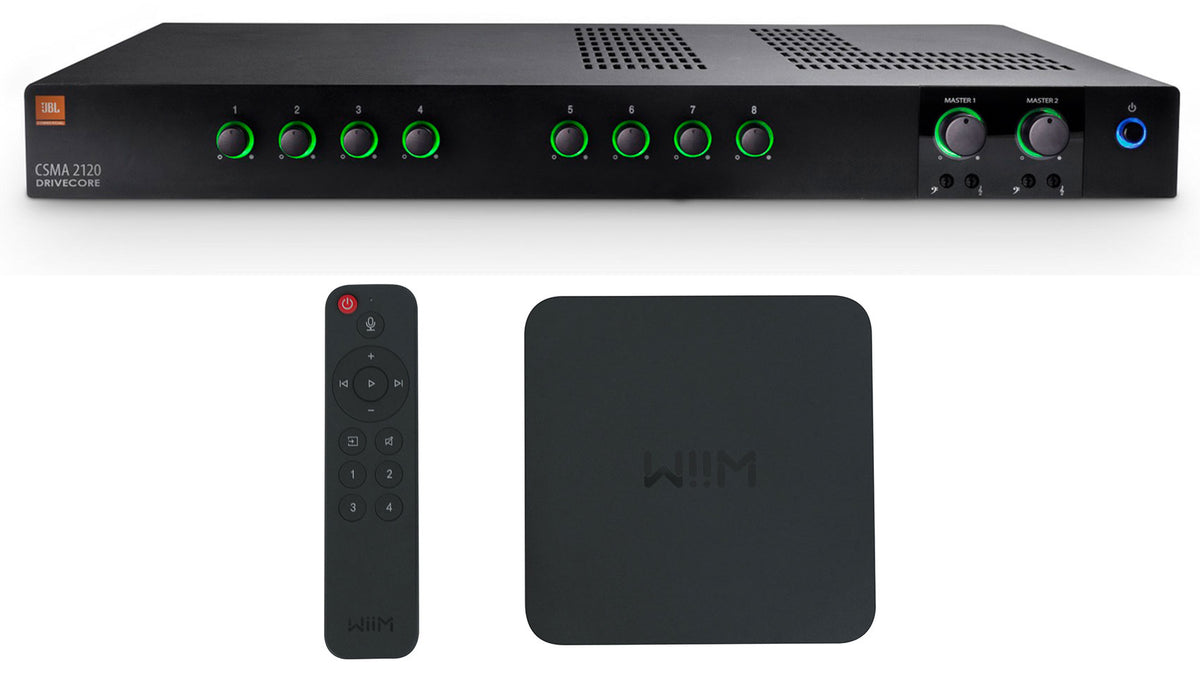

- (1) JBL CSMA2120 Commercial Mixer Amplifier
- (1) Rack Mounting Kit

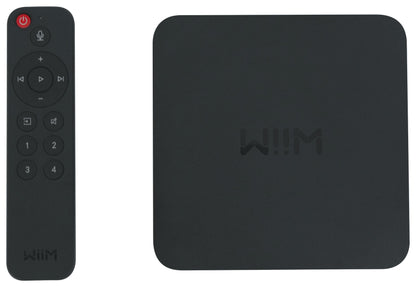

- (1) WiiM Pro Plus Wi-Fi Streaming Player
- (1) USB Type-C Cable
- (1) USB Power Adapter
- (1) RCA to RCA Stereo Cable
- (1) Digital Optical Toslink Cable
SKU: SKU: CSMA2120+WIIM PRO PLUS
View full details











Product Description

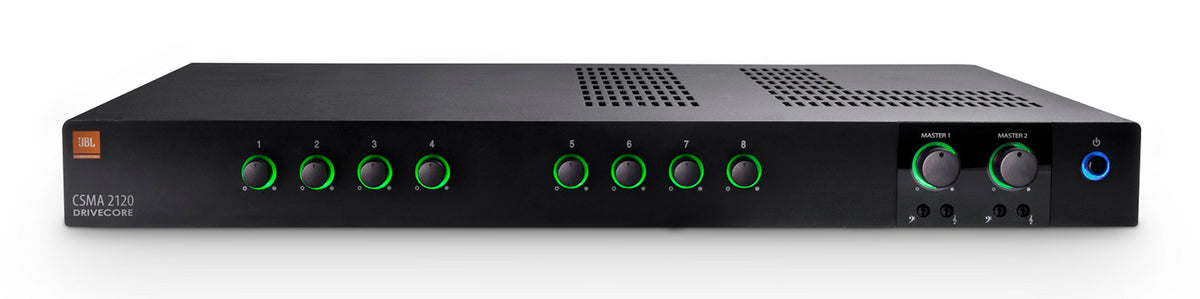

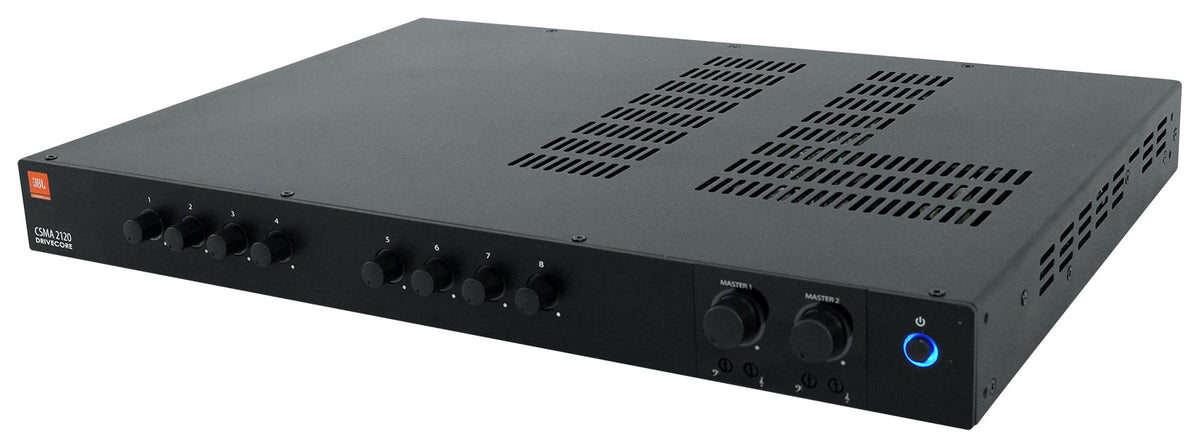

The front panel keeps daily use simple for staff: a volume knob for each channel, a main volume, bass and treble controls, and a power switch, with illuminated rings around every knob so they're easy to read in a dim bar or back office. Independent bass and treble per output channel and configurable output routing let you tune two zones differently, and RJ45 ports connect JBL CSR-V in-wall volume controls over standard Ethernet cable. The fanless design runs silently in a single 1U rack space with the included rack mounting kit, backed by a universal 100-240 VAC power supply and Energy Star certification.

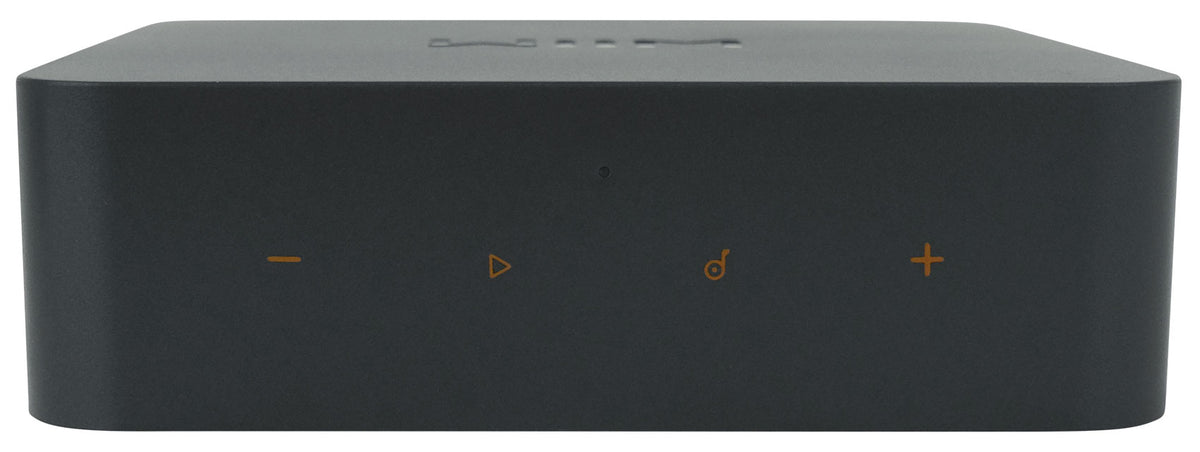

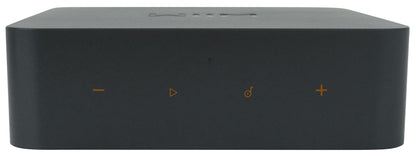

As a bonus, this package adds a WiiM Pro Plus streaming player at no extra cost. Plug it into the CSMA2120's RCA input and stream Spotify, TIDAL, Amazon Music, Pandora, internet radio, and more over Wi-Fi or Ethernet using AirPlay 2, Chromecast, or Spotify Connect, or control playback with Alexa, Google Assistant, or Siri.
Features
Built for 70V and 100V Systems
The CSMA2120 connects straight to 70V or 100V distributed speaker lines without a separate transformer, and also powers 4 or 8 ohm speakers at 120W per channel.
Music and Paging in One Unit

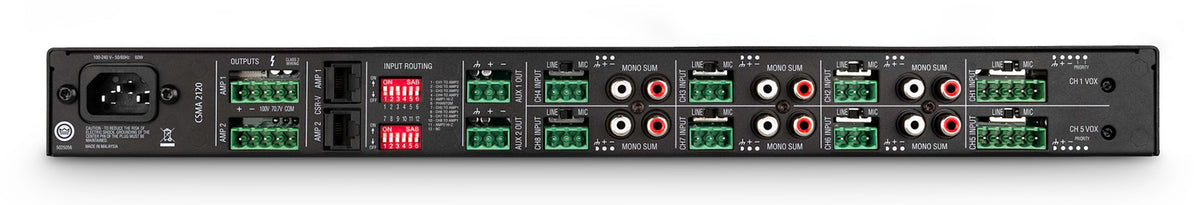

Eight inputs take balanced mic/line sources on Euro-block connectors and unbalanced RCA, while priority muting lowers the music whenever staff make an announcement.
Controls Staff Can Read
Illuminated rings around every volume knob stay visible in dim dining rooms and bars, and independent bass and treble per channel let you tune two zones separately.

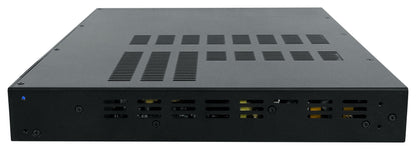

Quiet, Compact Rack Install
A fanless design fits one 1U rack space with the included mounting kit, so the amp runs silently in an equipment closet, office, or behind the counter.

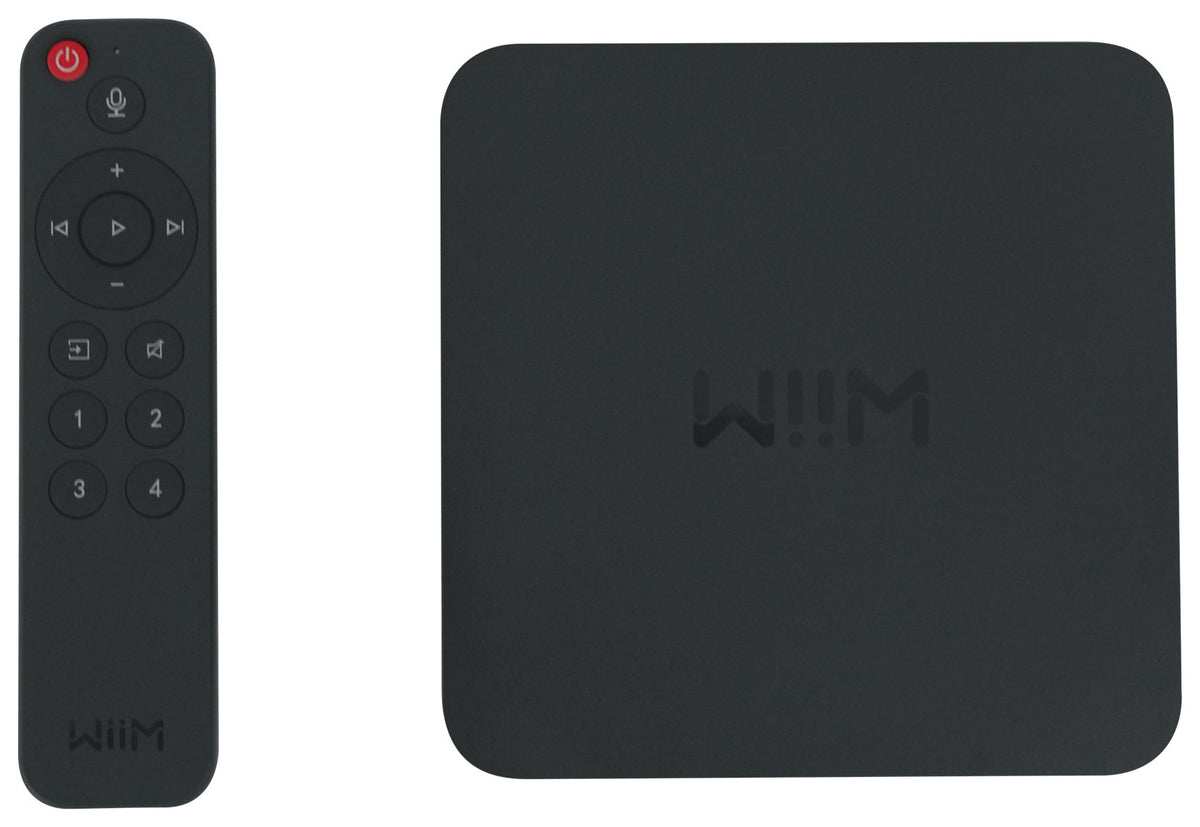

Bonus Wi-Fi Streaming
The included WiiM Pro Plus connects to the amp's RCA input and streams Spotify, TIDAL, and internet radio through AirPlay 2, Chromecast, or Alexa voice control.
Technical Specifications
- Product Type Commercial Mixer Amplifier with Bonus Wi-Fi Streaming Player
- Amplifier Output 2 x 120W @ 4/8 ohms (1kHz, THD+N under 0.5%)
- Output Channels 2
- Mixer Inputs 8
- Input Connectors Balanced mic/line Euro-block, unbalanced RCA
- Distributed Audio 70V and 100V, no separate transformer required
- Load Impedance Stable from 2-16 ohms
- Input Sensitivity 1.4 Vrms
- Input Impedance Balanced 20k ohms, unbalanced 10k ohms
- Maximum Input +20 dBu typical
- Tone Controls Independent bass and treble per output channel
- Priority Muting Yes
- Output Routing Configurable
- Remote Volume Control RJ45 for JBL CSR-V in-wall controls
- Cooling Fanless
- Rack Size 1U, rack mounting kit included
- Power Supply 100-240 VAC, 50/60 Hz
- Certification Energy Star
- Streamer WiiM Pro Plus
- Streaming Support AirPlay 2, Chromecast, DLNA, Spotify Connect, TIDAL Connect, Alexa Cast
- Voice Control Works with Alexa, Google Assistant, Siri
- Streamer DAC AKM 4493SEQ
- Streamer Analog Out SNR 121 dB
- Streamer Max Resolution 192 kHz/24-bit

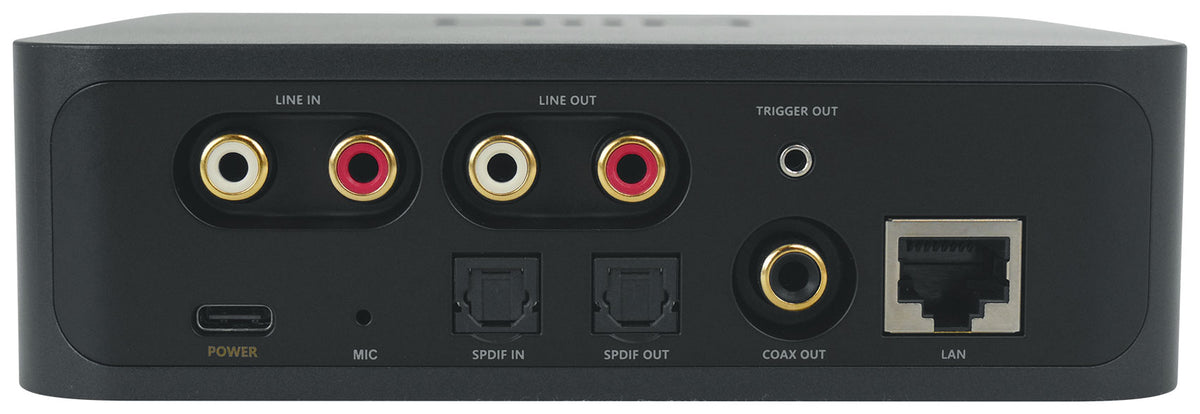

- Streamer Inputs Analog RCA line-in, optical
- Streamer Outputs Analog line-out, optical, coaxial
- Streamer Network Wi-Fi, Ethernet
- Weight CSMA2120: 15.5 lb (7.0 kg) shipping; WiiM Pro Plus: 14.1 oz (400 g)
- Dimensions CSMA2120: 1.7 x 17.2 x 11.9 in (43.3 x 436.9 x 303.4 mm); WiiM Pro Plus: 5.5 x 5.5 x 1.6 in
