CSMA240 Mixer Amplifier + 2 Black CSR-V Controllers
JBL
CSMA240 Mixer Amplifier + 2 Black CSR-V Controllers
CSMA240 Mixer Amplifier + 2 Black CSR-V Controllers
8-Channel 40W Commercial Mixer Amplifier, 70V/100V Ready, Includes (2) Black CSR-V Wall Volume Controllers for Restaurants and Retail
Free Shipping
Features
- 8 mic/line and RCA inputs feed 2 independent output channels
- Up to 40W per channel into 4 or 8 ohm loads
- Built-in transformer runs 70V and 100V speaker lines directly
- Voice activated ducking and priority muting for clear paging
- Includes 2 black CSR-V wall volume controllers that connect over Cat 5
Couldn't load pickup availability

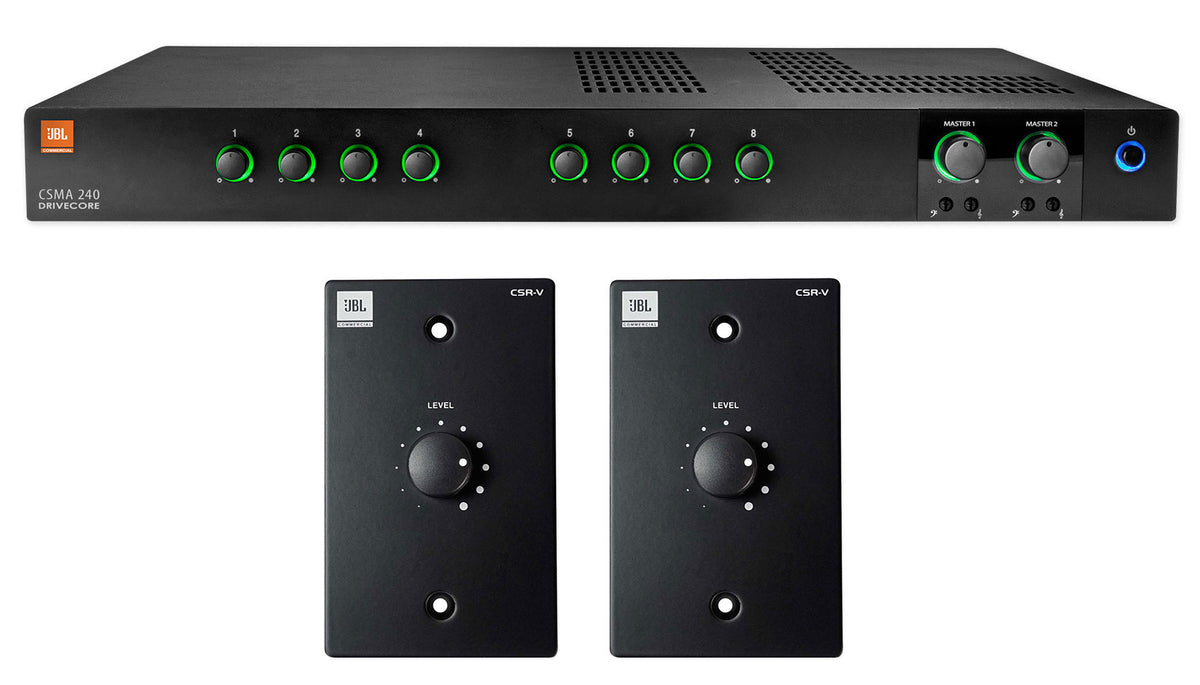

What's Included in the box

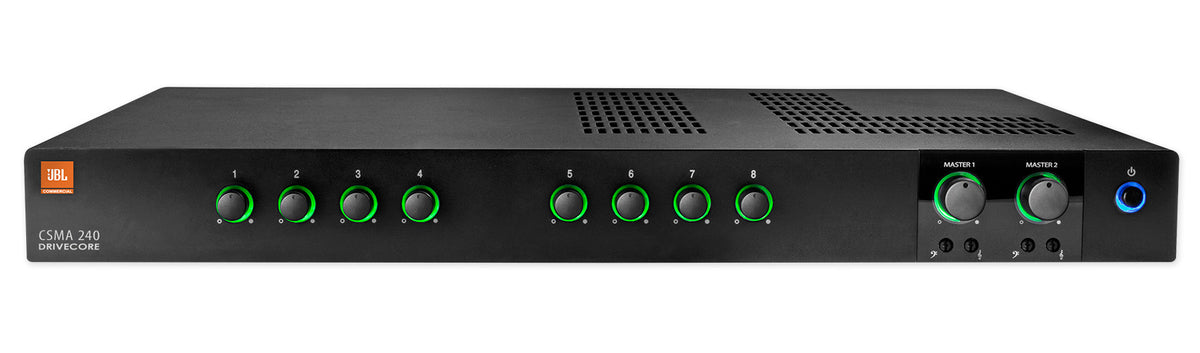

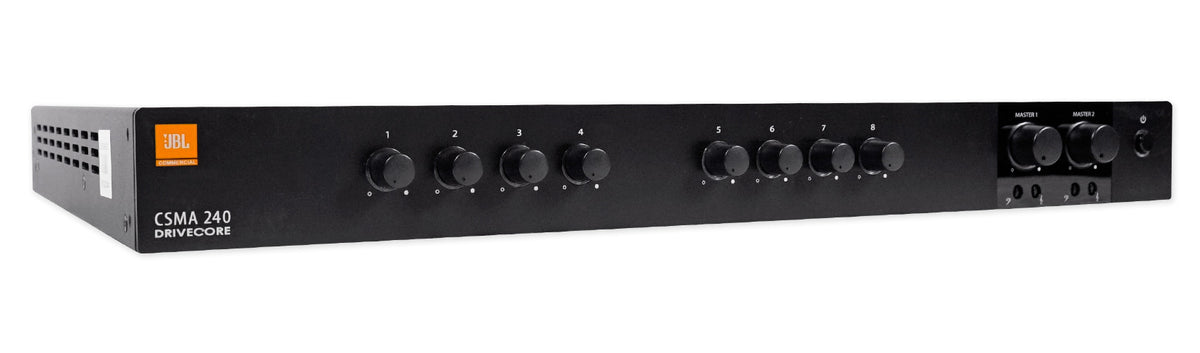

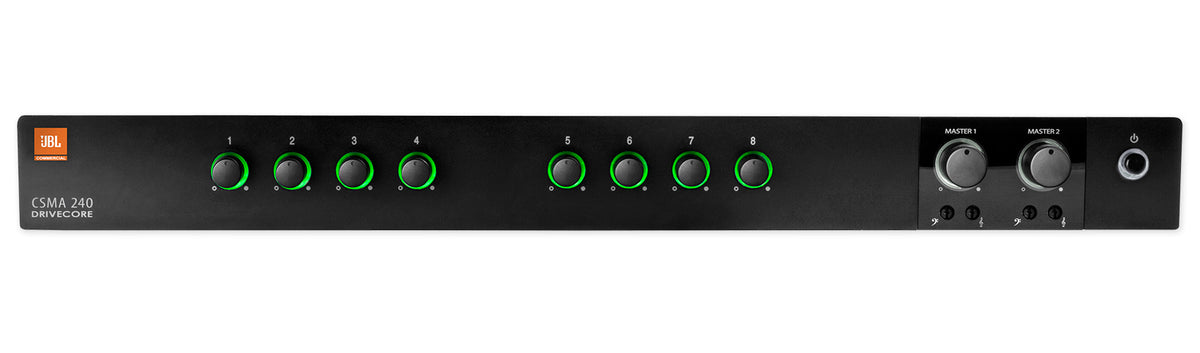

- (1) JBL CSMA240 Commercial Mixer Amplifier
- (2) JBL CSR-V Black Wall Volume Controllers
SKU: SKU: CSMA240+(2) CSR-V-BLK
View full details










Product Description
Features
Music and Paging in One Unit
Eight input channels and two independent outputs let you run background music in one zone and announcements in another without a separate mixer.
Direct 70V and 100V Operation
The built-in output transformer drives distributed speaker lines directly, so long runs of ceiling speakers connect without buying an extra transformer.
Announcements That Cut Through
Voice activated ducking on channels 1 and 5 lowers the music when someone speaks, and priority muting silences other channels for important pages.

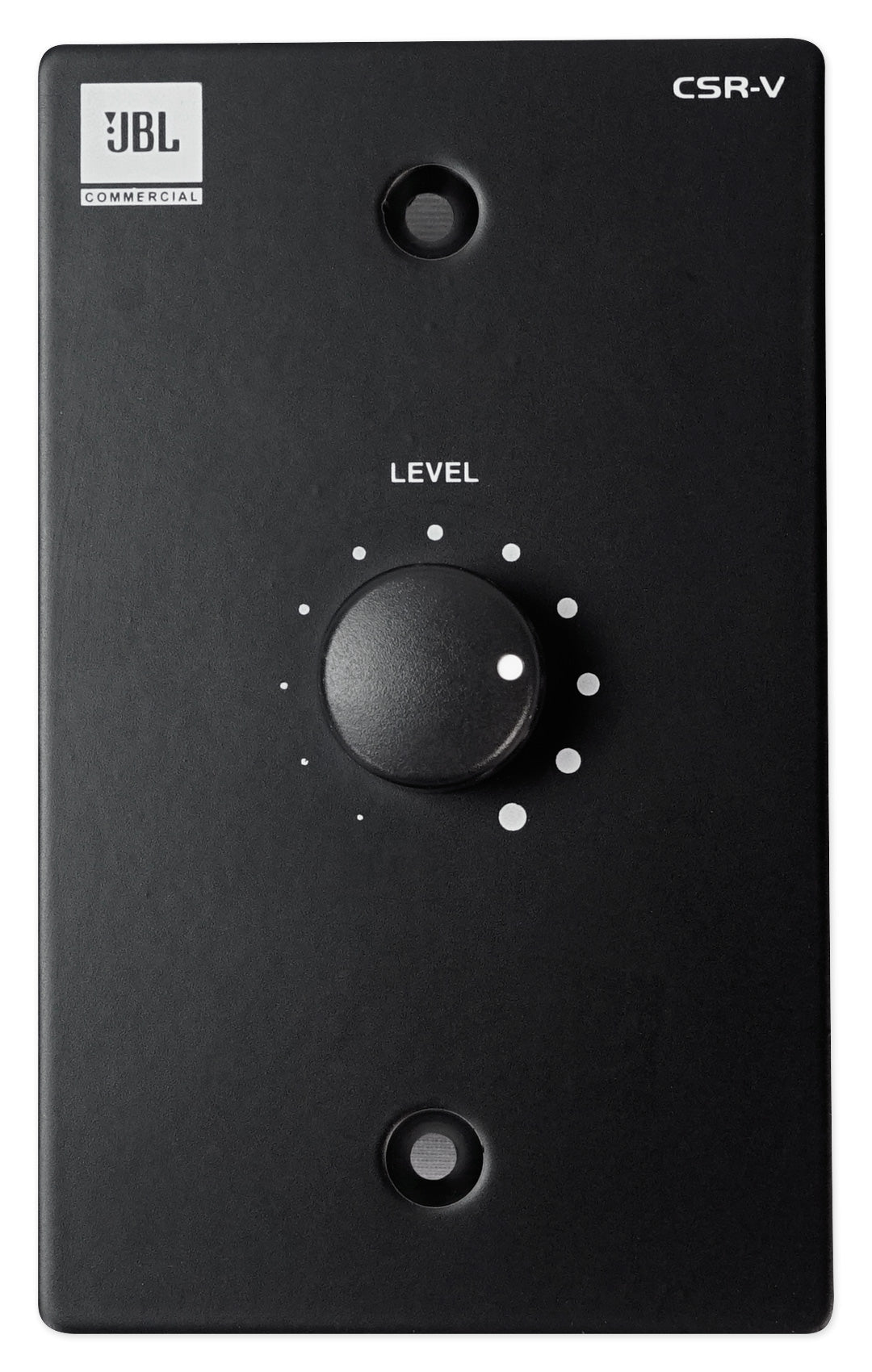

Volume Control From the Wall
Two included black CSR-V controllers connect over Cat 5 cable up to 1000 ft away, letting staff adjust levels from the dining room or sales floor.
Energy-Saving Sleep Mode
The amp powers down after about 30 minutes without signal and wakes automatically when audio returns, cutting power use during closed hours.
Technical Specifications
- Product Type Commercial Mixer Amplifier with Wall Volume Controllers
- Input Channels 8
- Output Channels 2
- Maximum Output Power 40W per channel into 4 or 8 ohms, 1 kHz, 0.5% THD
- Continuous Power 5W per channel
- Distributed Outputs 70V / 100V
- Minimum Load Impedance 4 ohms (low impedance), 120 ohms (70V), 240 ohms (100V)
- Frequency Response 20 Hz to 20 kHz, ±2 dB (4/8 ohm outputs); 80 Hz to 15 kHz, ±2 dB (70V/100V outputs)
- Signal to Noise Ratio Greater than 90 dB
- Crosstalk -70 dB at 1 kHz
- Phantom Power 27V DC

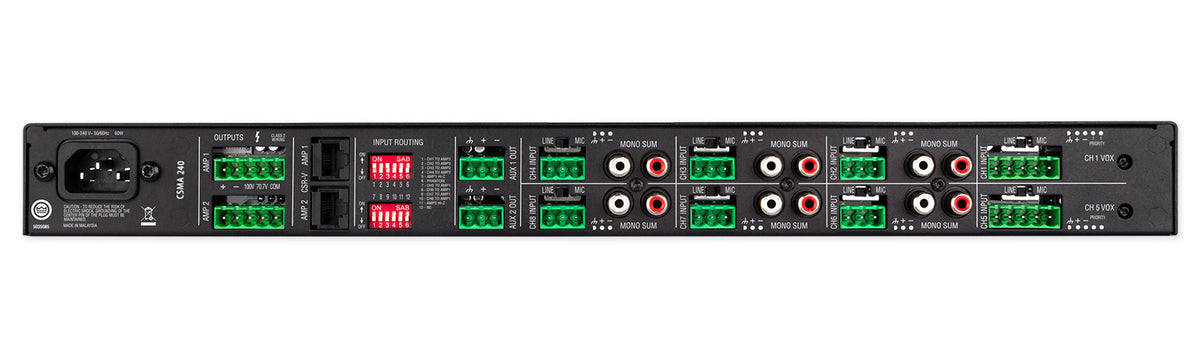

- Inputs 6 x 3-pin euroblock, 2 x 5-pin euroblock, 6 x dual RCA

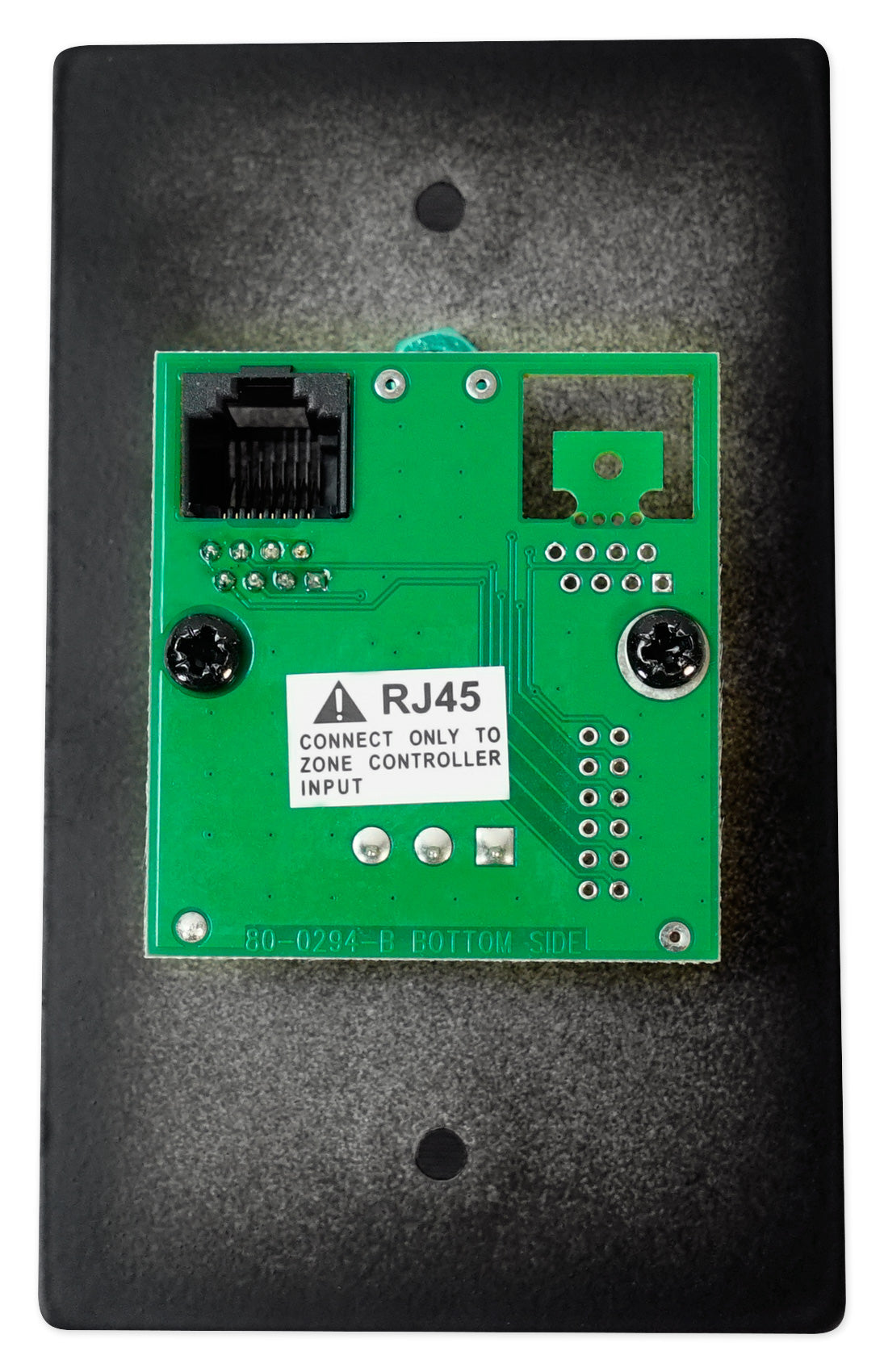

- Remote Control RJ45 for CSR-V wall volume controllers
- Remote Cable Cat 5 with RJ45 connectors, up to 1000 ft (305 m)
- Controller Color Black
- Controllers Included 2
- AC Input 100-240V AC, 50/60 Hz
- Certifications Energy Star, RoHS
- Amplifier Weight Approx. 10.6 lb (4.8 kg)
- Amplifier Dimensions (W x D x H) 17.2 x 11.9 x 1.7 in (436.9 x 302.3 x 43.2 mm)
