JBL

CSR-V-WHT

CSR-V-WHT

White Wall Volume Controller, Cat 5 RJ-45 Connection Up To 1000', For CSM, CSMA, VMA Mixers

Free Shipping

$55.00
$55.00 $80.80
Save 31%
Shipping calculated at checkout.
Features
    • Adjusts the volume of the source selected on compatible CSM, CSMA, and VMA mixers
    • Connects with standard Cat 5 cable and RJ-45 connectors up to 1000 ft (305 m)
    • Analog DC voltage logic control for simple, dependable remote volume changes
    • Dual RJ-45 connectors and compatibility with CSM-21 and CSM-32 mixers
    • White finish blends into light walls and standard wall plates
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • (1) CSR-V-WHT Wall Volume Controller

SKU: CSR-V-WHT*

View full details

Product Description

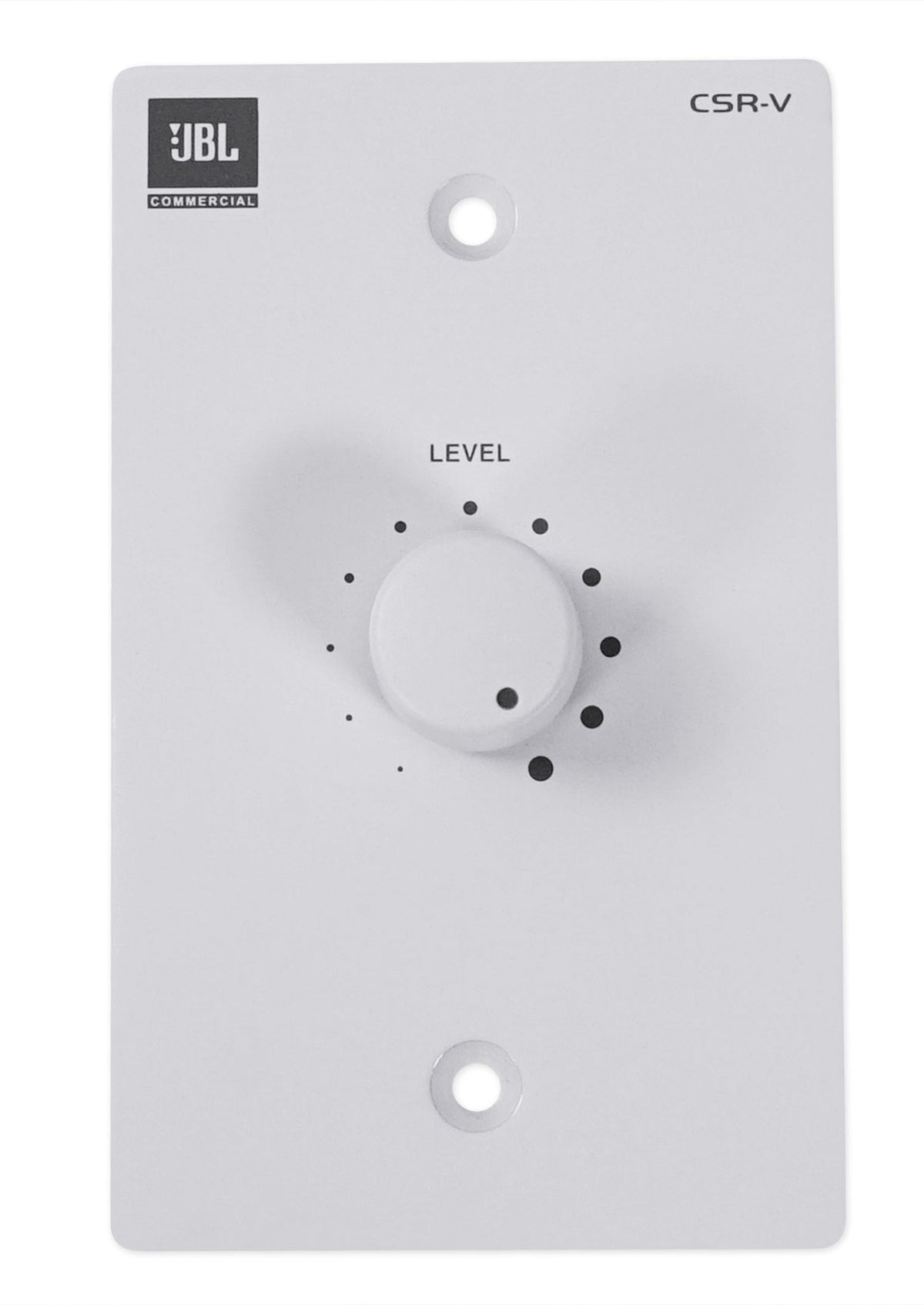

The CSR-V-WHT puts volume control on the wall, right where staff and guests need it, instead of behind a locked rack. Built for select CSM, CSMA, and VMA mixers and mixer amplifiers, including the CSM-21 and CSM-32, it adjusts the level of whichever source the mixer has selected. A manager can turn the music down for an announcement or bring it up for a busy dinner rush without walking to the equipment room.

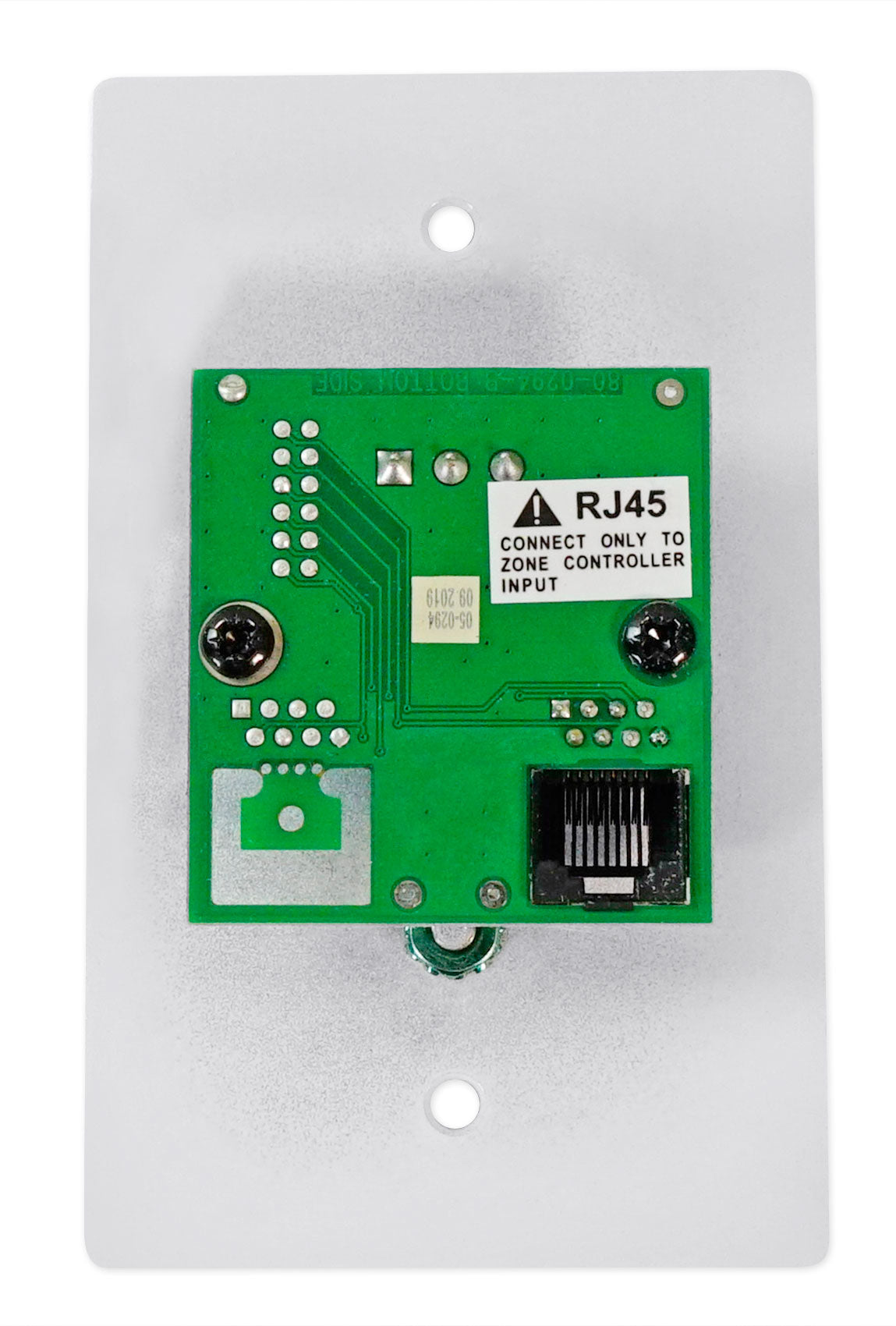

Control runs on analog DC voltage logic over standard Cat 5 cable with RJ-45 connectors, the same cable and plugs most installers already keep on hand. Runs can reach up to 1000 feet (305 m), which gives you room to place the controller at a host stand, behind a bar, beside a conference room door, or across a large retail floor while the mixer stays tucked away. Dual RJ-45 connectors handle the Cat 5 connection, and the white finish blends into light walls, standard wall plates, and bright commercial interiors.

It's a practical addition for restaurants, retail stores, gyms, offices, and houses of worship where the people adjusting the sound aren't the people who installed the system. Everyday volume changes happen at the wall, and the rest of the mixer settings stay exactly where the installer left them.

Features

    • Volume Control at the Wall

      Adjust the level of the source selected on your CSM, CSMA, or VMA mixer right from the wall, so staff can make quick changes without touching the rack.

    • Room for Long Cable Runs

      Standard Cat 5 cable with RJ-45 connectors reaches up to 1000 feet (305 m), letting you mount the controller far from the equipment room or closet.

    • Familiar, Installer-Friendly Wiring

      Dual RJ-45 connectors accept common Cat 5 cable, so installers can wire the controller with the same materials they already use on commercial audio jobs.

    • Simple, Dependable Logic

      Analog DC voltage logic control gives the mixer a straightforward signal for volume changes, keeping operation easy for managers, staff, and other everyday users.

    • Clean White Finish

      The white finish matches light walls and standard wall plates in offices, retail stores, conference rooms, and other bright commercial spaces where hardware should stay low-key.

Technical Specifications

  • Product Type Wall Volume Controller
  • Function Remote Volume Control for Selected Source
  • Control Type Analog DC Voltage Logic
  • Connectors Dual RJ-45
  • Cable Type Cat 5
  • Maximum Cable Run 1000 ft (305 m)
  • Color White
