Eliminator American DJ IKON PROFILE Plus 40W White LED DMX RDM GOBO Projector
Eliminator American DJ IKON PROFILE Plus 40W White LED DMX RDM GOBO Projector

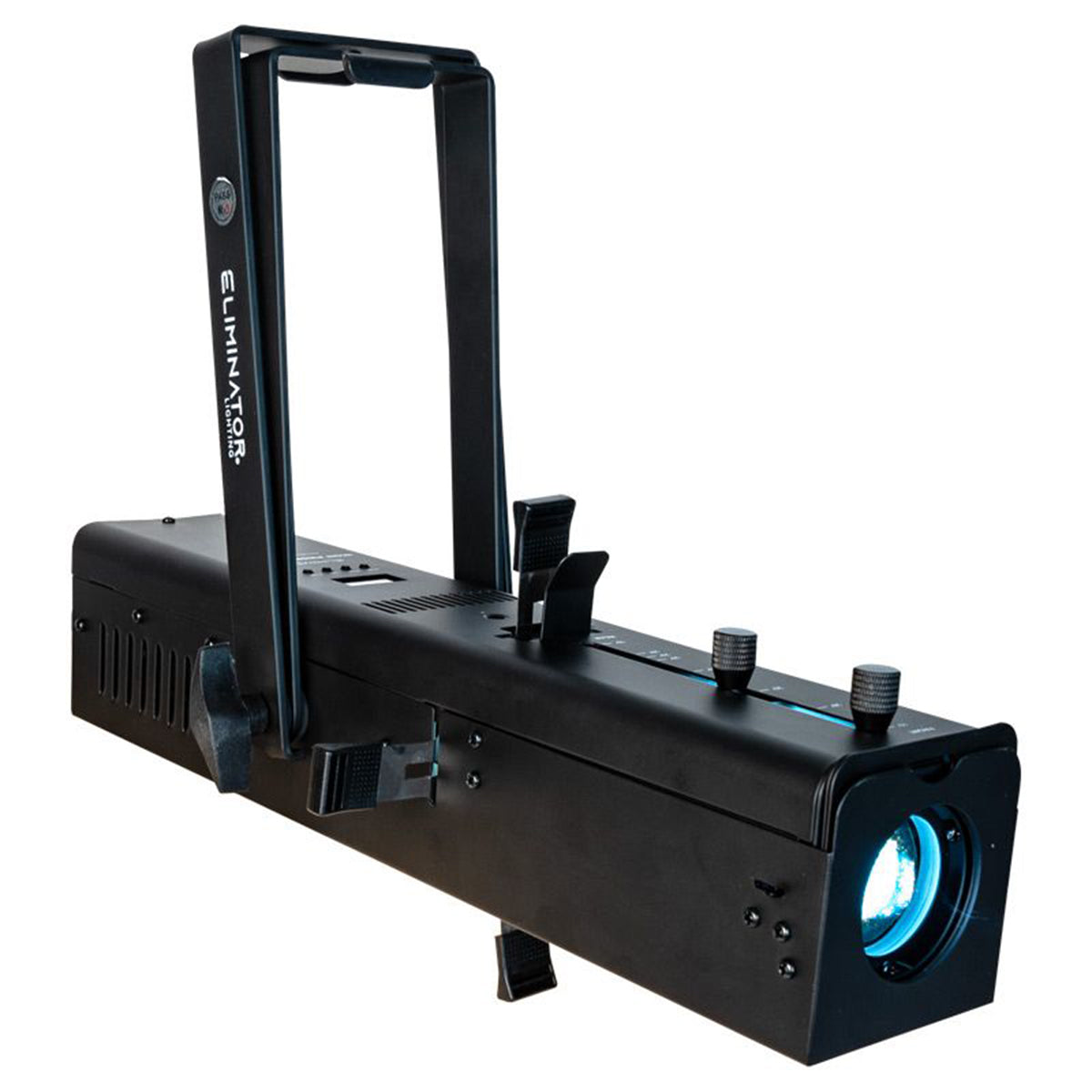

40W White LED Gobo Projector, 15-30 Degree Beam, Framing Shutters, 5 Gobos, IR Remote, Yoke
Free Shipping
Features
- 40W white LED at 9500K produces bright, crisp gobo projections
- Four manual framing shutters cut the beam into any four-sided shape
- Adjustable 15 to 30 degree beam angle with manual focus
- Drop-in slot takes 26.8mm metal or glass gobos for quick changes
- Daisy chains up to 14 units at 120V through locking power in/out
Couldn't load pickup availability
What's Included in the box
- Ikon Profile Plus Gobo Projector
- 1 x Glass Gobo
- 4 x Metal Gobos

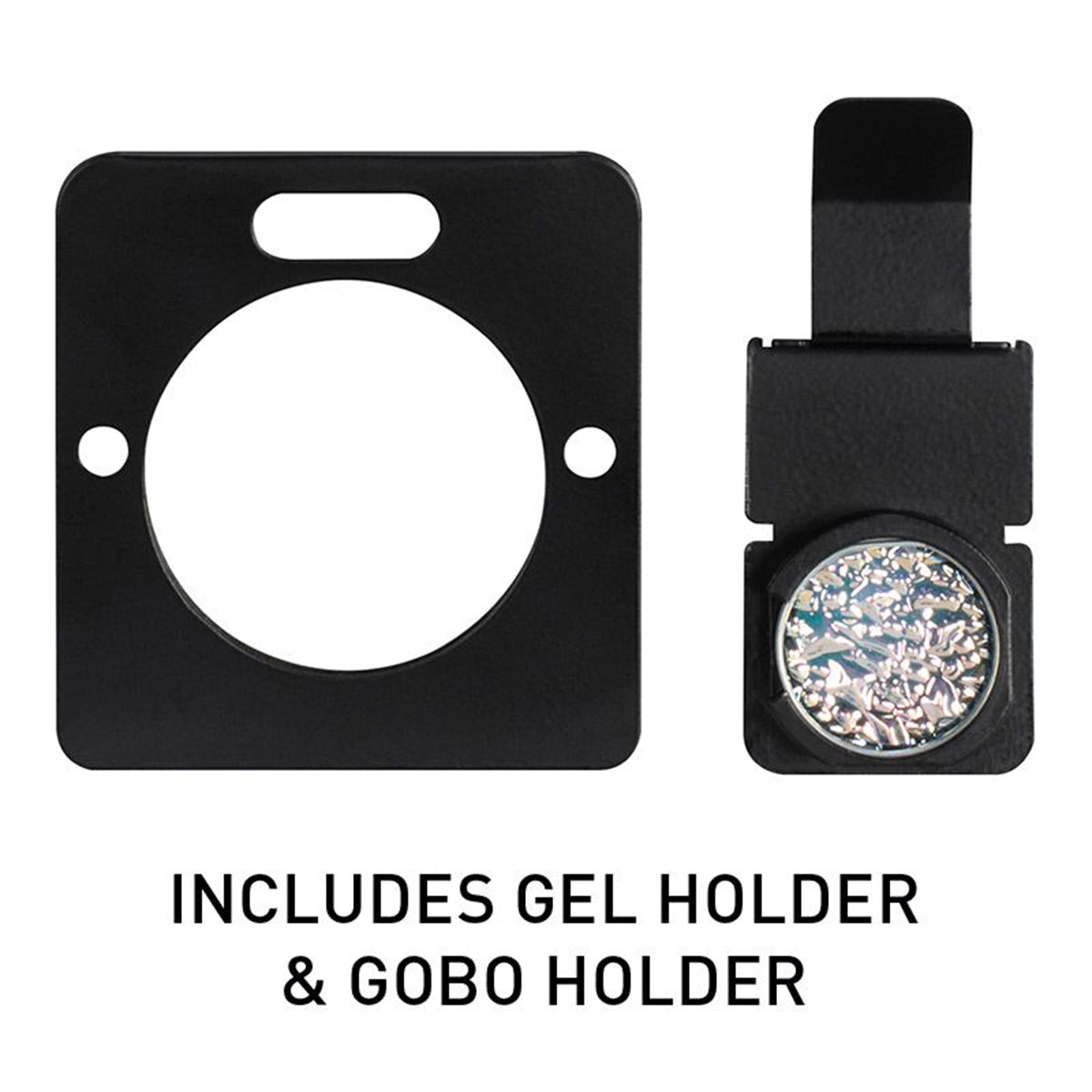

- 1 x Gobo Holder

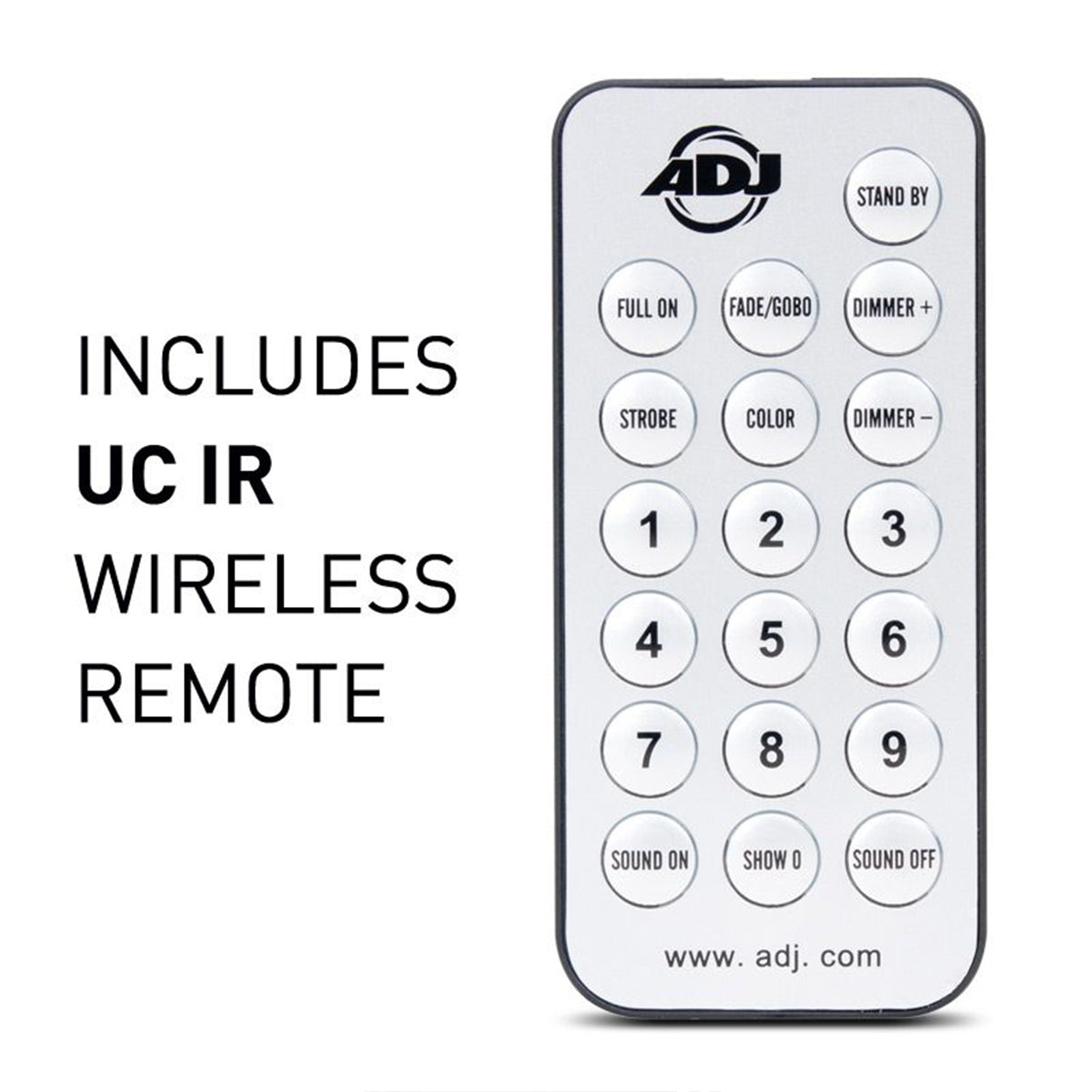

- UC-IR Wireless Remote
- Gel Filter
- Scissor Yoke
- Locking Power Cord
SKU: SKU: Ikon Profile Plus
View full details












Product Description
Four manually adjustable framing shutters let you cut the output into any four-sided shape: a square for a logo panel, a wide rectangle for a bar back, or a narrow slice to keep light off a screen. The beam angle adjusts from 15 to 30 degrees and focus is set by hand, so the projection stays vivid at whatever throw distance the room gives you.

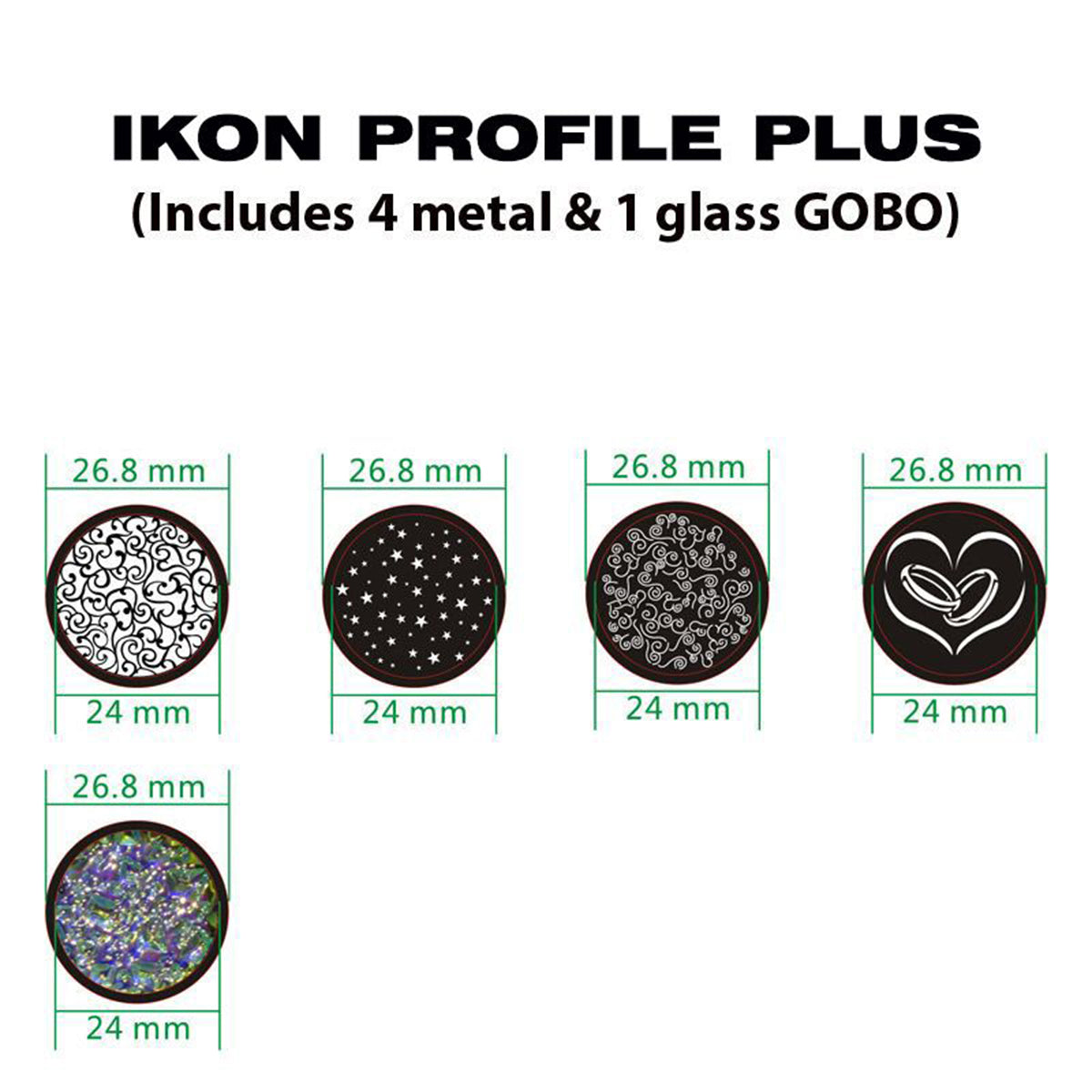

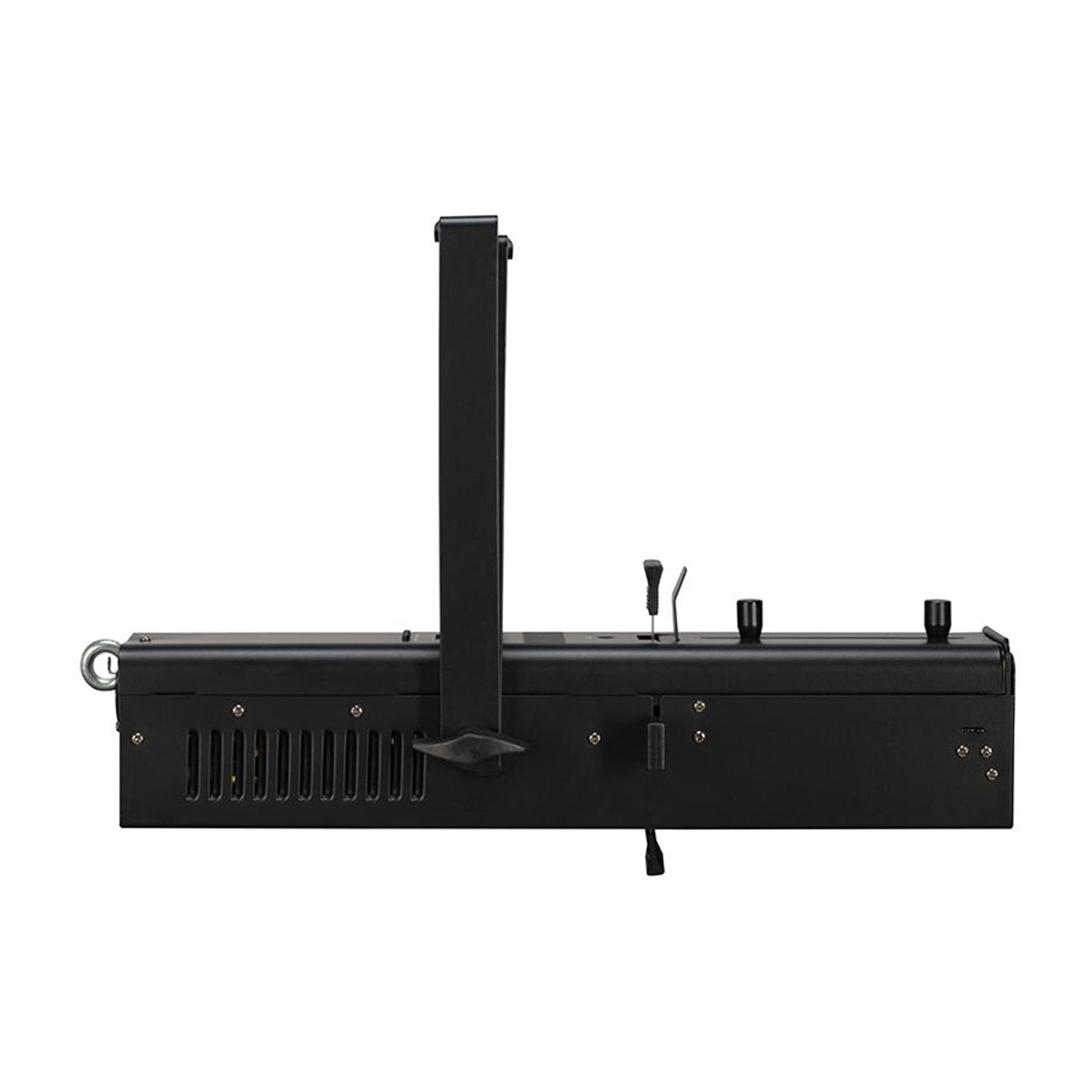

A drop-in gobo slot takes 26.8mm gobos with a 24mm viewable area, in metal or glass, so patterns change in seconds. A color frame accepts color filters and color correction filters for projections in different hues. The unit ships with one glass gobo, four metal gobos, a gobo holder, a gel filter, and a scissor yoke for wall mounting or truss hanging.
Control runs on 3 or 4-channel DMX with RDM support, 0-100% dimming, strobe and pulse effects, and six dimmer curves. The included UC-IR wireless remote works from up to 30 ft. Power consumption is 44W max on 100-240V, with locking power in/out that daisy chains up to 14 units at 120V and 24 at 230V.
Low heat output means no duty cycle, so it runs all night. At 6 lb it suits houses of worship, nightclubs, bars, stage productions, and retail displays.
Features
-
Shape The Light Exactly
Four manually adjustable framing shutters cut the beam into any four-sided form, so projections match a wall panel, bar back, or stage area.
-
Sharp At Any Distance
A 15 to 30 degree adjustable beam angle plus manual focus keeps gobo edges clean whether the fixture hangs close or across the room.
-
Swap Patterns In Seconds
A drop-in slot takes 26.8mm metal or glass gobos, and the included color frame accepts filters for projections in different hues.
-
Runs All Night
Low heat output from the 40W LED source means no duty cycle, so the projector holds a logo or pattern through a full event.
-
Control Your Way
Three or four-channel DMX with RDM handles console rigs, while the included UC-IR remote covers wireless control from up to 30 ft.
Technical Specifications
- Product Type LED Gobo Projector
- Light Source 40W white LED (9500K) at 50,000 hours
- CRI 80
- Light Output 4121 LUX
- Beam Angle Adjustable 15 to 30 degrees
- Focus Manually adjustable
- Framing Shutters 4, manually adjustable

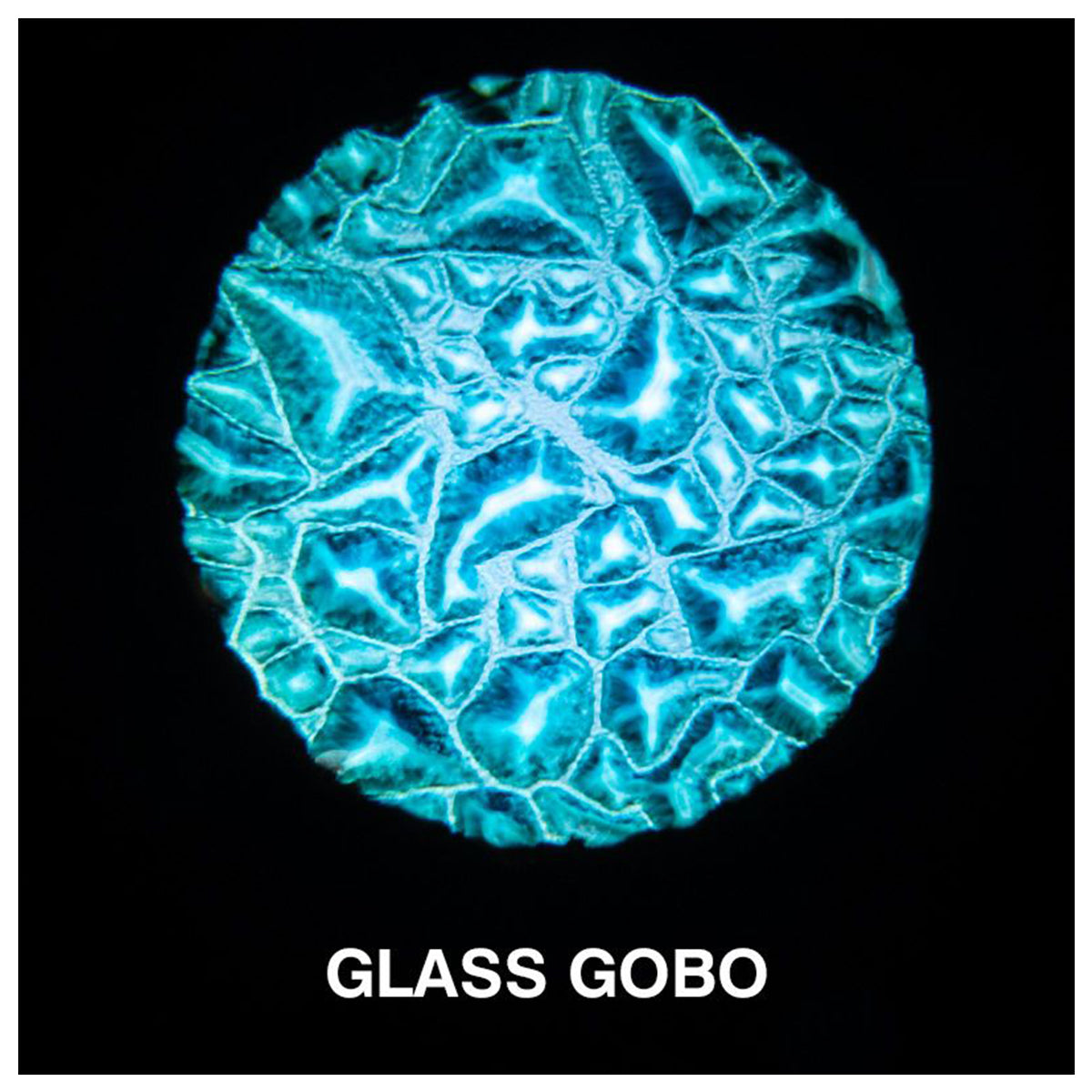

- Gobo One textured glass gobo included; drop-in slot for metal or glass gobos
- Gobo Size 26.8mm; viewable size 24mm

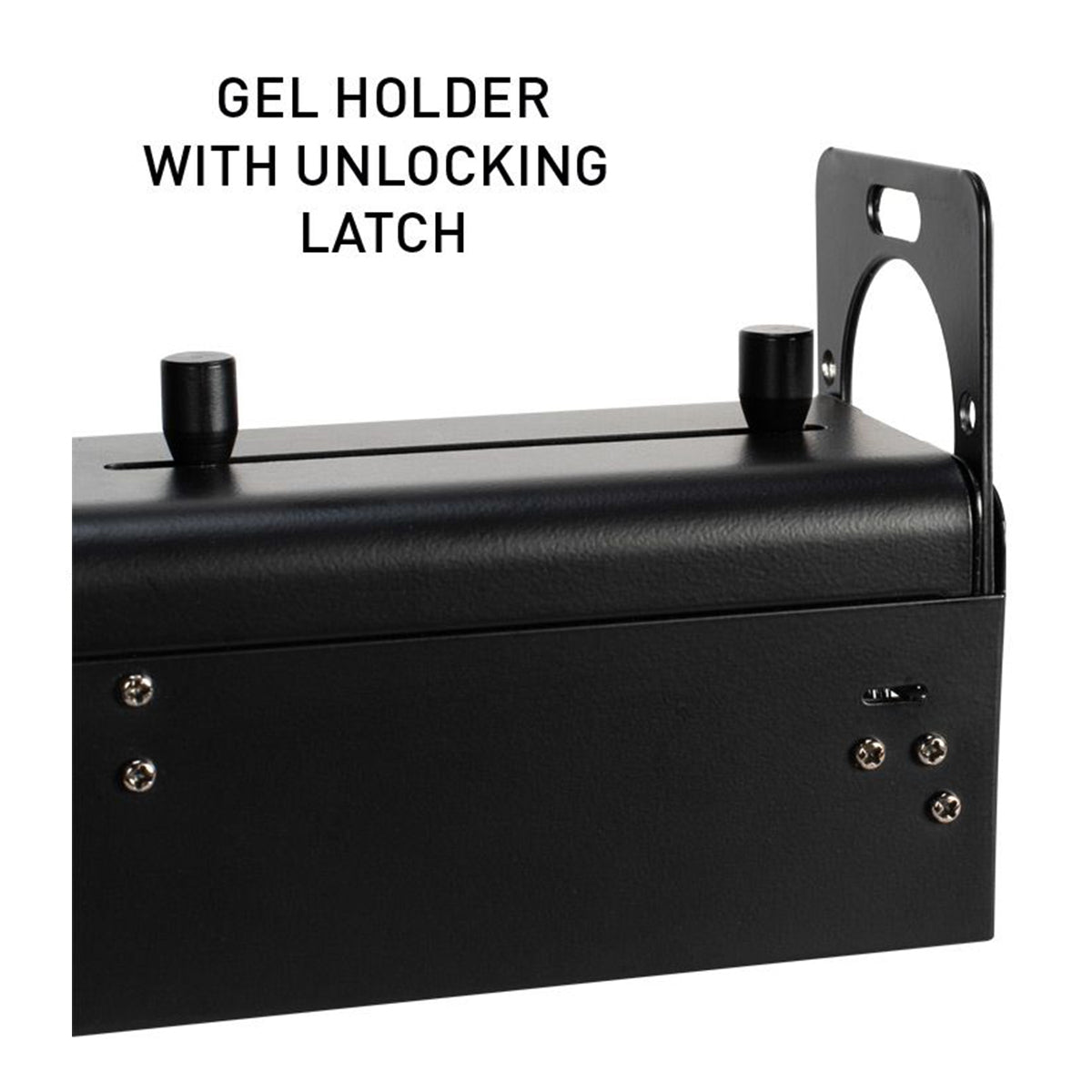

- Color Frame Accepts color filters and color correction filters
- DMX Channel Modes 3 or 4 channels

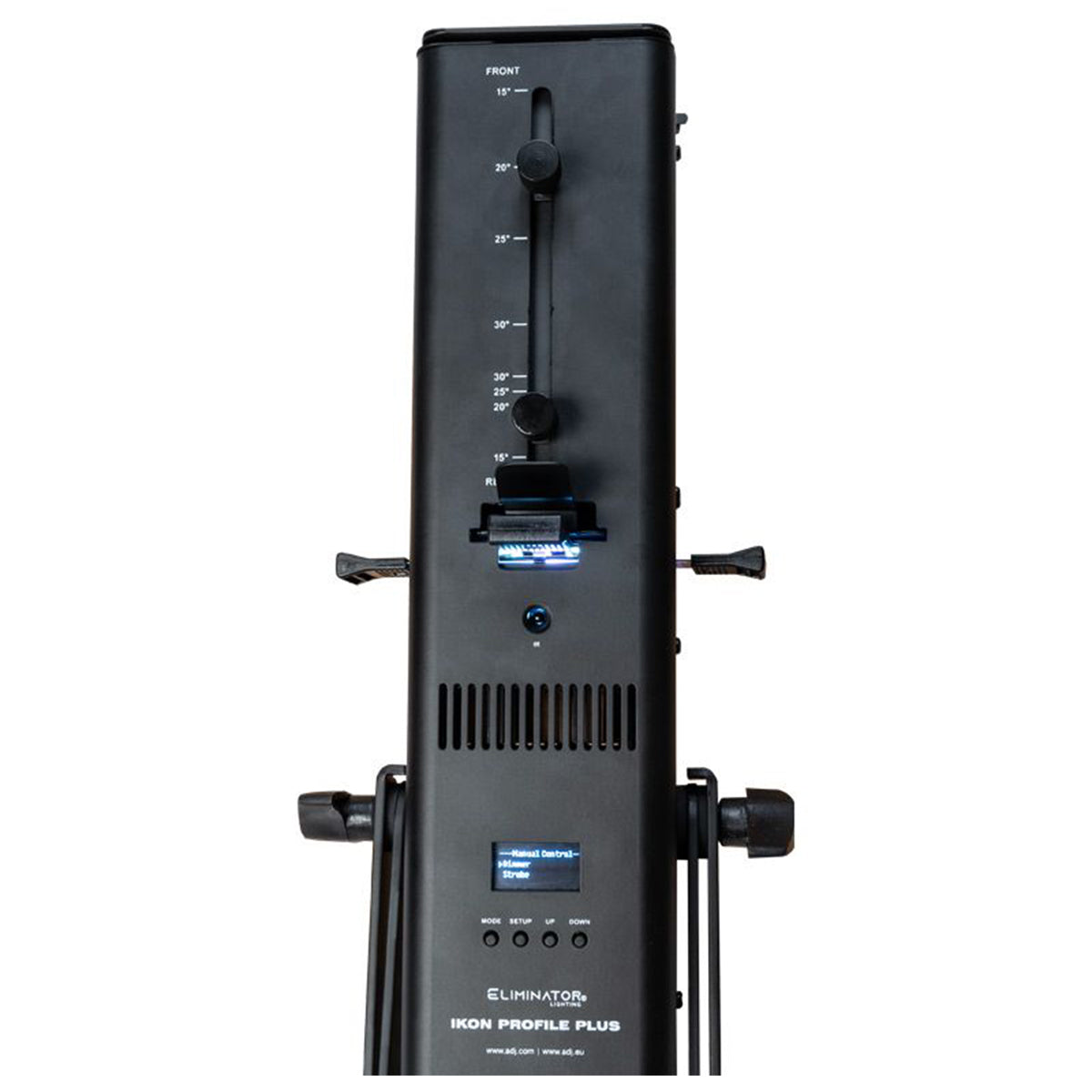

- Display Digital with 4-button function menu
- Protocols DMX512, RDM
- Dimming 0-100%
- Effects Strobe and pulse
- Dimmer Curves 6
- Remote UC-IR wireless remote, up to 30 ft

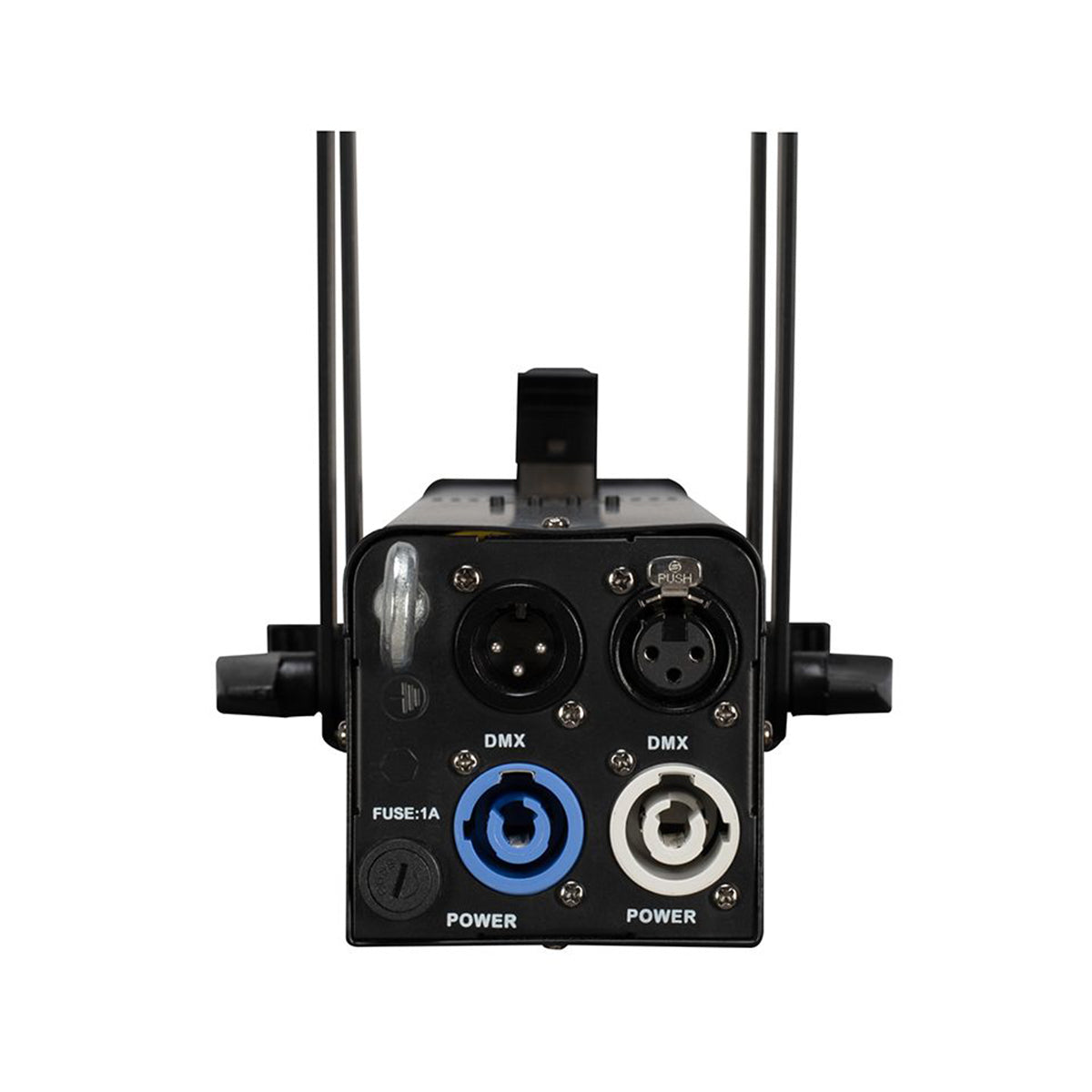

- Connections 3-pin DMX in/out, locking power in/out, safety eyelet on rear
- Voltage 100-240V, 50/60Hz
- Power Consumption 44W max
- Power Linking Up to 14 units at 120V, 24 units at 230V
- Approvals CE compliant, ETL approved (Control #4002034)
- Weight 6 lb / 2.7 kg
- Dimensions (LxWxH) 17.75" x 6" x 5" / 448 x 150 x 127mm
