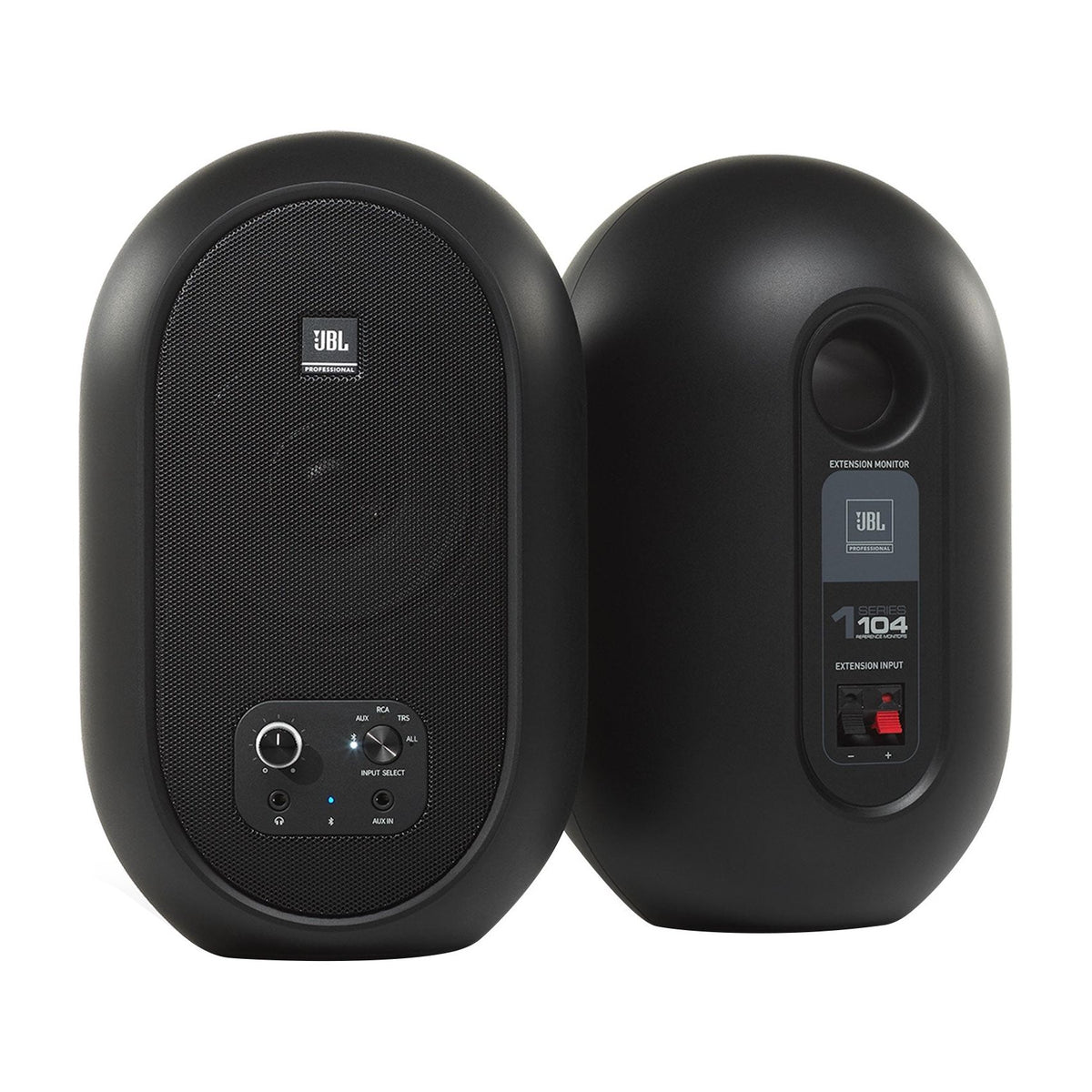

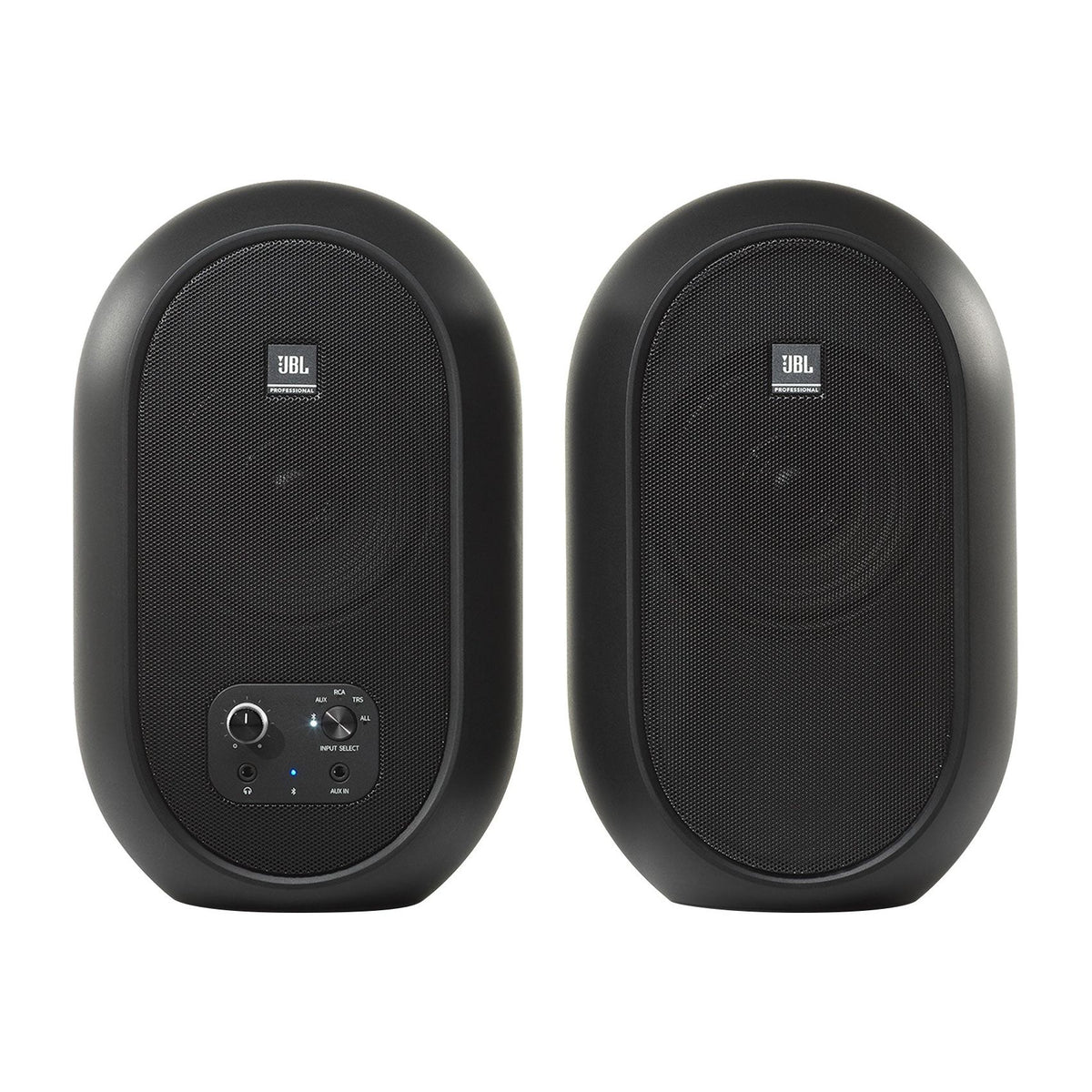

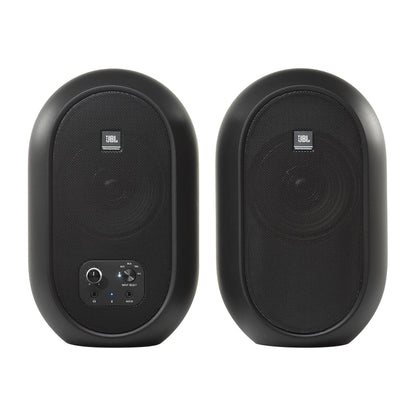

JBL 104SET-BT Pair Compact Powered Active Studio Reference Monitors Bluetooth
JBL
JBL 104SET-BT Pair Compact Powered Active Studio Reference Monitors Bluetooth
JBL 104SET-BT Pair Compact Powered Active Studio Reference Monitors Bluetooth
Powered Studio Monitor Pair, 4.5" Coaxial Drivers, 60W Class D, Bluetooth 5.0, Cables Included
Free Shipping
Features
- Coaxial 4.5 in woofer and 0.75 in soft-dome tweeter for a wide sweet spot
- 60 W Class D amplifier sends 30 W to each monitor
- Bluetooth 5.0 streaming for checking reference mixes from a phone or tablet

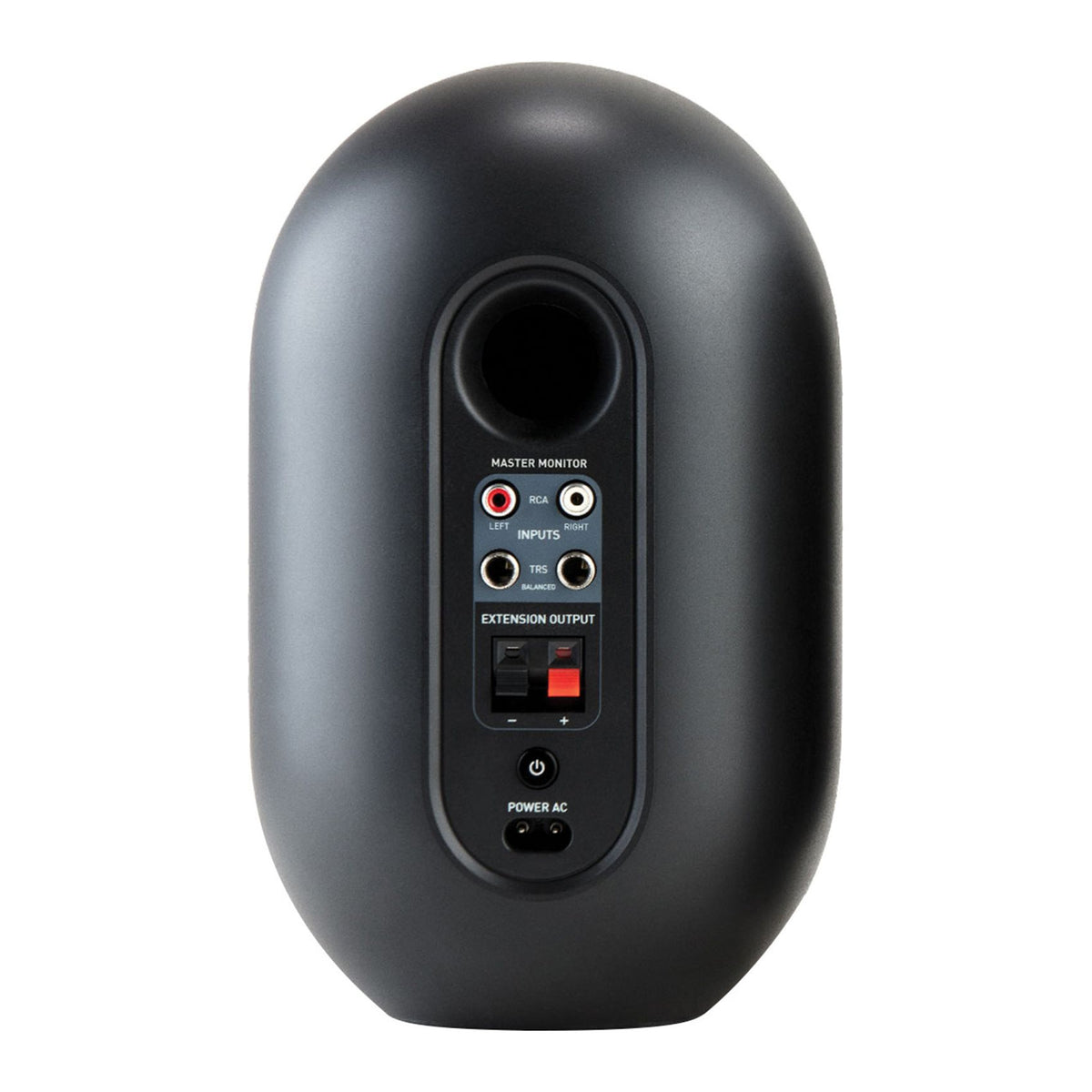

- Bluetooth, 1/8 in aux, RCA, and 1/4 in TRS balanced inputs on one panel
- Front volume knob and headphone jack that mutes the speakers automatically
Couldn't load pickup availability
What's Included in the box
- Powered monitor with amplifier and front-panel controls
- Extension monitor
- 2-conductor extension monitor speaker wire (2 m)
- 3.5 mm to RCA audio cable
- Regional power cable
SKU: SKU: 104SET-BT
View full details




Product Description
Connections cover almost any source. Three sets of inputs handle 1/4 in TRS balanced from an audio interface, RCA from a console or turntable, and 1/8 in aux from a phone or laptop. Bluetooth 5.0 streaming lets you check a reference mix from a phone without repatching cables. A front-panel selector switches between Bluetooth, Aux, RCA, TRS, or all inputs at once, and the front volume knob and 1/8 in headphone jack with automatic speaker mute keep quick adjustments within reach.
The amplifier and controls live in one cabinet, so the second monitor connects with a single supplied speaker wire and no second outlet. Each molded ABS cabinet measures 9.72 x 6.02 x 4.88 in, with a contoured low-frequency port and a metal grille, and is acoustically tuned for desktop placement.
This setup fits home recording rigs, podcast and vlog editing stations, small production rooms, and any desk where full-size monitors will not fit. Music listeners who want honest playback from a phone or computer get the same benefit.
Features
-
Accurate Sound In A Small Footprint
The coaxial driver aligns a 4.5 in woofer and 0.75 in soft-dome tweeter on one axis, holding the sweet spot wide across a desktop workspace.
-
Wireless Reference Checks
Bluetooth 5.0 streams audio straight from a phone or tablet, so you can hear how a mix holds up without repatching a single cable.
-
Connects To Everything On Your Desk
Three input sets handle 1/4 in TRS balanced, RCA, and 1/8 in aux sources, with a front selector to pick one or listen to all at once.
-
Amplification Built In
A 60 W Class D amplifier feeds 30 W to each speaker and reaches 104 dB momentary peak SPL, with no outboard amp taking up shelf space.
-
Less Cable Clutter
All electronics sit in one cabinet, so the second monitor connects with a single supplied speaker wire and does not need its own power outlet.
Technical Specifications
- Product Type Powered Studio Reference Monitors (Pair)
- System Input Type Bluetooth, 1/8 in Aux, RCA, 1/4 in TRS Balanced
- Input Selection Options Bluetooth, Aux, RCA, TRS, All
- System Output Type 1/8 in Stereo Headphone with Auto Speaker Mute
- Bluetooth Version 5.0
- LF Transducer 4.5 in (118 mm)
- HF Transducer 0.75 in (19 mm), Soft Dome
- Enclosure Type Ported
- Crossover 1725 Hz, 1st Order
- Power Amplifier 60 W (30 W Each Speaker), Class D
- Sensitivity 87 dB SPL @ 1 m with -10 dBV Aux In
- Maximum Continuous SPL 89 dB
- System Peak SPL 102 dB
- Maximum Momentary Peak SPL 104 dB
- Frequency Range (-3 dB SPL) 88 Hz - 20 kHz
- Frequency Range (-10 dB SPL) 60 Hz - 20 kHz
- System Rated Impedance 8 Ohms
- Minimum Impedance 7.8 Ohms @ 260 Hz
- Cabinet Tuning Frequency 72 Hz
- System Power Handling 30 W x 2 @ 100 Hours, IEC/SMS
- Signal To Noise Ratio 75 dBA (A-Weighted)
- Coverage (Horizontal x Vertical) 120 x 60 Degrees
- AC Input Voltage 100 - 240 VAC (+/-10%), 50/60 Hz
- Enclosure Material ABS with Metal Grille
- Enclosure Finish Matte Black Acrylic Paint
- Weight 4.54 lb Powered Monitor, 3.81 lb Extension Monitor
- Dimensions 9.72 in H x 6.02 in W x 4.88 in D
