306PMKII

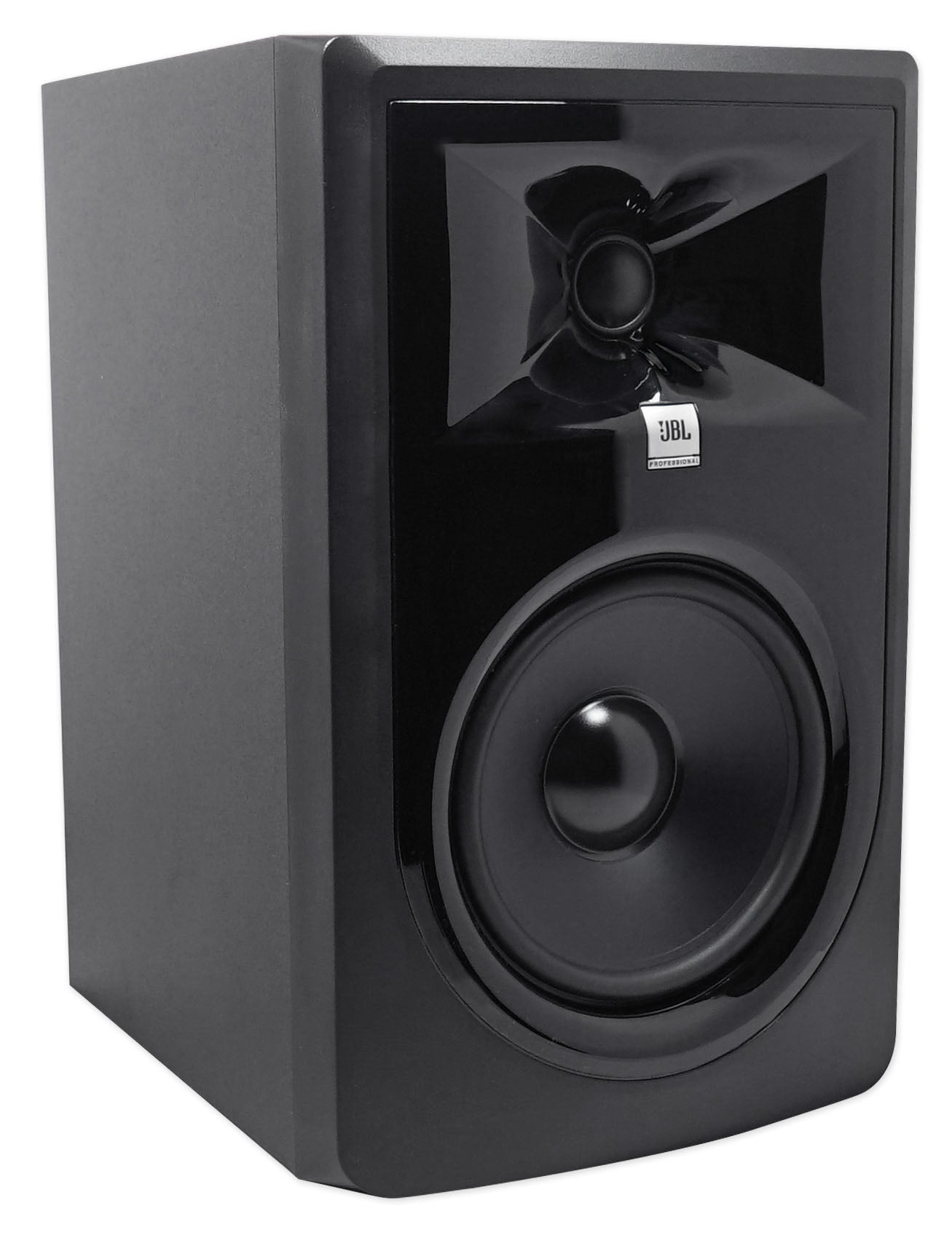

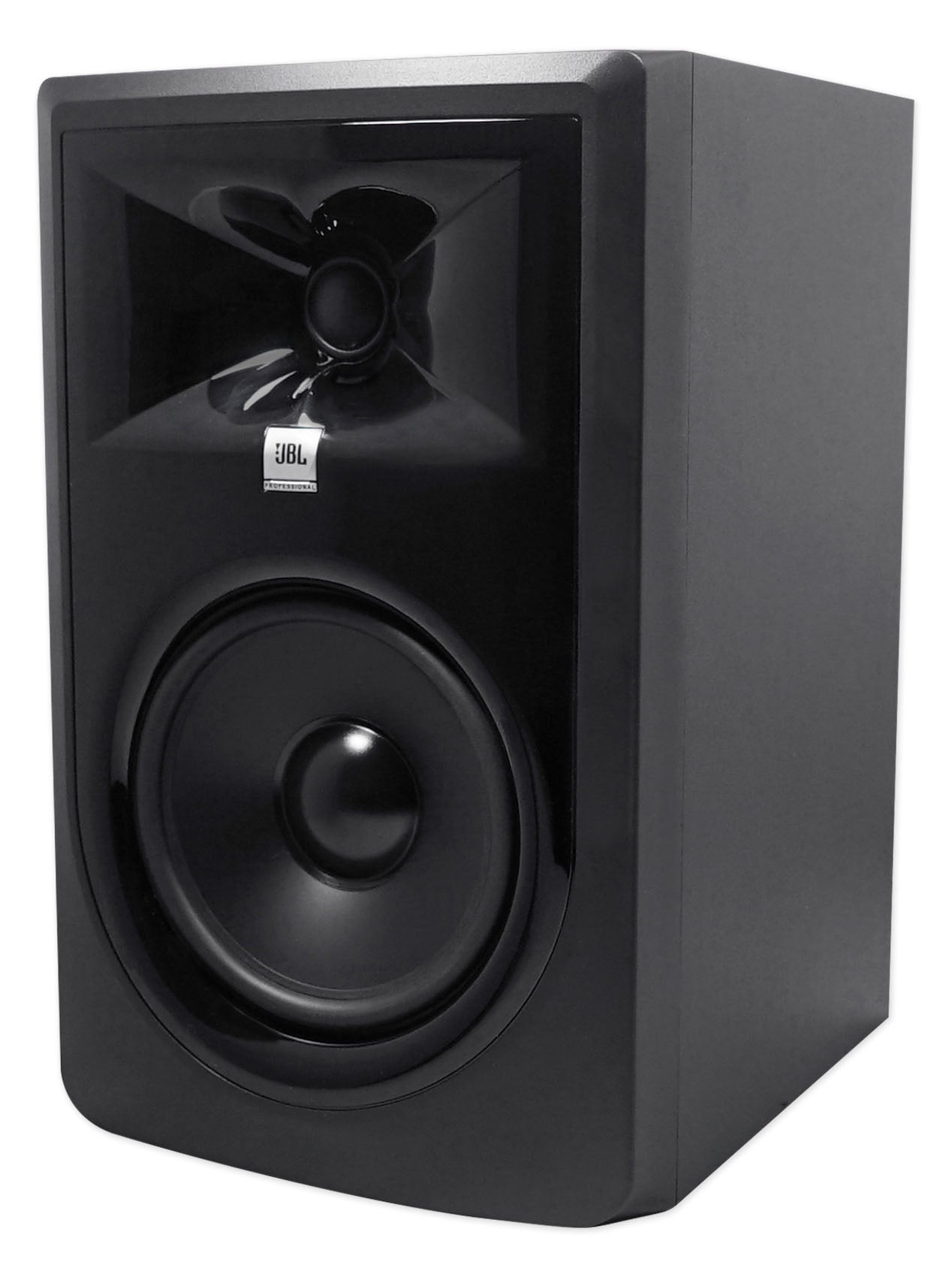

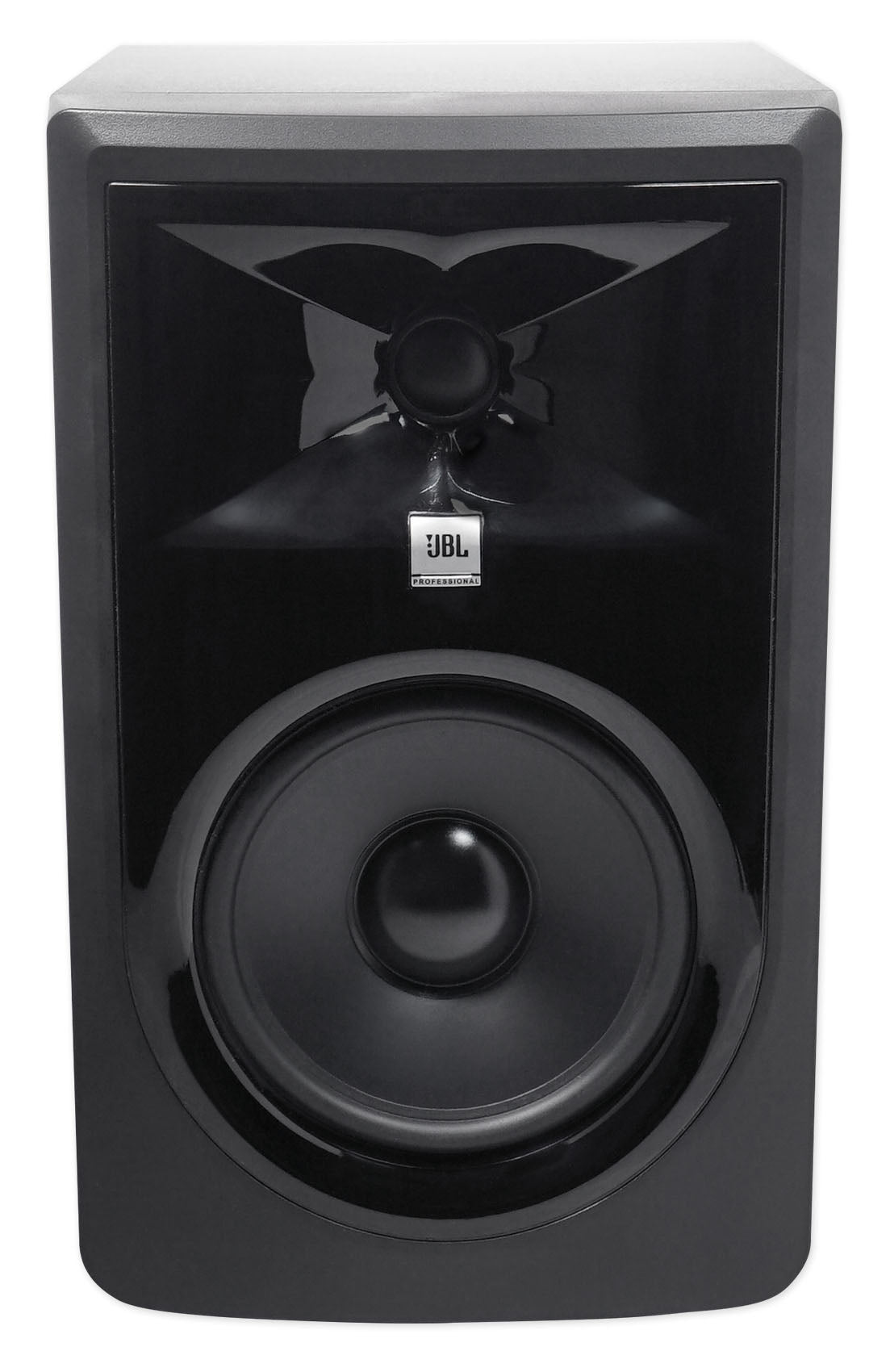

The JBL 306P MkII is a powered two-way studio monitor for rooms where mix decisions have to hold up everywhere else. A long-throw 6.5" woofer and 1 in soft-dome tweeter sit on the JBL Image Control Waveguide, a contour first developed for the flagship M2 reference monitor. It keeps the handoff between the two drivers coherent and widens the usable listening area, so off-axis response tracks close to on-axis and the mix does not shift when you lean back or when a second person sits beside you.

Two custom Class D amplifiers supply 56 W each, 112 W total, with peak output of 110 dB. Frequency response runs 47 Hz - 20 kHz at plus or minus 3 dB and extends to 39 Hz at -10 dB through the Slip Stream low-frequency port, which is shaped to stay quiet at high levels instead of chuffing.

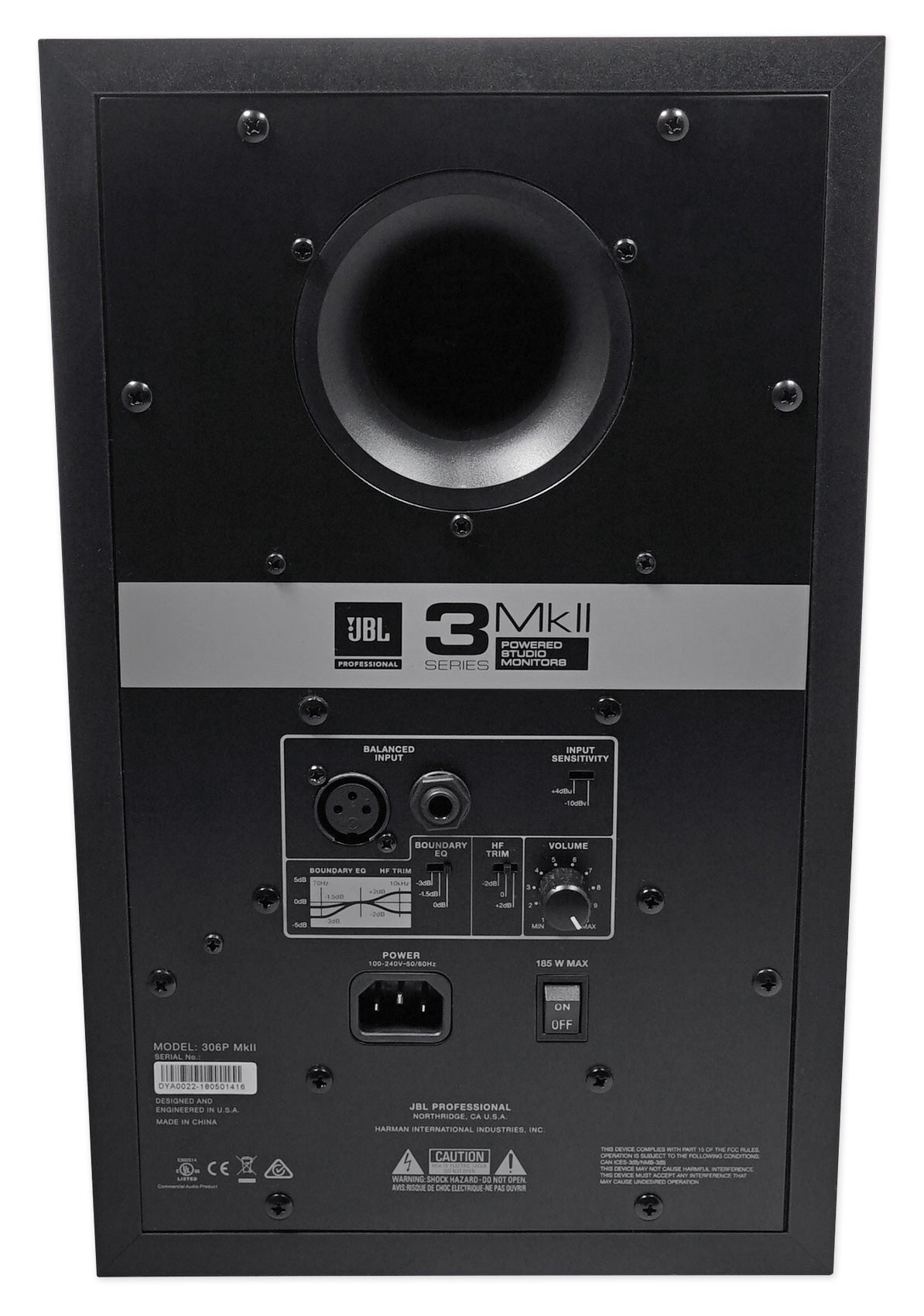

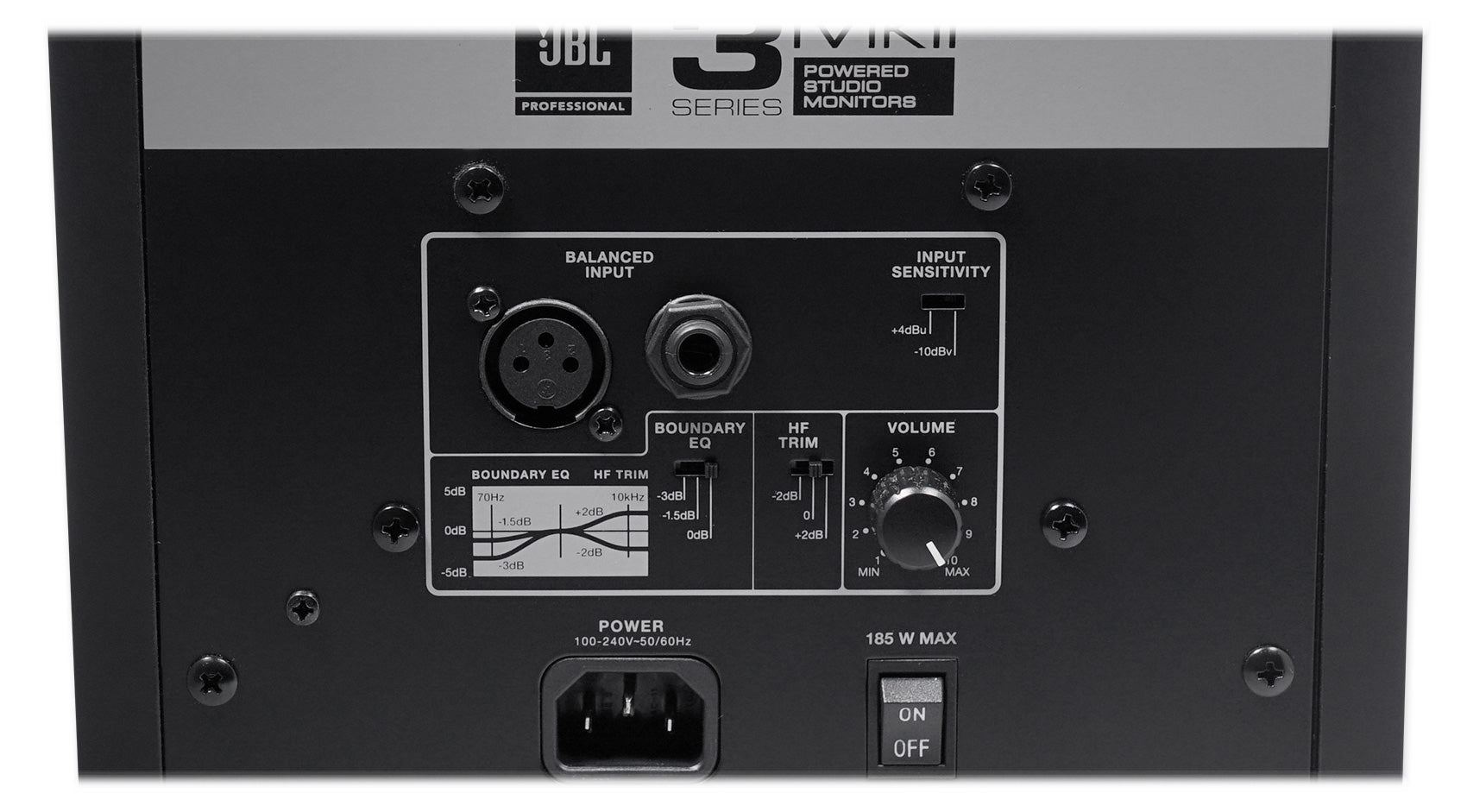

Room tuning is handled by two switches on the rear panel. Boundary EQ cuts a 50 Hz shelf by 1.5 dB or 3 dB when the monitor sits directly on a desk or near a wall, correcting the bass buildup those positions cause. A three-position HF Trim shifts treble by plus or minus 2 dB for rooms that read bright or heavily damped.

Balanced XLR and 1/4 in TRS inputs with a +4 dBu / -10 dBV sensitivity switch connect to interfaces, consoles, and monitor controllers without adapters. The 15 mm MDF cabinet measures 14.2 x 8.8 x 11.1 in and weighs 13.42 lb, sized for desktops, stands, and edit bays handling music production, podcasting, film sound, and broadcast work.
