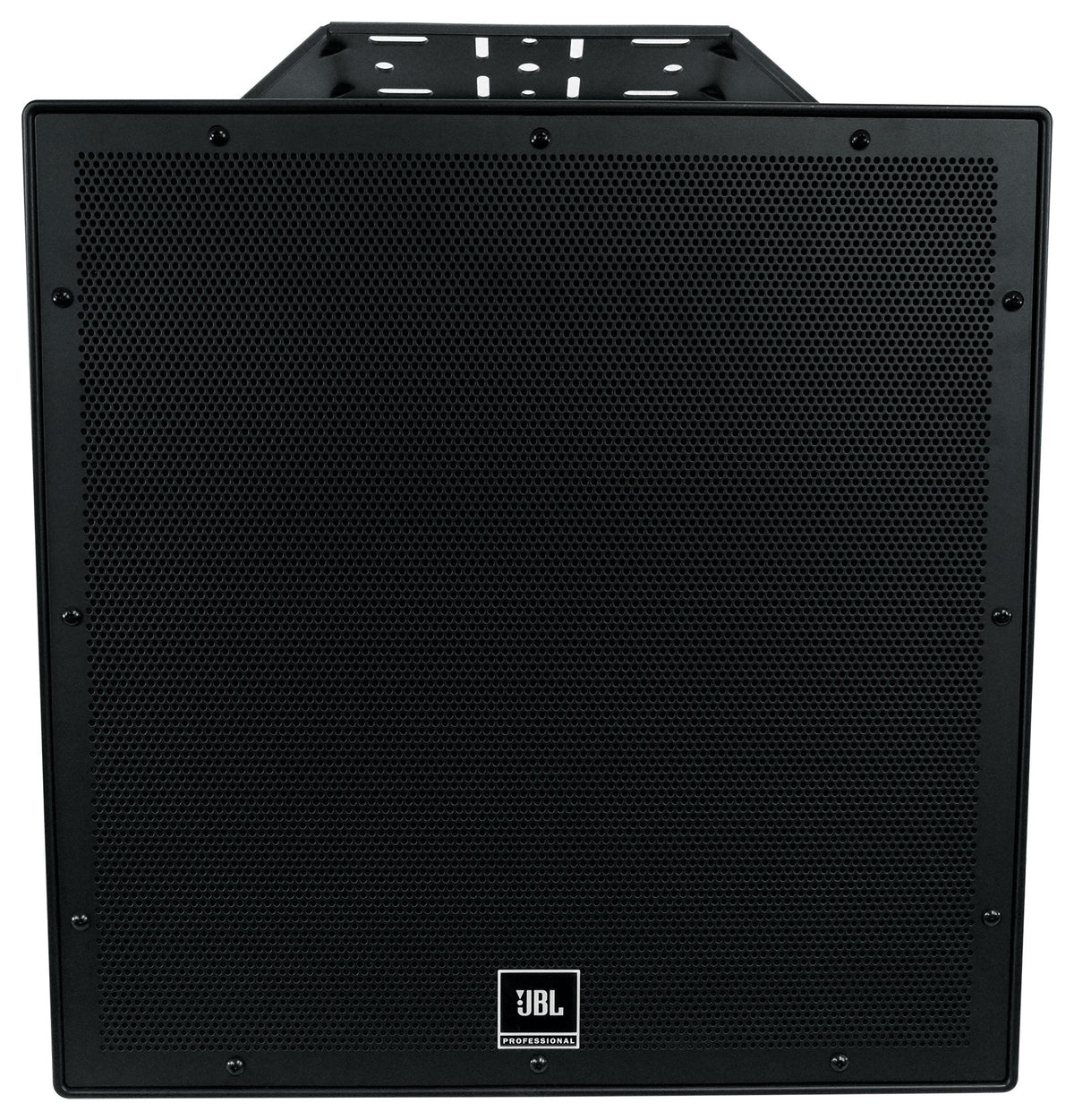

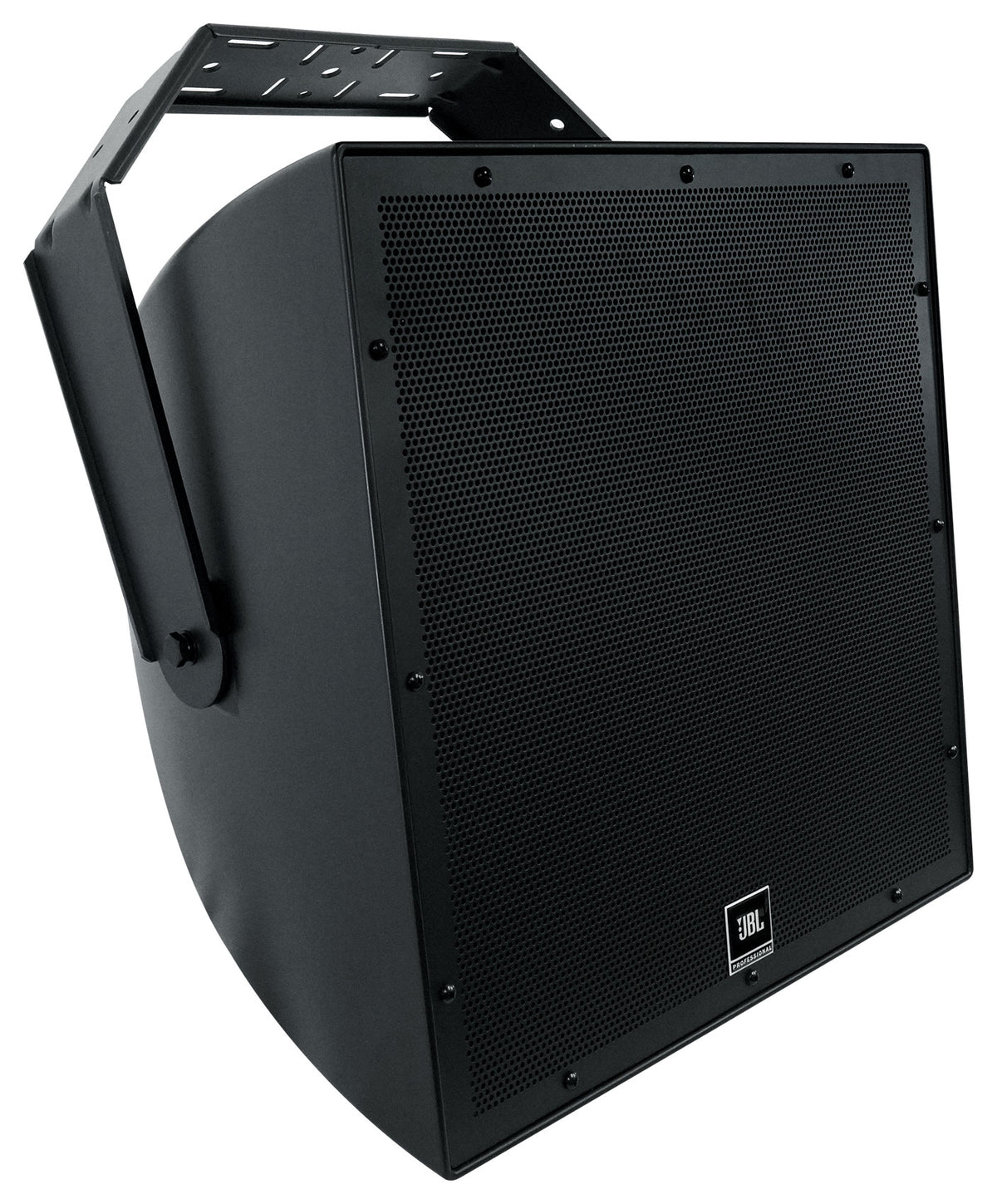

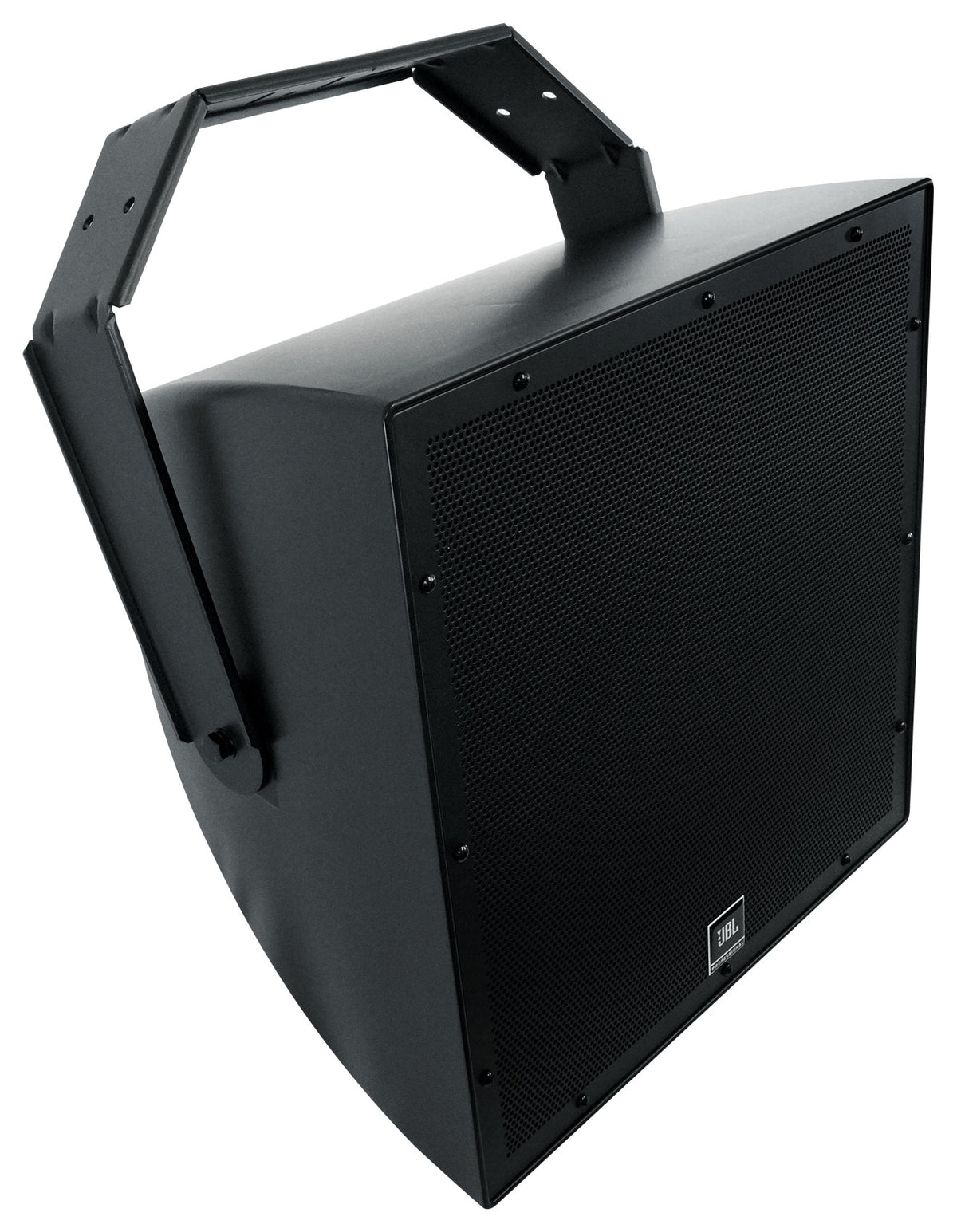

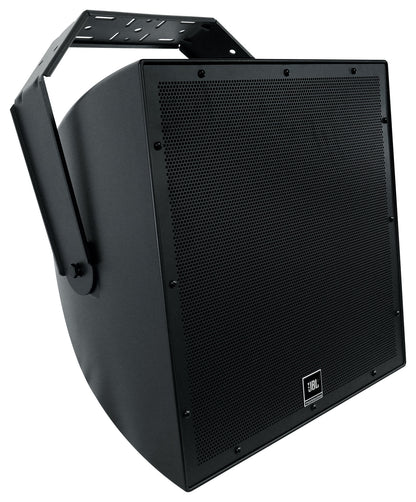

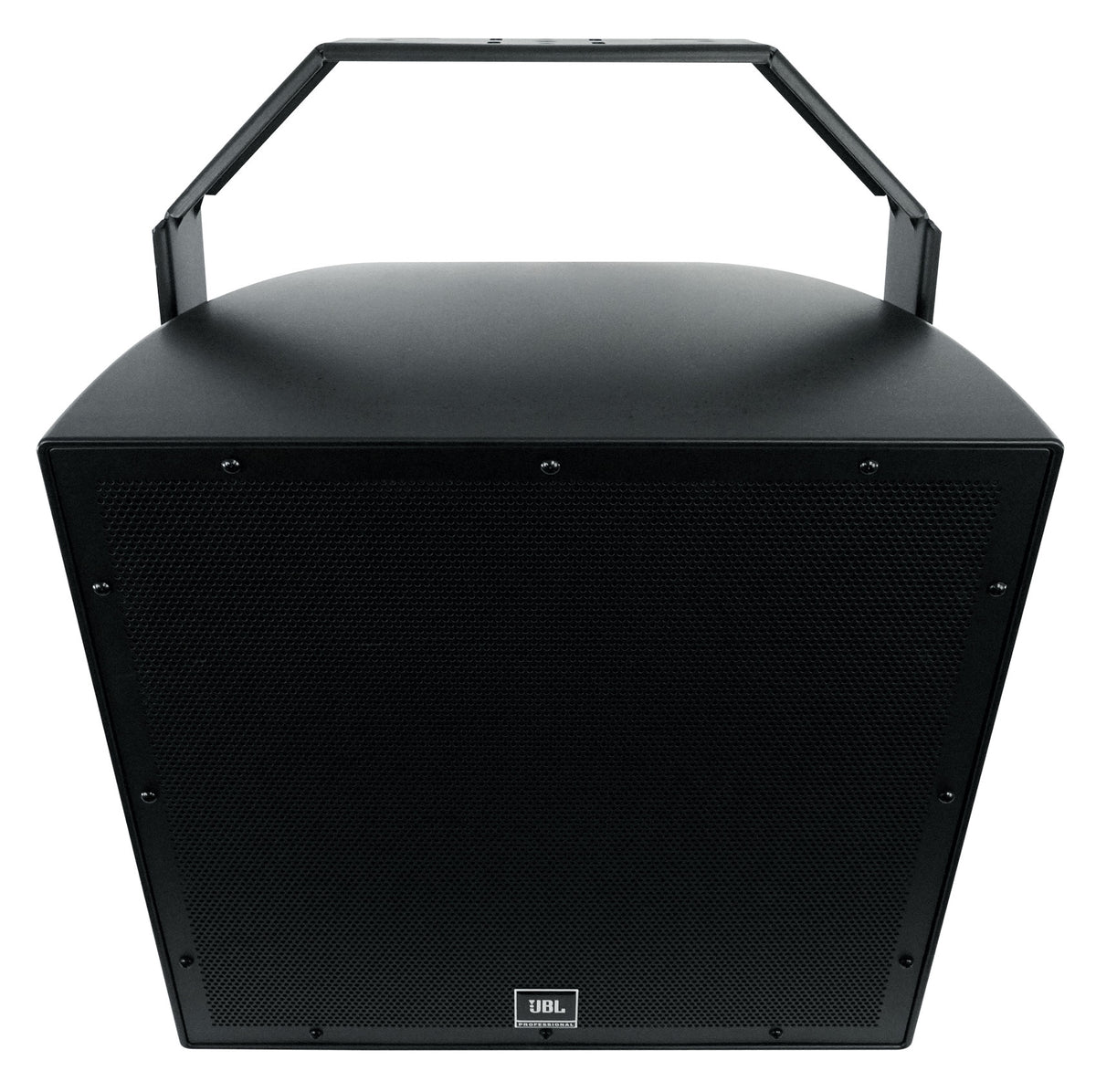

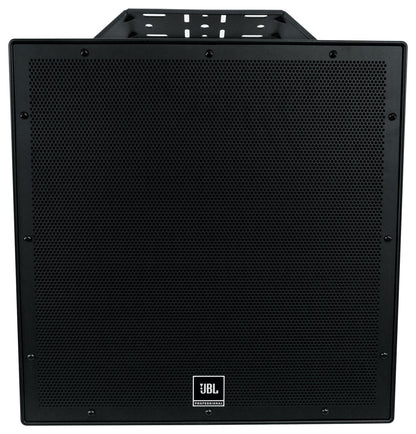

AWC159-BK 15" 300W Black Indoor/Outdoor 70V Surface Mount Commercial Speaker
JBL
AWC159-BK 15" 300W Black Indoor/Outdoor 70V Surface Mount Commercial Speaker
AWC159-BK 15" 300W Black Indoor/Outdoor 70V Surface Mount Commercial Speaker
2-Way Coaxial Outdoor Speaker, 15" Woofer, 300W 70V/100V, IP56 Rated, U-Bracket Included
Features
- 15 inch Kevlar-reinforced woofer delivers extended low-frequency output
- 1.5 inch compression driver keeps speech and vocals clear
- IP56 rating withstands rain, salt spray, and direct sun
- 300W 70V/100V multi-tap or direct 8 ohm operation
- Includes color-matched U-bracket for wall or pole mounting
Couldn't load pickup availability

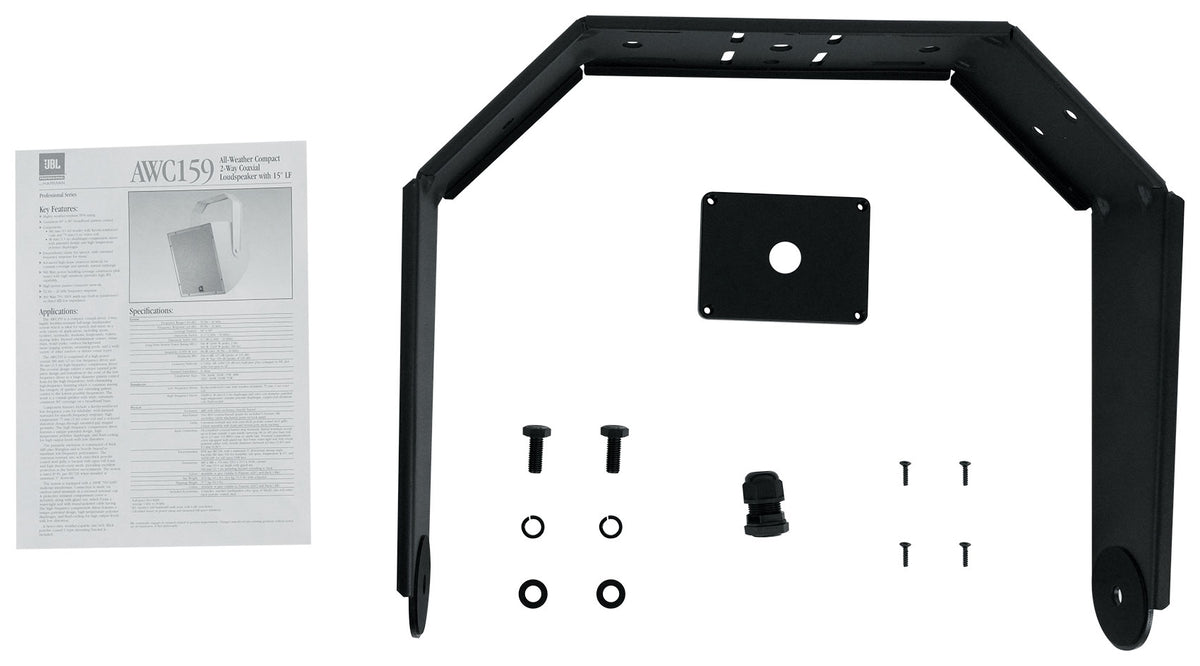

What's Included in the box
- AWC159-BK Loudspeaker
- U-Bracket Mounting Hardware
SKU: SKU: AWC159-BK*
View full details









Product Description
Features
Built for Outdoor Punishment
An IP56 rating and Mil Spec 810 tested housing let this speaker run through rain, salt air, and heat without losing performance over time.
Wide, Even Coverage
A 90 degree by 90 degree coverage pattern spreads sound consistently across large areas, cutting down on the number of speakers a venue needs.
Clear Sound at Volume
The coaxial woofer and compression driver pairing keeps speech intelligible and music detailed even at high output levels in stadiums, racetracks, and outdoor venues.
Flexible Power Options
A 70V/100V multi-tap transformer or direct 8 ohm wiring lets this speaker join an existing distributed system or run on its own amplifier.
Ready to Mount

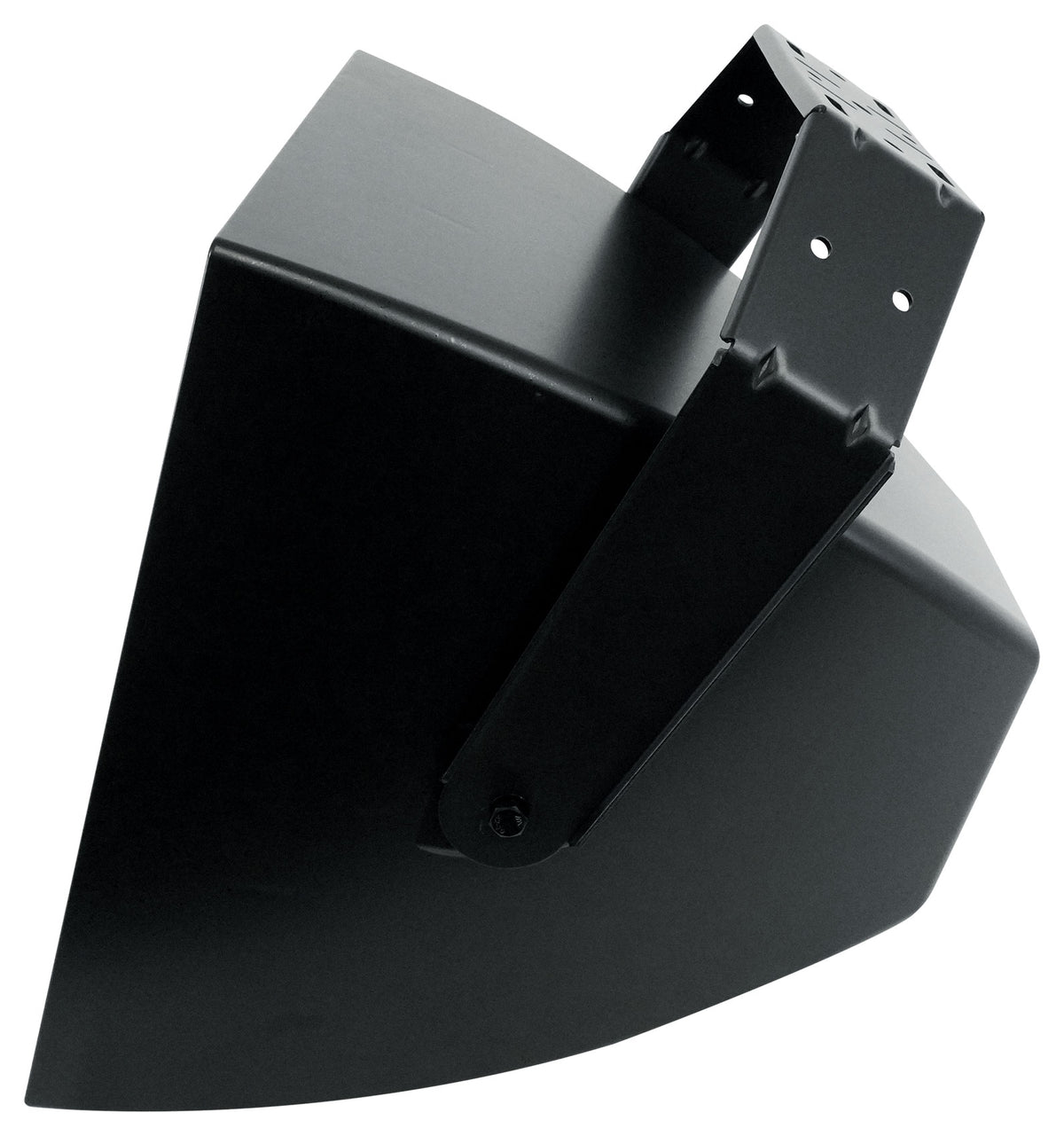

The included U-bracket matches the black finish and attaches quickly to walls, poles, or trusses, so installers don't need to source separate hardware.
Technical Specifications
- Product Type All-Weather 2-Way Coaxial Loudspeaker

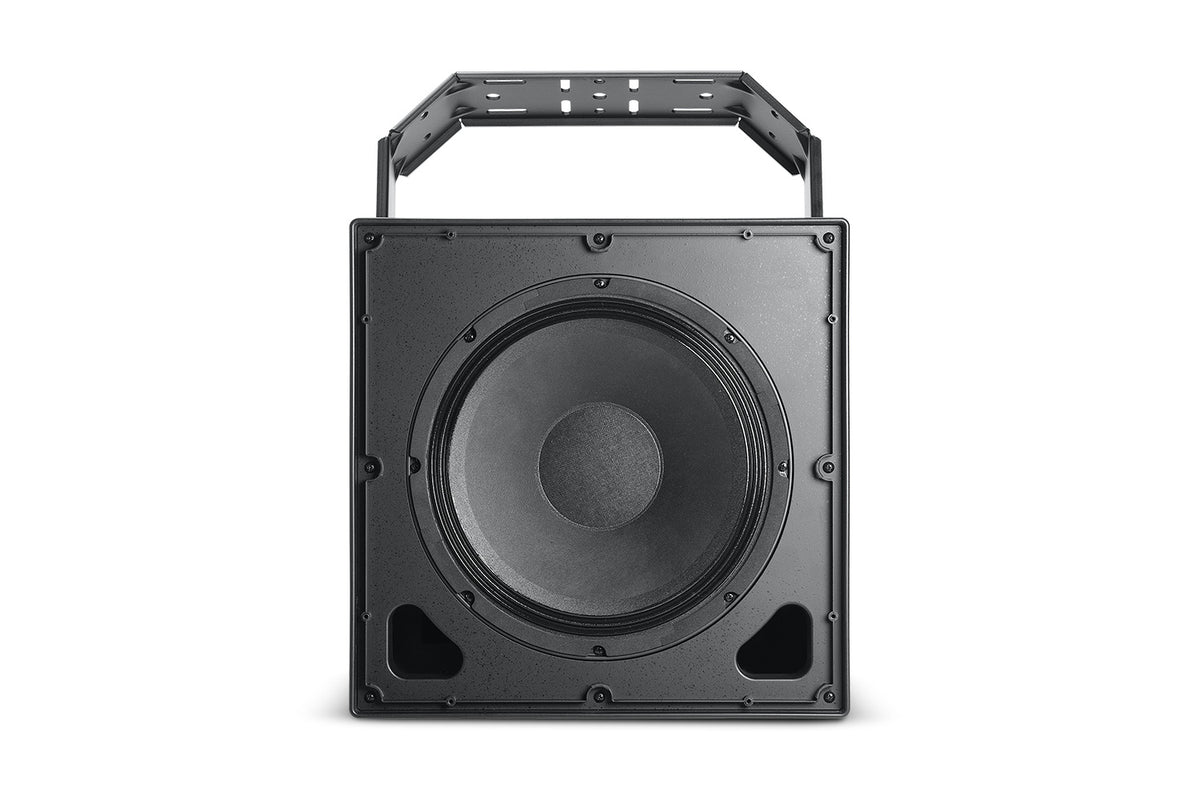

- Woofer 15 in (380 mm) Kevlar-reinforced cone
- Compression Driver 1.5 in (38 mm) diaphragm
- Frequency Response 52 Hz - 20 kHz
- Power Handling 500 W peak / 300 W continuous
- Coverage Pattern 90° x 90°
- Impedance 8 ohms

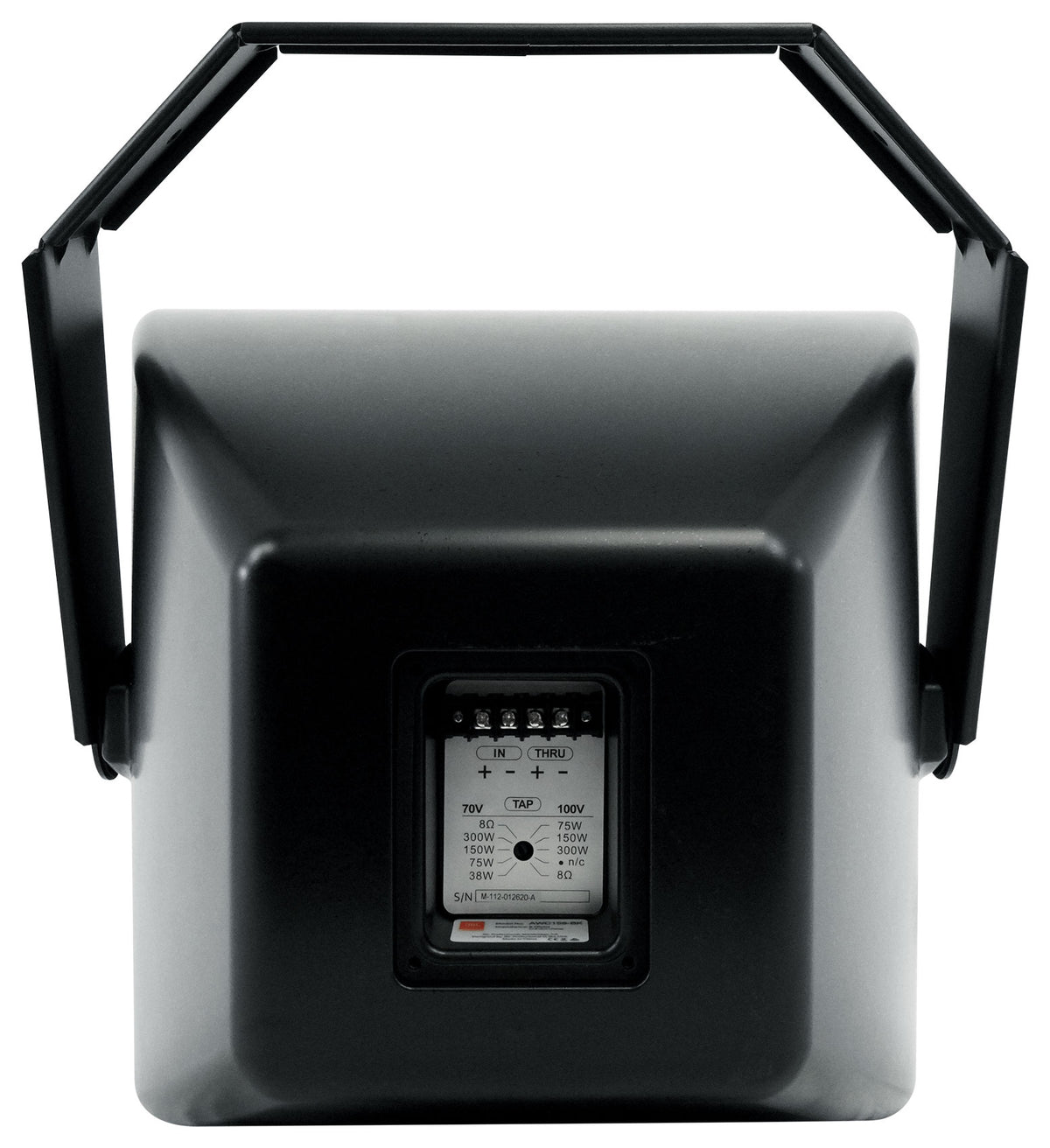

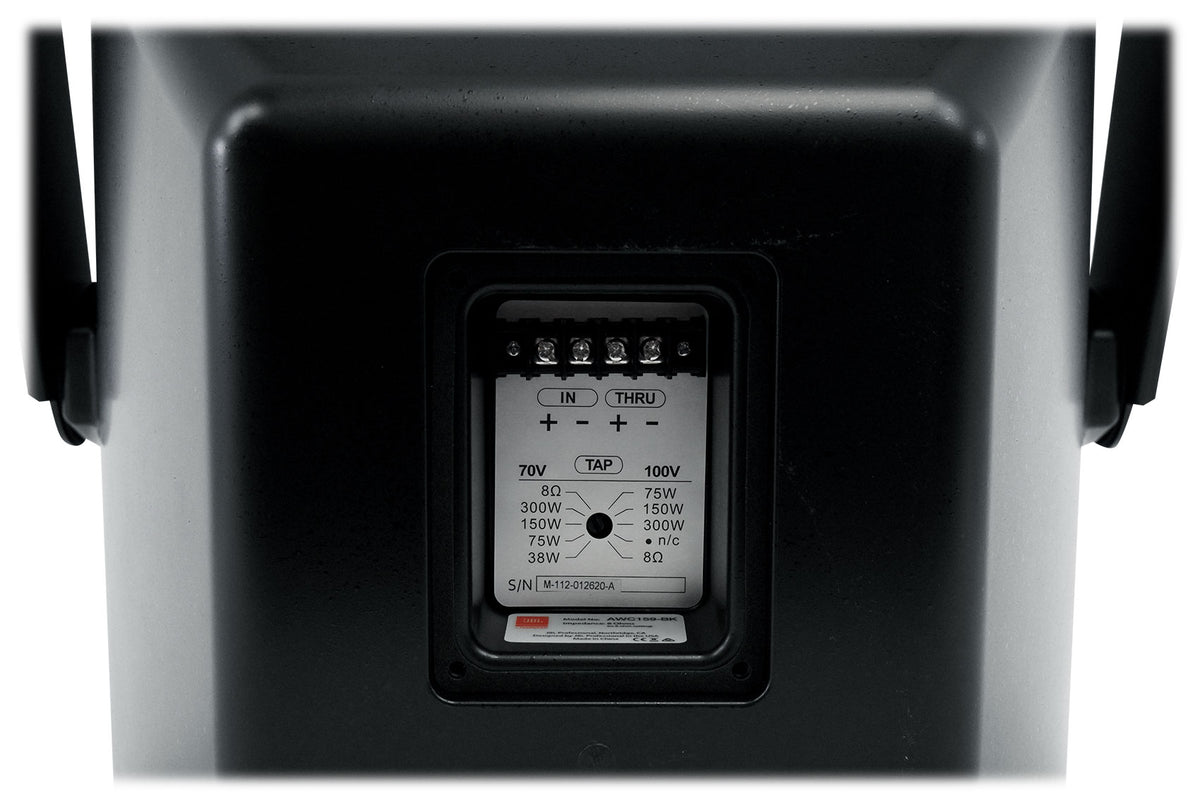

- Transformer Taps 70V/100V: 300W, 150W, 75W, 38W
- Environmental Rating IP56
- Included Accessory U-Bracket
- Weight 45.5 lb (20.6 kg)
- Dimensions 19.1 x 19.1 x 18.8 in
