Refurbished

JBL

AWC159 [Refurbished]

Name: AWC159 [Refurbished]
Brand: JBL
SKU: AWC159 RB
Price: 1058.00 USD
Availability: InStock

15" All-Weather 2-Way Coaxial Loudspeaker, IP56, 70V/100V or 8 Ohm

$1,058.00

$1,058.00 ~~$1,800.53~~

Save 41%

Shipping calculated at checkout.

Features

15-inch Kevlar-reinforced woofer with 1.5-inch compression driver
IP56 weather resistance for outdoor and indoor venues
Consistent 90° x 90° broadband coverage pattern

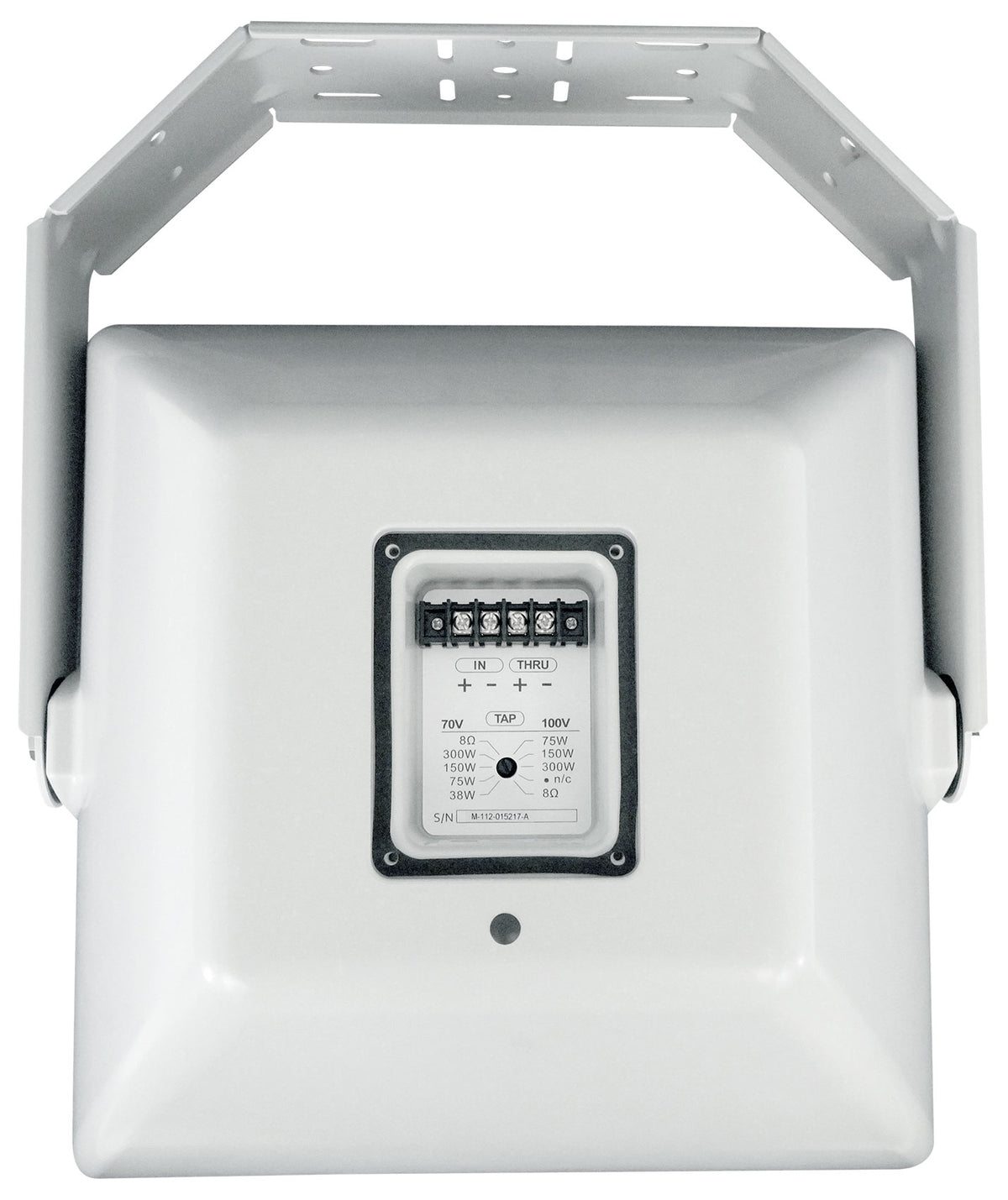

300 W 70V/100V multi-tap transformer or 8-ohm direct input
Includes color-matched [Used]-bracket for mounting

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

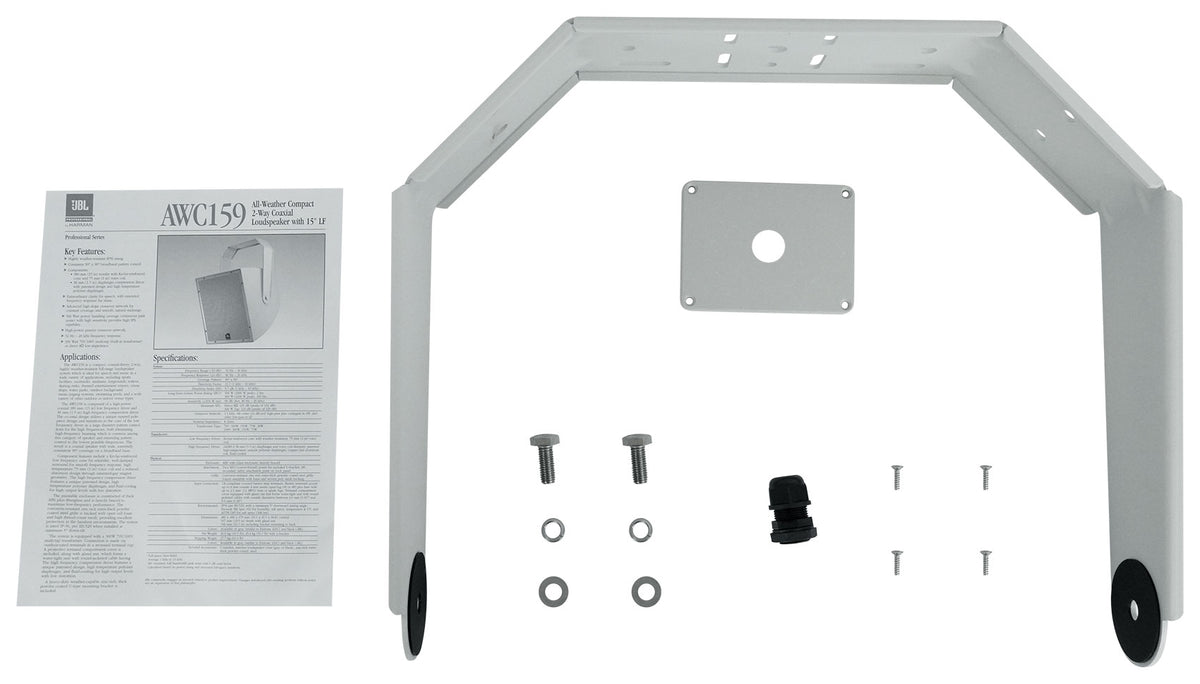

What's Included in the box

(1) JBL AWC159 Loudspeaker

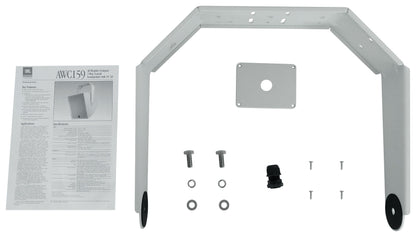

(1) Color-Matched [Used]-Bracket

SKU: SKU: AWC159 RB

View full details

Product Description

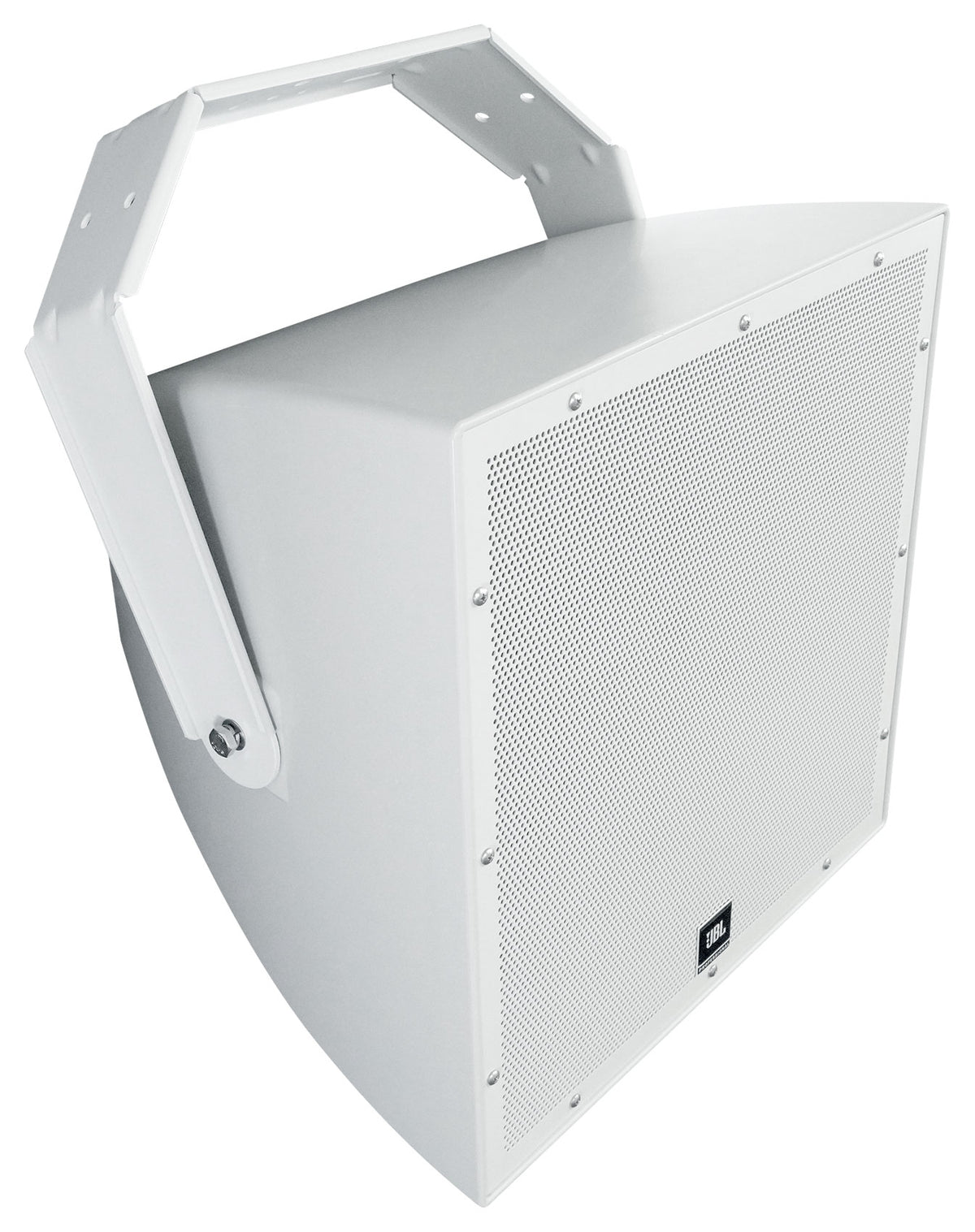

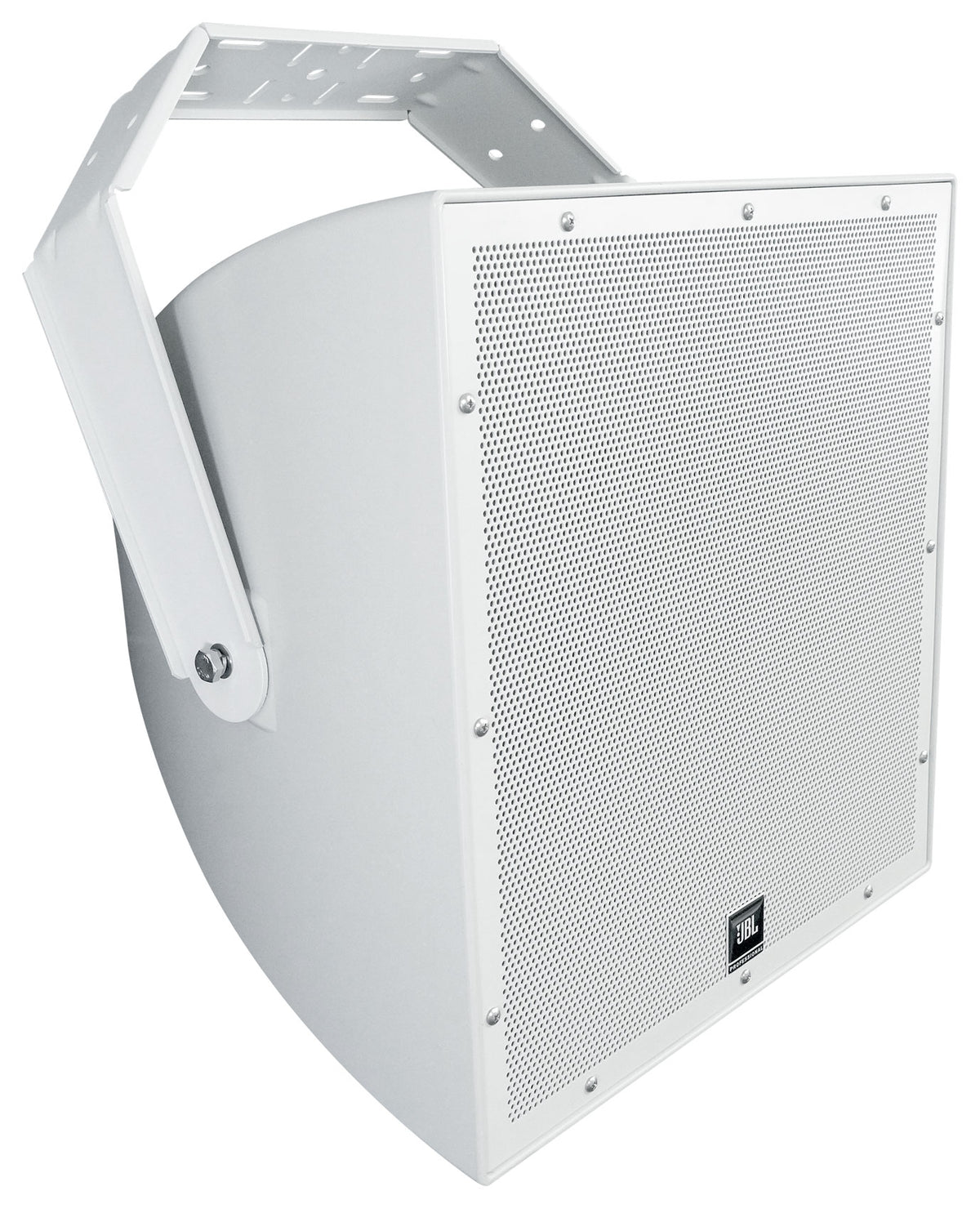

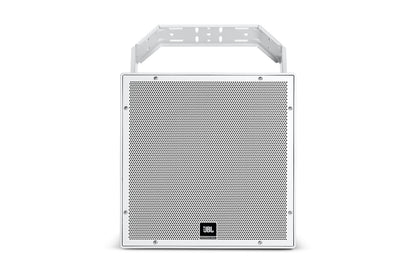

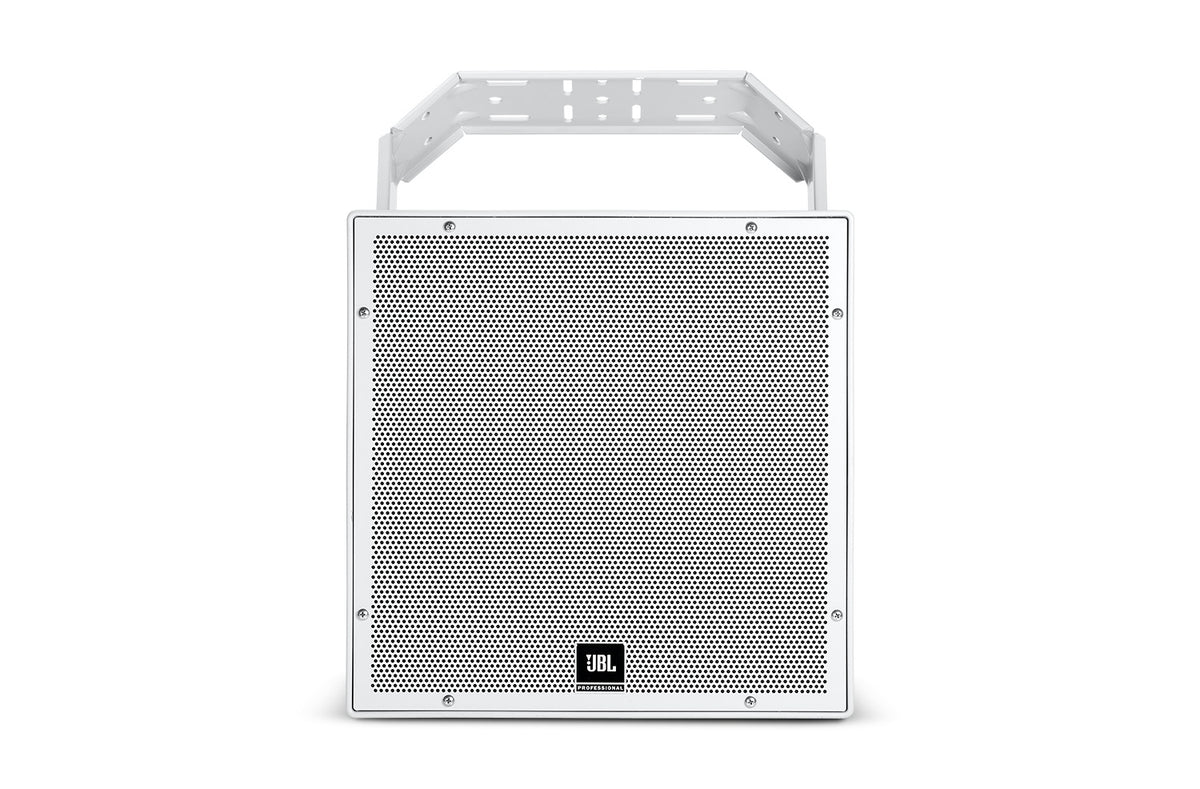

The JBL AWC159 is a compact, highly weather-resistant 2-way coaxial loudspeaker for speech and music outdoors or indoors. A 15-inch Kevlar-reinforced woofer and 1.5-inch diaphragm compression driver deliver 90 x 90 coverage with a 52 Hz to 20 kHz frequency range. System power rating reaches 500 W (2 hrs) / 300 W (100 hrs) continuous pink noise, with 98 dB sensitivity and high SPL capability. A built-in 300 W multi-tap transformer supports 70V/100V systems or direct 8-ohm operation. An IP56-rated ABS-with-glass enclosure, corrosion-resistant grille, and included [Used]-bracket suit stadiums, parks, pools, cruise ships, and other demanding venues.

Features

All-Weather Durability

IP56 rating, weather-treated cone, corrosion-resistant grille, and sealed input gland nut support outdoor installs at stadiums, parks, and pools.
Clear Speech and Extended Music

A coaxial 2-way design with high-slope crossover delivers clear speech and extended frequency response for music playback.
Controlled 90 x 90 Coverage

Consistent broadband pattern control helps aim energy where listeners are instead of spilling into [Used]nused areas.
Flexible System Drive

Choose 70V/100V taps [Used]p to 300 W or direct 8-ohm operation to match the amplifier and distributed-audio design.
Mounting Included

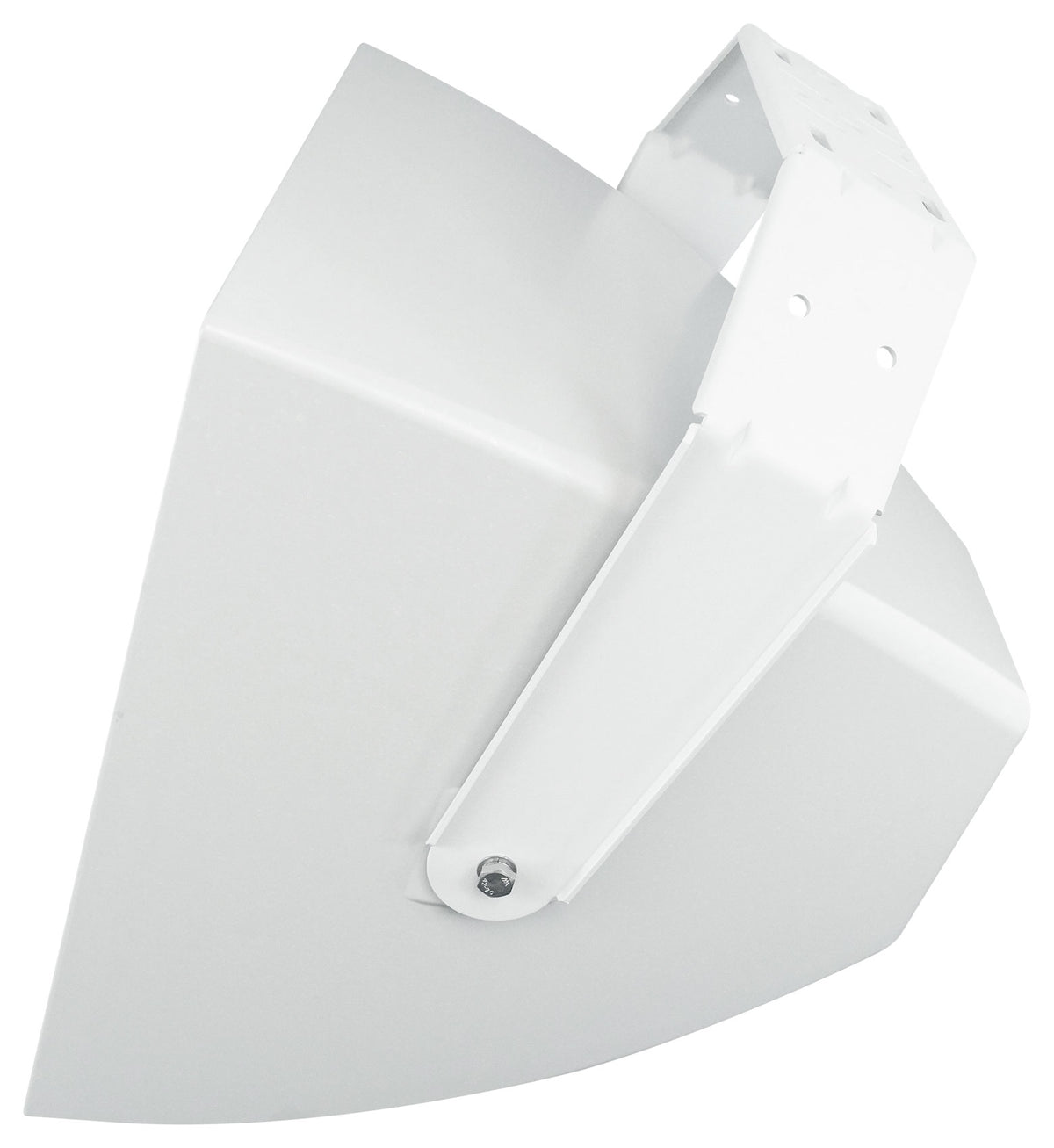

A zinc-rich powder-coated [Used]-bracket matches the loudspeaker color and attaches via M10 points for straightforward aiming.

Technical Specifications

Product Type All-Weather 2-Way Coaxial Loudspeaker
Frequency Range (-10 dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 20 kHz
Coverage 90° x 90°
Power Rating 500 W (2 hrs) / 300 W (100 hrs) continuous pink noise
Sensitivity 98 dB (2.83V @ 1m)
Max SPL 125 dB direct 8 ohm (peaks 131 dB)
Nominal Impedance 8 ohms

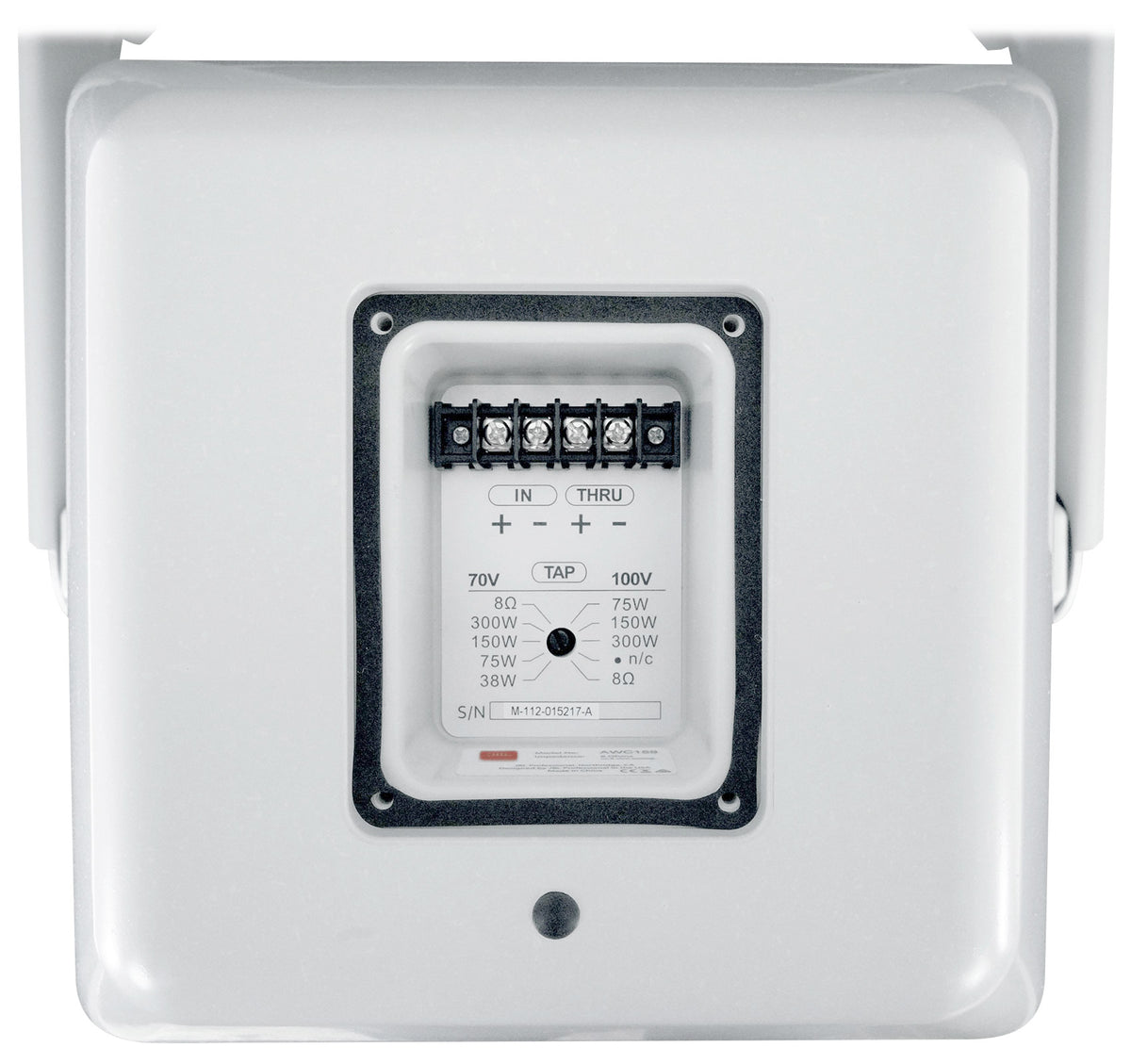

Transformer Taps 70V: 300/150/75/38 W; 100V: 300/150/75 W
LF Driver 380 mm (15 in) Kevlar-reinforced cone, 75 mm voice coil
HF Driver 38 mm (1.5 in) diaphragm compression driver
Environmental IP56 (IEC529)
Net Weight 45.5 lb (20.6 kg)
Included [Used]-bracket

AWC159 [Refurbished]
