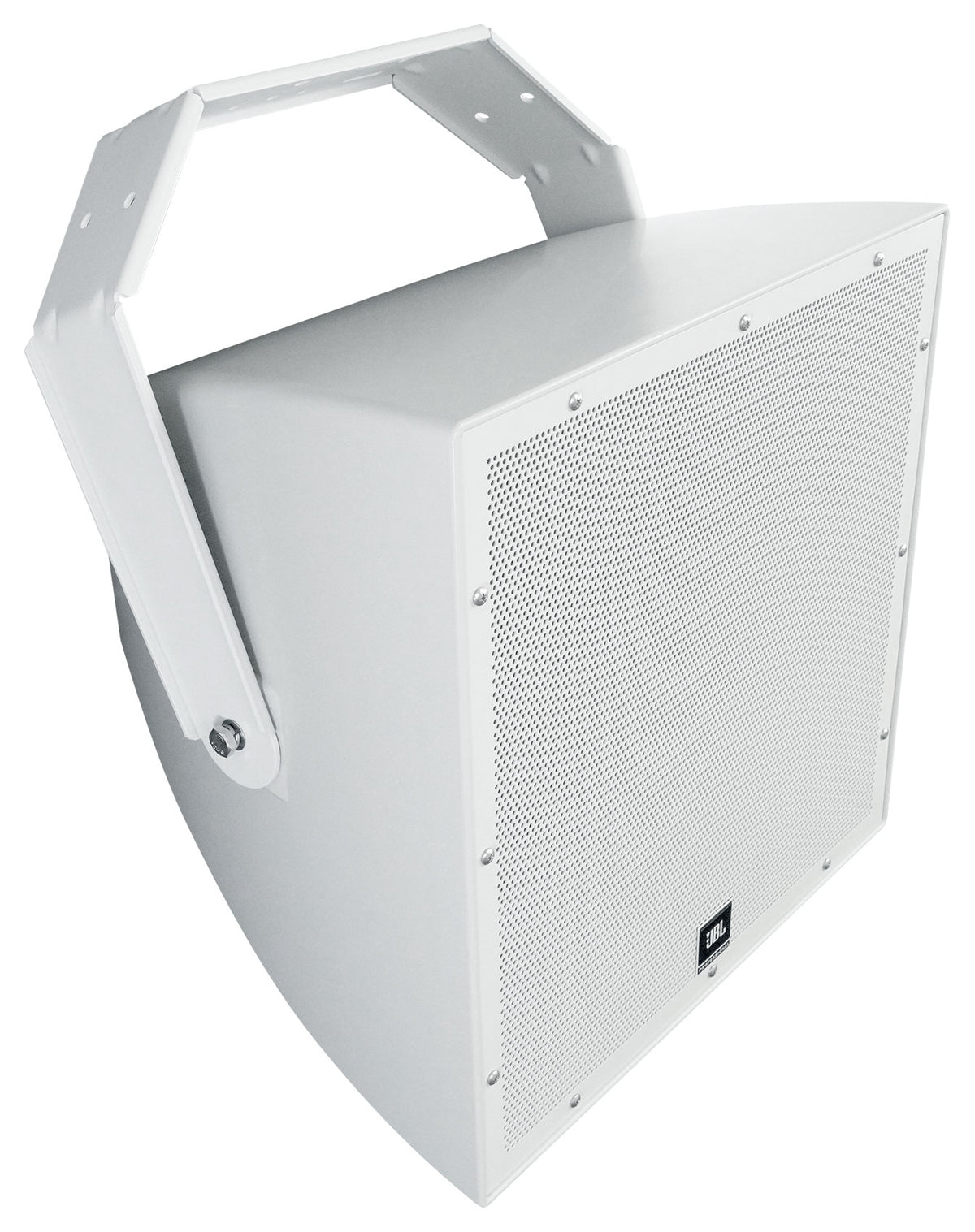

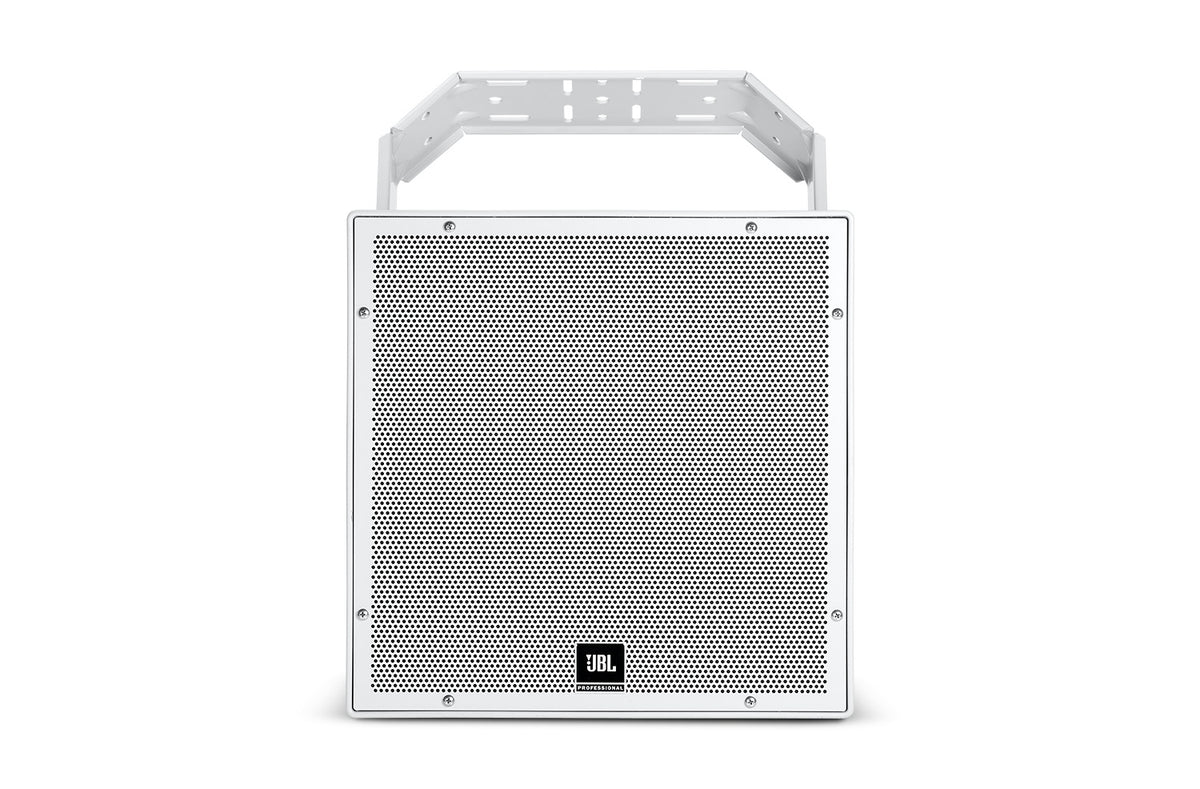

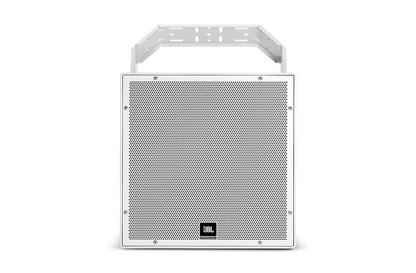

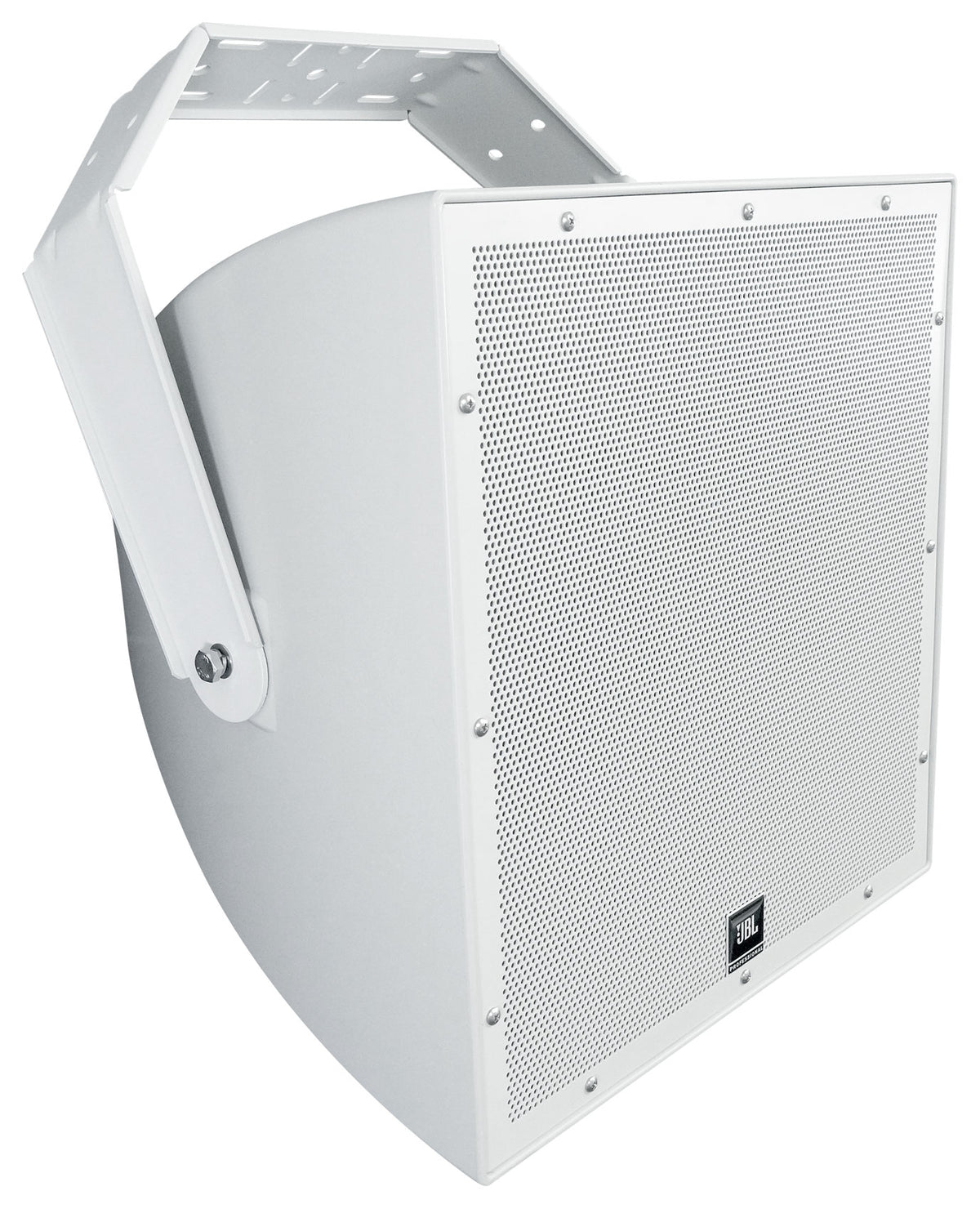

AWC159 15" 300W 2-Way Indoor/Outdoor 70V Surface Mount Commercial Speaker
JBL
AWC159 15" 300W 2-Way Indoor/Outdoor 70V Surface Mount Commercial Speaker
AWC159 15" 300W 2-Way Indoor/Outdoor 70V Surface Mount Commercial Speaker
15" 300W Weather-Resistant Coaxial Loudspeaker, 70V/100V Multi-Tap, High-Output Design
Features
- 15-inch Kevlar-reinforced woofer with 1.5-inch compression driver
- IP56 weather-resistant rating for reliable outdoor performance
- 500W power handling with 125 dB maximum SPL at 1 meter
- 90-degree by 90-degree broadband pattern control for even coverage
- 300W 70V/100V multi-tap transformer with direct 8-ohm operation
Couldn't load pickup availability

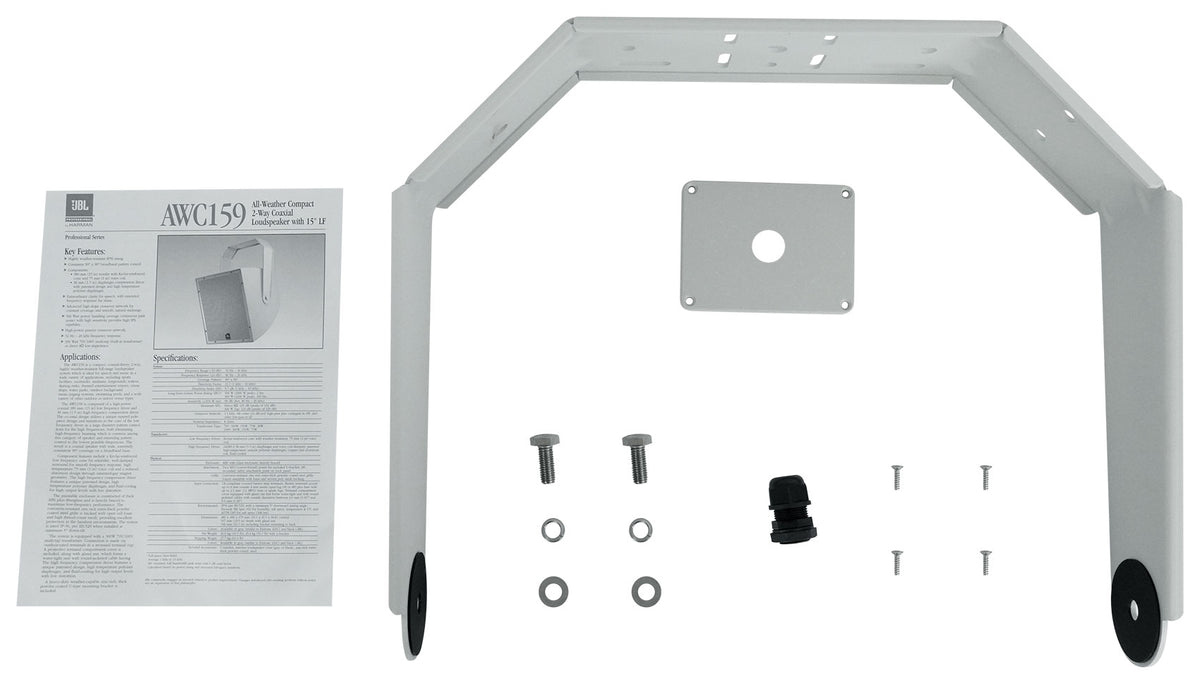

What's Included in the box
- (1) JBL AWC159 15-inch 2-way indoor/outdoor loudspeaker
- (1) U-bracket for surface mounting
SKU: SKU: AWC159*
View full details







Product Description
A 300-watt 70V/100V multi-tap transformer with direct 8-ohm operation gives installers the flexibility to run the AWC159 on a distributed line or a standalone amplifier, and an included U-bracket simplifies surface mounting. The same corrosion-resistant grille, sealed input terminals, and Mil Spec 810 environmental rating found on the AWC129 carry over here, so the AWC159 holds up to humidity, salt spray, and temperature extremes over long-term outdoor use. Available in gray or black, the AWC159 suits stadiums, racetracks, fairgrounds, and other large venues where a single loudspeaker needs to cover significant distance and compete with crowd noise.
Features
High-Output Sound Reinforcement
500W of power handling and 125 dB maximum SPL make the AWC159 a fit for large venues that need to project over crowd noise.
Weatherproof Construction
An IP56 rating and corrosion-resistant grille let this speaker run outdoors year-round without losing performance.
Wide, Even Coverage
A 90 by 90 degree broadband pattern spreads sound evenly across large stadium and racetrack footprints.

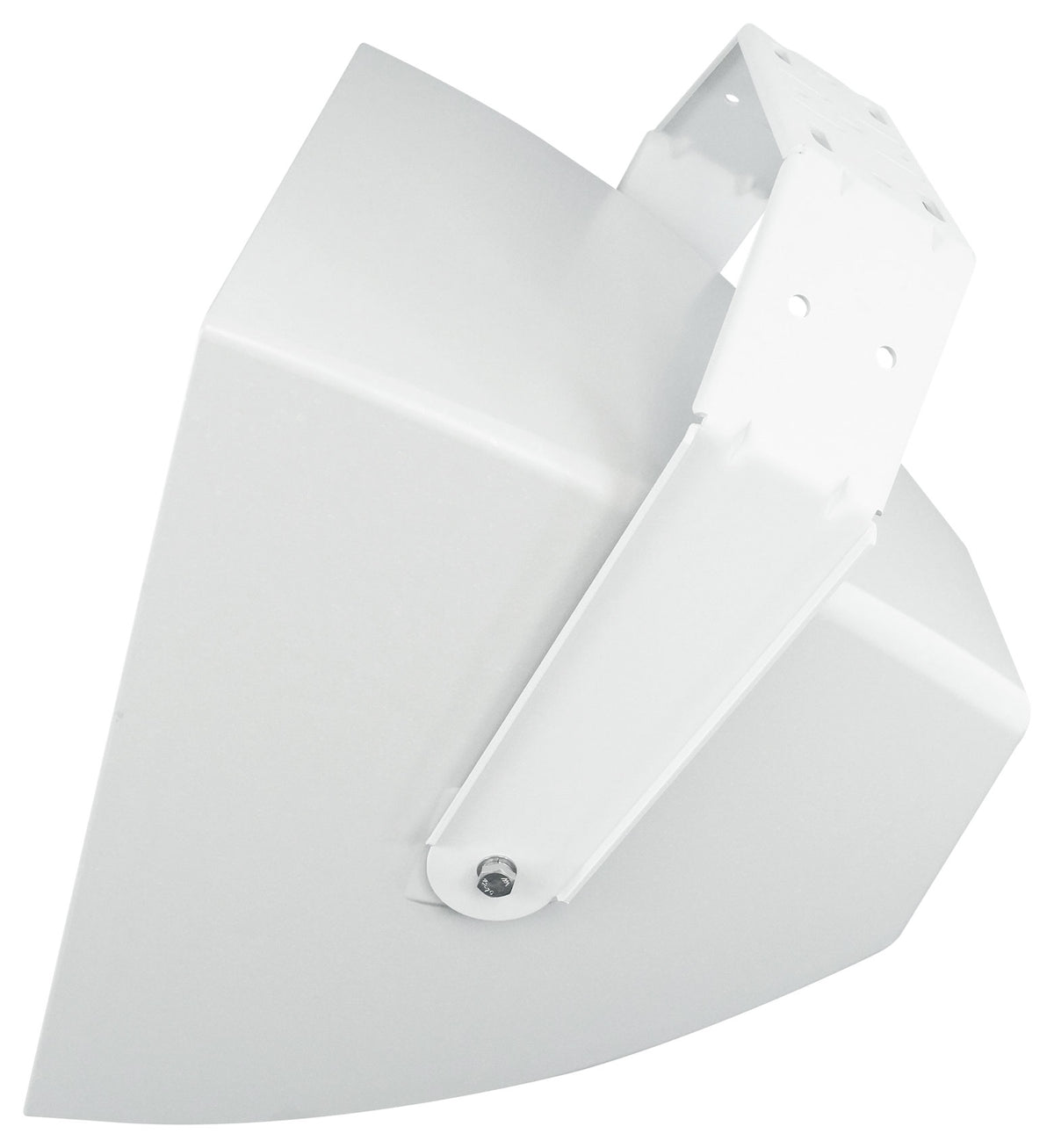

Built-In Mounting Hardware
The speaker ships with a matching U-bracket, so surface mounting is ready to go without sourcing separate hardware.
Flexible Power Options

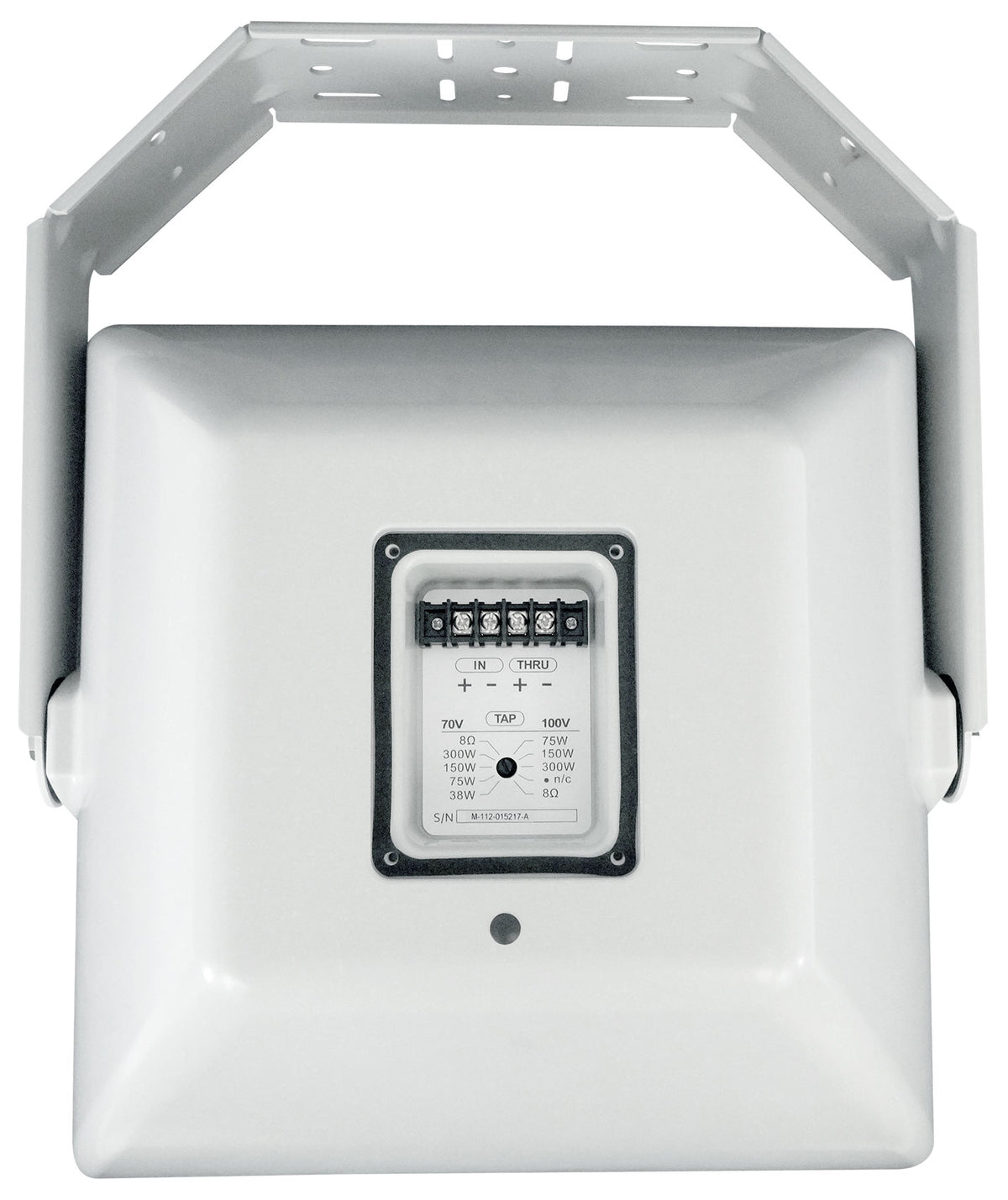

A 300W 70V/100V multi-tap transformer with 8-ohm thru operation lets the speaker integrate into distributed or standalone systems.
Technical Specifications
- Product Type Indoor/Outdoor Coaxial Loudspeaker
- LF Driver 15 in Kevlar-reinforced cone, 3 in voice coil
- HF Driver 1.5 in compression driver, fluid-cooled
- Frequency Response 52 Hz to 20 kHz
- Coverage Pattern 90 x 90 degrees
- Power Rating 500 W continuous pink noise

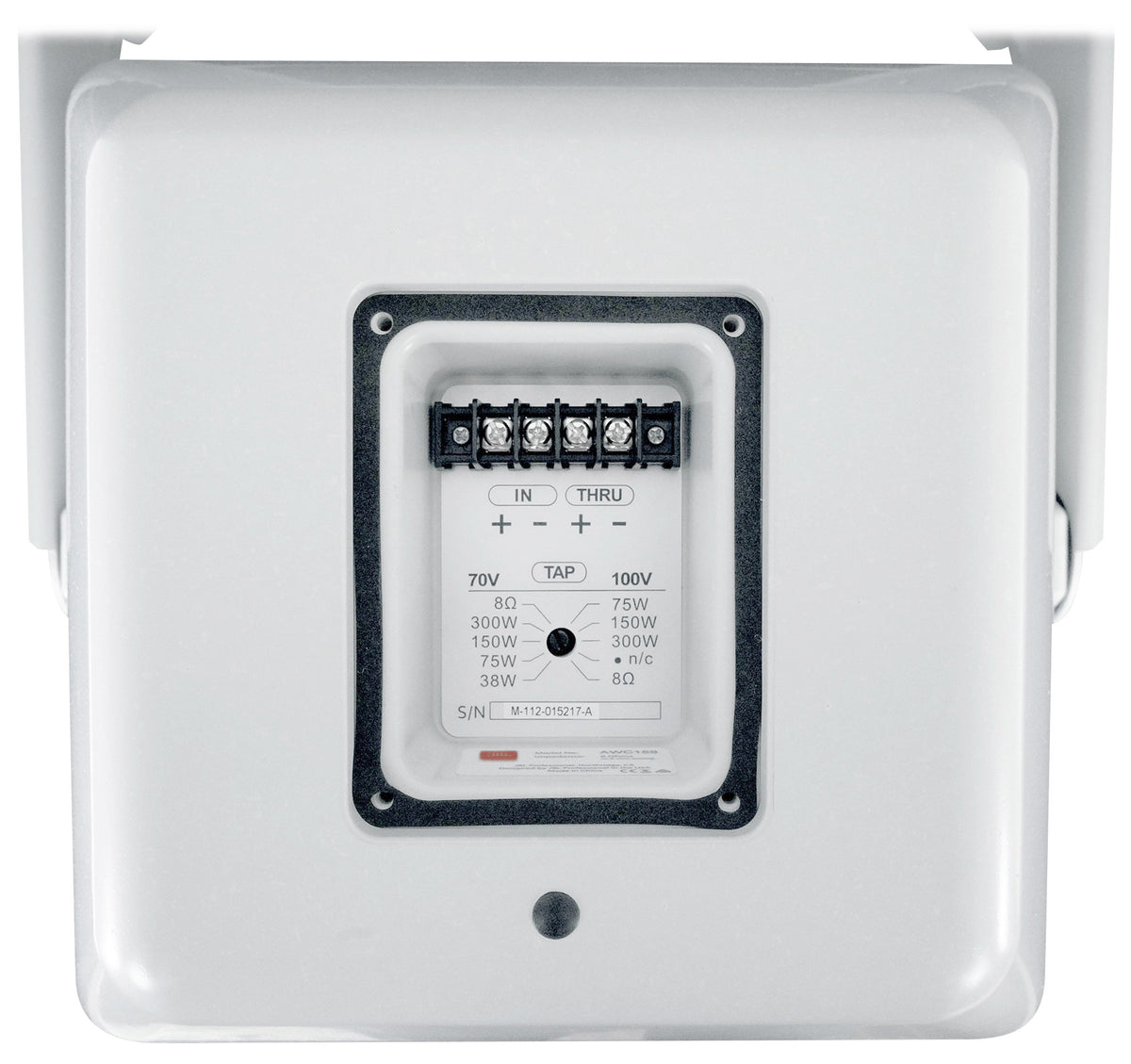

- Transformer Taps 70V: 300W/150W/75W/38W, 100V: 300W/150W/75W
- Nominal Impedance 8 ohms
- Environmental Rating IP56 per IEC529
- Colors Gray or black
- Weight 45.5 lb
