JBL

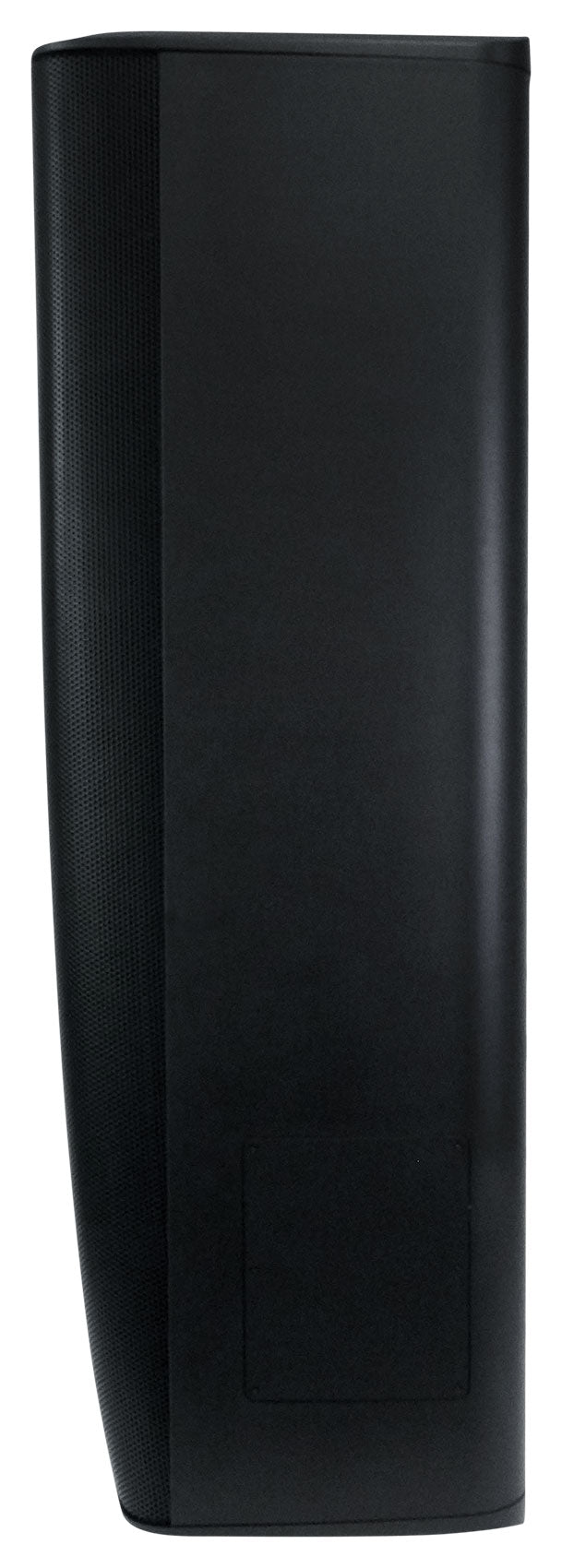

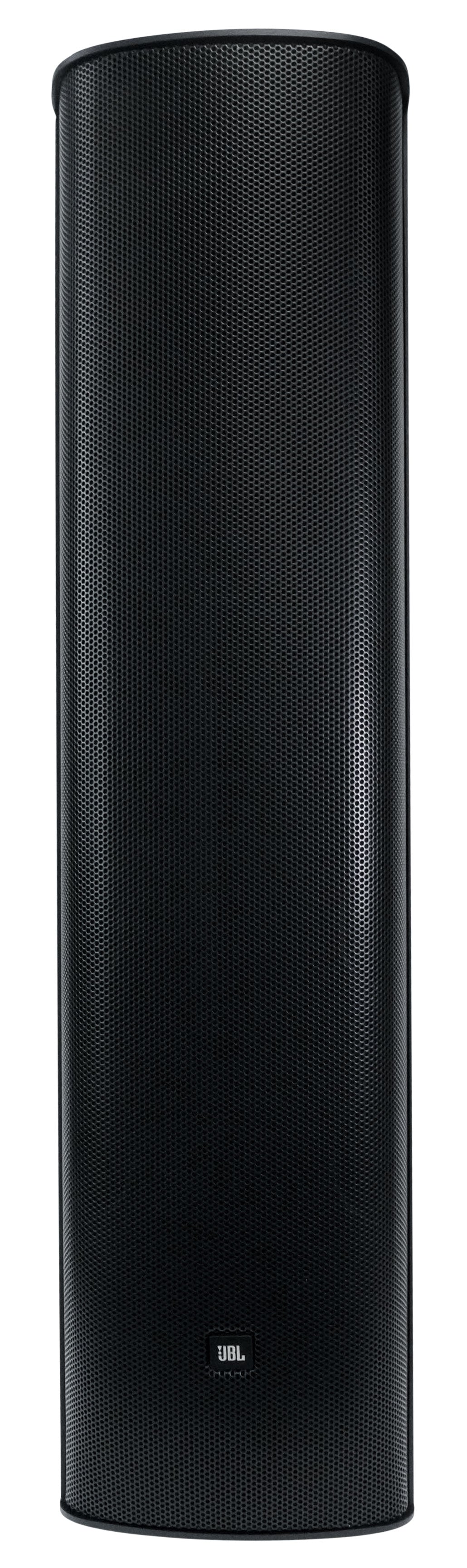

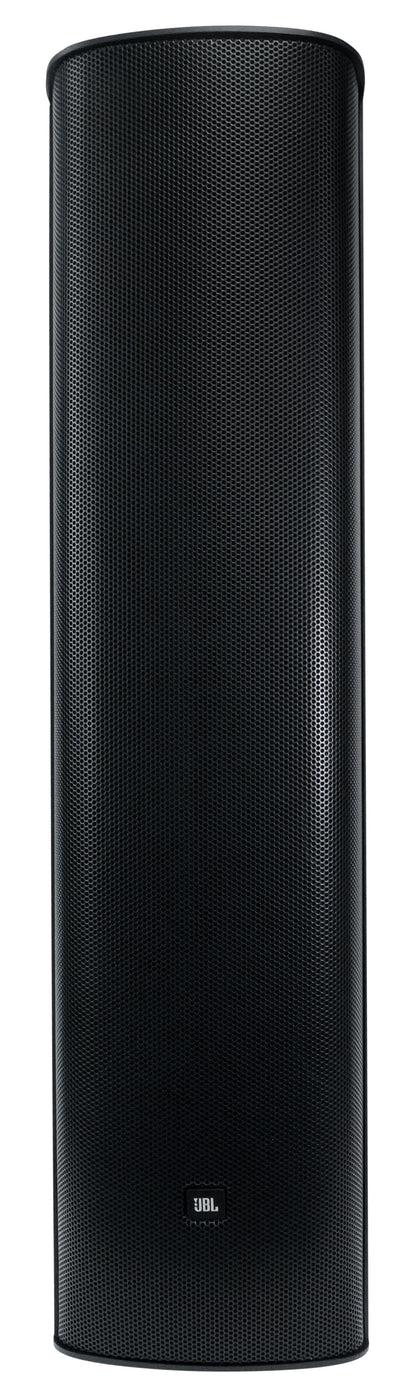

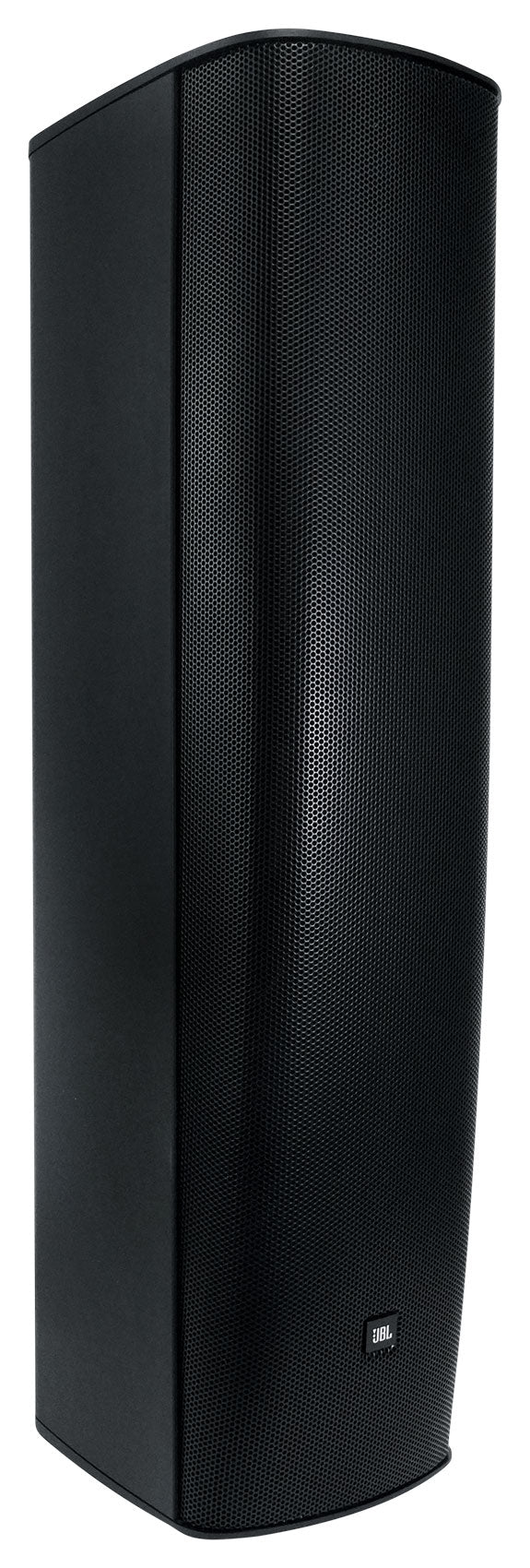

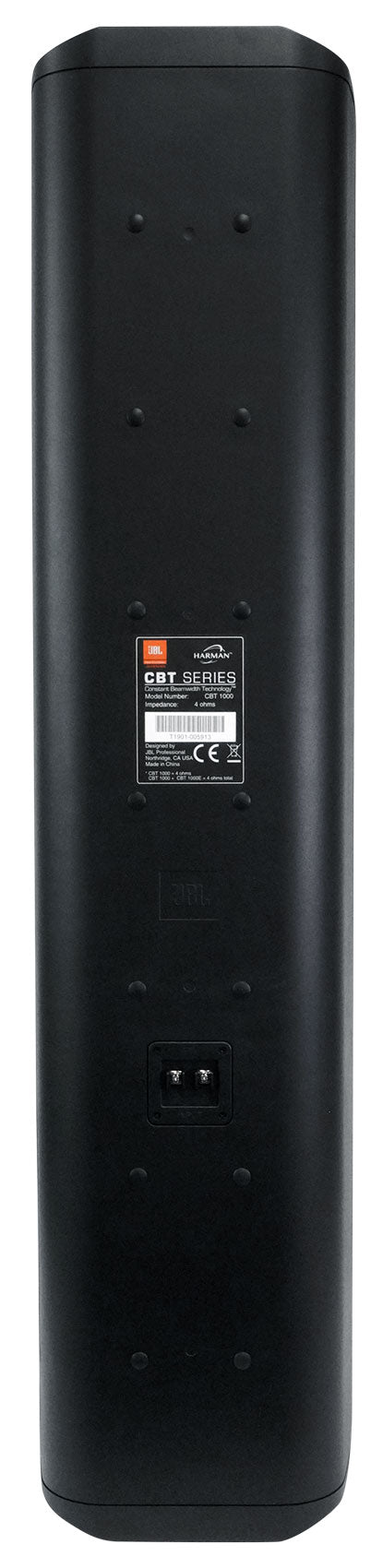

CBT 1000 [Open Box]

CBT 1000 [Open Box]

Line Array Column Speaker, 1500W, 24 Tweeters, 6 Woofers, Swivel Bracket Included
Regular price $2,199.00
Sale price $2,199.00 Regular price $2,375.00
Save 7%
Shipping calculated at checkout.
Features
    • 24 tweeters and 6 woofers with Constant Beamwidth Technology
    • Sixteen adjustable vertical coverage pattern combinations
    • Tapered horizontal waveguide covers near and far zones evenly
    • Handles 1500W peak power with output down to 40Hz
    • Includes swivel and tilt wall mounting bracket
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • CBT 1000 Column Speaker (Black)

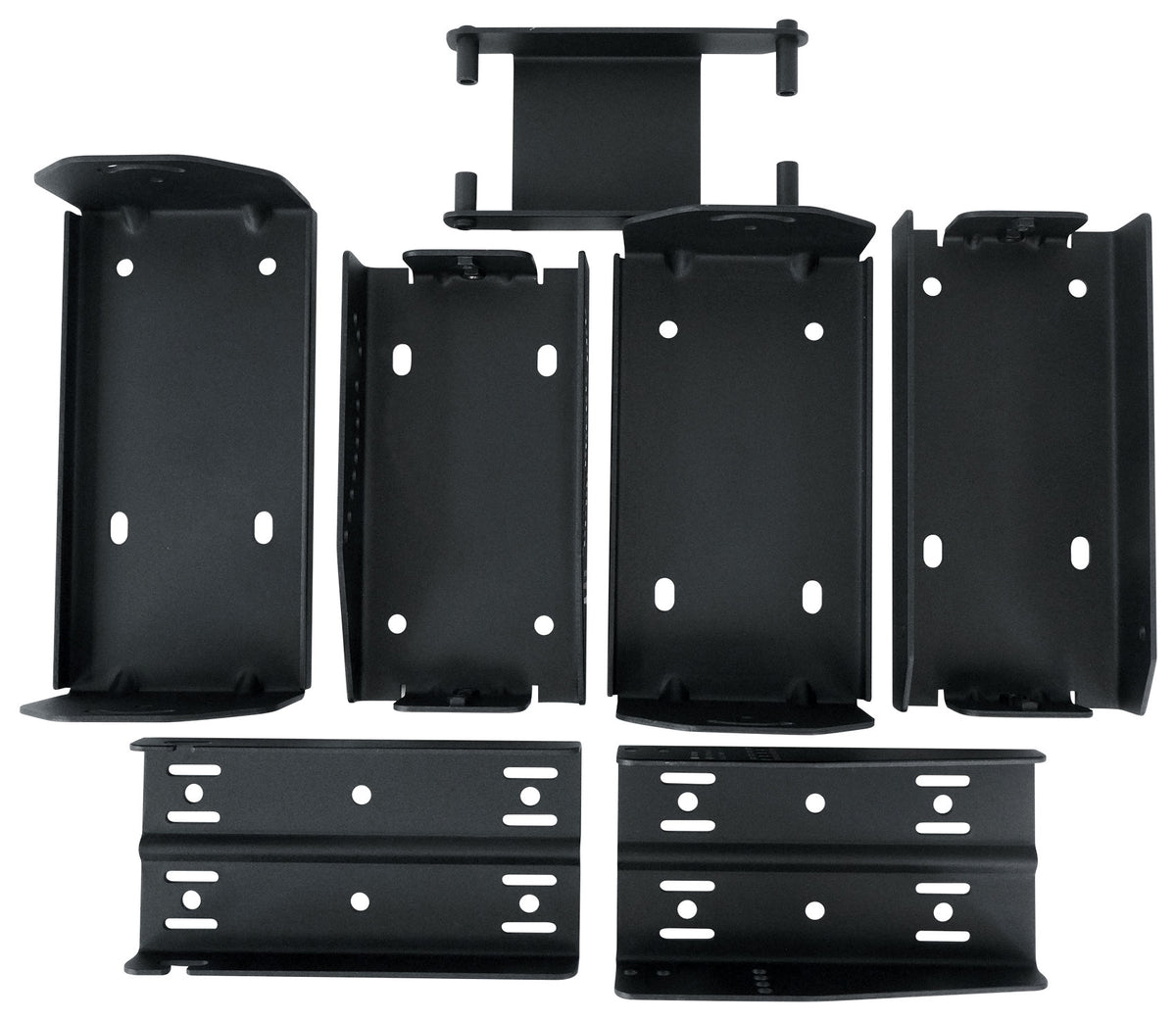

    • Two-Part Swivel/Tilt Wall Bracket

SKU: SKU: CBT 1000*

View full details

Product Description

The CBT 1000 is a line array column speaker built to map its coverage pattern to a room's actual geometry instead of relying on a single fixed dispersion. Constant Beamwidth Technology drives twenty-four 1 inch tweeters and six 6.5 inch woofers arranged coaxially, holding directivity steady from low frequencies through the highest highs so sound doesn't narrow or lobe unpredictably at a distance. Vertical coverage is adjustable across four pattern-up and four pattern-down settings, for sixteen total combinations, all set mechanically without external DSP. A patent-pending tapered horizontal waveguide widens dispersion for short-throw listening near the front of a room and narrows it for long-throw coverage toward the back, so a single column can cover both zones at consistent volume. Power handling reaches 1500 W peak with output down to 40 Hz, and switchable voicing toggles between a flat music response and a speech-forward midrange lift. The included two-part swivel and tilt wall bracket allows plus or minus 45 degrees of left-right aim and 15 degrees of tilt, with fourteen threaded mounting points on the cabinet for suspension or third-party bracket compatibility. It works well in auditoriums, houses of worship, and large conference rooms where one well-aimed column can replace several smaller speakers.

Features

    • Coverage That Matches the Room

      Sixteen adjustable vertical pattern combinations let one column speaker aim precisely at seating areas without external processing or added equipment.

    • Consistent at Every Frequency

      Constant Beamwidth Technology keeps directivity steady from low to high frequencies, avoiding the narrow beaming and lobing typical of straight columns.

    • Near and Far, Covered

      A tapered horizontal waveguide widens up front for short-throw listening and narrows toward the back, keeping volume even throughout the room.

    • Serious Power Handling

      Rated for 1500 W peak with response down to 40 Hz, this column drives large auditoriums and halls without added subwoofers.

    • Mount and Aim With Ease

      The included swivel and tilt bracket allows 45 degrees of left-right swivel and 15 degrees of tilt for precise aiming.

Technical Specifications

  • Product Type Adjustable-Coverage Line Array Column Speaker
  • LF Drivers Six 6.5 in (165 mm)
  • HF Drivers Twenty-Four 1 in (25 mm)
  • Frequency Range 45 Hz - 20 kHz
  • Power Handling 6000 W peak / 1500 W continuous (2 hr)
  • Impedance 4 ohms
  • Finish Black
