Used

JBL

Control 416C/T [Used]

Name: Control 416C/T [Used]
Brand: JBL
SKU: Control 416C/T U
Price: 414.00 USD
Availability: InStock

6.5-Inch 2-Way Coaxial Ceiling Speaker, for Commercial Sound Systems

Free Shipping

$414.00

$414.00 ~~$480.00~~

Save 13%

Shipping calculated at checkout.

Features

6.5-inch woofer and 0.75-inch soft-dome tweeter in a coaxial design
120-degree conical coverage for distributed sound across a room
70V/100V transformer taps plus an 8-ohm direct input
Top or side cable entry supports flexible wire routing
Includes one paintable white magnetic grille

30-Day Money-Back Guarantee

Fast & Free Shipping

Buy Now, Pay Later

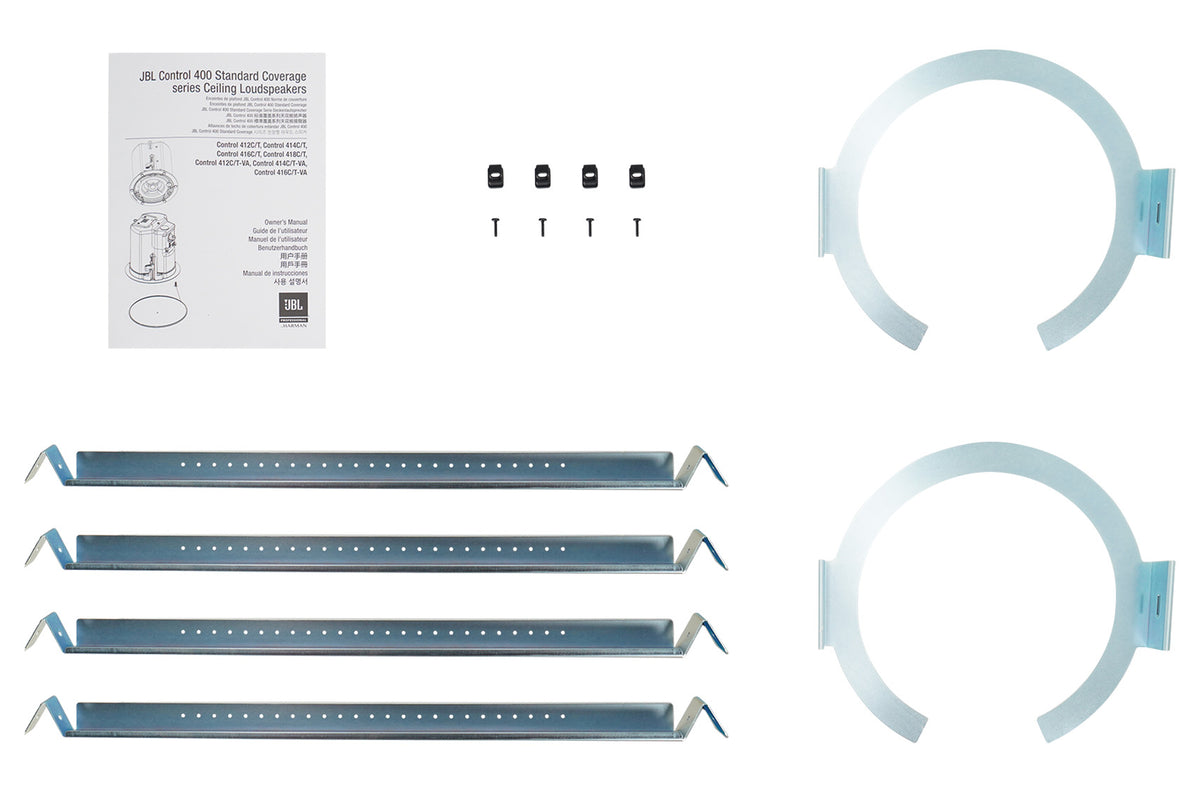

What's Included in the box

(1) JBL Control 416C/T Ceiling Loudspeaker
(1) Full-Face Paintable Magnetic Grille

SKU: SKU: Control 416C/T U

View full details

Product Description

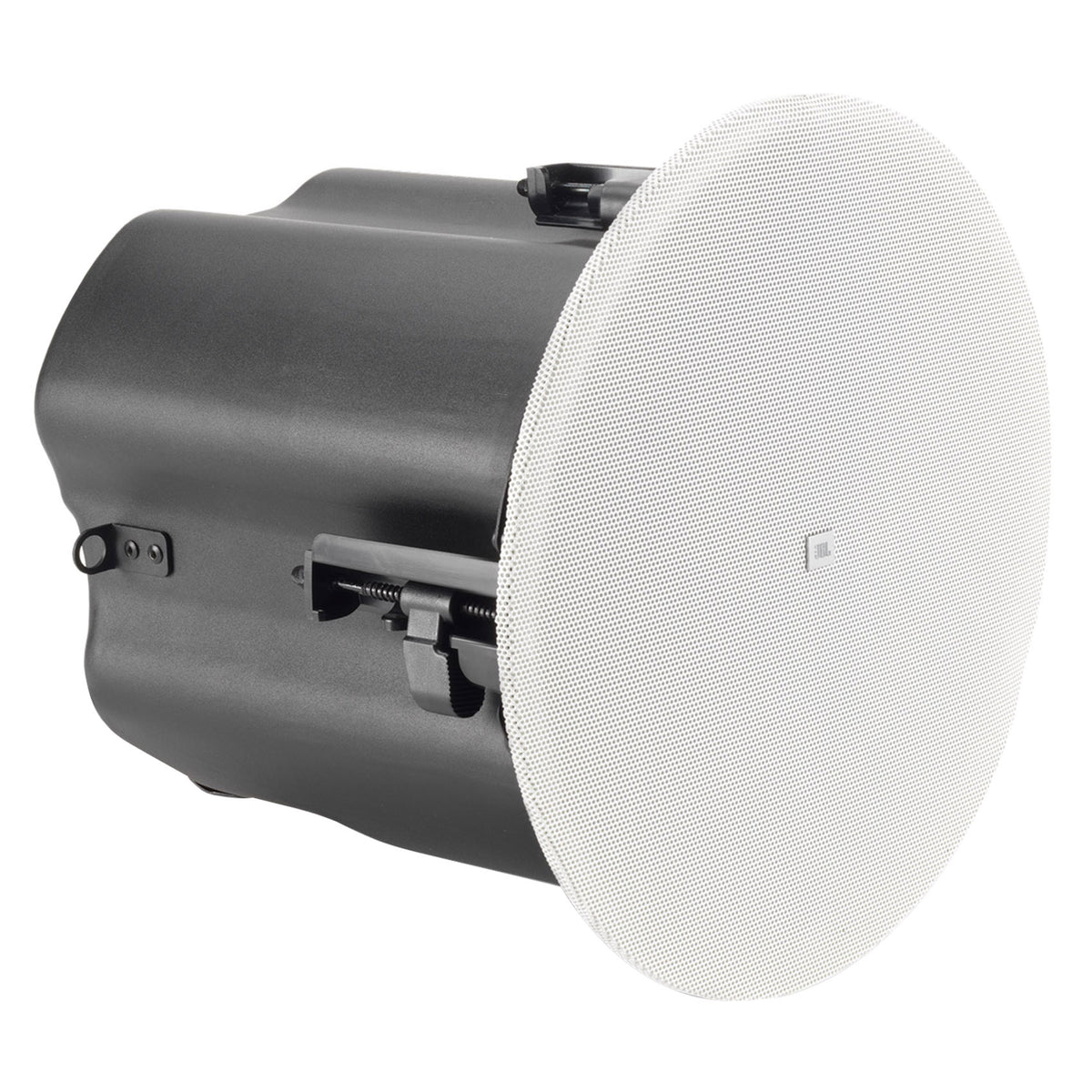

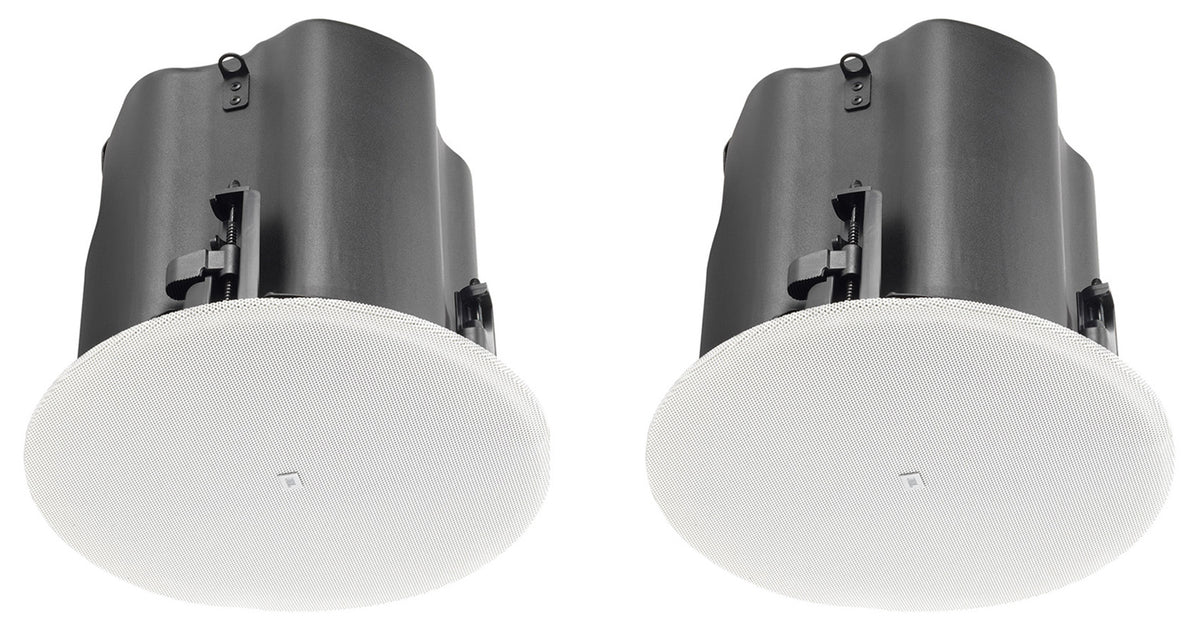

The JBL Control 416C/T is a 6.5-inch, two-way coaxial ceiling loudspeaker for distributed audio in commercial interiors. Its integrated enclosure suits most ceiling plenum spaces, while the 70V/100V transformer taps and 8-ohm direct input fit both multi-speaker systems and low-impedance setups. A 0.75-inch soft-dome tweeter pairs with the woofer for 61Hz-20kHz response and 120-degree conical coverage. Top or side cable entry gives installers routing choice, and captive dogears fit varied ceiling thicknesses. The paintable magnetic grille comes white and can be matched to the room. With an IP33 rating and suitability for air-handling spaces, it fits offices, classrooms, retail interiors, and houses of worship.

Features

Coaxial Two-Way Sound

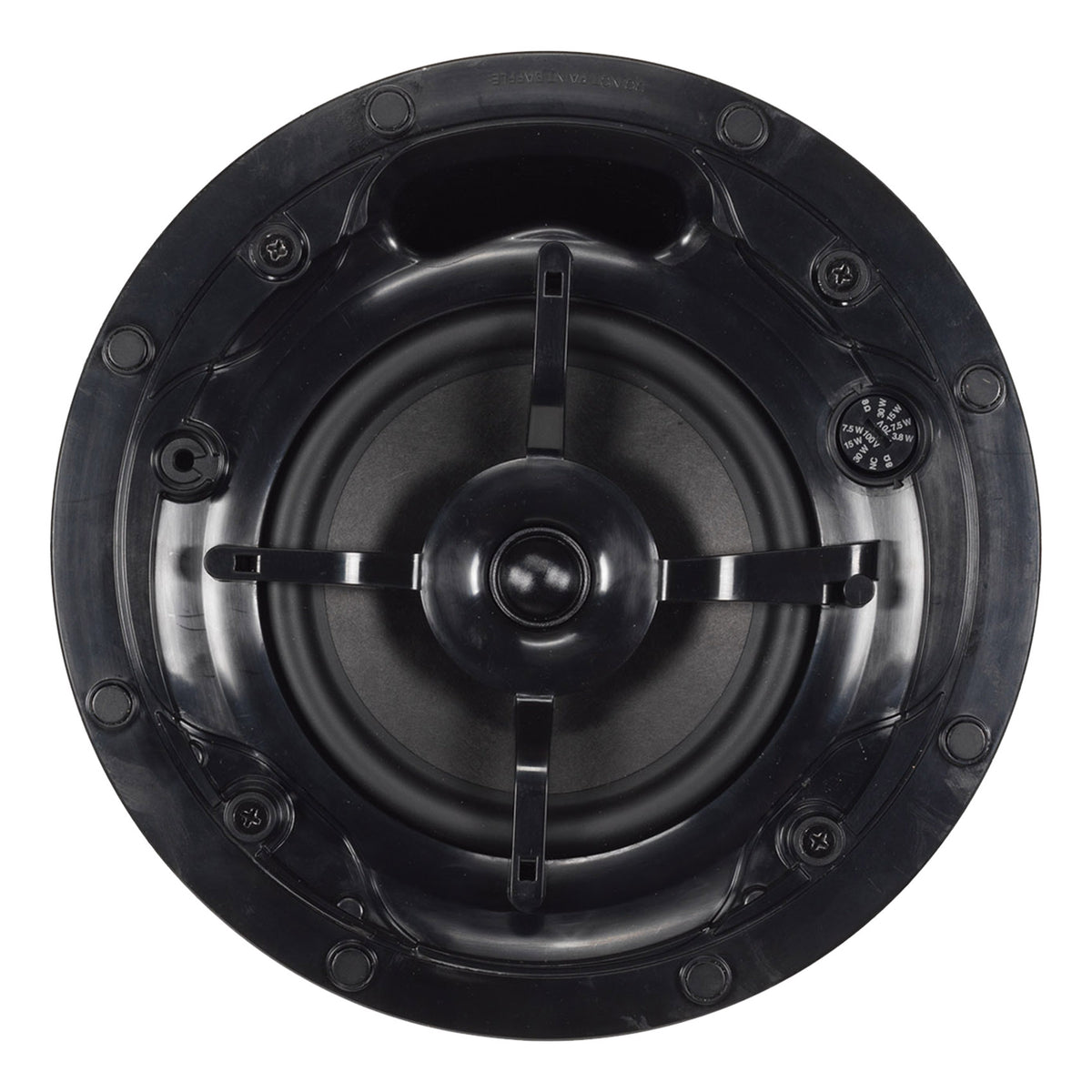

A 6.5-inch woofer and 0.75-inch soft-dome tweeter form a coaxial speaker for 61Hz-20kHz response from a single overhead ceiling location.
Cover Broad Listening Areas

The 120-degree conical coverage pattern spreads sound across commercial rooms, helping a single ceiling speaker serve offices, classrooms, and retail spaces.
Match the System Wiring

Choose 70V/100V transformer taps for distributed audio or [Used]se the 8-ohm direct input for low-impedance installations in smaller sound systems.
Route Cables to Fit the Site

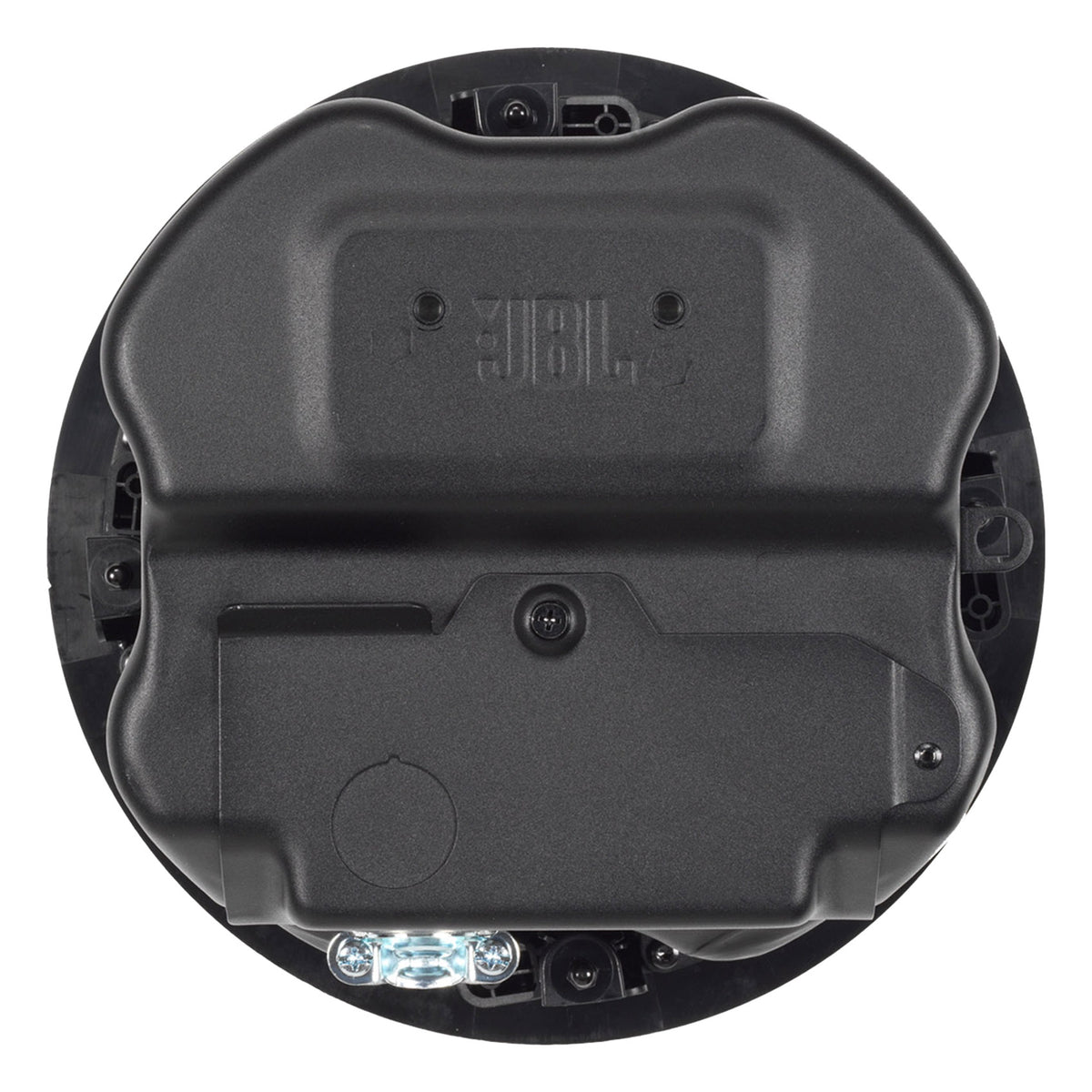

Top and side cable entry ports on the terminal cover give installers routing options when ceiling access or wire paths vary by room.
Mount Across Ceiling Types

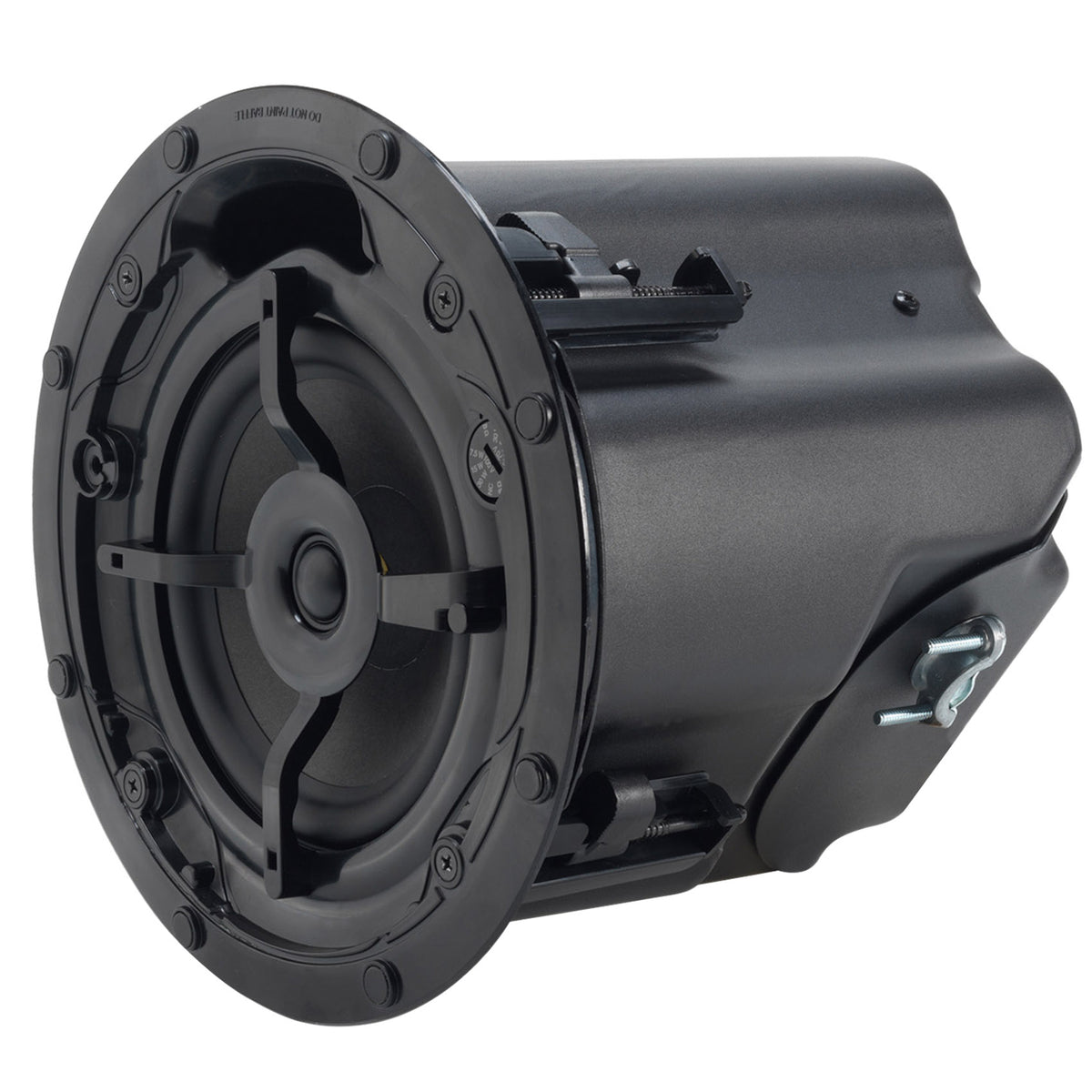

Captive dogears accommodate a range of ceiling thicknesses, while the integrated enclosure fits most ceiling plenum spaces for a practical installed setup.

Technical Specifications

Product Type Two-Way Coaxial Ceiling Loudspeaker
Frequency Range (-10 dB) 61Hz-20kHz
Power Capacity, 2-Hour Continuous Pink Noise 75W
Power Capacity, 100-Hour Continuous Pink Noise 50W
Sensitivity (1W/1m) 89dB
Coverage Angle 120° conical
Maximum SPL (1m) 108 dB continuous pink noise, 114 dB peak
Nominal Impedance 8 ohm

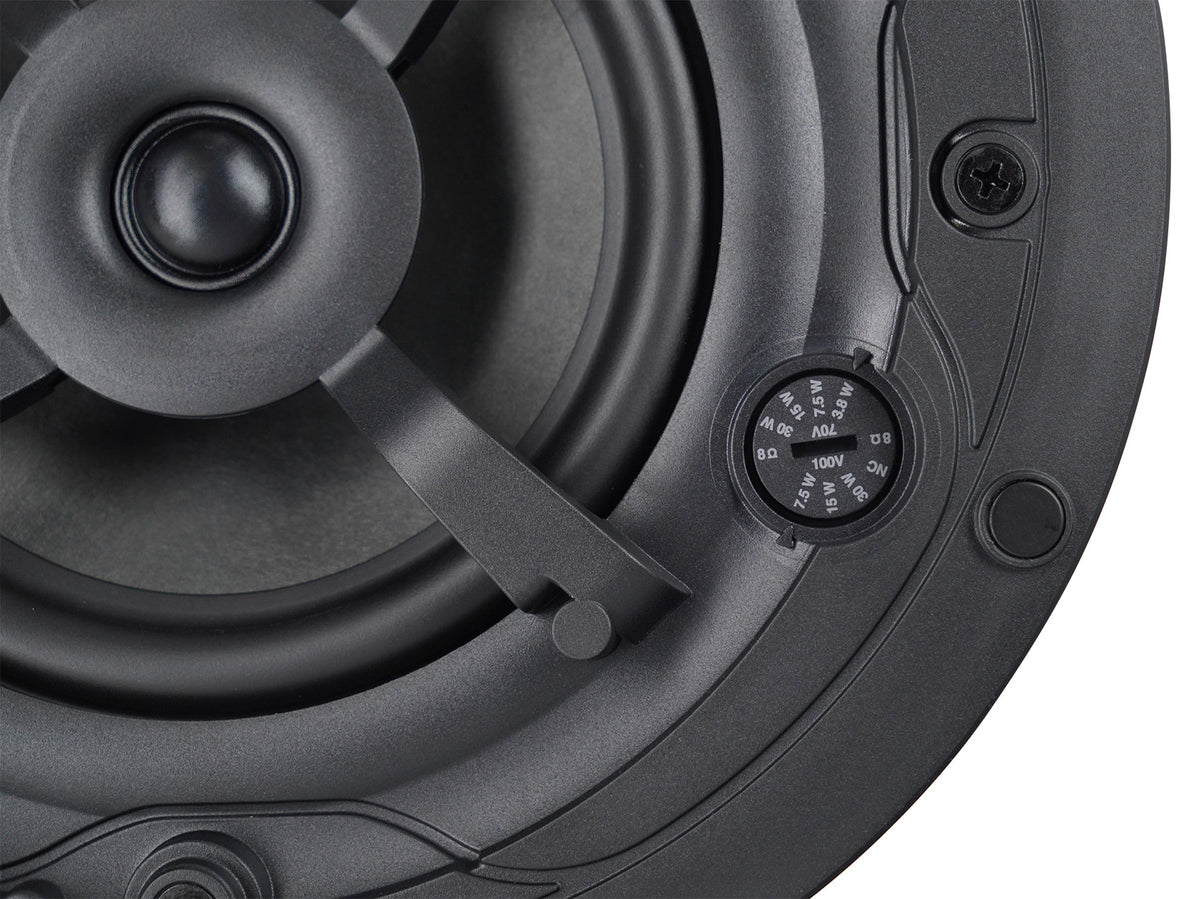

Transformer Taps, 70V 30W, 15W, 7.5W, 3.8W
Transformer Taps, 100V 30W, 15W, 7.5W
Drivers 6.5-inch woofer with paper cone and SBR surround, 0.75-inch soft-dome tweeter
Ceiling Cutout Size 8.8 in (223 mm)
Safety Ratings [Used]L 2043, [Used]L 1480A, NFPA 90A, NFPA 70, CSA C22.2 No. 205
Environmental Rating IP33 per EN/IEC 60529
Operating Temperature 0°C to 45°C
Color White (RAL9003), paintable magnetic grille
Weight 8.27 lb each

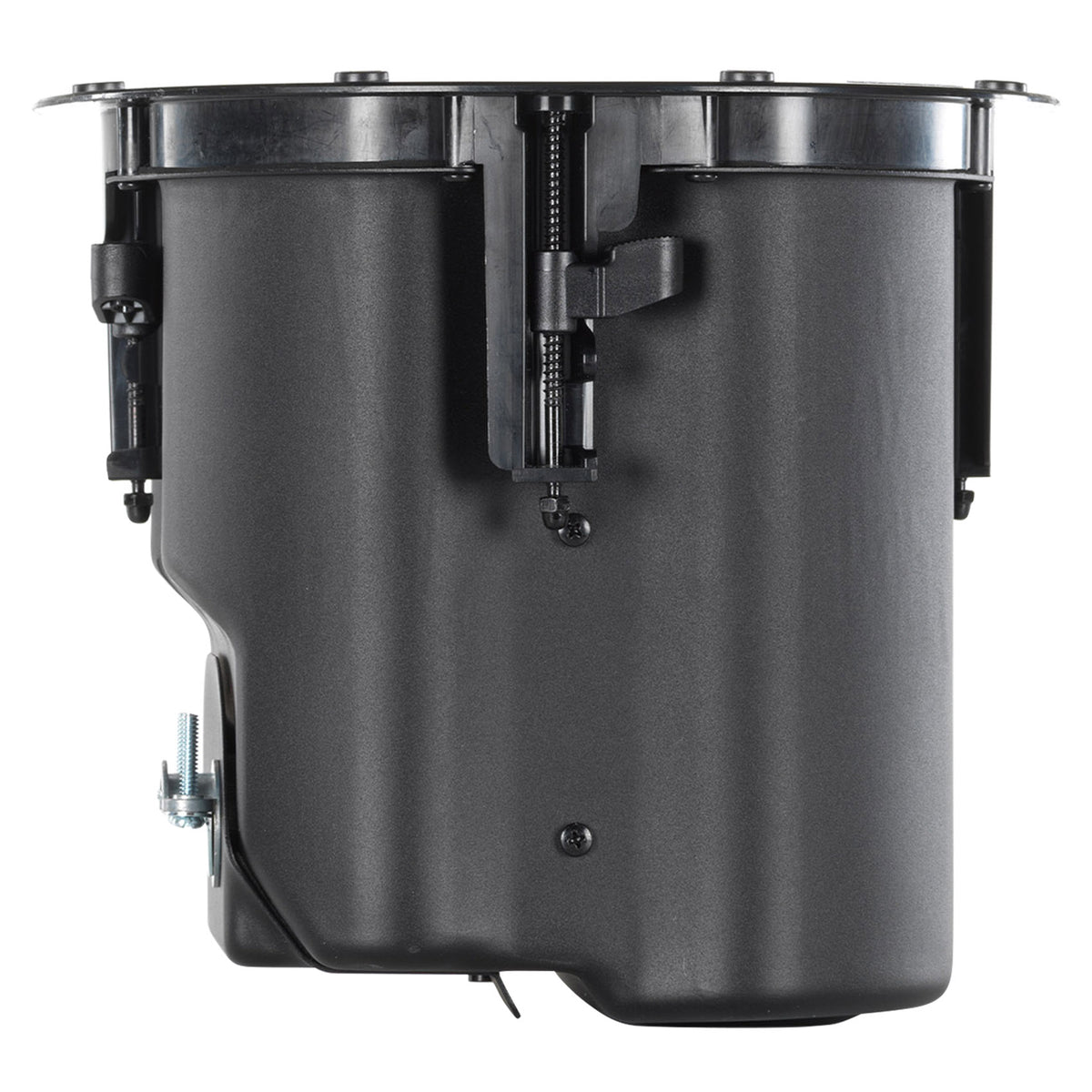

Dimensions 9.3 in H x 10.4 in diameter; 8.9 in from ceiling tile [Used]nderside to top of backcan
