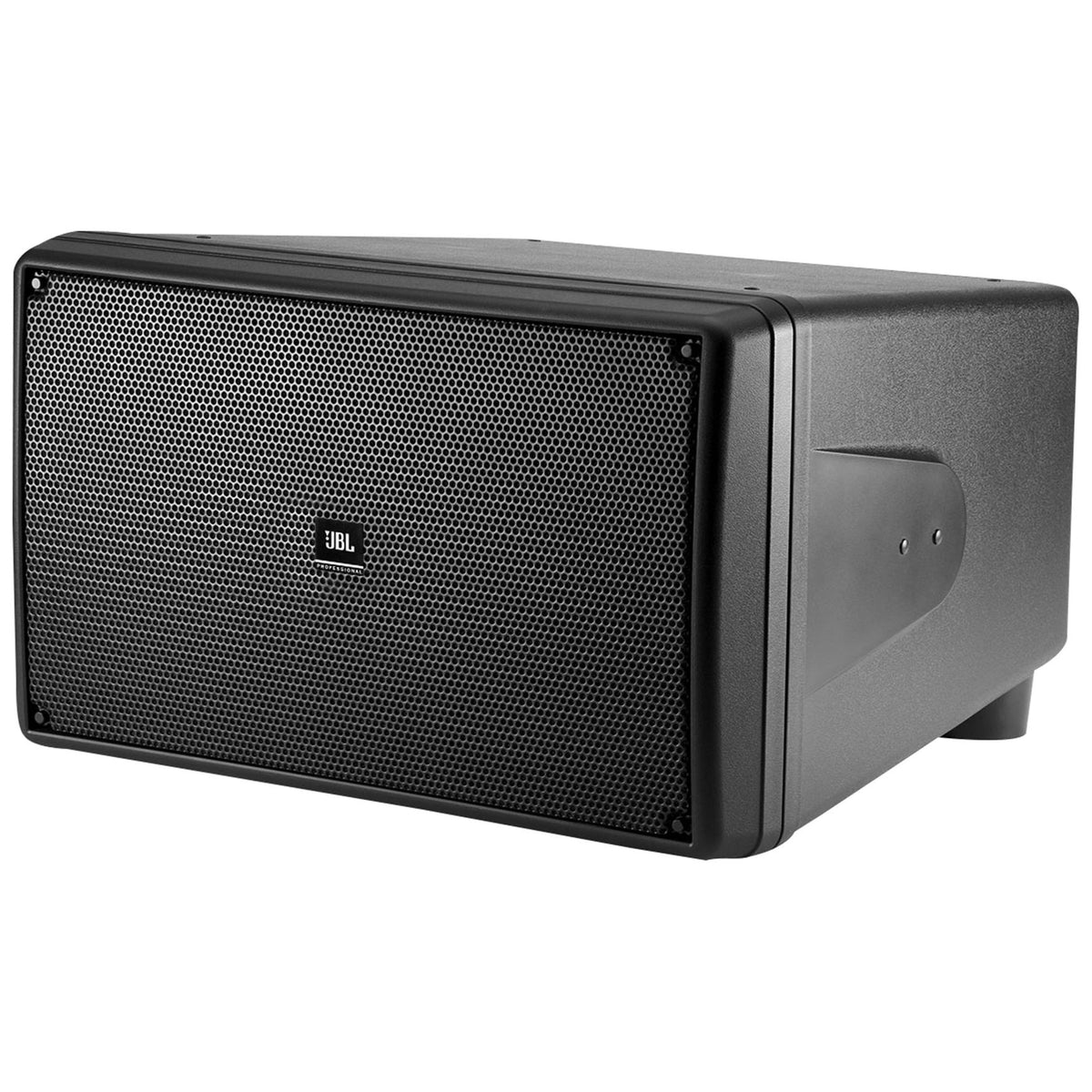

JBL Control SB2210 Dual 10" Indoor/Outdoor Subwoofer 4 Restaurant/Bar/Cafe/Patio
JBL Control SB2210 Dual 10" Indoor/Outdoor Subwoofer 4 Restaurant/Bar/Cafe/Patio
JBL
JBL Control SB2210 Dual 10" Indoor/Outdoor Subwoofer 4 Restaurant/Bar/Cafe/Patio
JBL Control SB2210 Dual 10" Indoor/Outdoor Subwoofer 4 Restaurant/Bar/Cafe/Patio
Dual 10" Indoor/Outdoor Subwoofer, 500 W, 8-Ohm, With Terminal Cover, Feet, Beveled Washers
Features
- Two 10-inch woven fiberglass cone drivers handle 500 W continuous pink noise
- Frequency response reaches down to 38 Hz with 122 dB maximum SPL
- IP-45 rated with the included MTC-PC2 terminal panel cover fitted
- 13 M6 insert points including mounting for an optional U-bracket
- Low-profile cabinet fits under bars, behind seating and on patio decks
Couldn't load pickup availability
What's Included in the box
- (1) Control SB2210 Dual 10" Subwoofer

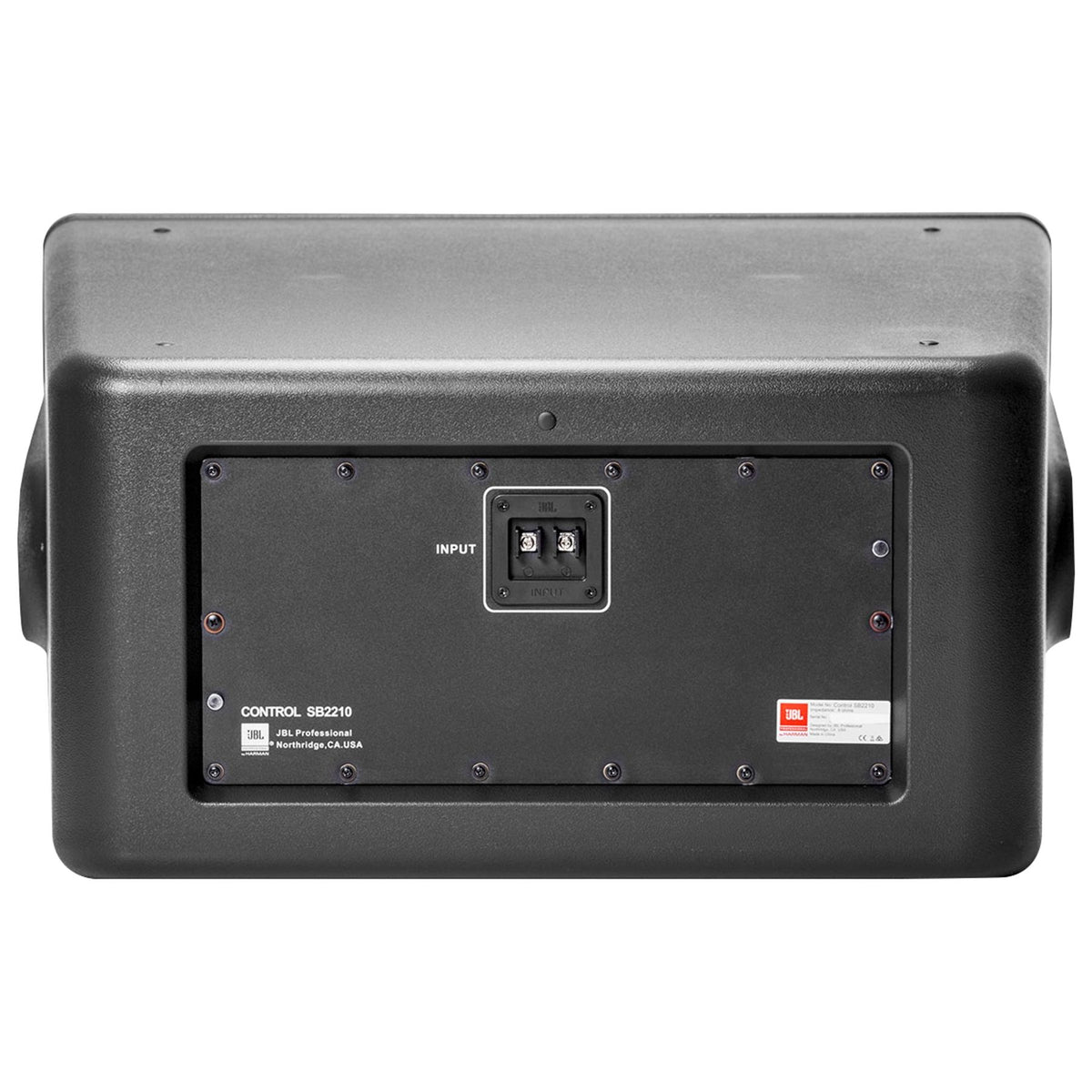

- (1) MTC-PC2 Input Panel Cover
- (4) Floor Standing Feet
- (4) Beveled Washers
SKU: SKU: Control SB2210
View full details

Product Description
Features
High Output From A Small Box
Two 10-inch long-excursion drivers handle 500 W continuous and reach 122 dB in half-space, filling a bar or patio from a cabinet just 14 in tall.
Rated For Outdoor Use
With the included MTC-PC2 cover fitted, the cabinet is IP-45 rated and exceeds Mil Spec 810 for humidity, salt spray, temperature and UV exposure.
Mounts Almost Anywhere
Thirteen M6 inserts support bracket and flown installations, while the four included feet let it stand upright under a bar or behind seating.
Efficient On Amplifier Power
Sensitivity of 95 dB at 1 W means the subwoofer reaches high output without requiring an oversized amplifier channel to feed it.
Fits Distributed Systems
The optional MTC-SBT300 transformer adds 70V and 100V operation, letting the subwoofer join an existing distributed line rather than a dedicated amplifier.
Technical Specifications
- Product Type Dual 10" Indoor/Outdoor Subwoofer
- Frequency Range (-10 dB) 38 Hz - 500 Hz
- Frequency Response (-3 dB) 48 Hz - 95 Hz
- Power Rating 500 W continuous pink noise (2000 W peak), 1000 W continuous program
- Sensitivity 95 dB, 1 W @ 1m in half-space
- Maximum SPL 122 dB in half-space
- Nominal Impedance 8 ohms
- Minimum Impedance 7.2 ohms at 160 Hz
- LF Drivers Two 250 mm (10 in) woven fiberglass cones, butyl rubber surrounds
- Recommended Filter 45 Hz, 24 dB/oct high-pass
- Enclosure Material High impact polystyrene with 10% glass fill
- Grille Thermoset composite coated steel, zinc-plated, 3-layer foam backing
- Environmental Rating IP-45 per IEC529 with MTC-PC2 cover installed
- Optional Transformer Taps 70V: 300 W, 150 W, 75 W, 38 W; 100V: 300 W, 150 W, 75 W
- Color Black
- Weight 51.4 lb
- Dimensions 14 x 23.3 x 22.5 in (H x W x D)
