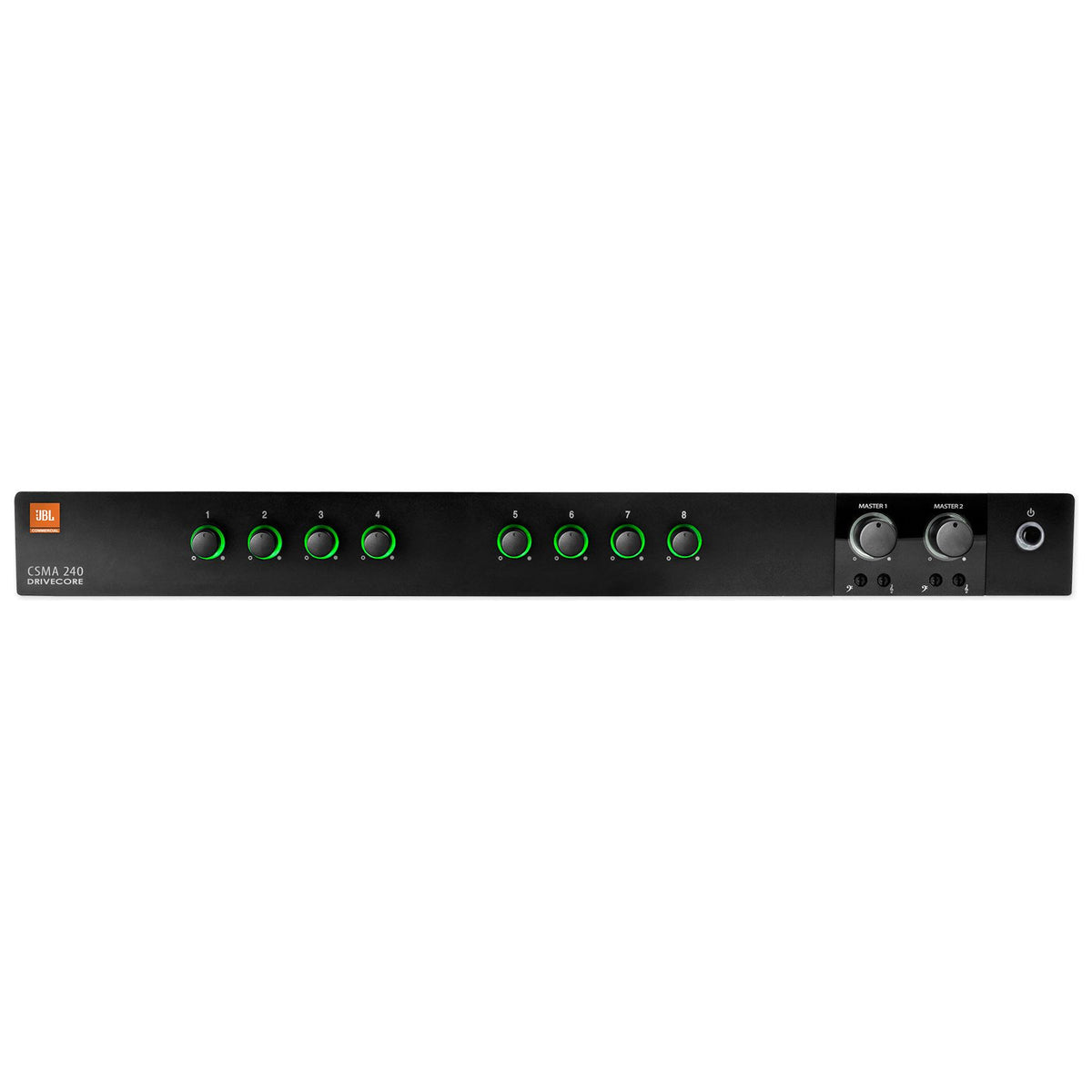

CSMA240

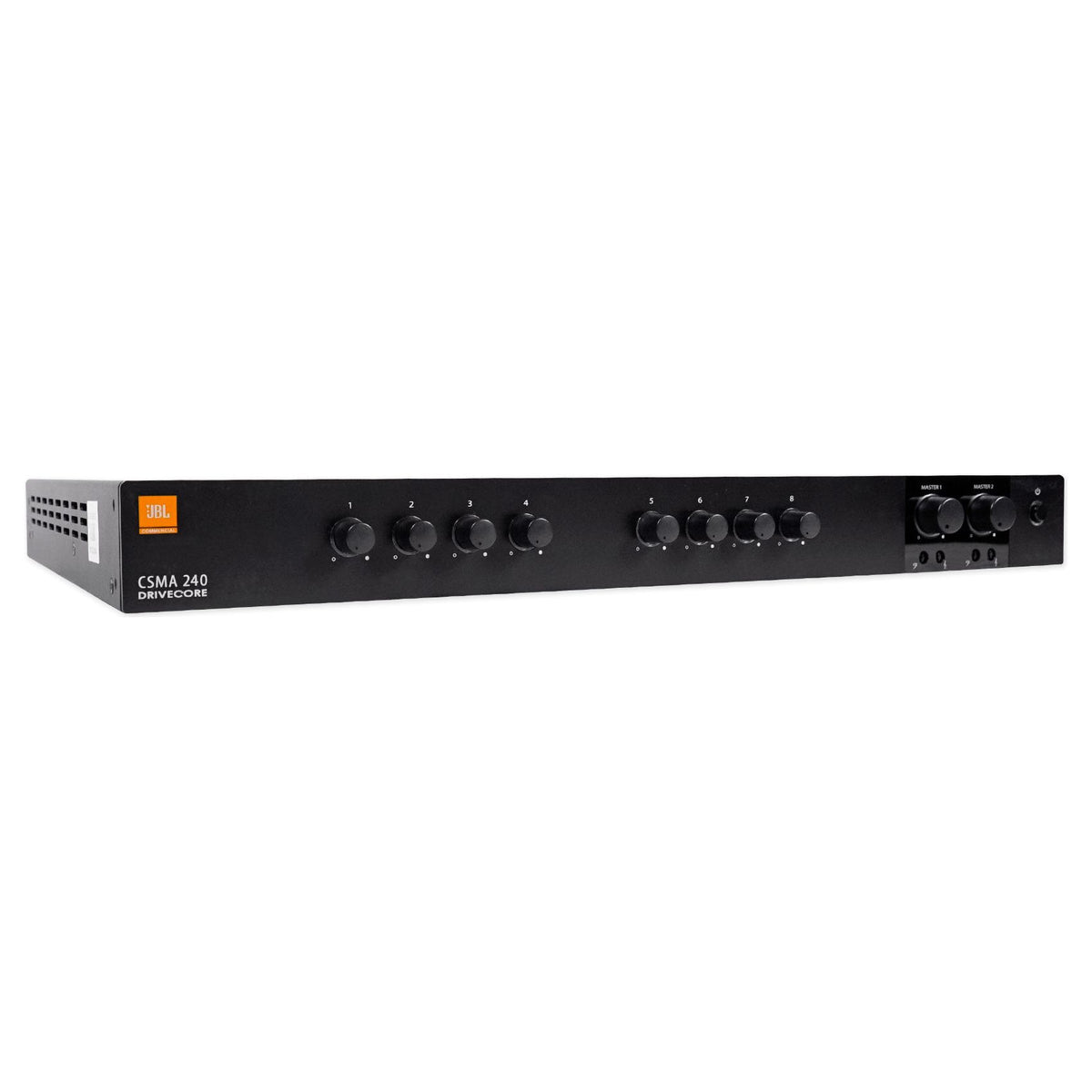

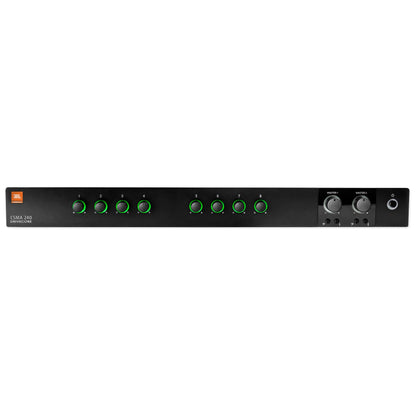

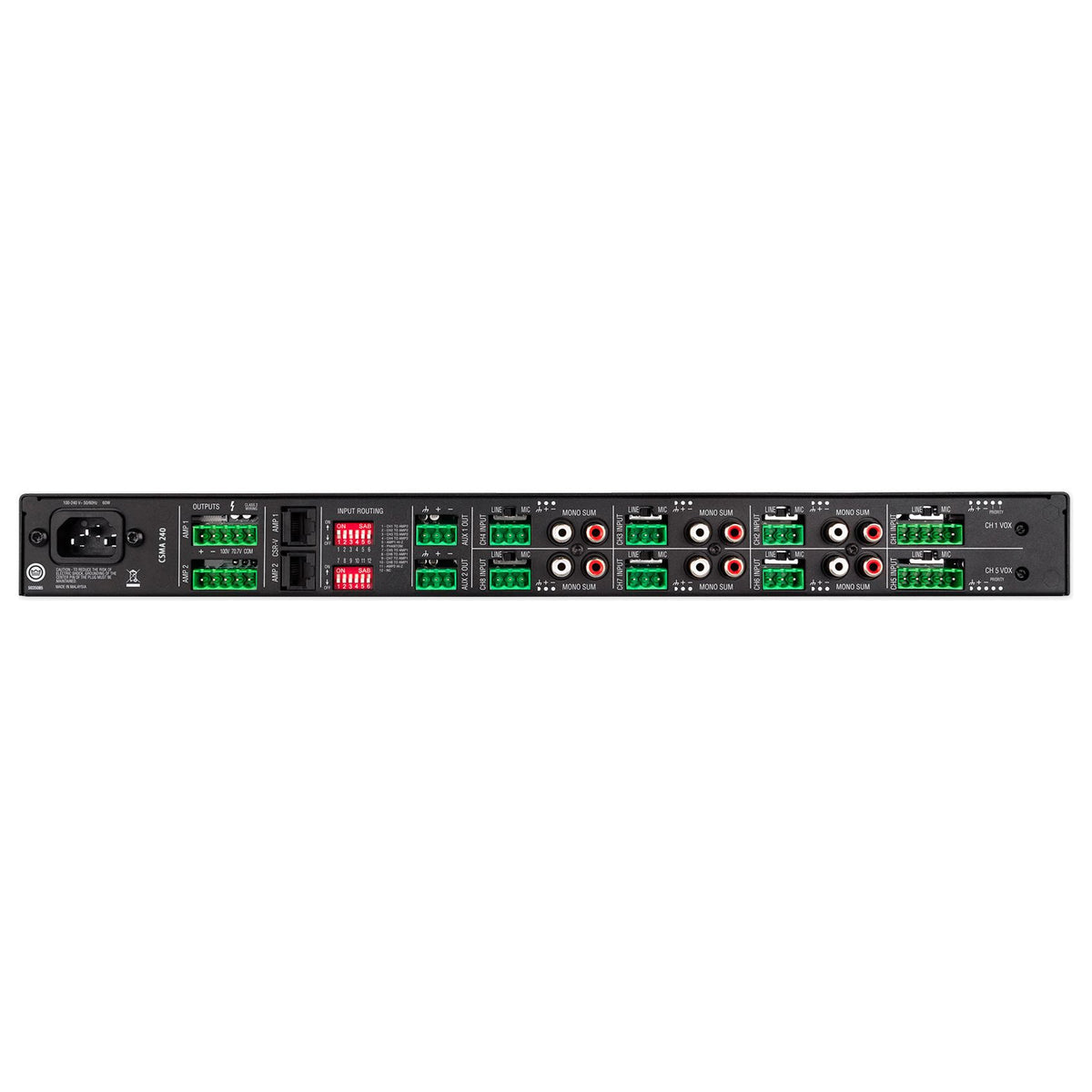

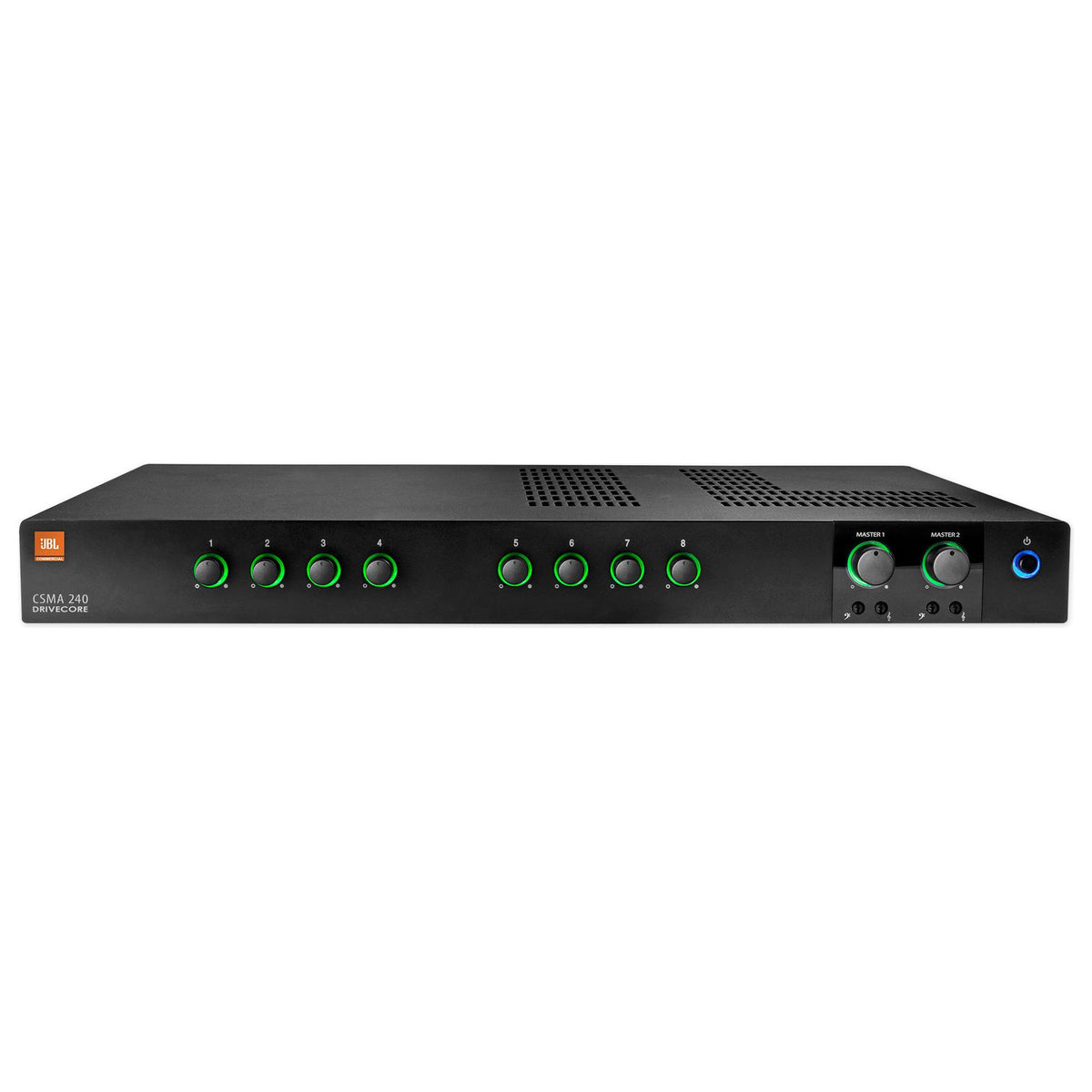

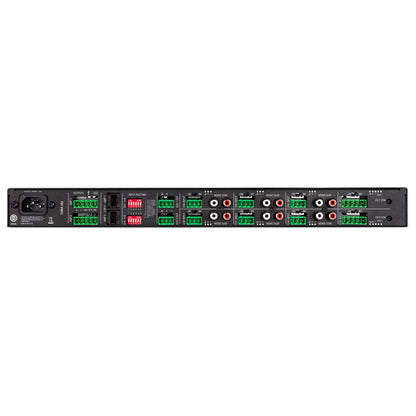

The JBL CSMA 240 is an eight-input, two-output mixer-amplifier rated at 40 W per channel, sized for smaller two-zone commercial systems. Eight input channels take microphones, guitars and playback sources through euro-block and unbalanced RCA connections, while two outputs let you run separate areas at separate levels. A Hi-Z switch brings the built-in output transformer into circuit for direct 70V or 100V speaker lines, and the amplifier also powers 8 ohm and 4 ohm loads for local wiring. Voice-activated ducking on channels 1 and 5 lowers background music the moment someone speaks into a paging microphone, with a rear trim pot to set the trigger threshold. Those same channels can act as priority inputs, muting everything else through a simple switch closure. Sleep mode powers the unit down after roughly 30 minutes without signal and wakes on signal return or a priority trigger. Two auxiliary outputs send the input mix to additional amplifiers. Phantom power at 27 VDC covers condenser microphones, and an RJ45 port supports a JBL CSR-V wall volume control. Illuminated rings around every knob keep the front panel readable in the dark. Built with Crown DriveCore technology to HARMAN GreenEdge standards and Energy Star certified. Suited to cafes, boutiques, offices, clinics, classrooms and small houses of worship.
