CSMA280 2 x 80W Amplifier + 5.25" Black Wall Speaker Package
JBL
CSMA280 2 x 80W Amplifier + 5.25" Black Wall Speaker Package
CSMA280 2 x 80W Amplifier + 5.25" Black Wall Speaker Package

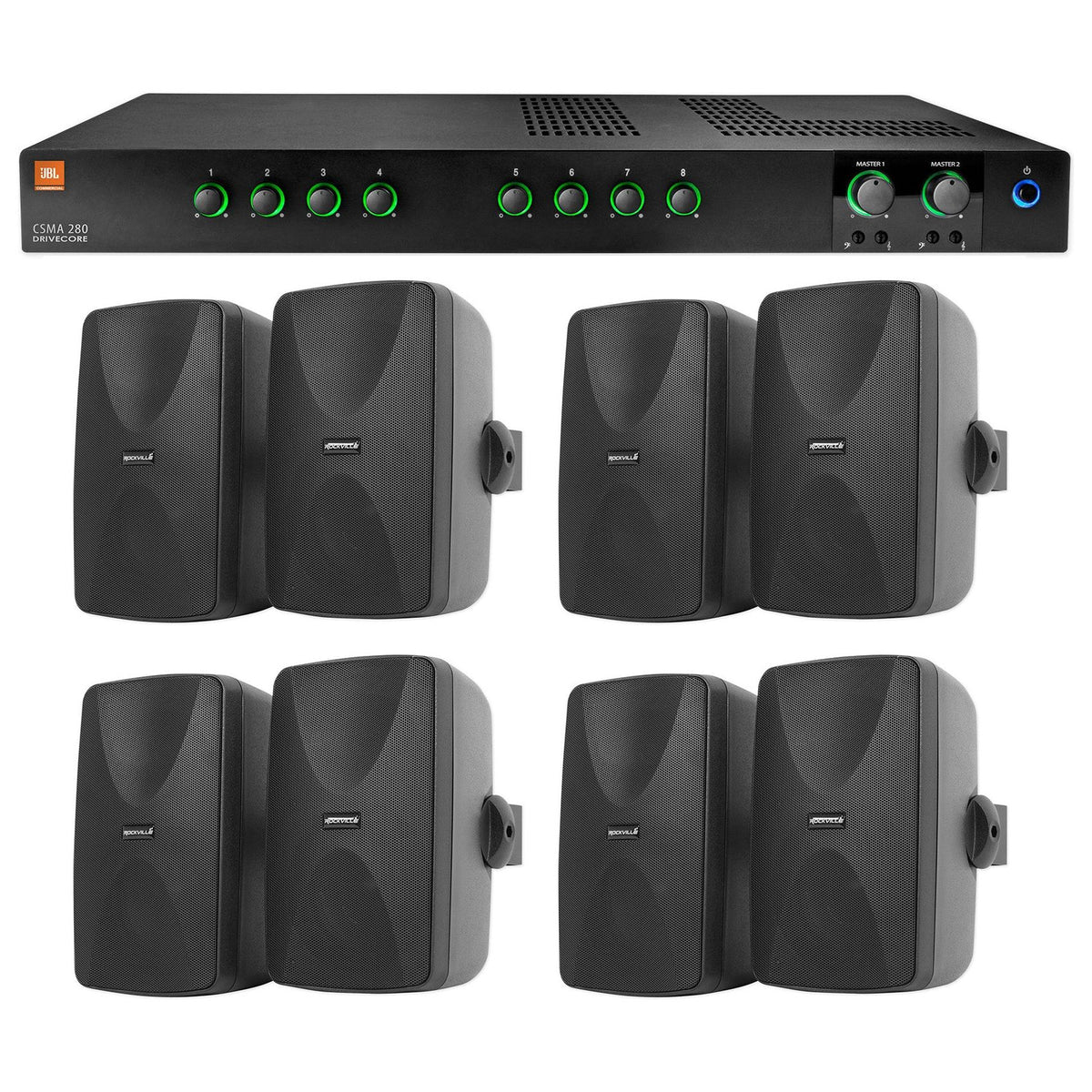

Commercial Amplifier, 80W, With 8 5.25" IPX55 Indoor/Outdoor Wall Speakers, Black
Features

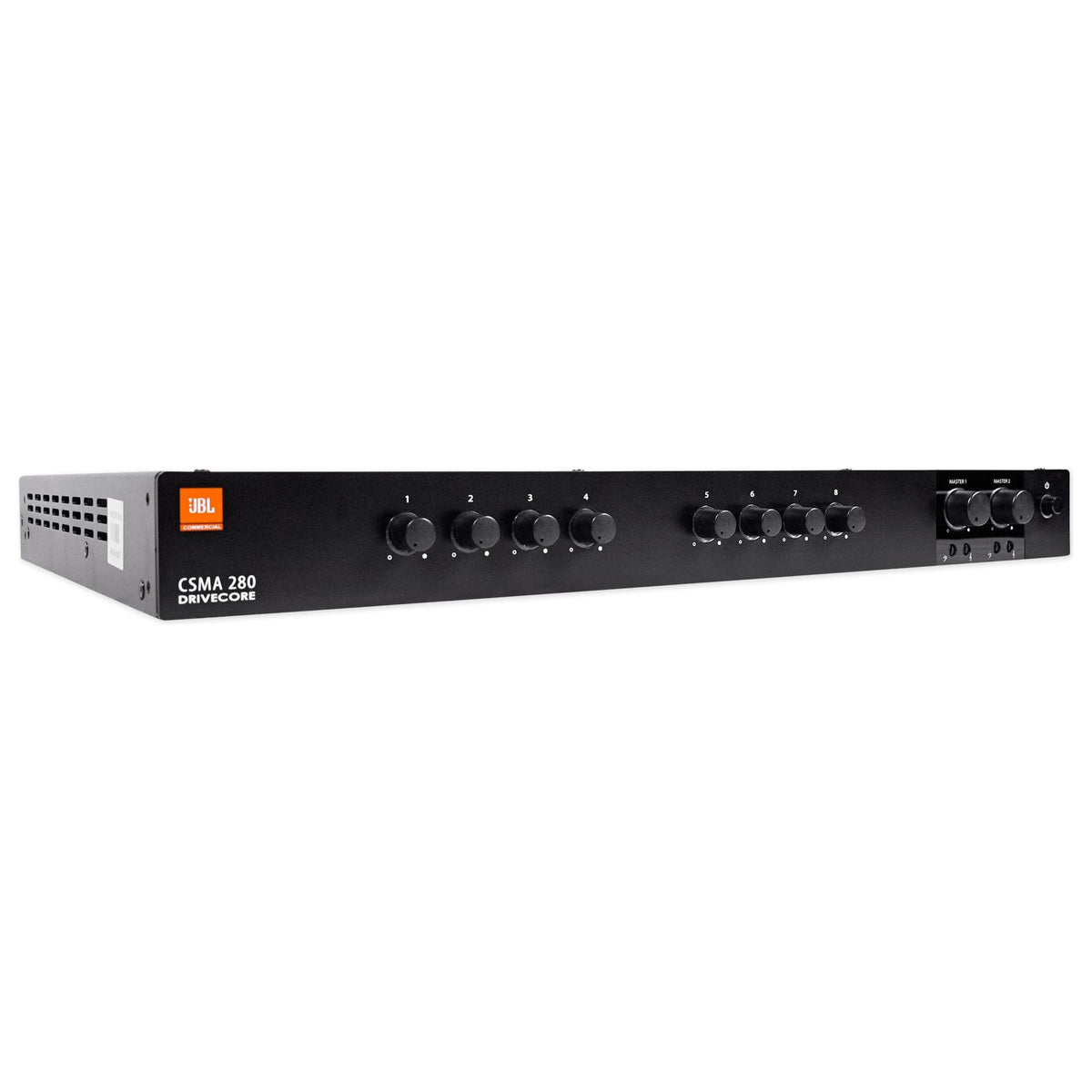

- JBL CSMA280 commercial amplifier with 8 mixer-channel inputs
- Eight Rockville WET-7020B 5.25" black wall speakers included
- IPX55 rated to handle jet streams of water from any angle
- 4-way swivel bracket aims each speaker up, down, left, or right
- Selectable 70V taps from 2.5W to 20W set volume per zone
Couldn't load pickup availability

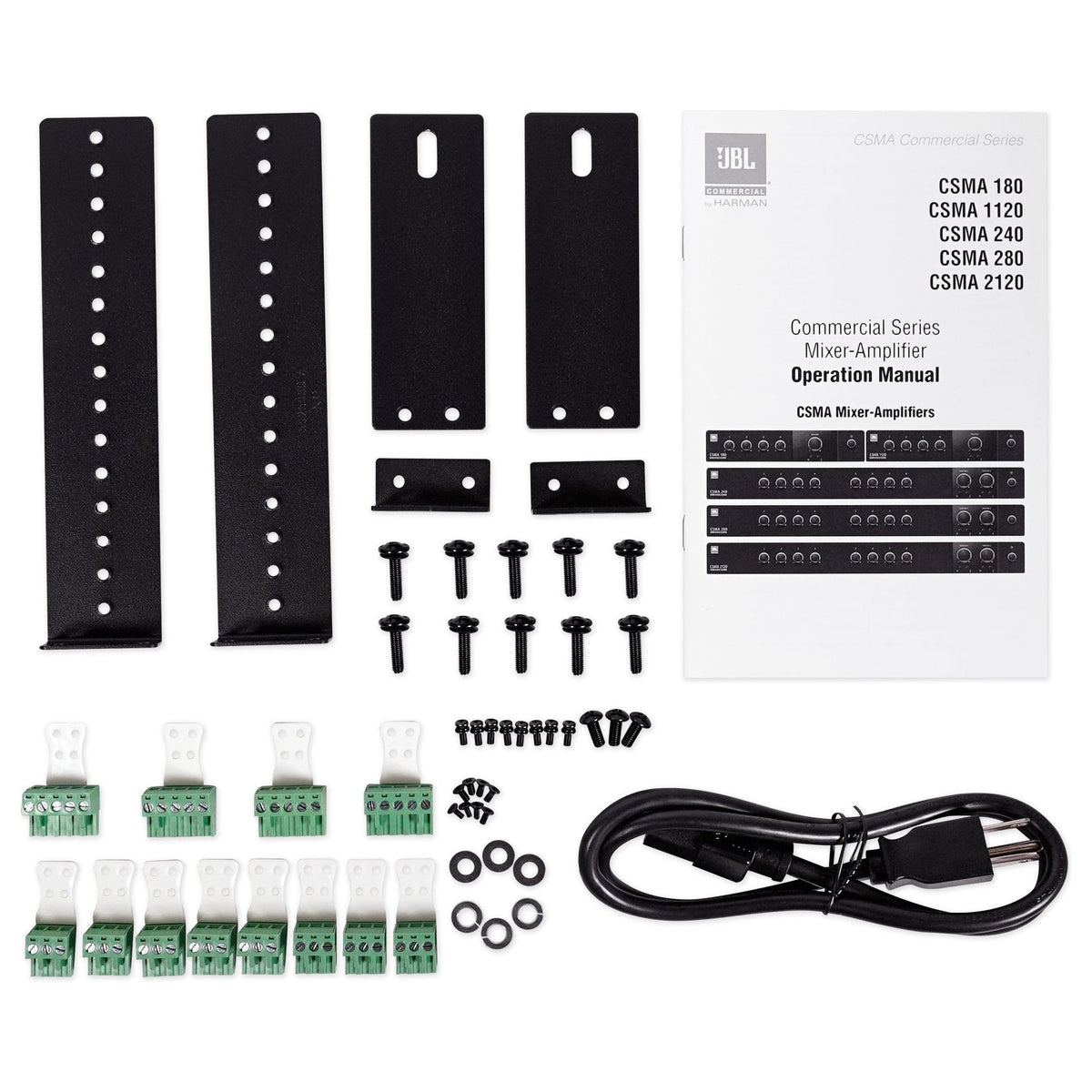

What's Included in the box

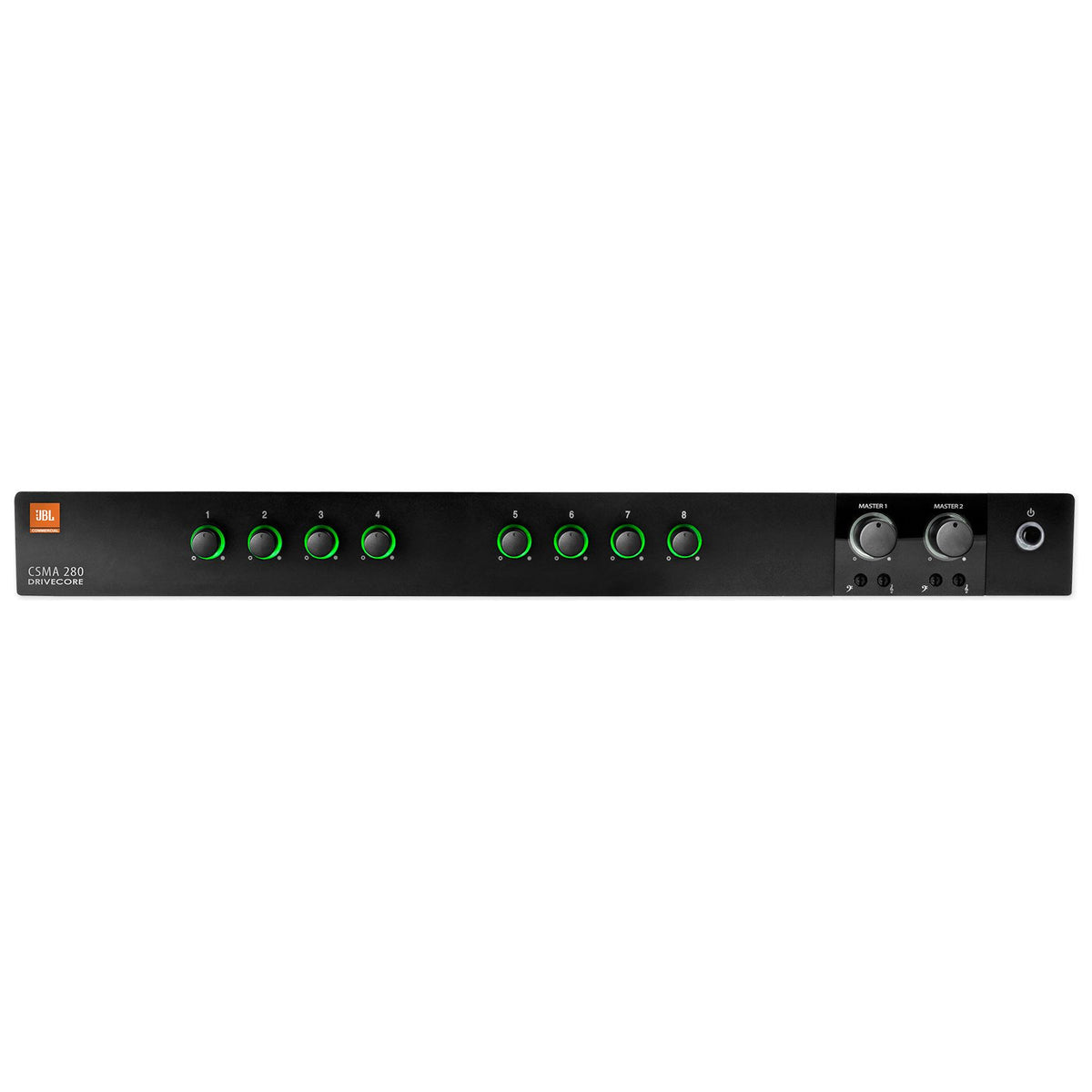

- 1 x JBL CSMA280 Commercial Mixer/Amplifier

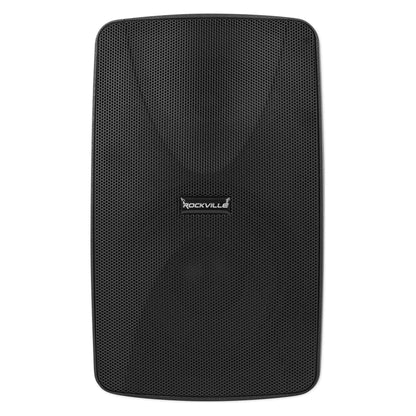

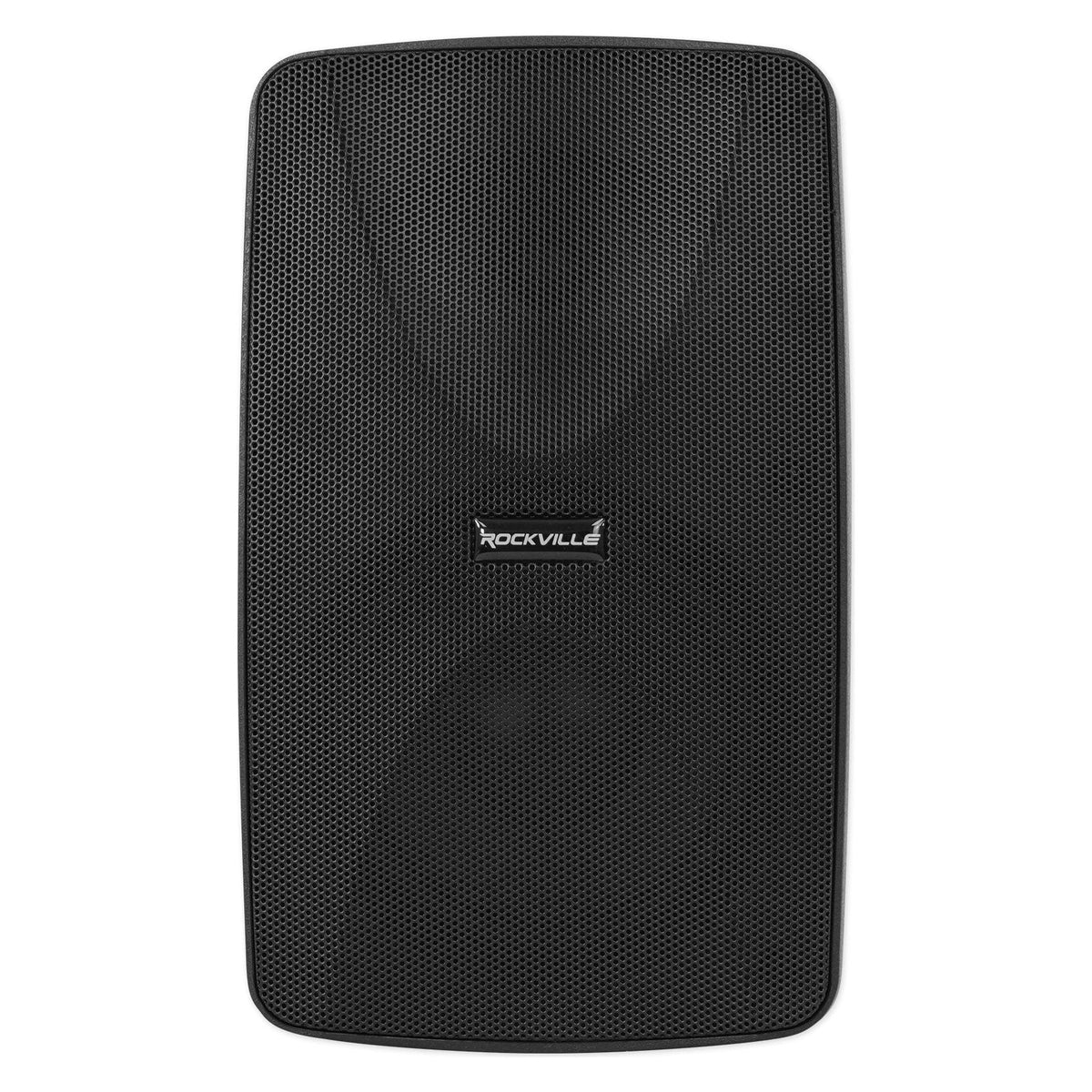

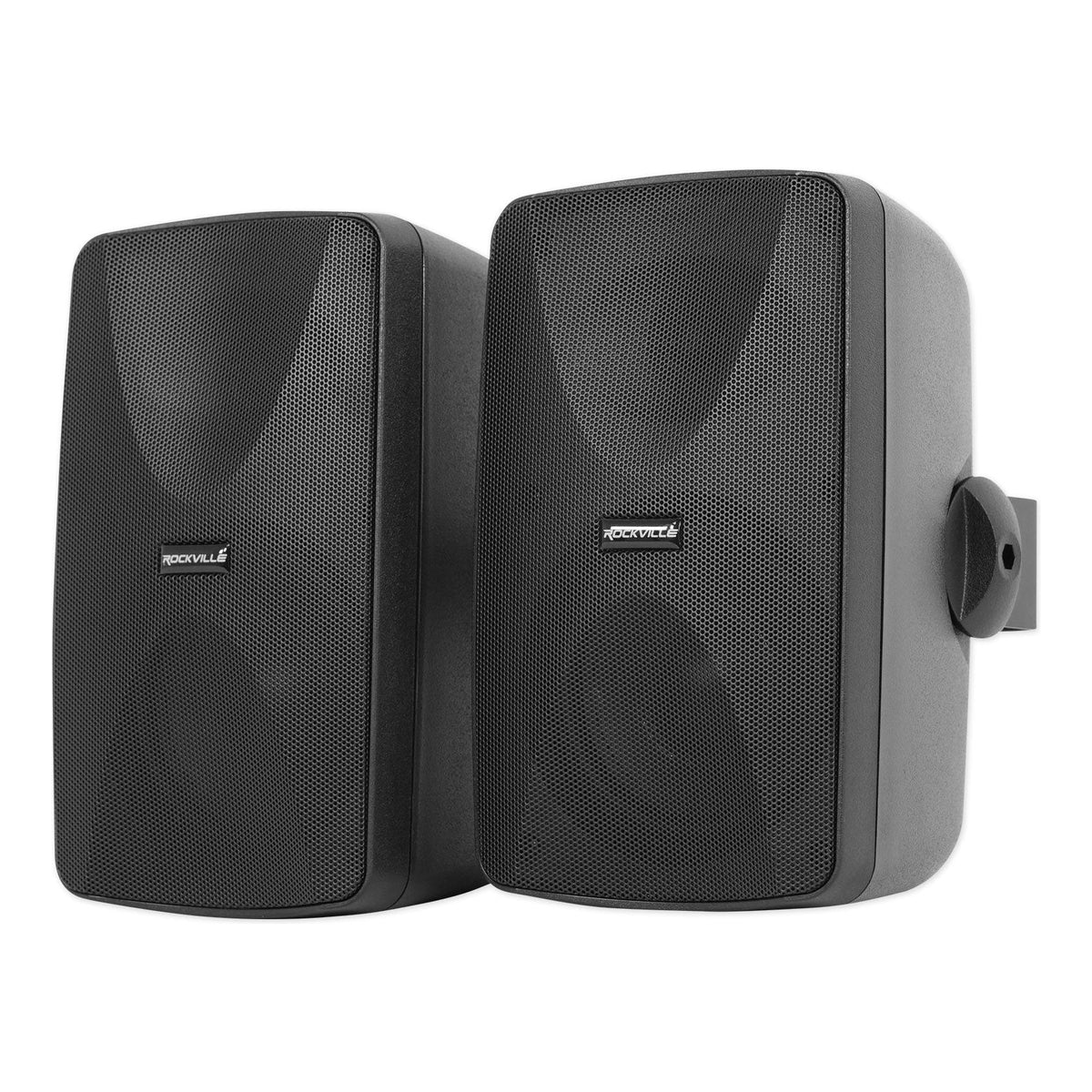

- 8 x Rockville WET-7020B 5.25" Black Wall Speakers
SKU: SKU: CSMA280+(8) WET-5B
View full details
















Product Description
A 4-way swivel bracket lets each speaker angle up, down, left, or right, which matters for aiming sound across an irregular patio or deck layout instead of straight ahead. Inside, a 5.25" polypropylene woofer and 13mm PEI tweeter cover 60 Hz to 20 kHz at 87 dB sensitivity, and a built-in 70V transformer with taps at 20W, 15W, 10W, 5W, or 2.5W lets the CSMA280 run all eight speakers off one 70V line at a level you set per zone. The amplifier itself runs eight mixer-channel inputs into two output channels at up to 80W, drives 4 or 8 ohm loads directly, and steps up to 70V or 100V distributed lines through a built-in Hi-Z switch, so no separate outdoor-rated transformer is needed.
Features

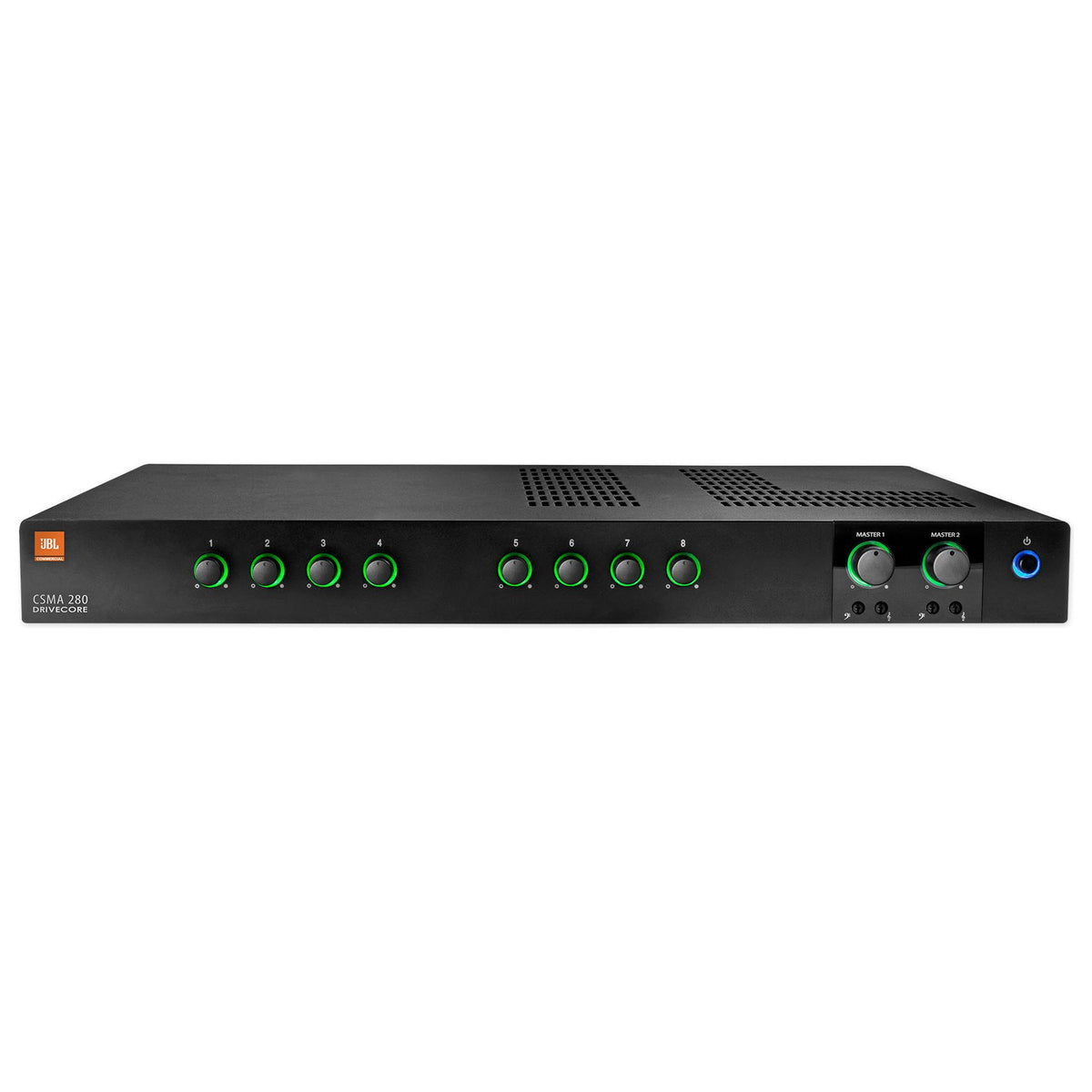

Eight-Channel Commercial Mixing

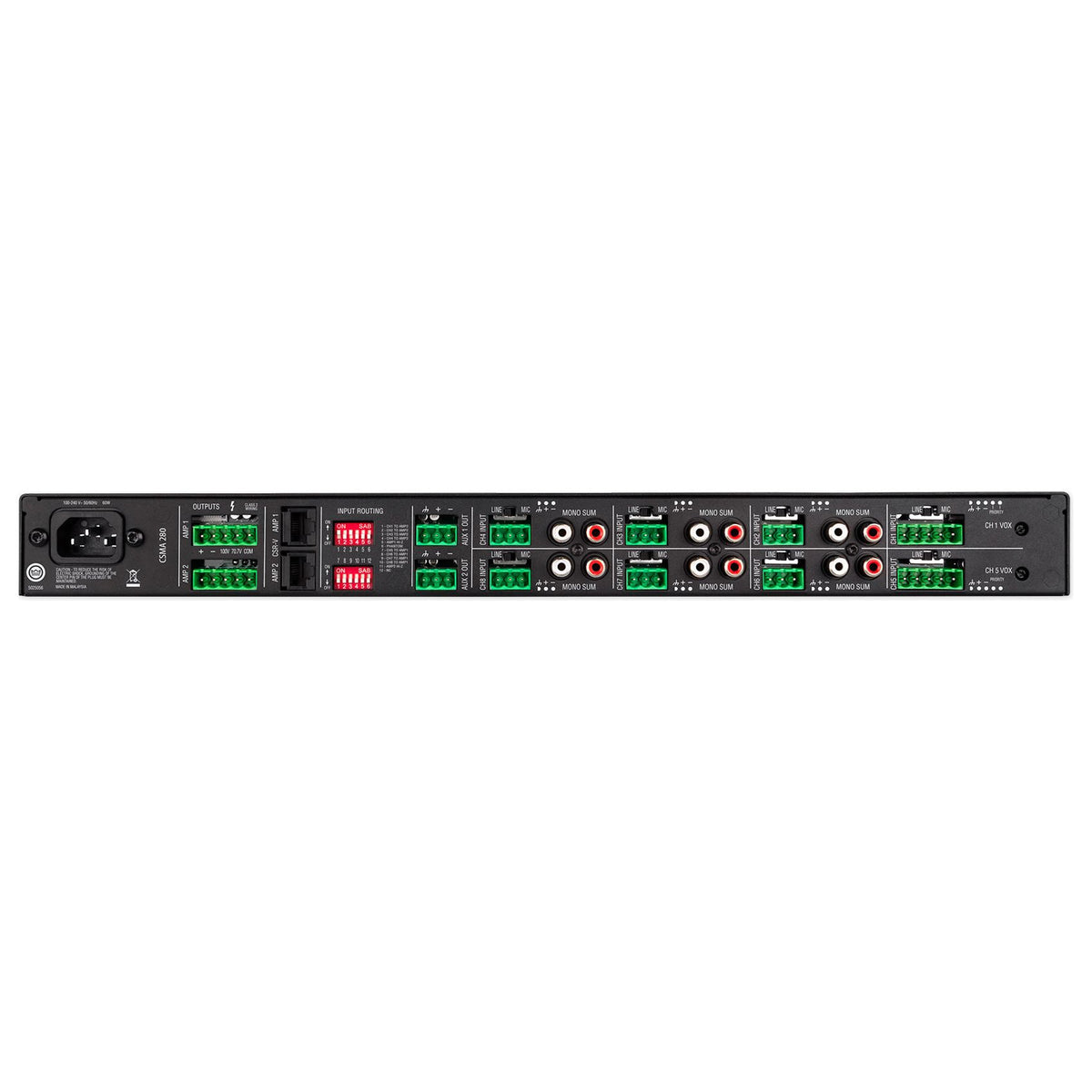

Eight mixer-channel inputs with euroblock mic/line and RCA connections let you combine paging, music, and announcement sources on one amplifier.
Built To Handle The Elements
An IPX55 rating and waterproof ABS cabinet let each speaker take direct water jets, rain, sun, and dust without damage.

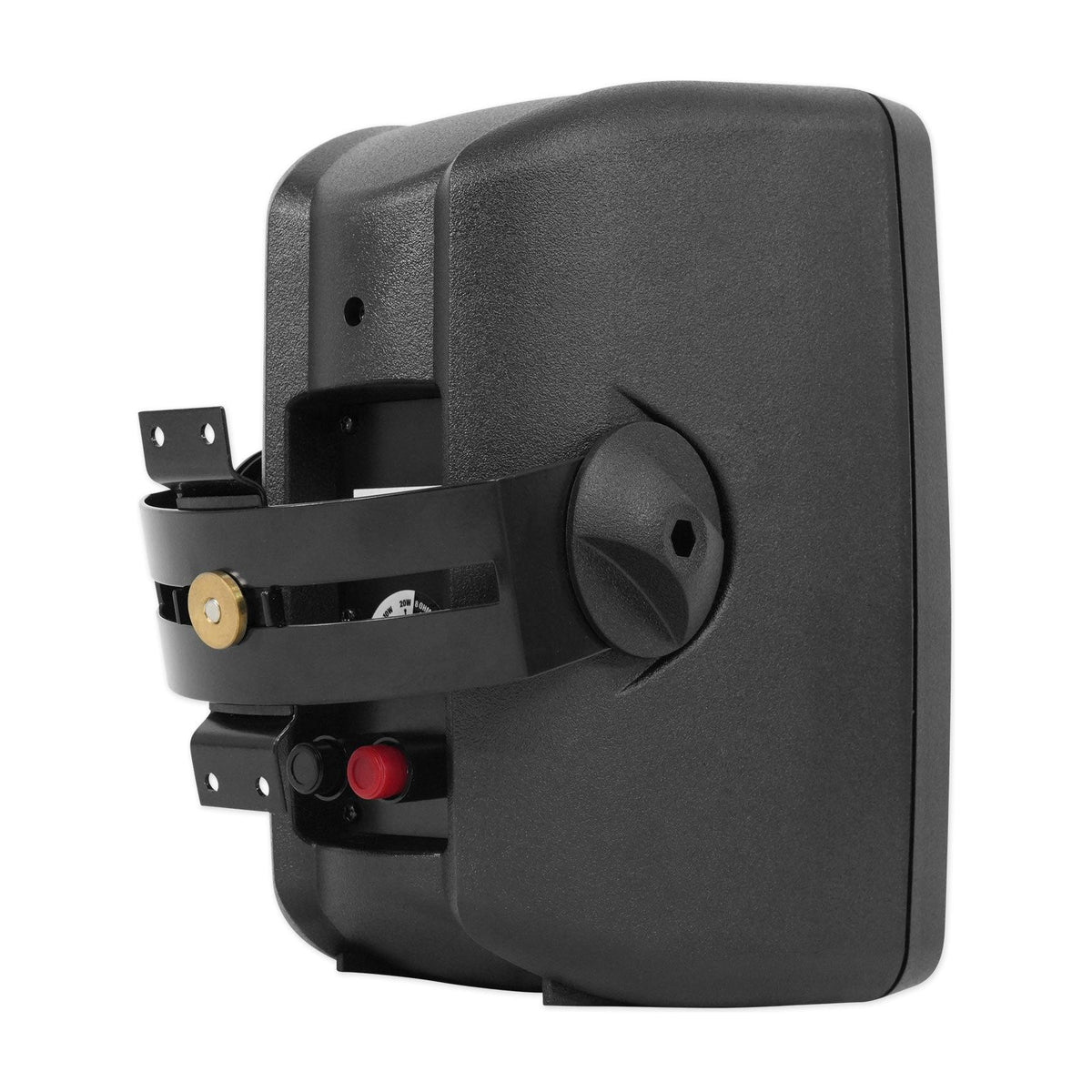

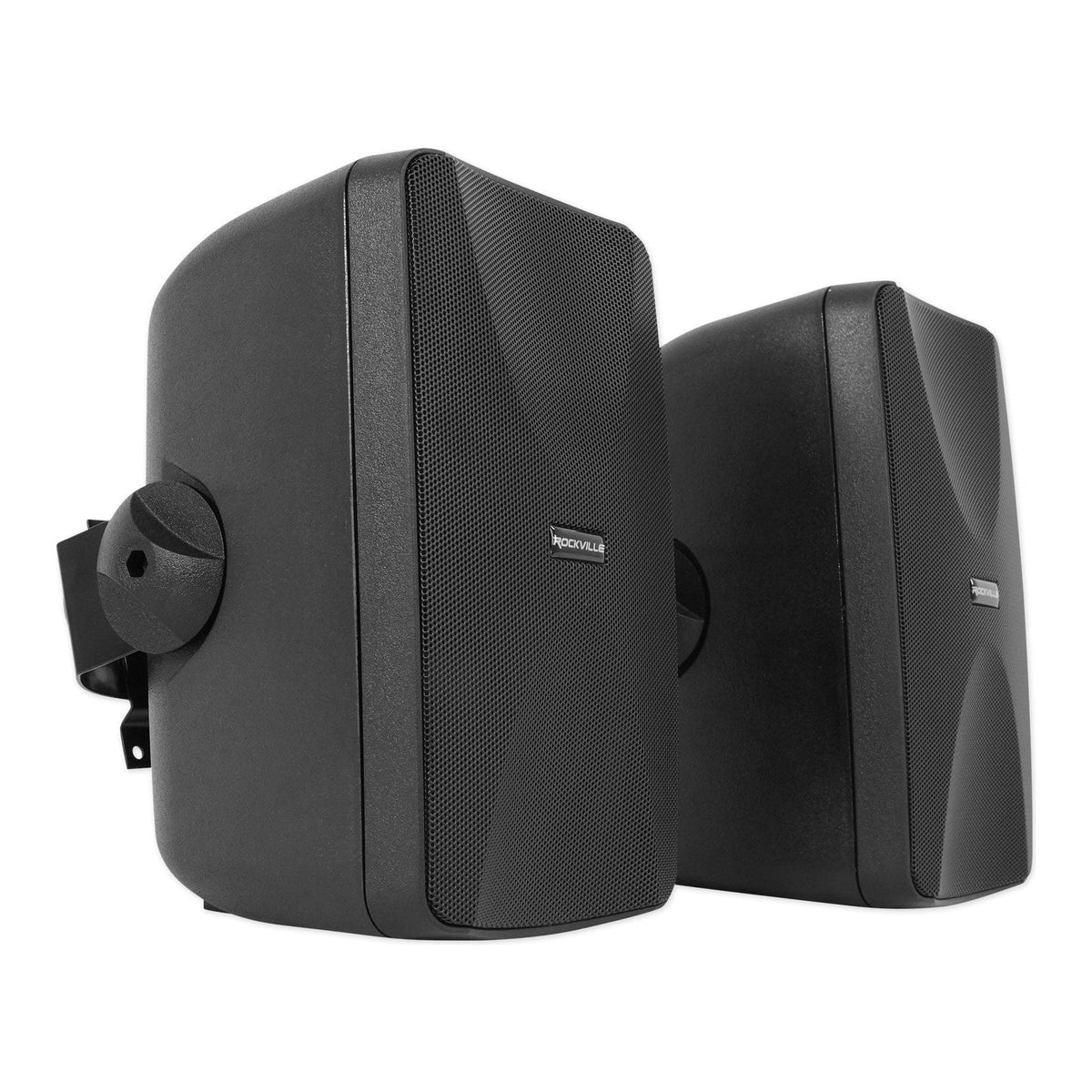

Aimable In Any Direction

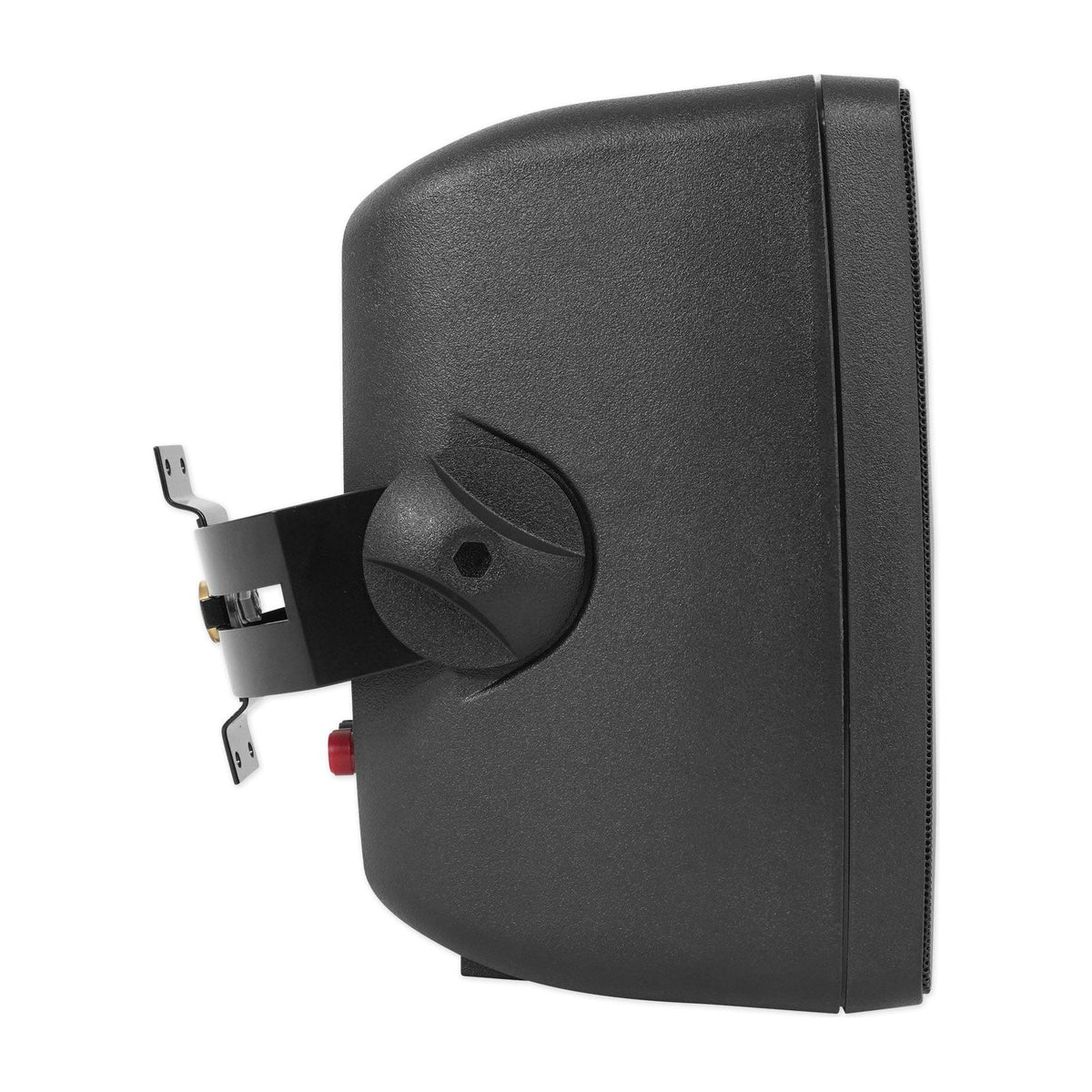

A 4-way swivel bracket adjusts up, down, left, or right, making it easier to stage sound across an irregular patio or deck.

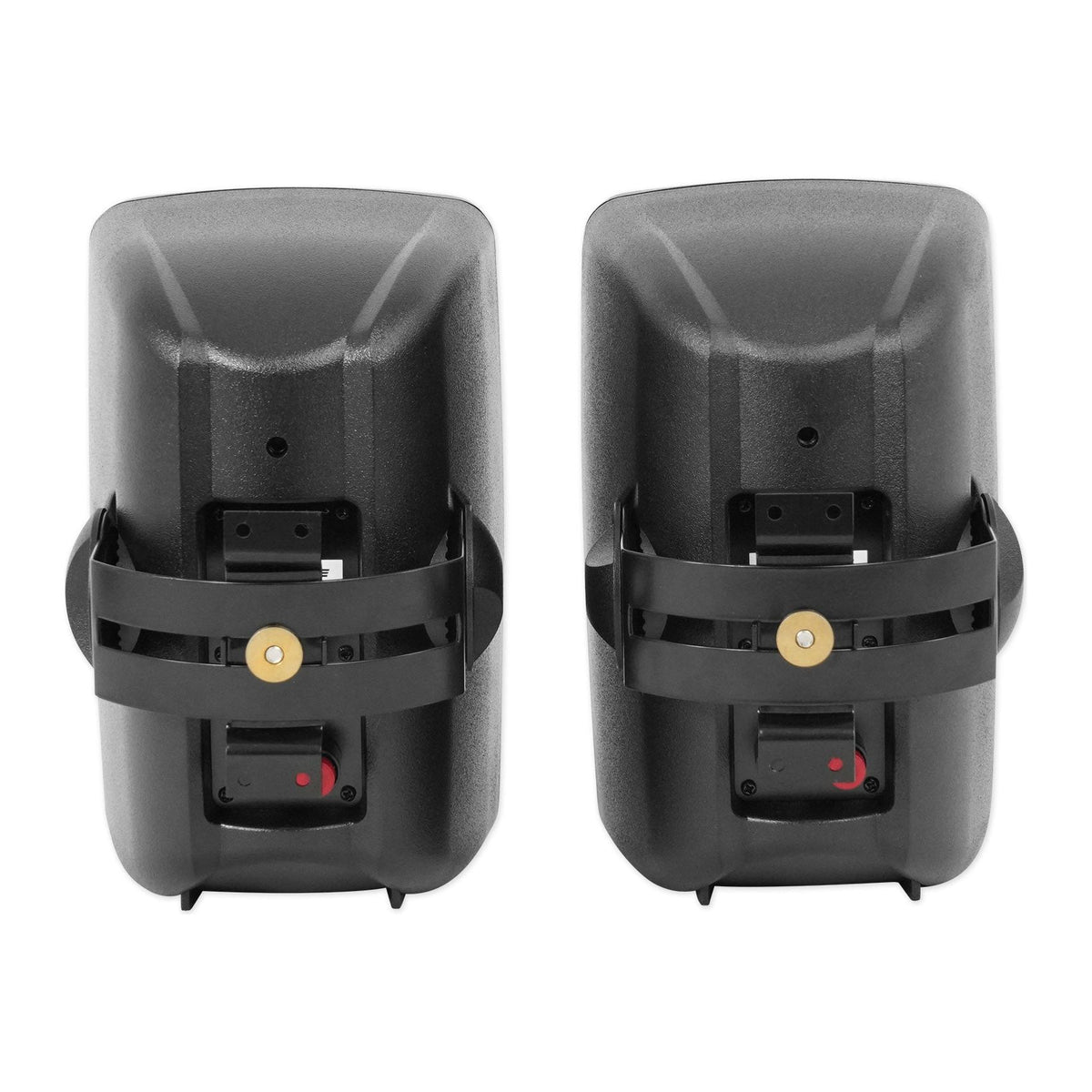

Rust-Proof Outdoor Hardware
An aluminum grille and powder-coated steel mounting brackets resist rust outdoors for years, even after passing a full 96-hour salt-spray test.
Zone-By-Zone Volume Control

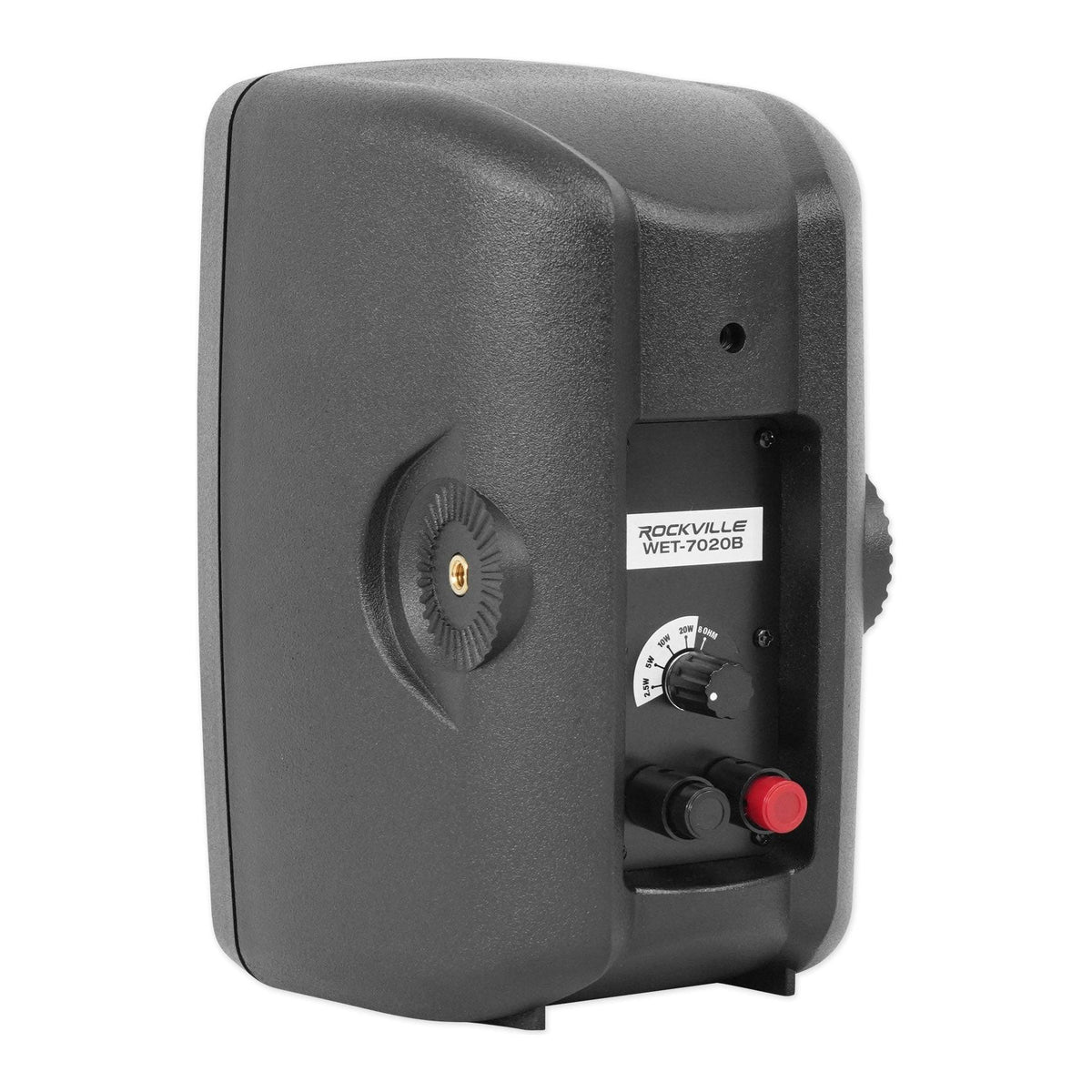

A built-in 70V transformer with taps from 2.5W to 20W lets the amplifier run all eight speakers at a level set per zone.
Technical Specifications
- Product Type Commercial Amplifier and Outdoor Wall Speaker Package
- Amplifier Model JBL CSMA280
- Amplifier Power 80W total, 10W continuous per channel
- Amplifier Inputs/Outputs 8 inputs, 2 outputs
- Amplifier Load Support 4 ohm, 8 ohm, 70V, 100V
- Speaker Model Rockville WET-7020B, Black (qty 8)
- Speaker Weatherproof Rating IPX55
- Speaker Frequency Response 60 Hz to 20 kHz
- Speaker Sensitivity 87 dB
- Speaker Impedance 8 ohm nominal, 40W RMS

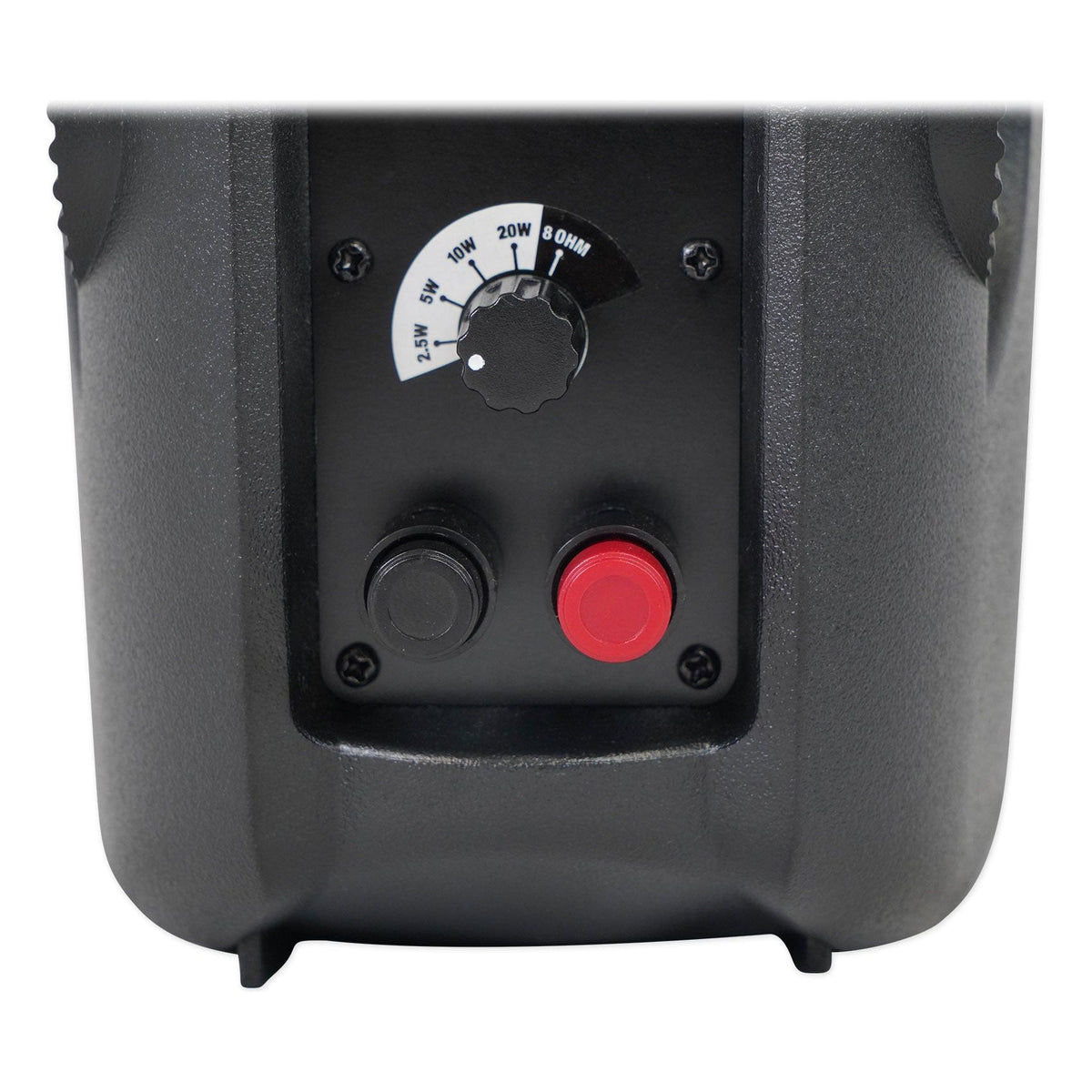

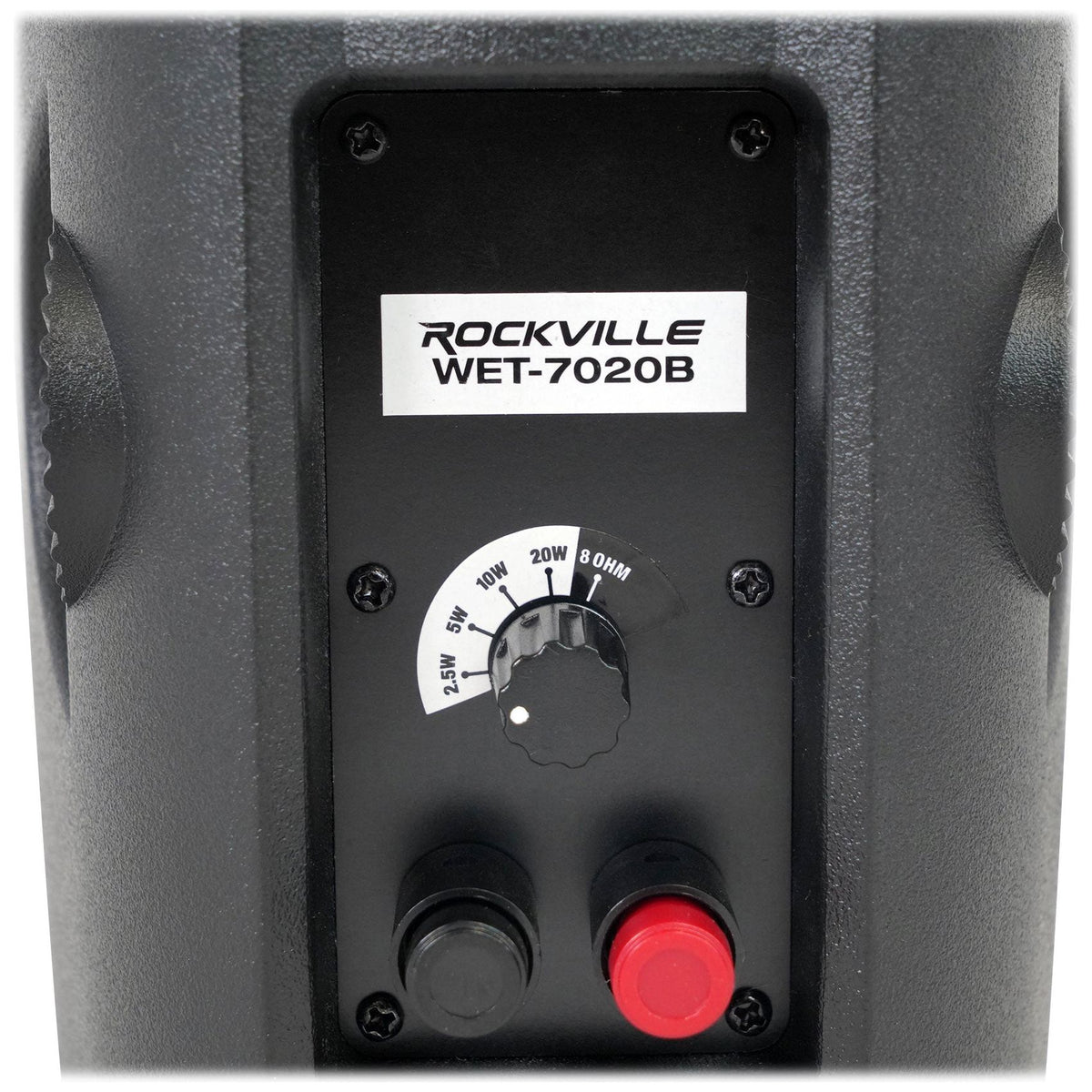

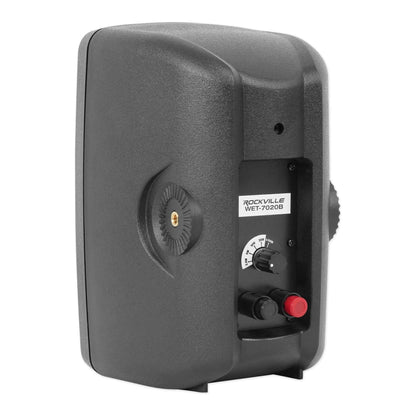

- Speaker Taps 70V: 20W, 15W, 10W, 5W, 2.5W
- Speaker Weight 4.16 lb each
- Amplifier Weight 11.9 lb
