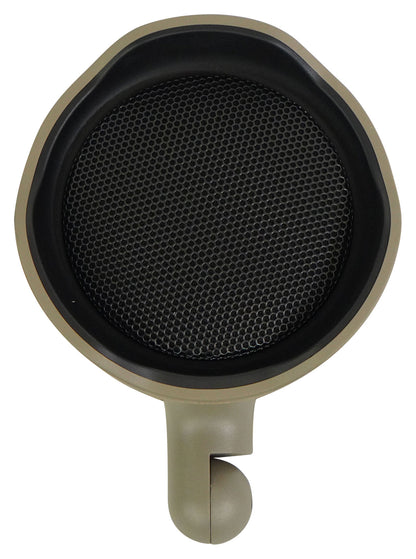

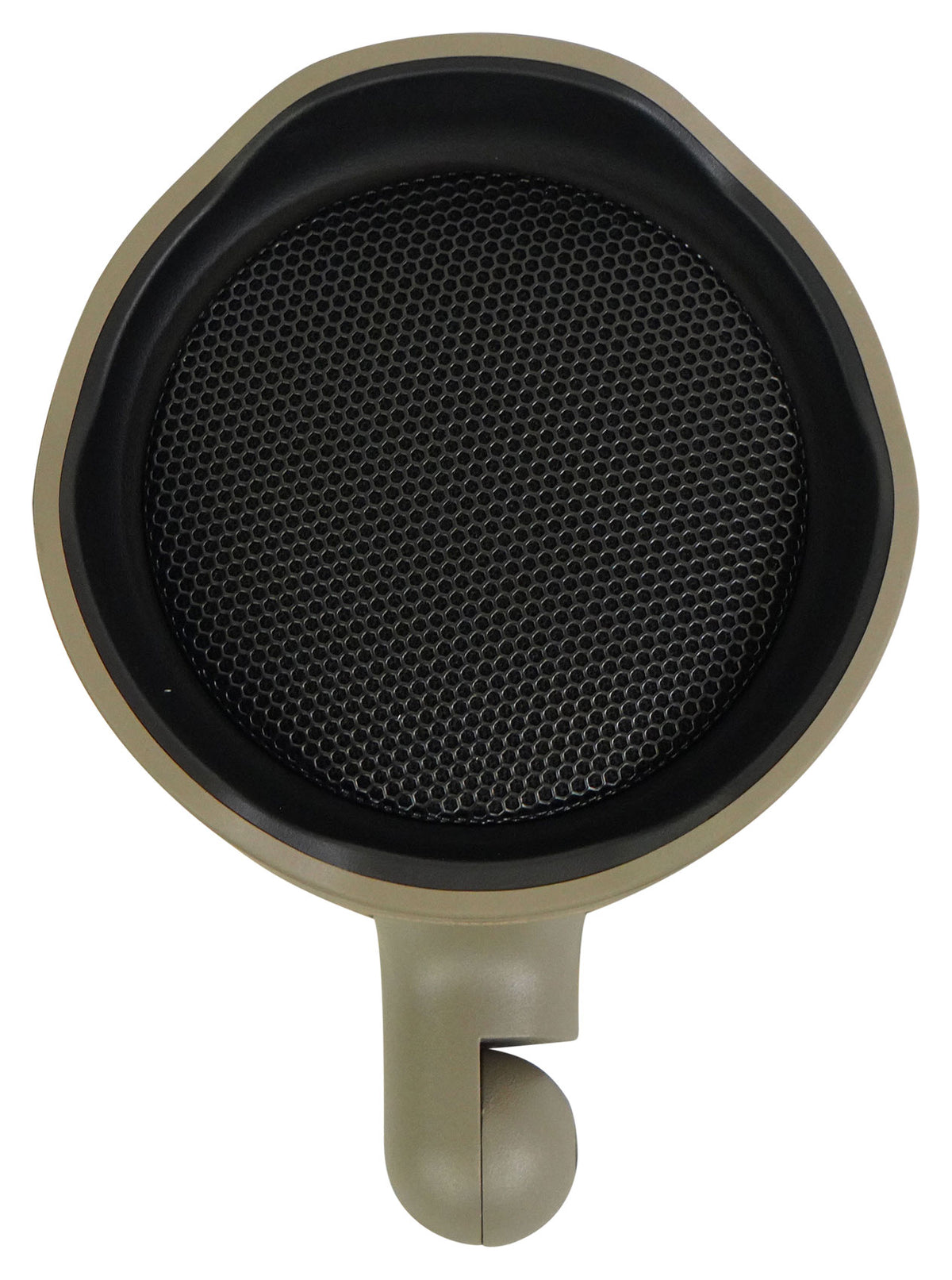

3" Coaxial Landscape Speaker, 70V/100V or 8 Ohm, IP66, Ground Stake and L-Bracket, Tan, for Patios, Retail
Free Shipping
Features
- 3" coaxial woofer and 0.8" titanium dome tweeter cover 74 Hz to 20 kHz
- 15W 70V/100V multi-tap transformer, switchable to 8 ohm direct operation
- IP66 rating protects against dust and powerful water jets

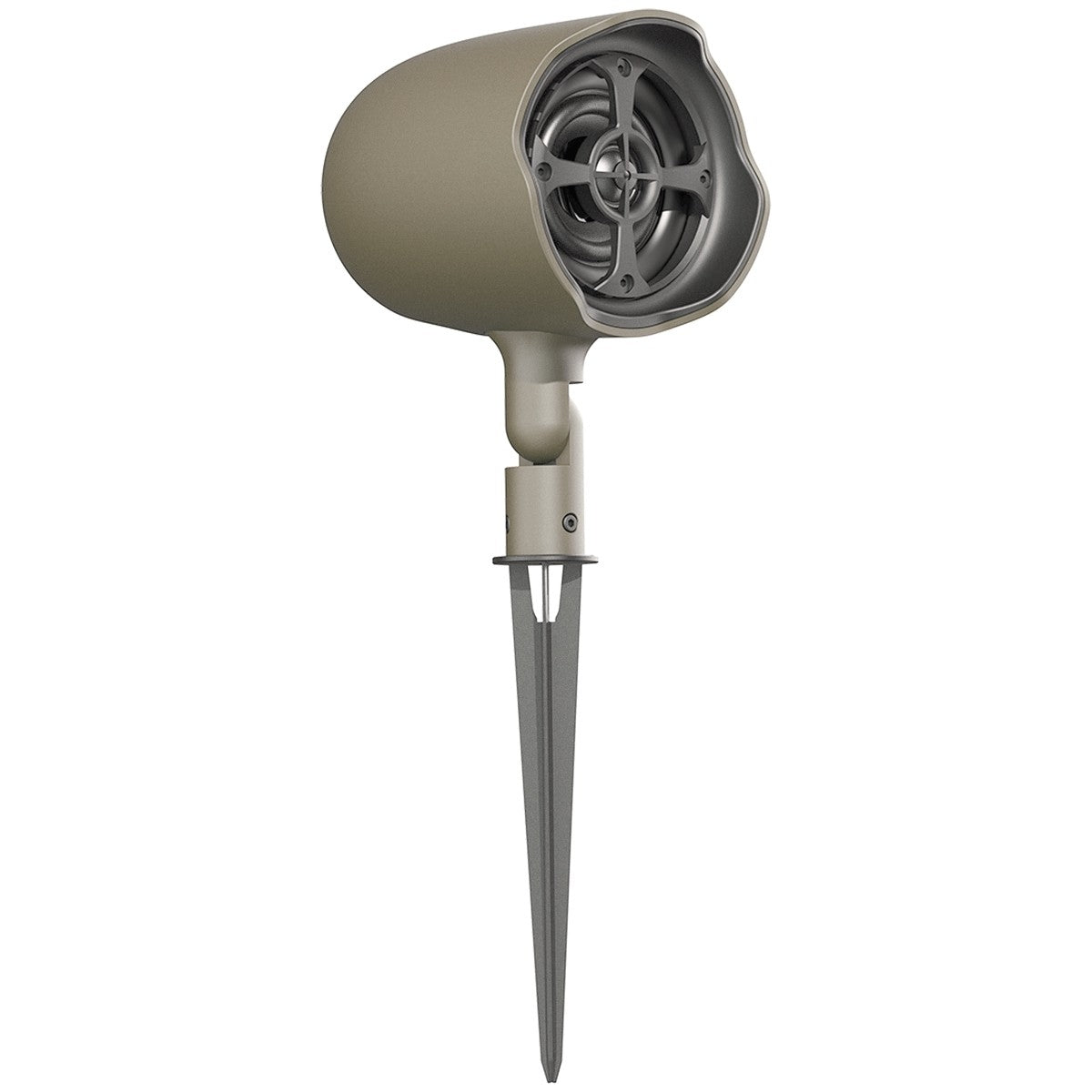

- Included ground stake and L-bracket for in-ground or surface mounting

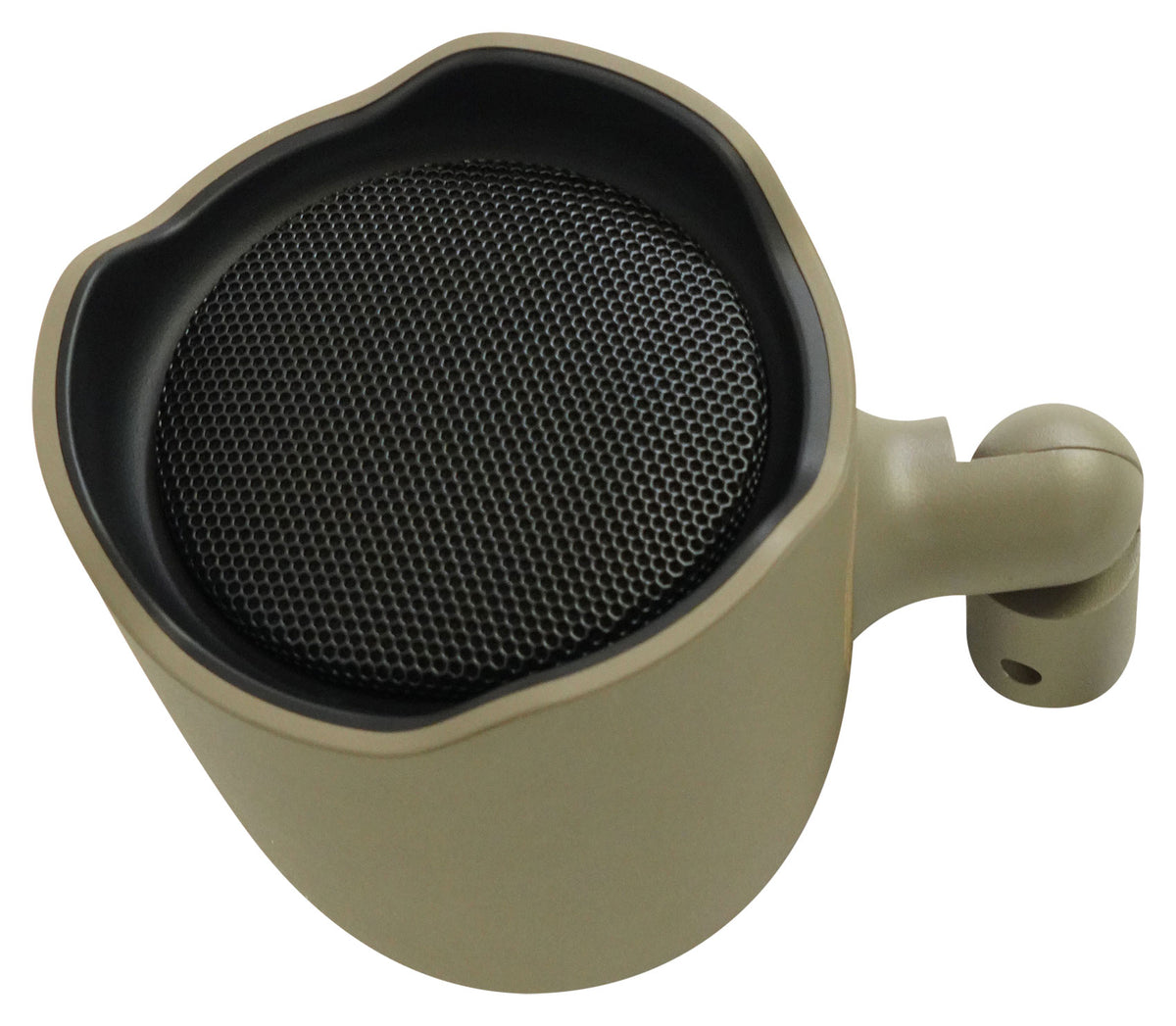

- Low-profile tan finish and adjustable hinge for discreet, aimable placement
Couldn't load pickup availability

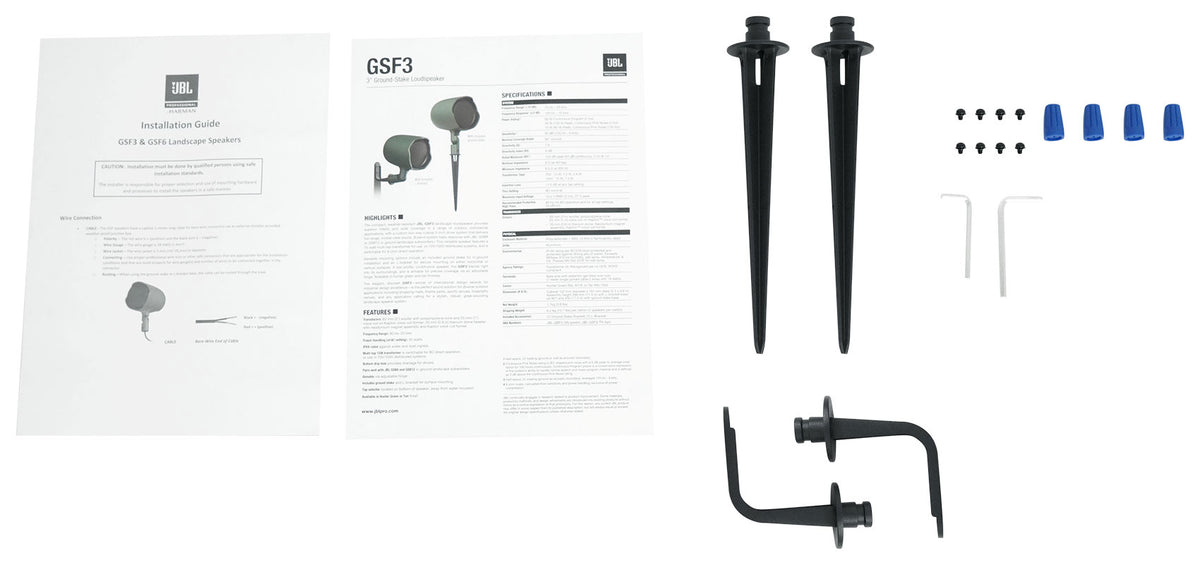

What's Included in the box
- (1) GSF3 3" Landscape Speaker, Tan
- (1) Ground Stake Bracket
- (1) L-Bracket
SKU: SKU: JBL-GSF3-TN*
View full details










Product Description
Installation fits the system you already have. A 15W multi-tap transformer runs on 70V lines at 15W, 7.5W, or 3.75W and on 100V lines at 15W or 7.5W, or you can switch to 8 ohm direct operation with 30W continuous pink noise handling and 60W continuous program. The tap selector sits on the bottom of the cabinet, away from rain, and a bottom drip hole drains water away from the drivers. Push the included ground stake into soil for in-ground placement, or use the included L-bracket to mount it on a wall, deck, or other horizontal or vertical surface. An IP66 rating protects against dust and powerful water jets, and the polycarbonate and ABS enclosure carries a UL94V-0 flammability rating. For deeper bass across a larger landscape, pair it with JBL GSB8 or GSB12 in-ground subwoofers.
Features
Full-Range Sound Outdoors

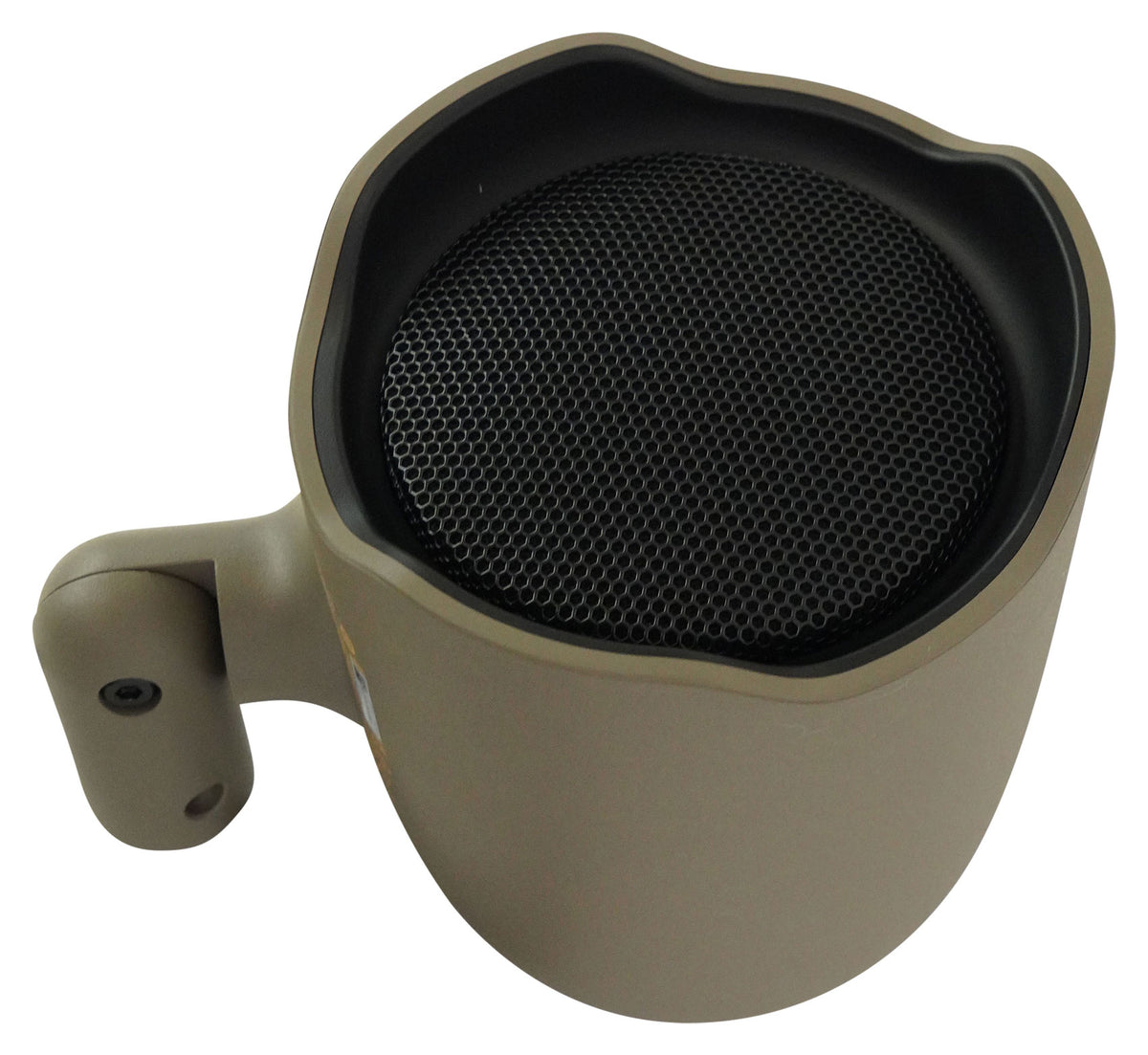

A two-way coaxial driver with a 3" woofer and 0.8" titanium dome tweeter covers 74 Hz to 20 kHz for clear music and announcements across patios and walkways.
Built for Wet Weather

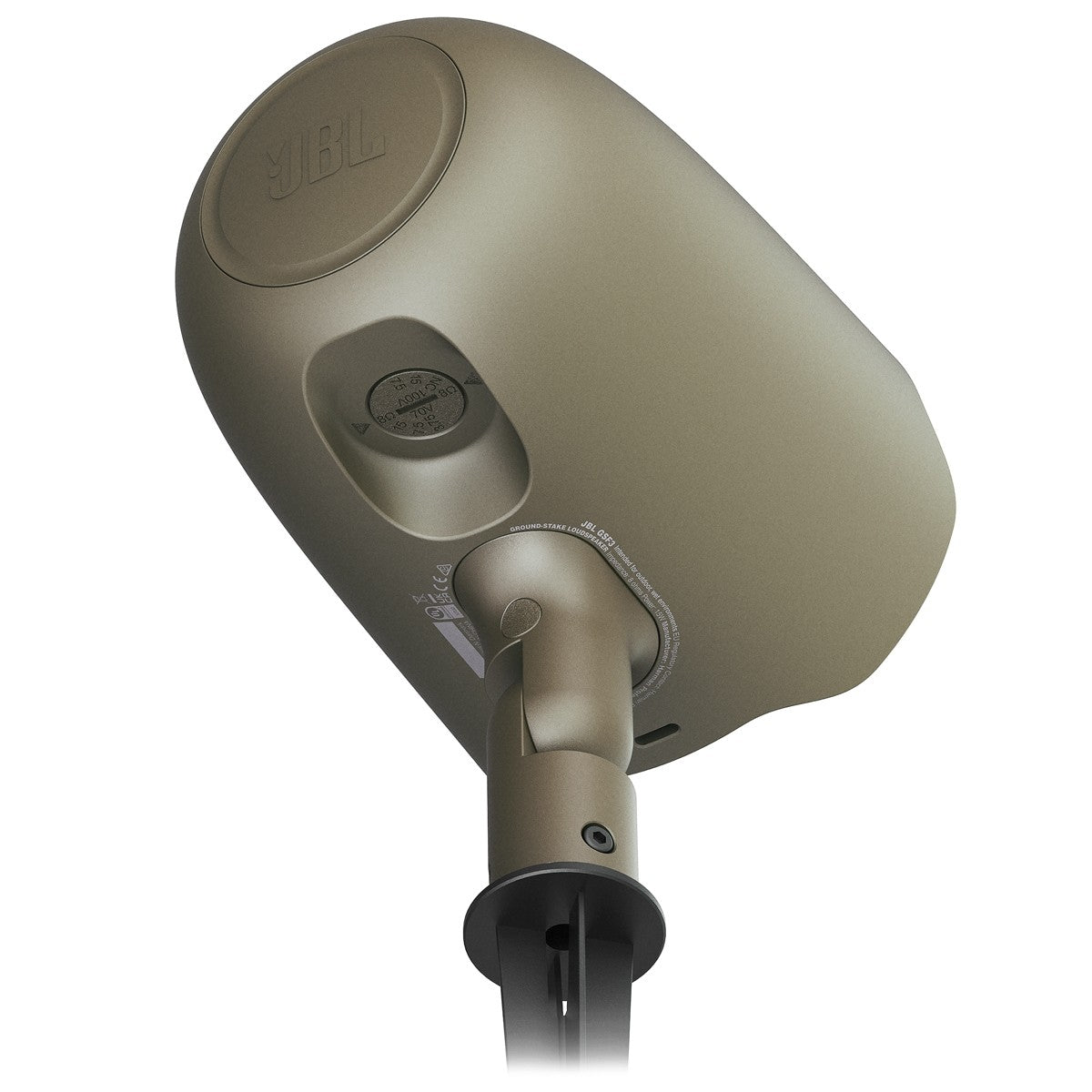

An IP66 rating, a bottom drip hole, and a tap selector placed under the cabinet keep water and dust away from the drivers in gardens and open-air venues.
Fits Distributed or Direct Systems
A 15W multi-tap transformer runs on 70V or 100V lines, or switch to 8 ohm direct for 30W continuous handling, so it drops into most commercial installs.
Two Ways to Mount

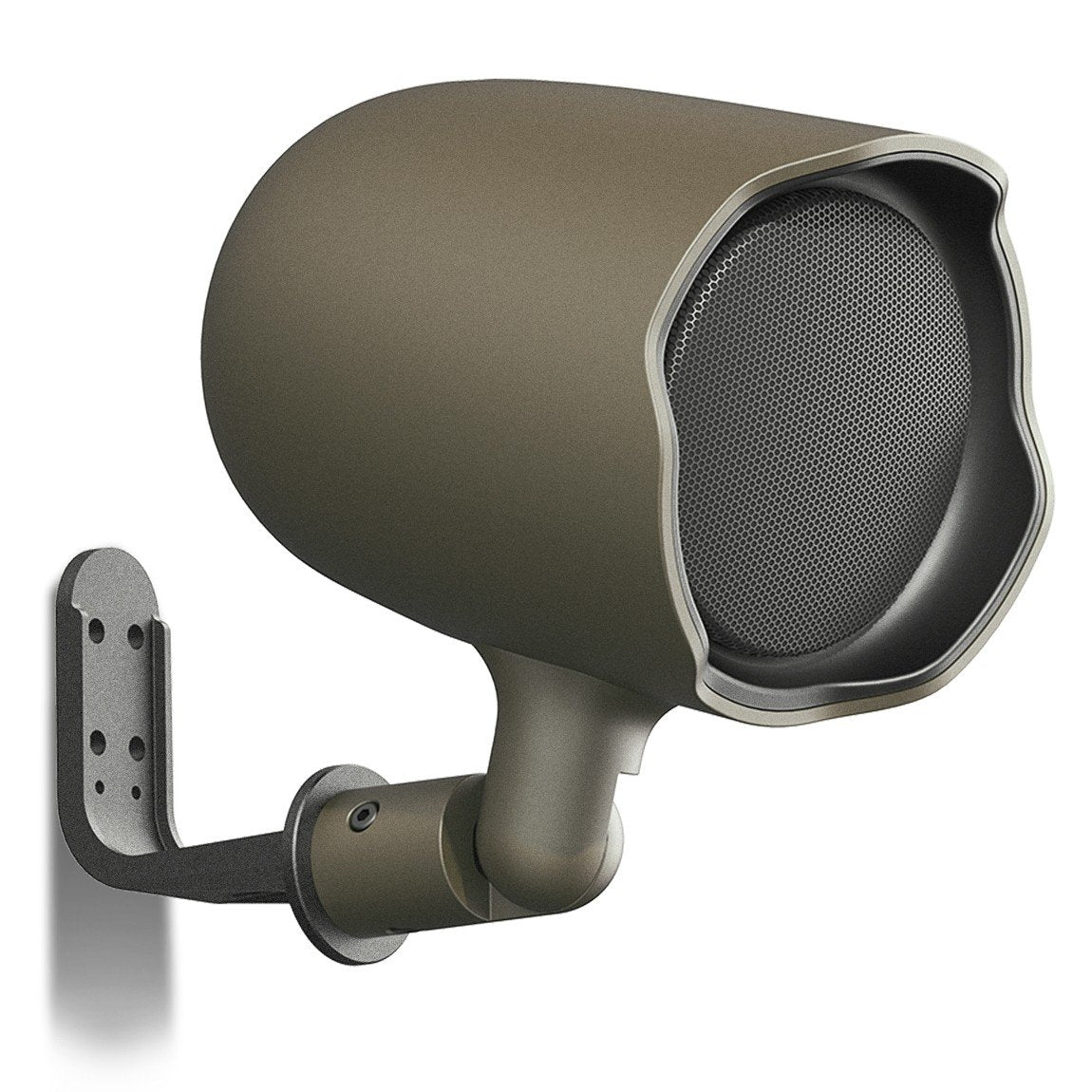

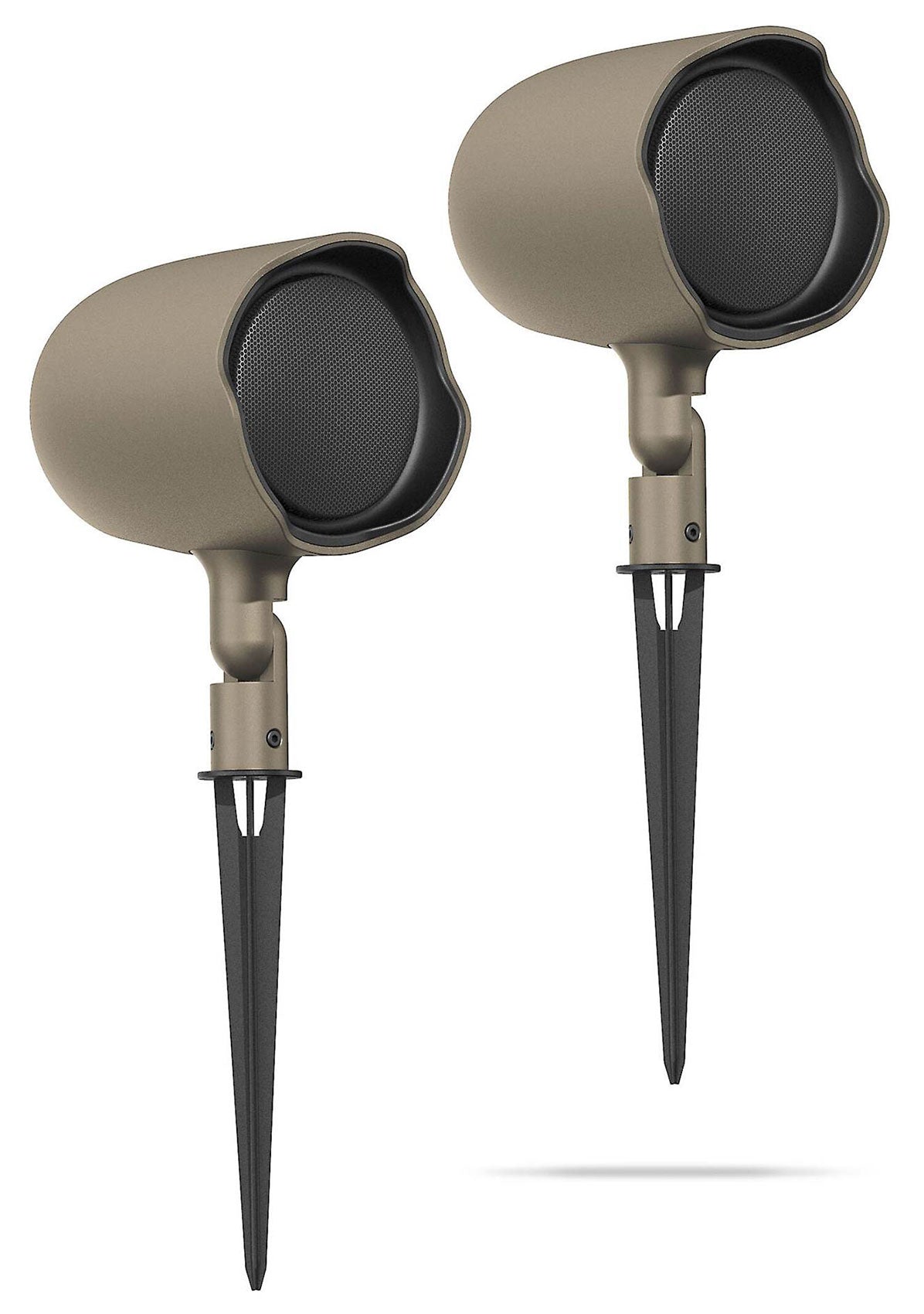

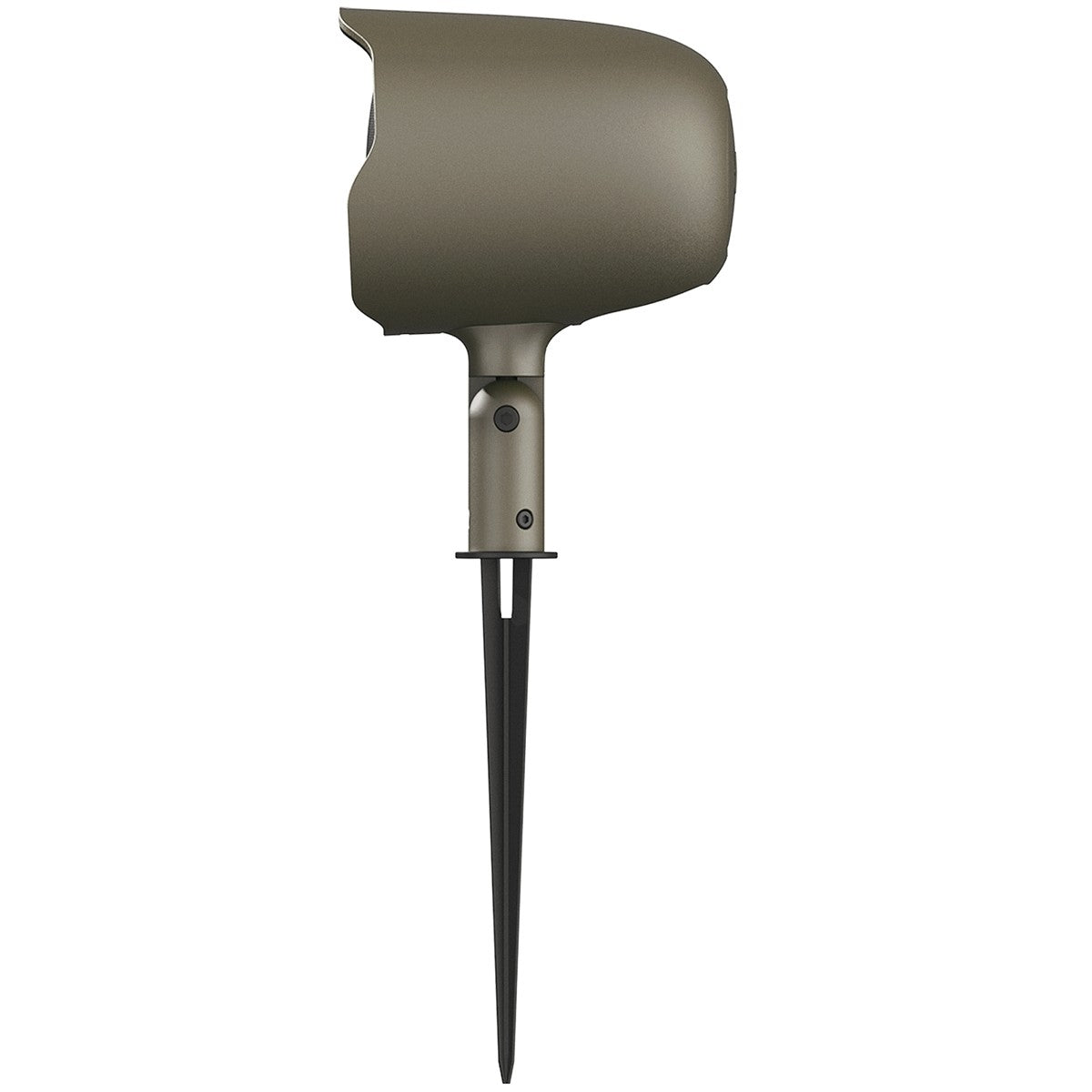

Push the included ground stake into soil for in-ground placement, or use the L-bracket to mount on walls, decks, and other horizontal or vertical surfaces.
Blends Into the Landscape
A low-profile tan finish disappears into mulch and stone, while the adjustable hinge aims the 90° conical pattern right where guests sit or walk.
Technical Specifications
- Product Type Ground-Stake Landscape Speaker
- Drivers 3 in Polypropylene Woofer, 0.8 in Titanium Dome Tweeter (Coaxial)
- Frequency Range (-10 dB) 74 Hz - 20 kHz
- Frequency Response (+/-3 dB) 120 Hz - 15 kHz
- Power Rating (8 Ohm) 30W Continuous Pink Noise (120W Peak), 60W Continuous Program
- Sensitivity 84 dB
- Maximum SPL 95 dB Continuous, 103 dB Peak @ 1m
- Coverage 90° Conical
- Directivity Q 7.9, DI 9 dB
- Nominal Impedance 8 Ohms (8 Ohm Tap)
- Transformer Taps 15W, 7.5W, 3.75W at 70V; 15W, 7.5W at 100V

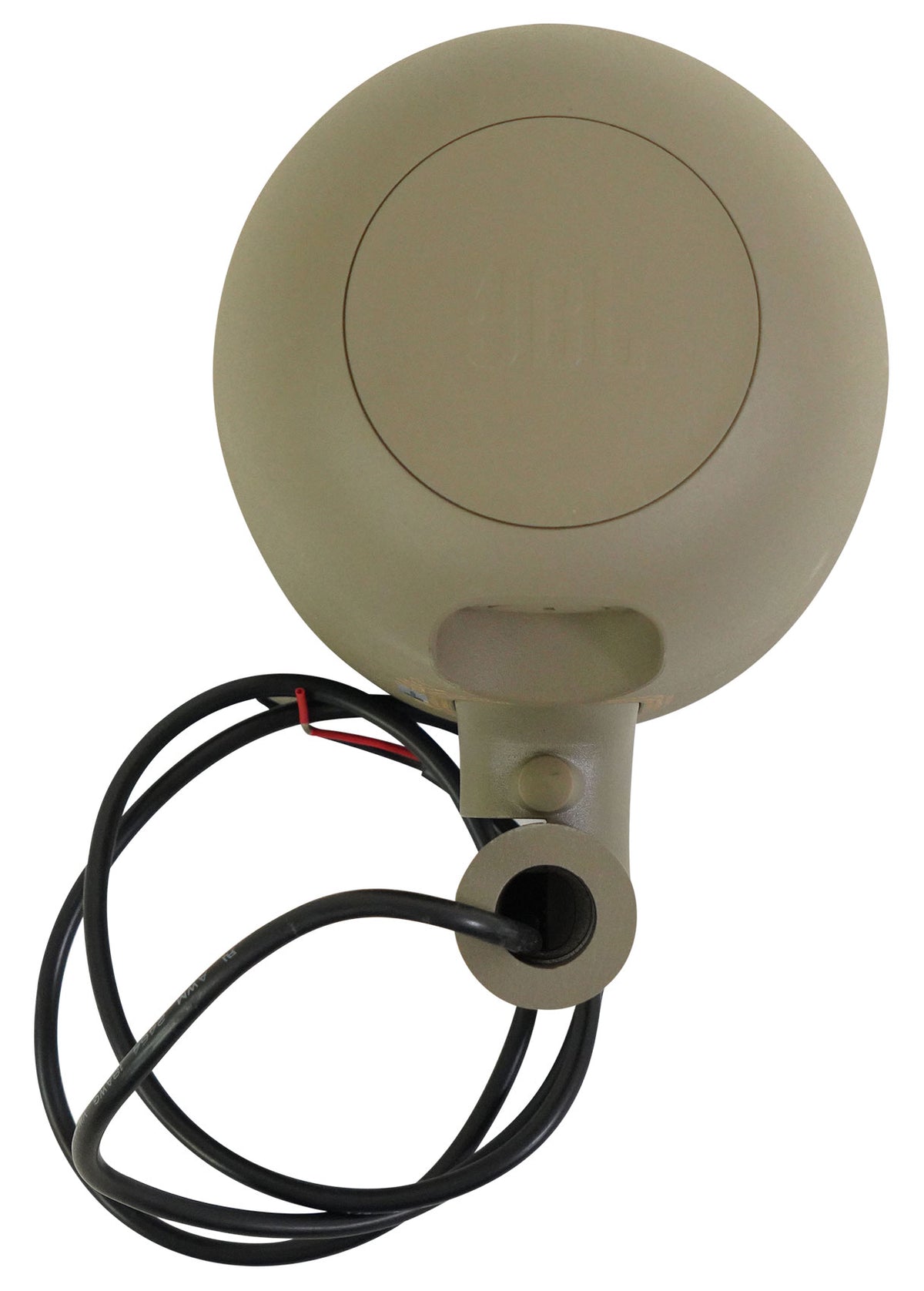

- Terminals 1 m 18 AWG Cable, Gel-Filled Wire Nuts
- Environmental Rating IP66
- Enclosure Polycarbonate + ABS, UL94V-0
- Color Tan (RAL 7004)
- Mounting Ground Stake, L-Bracket, Adjustable Hinge
- Weight 3.8 lb (1.7 kg)
- Dimensions 5.2 x 6.6 in (Dia x D)
