Pair JBL GSF6-GN 6.5" Landscape Ground Stake / Wall Mount 70v Commercial Speaker
Pair JBL GSF6-GN 6.5" Landscape Ground Stake / Wall Mount 70v Commercial Speaker
JBL
Pair JBL GSF6-GN 6.5" Landscape Ground Stake / Wall Mount 70v Commercial Speaker
Pair JBL GSF6-GN 6.5" Landscape Ground Stake / Wall Mount 70v Commercial Speaker
Pair Of 6.5" Landscape Speakers, 50W, 70V/100V Taps, IP66, Hunter Green, Stake And L-Bracket
Free Shipping
Features
- Coaxial 6.5" two-way driver system covers 65 Hz to 20 kHz
- 50W continuous pink noise handling with 110 dB peak SPL
- IP66 rated against dust and water jets with bottom drip hole
- 30W multi-tap transformer for 70V and 100V lines plus 8 ohm

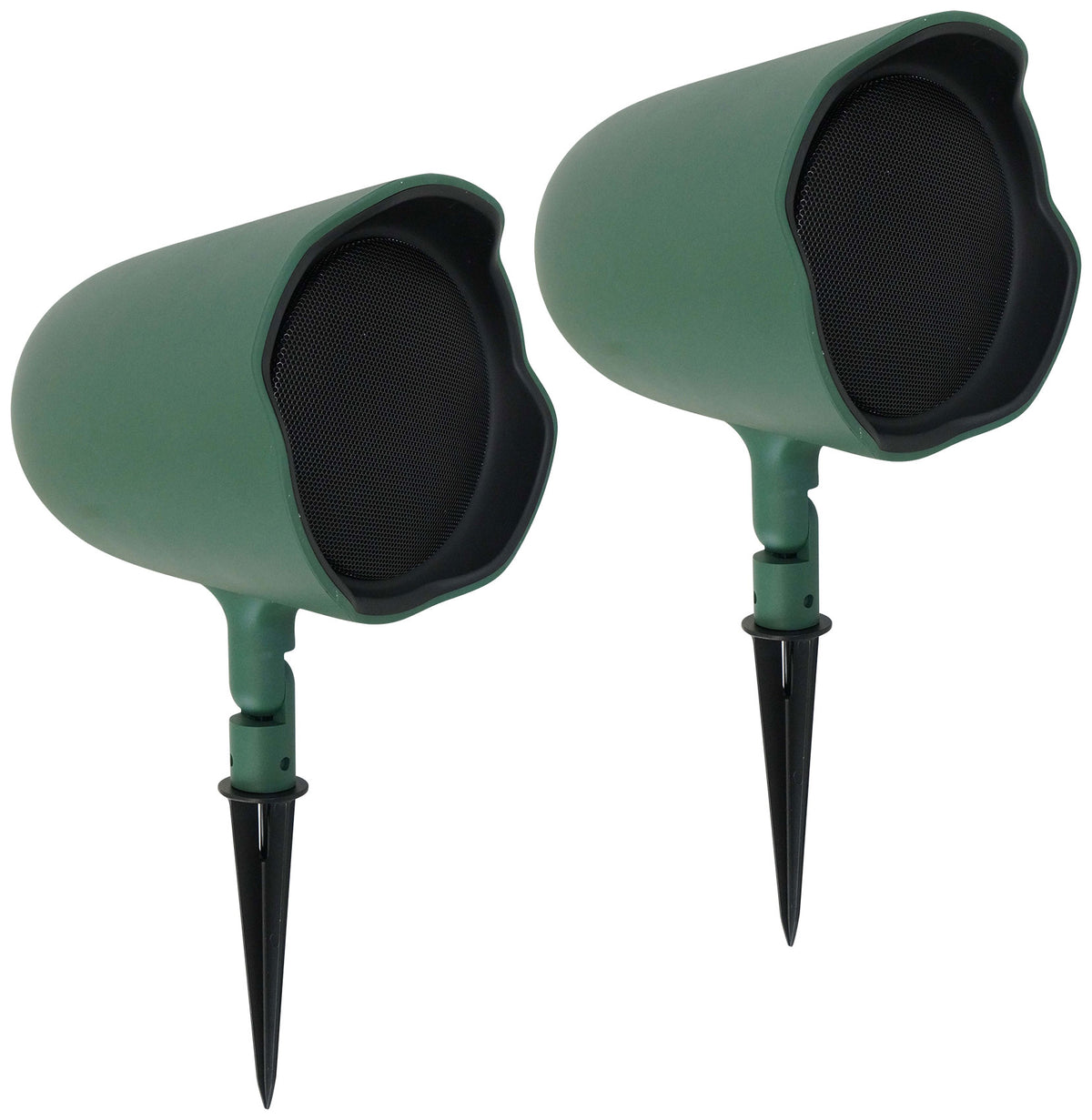

- Ground stake and L-bracket included with every speaker
Couldn't load pickup availability

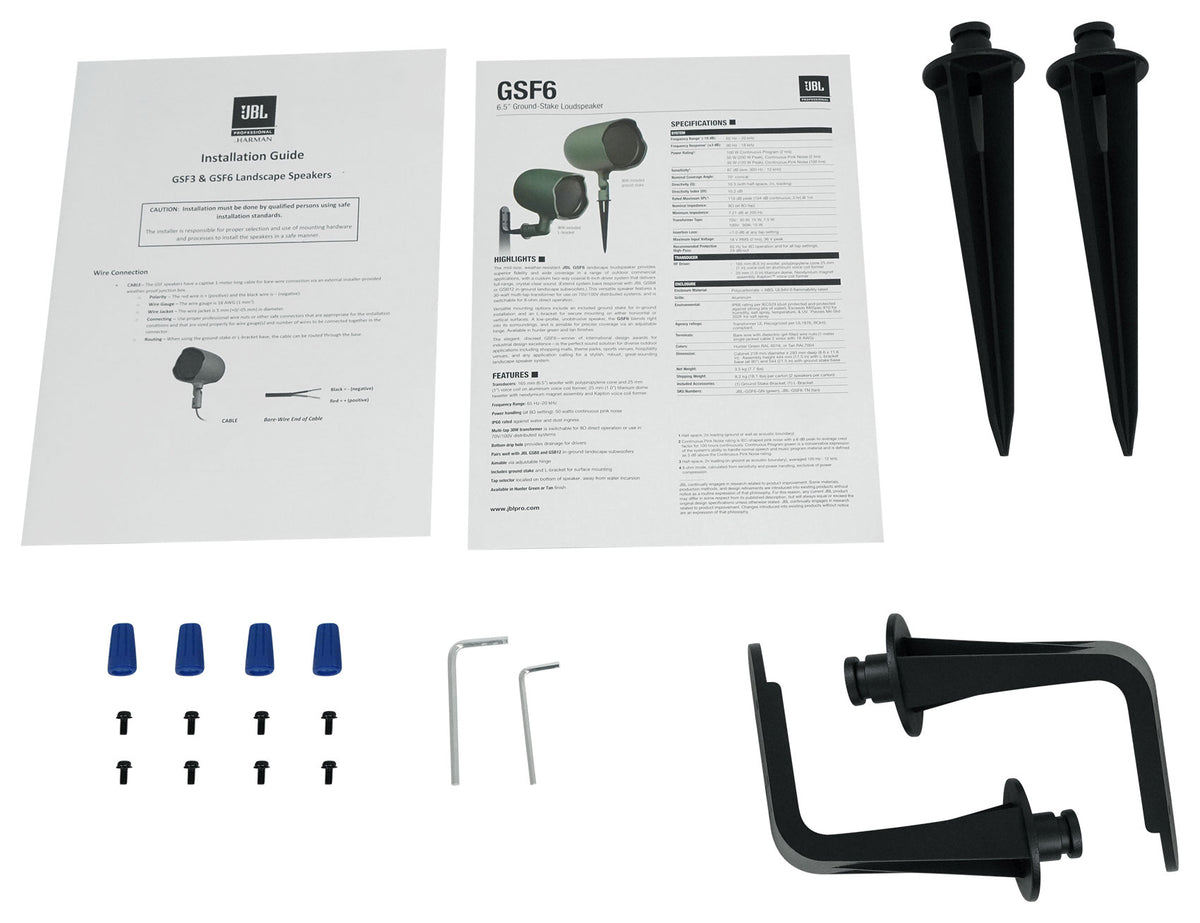

What's Included in the box
- 2 x GSF6 Landscape Loudspeakers (Hunter Green)
- 2 x Ground Stake Brackets
- 2 x L-Brackets
- Dielectric-Gel-Filled Wire Nuts
SKU: SKU: JBL-GSF6-GN
View full details








Product Description

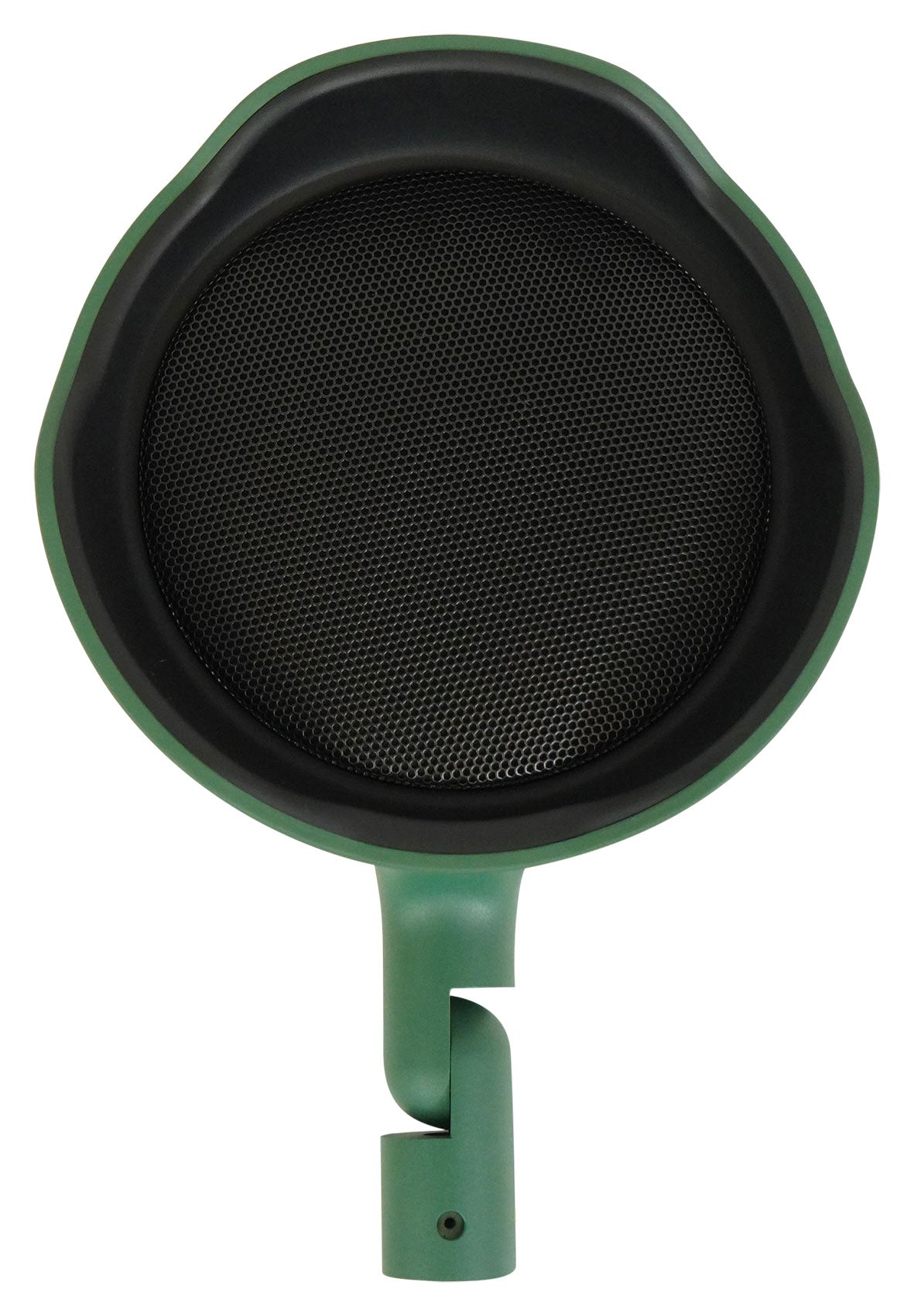

Coverage is a 70 degree conical pattern, tighter than the 3-inch model, which throws further and puts sound where it belongs rather than into neighboring property. An adjustable hinge sets the aim after installation.

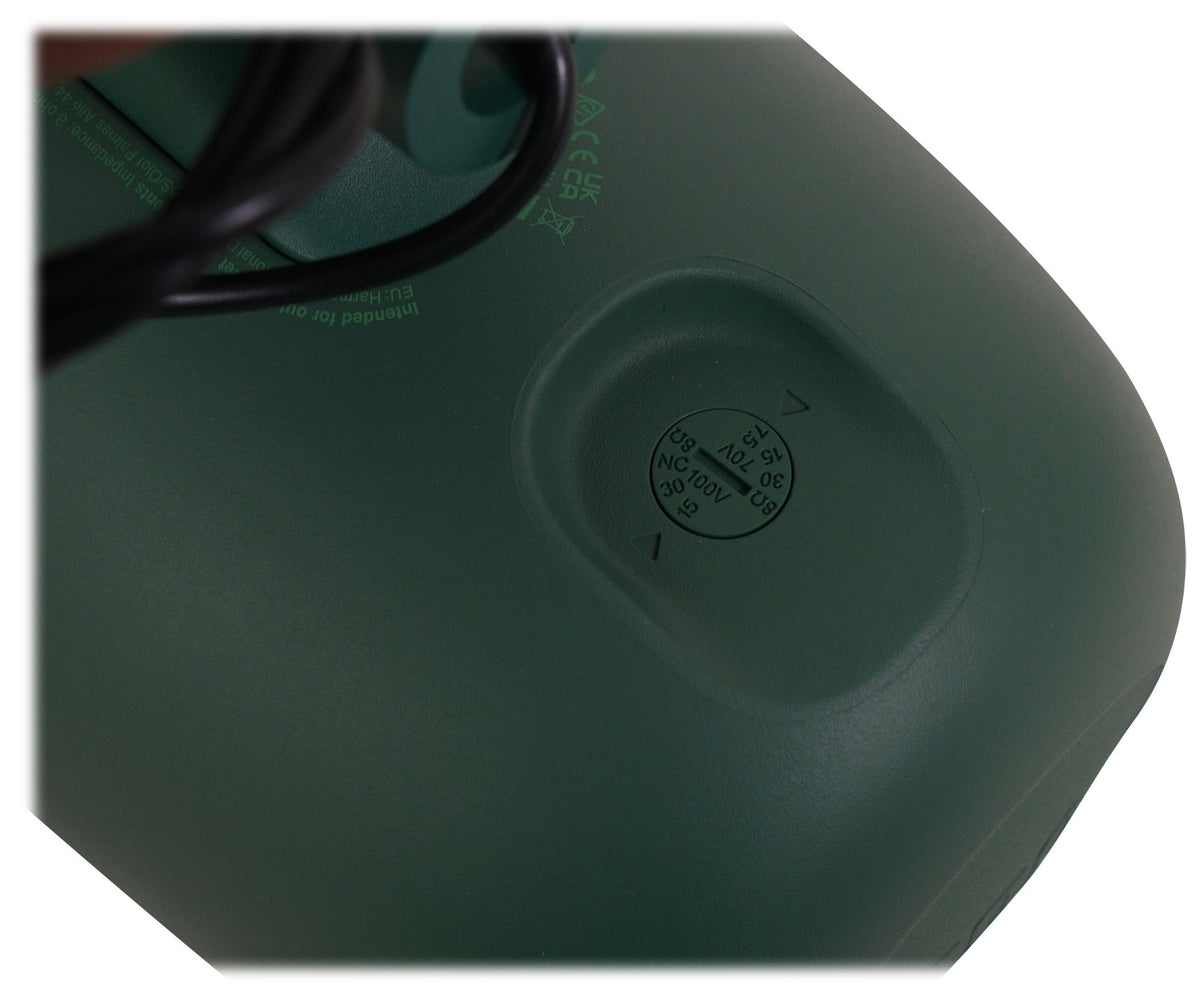

An IP66 rating seals the speaker against dust and water jets, a bottom drip hole drains the driver chamber, and the tap selector sits on the underside away from water. Both a ground stake and an L-bracket ship with every speaker, so planting beds, decks and walls are all covered.
A 30W multi-tap transformer serves 70V and 100V distributed lines with taps at 30W, 15W and 7.5W, plus direct 8-ohm operation. Pair it with GSB8 or GSB12 in-ground subwoofers for full-range outdoor sound. The polycarbonate and ABS enclosure is UL94V-0 rated at 7.7 lb per speaker. Common installs include shopping centers, theme parks, sports venues and hospitality grounds.
Features
-
Covers More Ground Per Speaker
50W continuous handling and 110 dB peak SPL let a pair cover large lawns, pool decks and courtyards that would otherwise need more units.
-
Throw Where You Need It
A 70 degree conical pattern reaches further down a walkway or across a lawn and keeps sound off neighboring property lines.
-
Sealed Against The Weather
An IP66 rating stops dust and water jets, a bottom drip hole drains the driver chamber, and the tap selector sits underneath away from water.
-
Mounts In The Bed Or On The Wall

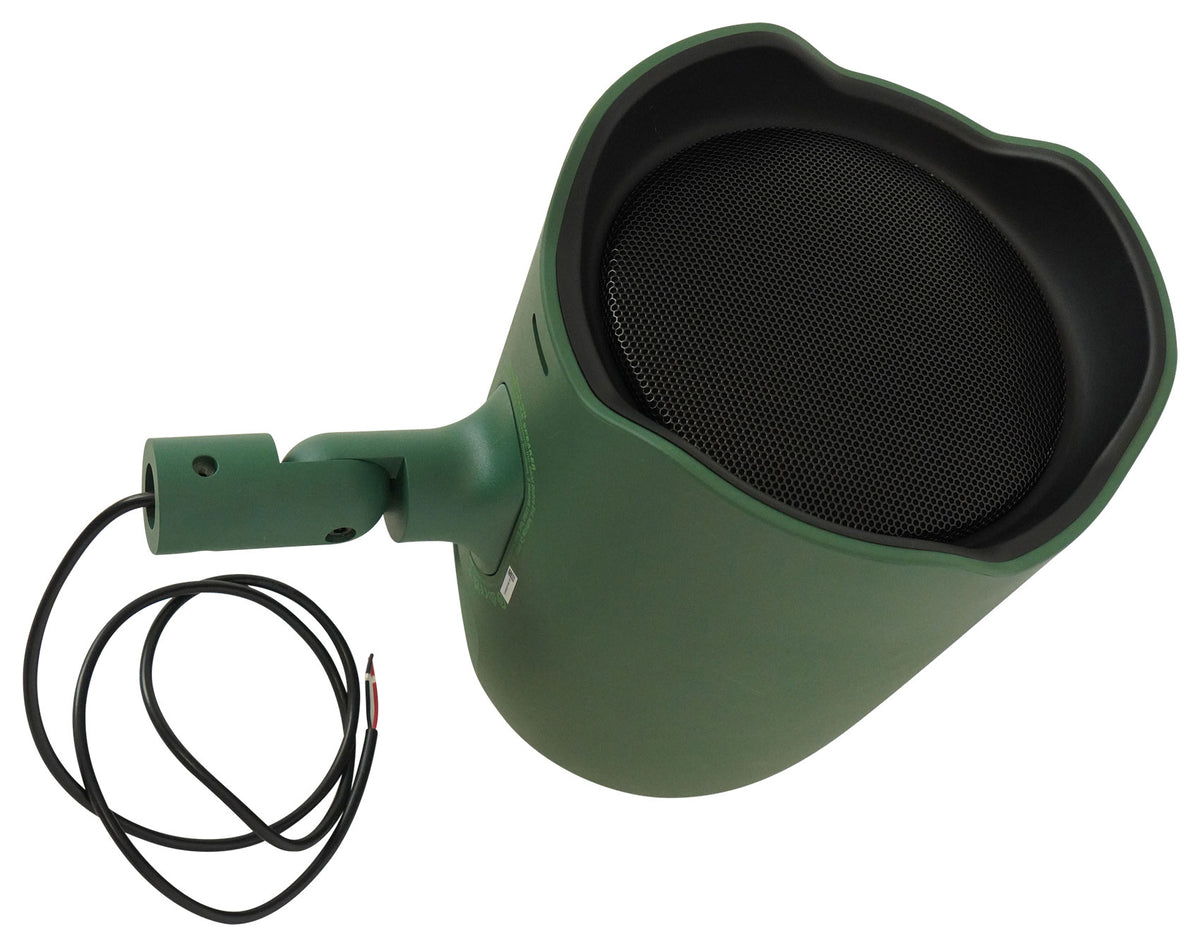

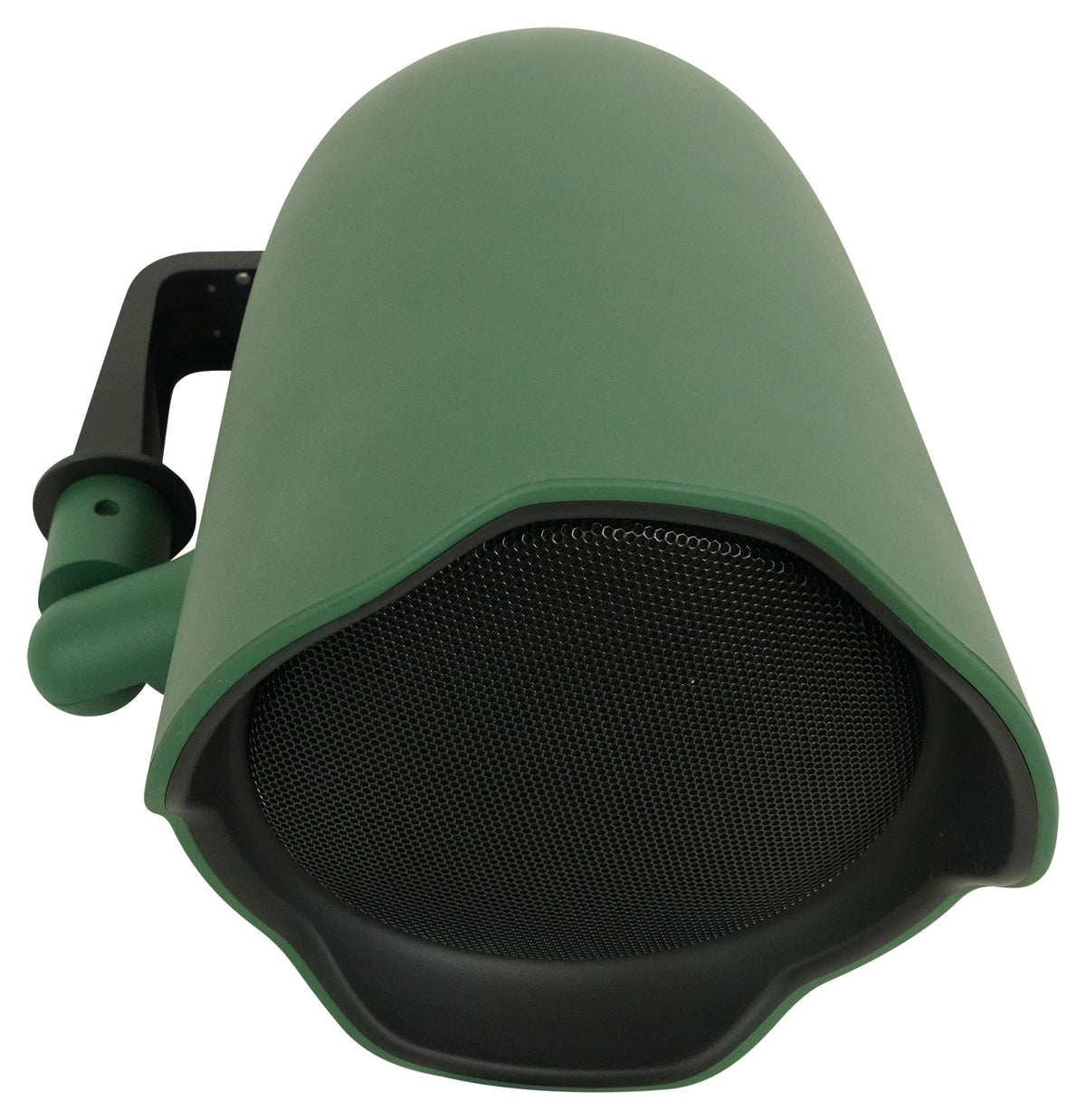

Every speaker includes a ground stake for planting beds and an L-bracket for horizontal or vertical surfaces, with an adjustable hinge for final aim.
-
Fits Existing Distributed Systems
A 30W multi-tap transformer serves 70V and 100V lines at three settings, with a switch for direct 8-ohm operation on smaller runs.
Technical Specifications
- Product Type 6.5" Two-Way Landscape Loudspeaker (Pair)
- Drivers 165 mm (6.5 in) Polypropylene Woofer With 25 mm Voice Coil, 25 mm (1 in) Titanium Dome Tweeter With Neodymium Magnet
- Frequency Range (-10 dB) 65 Hz - 20 kHz
- Frequency Response (+/-3 dB) 90 Hz - 18 kHz
- Power Rating 50W (200W Peak) Continuous Pink Noise (2 hrs), 30W (120W Peak) Continuous Pink Noise (100 hrs), 100W Continuous Program
- Sensitivity 87 dB
- Maximum SPL 110 dB Peak, 104 dB Continuous @ 1m
- Coverage Pattern 70 degrees Conical
- Nominal Impedance 8 Ohms
- Transformer Taps 70V: 30W, 15W, 7.5W; 100V: 30W, 15W
- Environmental Rating IP66

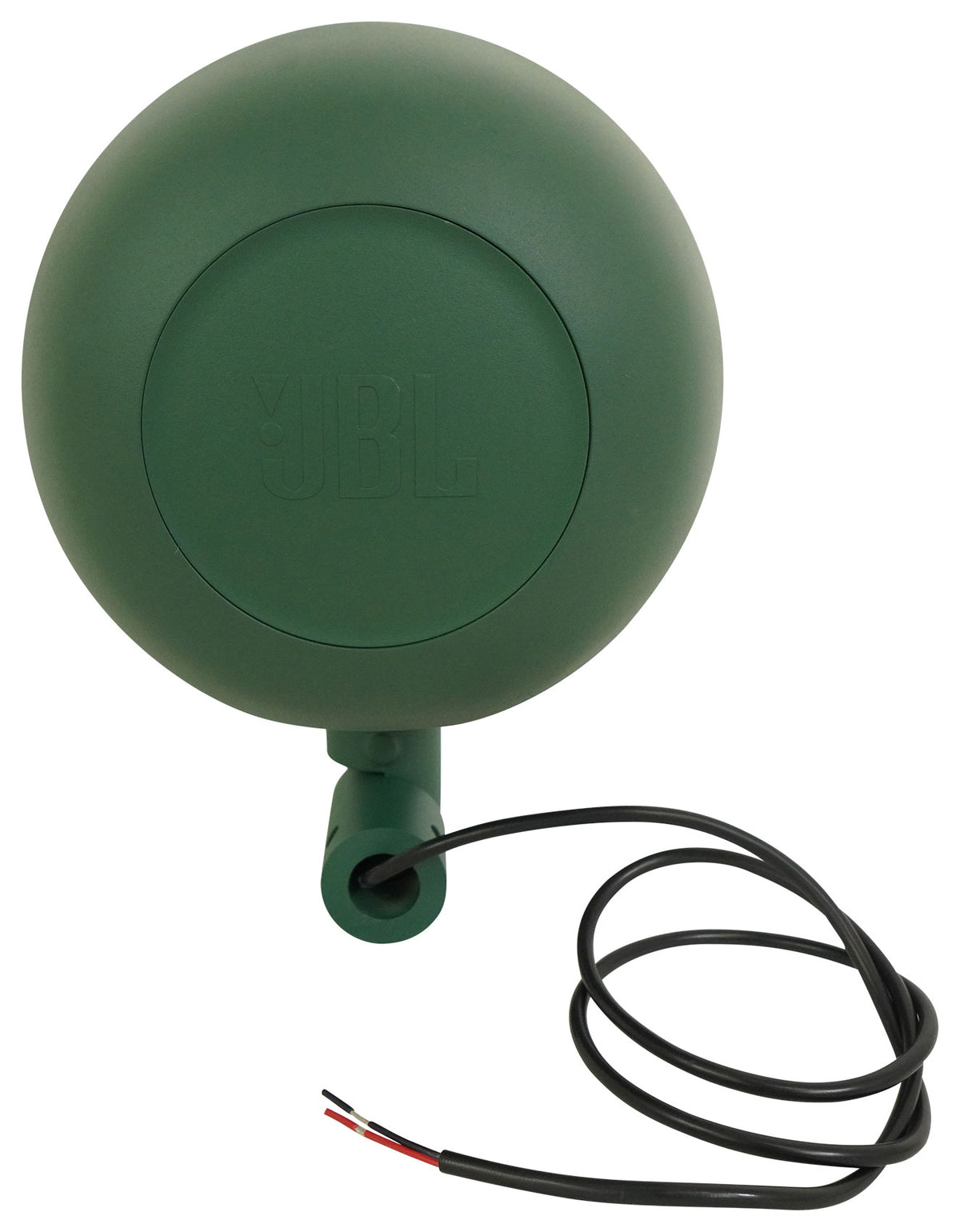

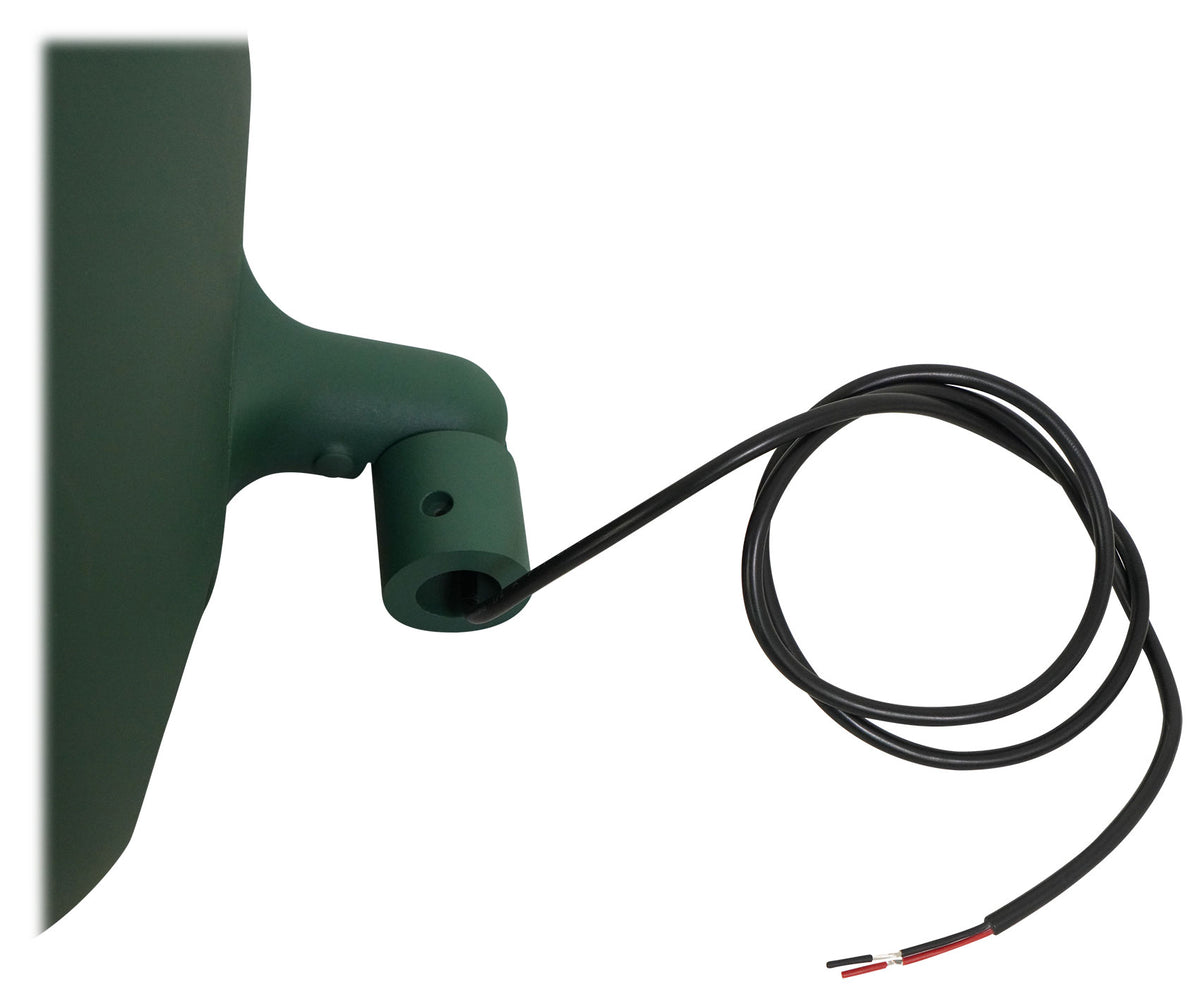

- Terminals Bare Wire With Dielectric-Gel-Filled Wire Nuts, 1 m Cable, 18 AWG
- Enclosure Material Polycarbonate + ABS, UL94V-0
- Color Hunter Green
- Weight 7.7 lb Each
- Dimensions Cabinet 8.6 in Diameter x 11.6 in Deep; 17.5 in Assembly Height With L-Bracket, 21.5 in With Ground Stake
