JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub

Product Description Specifications

JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub

  • JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub
  • JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub
  • JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub
1 3
Used

JBL

JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub

JBL Pro JRX218S 1,400 Watt 18" Inch Compact Passive Subwoofer DJ Sub

18" Passive Subwoofer, 1,400W Peak, 4 Ohms, Dual Speakon Inputs, 36 mm Pole Receptacle

Free Shipping

$339.00
$339.00 $624.00
Save 45%
Shipping calculated at checkout.
Features
    • 350W continuous and 1,400W peak handling at 4 ohms
    • M118-4 18" driver extends output down to 34 Hz
    • 133 dB peak SPL from a compact carpeted MDF cabinet
    • Top-mounted 36 mm pole receptacle carries a mid-high cabinet
    • Two parallel Speakon NL-4 connectors chain multiple subs
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
    • JRX218S Passive Subwoofer

SKU: JRX218S U

View full details

Product Description

The JBL JRX218S is a compact passive 18-inch subwoofer for systems running outboard amplification. It handles 350W continuous and 1,400W peak at 4 ohms, reaching 133 dB peak SPL and extending down to 34 Hz, which is where kick drums, bass synths and program tracks live.

The M118-4 low-frequency driver sits in a 19 mm MDF enclosure carpeted in black, a finish that shrugs off scuffs from repeated load-ins better than paint. Non-resonant all-steel handles and an 18-gauge perforated steel grille round out a cabinet built for the road at 71 lb.

A top-mounted cast aluminum 36 mm pole receptacle accepts the optional SS3BK pole, so the subwoofer doubles as the base for a mid-high cabinet. That keeps the rig on one footprint per side and shortens cable runs on stage.

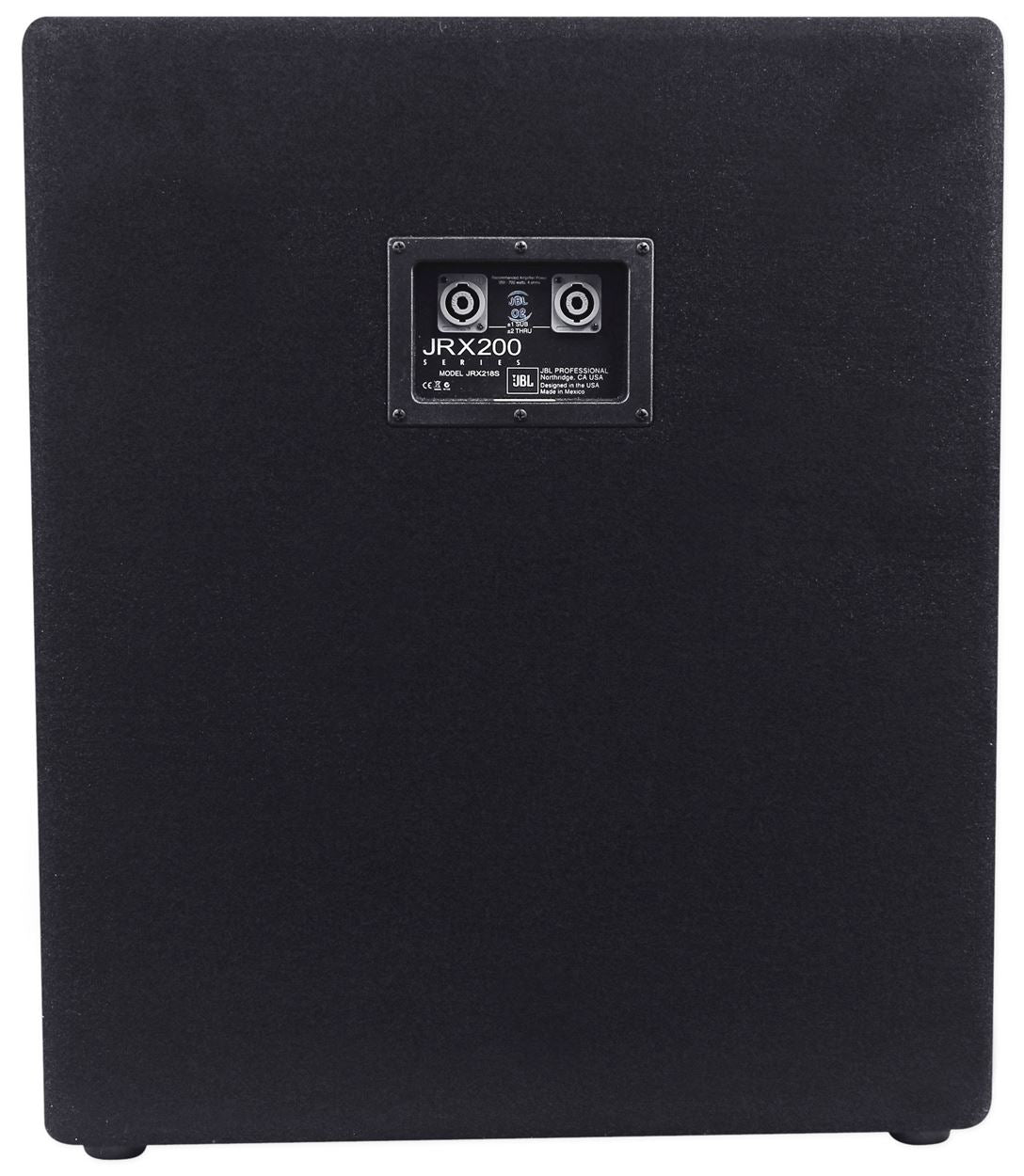

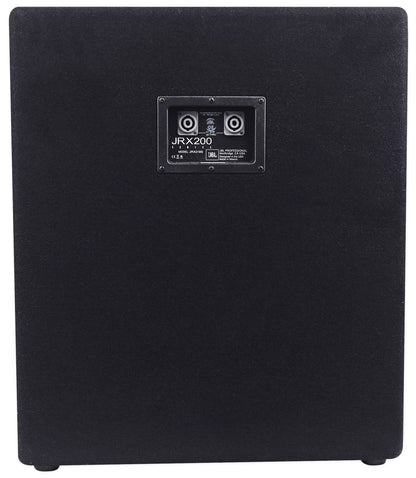

Two parallel Neutrik Speakon NL-4 connectors handle input and link, so multiple subs chain from a single amplifier output. Recommended amplifier power is 350W to 700W into 4 ohms. Pair it with JRX212 or JRX215 tops to build a full-range passive system.

Features

    • Bottom Octave For Passive Rigs

      An 18-inch M118-4 driver handling 1,400W peak reaches 34 Hz at 133 dB peak SPL, covering the low frequencies full-range tops leave out.

    • One Footprint Per Side

      A top-mounted cast aluminum 36 mm pole receptacle accepts the optional SS3BK pole, standing a mid-high cabinet directly above the sub.

    • Chain Subs From One Output

      Two parallel Neutrik Speakon NL-4 connectors link cabinets together, so a single amplifier channel feeds multiple subs without a splitter box.

    • Compact For An 18-Inch Sub

      The cabinet measures 23.8 by 20 by 21.7 in and weighs 71 lb, which fits more low-frequency output into a standard van load than most 18-inch boxes.

    • Finished For The Road

      A 19 mm MDF enclosure carpeted in black, non-resonant steel handles and an 18-gauge perforated steel grille take repeated load-ins without showing wear.

Technical Specifications

  • Product Type 18" Passive Subwoofer
  • Low Frequency Driver JBL M118-4
  • Power Rating 350W Continuous / 1,400W Peak
  • Nominal Impedance 4 Ohms
  • Recommended Amplifier Power 350W to 700W Into 4 Ohms
  • Sensitivity (@1m) 98 dB
  • Maximum SPL 133 dB Peak @ 1m
