SLP14/T-BK On-Wall Speaker Pair + VMA160 Amplifier
SLP14/T-BK On-Wall Speaker Pair + VMA160 Amplifier
70V Music System, (2) 4" On-Wall Speakers, 60W Bluetooth Mixer Amp, Restaurants, Retail
Free Shipping
Features

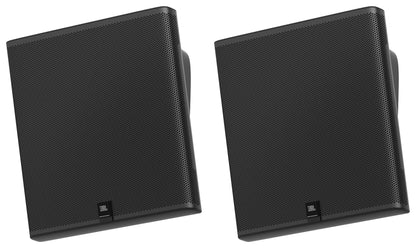

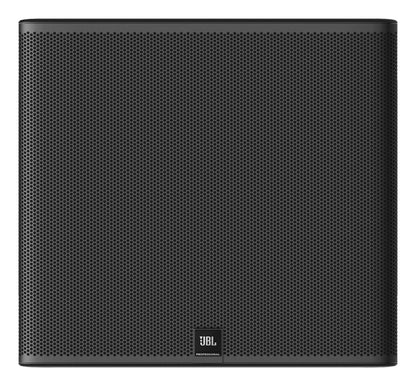

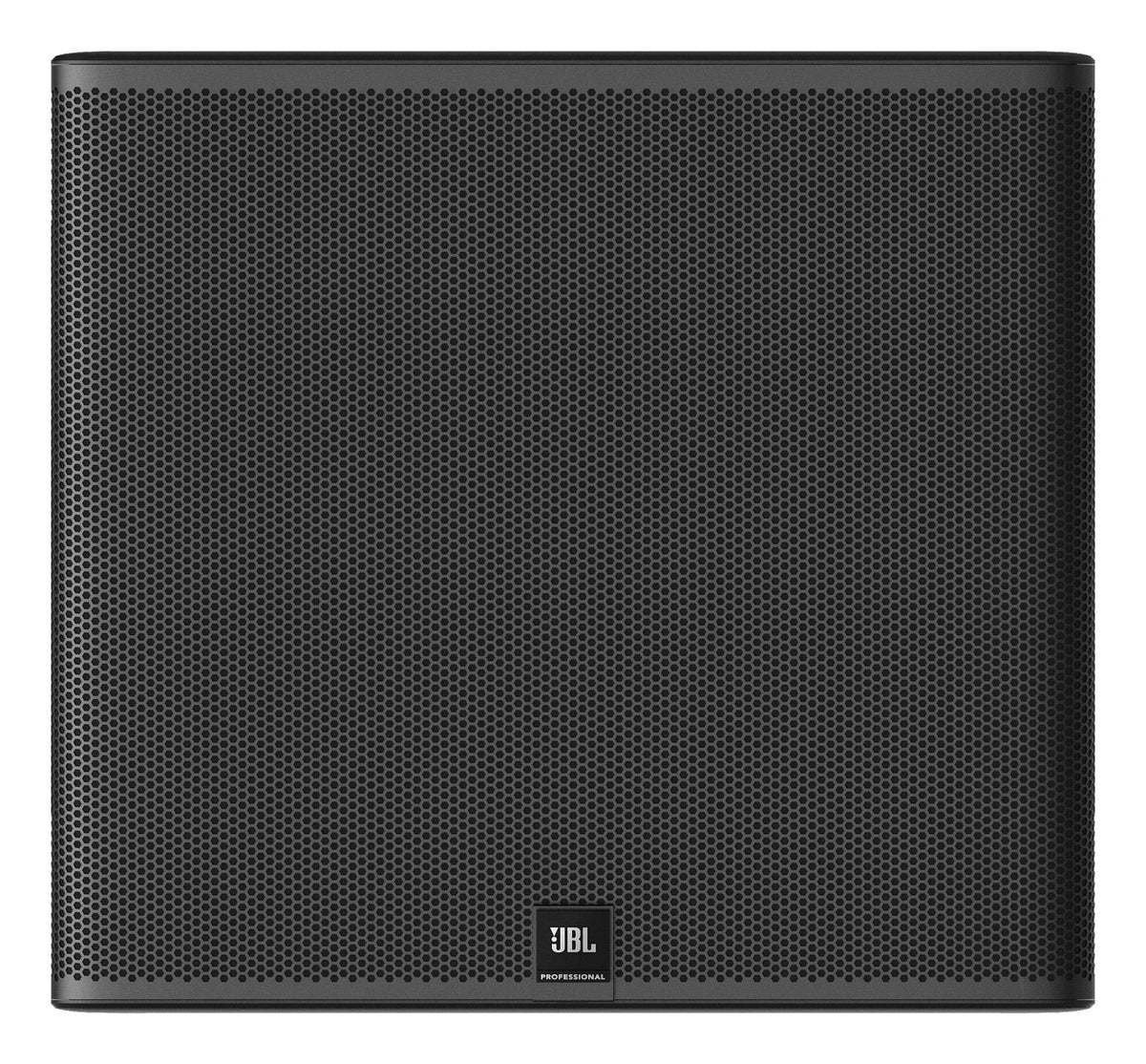

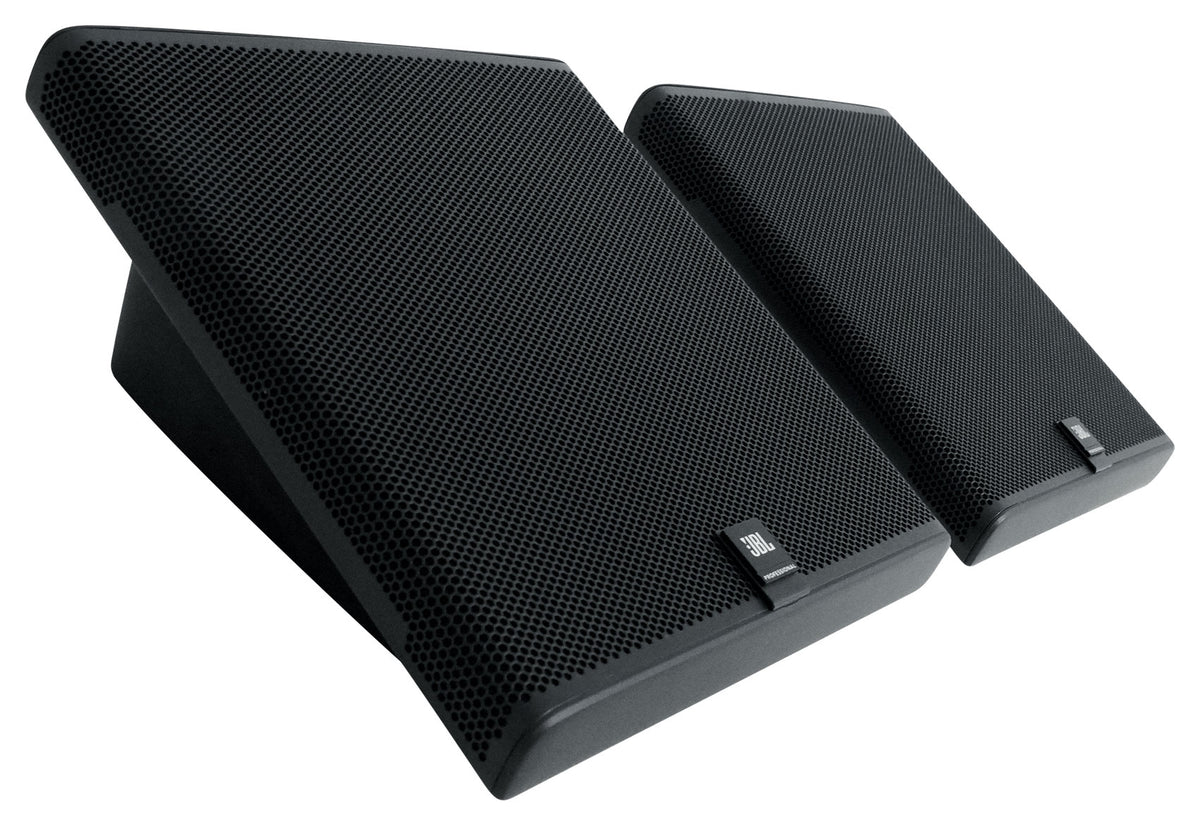

- Two SLP14/T-BK two-way on-wall speakers with 4" woofers and coaxial tweeters
- VMA160 mixer/amplifier delivers 60W to 70V or 100V lines and 4 or 8 ohm loads
- Bluetooth plus five inputs connect paging mics, music players, and phones
- Paging chime and priority muting lower the music for clear announcements

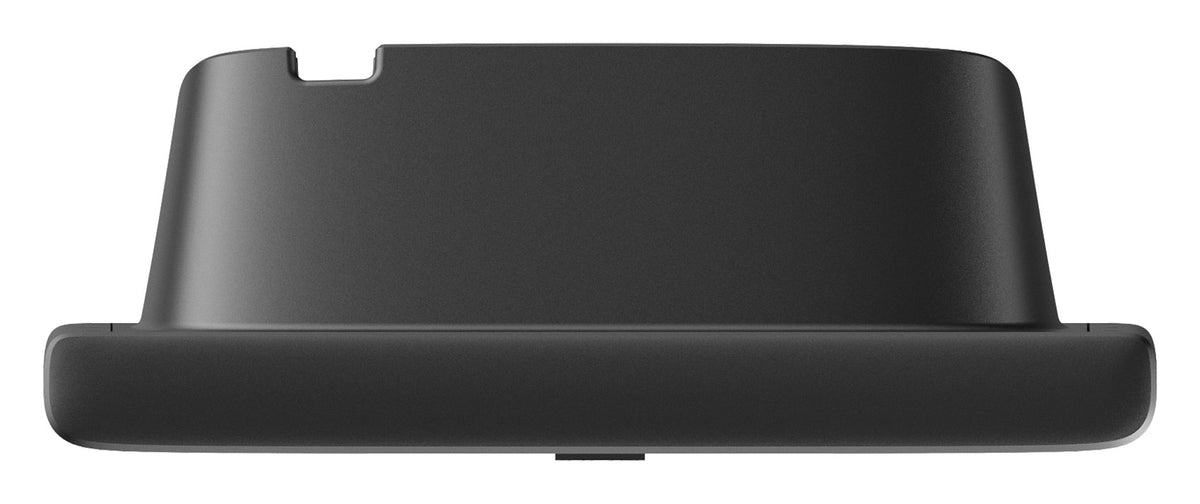

- Under 4" deep with a 15° down-tilt for ADA-compliant, flush wall mounting
Couldn't load pickup availability

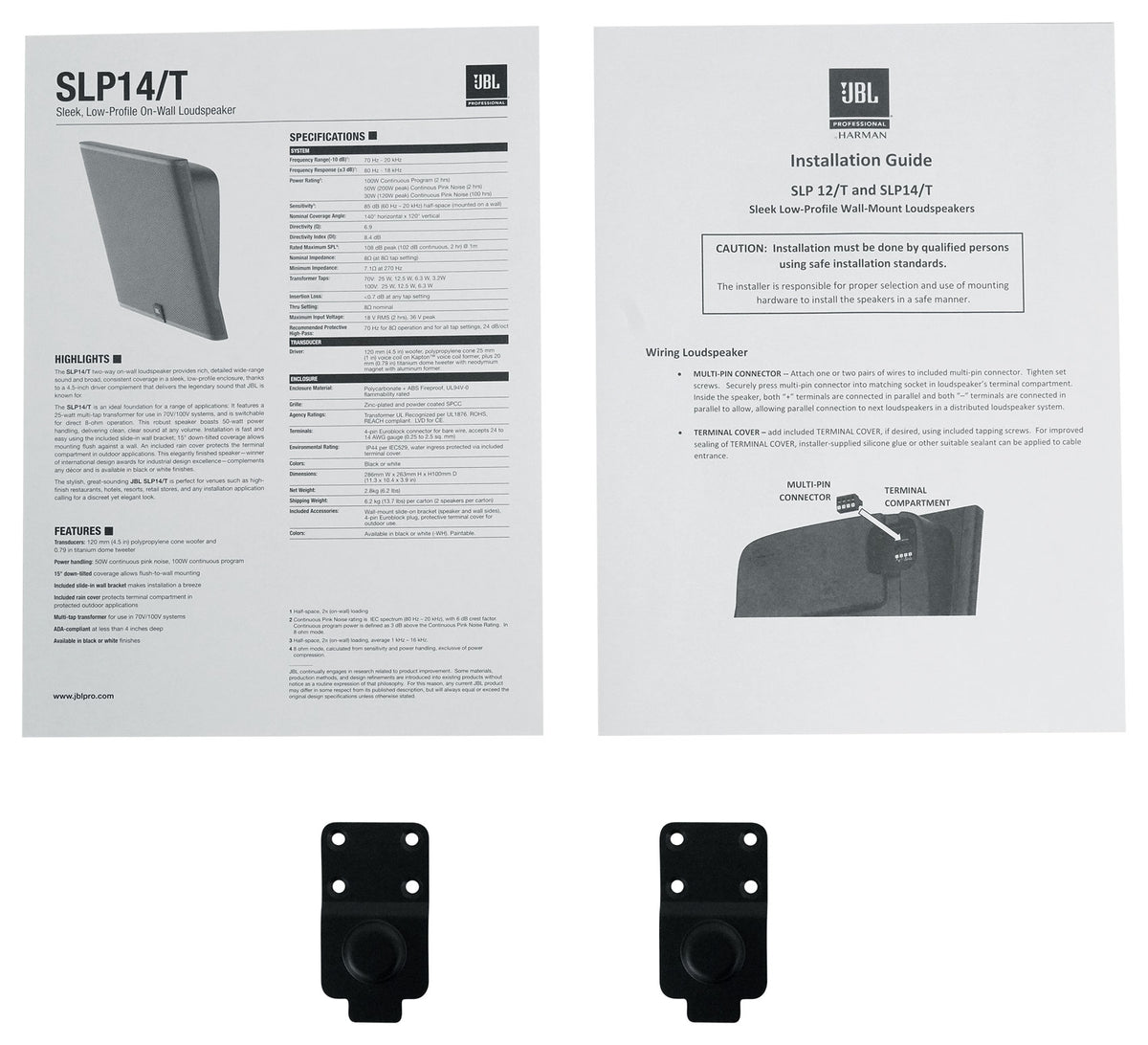

What's Included in the box

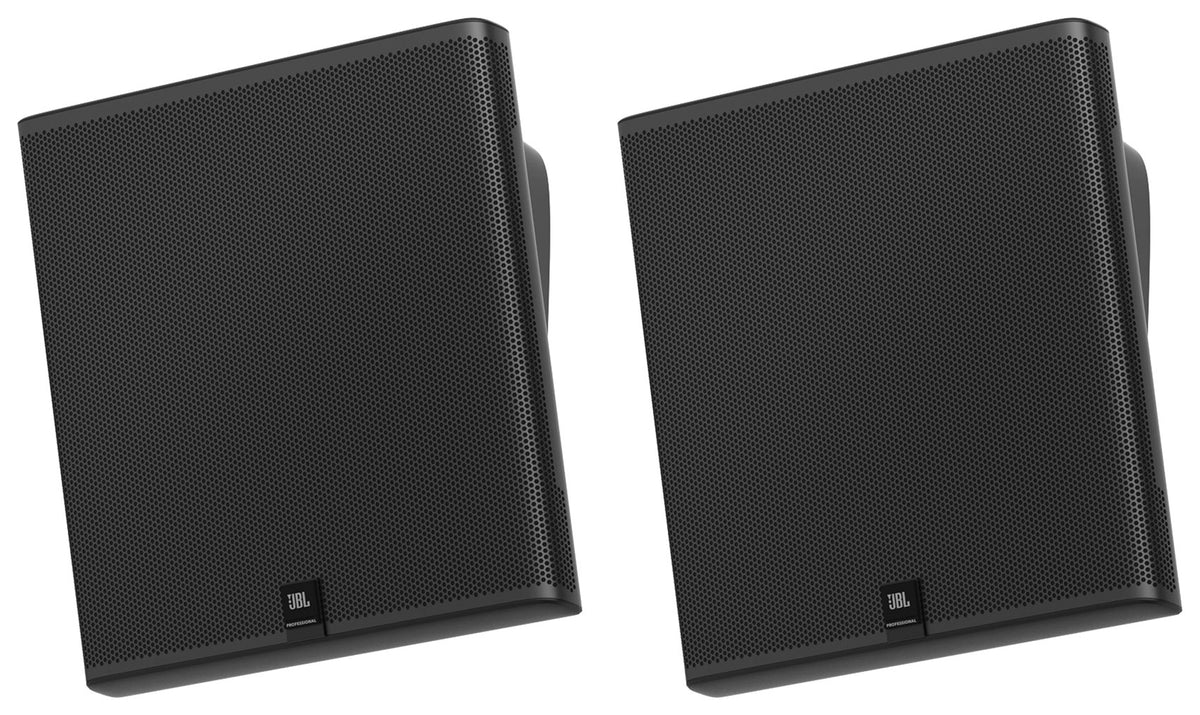

- (2) SLP14/T-BK On-Wall Speakers
- (2) Slide-On Wall Mount Brackets
- (2) 4-Pin Euroblock Plugs
- (2) Terminal Covers

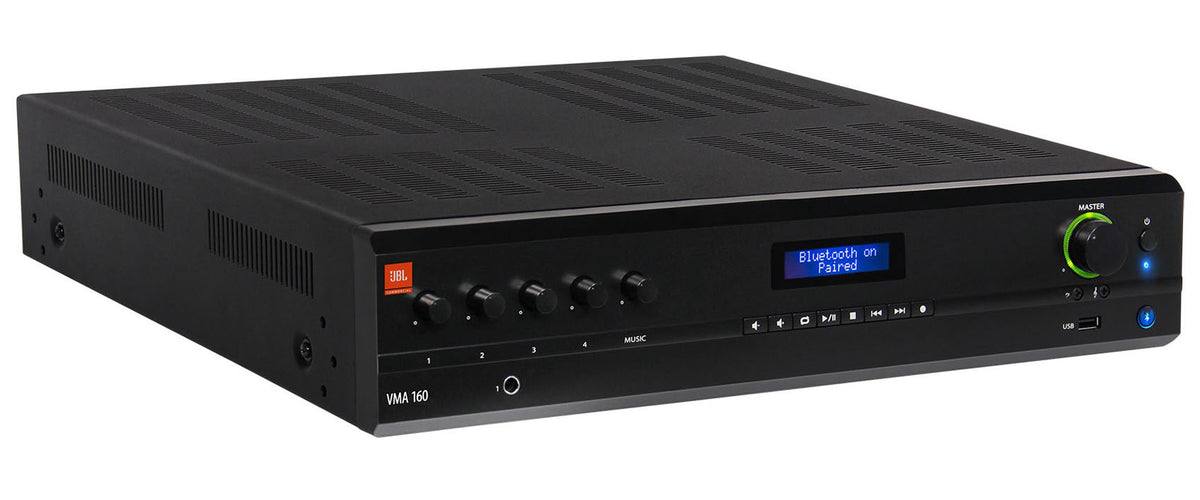

- (1) VMA160 60W Mixer/Amplifier with Bluetooth
- (1) Rack Mounting Hardware Set
SKU: SKU: JBL-SLP14/T-BK+RCS80-1
View full details


















Product Description

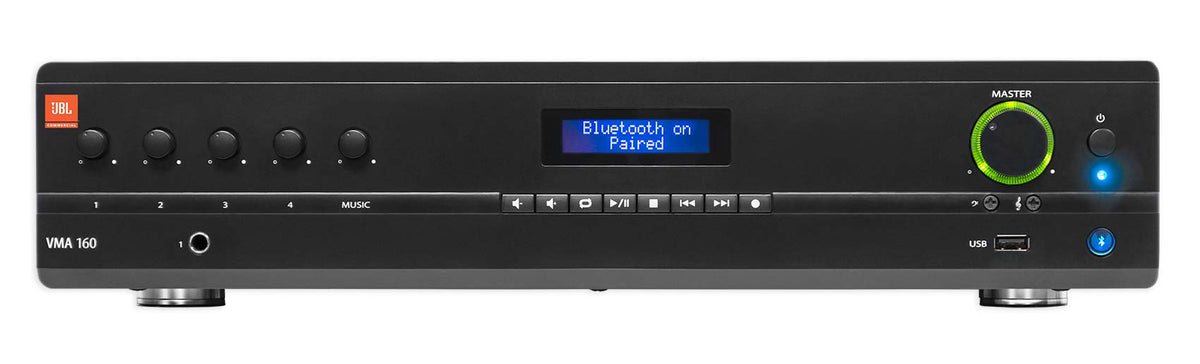

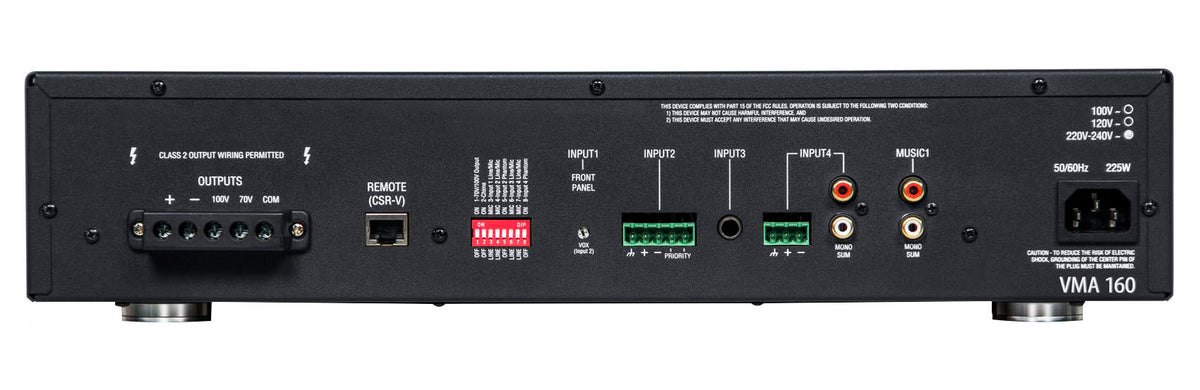

The VMA160 runs the system. Five inputs, including mic, line, and RCA connections, work alongside Bluetooth, so staff can keep a paging mic connected and stream music from a phone or tablet at the same time, with bass and treble controls to tune the sound to the room. Paging chime and priority muting drop the music when an announcement comes through, which is exactly what a host stand or front desk needs. Multi-tap transformers on each speaker (25 W, 12.5 W, 6.3 W, and 3.2 W at 70V) let you set levels right at the speaker, and with both speakers on the full 25 W tap the pair draws 50 W, leaving headroom on the 60W amplifier. Each speaker also switches to direct 8-ohm operation.

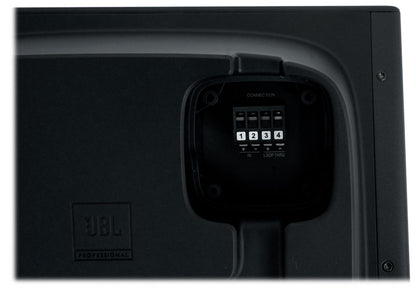

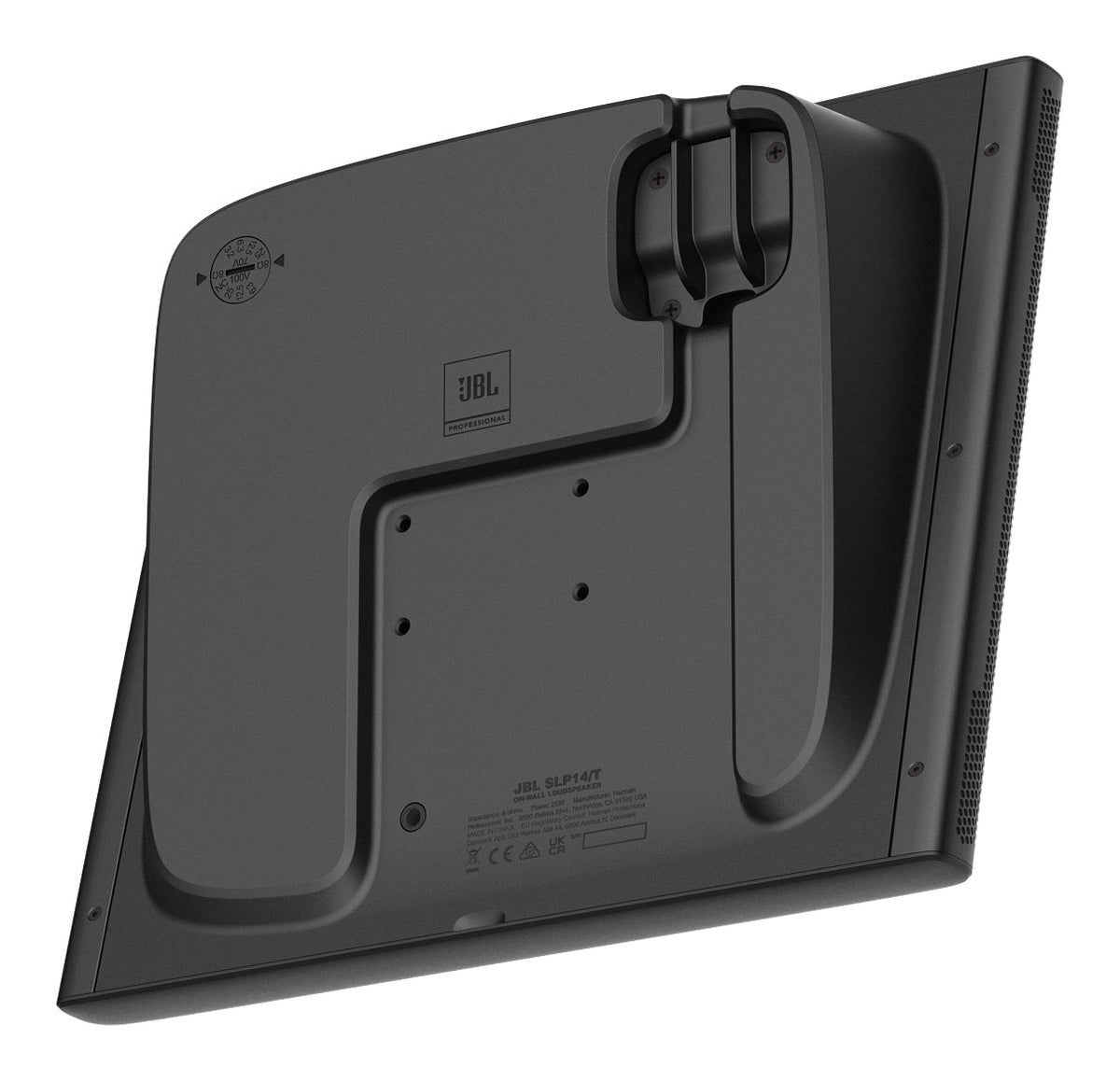

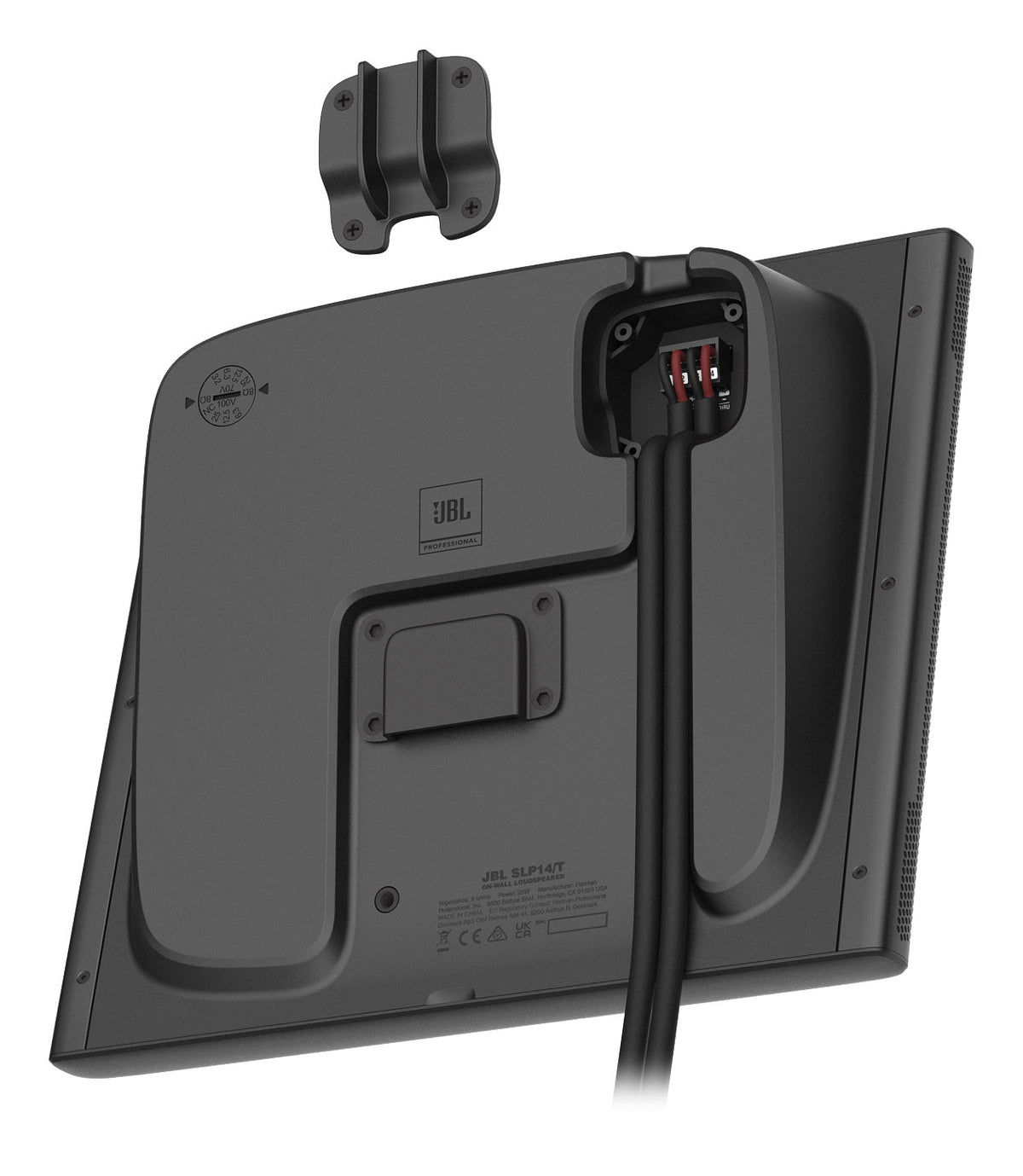

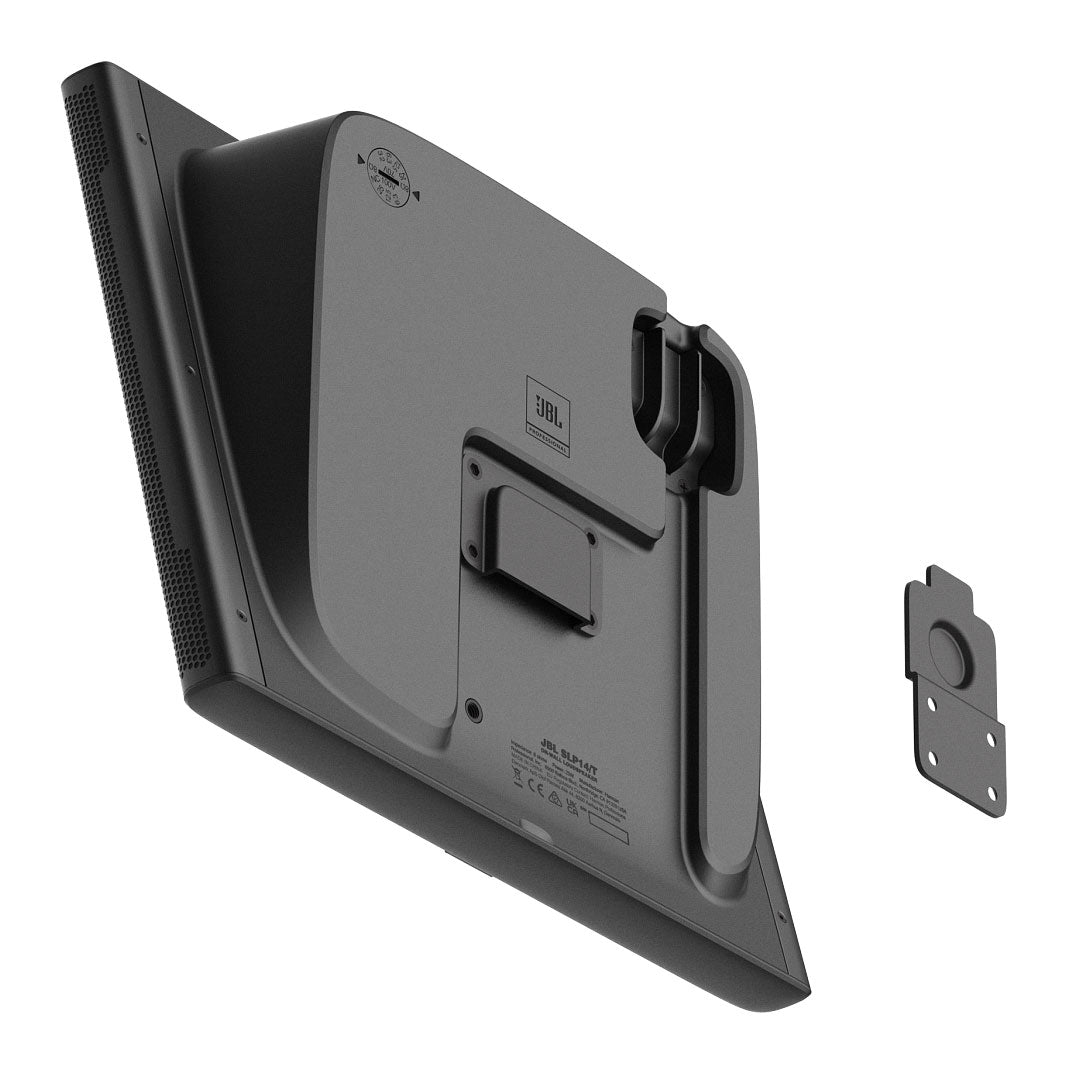

Installation is straightforward. The included slide-on wall bracket mounts each speaker quickly, the 4-pin Euroblock plug accepts 24 to 14 AWG bare wire, and a terminal cover protects connections on covered patios and other sheltered outdoor areas. Rack mounting hardware for the amplifier is included, so it can live in an equipment rack in a back office or closet.
Features
Complete Music and Paging System

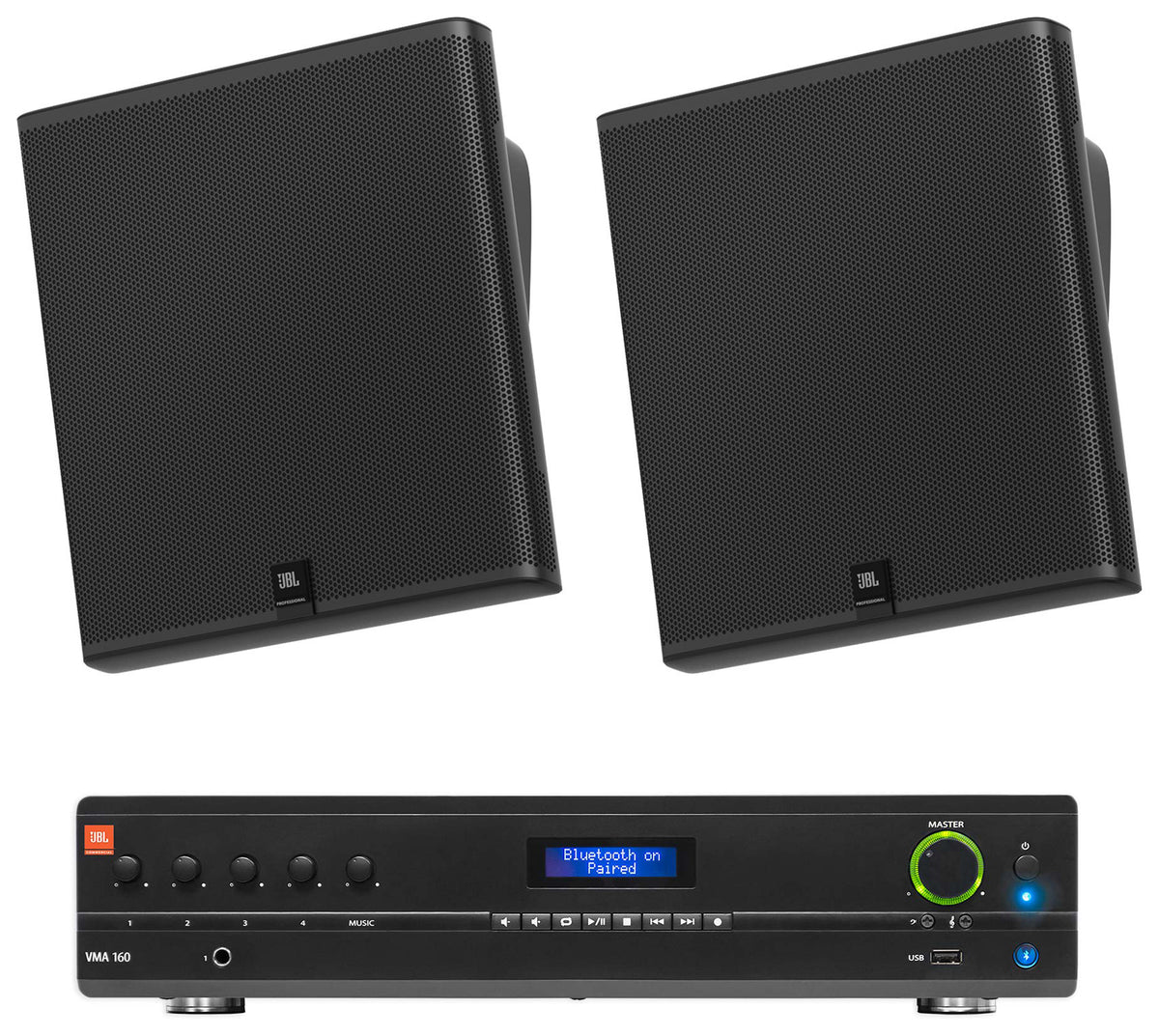

Two on-wall speakers and a matched 60W mixer/amplifier give restaurants, stores, and hotels background music and announcements from one bundle, with no parts to source separately.
Fuller Two-Way Sound

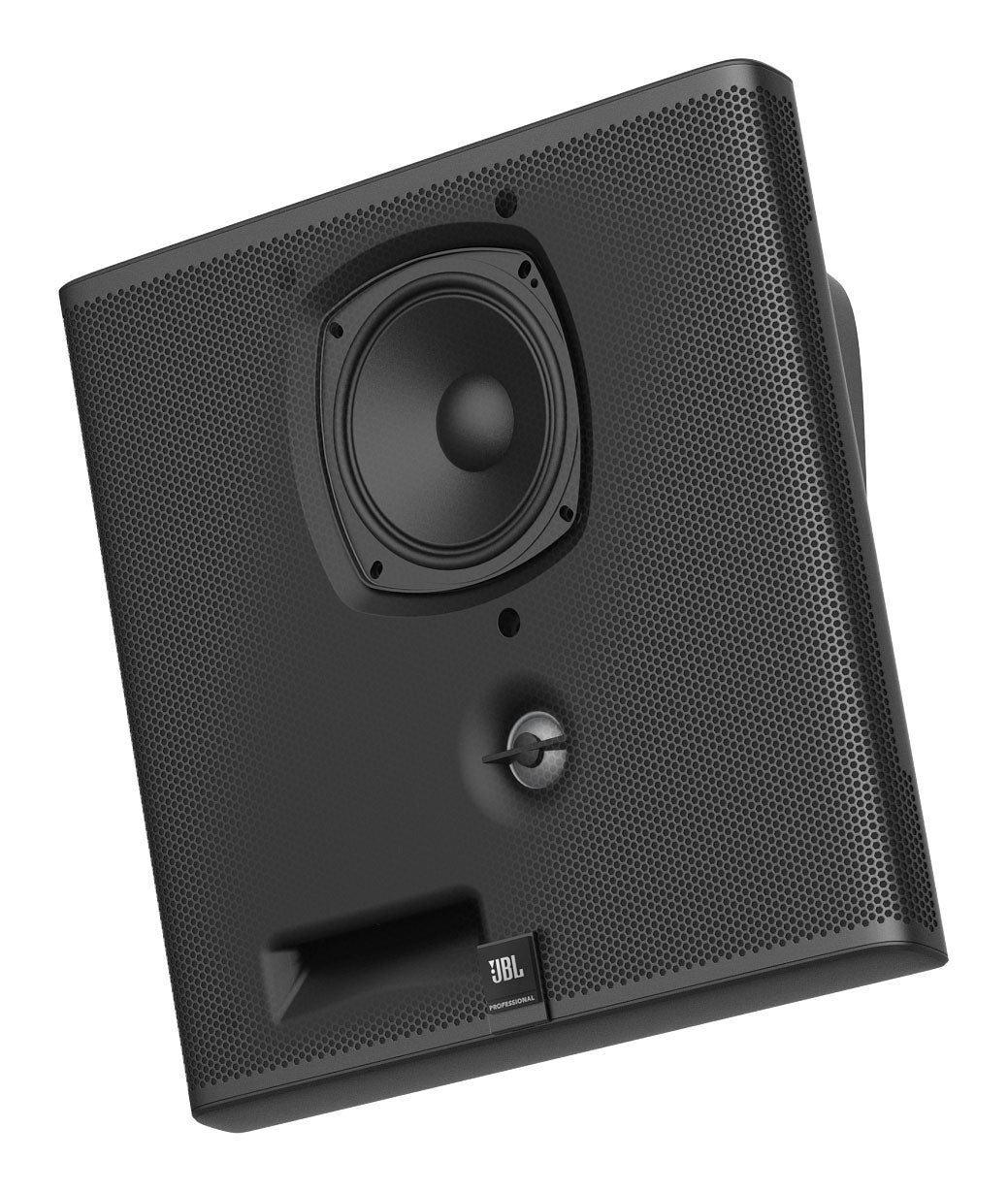

A 4" woofer and coaxial dome tweeter in each cabinet reproduce clearer vocals and crisper highs than single-cone ceiling or wall speakers, at levels up to 108 dB peak.
Wide, Even Coverage

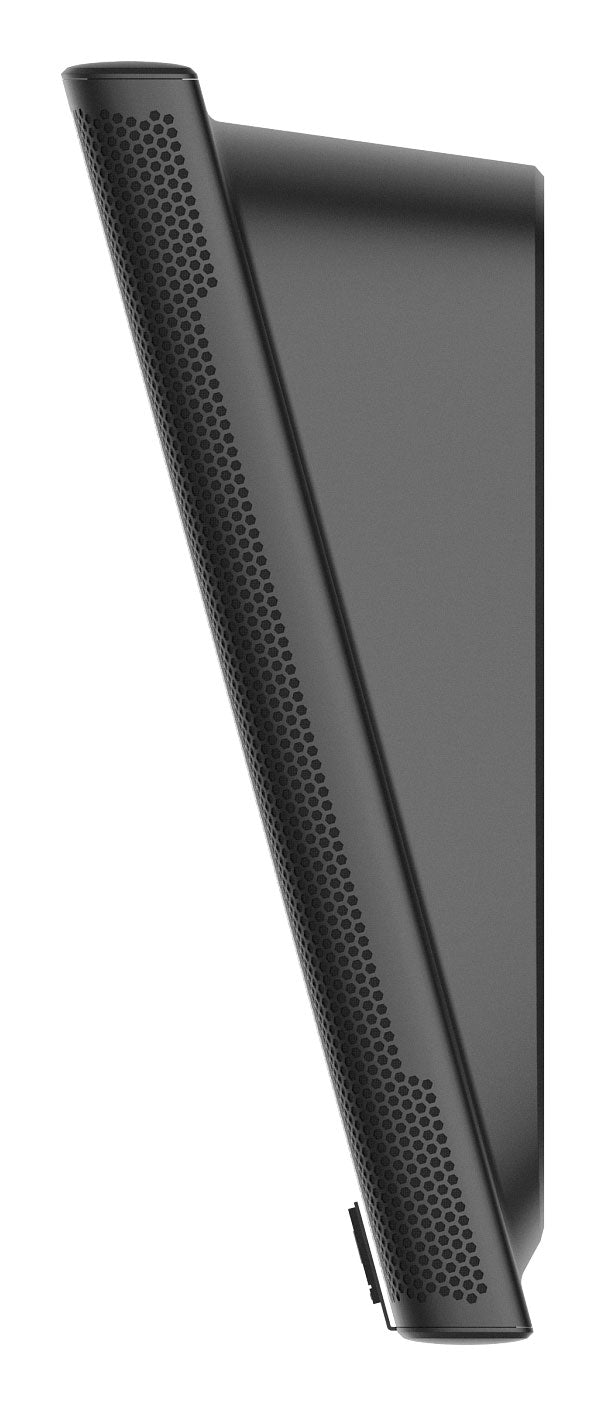

A 15° down-tilt and 140° x 120° coverage aim sound toward the room while each speaker sits flush against the wall, so fewer speakers cover more floor space.
Set Levels Speaker by Speaker

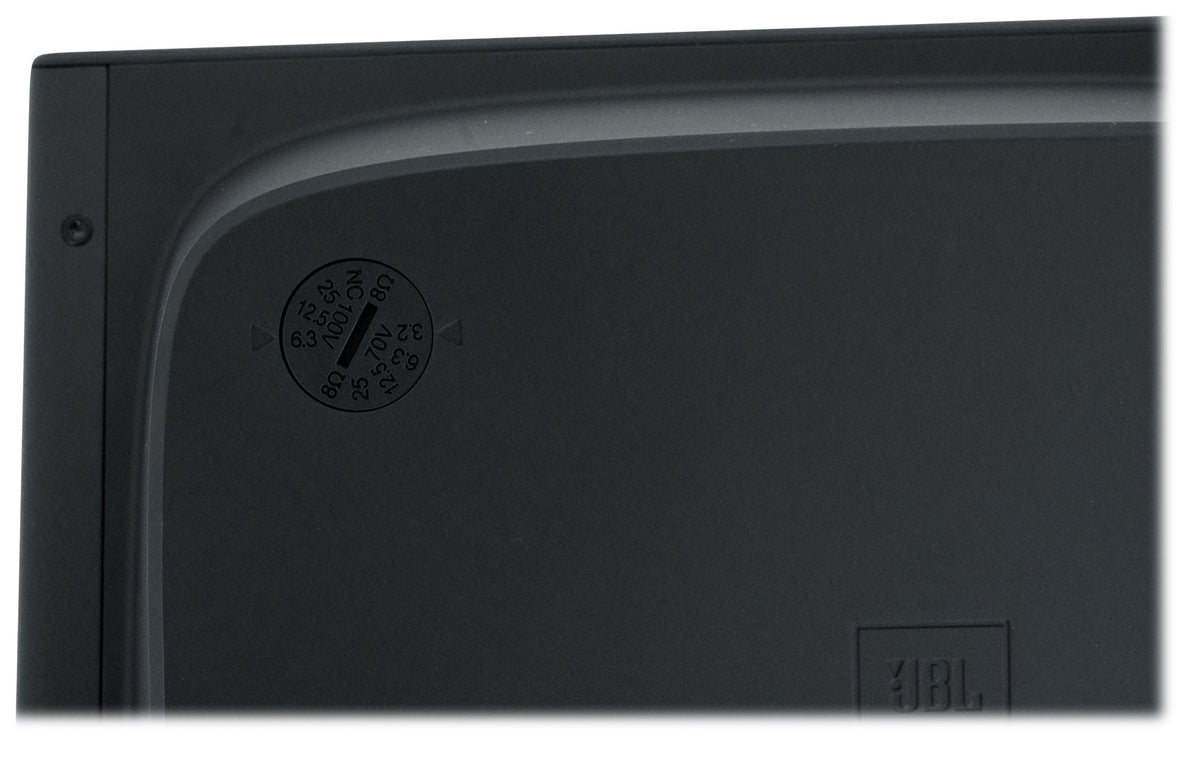

Multi-tap transformers at 25 W, 12.5 W, 6.3 W, and 3.2 W on 70V let you balance volume zone by zone, with headroom left on the 60W amplifier.
Clear Announcements on Demand
Paging chime and priority muting on the VMA160 drop the music when someone speaks into the mic, so announcements come through clearly over the background audio.
Technical Specifications
- Product Type 70V Commercial Speaker and Mixer/Amplifier Bundle
- Speaker Model SLP14/T-BK
- Speaker Type Two-way coaxial on-wall
- Speaker Woofer 4" polypropylene cone
- Speaker Power Handling 50W continuous pink noise, 100W continuous program
- Speaker Frequency Range (-10 dB) 70 Hz - 20 kHz
- Speaker Frequency Response (+/-3 dB) 80 Hz - 18 kHz
- Speaker Sensitivity 85 dB
- Speaker Maximum SPL 108 dB peak at 1m
- Coverage Angle 140° H x 120° V
- Transformer Taps 70V: 25 W, 12.5 W, 6.3 W, 3.2 W; 100V: 25 W, 12.5 W, 6.3 W
- Speaker Nominal Impedance 8 ohms (8-ohm tap setting)

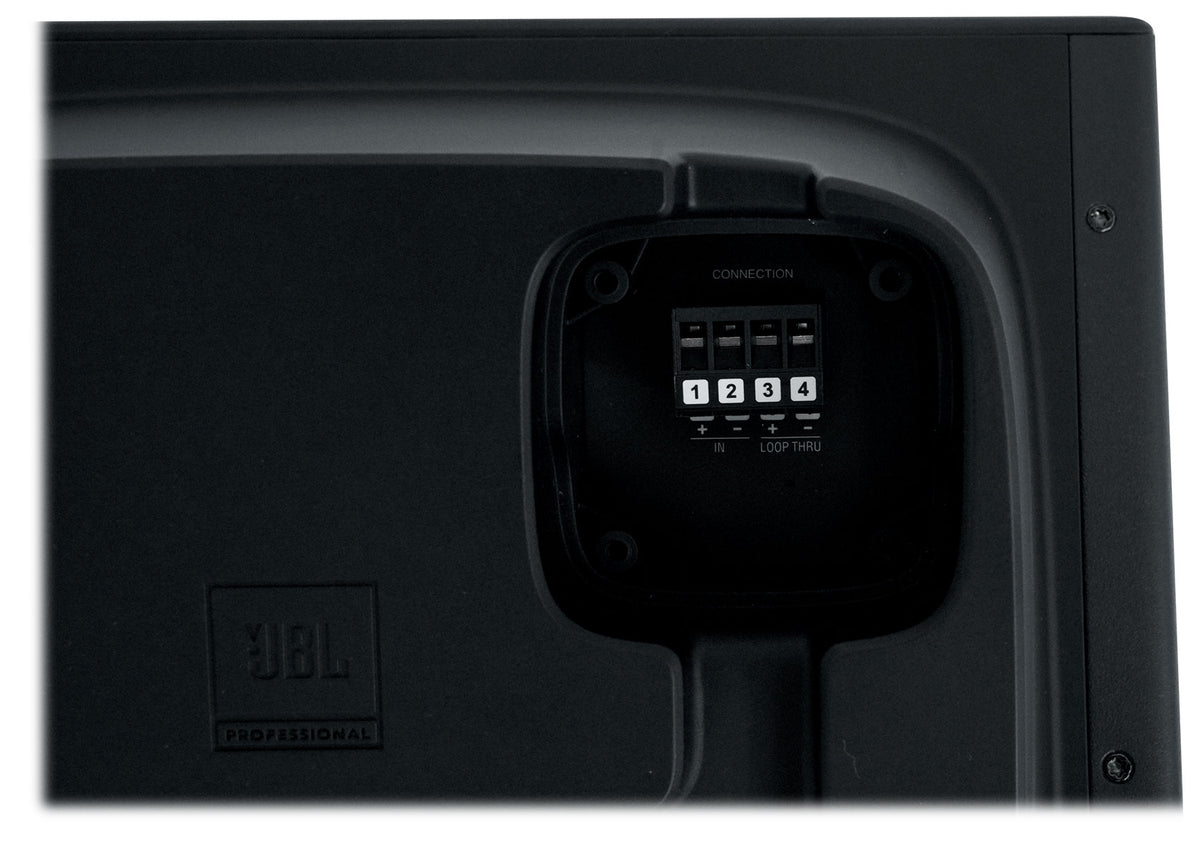

- Speaker Terminals 4-pin Euroblock, accepts 24 to 14 AWG
- Speaker Enclosure Polycarbonate + ABS, UL94V-0 rated
- Color Black
- Amplifier Model VMA160
- Amplifier Output Power 60W
- Amplifier Frequency Response 20 Hz - 20 kHz
- Amplifier THD Less than 0.5%
- Amplifier Signal-to-Noise Ratio Greater than 76 dB
- Amplifier Inputs 5
- Amplifier Outputs 1
- Bluetooth Yes
- Phantom Power 27VDC
- Tone Controls Bass +/-14 dB at 50 Hz, Treble +/-14 dB at 10 kHz
- Paging Features Paging chime, priority muting
- AC Line Voltage 100V, 120V, 220-240V, 50/60 Hz
- Weight Speaker: 6.2 lb each; Amplifier: 19.4 lb
- Dimensions Speaker: 11.3" W x 10.4" H x 3.9" D; Amplifier: 17" W x 16.3" D x 3.5" H
