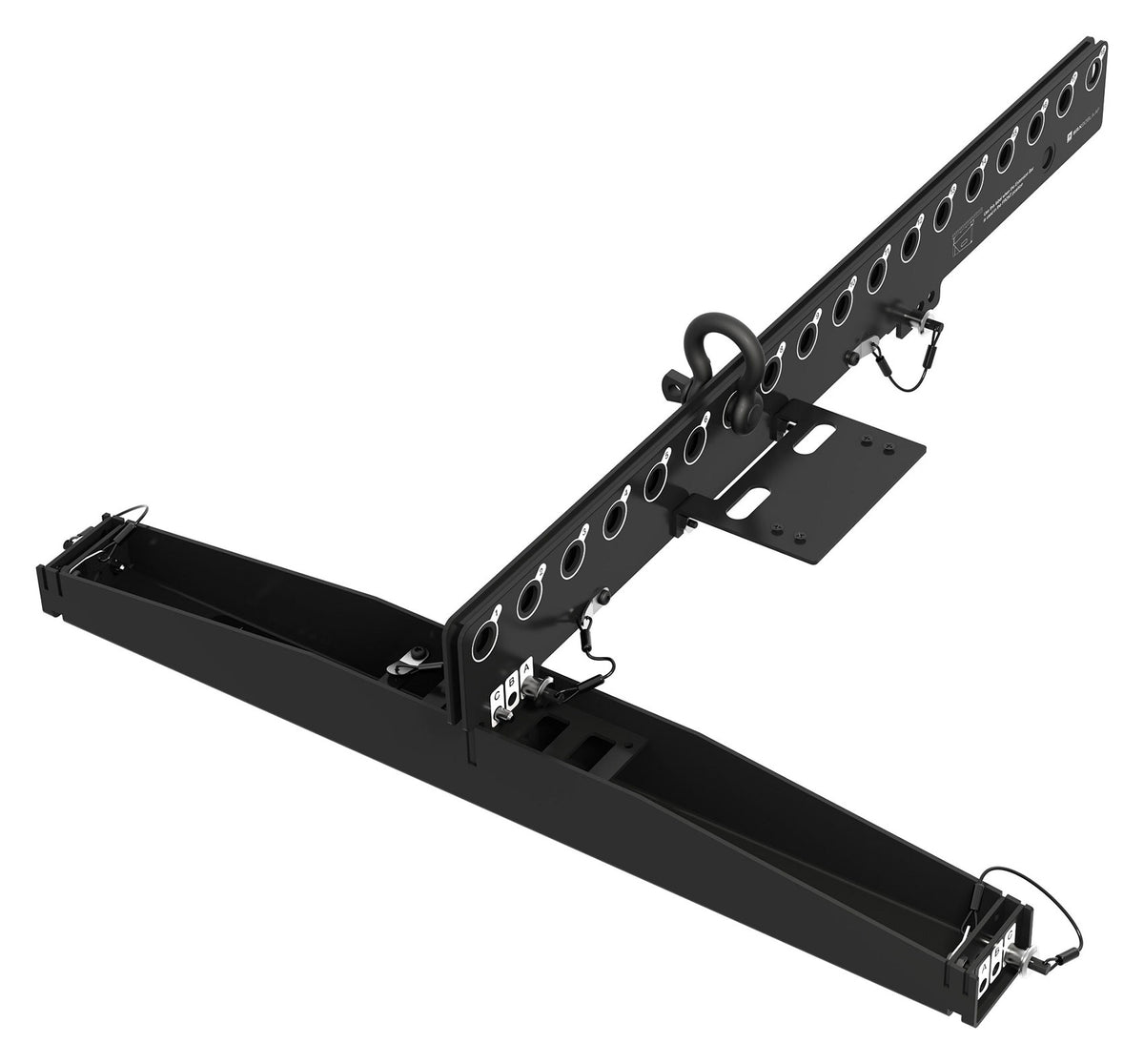

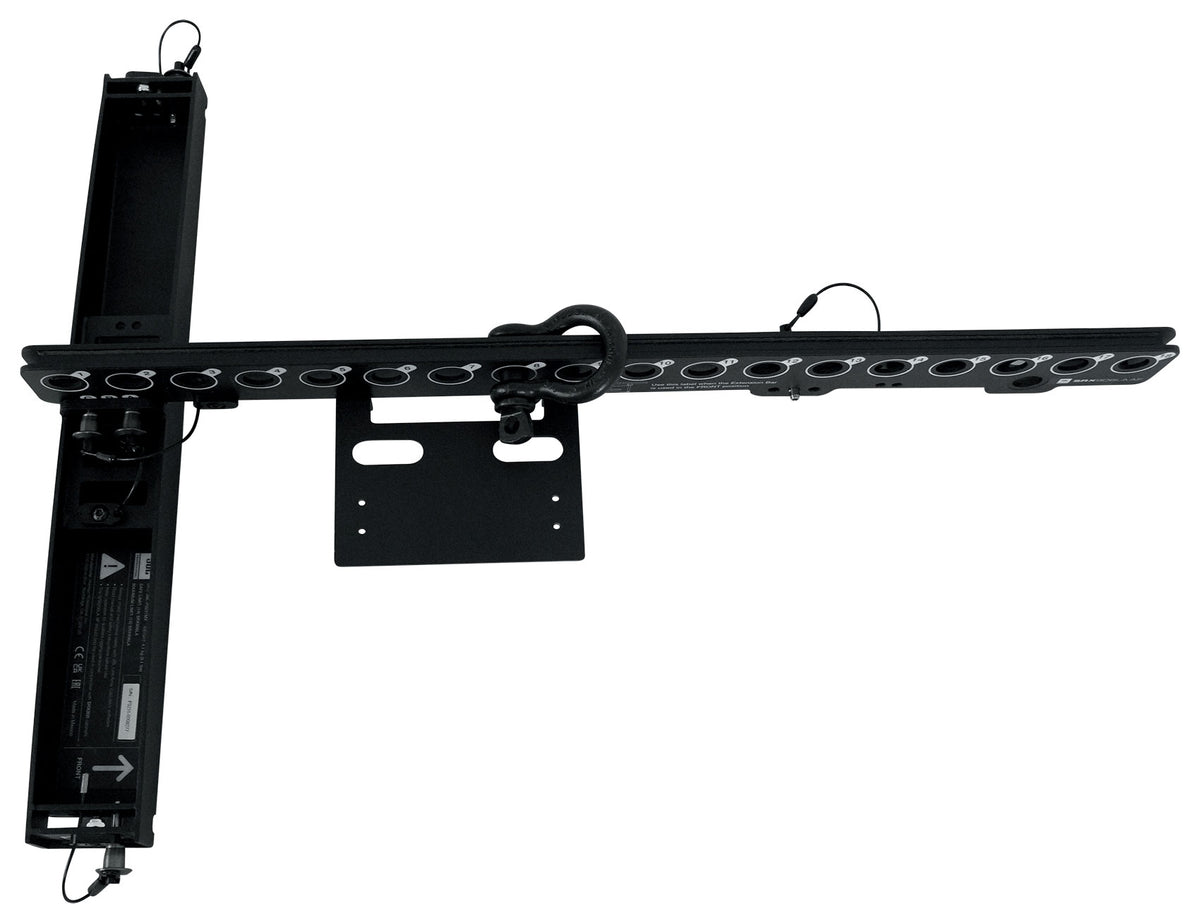

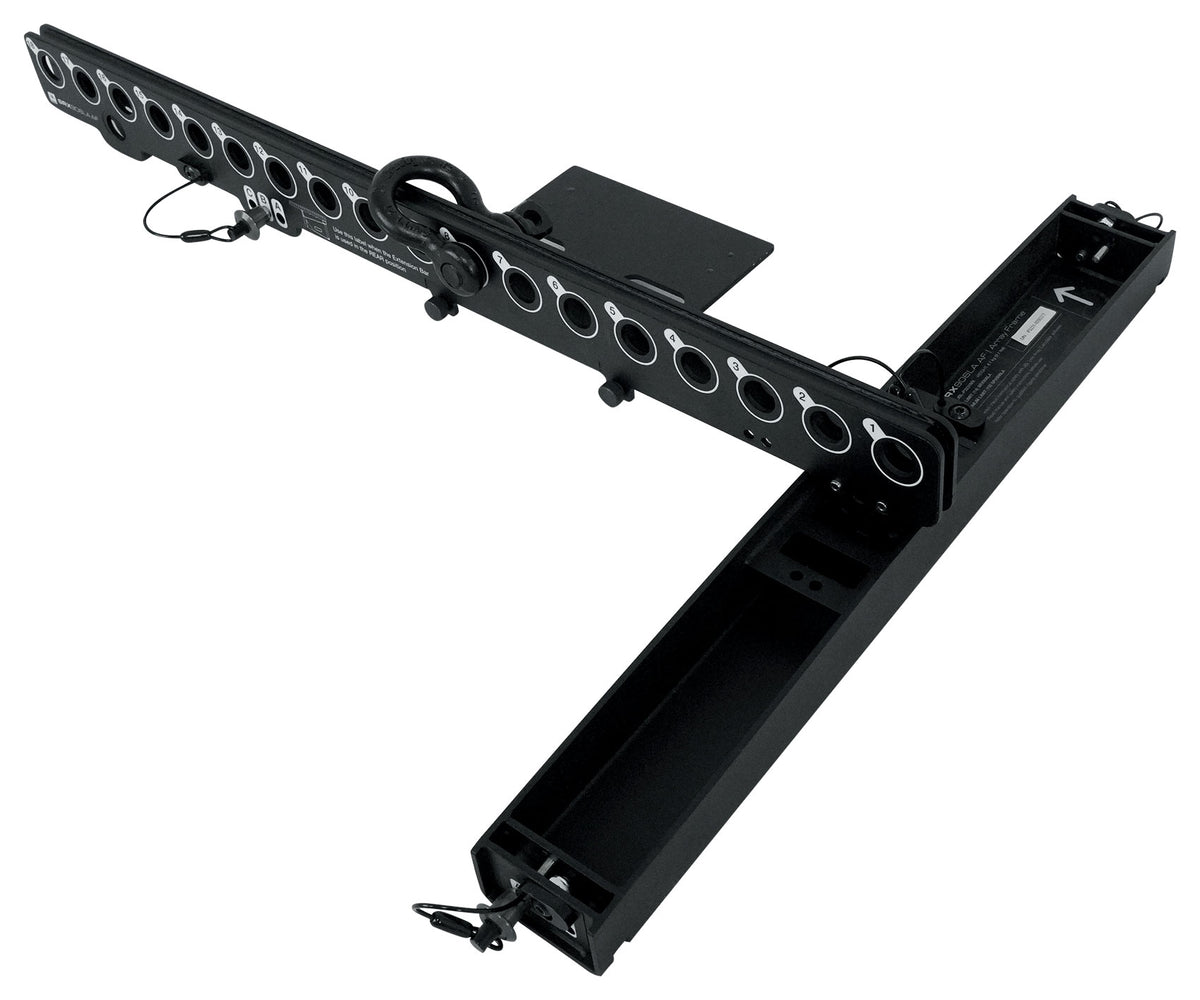

SRX906LA AF Array Frame

The JBL SRX906LA AF is a lightweight, compact array frame built for suspending SRX906LA line array systems using either single-point or front-back suspension methods. Its two-piece design pairs an extension bar with a spreader bar, and the extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming. Three connection points between the two bars give riggers precise control over shackle positioning, particularly useful for single-point hangs.

For single-point applications, the frame works with the VTX RC500 rotating clamp, letting smaller SRX906LA arrays hang from standard-size trusses or pipes without specialized rigging. An included laser attachment bracket supports third-party inclinometers like the TEQ-SAS or RECLINE for verifying aim angle during setup, and the two-part frame collapses easily for transport and storage between shows. Built from high-grade steel with an anti-corrosion coating, the SRX906LA AF supports up to 16 cabinets at maximum, with a safe working limit of 14, making it the primary rigging solution for SRX906LA touring and installed systems.
