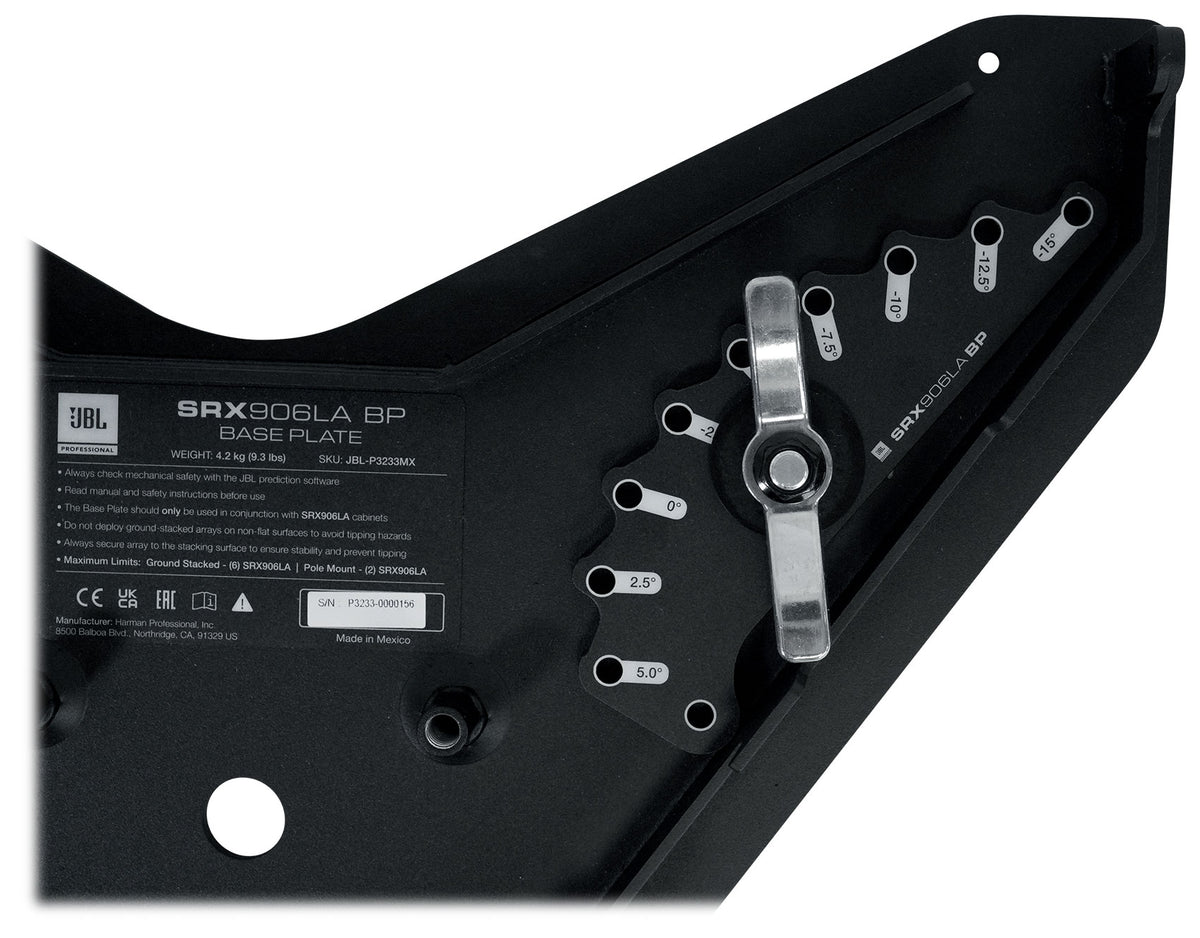

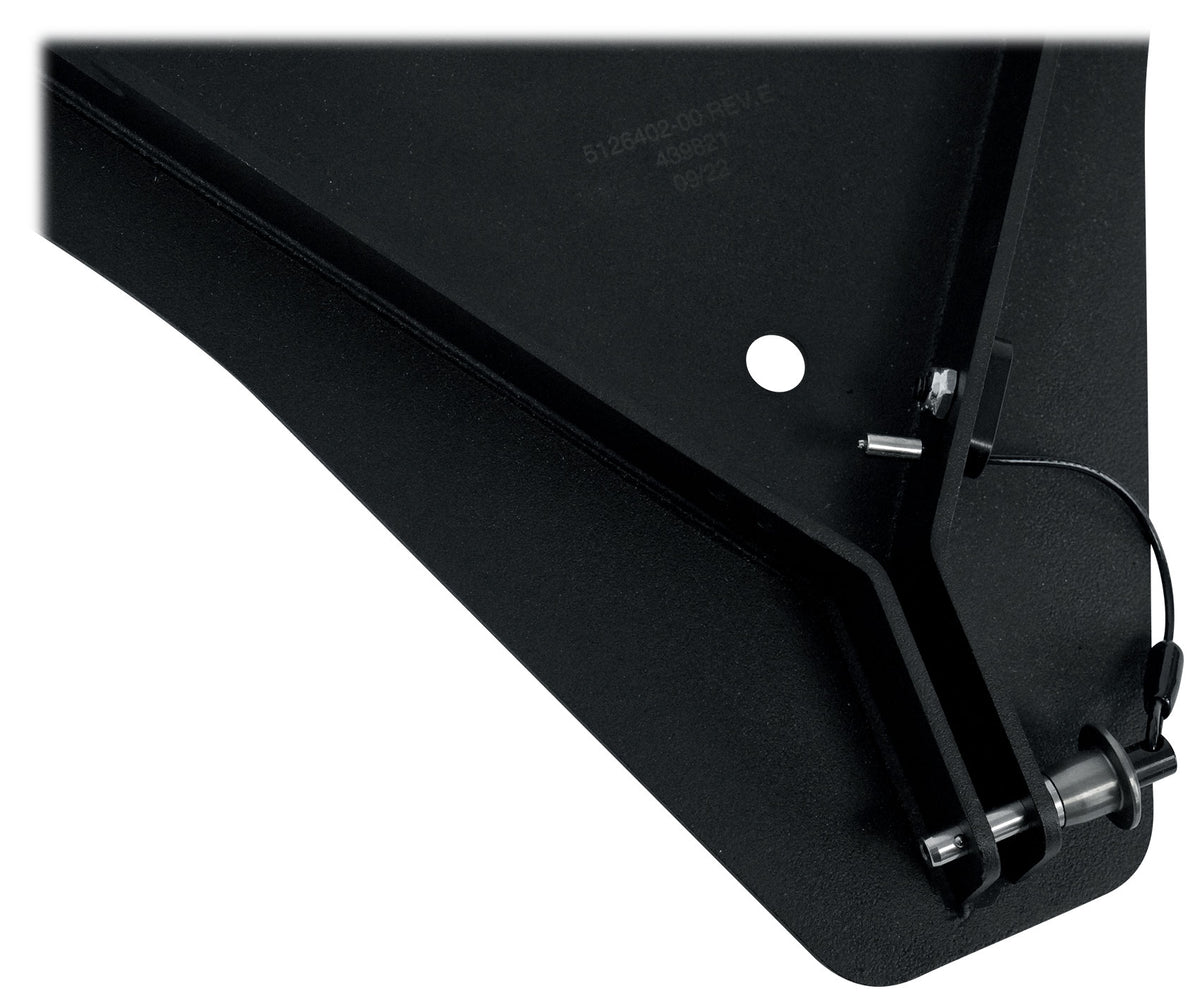

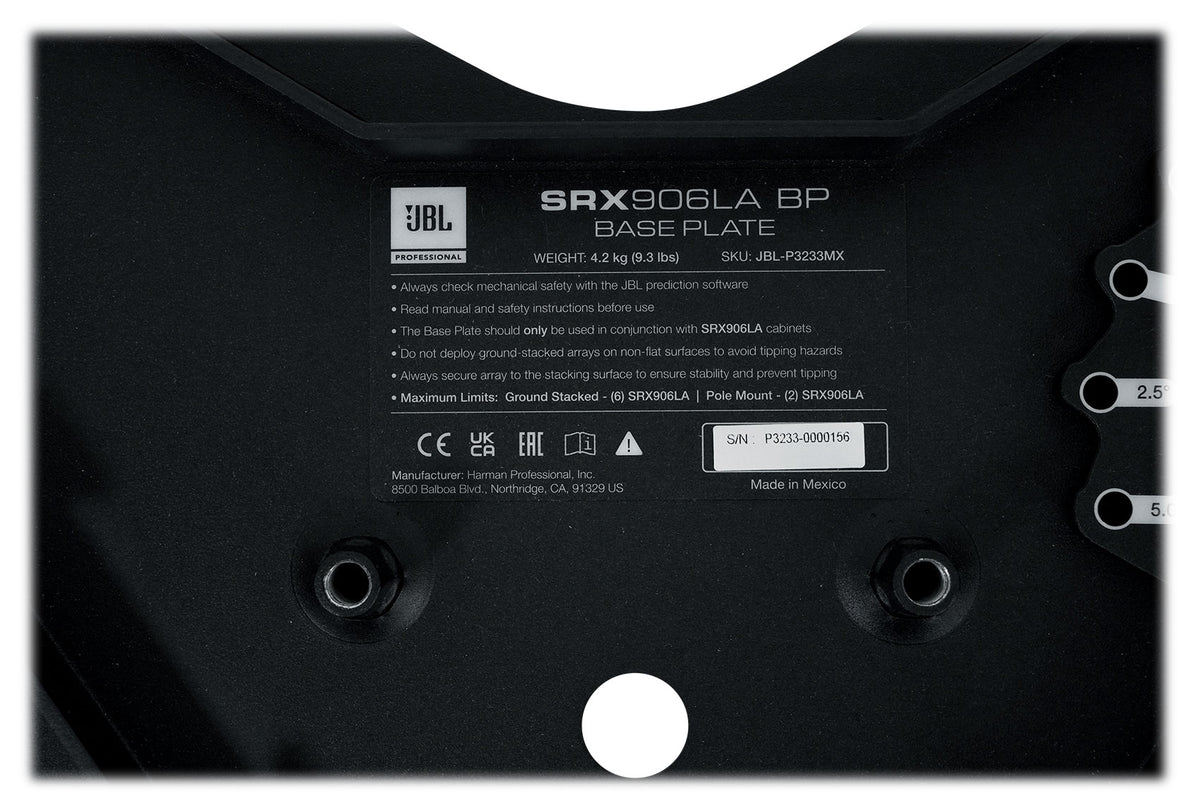

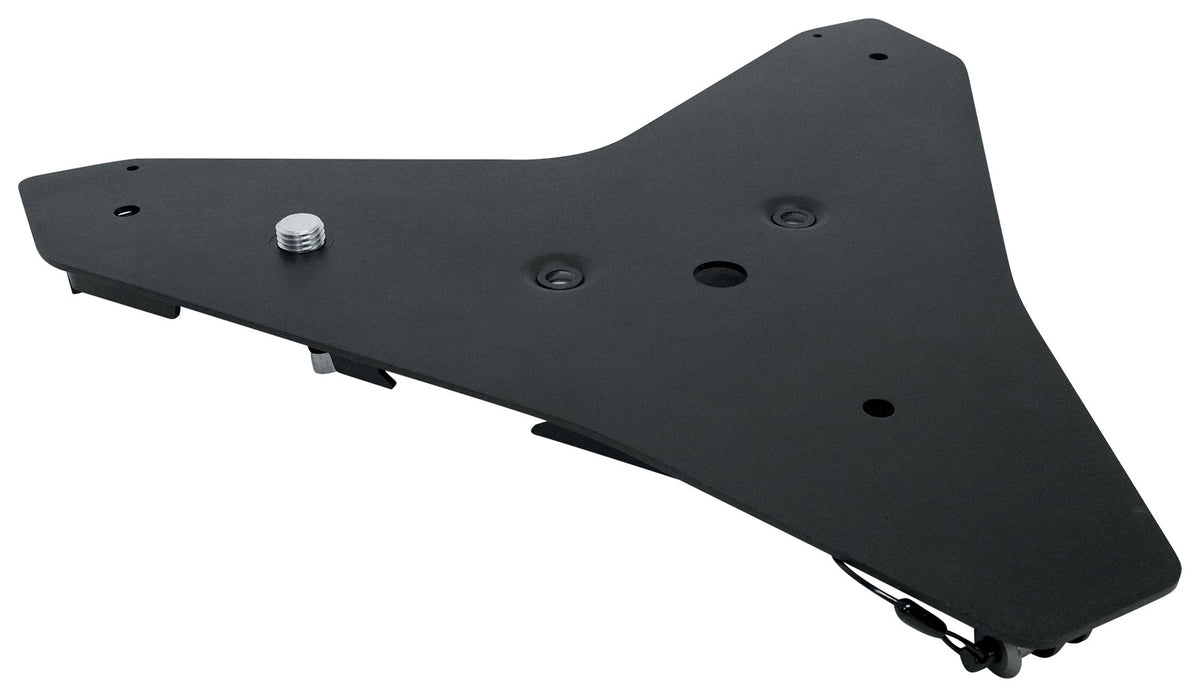

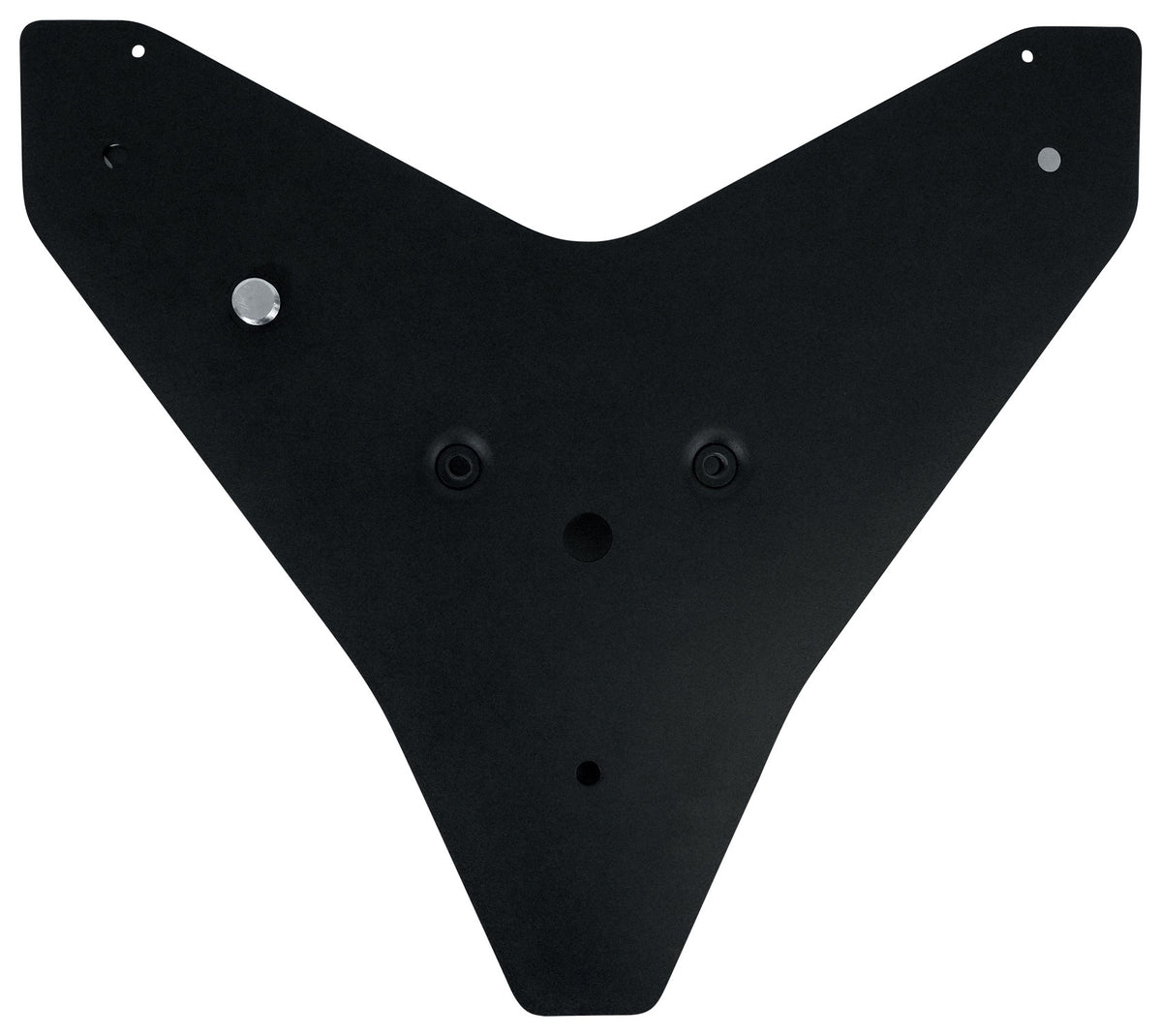

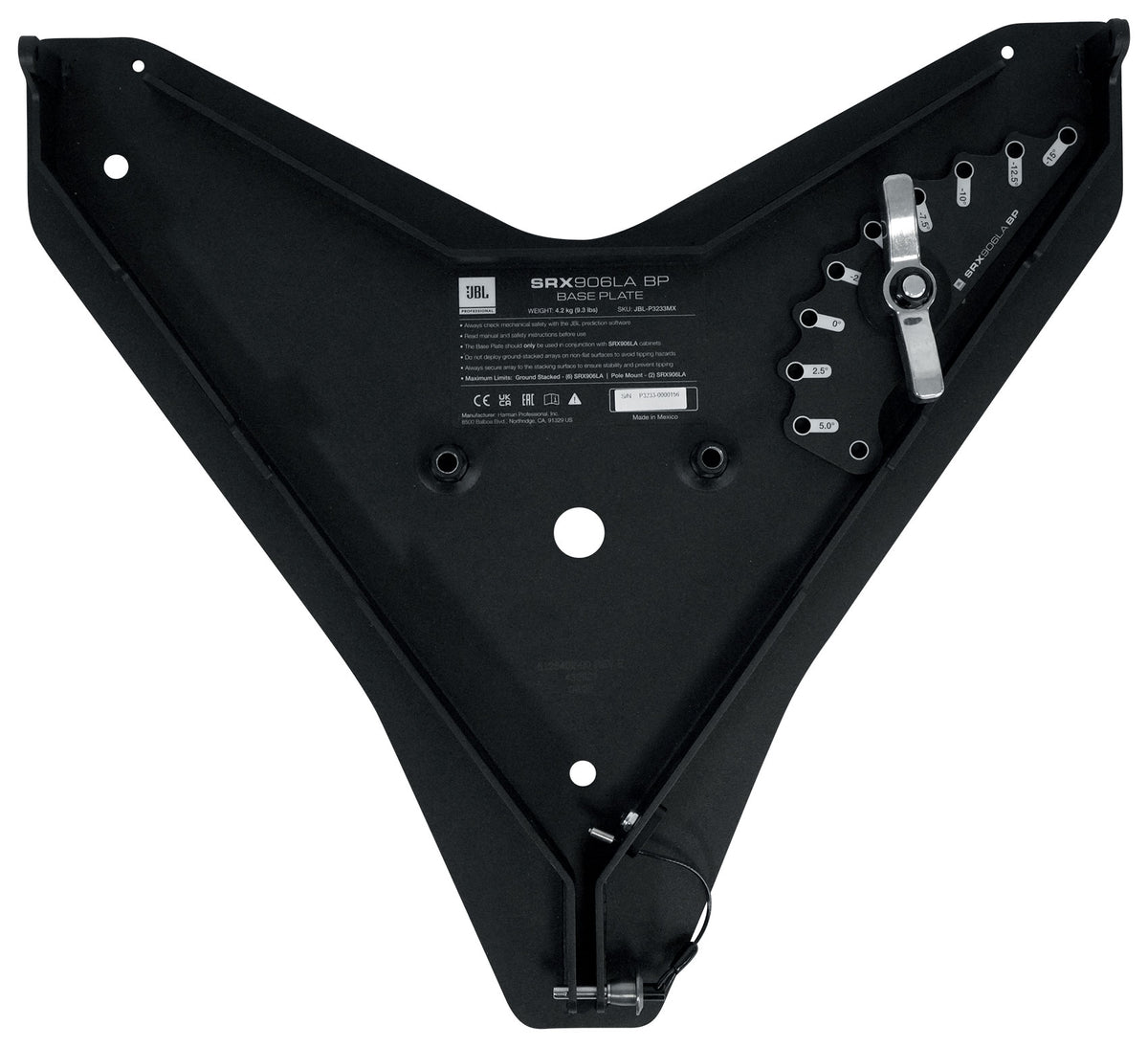

SRX906LA BP Base Plate

The JBL SRX906LA BP is a universal adapter frame that lets SRX906LA line array cabinets be ground stacked on top of compatible subwoofers or other support structures such as stages, scaffolding, or carts, instead of requiring a full suspension rig. Using an included M20 screw, the base plate connects to any subwoofer equipped with a standard M20 pole mount, including the SRX918S or SRX928S, and a rear angle selection bar lets installers dial in an aim angle anywhere from -15 to +5 degrees.

Three included M10 through-holes allow the base plate to be permanently bolted to other support structures when a project calls for a fixed installation rather than a stackable setup. It can also be used with the JBL Pole Mount (P3312MX) adapter to pole mount up to two SRX906LA cabinets at once. Configurations and load conditions should be verified with JBL's Line Array Calculator 3 software before use. Rated to support up to 6 SRX906LA cabinets with a safe working limit of 2, the SRX906LA BP is a straightforward way to get SRX906LA arrays into a ground-stacked or fixed-mount configuration without renting separate rigging.
