SRX910LA AF Array Frame for SRX910LA Speaker (Up to 16 Cabinets)

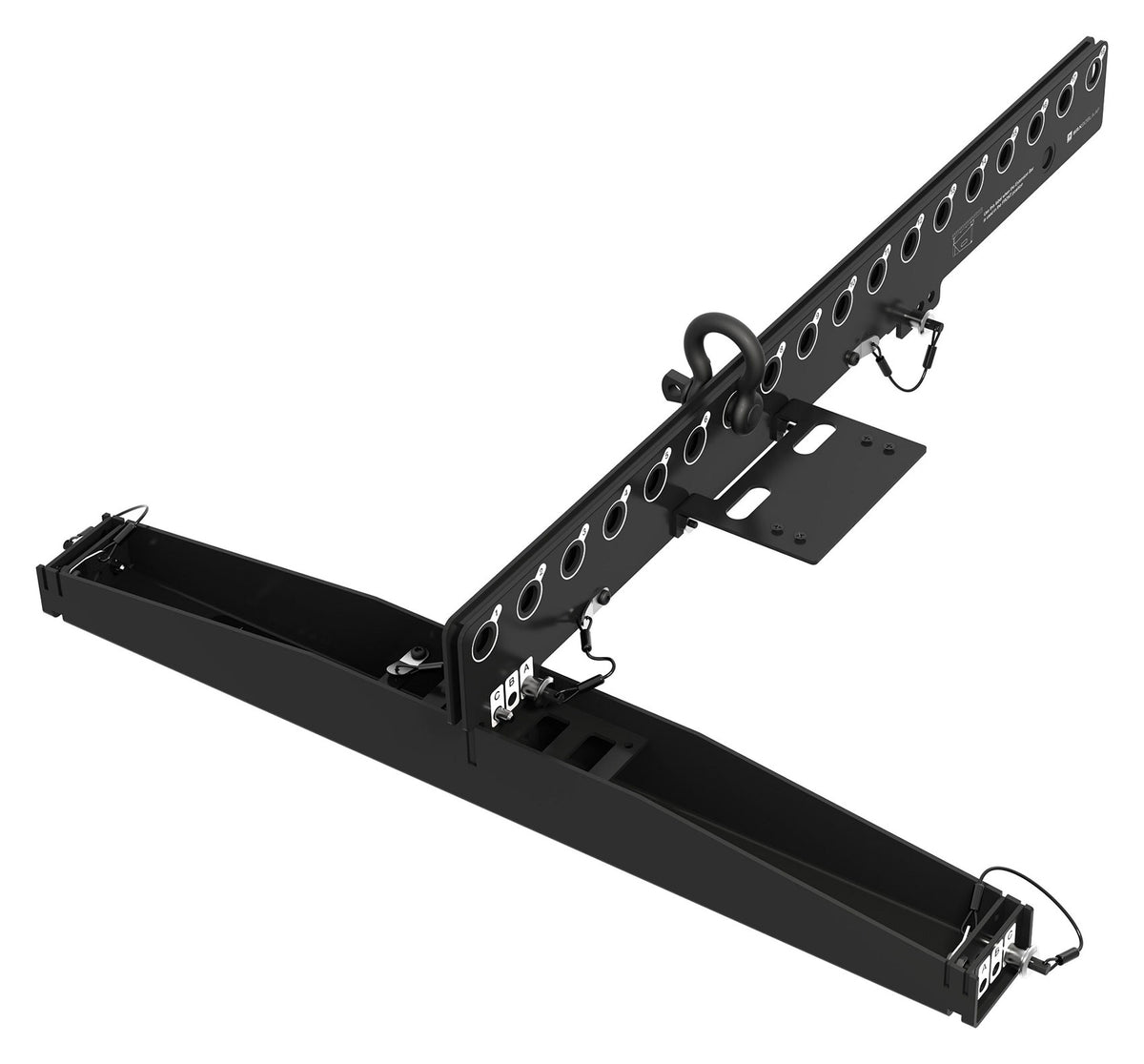

The SRX910LA AF is a rigging frame built for suspending SRX910LA line array cabinets on single-point or front-back systems. Its two-piece design pairs an extension bar with a spreader bar, and the extension bar slides forward or back to dial in uptilt or downtilt without extra hardware. Three connection points on the spreader bar give riggers fine control over shackle position, which matters when a single-point hang has to land on an exact pick point above the stage.

For single-point rigging, the frame pairs with the VTX RC500 rotating clamp so smaller SRX910LA arrays can hang from standard trusses or pipe without a custom bridle. A laser attachment bracket accepts third-party inclinometers, including TEQ-SAS and RECLINE units, so crews can verify aim angle from the ground. Built from high-grade steel with an anti-corrosion coating and black powder coat finish, the frame holds up to 16 SRX910LA cabinets at its maximum rating and 14 at the recommended safe working limit. When the show wraps, the two pieces collapse flat for a compact footprint in the truck.
