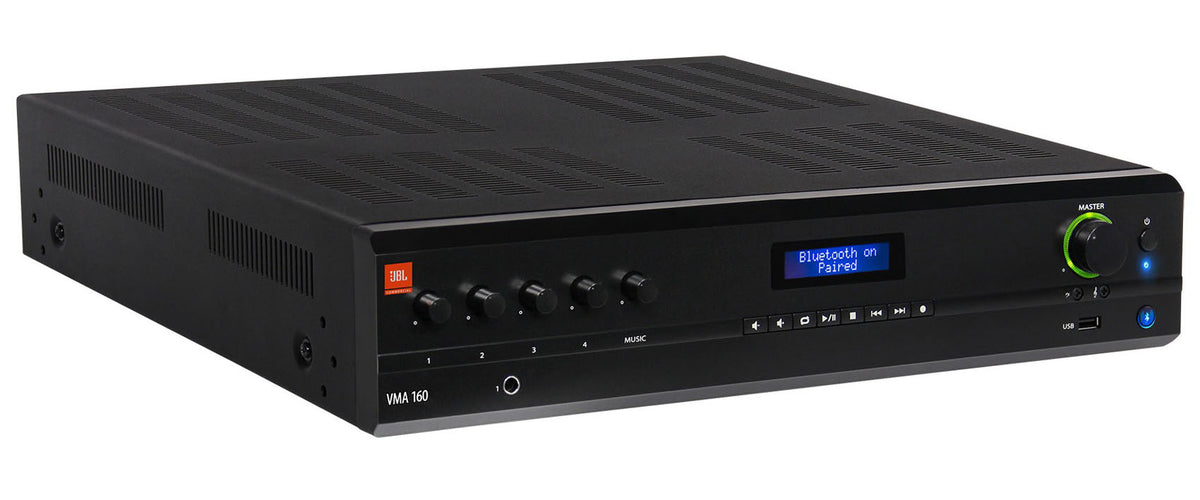

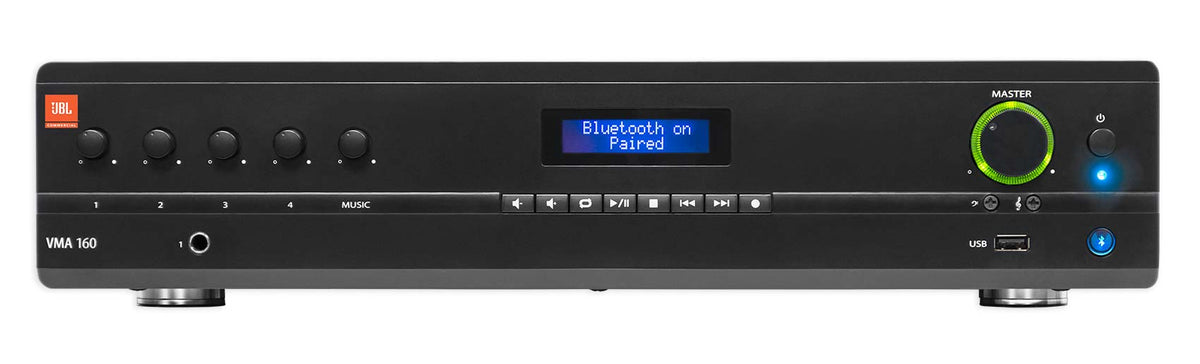

JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
JBL
JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
JBL VMA160 60-Watt 70 Volt 70V Mixer/Amplifier with Bluetooth 5 Channel Inputs
60W Commercial Mixer/Amplifier, 5 Inputs, 70V/100V And Low-Impedance Outputs, Bluetooth, Paging Chime, Rack Hardware
Free Shipping
Features
- Five-input mixer and 60W amplifier in one rack-mount chassis
- Low-impedance 4 and 8 ohm plus 70V and 100V distributed outputs
- Built-in Bluetooth for playback straight from a phone
- Paging chime and priority muting for clear announcements
- Independent bass and treble controls on each output channel
Couldn't load pickup availability

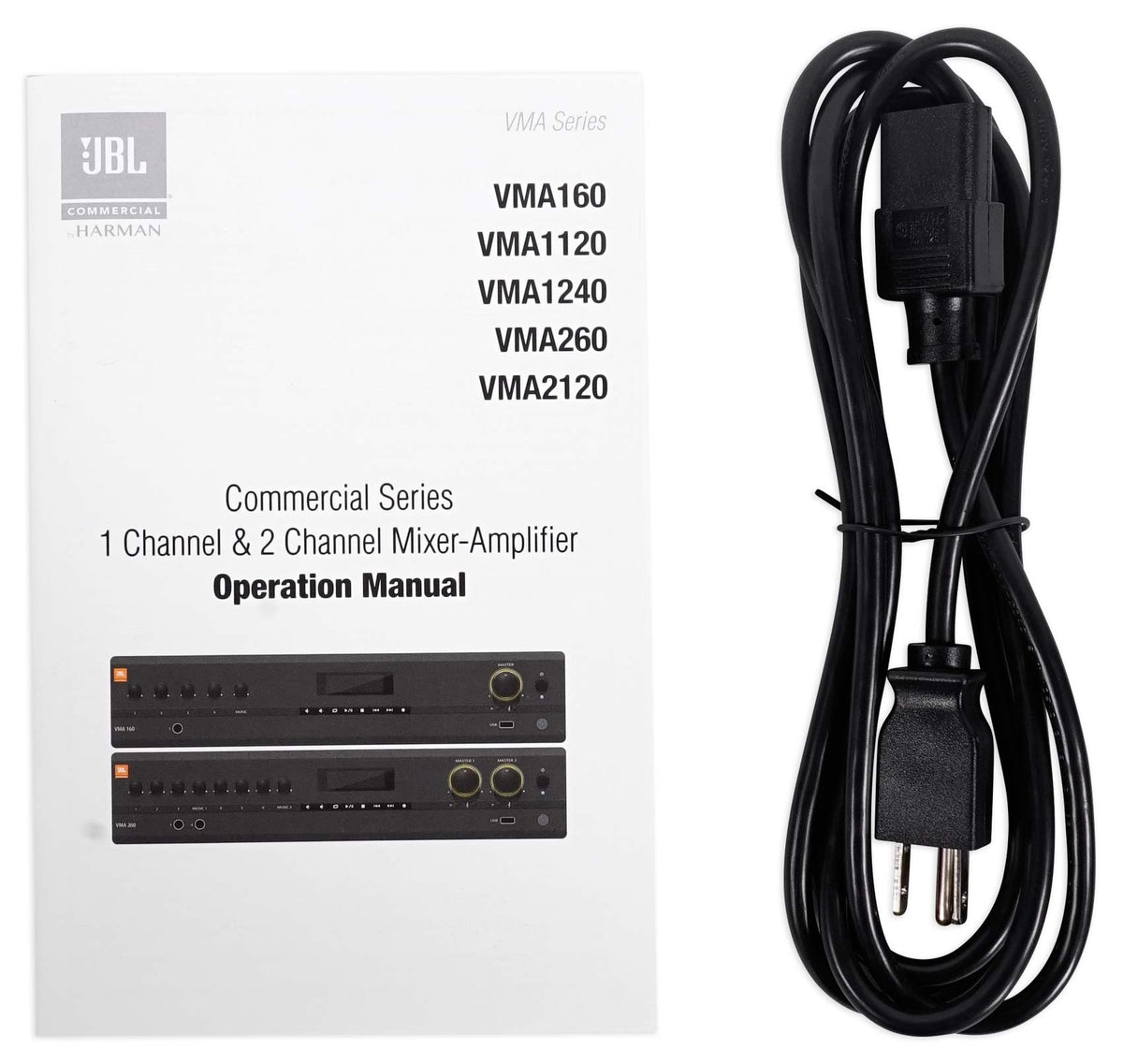

What's Included in the box
- VMA160 mixer/amplifier
- Rack mounting hardware
SKU: SKU: VMA160 U
View full details




Product Description
Features
-
Right-Sized Power
60W covers cafes, clinics, and boutique retail where a larger amplifier would sit mostly idle, keeping the install cost and rack space down.
-
Local Or Distributed Speakers
Low-impedance 4 and 8 ohm operation plus 70V and 100V taps means one unit handles a few speakers or a long ceiling run.
-
Announcements That Land
A paging chime and priority muting pull music down automatically when someone speaks, so announcements are heard without anyone touching the rack.
-
Music From A Phone
Built-in Bluetooth lets staff start and change playback from a phone, removing the need for a dedicated source component in the rack.
-
Ready For Any Region
Universal AC operation from 100V to 240V at 50 or 60 Hz lets integrators specify the same unit across markets without changing hardware.
Technical Specifications
- Product Type Commercial Mixer/Amplifier
- Max Output Power 60W
- Input Channels 5
- Output Channels 1
- Output Types Low impedance 4 and 8 ohms, 70V and 100V
- Wireless Bluetooth
- Frequency Response 20 Hz - 20 kHz
- Total Harmonic Distortion Less than 0.5%
- Signal to Noise Ratio Greater than 76 dB
- Tone Control Bass +/-14 dB at 50 Hz, Treble +/-14 dB at 10 kHz
- Input Sensitivity Mic 5.5 mVrms, Line 1.3 Vrms, RCA 130 mVrms
- Input Impedance Mic 400 ohms, Line 20k ohms balanced, RCA 50k ohms
- Phantom Power 27 VDC
- Crosstalk -70 dB
- Insertion Loss 1 dB maximum
- Minimum Load Impedance 4 ohms, 80 ohms, 160 ohms
- AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
- Paging Paging chime and priority muting
- Mounting Rack mounting hardware included
- Weight 19.4 lb
- Dimensions (W x D x H) 17 in x 16.3 in x 3.5 in
