JBL VRX928LA-WH 8" 400 Watt 2-Way Passive Line-Array Speaker in White
JBL
JBL VRX928LA-WH 8" 400 Watt 2-Way Passive Line-Array Speaker in White
JBL VRX928LA-WH 8" 400 Watt 2-Way Passive Line-Array Speaker in White
White 8" Two-Way Passive Line Array Speaker, 400W, Constant Curvature Waveguide, Arrays Of Up To Six
Features
- White DuraFlex finish for installs where black enclosures do not fit the decor
- 8-inch two-way passive line array cabinet weighing just 28 lb
- Constant Curvature waveguide keeps coverage coherent across the array
- Amplitude shading switches balance level from front rows to back wall
- Up to six cabinets fly in one array for 90 degrees vertical coverage
Couldn't load pickup availability
What's Included in the box
- VRX928LA-WH 8" passive line array speaker in white
SKU: SKU: VRX928LA-WH
View full details







Product Description
Features
-
Built To Disappear

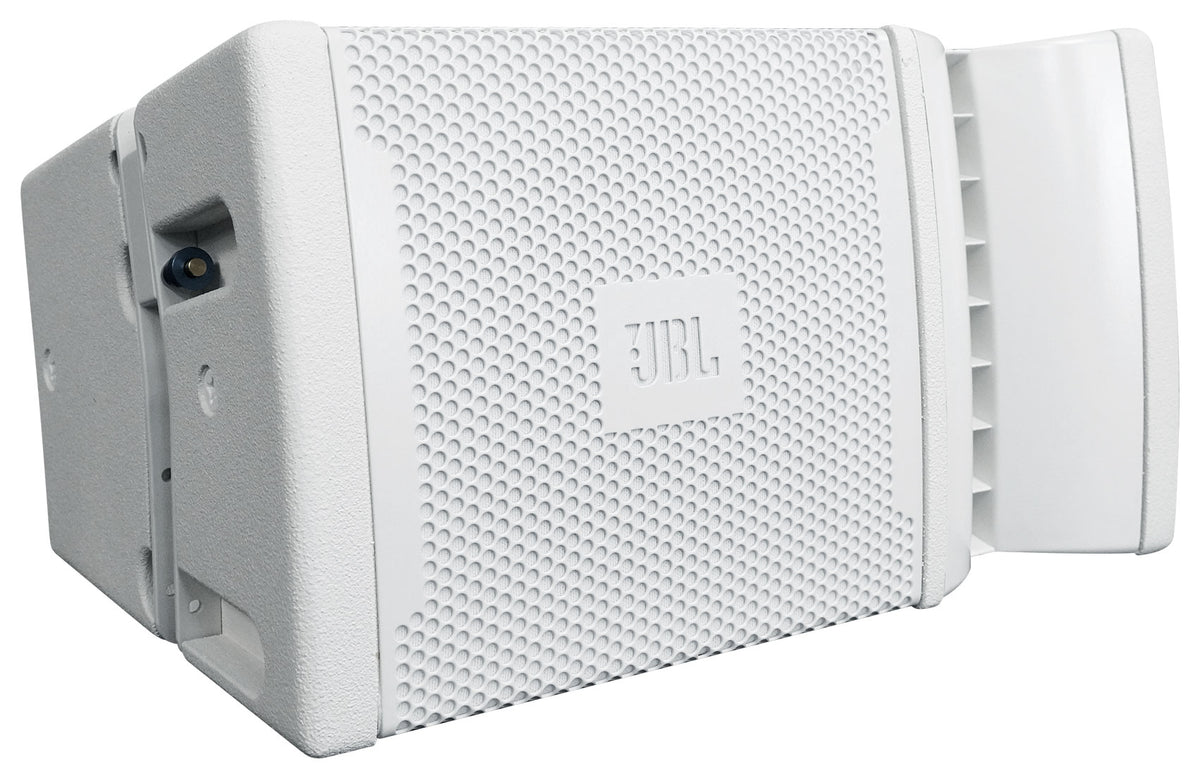

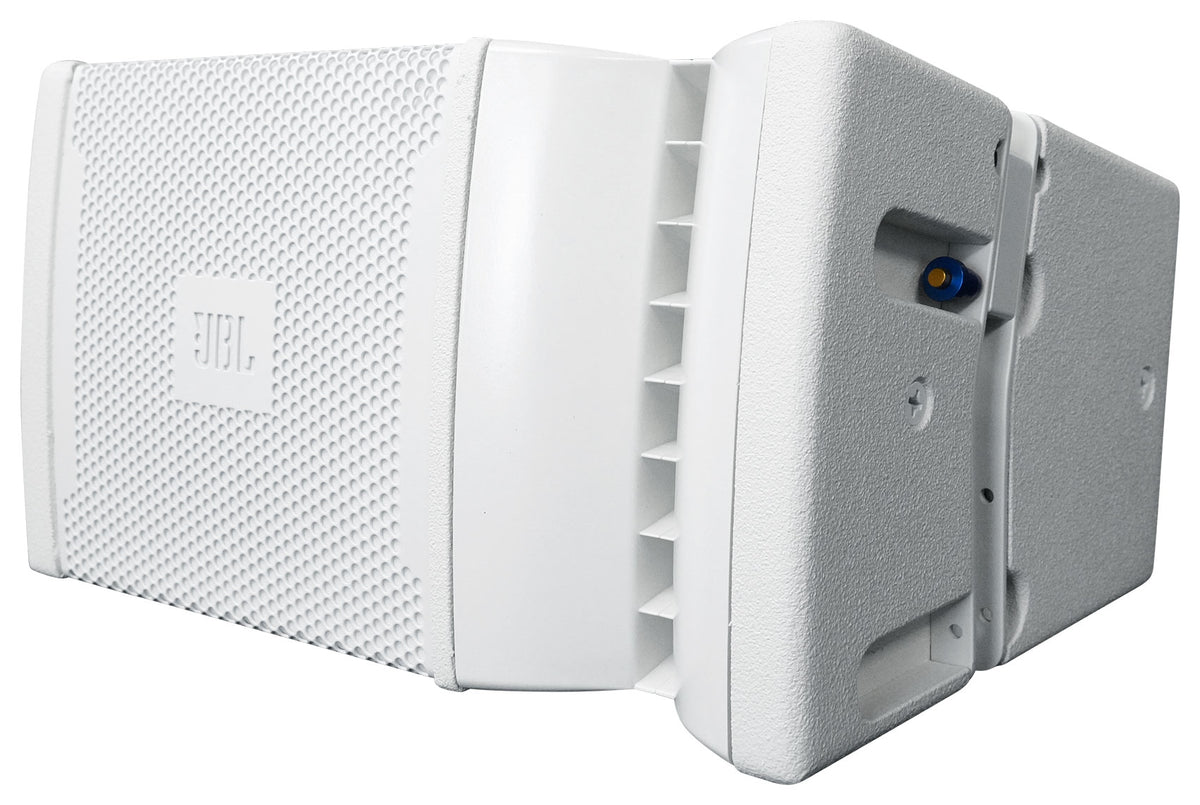

White DuraFlex finish and a white foam-backed grille let the cabinet blend into ceilings and walls in worship spaces, theaters, and auditoriums.
-
One Continuous Arc

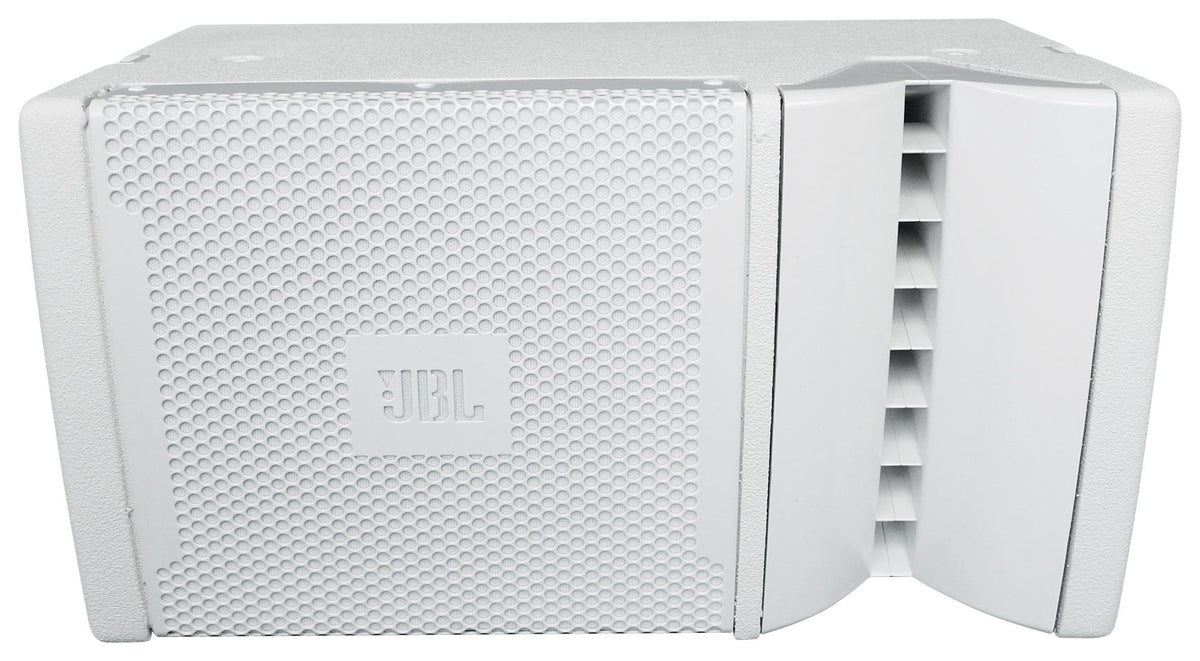

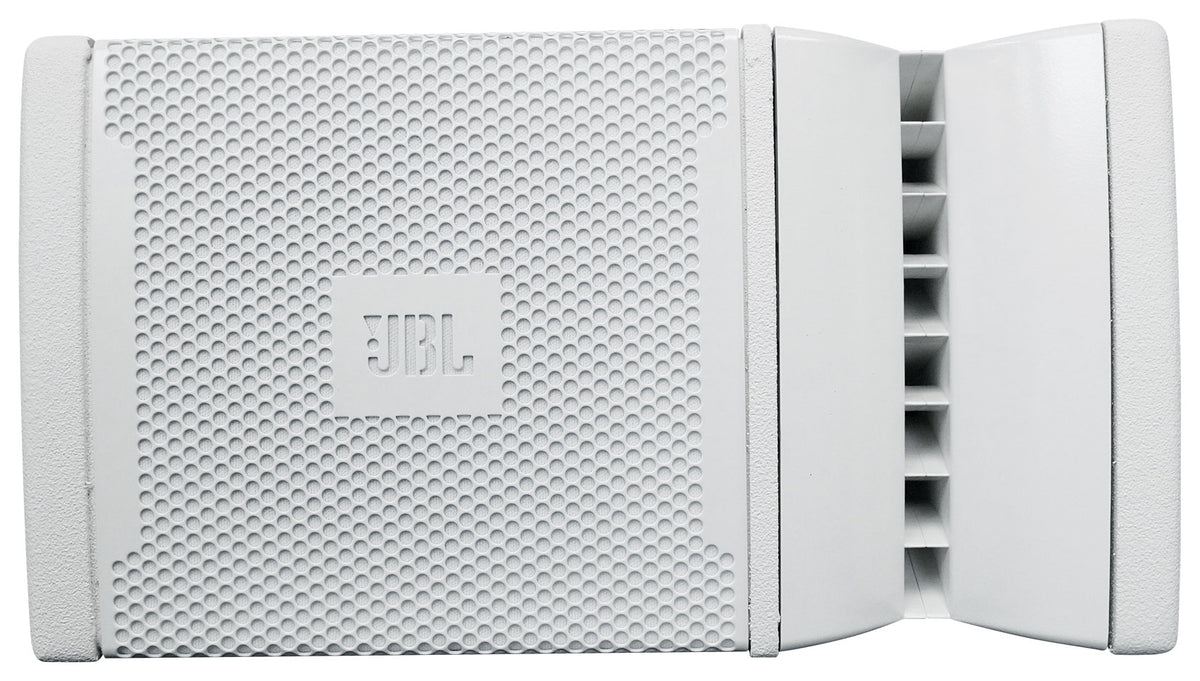

Two neodymium compression drivers sit on a Constant Curvature waveguide, and that arc continues with every cabinet added to the array.
-
Coverage You Can Shape

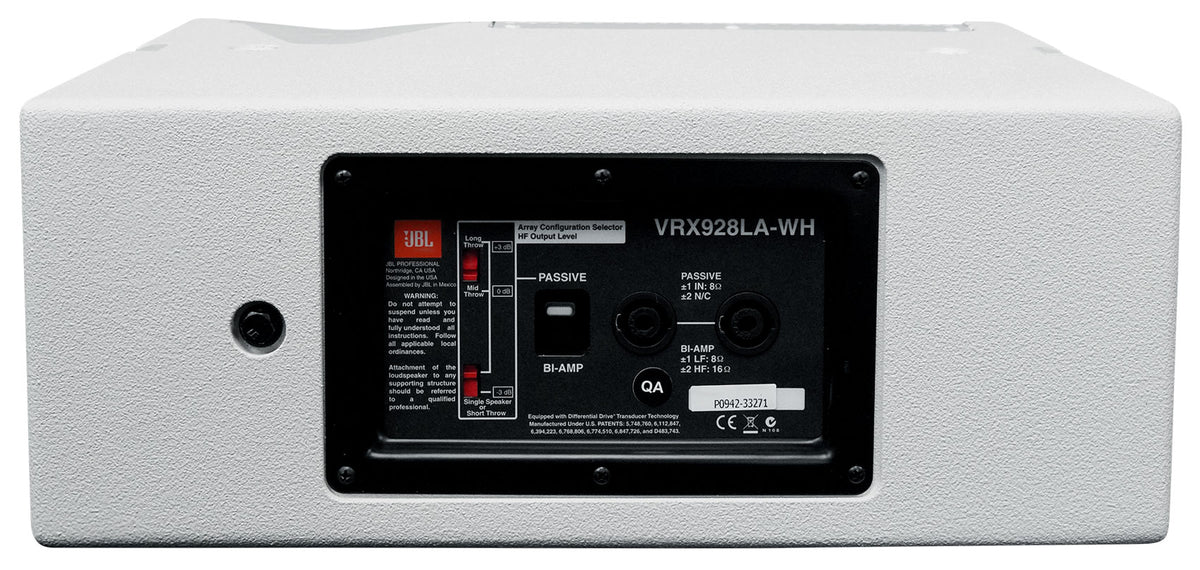

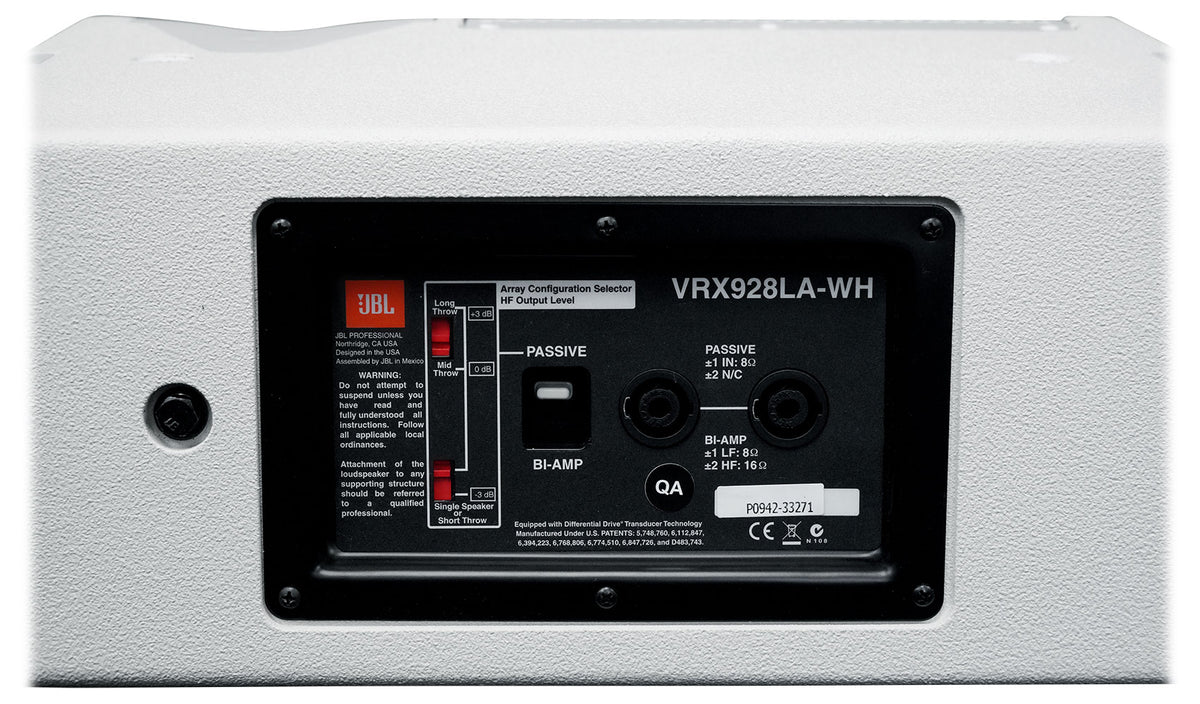

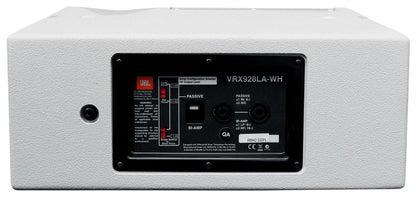

Amplitude shading switches on the input plate let the top box reach the back of the room while lower boxes are pulled back for the front rows.
-
Light Enough For Long Arrays
A neodymium Differential Drive woofer keeps the cabinet at 28 lb, so up to six units fly on one VRX-SMAF frame with manageable point load.
-
Matched Low End
The cabinet was designed to work with the VRX915S-WH subwoofer, keeping the finish consistent while extending the system's low-frequency range.
Technical Specifications
- Product Type 8" Two-Way Passive Line Array Speaker, White
- System Type Constant Curvature 8 in two-way line array system
- Power Rating 400W continuous / 800W program / 1,600W peak
- Frequency Range (-10 dB) 70 Hz - 20 kHz
- Frequency Response (+/-3 dB) 87 Hz - 19 kHz
- Coverage Pattern 100 x 15 degrees nominal, single unit
- Maximum SPL 122 dB peak passive, LF 122 dB and HF 128 dB in bi-amp mode
- System Sensitivity (1W at 1 m) 90 dB SPL passive, LF 90 dB, HF 108 dB bi-amp
- Crossover Modes Bi-amp or passive, externally switchable
- Crossover Frequency 2.0 kHz
- LF Driver (1) JBL 2168H-1, 200 mm (8 in) Differential Drive woofer
- HF Drivers (2) JBL 2414H, 25 mm (1.0 in) neodymium compression drivers
- Inputs Speakon NL-4 (x2)
- Enclosure 15 mm - 25 mm multi-ply birch plywood, White DuraFlex finish
- Grille Powder coated white 18-gauge perforated steel with acoustically transparent white foam backing
- Transport Integrated handle with backing cup

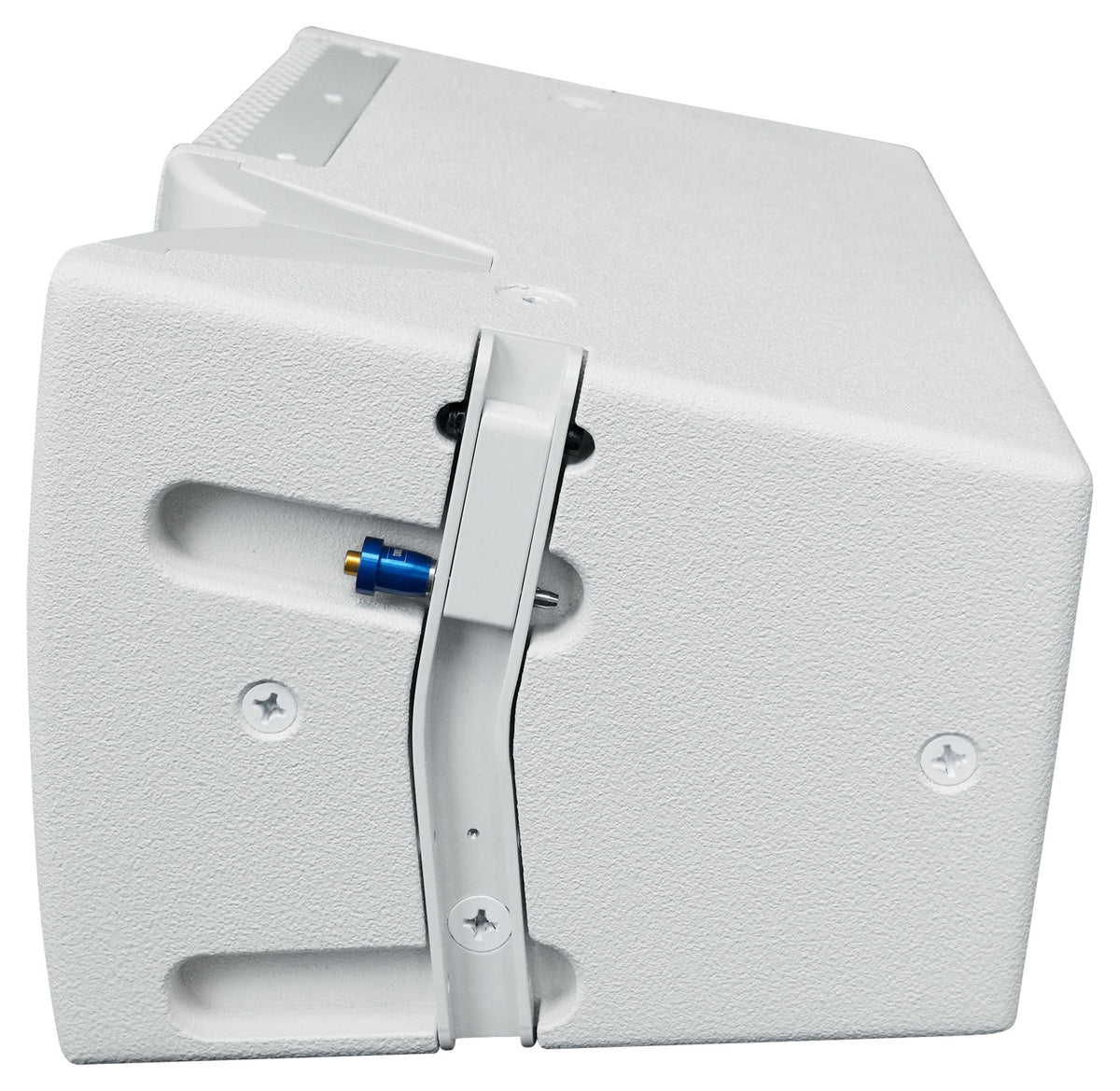

- Suspension / Mounting Optional VRX-SMAF line array frame or M10 eyebolt kit #229-00009-01
- Array Capacity Up to six enclosures, 90 degrees nominal vertical coverage
- Weight 28 lb
- Dimensions (H x W x D) 9.1 in x 16.5 in x 10.5 in
