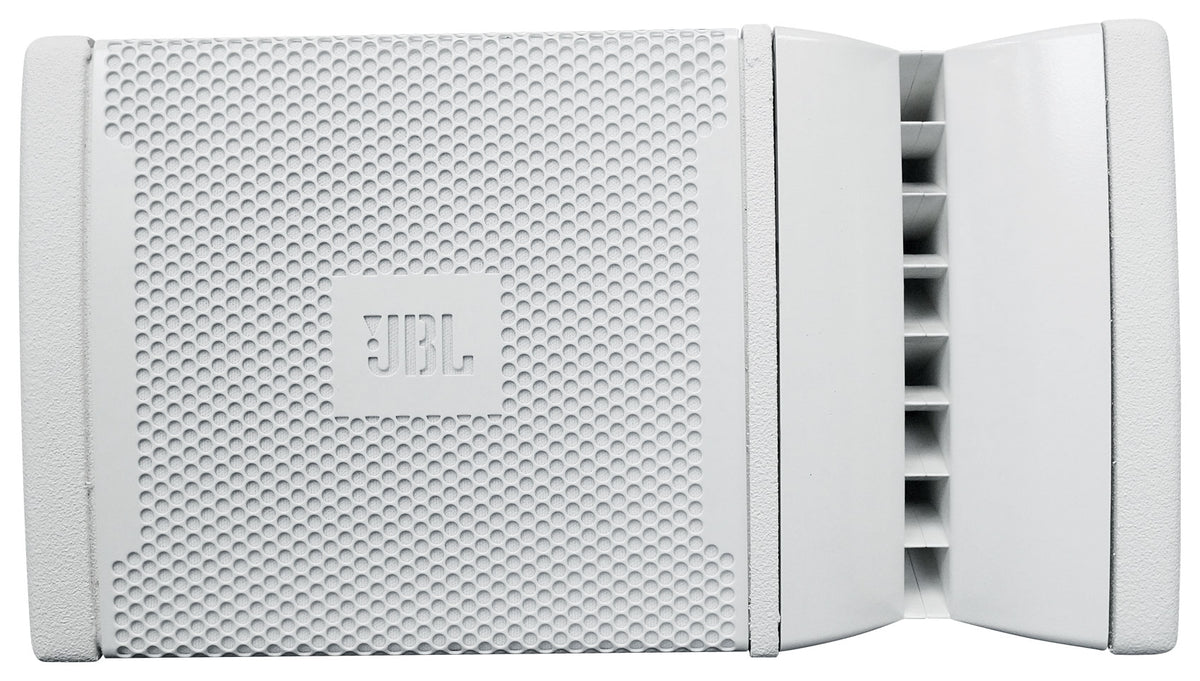

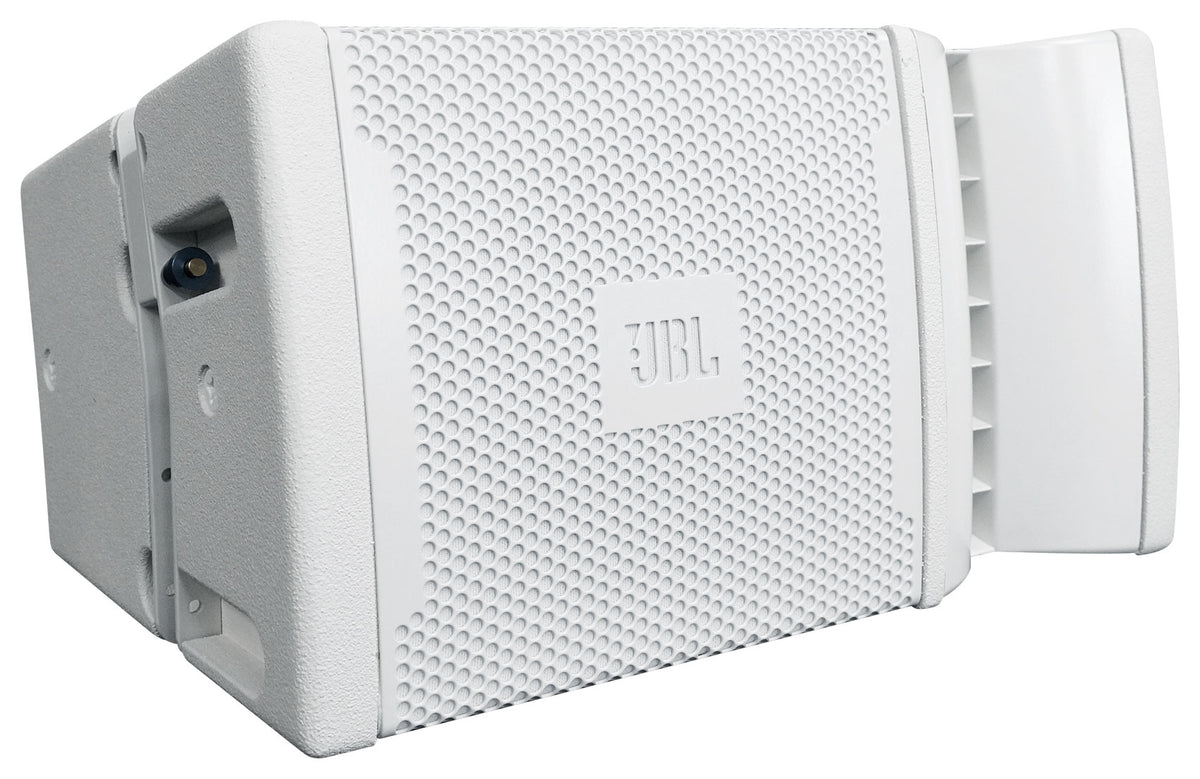

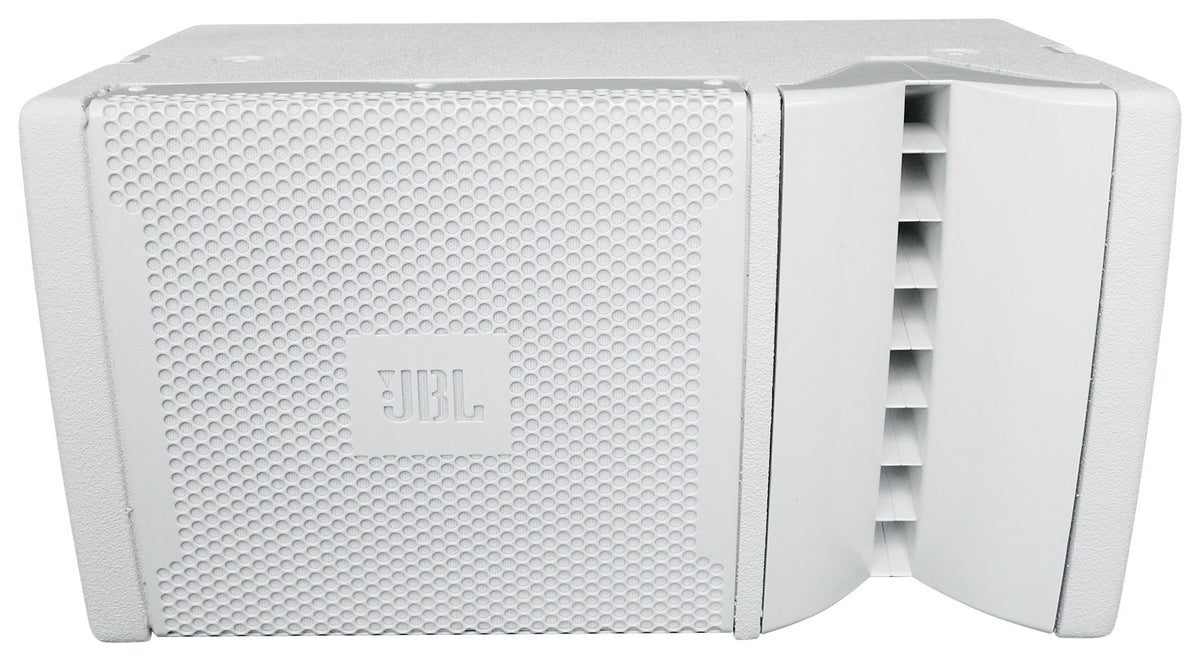

VRX928LA-WH 8" 400W 2-Way Passive Line-Array Speaker in White
JBL
VRX928LA-WH 8" 400W 2-Way Passive Line-Array Speaker in White
VRX928LA-WH 8" 400W 2-Way Passive Line-Array Speaker in White
8" 400W Passive Line-Array Speaker In White, Arrays Up To 6 Units, Houses Of Worship Ready
Features
- White Duraflex finish matches decor in houses of worship and theaters
- Constant Curvature waveguide lets stacked units act as one driver
- Two neodymium HF drivers per enclosure add combined output
- Amplitude shading switches balance coverage from front to back
- Compatible with the VRX915S-WH subwoofer for added low end
Couldn't load pickup availability
What's Included in the box
- (1) JBL VRX928LA-WH 8" 400W 2-Way Passive Line-Array Speaker
SKU: SKU: VRX928LA-WH*
View full details







Product Description

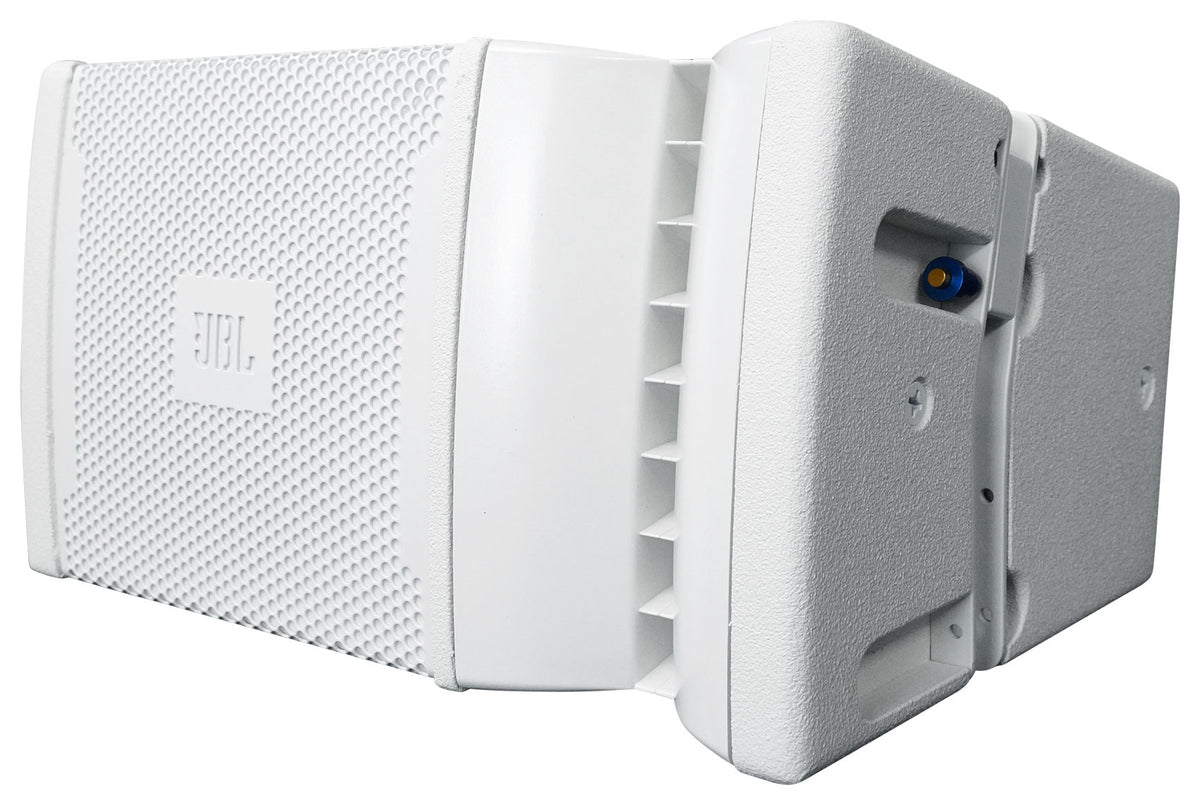

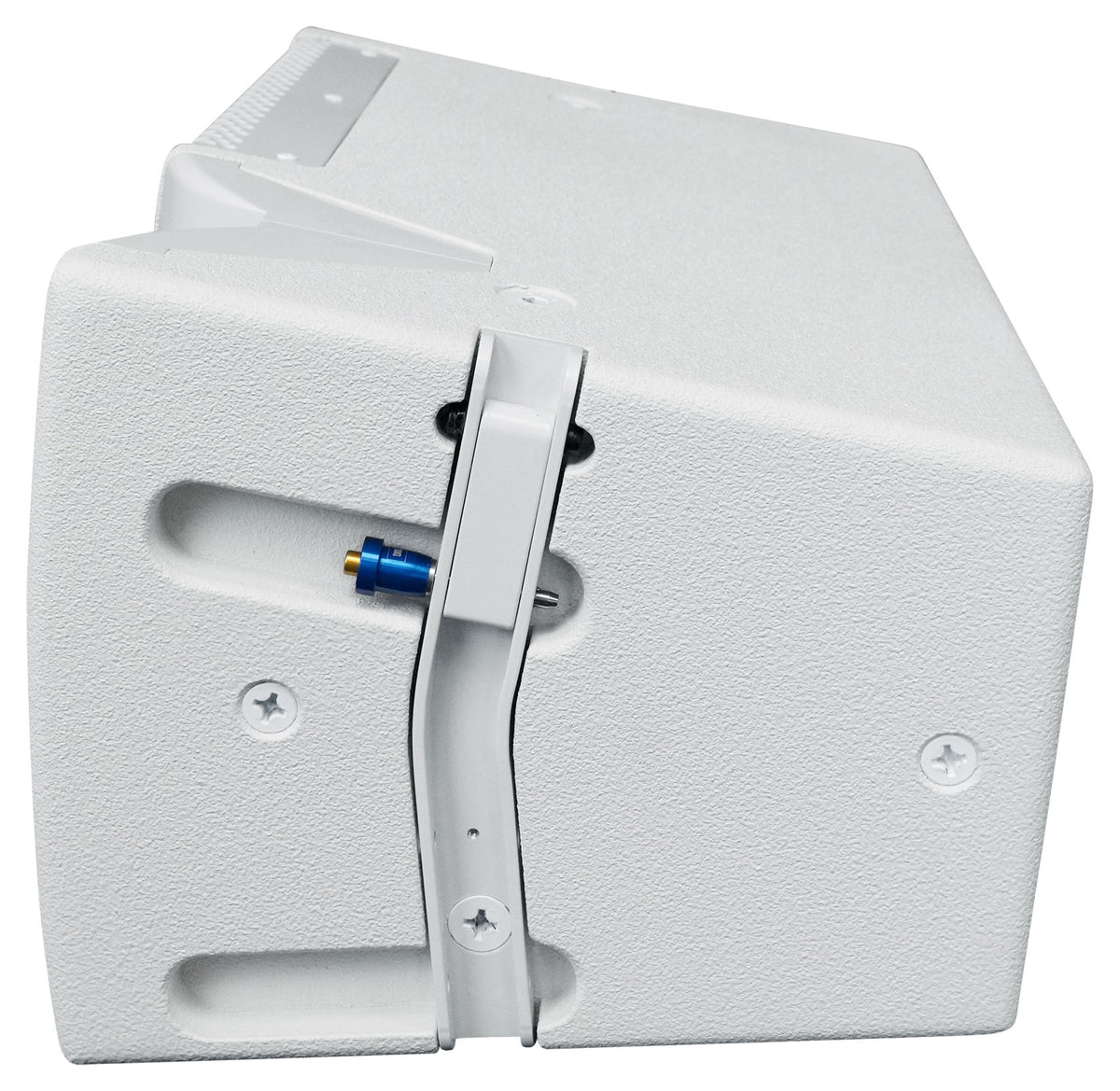

Two neodymium HF compression drivers per enclosure give the VRX928LA-WH more combined output than a single driver could reach on its own, and amplitude shading switches on the input plate let an installer favor a distant rear wall from the top of the array while pulling back the lower units to avoid overwhelming the front seats. Integral rigging hardware locks enclosures together for a flown array, and the design pairs with the VRX915S-WH subwoofer for installs that need low-end extension.
At 9.1 by 16.5 by 10.5 inches, the VRX928LA-WH is built for a fixed install rather than a portable rig, with no handles or pole mount, so it suits venues committing to a permanent white loudspeaker system rather than a system that moves between events.
Features
White Finish For Permanent Installs
The white Duraflex finish blends into houses of worship, theaters, and nightclubs where a black enclosure would clash with the decor.
Constant Curvature Array Coherence
Multiple enclosures added to the array continue the same acoustic arc, so up to six units behave like one long driver.
Dual HF Driver Output
Two neodymium compression drivers per enclosure combine for more high-frequency output than a single driver could deliver.
Adjustable Amplitude Shading

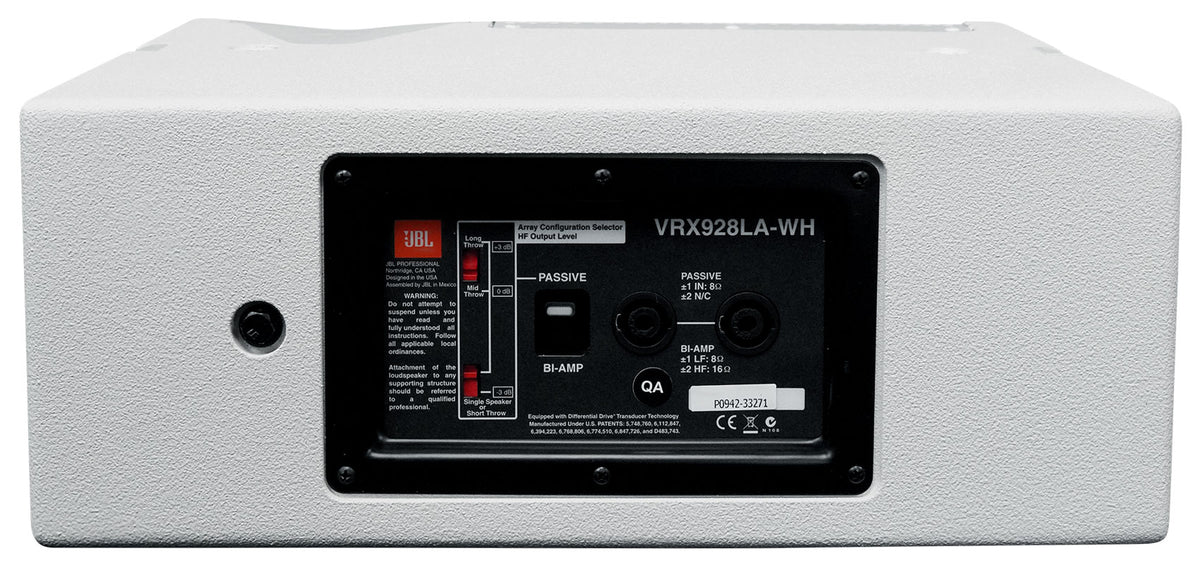

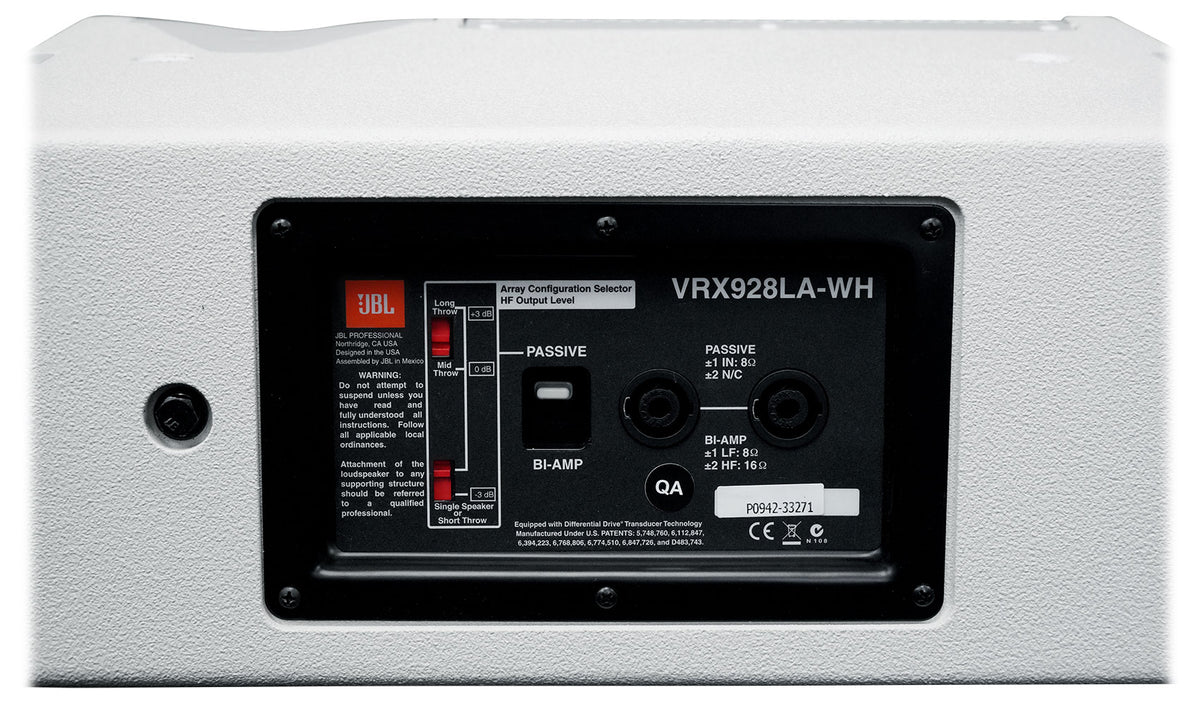

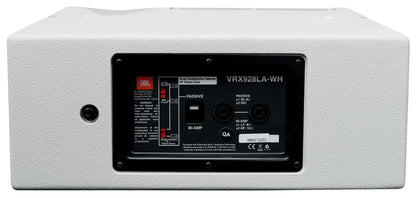

Input plate switches let the top of the array reach a distant wall while the lower units ease back near the front row.
Subwoofer-Ready System
Compatibility with the VRX915S-WH subwoofer lets an installer add low-frequency extension to the same array.
Technical Specifications
- Product Type 8" Two-Way Passive Line-Array Speaker
- Power Rating 400 W / 800 W / 1600 W (Continuous / Program / Peak)
- Frequency Range (-10 dB) 70 Hz to 20 kHz
- Coverage Pattern 100° x 15° nominal (single unit)
- Crossover Frequency 2.0 kHz
- Crossover Modes Bi-amp / Passive
- Maximum SPL (1m) 122 dB SPL peak (passive mode)
- Nominal Impedance 18 ohm (passive)
- LF Driver 1 x JBL 2168H-1, 200mm (8in) Differential Drive Woofer
- HF Driver 2 x JBL 2414H, 25mm (1.0in) Neodymium Compression Driver
- Finish White Duraflex
- Weight 28 lb
- Dimensions 9.1in x 16.5in x 10.5in (H x W x D)
