VRX932LA-1 [Open Box]
1
/
of
11
JBL
VRX932LA-1 [Open Box]
VRX932LA-1 [Open Box]
12" 800W Passive Line-Array Speaker With 3 HF Drivers, Arrays Up To 6 Units
Regular price
$1,994.00
Sale price
$1,994.00
Regular price
$2,515.00
Unit price
/
per
Save 20%
Shipping calculated at checkout.
Features
- Three 2408J compression drivers per enclosure boost HF output
- Constant Curvature waveguide keeps stacked units acting as one driver
- Differential Drive woofer with dual voice coils for low end
- Dual angle pole socket allows pole or tripod ground stacking
- Handles up to 3200W peak power across an array
Couldn't load pickup availability
30-Day Money-Back Guarantee
Fast & Free Shipping
Buy Now, Pay Later
What's Included in the box
- (1) JBL VRX932LA-1 12" 800W 2-Way Passive Line-Array Speaker
SKU: SKU: VRX932LA-1*
View full details![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819232.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819231.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819229.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819228.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819227.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819226.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819225.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819224.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819223.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819222.jpg?v=1754344914&width=1445)
![VRX932LA-1 [Open Box]](http://audiosavings.com/cdn/shop/files/2819230.jpg?v=1754344914&width=1445)
Product Description

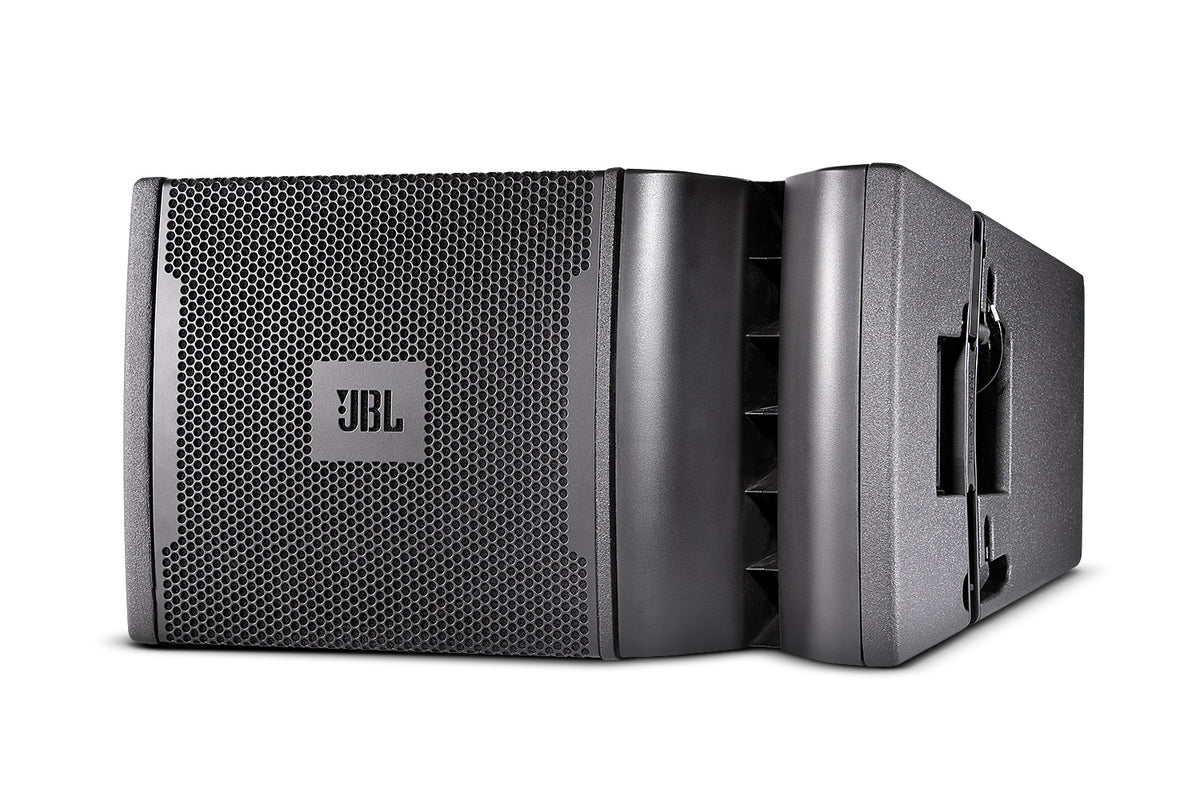

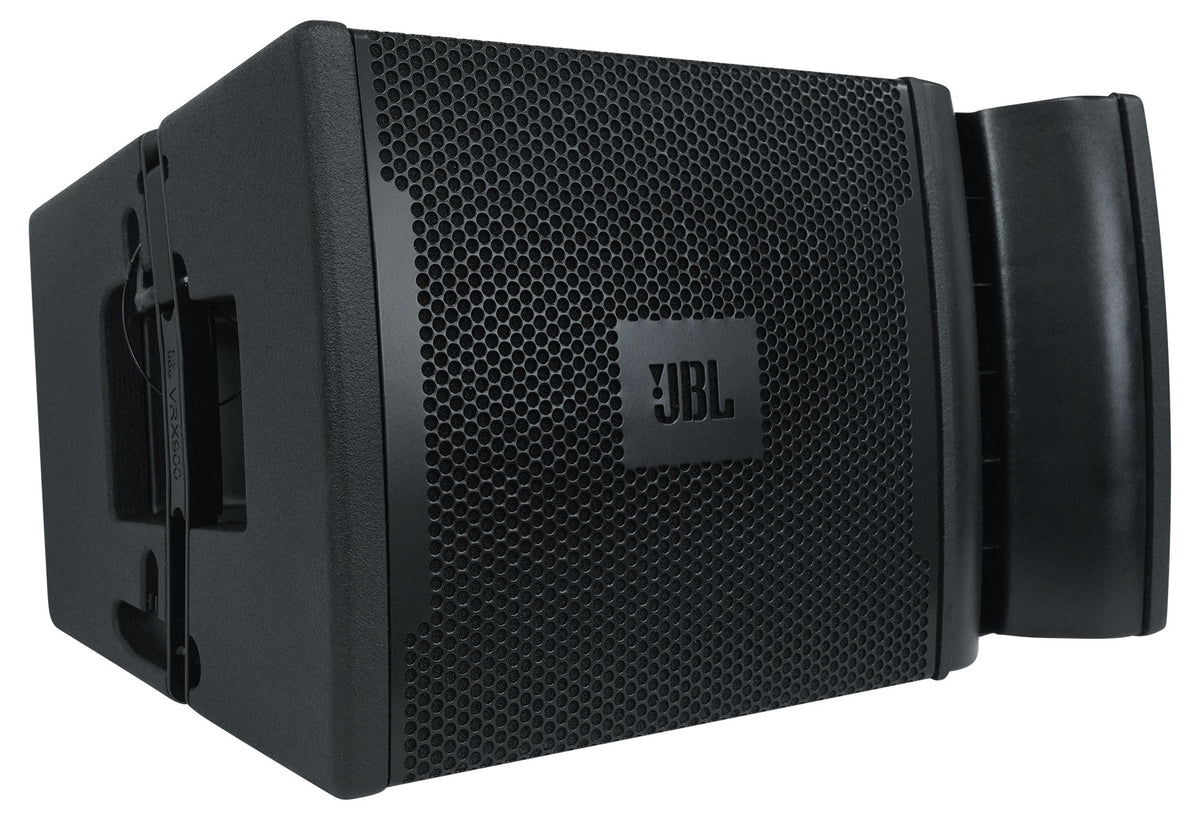

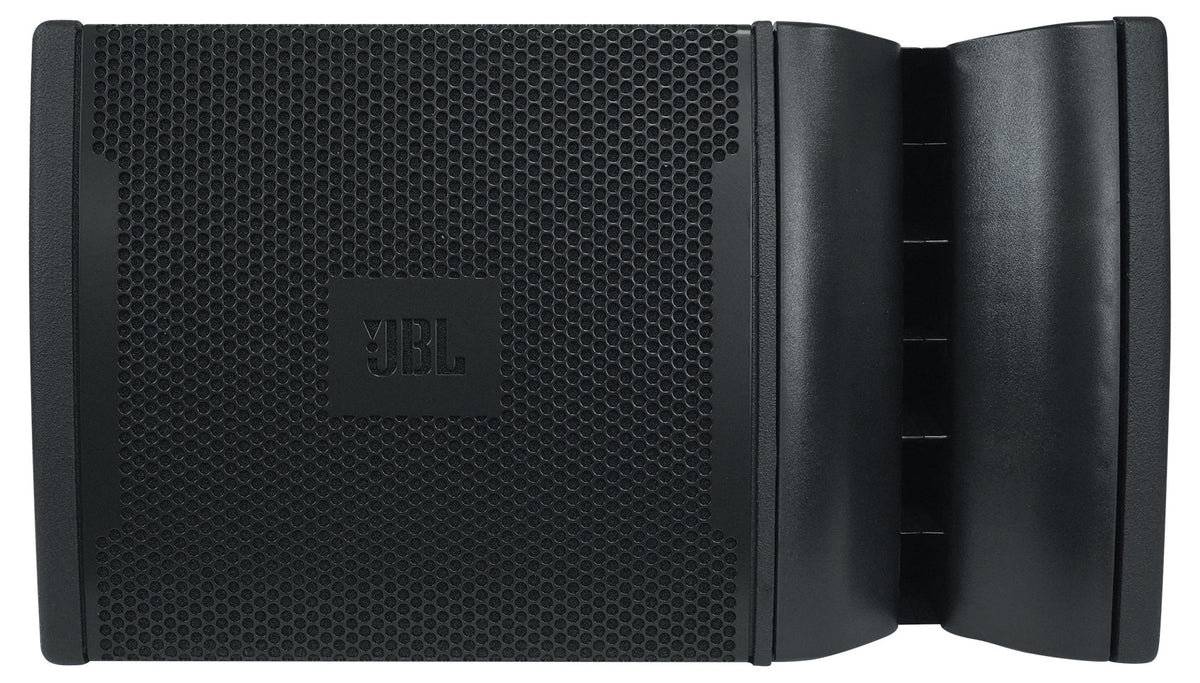

The VRX932LA-1 is a 12-inch two-way line array speaker weighing 46 lb, built for arrays of up to six units in venues that need more output and reach than an 8-inch system provides. Three JBL 2408J compression drivers per enclosure sit on a Constant Curvature waveguide, so as more units join the array the high-frequency sections continue working together as a single, longer driver rather than three separate sources.

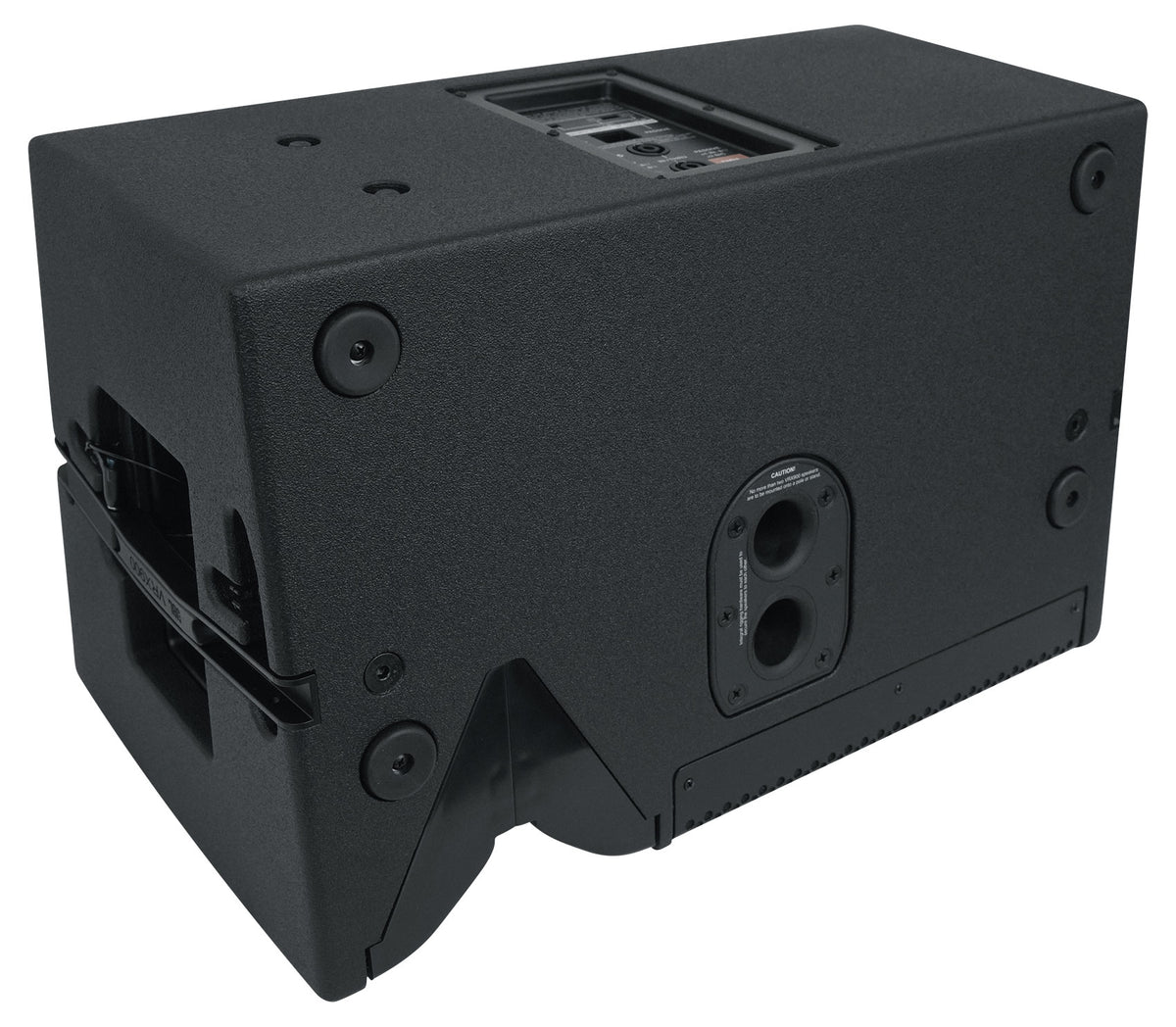

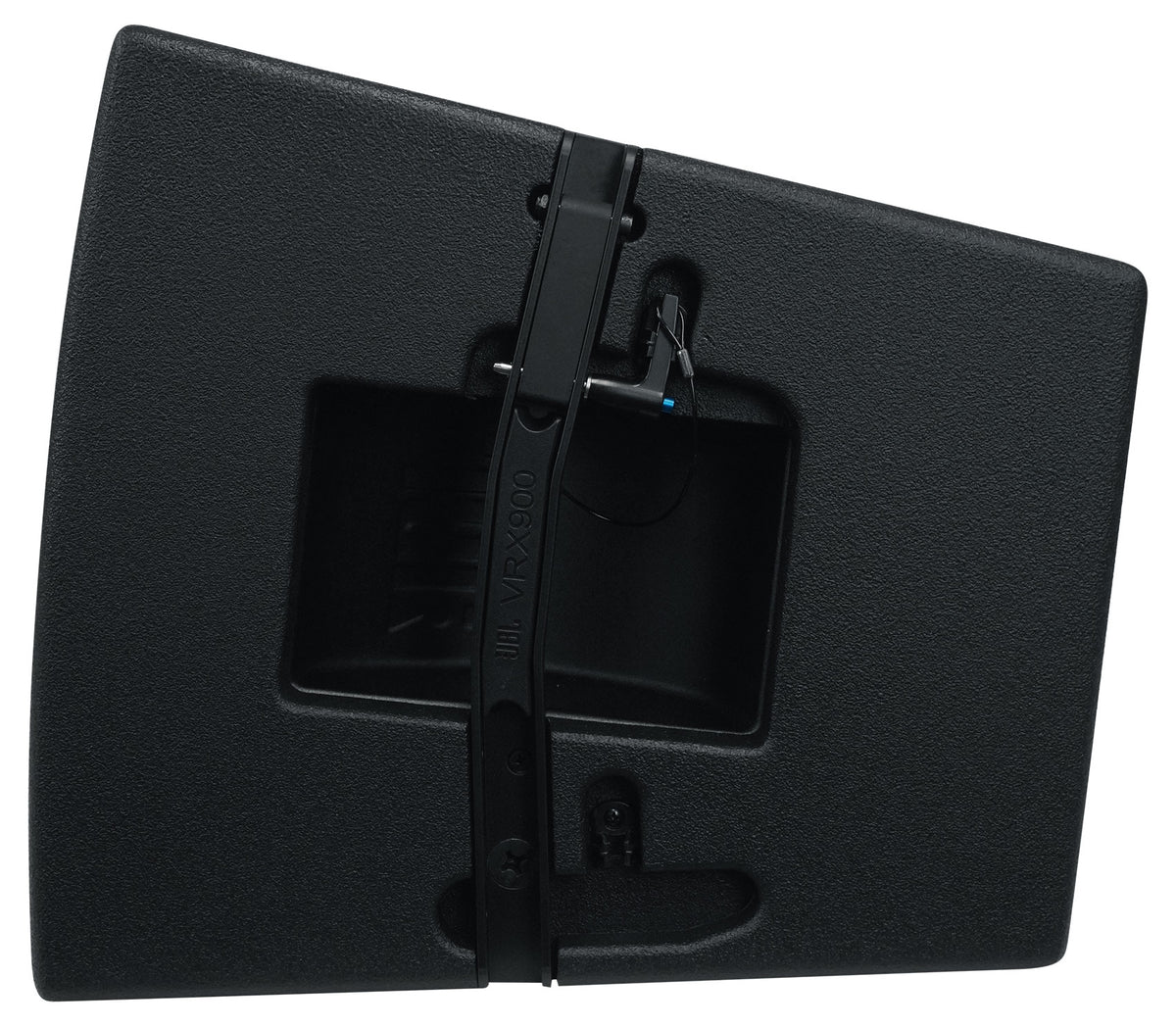

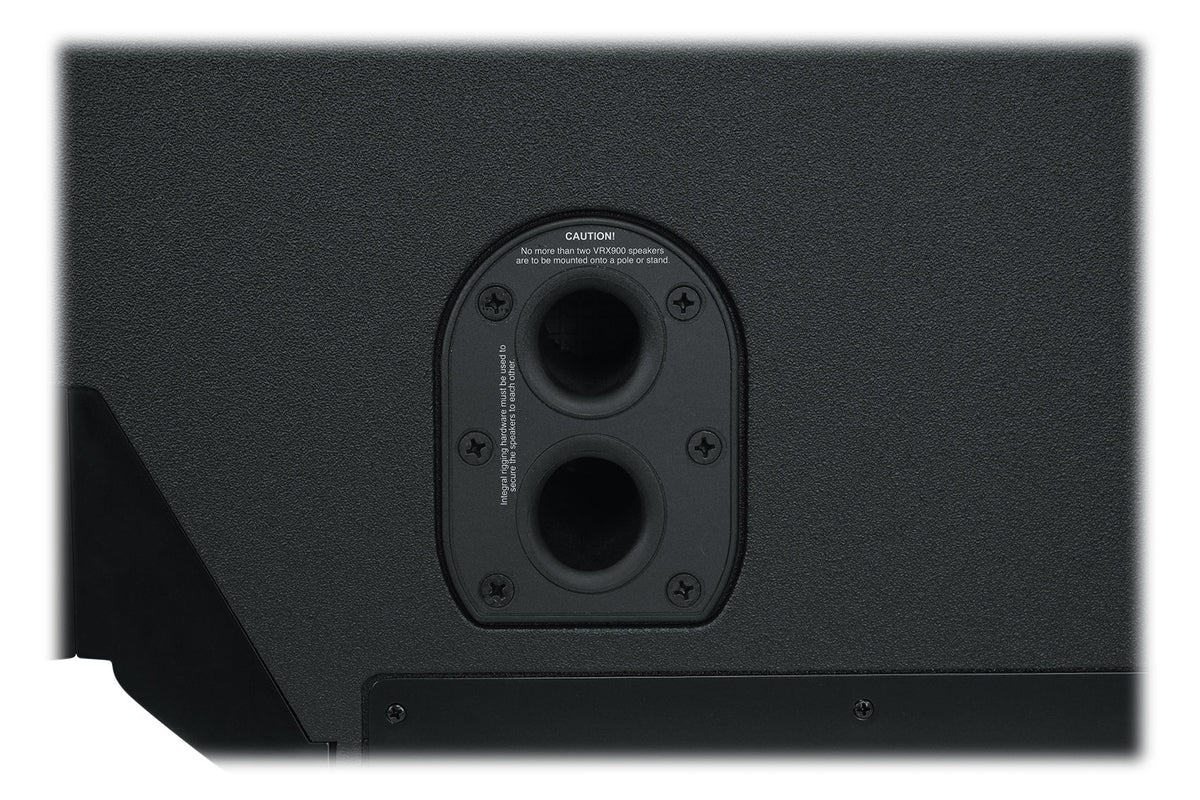

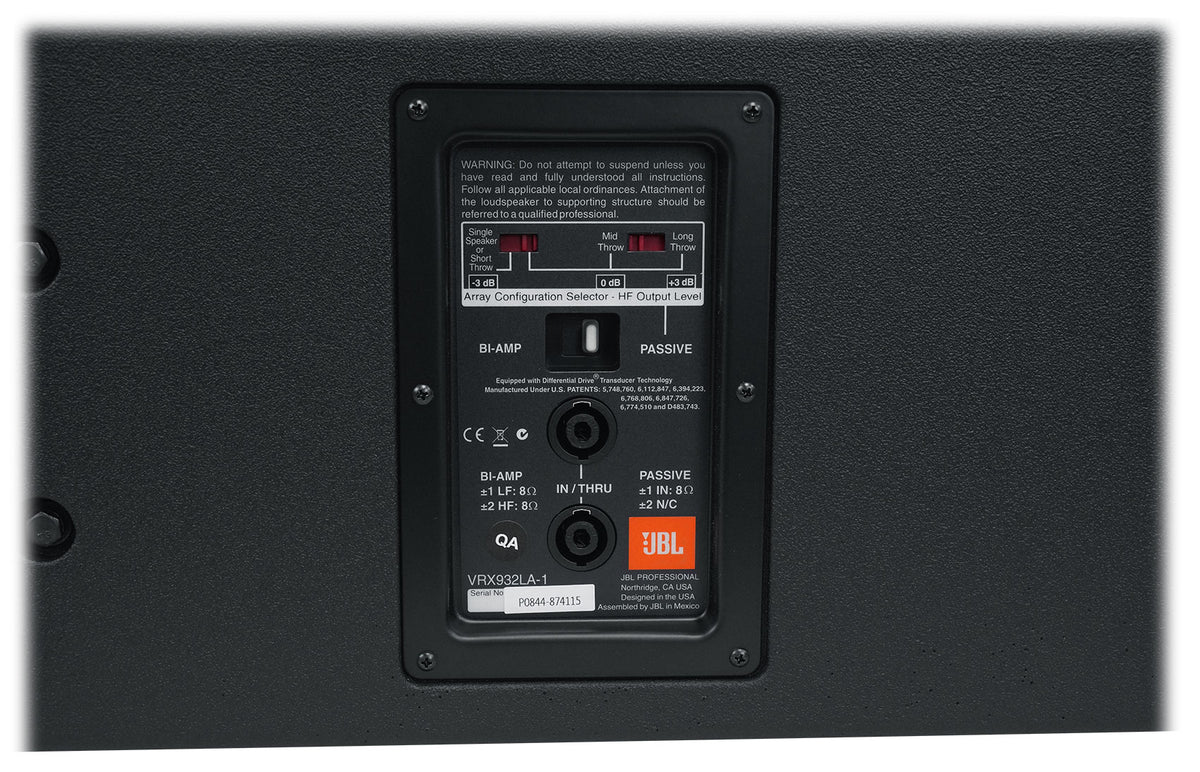

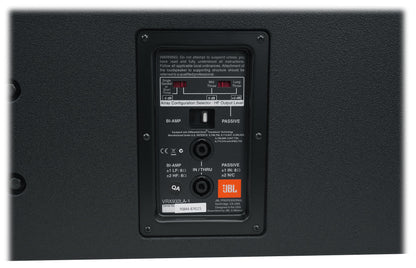

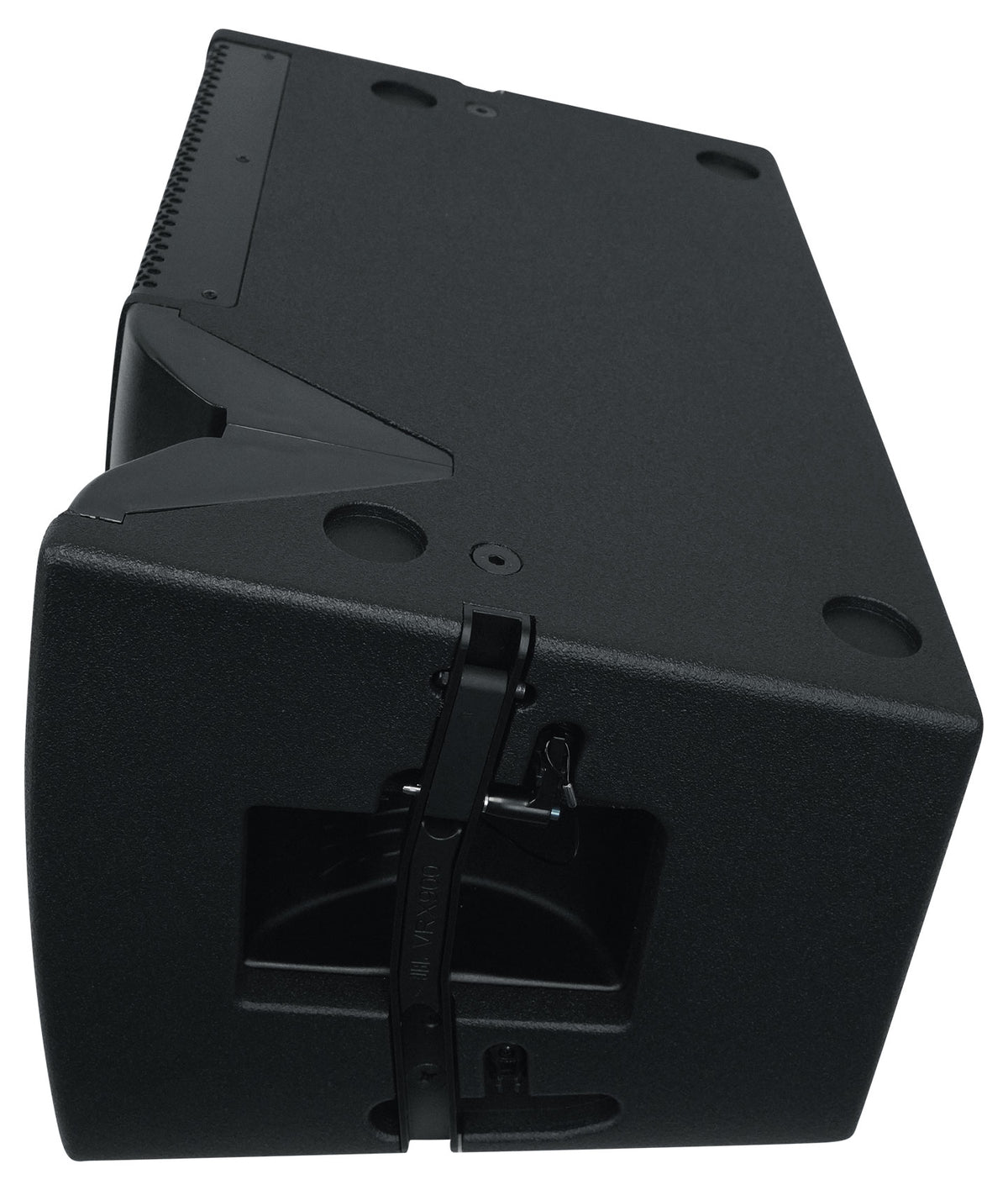

A Differential Drive woofer with dual voice coils and dual magnetic gaps handles low-frequency output while keeping the enclosure at a manageable weight for rigging, and integral hardware connects enclosures directly for a flown array without extra frames beyond the optional VRX932LA-AF kit. A dual angle pole socket also lets one or two units mount on a 35 mm pole or tripod stand, so the same speaker works for a flown line array in one venue and a ground-stacked PA rig in another. Amplitude shading switches balance HF output across units, directing more energy toward the back of a room while easing off closer to the stage.
At 13.5 by 23.5 by 14.8 inches, the enclosure uses 18mm 11-ply birch plywood with a black Duraflex finish, built to handle repeated setup and teardown for touring or rental use.
A Differential Drive woofer with dual voice coils and dual magnetic gaps handles low-frequency output while keeping the enclosure at a manageable weight for rigging, and integral hardware connects enclosures directly for a flown array without extra frames beyond the optional VRX932LA-AF kit. A dual angle pole socket also lets one or two units mount on a 35 mm pole or tripod stand, so the same speaker works for a flown line array in one venue and a ground-stacked PA rig in another. Amplitude shading switches balance HF output across units, directing more energy toward the back of a room while easing off closer to the stage.
At 13.5 by 23.5 by 14.8 inches, the enclosure uses 18mm 11-ply birch plywood with a black Duraflex finish, built to handle repeated setup and teardown for touring or rental use.
Features
Triple HF Driver Array
Three compression drivers per enclosure combine for more high-frequency output and reach than a single driver could produce.
Constant Curvature Array Coherence
Enclosures added to the array continue the same acoustic arc, so up to six units act like one long driver.
Dual-Voice-Coil Woofer
The Differential Drive woofer uses dual voice coils and dual magnetic gaps for stronger low-frequency output at a manageable weight.
Pole Or Flown Mounting
A dual angle pole socket lets the same enclosure ground-stack on a tripod or fly in a rigged array.
Touring-Grade Enclosure
18mm 11-ply birch plywood and a black Duraflex finish stand up to repeated load-in and load-out for rental or touring use.
Technical Specifications
- Product Type 12" Two-Way Passive Line-Array Speaker
- Power Rating 800 W / 1600 W / 3200 W (Continuous / Program / Peak)
- Frequency Range (-10dB) 57 Hz to 20 kHz
- Coverage Pattern 100° x 15° nominal

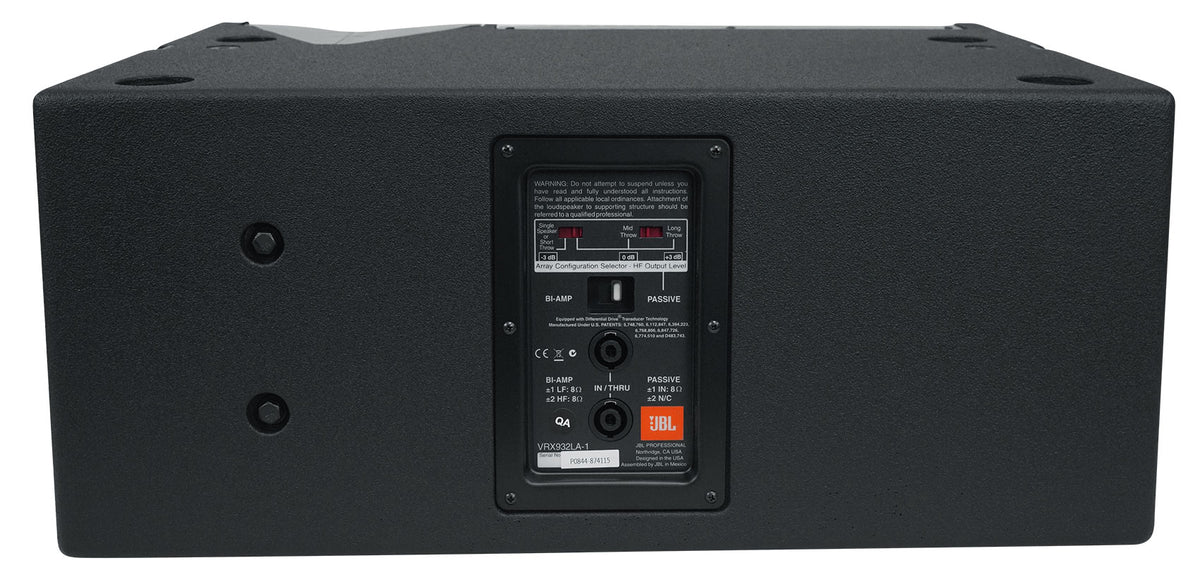

- Crossover Modes Bi-amp / Passive, externally switchable
- Maximum SPL (1m) 130 dB SPL peak (passive mode)
- Sensitivity 95 dB SPL (passive)
- Nominal Impedance 8 ohm (passive)
- LF Driver 1 x JBL 2262H, 305mm (12in) Differential Drive Woofer
- HF Driver 3 x JBL 2408J, 38mm (1.5in) Neodymium Compression Driver
- Enclosure 18mm, 11-Ply Birch Plywood
- Finish Black Duraflex
- Weight 46 lb
- Dimensions 13.5in x 23.5in x 14.8in (H x W x D)
