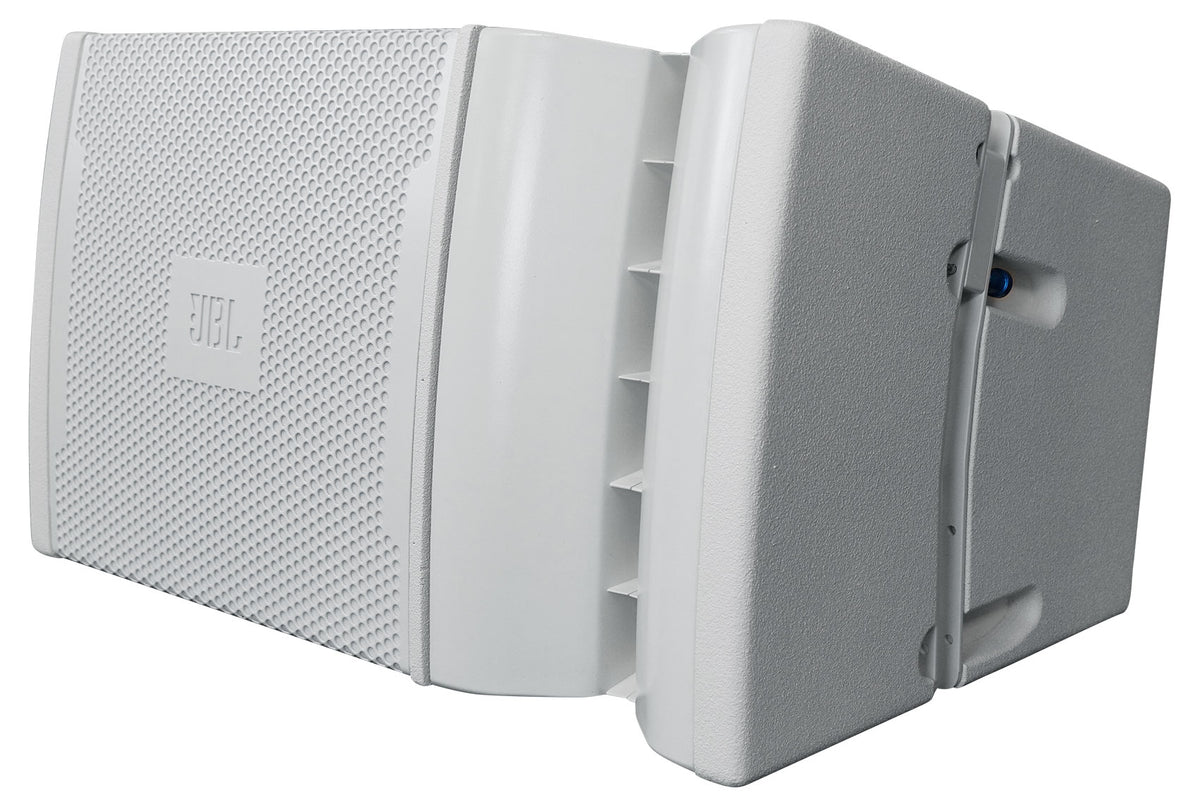

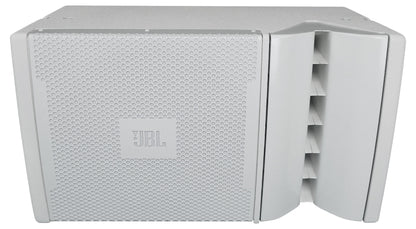

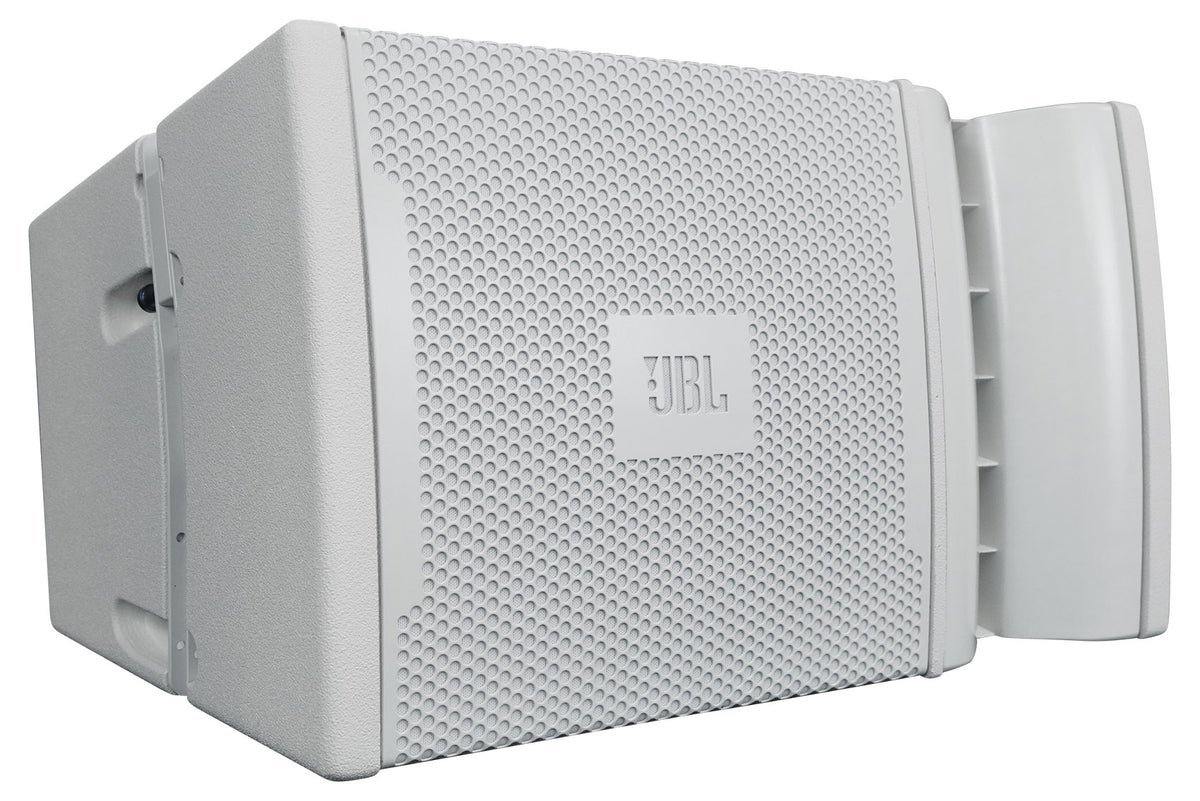

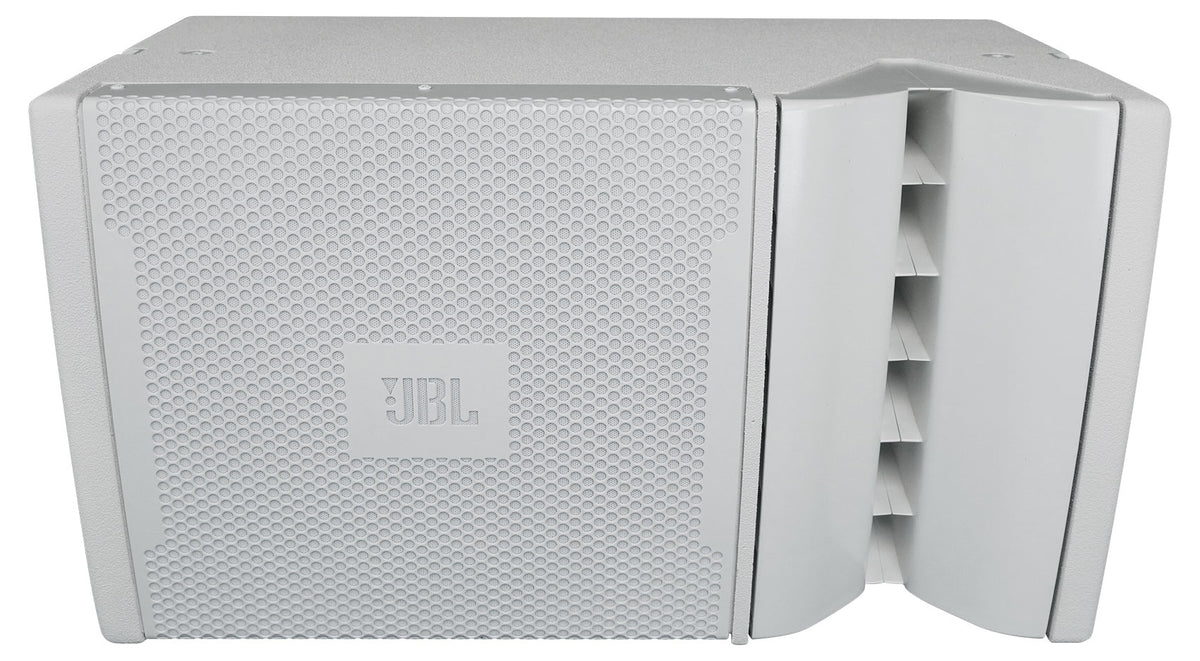

VRX932LA-1WH 12" 800W 2-Way Passive Line-Array Speaker in White
JBL
VRX932LA-1WH 12" 800W 2-Way Passive Line-Array Speaker in White
VRX932LA-1WH 12" 800W 2-Way Passive Line-Array Speaker in White
12" 800W Passive Line-Array Speaker In White, Arrays Up To 6 Units, Permanent Install Ready
Features
- White Duraflex finish suits houses of worship and theaters
- Three compression drivers per enclosure boost HF output
- Constant Curvature waveguide keeps stacked units acting as one driver
- Amplitude shading switches balance coverage to distant balconies
- Compatible with the VRX918S-WH subwoofer for added low end
Couldn't load pickup availability
What's Included in the box
- (1) JBL VRX932LA-1WH 12" 800W 2-Way Passive Line-Array Speaker
SKU: SKU: VRX932LA-1WH*
View full details







Product Description
Three neodymium compression drivers sit on the same Constant Curvature waveguide used across the VRX932 line, so as additional units join the array the HF sections continue working together as one long driver instead of three separate sources. Amplitude shading switches on the input plate let the top of the array reach a distant balcony while the lower HF section pulls back to avoid overwhelming seats near the front, and integral rigging hardware locks up to six enclosures together for a flown installation.
At 13.75 by 23.5 by 15.0 inches, the enclosure uses 18mm 11-ply birch plywood construction with a powder coated white grille and acoustically transparent white cloth backing, matching the white finish rather than compromising it with a black grille.
Features
White Finish For Fixed Installs
The white Duraflex finish and matching white grille suit houses of worship, auditoriums, and theaters that need a lighter enclosure than black.
Triple HF Driver Array
Three neodymium compression drivers per enclosure combine for more high-frequency output and reach than a single driver.
Constant Curvature Array Coherence
Enclosures added to the array continue the same acoustic arc, letting up to six units act as one long driver.
Balcony-Reaching Amplitude Shading

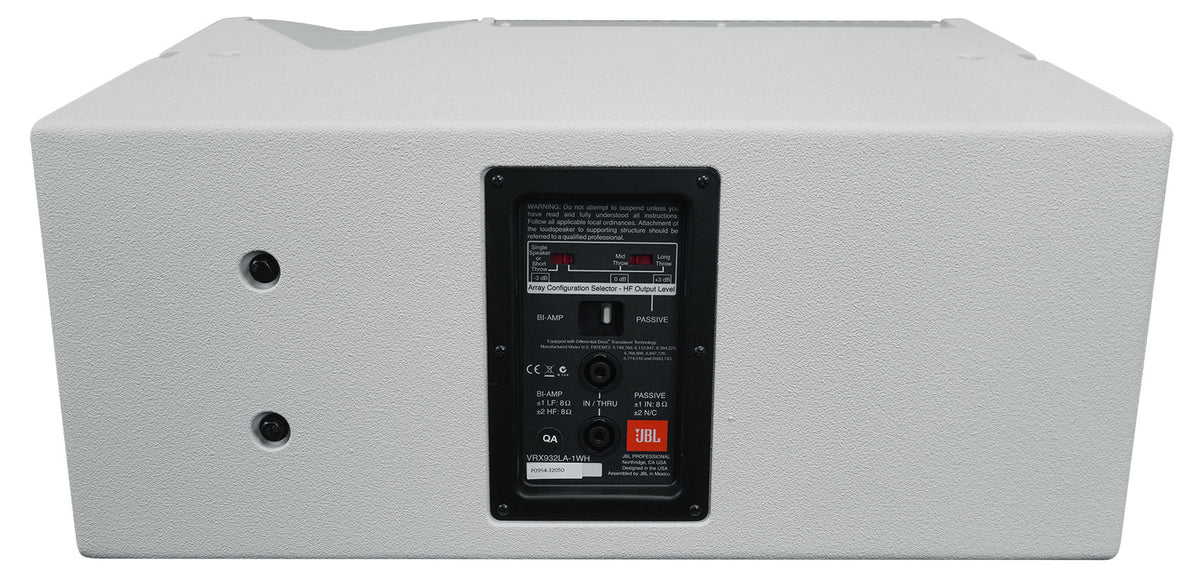

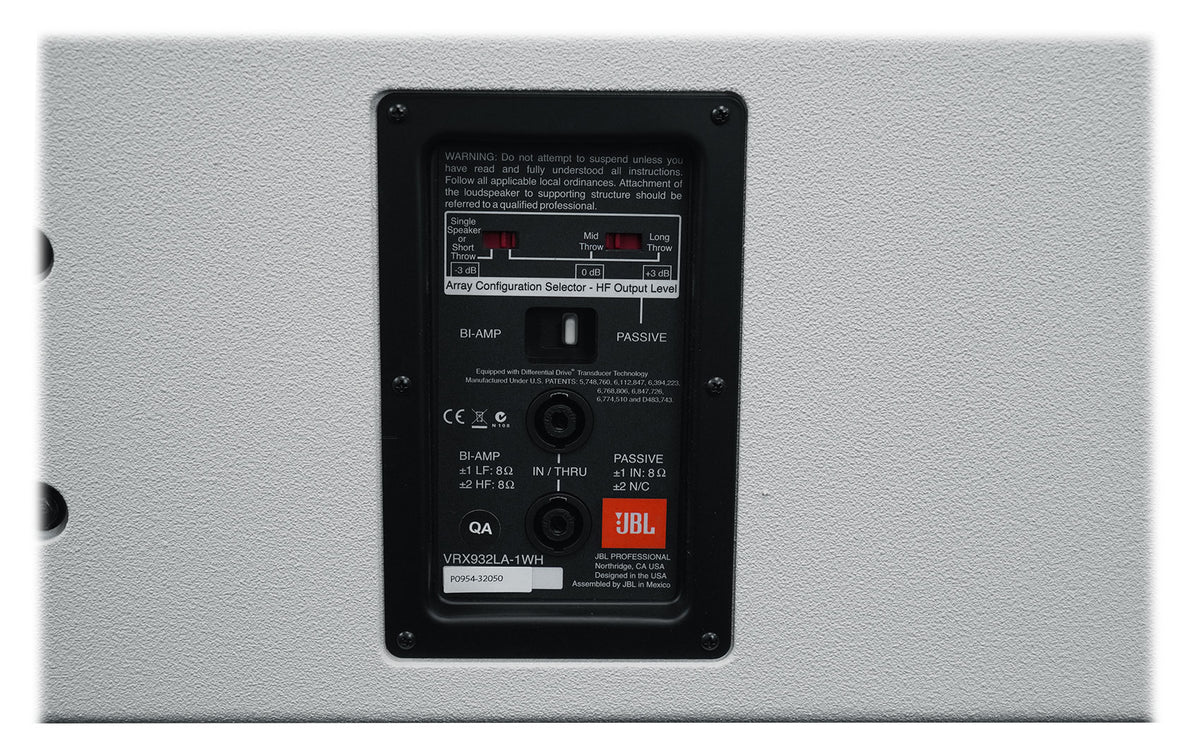

Input plate switches let the top of the array reach a distant balcony while the lower section eases off near the front.
Subwoofer-Ready System
Compatibility with the VRX918S-WH subwoofer lets an installer add low-frequency extension without mismatched finishes.
Technical Specifications
- Product Type 12" Two-Way Passive Line-Array Speaker
- Power Rating 800 W / 1600 W / 3200 W (Continuous / Program / Peak)
- Frequency Range (-10dB) 57 Hz to 20 kHz
- Coverage Pattern 100° x 15° nominal
- Crossover Modes Bi-amp / Passive, externally switchable
- Maximum SPL (1m) 130 dB SPL peak (passive mode)
- Sensitivity 95 dB SPL (passive)
- Nominal Impedance 8 ohm (passive)
- LF Driver 1 x JBL 2262H, 305mm (12in) Differential Drive Woofer
- HF Driver 3 x JBL 2408J, 38mm (1.5in) Neodymium Compression Driver
- Enclosure 18mm, 11-Ply Birch Plywood
- Finish White Duraflex
- Weight 46 lb
- Dimensions 13.75in x 23.5in x 15.0in (H x W x D)
