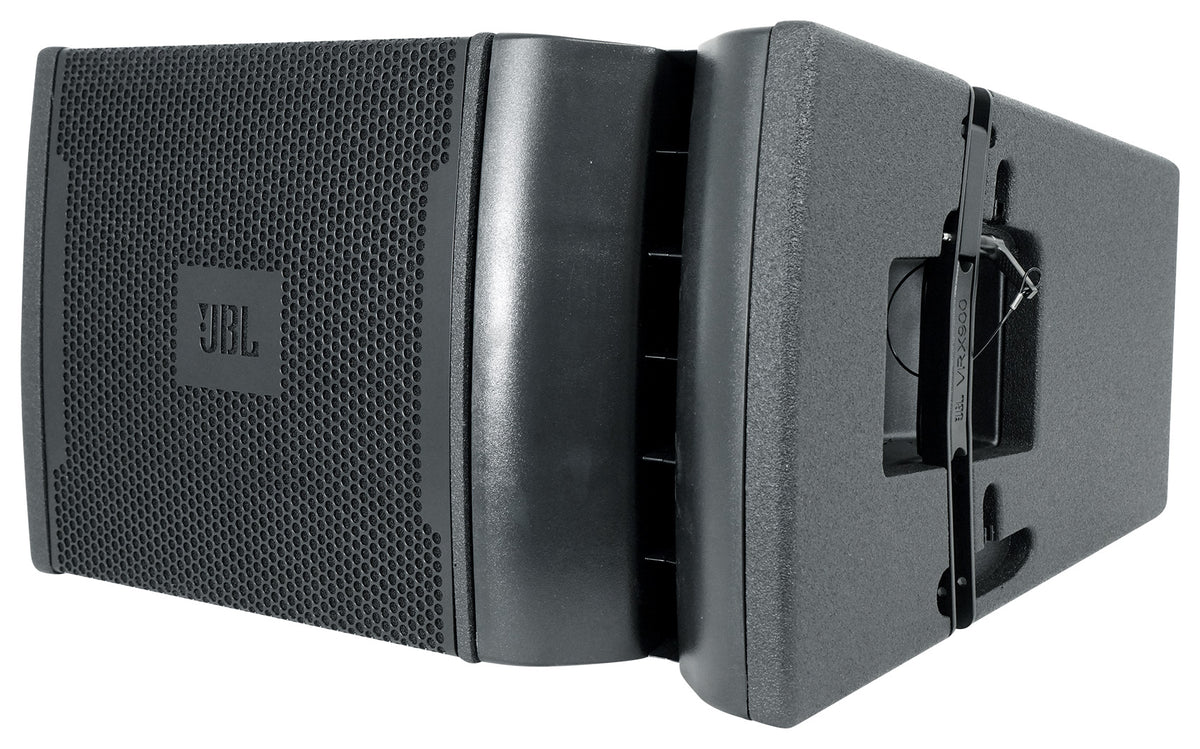

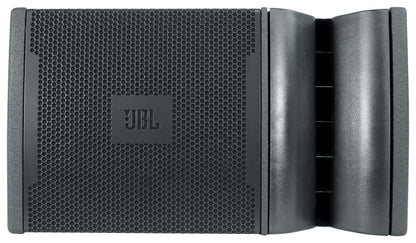

VRX932LAP Powered Active 12" 1750W 2-Way Line Array Speaker With DSP
JBL
VRX932LAP Powered Active 12" 1750W 2-Way Line Array Speaker With DSP
VRX932LAP Powered Active 12" 1750W 2-Way Line Array Speaker With DSP
Powered 12" 1750W Line Array Speaker With Built-In DSP, Arrays Up To 5 Units
Features
- Built-in 1750W Drivepack DPC-2 amplifier skips external amp racks
- DSP-based input module applies EQ and optimization onboard
- Three compression drivers per enclosure for extended HF reach
- Constant Curvature waveguide keeps arrays of up to 5 units coherent
- Input attenuator gives 0 to 16 dB of adjustment at the speaker
Couldn't load pickup availability
What's Included in the box
- (1) JBL VRX932LAP Powered 12" 1750W 2-Way Line Array Speaker
SKU: SKU: VRX932LAP*
View full details







Product Description

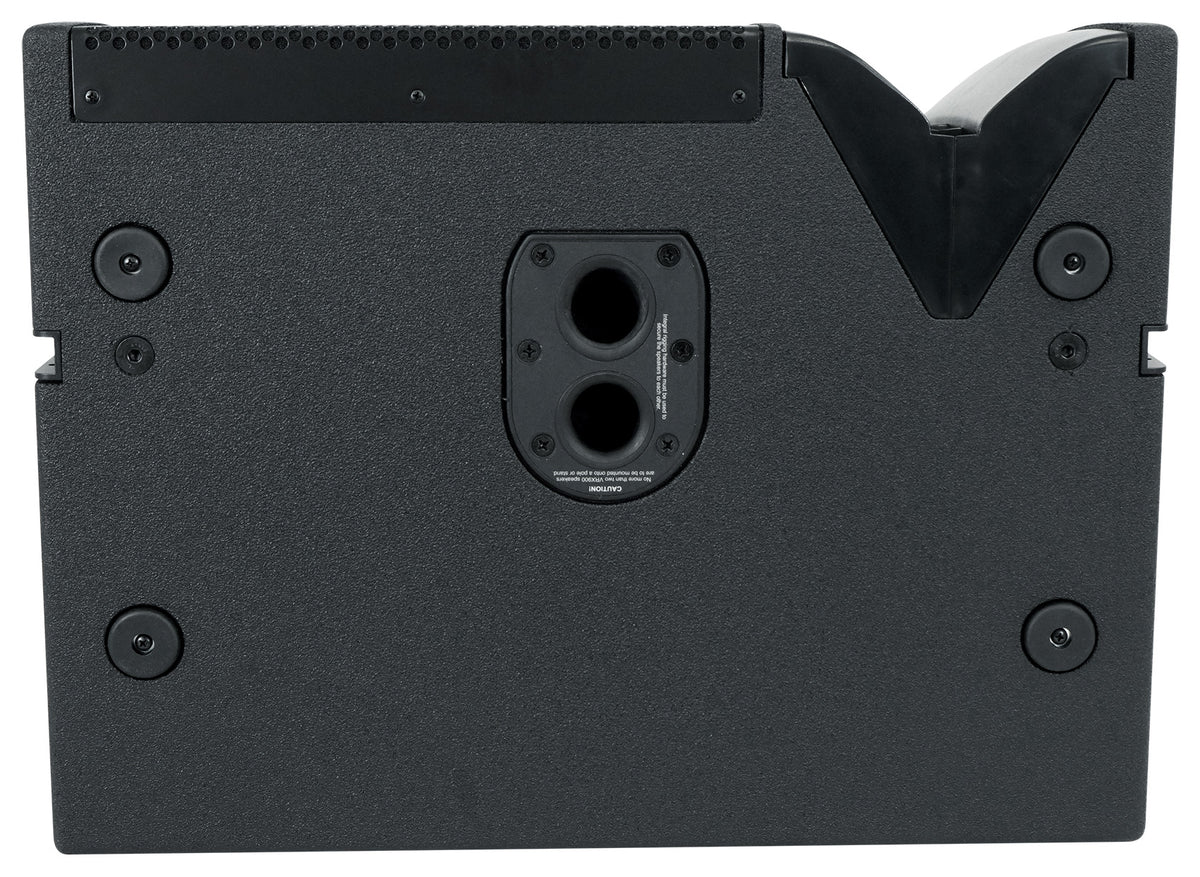

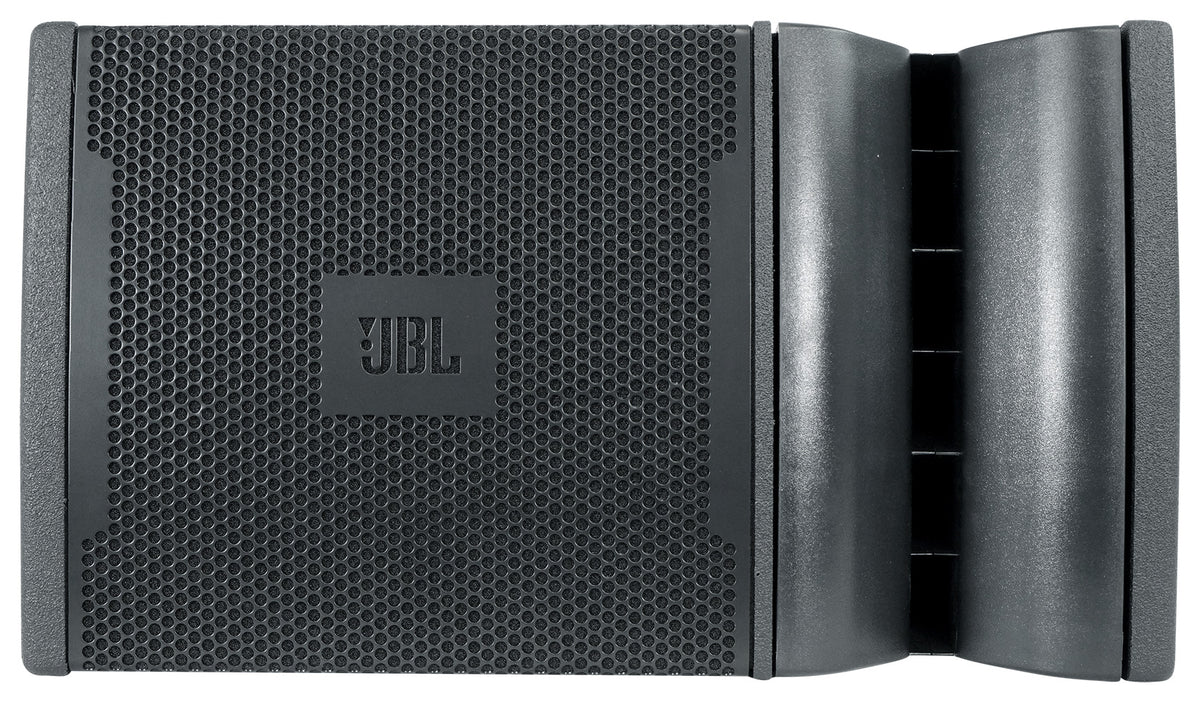

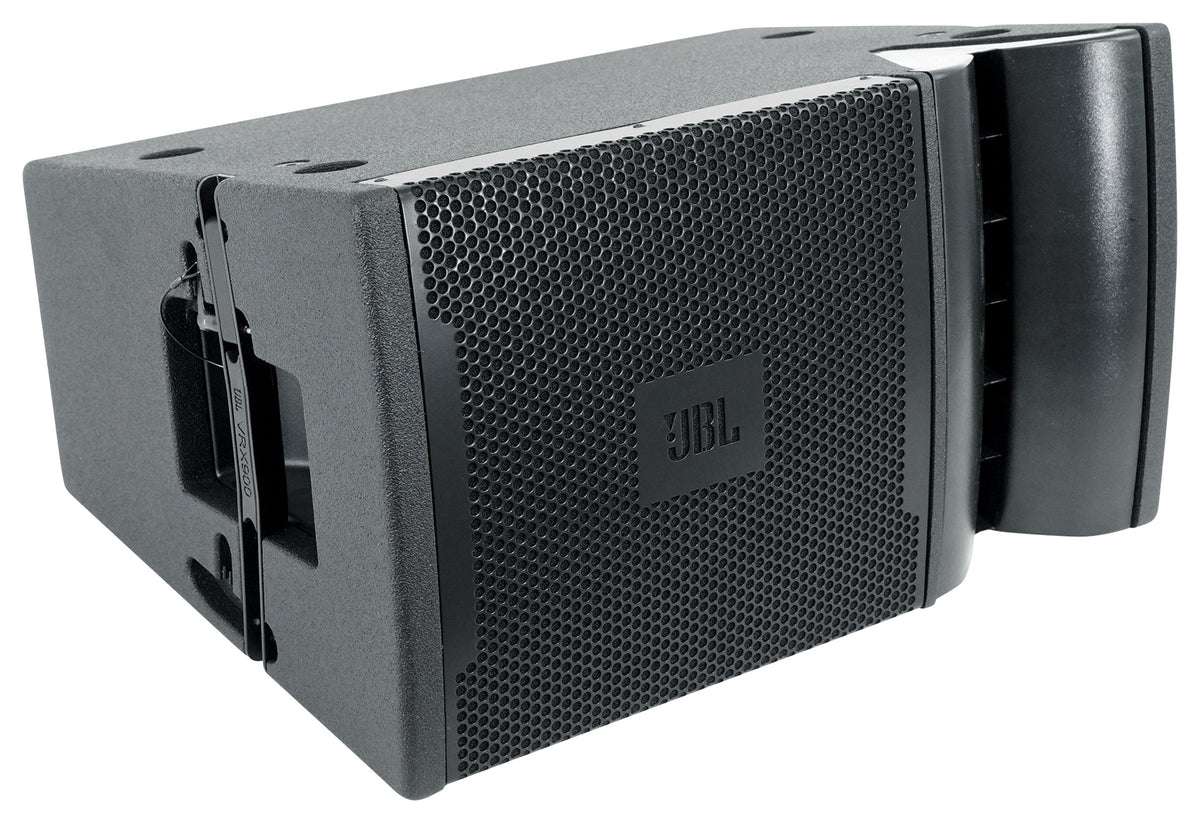

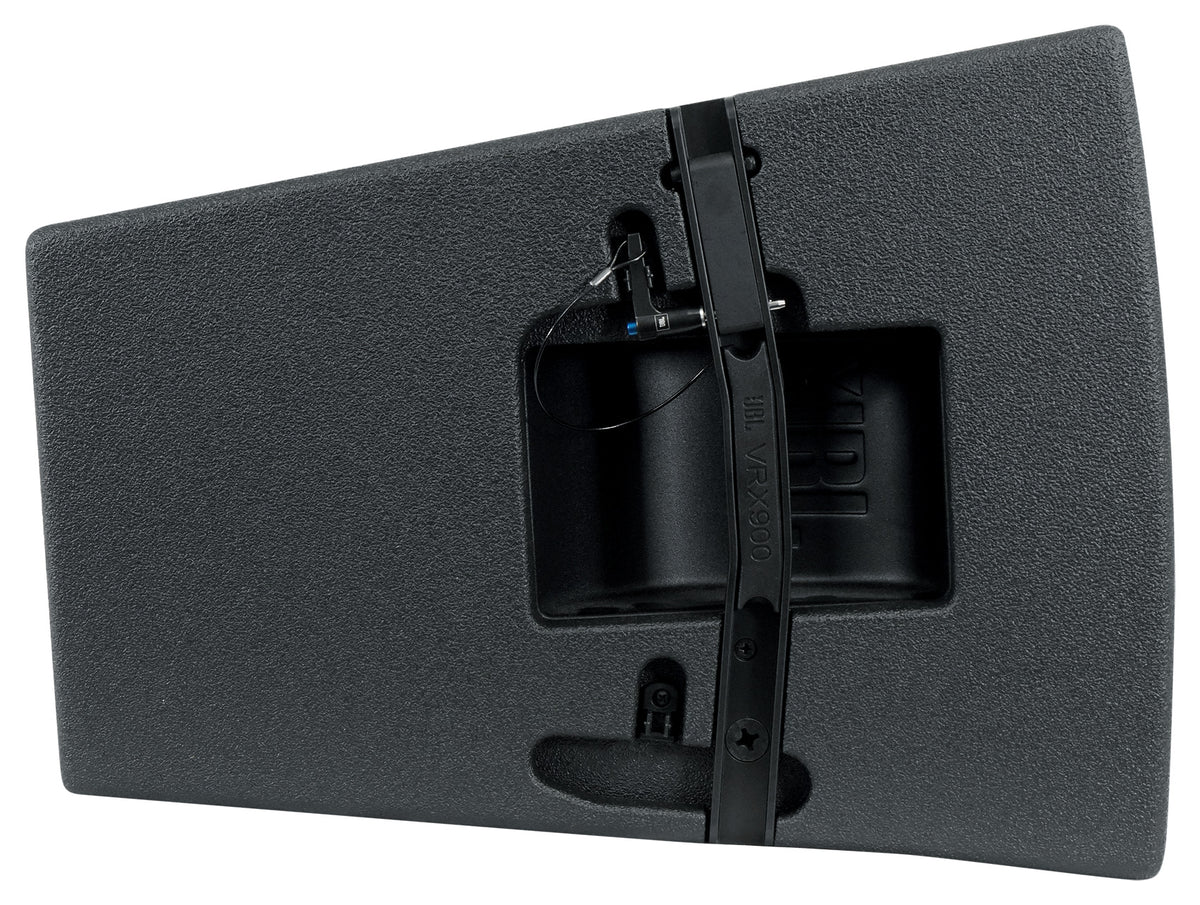

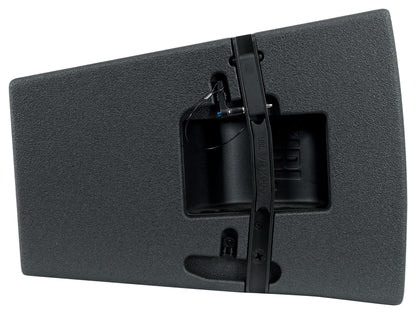

Three JBL 2408J compression drivers sit on the same Constant Curvature waveguide used across the VRX932 line, letting arrays of up to five units work together as one continuous HF source, while a Differential Drive 12-inch woofer handles low end. Integral rigging hardware connects enclosures for a flown array, and a dual angle pole socket adds the option to mount a single unit on a pole or tripod for smaller setups. An input attenuator gives 0 to 16 dB of adjustment at the speaker itself.
At 52 lb and 13.75 by 23.5 by 17.5 inches, the VRX932LAP suits mobile and touring rigs where fast setup matters: run a line-level signal to each enclosure and skip the external amp rack, power distribution, and speaker cable runs a passive array would need.
Features
Built-In Power Amplifier

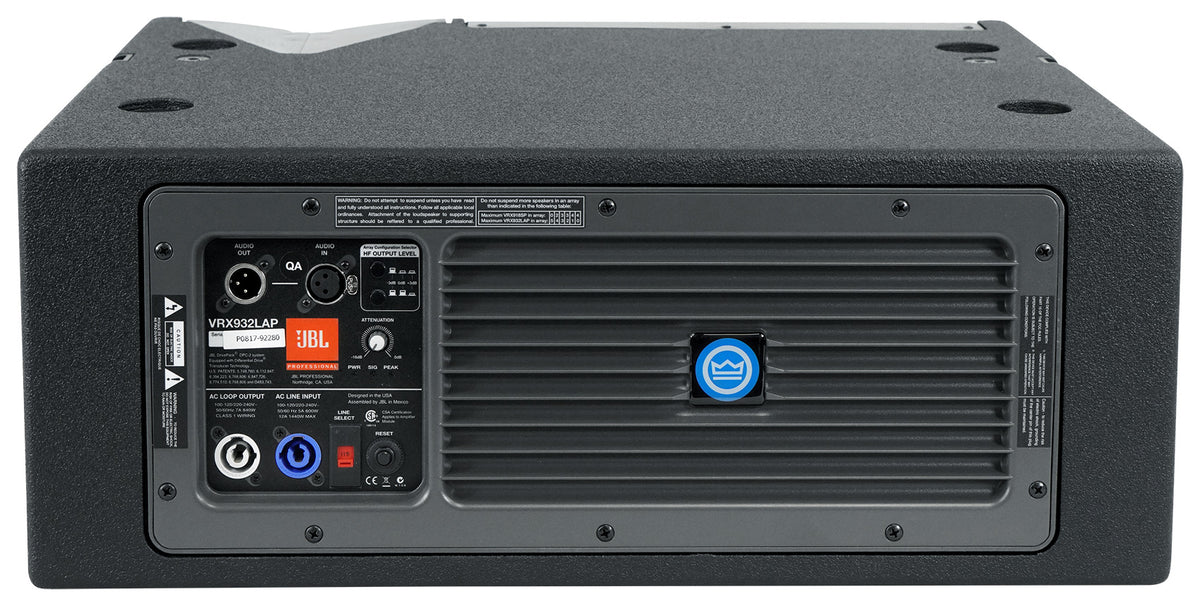

The Drivepack DPC-2 module, designed by Crown, delivers up to 1750W peak so the speaker runs without a separate amp rack.
Onboard DSP Optimization
A DSP-based input module applies EQ and system optimization before the signal reaches the drivers, cutting external processing gear.
Triple HF Driver Array
Three compression drivers per enclosure combine for more high-frequency output and reach across a flown array.
Constant Curvature Array Coherence
Enclosures added to the array continue the same acoustic arc, letting up to five units act as one long driver.
Fast Setup For Touring Rigs
A single line-level input per enclosure and a dual angle pole socket keep setup fast for mobile and touring use.
Technical Specifications
- Product Type Powered 12" Two-Way Line Array Speaker
- Power Rating 1750 W Peak / 875 W Continuous
- Frequency Response (-10dB) 57 Hz to 20 kHz
- Coverage Pattern 100° x 15° nominal
- Maximum SPL (1m) 136 dB SPL
- LF Driver 1 x JBL 2262FF, 305mm (12in) Neodymium Woofer
- HF Driver 3 x JBL 2408J, 38mm (1.5in) Compression Driver
- Amplifier Section Built-In JBL Drivepack DPC-2, Class D
- Signal Processing DSP-Based, Resident In Input Module
- User Controls Input Attenuator (0-16 dB)
- Enclosure 25/15mm, 11-Ply Birch Plywood
- Finish Black Duraflex
- Weight 52 lb
- Dimensions 13.75in x 23.5in x 17.5in (H x W x D)
