Kicker 51RGBWDB RGB/RGBW Marine Distribution Block for MSRGBW LED Wire RGBWDB

The RGBWDB is a centralized termination hub for RGB and RGBW lighting runs in a boat or a vehicle. Instead of a bundle of crimps and heat shrink buried behind a panel, every lighting circuit lands on one organized block that you can actually service later.

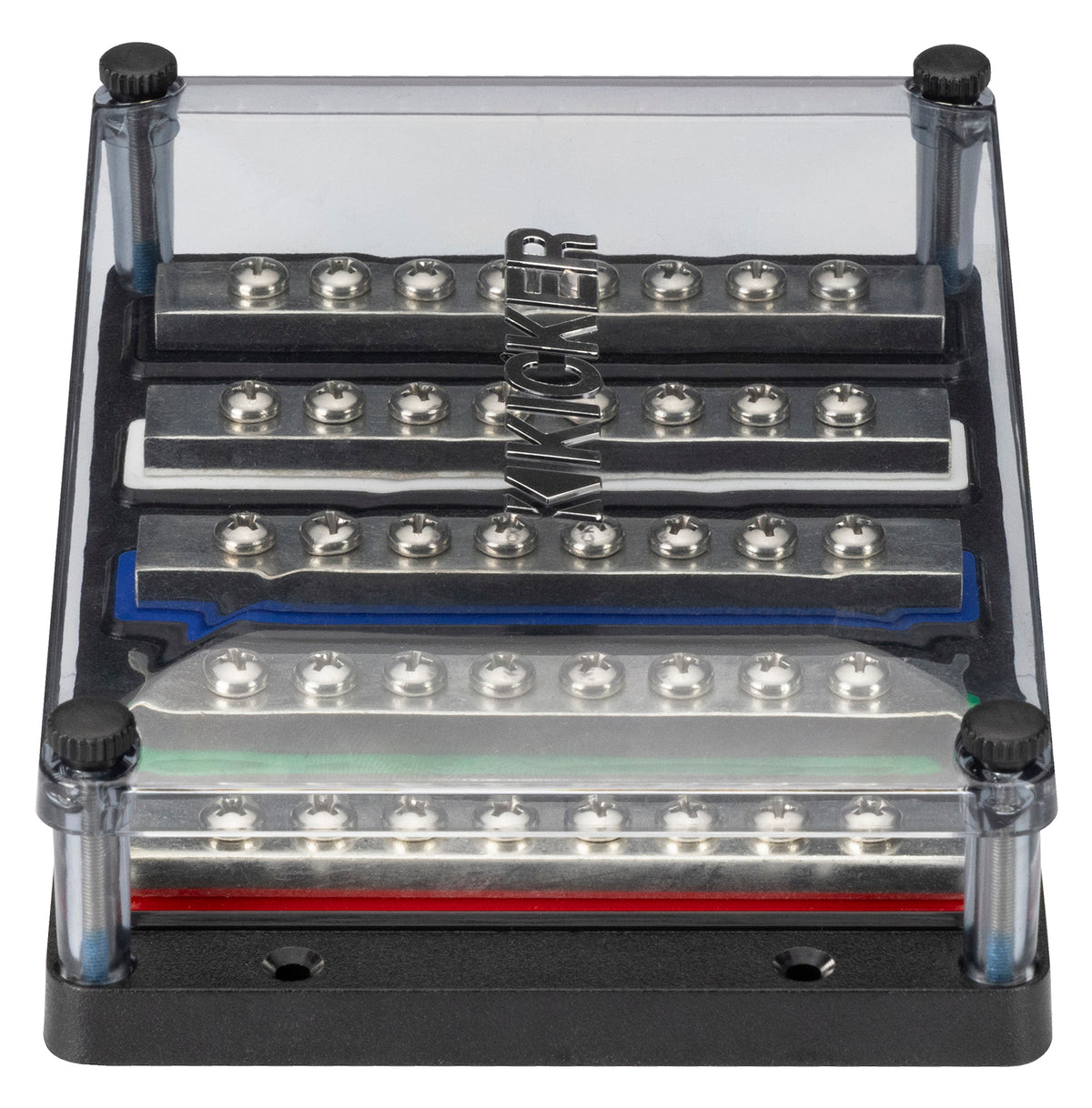

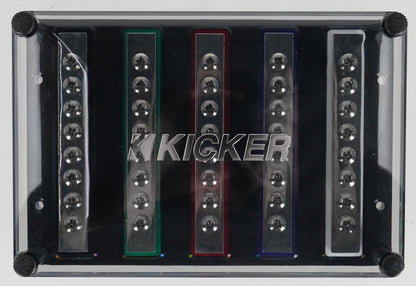

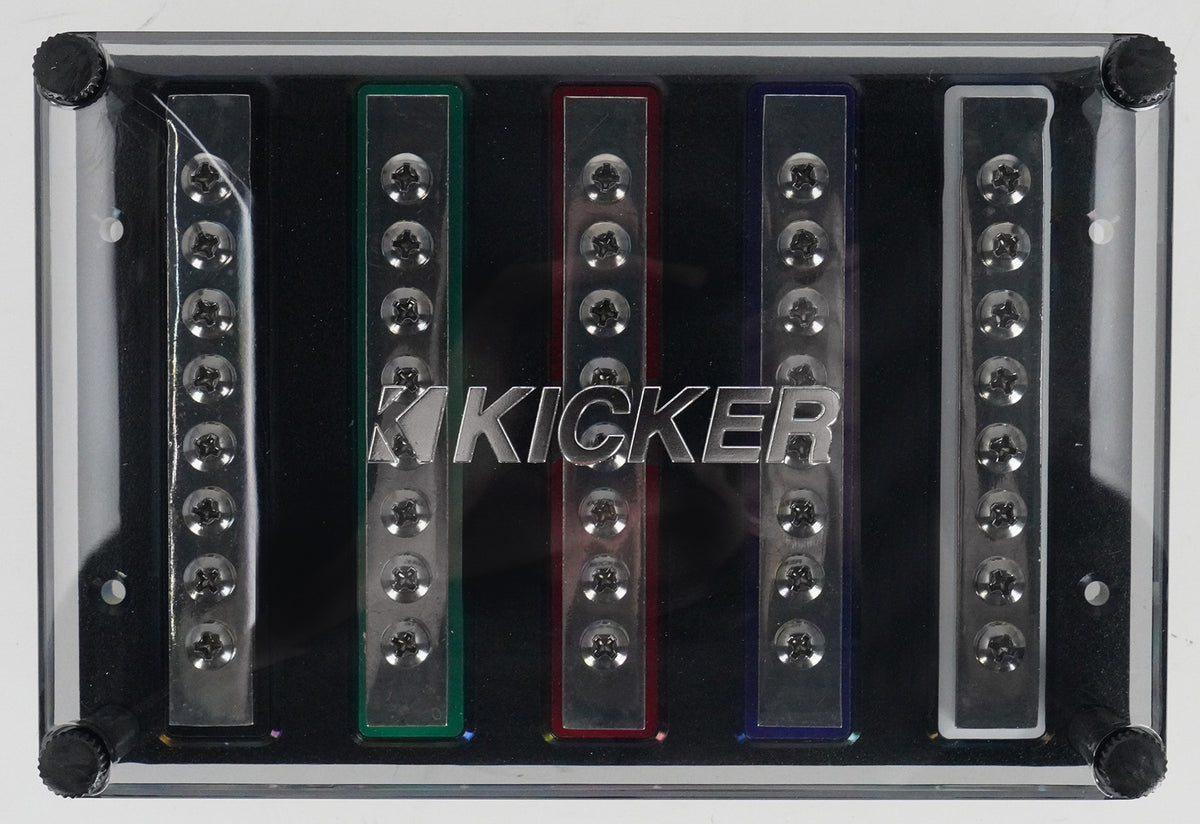

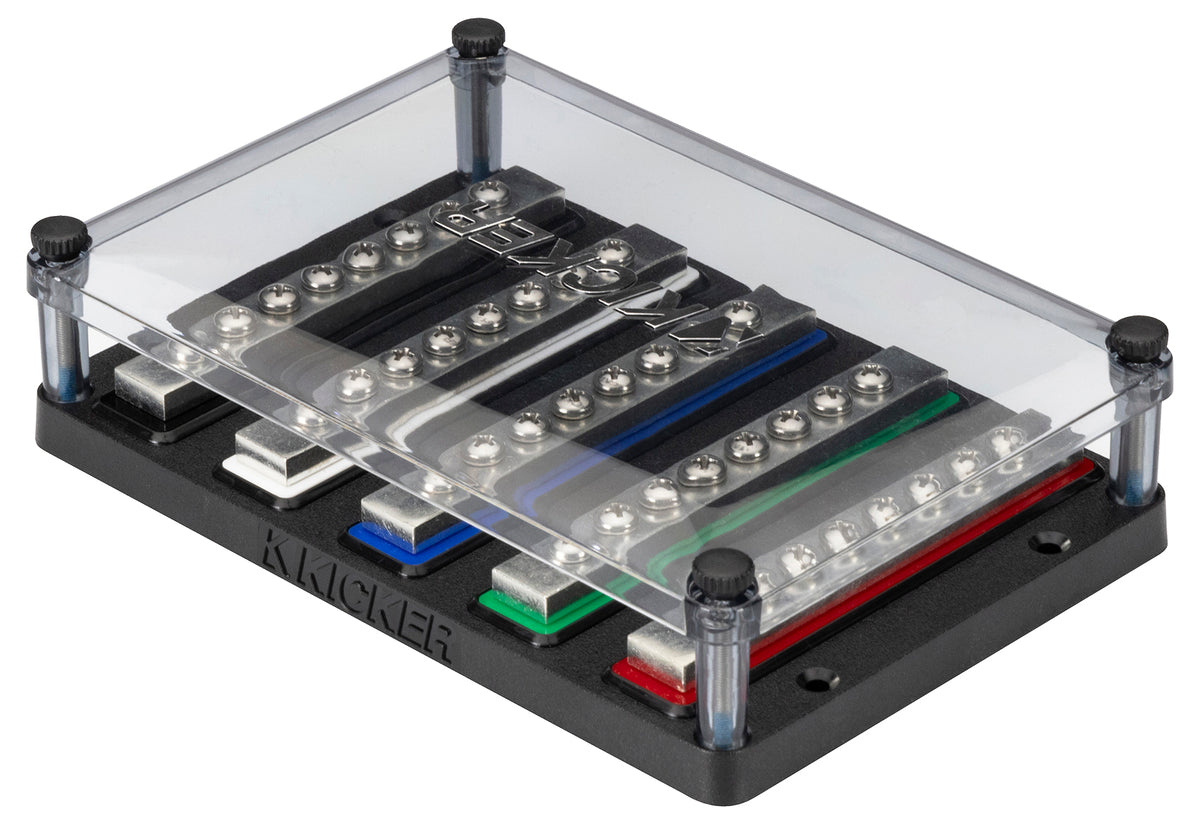

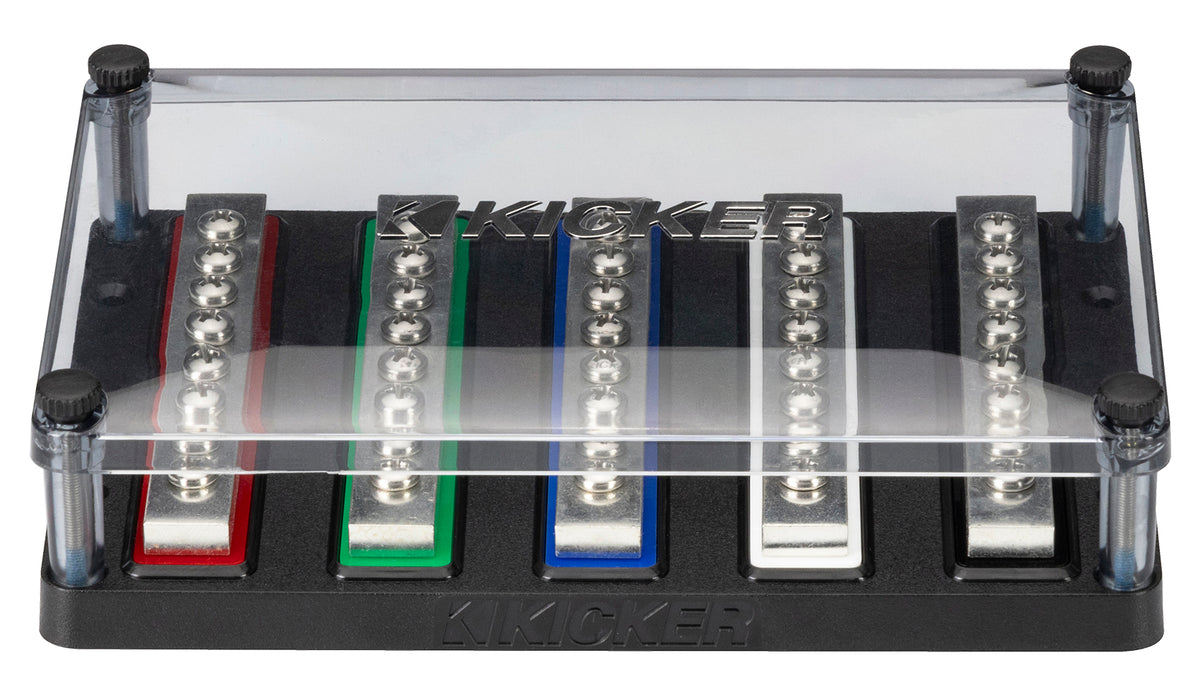

Five tinned brass bus bars sit on a color-coordinated base, each with eight termination points, for 40 total connections. Tinned brass resists corrosion in a marine environment, and the color coding means a repair two seasons from now does not start with tracing wires. A clear acrylic cover protects the bars from accidental shorts caused by dropped tools, loose hardware, or shifting cargo while still letting you see the connections.

There is an audio benefit too. Terminating lighting runs at a single point helps keep light-controller noise from radiating into nearby speaker and signal wiring, which is a common cause of buzz in systems that mix LED lighting with audio gear.

The block is designed for KICKER MSRGBW LED wire and fits naturally into installs running KICKER M-Class premium marine audio, though it works anywhere RGB or RGBW circuits need clean distribution. At 1.5 inches tall, 4.5 inches wide, and 6.8 inches long, it mounts inside a console, under a helm, or behind a trim panel in a car or truck.
