Mackie Big Knob Studio 3x2 Studio Monitor Controller 96kHz USB I/O
MACKIE
Mackie Big Knob Studio 3x2 Studio Monitor Controller 96kHz USB I/O
Mackie Big Knob Studio 3x2 Studio Monitor Controller 96kHz USB I/O
3x2 Studio Monitor Controller And 96 kHz USB Interface, 2 Onyx Preamps, Talkback, Dual Headphone Outs
Free Shipping
Features
- Switch between 3 sources and 2 pairs of studio monitors
- Two Onyx mic preamps with phantom power for condenser mics
- 96 kHz 24-bit USB recording and playback over 2x2 I/O
- Built-in talkback mic and dual headphone outs with independent level
- Independent trim on all sources and monitor outputs
Couldn't load pickup availability

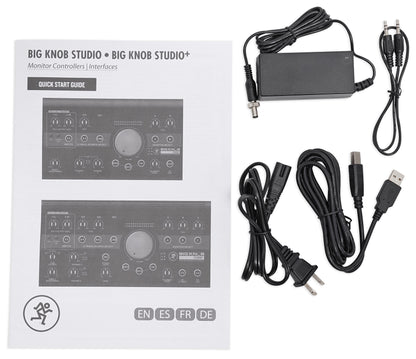

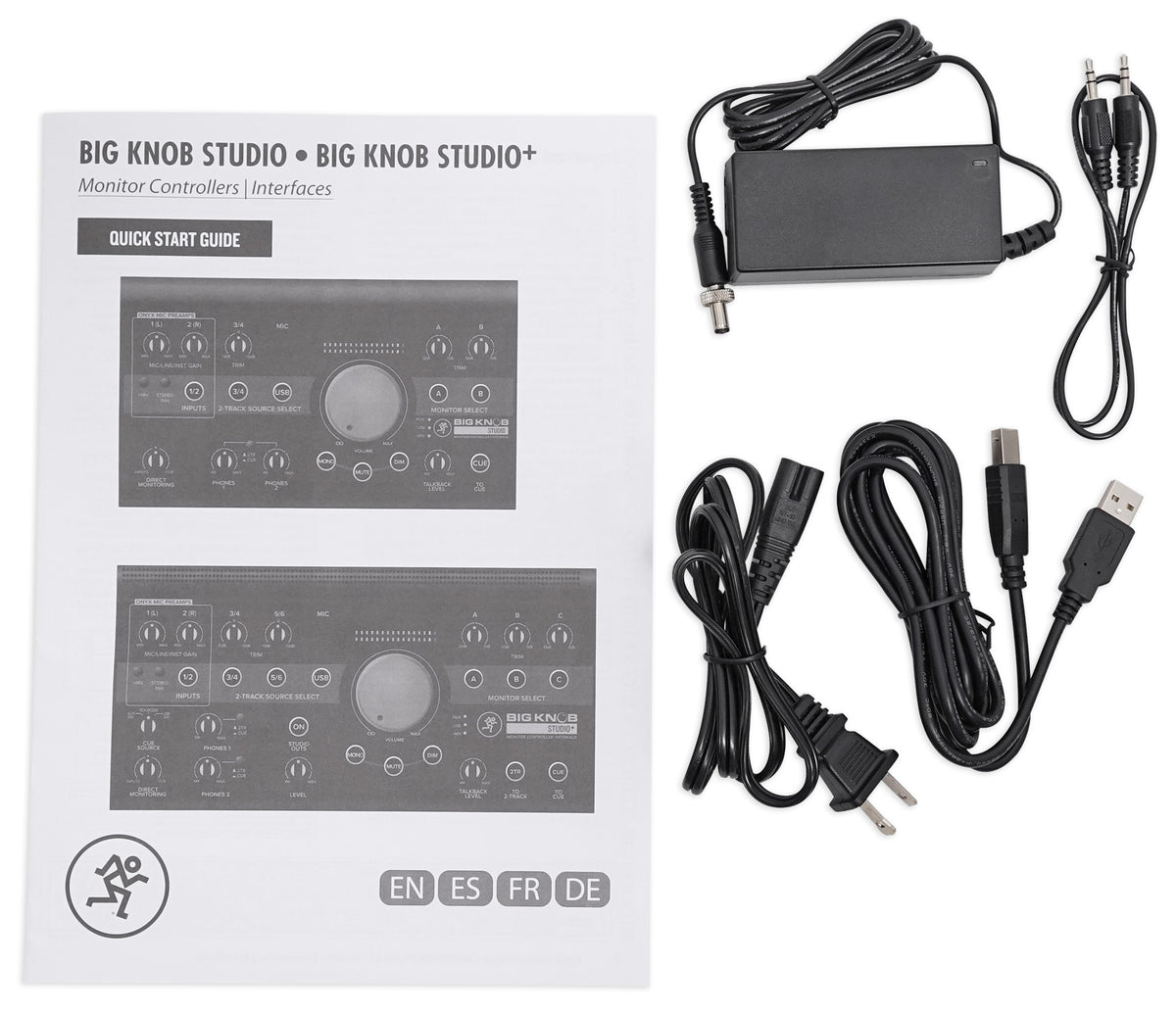

What's Included in the box
- Mackie Big Knob Studio 3x2 Monitor Controller
- Recording Software (Download)
- 23 Included Audio Plugins (Download)
SKU: SKU: Big Knob Studio
View full details





Product Description
Two Onyx mic preamps deliver a 60 dB gain range with phantom power for condensers, feeding 24-bit recording and playback at up to 96 kHz. A cue mix blends direct inputs with playback for zero-latency tracking, and selectable recording paths make podcast routing straightforward when you need to capture a call or a co-host separately.
A built-in talkback mic lets you speak to a performer in the live room without unplugging anything, and dual headphone outputs with independent level control keep an engineer and a talent on separate volumes. Source connections include a 1/8-inch input for a phone, and 16-segment metering shows input level precisely.
Mono, mute and dim handle mix checks. The Built-Like-A-Tank chassis works with all major DAWs on Mac and Windows, and recording software plus 23 audio plugins are included.
Features
-
Honest A/B Comparisons
Independent trim on every source and monitor output lets you level-match two monitor pairs, so you judge tone rather than whichever set is louder.
-
Record Without A Second Box
A 2x2 USB interface with two Onyx preamps captures 24-bit audio at up to 96 kHz, replacing a separate interface on a project studio desk.
-
Track With Zero Latency
The cue mix blends direct inputs with playback in the analog domain, so performers hear themselves with no round-trip delay from the computer.
-
Talk To The Live Room
A built-in talkback mic and dual headphone outs with separate level control keep engineer and talent on their own volumes during a session.
-
Podcast-Ready Routing
Selectable recording paths and a 1/8-inch source input make it simple to bring in a phone call or co-host and capture it cleanly.
Technical Specifications
- Product Type Studio Monitor Controller With USB Interface
- Configuration 3x2
- Sources 3
- Monitor Outputs 2 Pairs
- Mic Preamps 2 Onyx With Phantom Power
- Gain Range 60 dB
- USB Interface 2x2
- Resolution 24-Bit / 96 kHz
- Headphone Outputs 2 With Independent Level
- Talkback Built-In Mic
- Metering 16-Segment
- Controls Volume, Mono, Mute, Dim, Trim
- Compatibility Mac And Windows, All Major DAWs
- Included Software Recording Software Plus 23 Audio Plugins
