Big Knob Studio+ Bundle with RCM03 Mic and DMS40 Boom Arm
MACKIE
Big Knob Studio+ Bundle with RCM03 Mic and DMS40 Boom Arm
Big Knob Studio+ Bundle with RCM03 Mic and DMS40 Boom Arm
4x3 Controller, 2x4 USB Interface, Condenser Mic, Desk Clamp, Shockmount, 10-Foot Cables
Free Shipping
Features
- Switch among 4 audio sources and 3 monitor pairs
- Record and play back at up to 192 kHz/24-bit
- Two mic preamps provide a 60 dB gain range
- Cardioid condenser mic includes a shock mount and anti-wind cap
- 40-inch boom arm clamps to desks under 2 inches thick
Couldn't load pickup availability

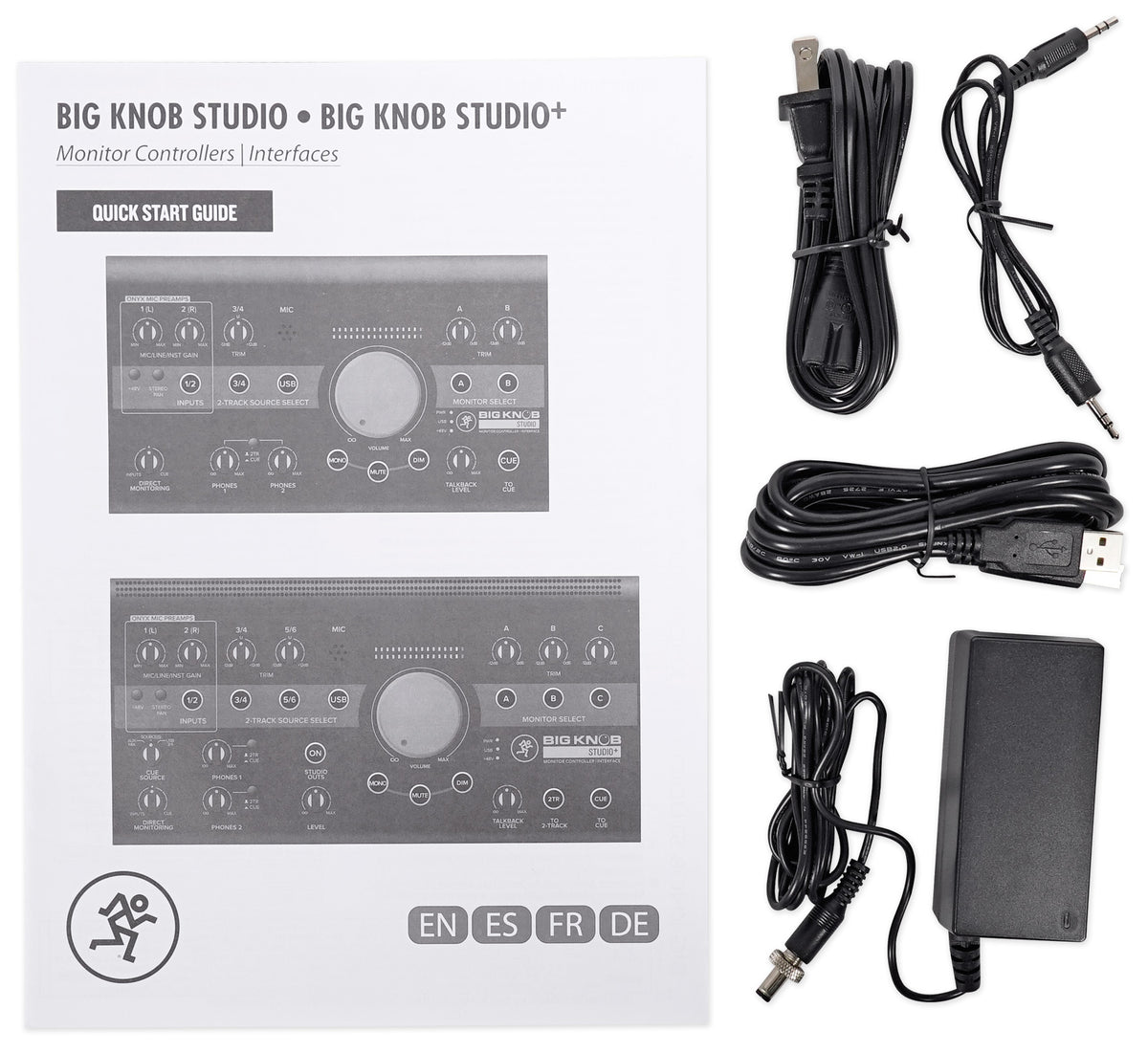

What's Included in the box
- Big Knob Studio+ 4 x 3 monitor controller with 2 x 4 USB interface
- RCM03 cardioid condenser microphone
- DMS40 40-inch microphone boom arm and desk clamp
- ABS plastic microphone clip
- Metal shock mount
- Metal anti-wind foam cap
- 10-foot 3.5 mm-to-XLR cable
- 10-foot XLR-to-XLR cable
- Recording software
SKU: SKU: Big Knob Studio++RCM03+DMS40
View full details










Product Description
The included cardioid condenser microphone covers 30 Hz to 20 kHz and comes with a metal shock mount, metal anti-wind cap, and two 10-foot cables: 3.5 mm-to-XLR and XLR-to-XLR. The 40-inch boom arm positions the mic over the desk, with a clamp made for surfaces under 2 inches thick and a mic clip for secure placement. Use the bundle for voice tracks, podcasts, or music recordings, with recording software included. The controller works with major DAWs, so the same workstation can handle recording, playback, and monitor switching.
Features
Quick Source Switching
Choose among four sources and three monitor pairs to switch listening paths at the desk, keeping playback references and speaker sets within easy reach.
At-The-Desk Controls
The large volume control, mono, mute, and dim functions make quick level changes straightforward while you compare audio on monitors or headphones.
Flexible Recording Paths
The 2 x 4 interface records and plays back at up to 192 kHz/24-bit, giving studio projects detailed capture and flexible routing through a DAW.
Cue Mix Monitoring
Cue mix blends direct input with playback for zero-latency monitoring, so vocalists can hear their live mic signal alongside the track during takes.
Controlled Mic Placement
A 40-inch boom arm, desk clamp for surfaces under 2 inches, and mic clip keep the microphone positioned near the speaker during recording sessions.
Technical Specifications
- Product Type Studio recording and monitoring bundle
- Monitor Controller: Source Selection 4 sources and 3 monitor pairs
- Monitor Controller: Controls Large volume control, independent source and monitor-output trim, mono, mute, dim
- USB Interface: I/O 2 x 4
- USB Interface: Recording and Playback Resolution Up to 192 kHz / 24-bit
- Microphone Preamps 2, with phantom power
- Microphone Preamp Gain Range 60 dB
- Cue Mix Direct input blending with other signals for zero-latency recording
- Headphone Outputs 2, independent level control
- Talkback External mic input and footswitch control
- Studio Output Dedicated amp-driven output
- Source Input 1/8 in
- Input Source Meter 16-segment

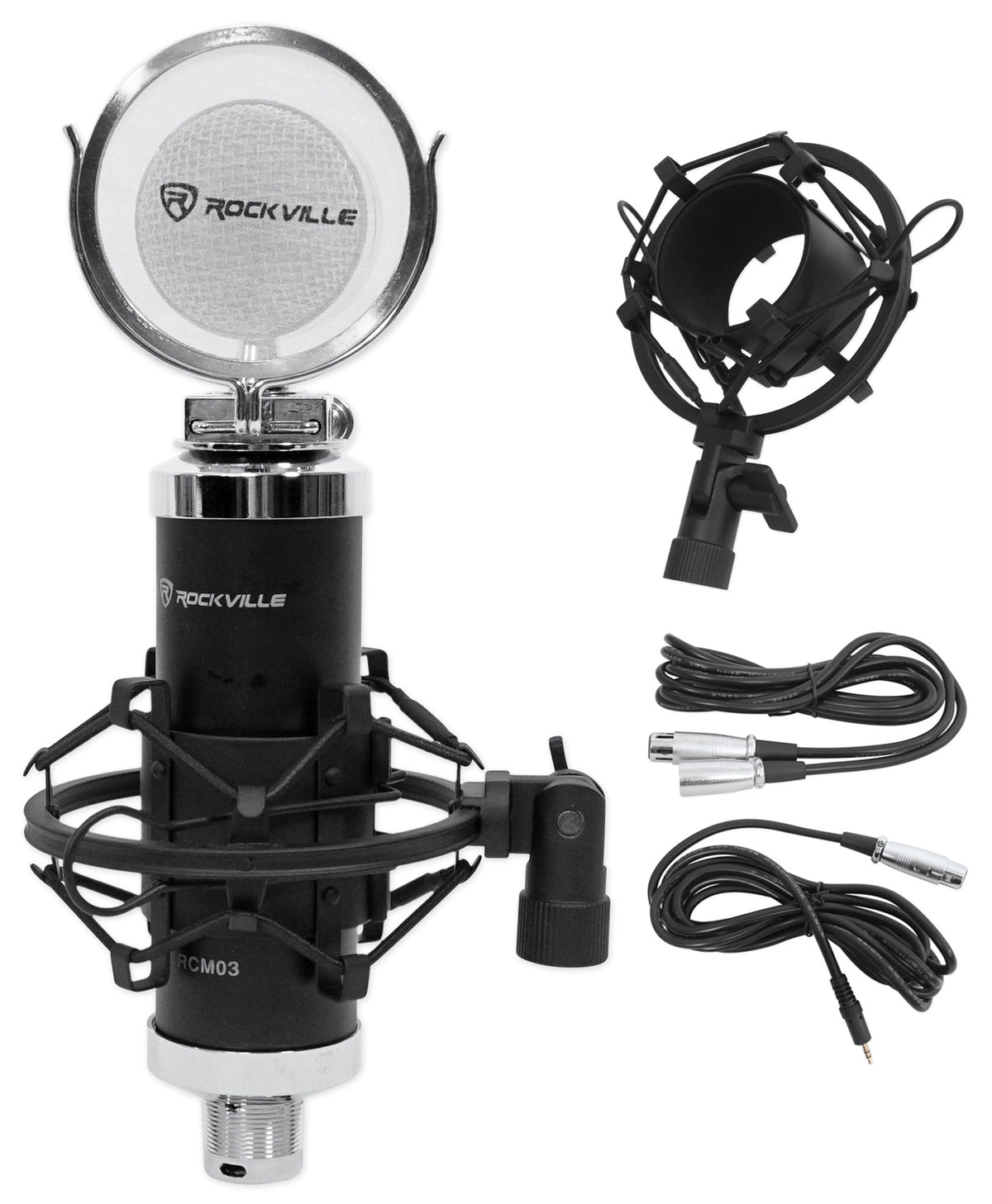

- Microphone: Type Cardioid condenser, unidirectional
- Microphone: Frequency Response 30 Hz to 20 kHz
- Microphone: Sensitivity -27 dB ± 2 dB (0 dB=1 V/Pa at 1 kHz)
- Microphone: Output Impedance 200 ohms ± 30% at 1 kHz
- Microphone: Maximum Input SPL 126 dB (THD=1.0% at 1 kHz)
- Microphone: Equivalent Noise Level Less than 18 dBA (IEC581-5)
- Microphone: Signal-to-Noise Ratio More than 24 dB
- Microphone: Fixed Crossover Filter Cutoff 40 Hz to 16 kHz
- Microphone: Load Impedance Greater than or equal to 1000 ohms
- Microphone: Material Steel grille and aluminum handheld section
- Microphone: PCB Layout Surface mount

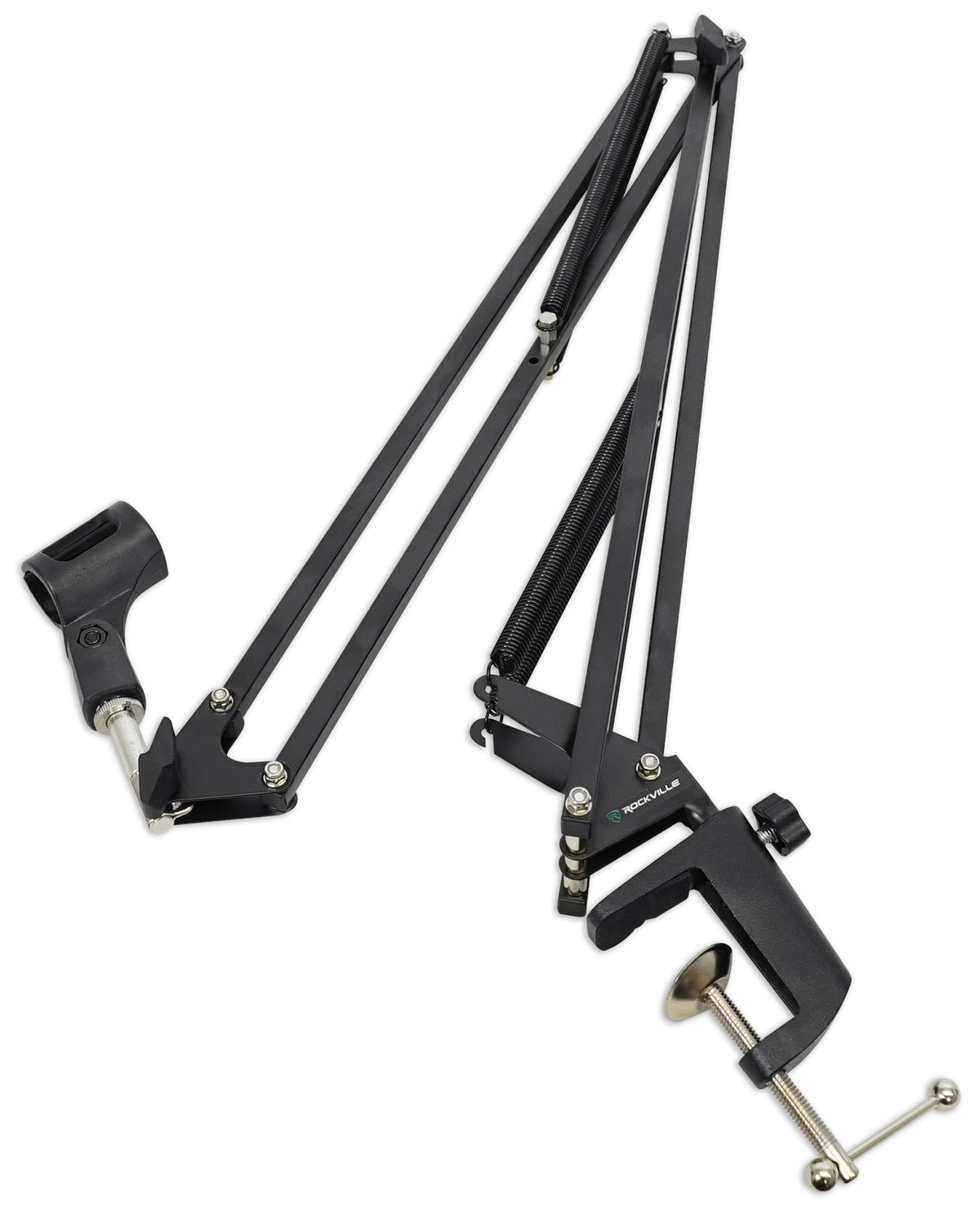

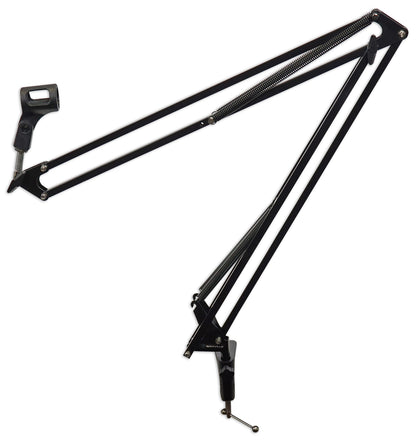

- Boom Arm: Maximum Reach 40 in
- Boom Arm: Arm Sections 20 in + 20 in
- Desk Clamp Fits desks less than 2 in thick
- Boom Arm: Frame and Clamp Materials Steel frame; aluminum-alloy clamp
- Weight (RCM03 microphone) 0.7 lb (320 g)
- Dimensions (RCM03 microphone) 44 mm maximum diameter x 217 mm length (1.73 in x 8.54 in)
