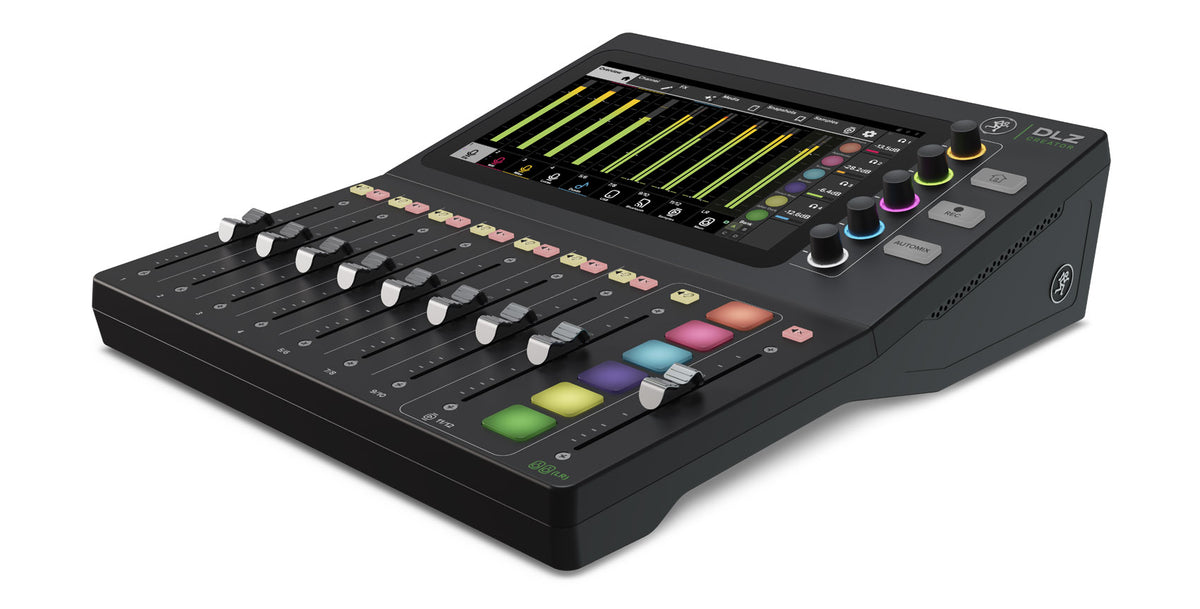

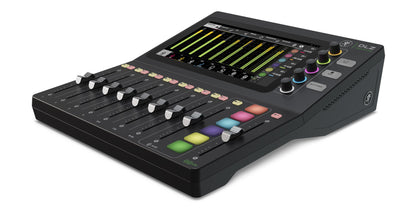

DLZ Creator Mixer with X1 A Microphone
MACKIE
DLZ Creator Mixer with X1 A Microphone
DLZ Creator Mixer with X1 A Microphone
10.1-Inch Touchscreen, 4 XLR/TRS Inputs, Cardioid Condenser Microphone
Free Shipping
Features
- 10.1-inch color touchscreen with anti-glare coating
- Four XLR/TRS combo inputs for microphones and audio sources
- 14x4 USB-C audio interface for computers
- Record multitrack audio to microSD or USB storage device

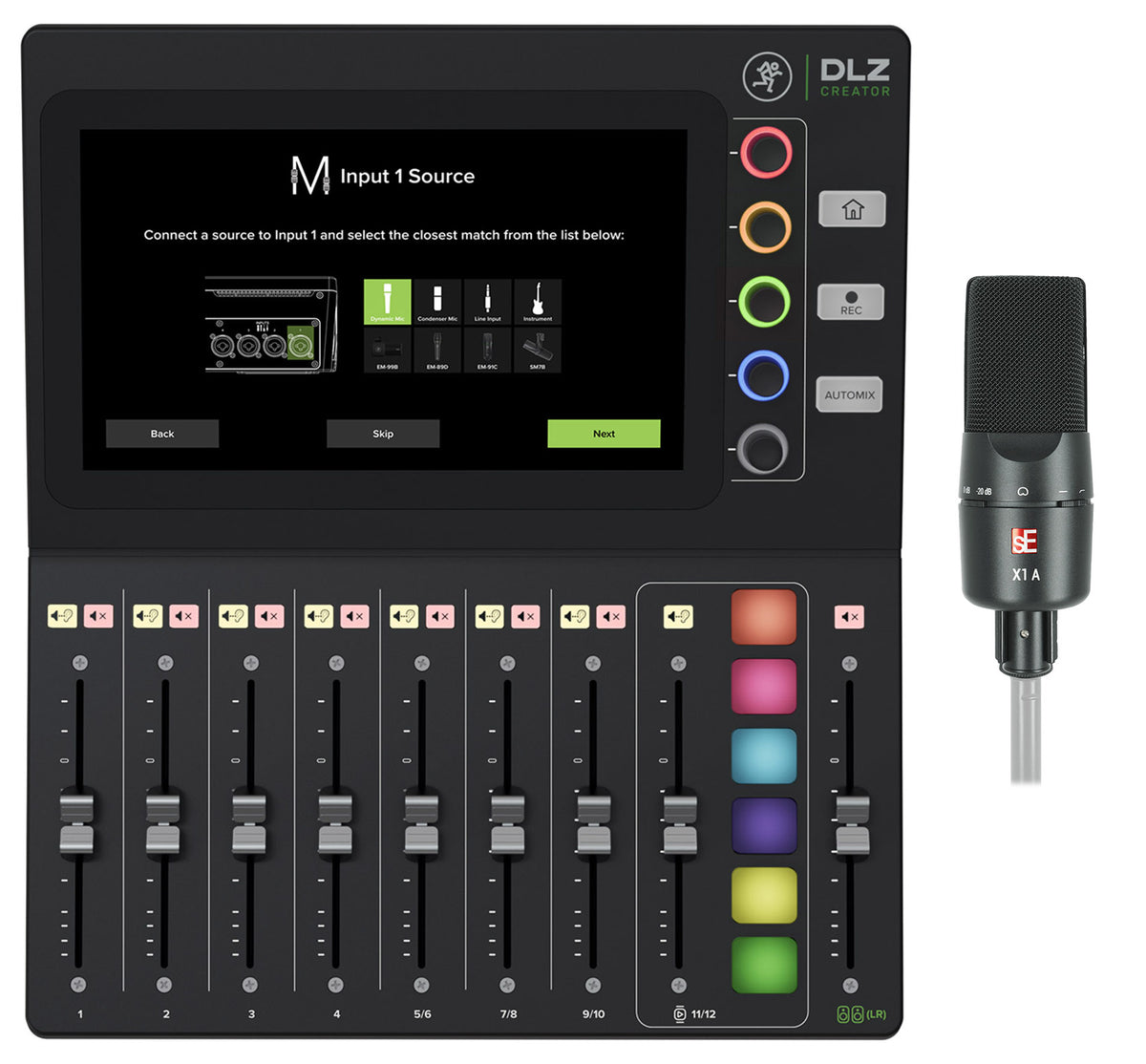

- Includes X1 A cardioid condenser microphone, swivel clip, and thread adapter
Couldn't load pickup availability

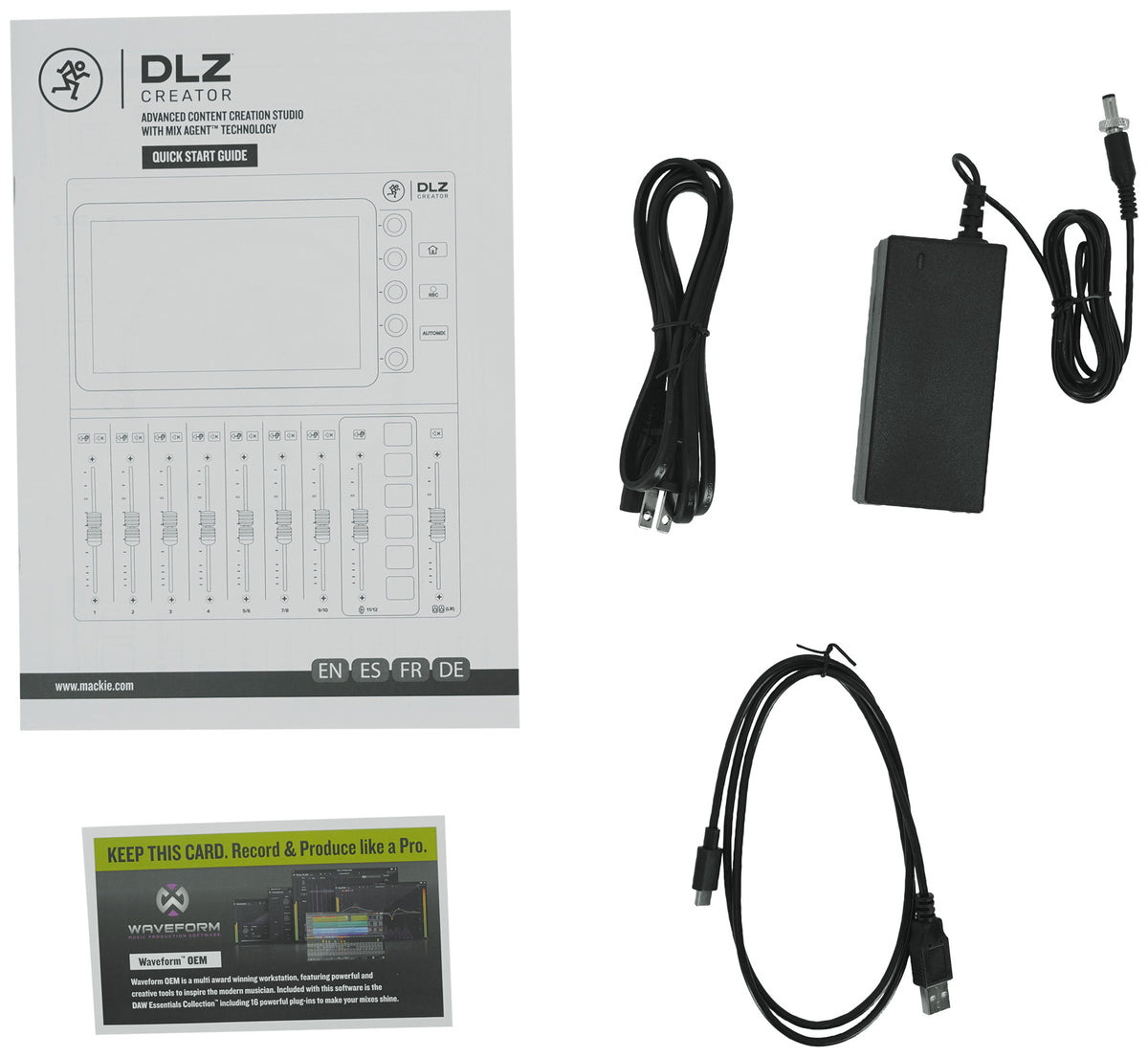

What's Included in the box
- (1) DLZ Creator adaptive digital mixer
- (1) X1 A cardioid condenser microphone

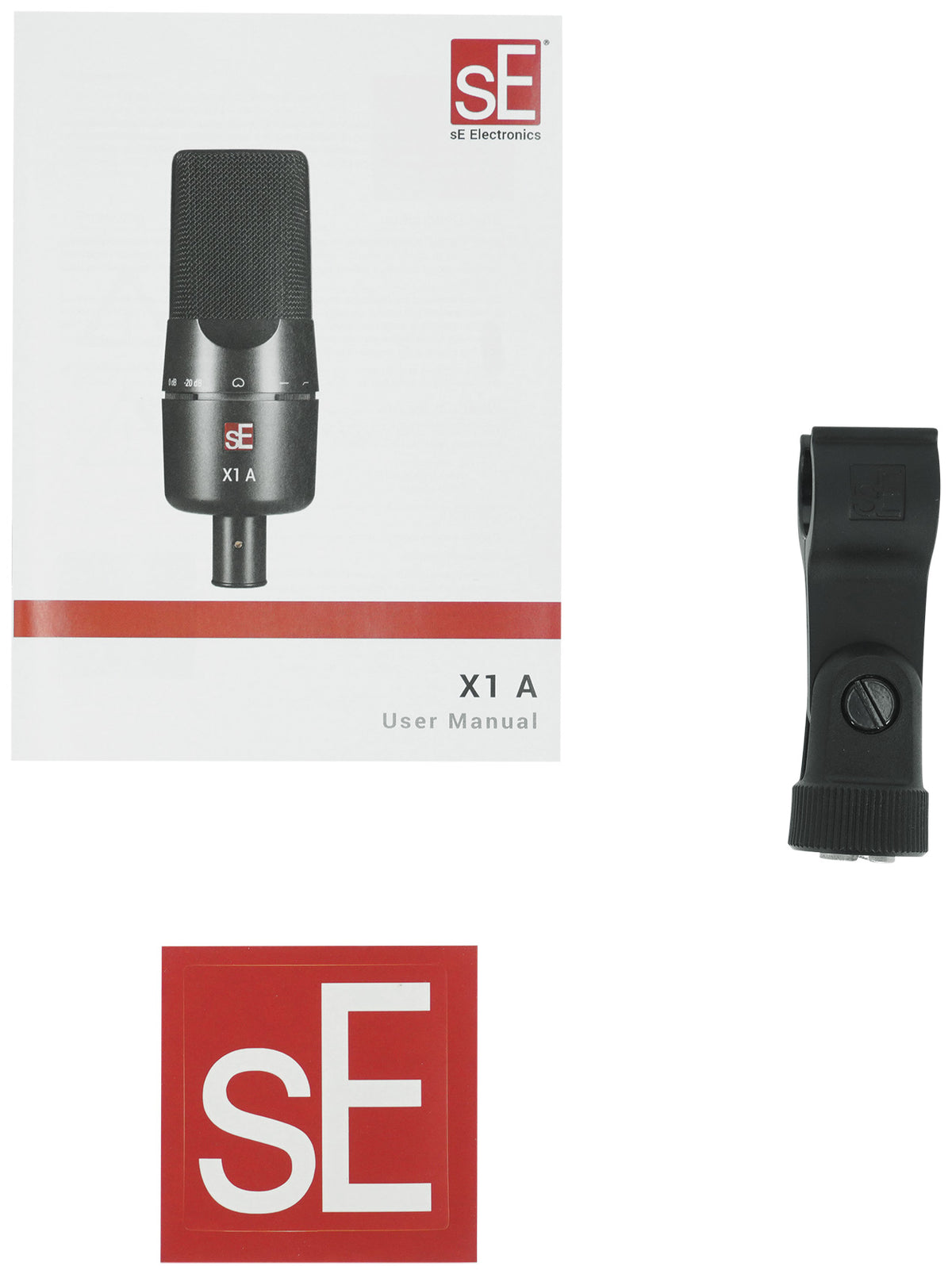

- (1) Swivel microphone clip
- (1) Microphone stand thread adapter
SKU: SKU: DLZ Creator+X1 A
View full details






















Product Description
Features

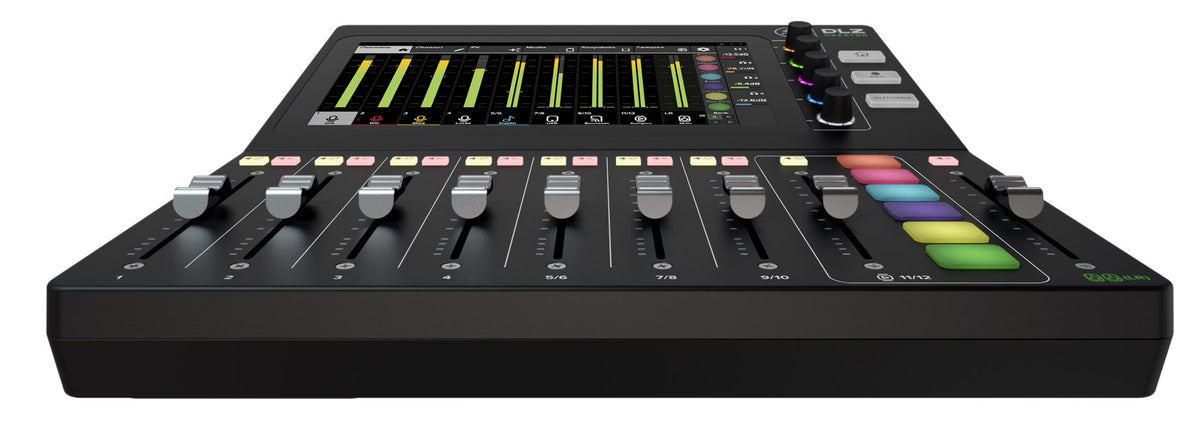

Control That Fits Your Workflow
Three work modes pair guided setup with deeper adjustment, helping new podcasters start simply while giving experienced creators direct control of each mix.

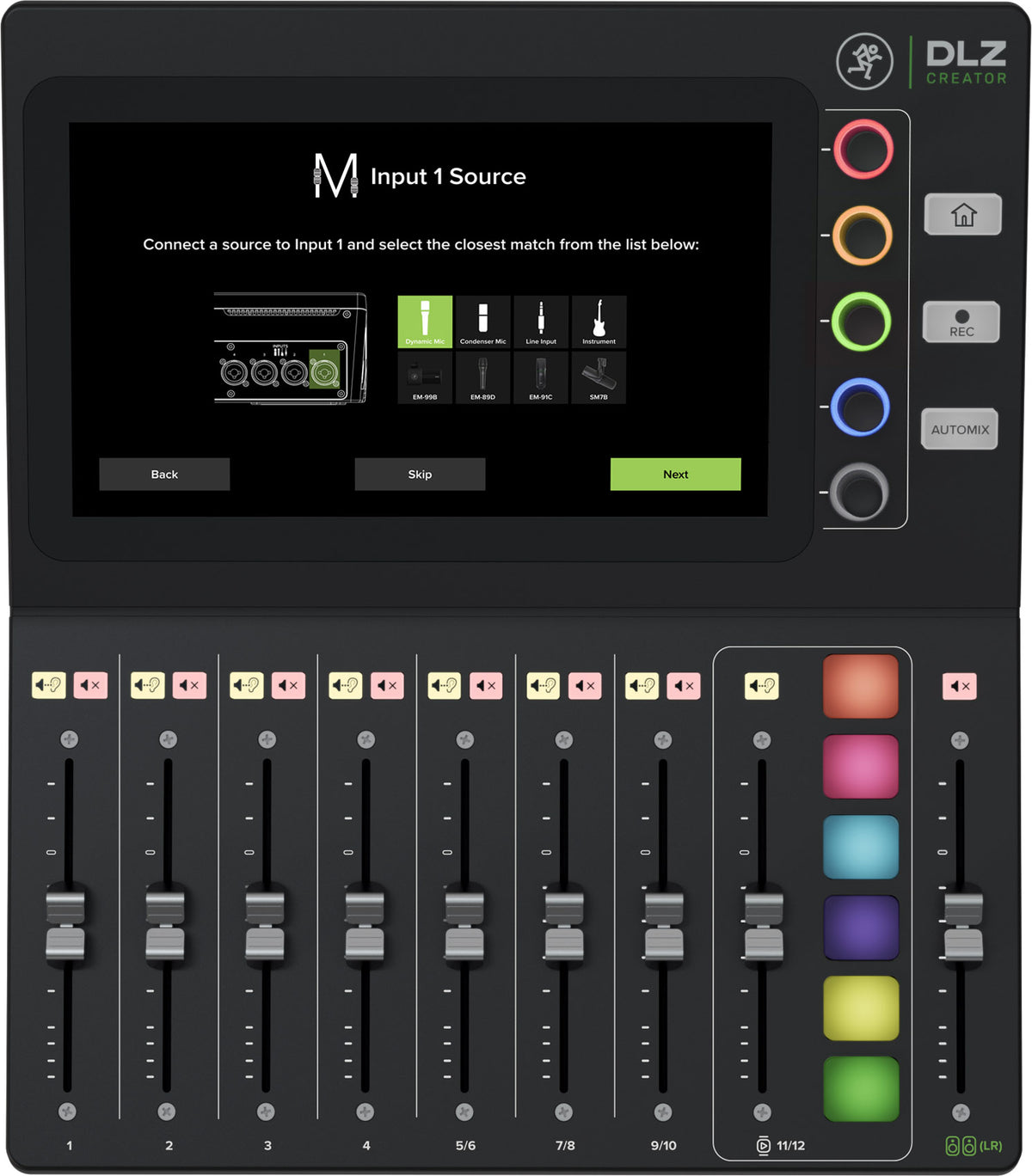

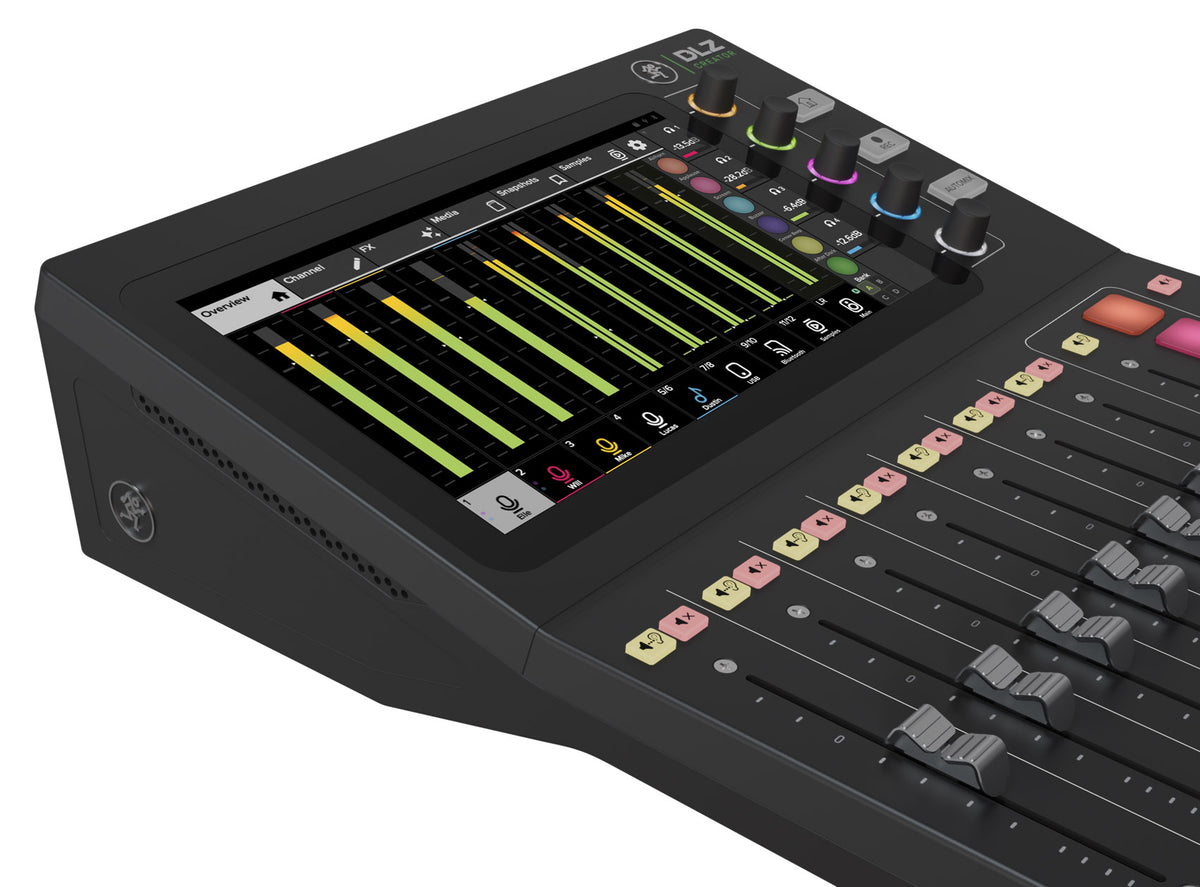

Clear On-Screen Control

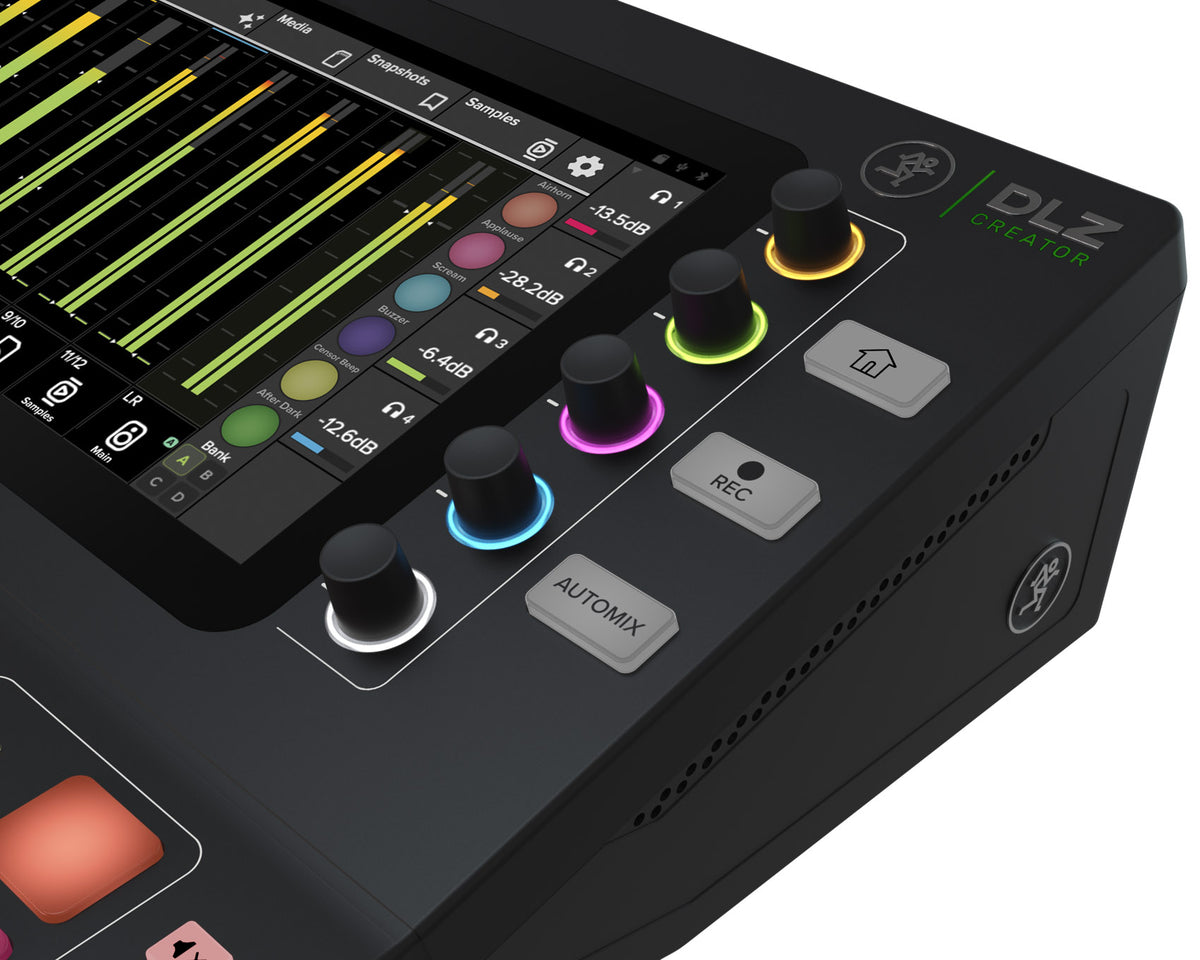

The 10.1-inch anti-glare color display keeps setup and channel controls visible, making key settings easier to review while recording or streaming.

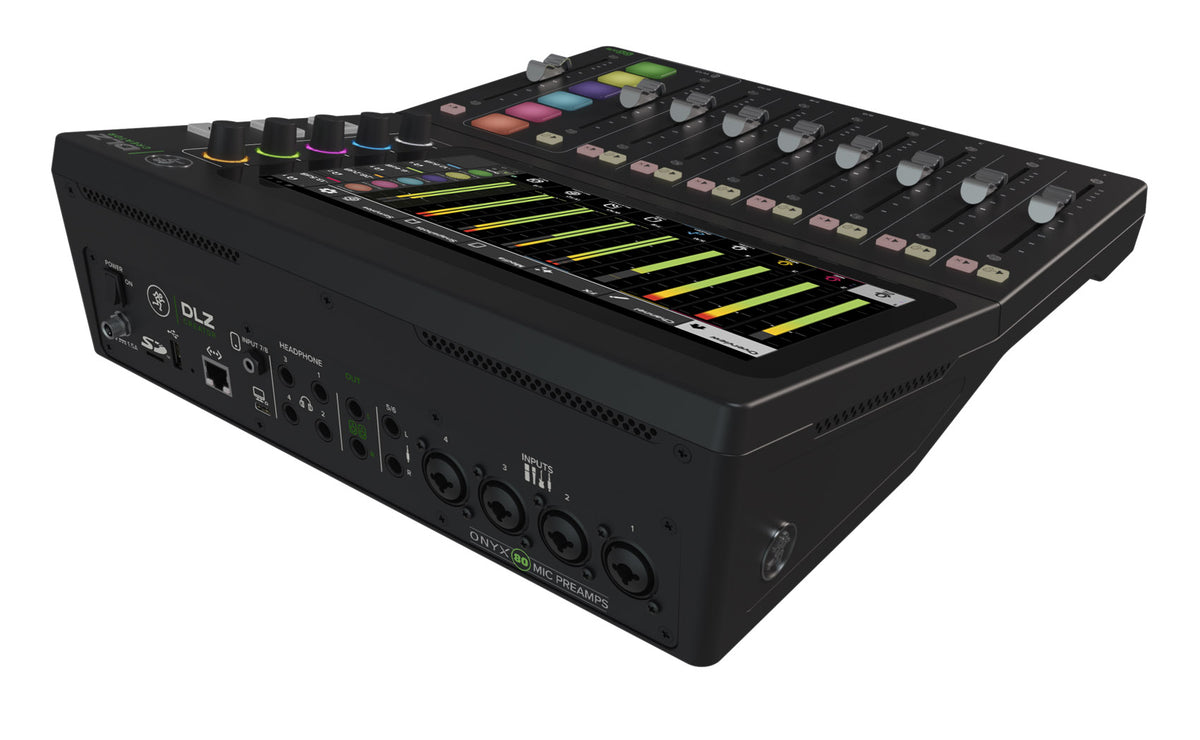

Connect Multiple Sources
Four XLR/TRS combo inputs, stereo 1/4-inch and 1/8-inch connections, and bidirectional Bluetooth let you combine microphones, instruments, phones, and playback sources.
Separate Guest Monitoring
Four independent headphone outputs provide individual level control, and Pro mode supports a custom mix for each guest during shared recording sessions.

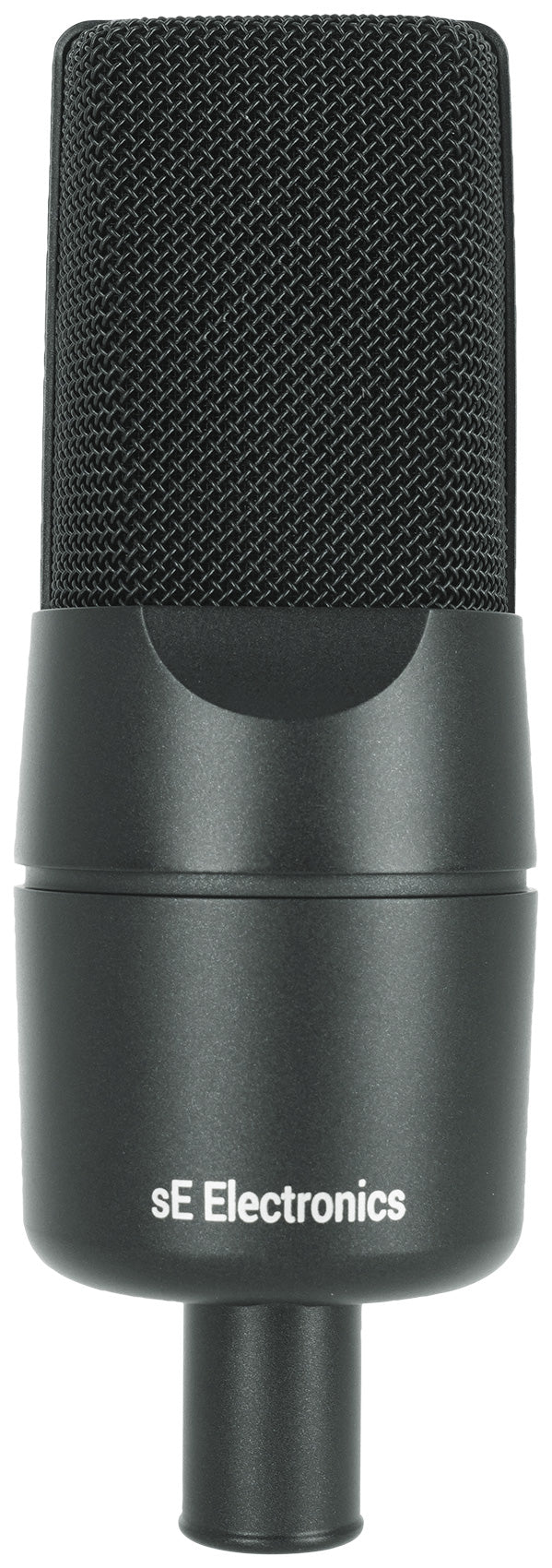

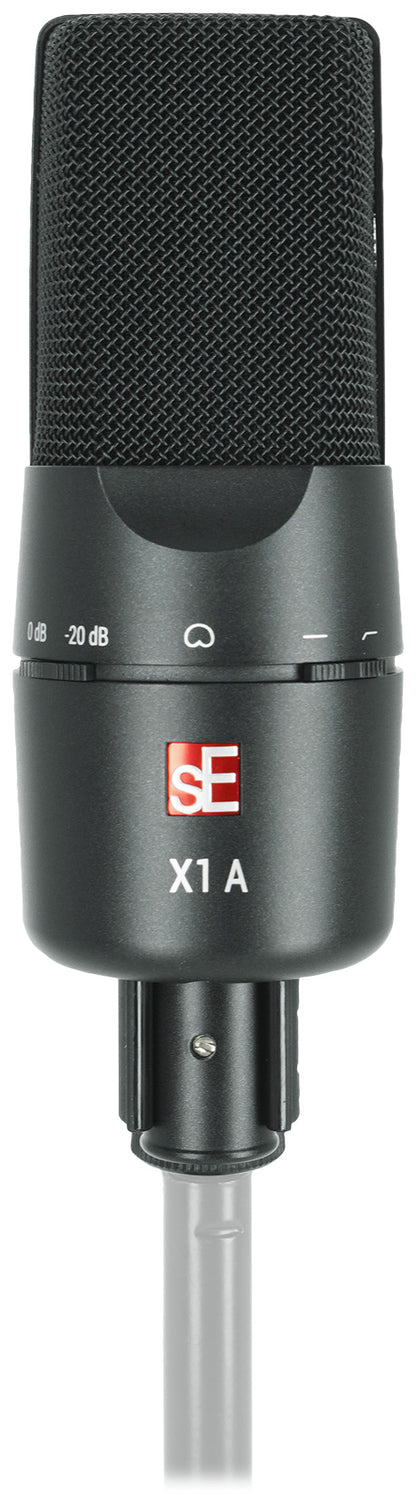

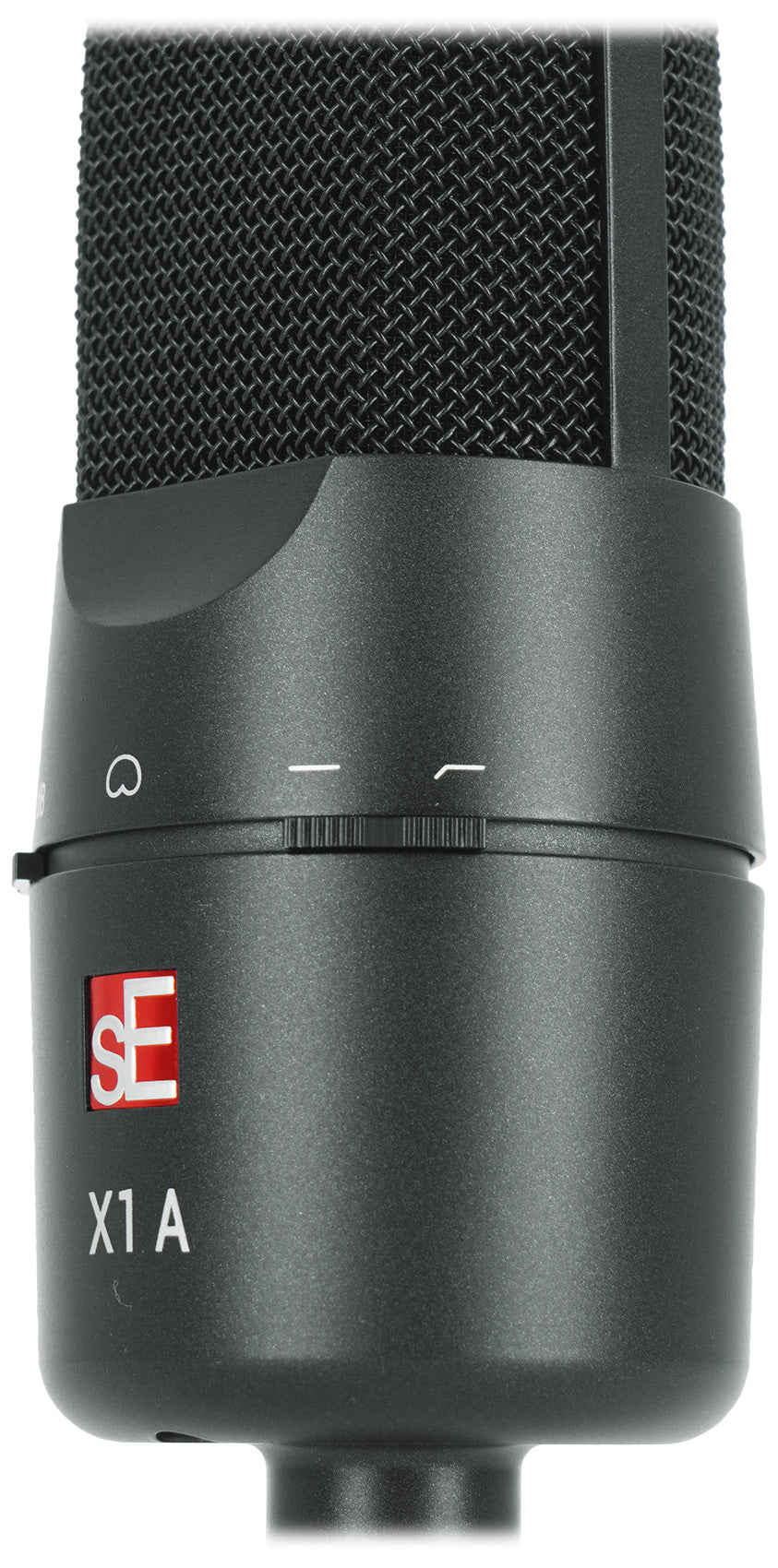

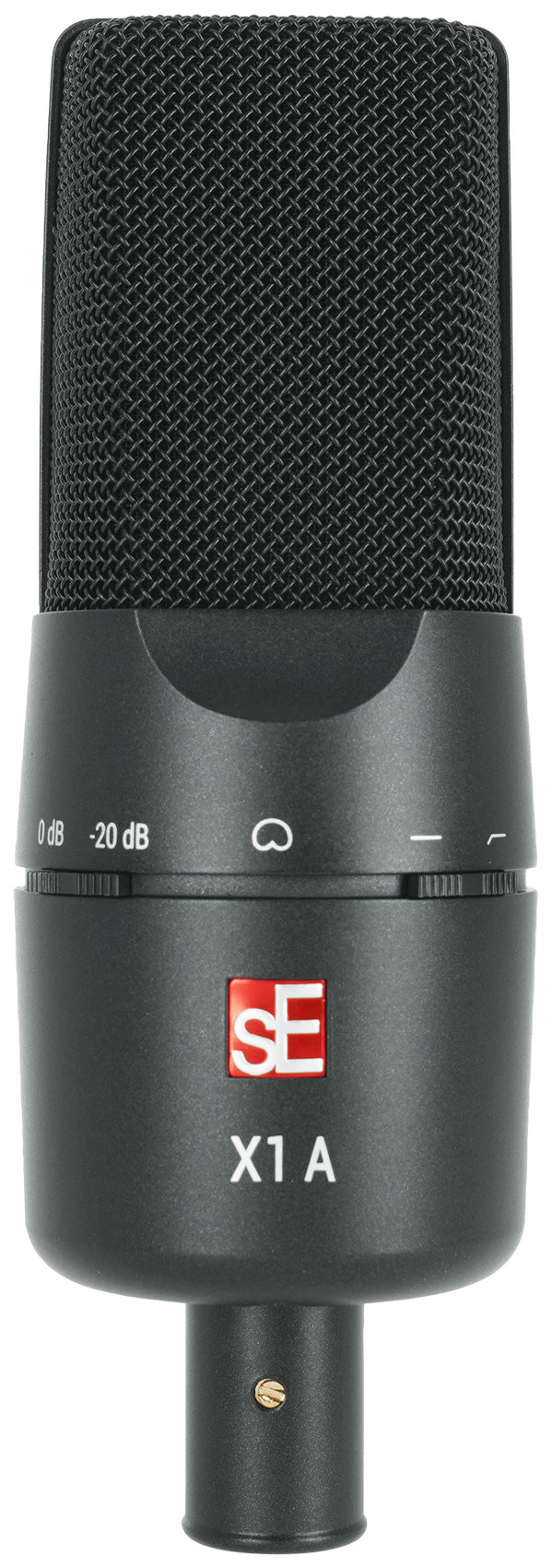

Studio Mic in the Bundle

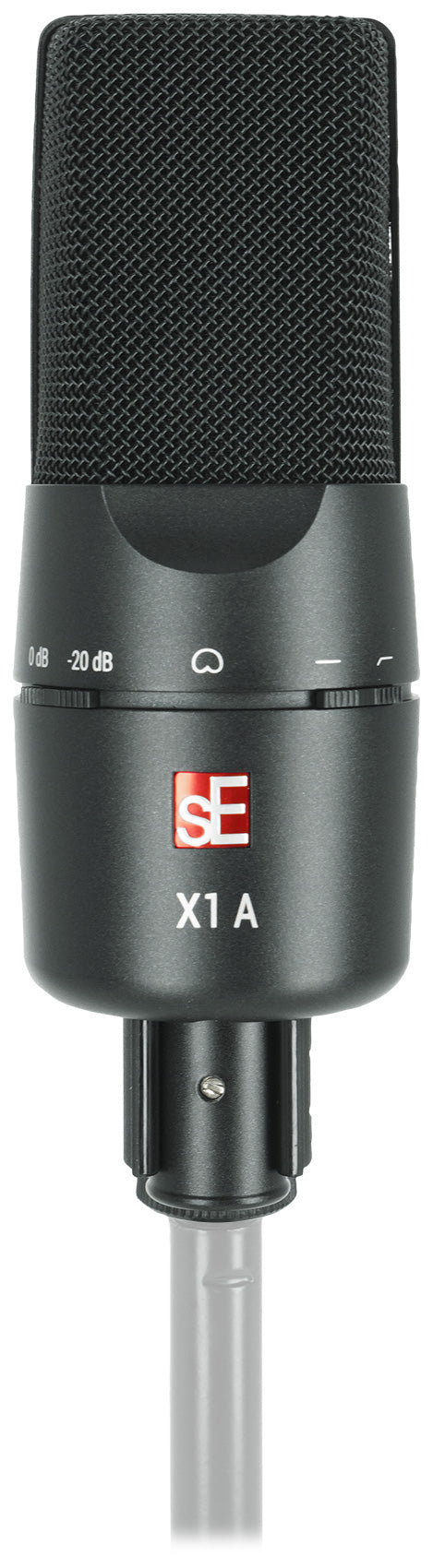

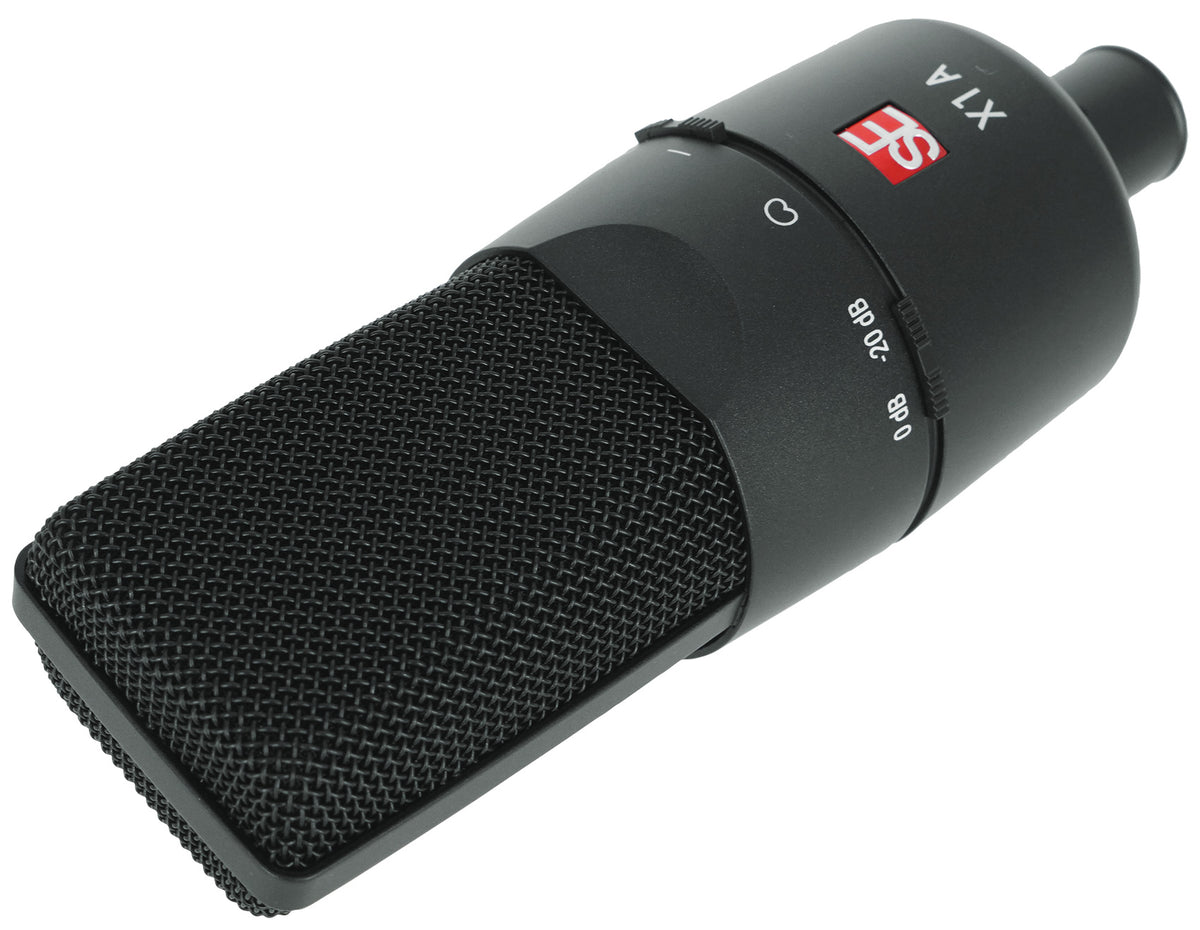

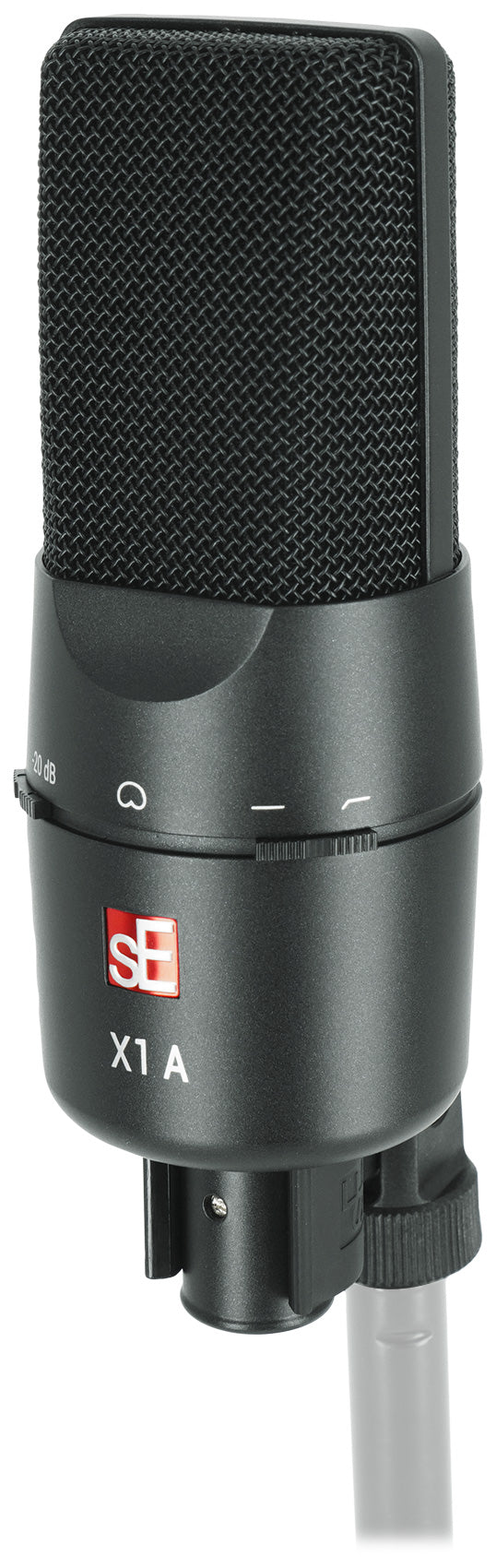

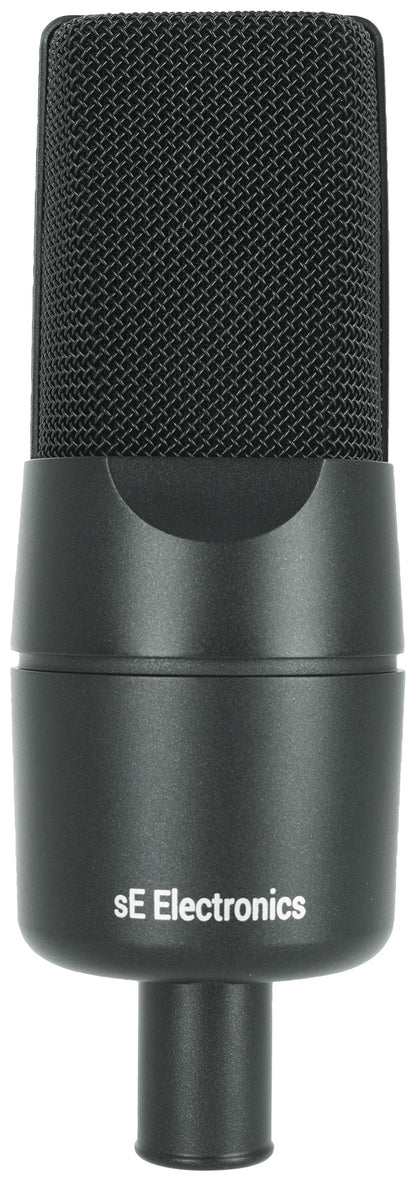

The included X1 A cardioid condenser microphone spans 20 Hz to 20 kHz, with switchable 100 Hz low-cut and 20 dB pad for varied sources.
Technical Specifications
- Product Type Podcast Mixer and Condenser Microphone Bundle

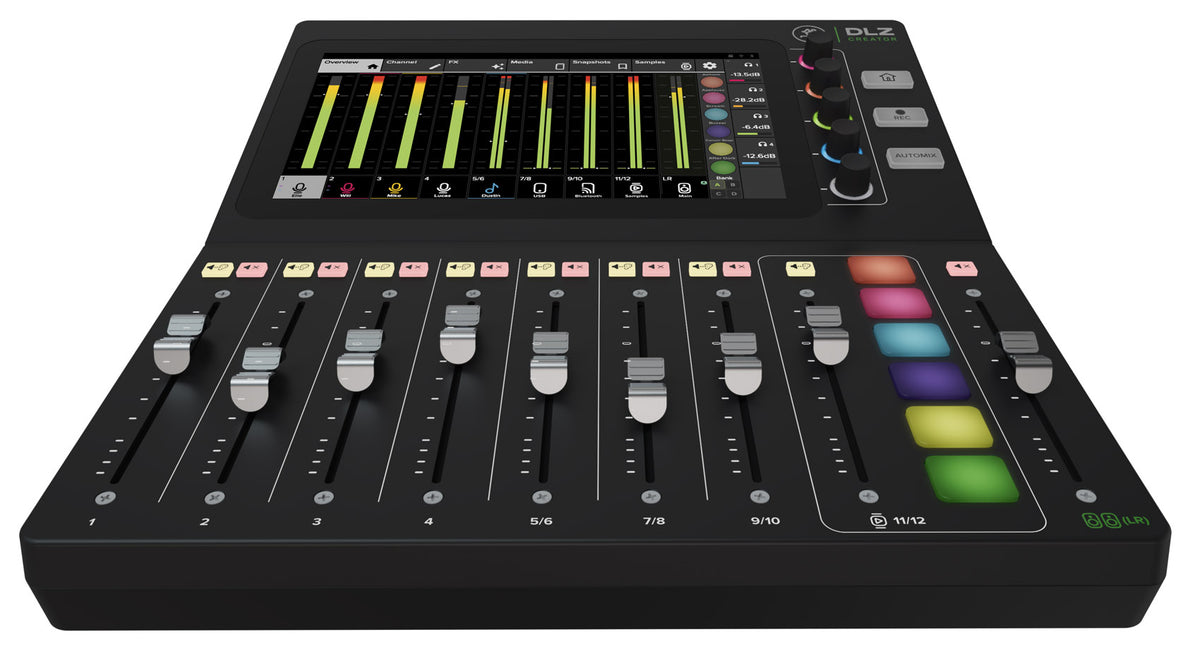

- Mixer Display 10.1-inch high-resolution full-color touchscreen with anti-glare coating

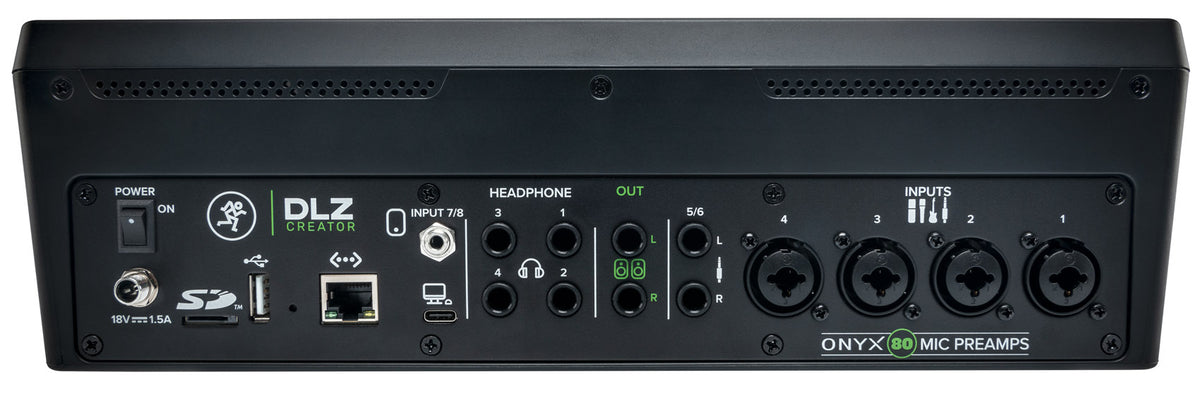

- Mixer Inputs 4 XLR/TRS combo inputs; stereo dual 1/4-inch TRS inputs; stereo 1/8-inch TRS connection
- Bluetooth Stereo bi-directional Bluetooth channel
- USB Audio Interface 14x4 USB-C audio interface for computers
- Recording Media Multitrack recording and stereo playback to microSD card or USB storage device
- Headphone Outputs 4 independent outputs with individual level control
- Microphone Type 2/3-inch back-electret condenser, cardioid
- Microphone Frequency Range 20 Hz - 20 kHz
- Microphone Sensitivity 20 mV / Pa (-34 dBV)
- Microphone Max SPL 130 / 150 dB (0 / 20 dB pad; 0.5% THD @ 1 kHz)
- Microphone Filter 100 Hz, 6 dB / Oct, switchable

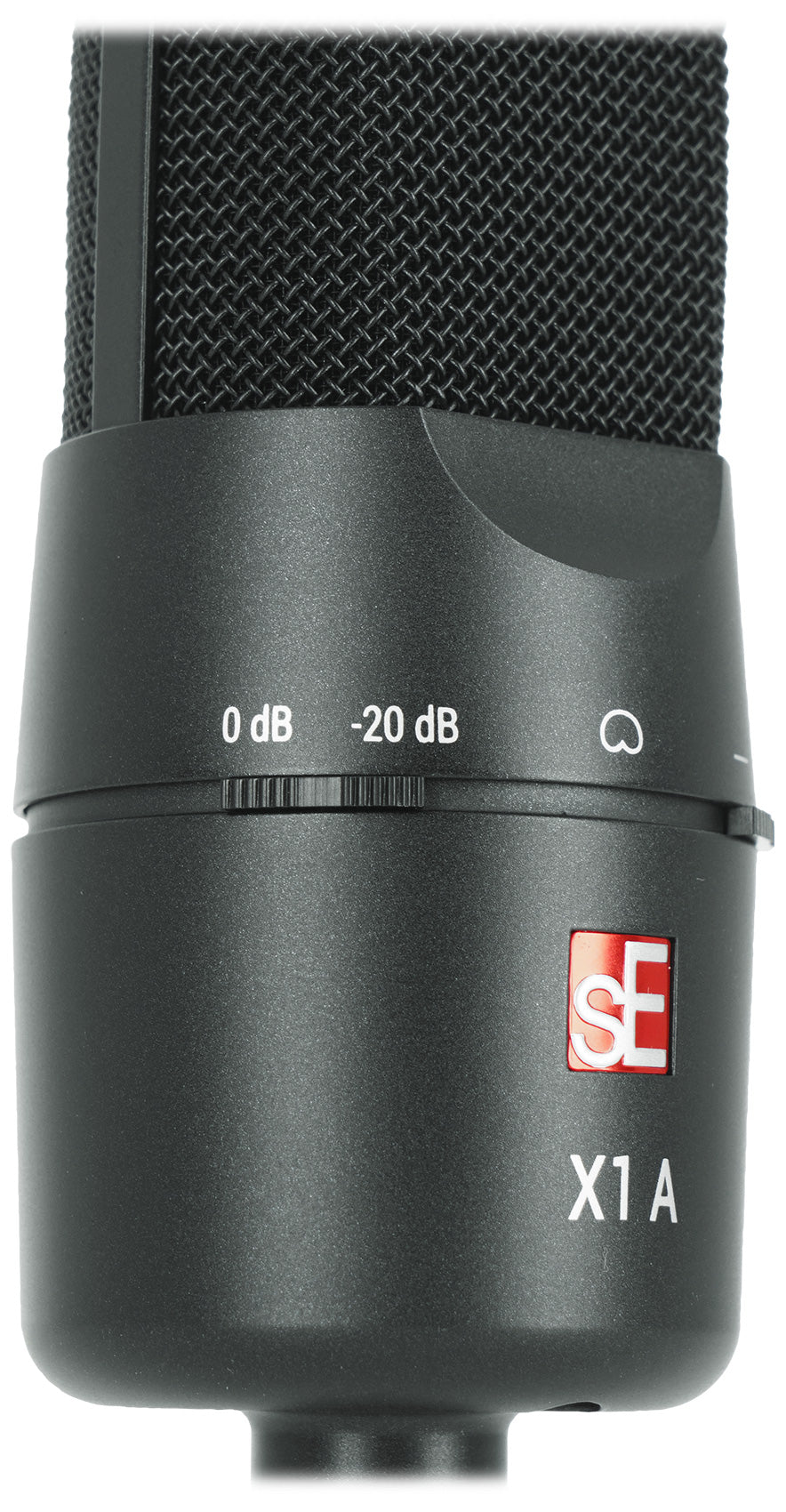

- Microphone Attenuation Pad 20 dB, switchable

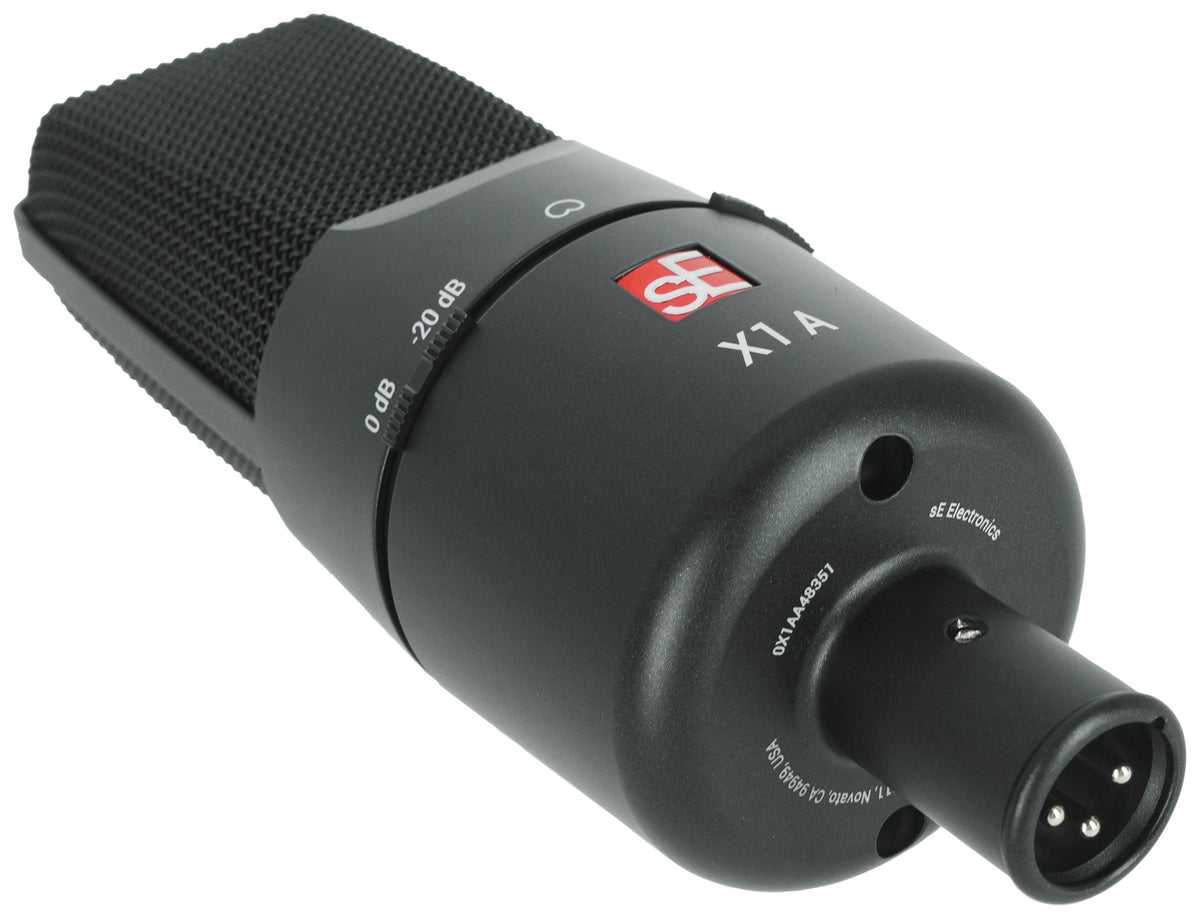

- Microphone Connectivity 3-pin male XLR connector
- Microphone Powering 48V Phantom Power (P48 according to IEC 61938)
- Weight 390 g (13.76 oz.) (microphone)
- Dimensions Microphone: 58 mm (2.28 in.) diameter; 169 mm (6.65 in.) length
