HM-400 Headphone Amplifier with Satellite USB Microphone
MACKIE
HM-400 Headphone Amplifier with Satellite USB Microphone
HM-400 Headphone Amplifier with Satellite USB Microphone
4-Channel Amp, 12 Outputs, Satellite USB Condenser Mic, 24-Bit/96kHz
Free Shipping
Features
- 12 headphone outputs give a group room to monitor from one rack space
- Four channels include an aux input and EQ per channel
- Balance controls mix the main and aux signals on each channel
- Seven-segment LED meters show levels per channel and at the main input
- Satellite USB microphone adds three pickup patterns and zero-latency monitoring
Couldn't load pickup availability
What's Included in the box
- (1) HM-400 4-channel headphone amplifier
- (1) Satellite USB microphone
- Lightning to USB Micro cable
- USB to USB Micro cable
SKU: SKU: HM-400+SASAT
View full details











Product Description
Features
Room For The Whole Group
Twelve headphone outputs across four channels let musicians, hosts, and guests monitor from one rack space during studio sessions, rehearsals, or worship services.
Personal Channel Shaping
Per-channel EQ and an aux input with balance control let each listener blend the main and auxiliary signals to suit a mix or cue.
Clear Level Feedback
Seven-segment LED meters on each channel and the main input provide a quick visual check while a group listens and adjusts its balance.
Practical Routing Options
Stereo main inputs and outputs, plus per-channel mute and stereo/2-channel mode switches, give operators practical control for different headphone setups.
Ready To Record

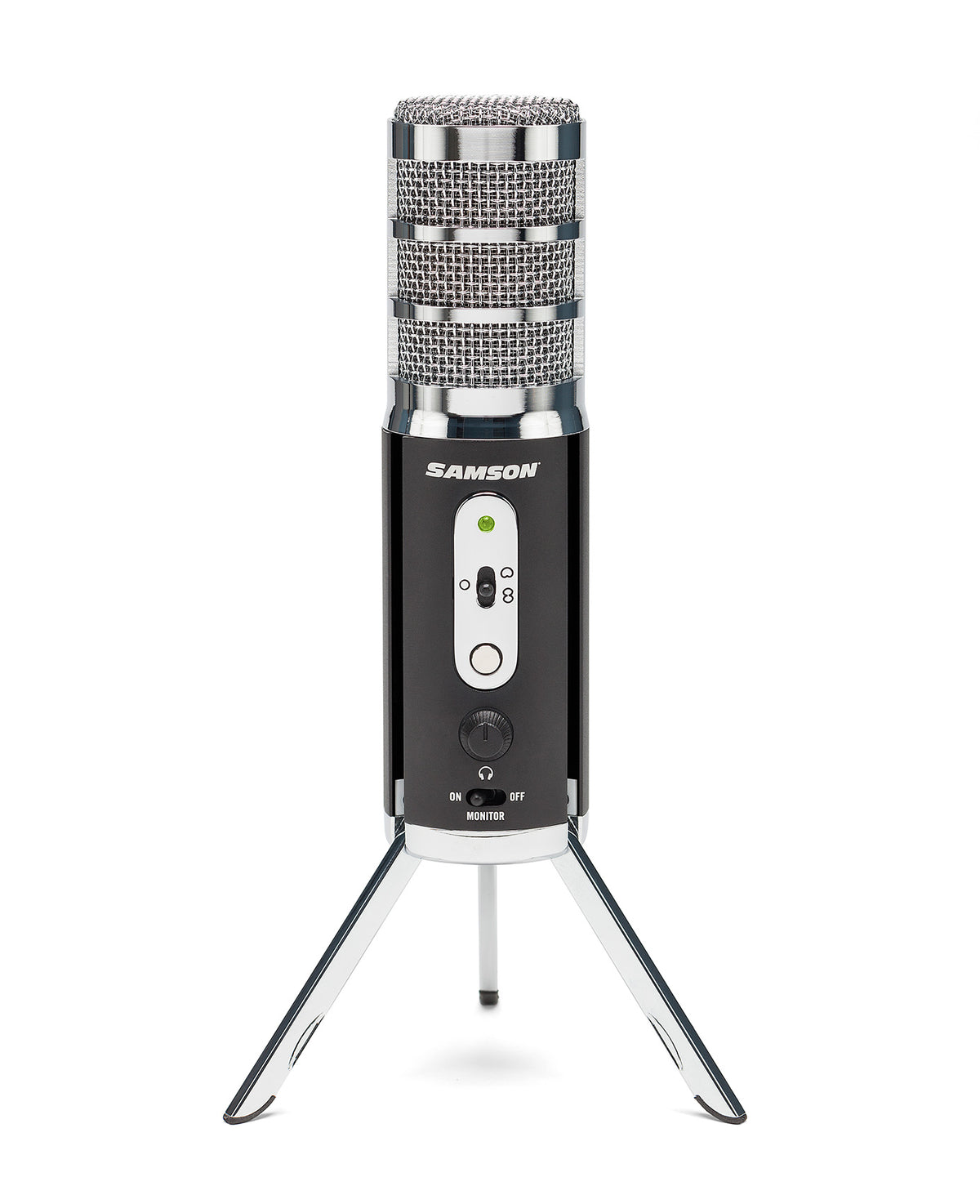

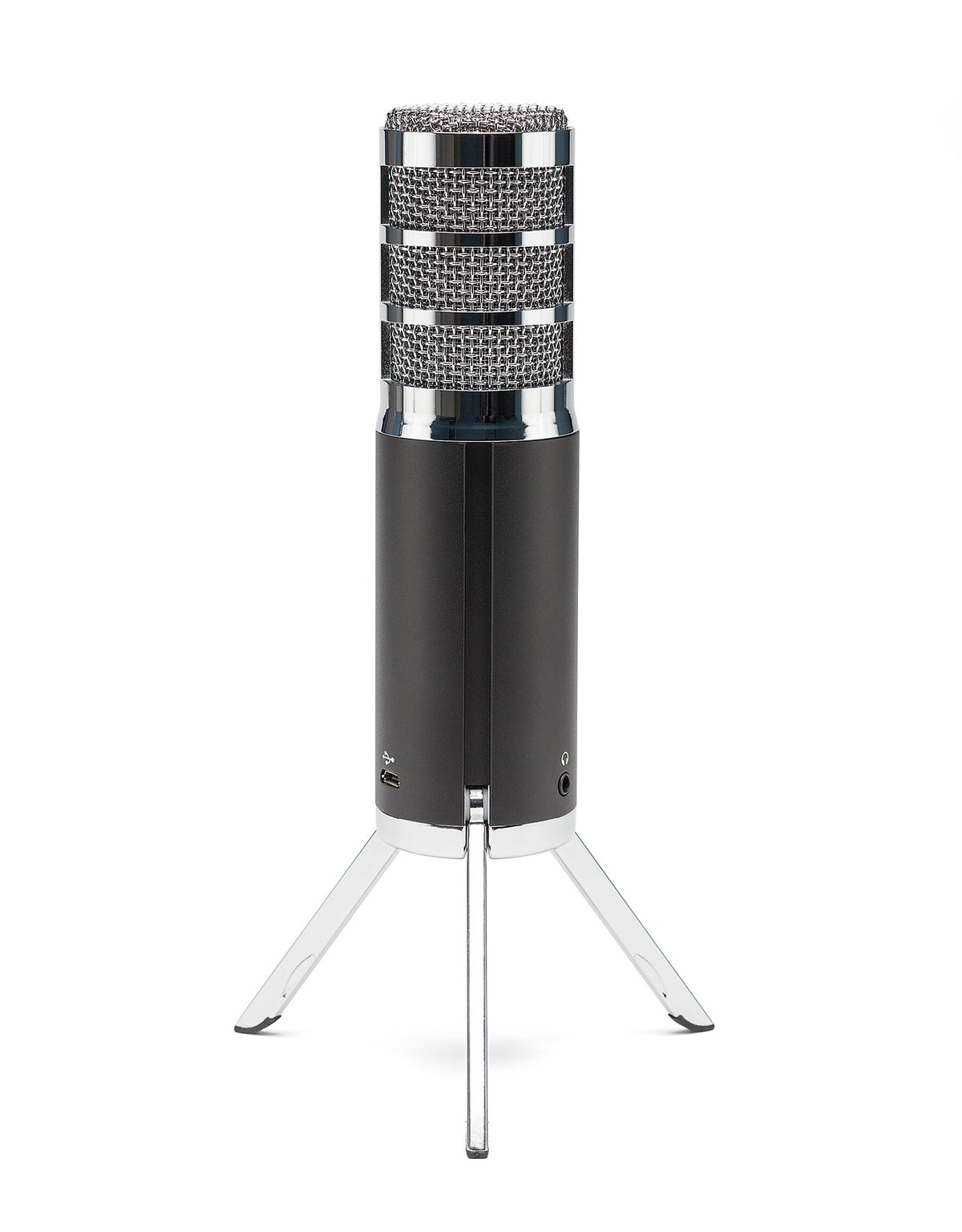

The included Satellite USB microphone connects to computers and compatible mobile devices, with three pickup patterns and zero-latency monitoring through its 1/8-inch headphone jack.
Technical Specifications
- Product Type Headphone Amplifier and USB Microphone Bundle
- Model HM-400
- Amplifier Channels 4
- Headphone Outputs 12 total (3 per channel)
- Rack Format 19-inch rackmount, single rack space

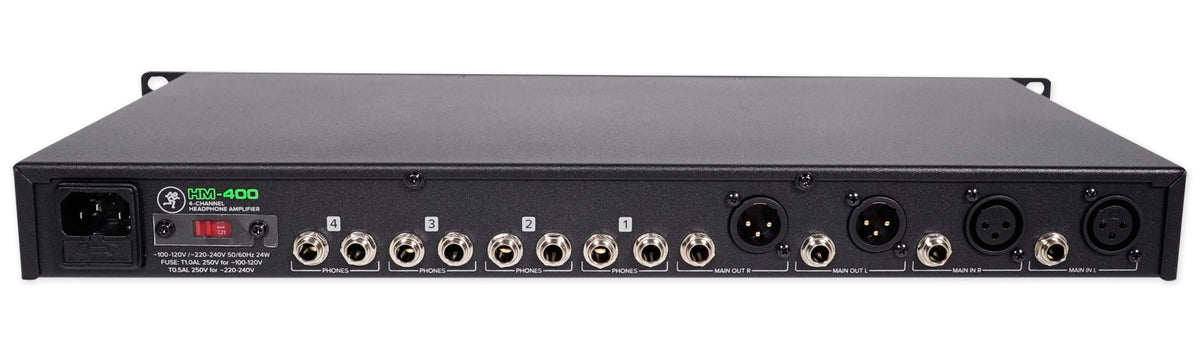

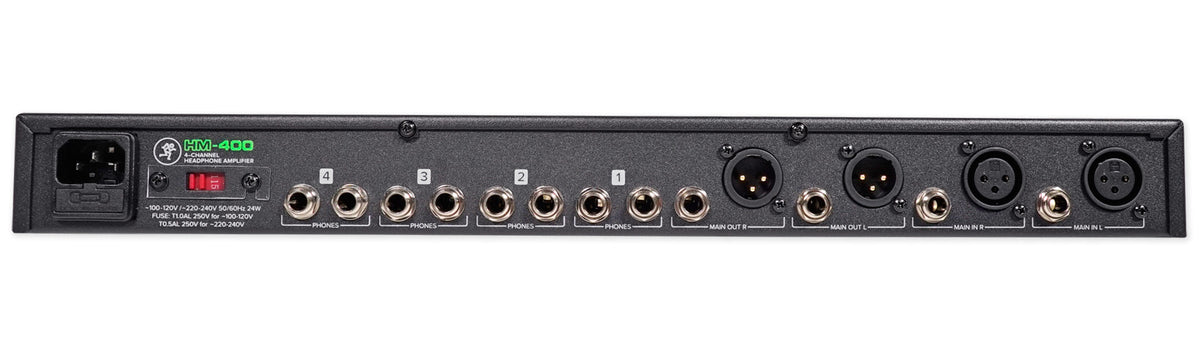

- Main Inputs/Outputs L/R main stereo inputs, L/R stereo outputs
- Per-Channel Features Aux input, balance control, EQ, mute, stereo/2-channel mode
- Metering 7-segment LED per channel and main
- Microphone Satellite USB microphone
- Element Type Electret condenser
- Capsules Dual 16mm condenser
- Polar Pattern Cardioid (unidirectional), bidirectional, omnidirectional
- Frequency Response 20Hz to 20kHz
- Sensitivity -3dB FS @ 80dB SPL (at maximum gain)
- Max. SPL 135dB SPL at 200Hz
- Bit Depth/Sample Rate 24-bit/up to 96kHz
- Digital Output USB
- Headphone Output/Impedance 1/8-inch (3.5mm)/32O
- Headphone Power Output Minimum 38mW @ 32O
- Controls Polar Pattern, Mute, Headphone Volume, Monitor On/Off
- LED 3-color Power/Clip/Mute
- Body Construction/Grille Aluminum/steel
- Weight (Satellite Microphone) 0.75 lb (0.34kg)
- Dimensions (Satellite Microphone) 8.6-inch (218mm) x 4.3-inch (108mm) x 1.7-inch diameter (45mm diameter)
