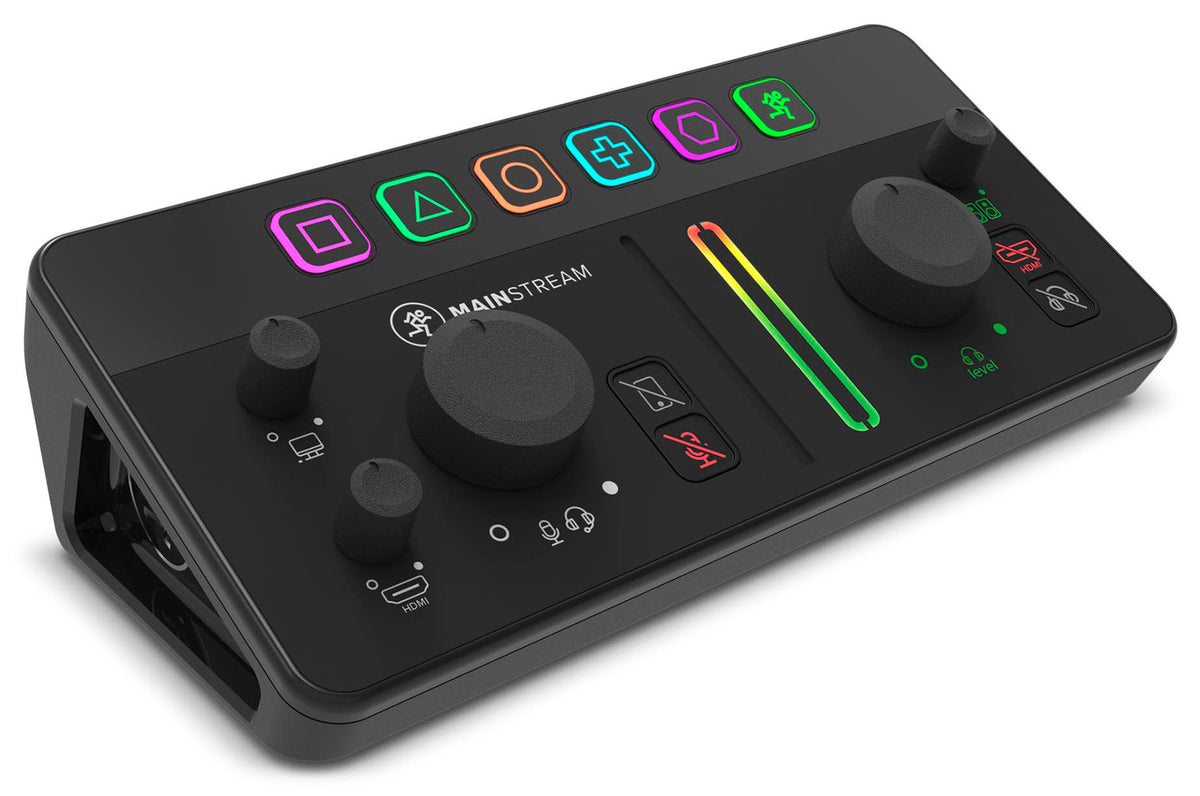

MainStream Streaming Interface with RCM01 Microphone
MACKIE
MainStream Streaming Interface with RCM01 Microphone
MainStream Streaming Interface with RCM01 Microphone
1080p/60 HDMI Capture, 4K/60 Passthrough, Cardioid Condenser Mic
Free Shipping
Features
- HDMI input captures 1080p video at 60 fps
- 4K at 60 fps passthrough feeds a high-resolution monitor
- Two USB-C hub inputs connect cameras, microphones, and other USB devices
- Six programmable keys trigger samples and transitions
- Bonus RCM01 cardioid microphone includes a metal shock mount
Couldn't load pickup availability

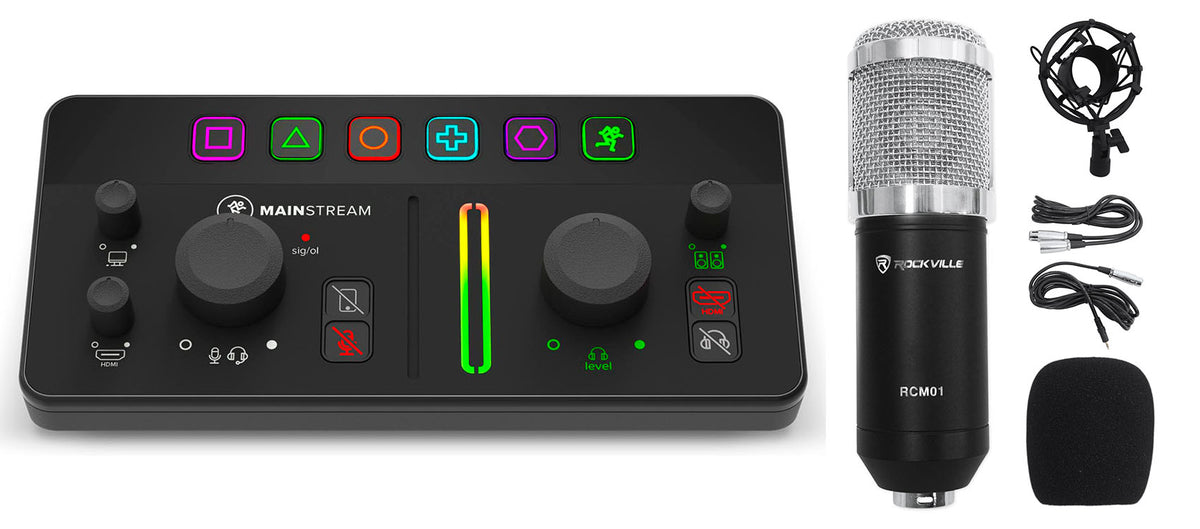

What's Included in the box
- (1) MainStream bus-powered live-streaming interface
- (1) RCM01 condenser microphone
- (1) Metal shock mount
- (1) 10 ft 3.5 mm-to-XLR cable
- (1) 10 ft XLR-to-XLR cable
- (1) Anti-wind foam cap
SKU: SKU: MainStream+RCM01
View full details













Product Description
Features
Keep The Monitor Feed Clear
HDMI captures 1080p at 60 fps and passes through 4K at 60 fps, so gameplay stays visible on a high-resolution display while streaming.
Bring More Devices To The Desk
Two USB-C hub inputs accept additional cameras, microphones, and other USB devices, while one bus-powered USB-C link connects the interface to a computer.
Shape Audio At The Interface

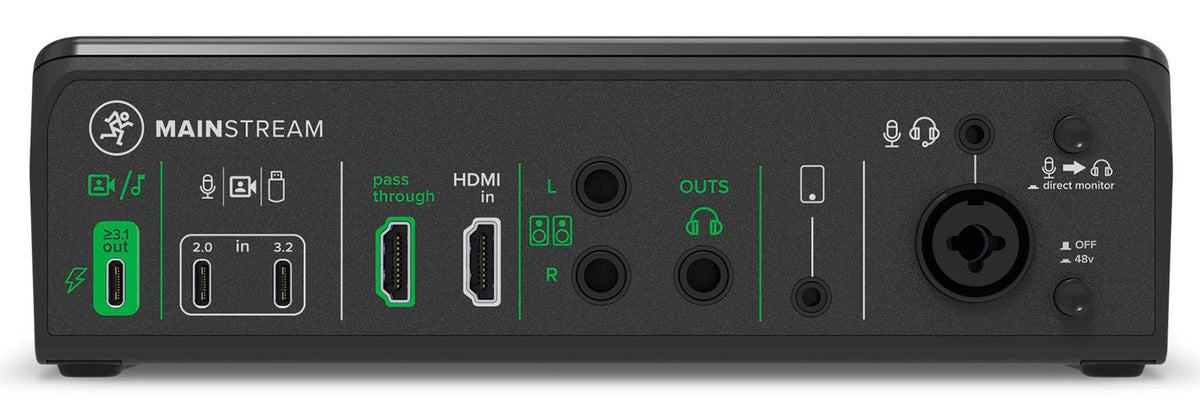

XLR/TRS mic, headset, smartphone, headphone, and stereo monitor connections put voice, calls, and playback on one desktop control surface for live sessions.
Trigger Cues With A Tap
Six programmable keys can launch samples and transitions, giving streamers direct access to repeatable cues without opening menus during a broadcast.

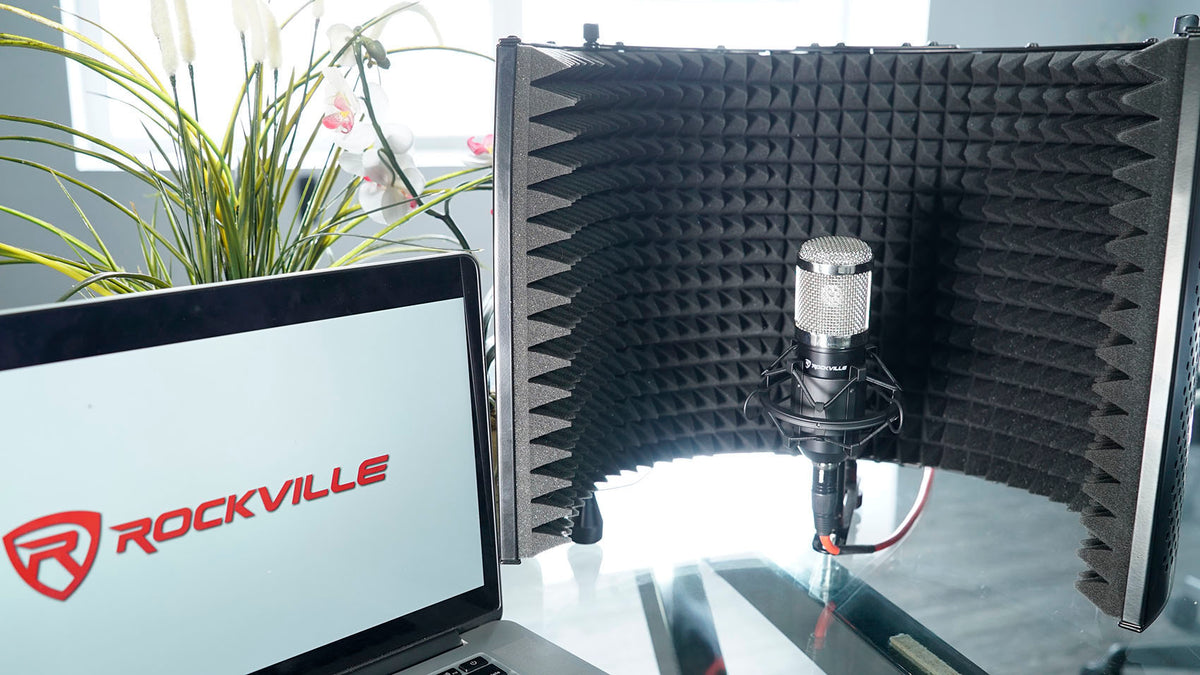

Add A Dedicated Voice Mic
The included RCM01 cardioid condenser microphone has a 25 mm diaphragm and metal shock mount, supporting focused voice capture at a streaming desk.
Technical Specifications
- Product Type Live Streaming Interface and Condenser Microphone
- Interface Model MainStream
- Microphone Model RCM01
- HDMI Capture 1080p at 60 fps
- HDMI Passthrough 4K at 60 fps
- Mic Input XLR/TRS combo, +48V phantom power, +60 dB mic input
- USB-C Hub 2 inputs
- Computer Interface Single USB-C, bus powered
- Programmable Keys 6 multifunction keys
- Headset Connection Mic and return
- Aux Input Yes
- Headphone Output 1/4 in
- Monitor Outputs 1/4 in
- Microphone Type Condenser
- Polar Pattern Unidirectional cardioid
- Diaphragm Size 25 mm
- Frequency Response 30 Hz to 20 kHz
- Sensitivity -27 dB ±2 dB (0 dB=1 V/Pa at 1 kHz)
- Output Impedance 200 ohms ±30% at 1 kHz
- Signal-to-Noise Ratio 70 dB
- Equivalent Noise Level 18 dBA (max)
- Max Input SPL 130 dB (THD 1.0% at 1 kHz)
- Load Impedance 1000 ohms minimum
- Crossover Filter Cutoff 40 Hz to 16 kHz
- Microphone Material Steel basket and zinc alloy body
