MTX 3510-02 10" 500 Watt Peak/250 Watt RMS SVC 2-ohm Car Audio Subwoofer Sub

The MTX 3510-02 is a 10-inch single voice coil subwoofer built to add low-end output to a factory or aftermarket car audio system. It handles 250W RMS and 500W peak at 2 ohms, and pairs with a mono amplifier rated between 125W and 250W RMS. Frequency response runs from 28Hz to 130Hz at 83.2 dB sensitivity, so it reproduces deep sub-bass in hip-hop and electronic tracks along with the tighter mid-bass of rock and country.

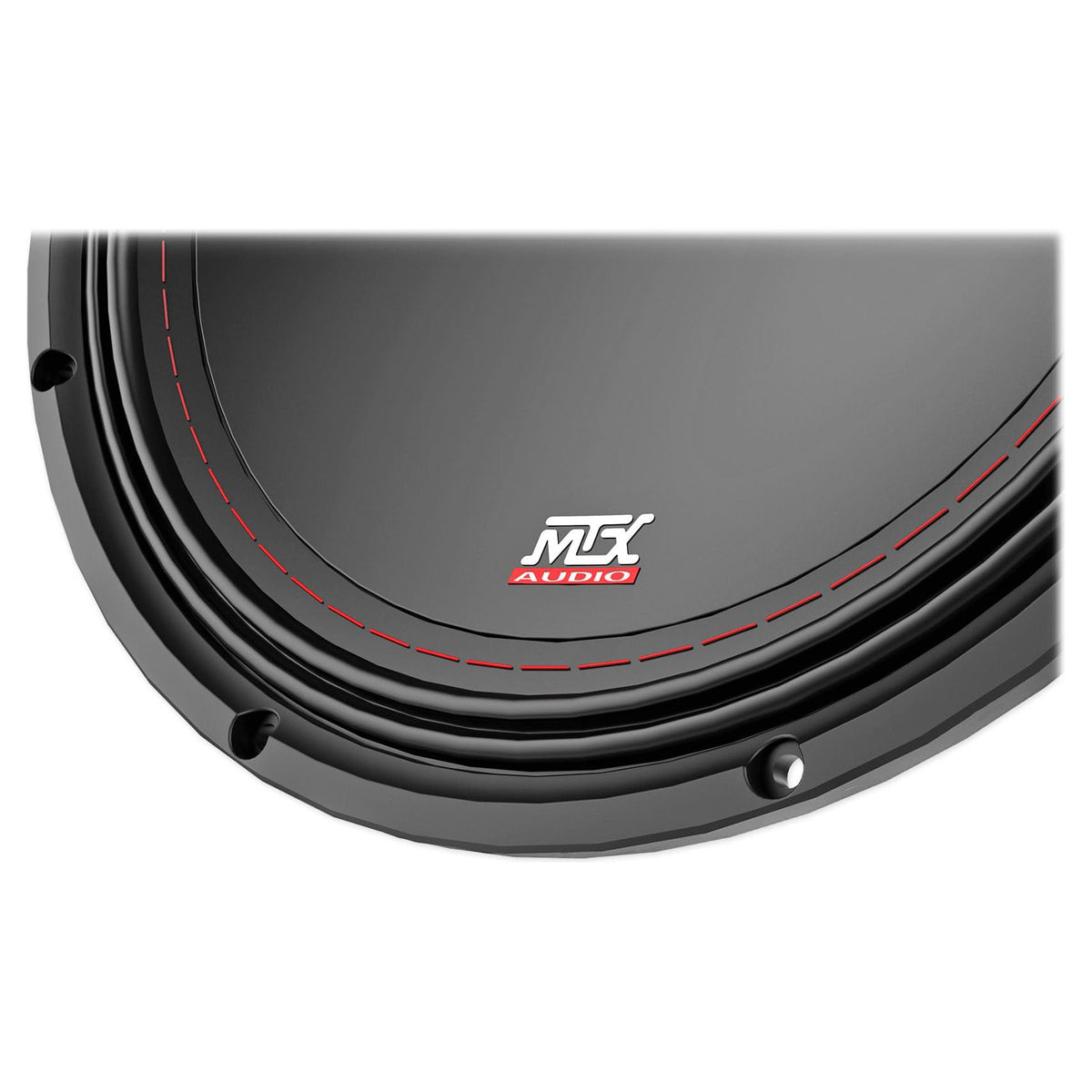

The 35 Series carries over design work from the MTX 75 and 95 Series SuperWoofers. An Inverted Apex surround increases cone surface area for more air movement and higher SPL, while progressive suspension controls excursion at high power to keep distortion low when the volume stays up. Spider Plateau Venting targets cool air at the 1.75-inch voice coil, managing heat during long listening sessions so output stays consistent.

Enclosure options stay open. In a sealed box with 0.75 cu ft net volume, the 3510-02 produces tight, controlled bass that suits accurate music playback in a daily use vehicle. In a vented box with 2.0 cu ft net volume, output climbs for more volume and impact at the same power. Volume displacement measures 19.40 cu in, mounting depth is 4.625 inches and cutout diameter is 9.188 inches, dimensions that fit common single-10 enclosures in trunks, hatch areas and behind truck seats. A 56 oz magnet anchors the motor structure.

One 3510-02 on a matched mono amplifier covers most single-sub builds, from filling in the bottom end of an upgraded component system to adding output for bass-heavy playlists.
